Build Threads Building a motor? Post the progress here.

sean's cheap thrills, 90 1.6 with subaru td04

Thread Tools

Search this Thread

Old 08-31-2015, 09:35 PM
  #821
SadFab CEO
Thread Starter
iTrader: (3)

hi_im_sean's Avatar

Join Date: Sep 2012
Location: your mom's house phoenix, AZ
Posts: 4,560
Total Cats: 1,142
Default sean's cheap thrills, 90 1.6 with subaru td04

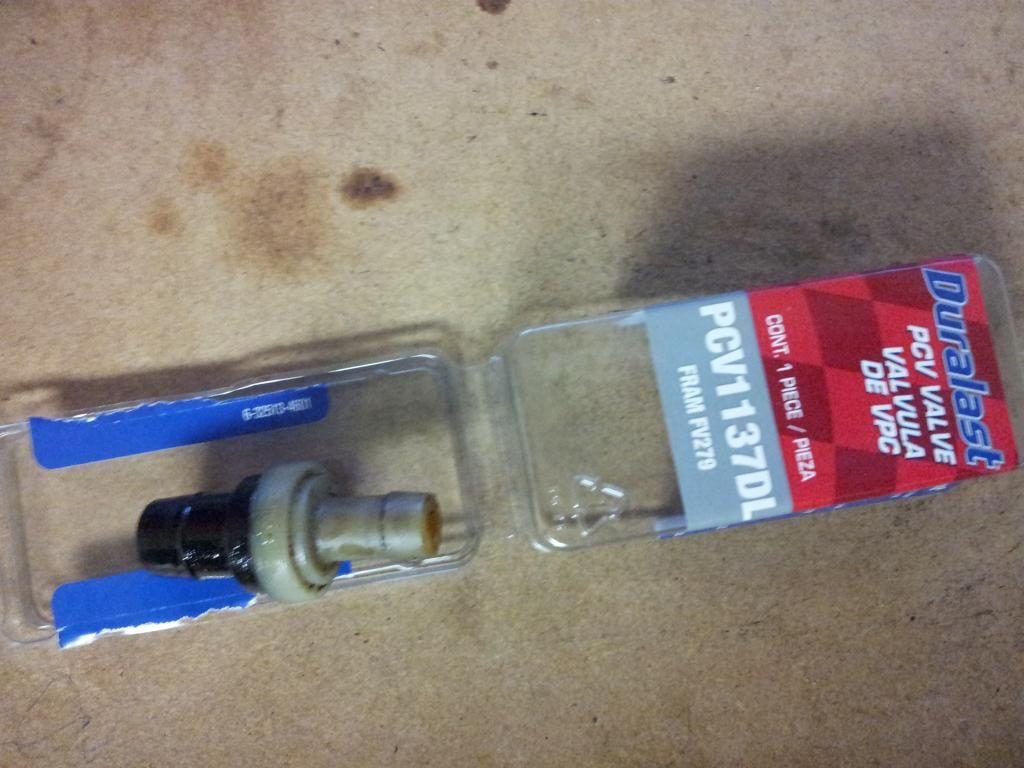

Bam!


In stock at the zone down the street
Attached Thumbnails sean's cheap thrills, 90 1.6 with subaru td04-80-128717_deezums_cheap_1_6_tries_go_fast_20141204_164124_zpsbae81bc6_1d3ca7330888f3eadfdebb9e23.jpg
hi_im_sean is offline
Old 08-31-2015, 11:54 PM
  #822
SADFab Destructive Testing Engineer
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 18,642
Total Cats: 1,866
Default

<p>Careful!</p><p>I bought the same part. And I got dipstick pops still.</p><p>This is 100% guaranteed to get rid of your pops.</p><p>Pack of Two 2 3 8" Viton Kynar Standard Check Valves Barb to Barb | eBay</p><p>Do the deezums catch can.</p><p>I just pretty much finished mine for &lt;$30.</p><p>Check my thread in the next 10.</p>
aidandj is offline
Old 09-01-2015, 12:59 AM
  #823
VladiTuned
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 35,821
Total Cats: 3,481
Default

td04-13t is pretty consistent wg only 10psi on an EJ
18psi is offline
Old 09-01-2015, 01:11 AM
  #824
SadFab CEO
Thread Starter
iTrader: (3)

hi_im_sean's Avatar

Join Date: Sep 2012
Location: your mom's house phoenix, AZ
Posts: 4,560
Total Cats: 1,142
Default

I was going to adjust the actuator, there appears to be a lot of adjustment left, but it started pouring rain out of nowhere. It only preloads the flapper arms maybe 0.100" when I last put it together.

Does the 04, 05 wrx have ebc?
hi_im_sean is offline
Old 09-01-2015, 01:12 AM
  #825
VladiTuned
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 35,821
Total Cats: 3,481
Default

every turbo subaru does. it's probably backed out all the way or something. tighten that bad boy up all the way, it still shouldn't go past 10psi
might touch 11-12 for a split second but I doubt that
18psi is offline
Old 09-01-2015, 01:15 AM
  #826
SadFab CEO
Thread Starter
iTrader: (3)

hi_im_sean's Avatar

Join Date: Sep 2012
Location: your mom's house phoenix, AZ
Posts: 4,560
Total Cats: 1,142
Default

Originally Posted by 18psi
every turbo subaru does. it's probably backed out all the way or something. tighten that bad boy up all the way, it still shouldn't go past 10psi
might touch 11-12 for a split second but I doubt that
Thought so, will do.

Since youre here, and I think the only one that can answer this: any idea what boost I should target for 200wtq with this turbo. Im not going to dyno anything until I get a 6 speed, im cheap remember.
hi_im_sean is offline
Old 09-01-2015, 01:19 AM
  #827
SADFab Destructive Testing Engineer
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 18,642
Total Cats: 1,866
Default

DYNO!!!!!!
<br />DO IT SEAN.
<br />Seriously, don't blow your new motor. Find a "dyno day" and get 3 pulls for $30 or whatever.
aidandj is offline
Old 09-01-2015, 01:21 AM
  #828
SadFab CEO
Thread Starter
iTrader: (3)

hi_im_sean's Avatar

Join Date: Sep 2012
Location: your mom's house phoenix, AZ
Posts: 4,560
Total Cats: 1,142
Default

I thought it was more like $130 for an hour?

I wont blow it up, I haz megasquirt?

Maybe ill make some det cans

The ALL OF IT **** YEA tune will be finalized on the dyno, I know a guy.
hi_im_sean is offline
Old 09-01-2015, 01:26 AM
  #829
VladiTuned
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 35,821
Total Cats: 3,481
Default

you have forged rods? dude........................
I'm completely serious when I say: crank er up.
12 bare minimum should hit 200
but really you should be playing with at least 15 anywhere that's not the track
18psi is offline
Old 09-01-2015, 01:31 AM
  #830
SadFab CEO
Thread Starter
iTrader: (3)

hi_im_sean's Avatar

Join Date: Sep 2012
Location: your mom's house phoenix, AZ
Posts: 4,560
Total Cats: 1,142
Default

Originally Posted by 18psi
you have forged rods? dude........................
I'm completely serious when I say: crank er up.
12 bare minimum should hit 200
but really you should be playing with at least 15 anywhere that's not the track
Aidan is the only one worried about the motor, im worried about the trans. Ill get EBC going here soon, for street tune.
hi_im_sean is offline
Old 09-01-2015, 01:37 AM
  #831
VladiTuned
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 35,821
Total Cats: 3,481
Default

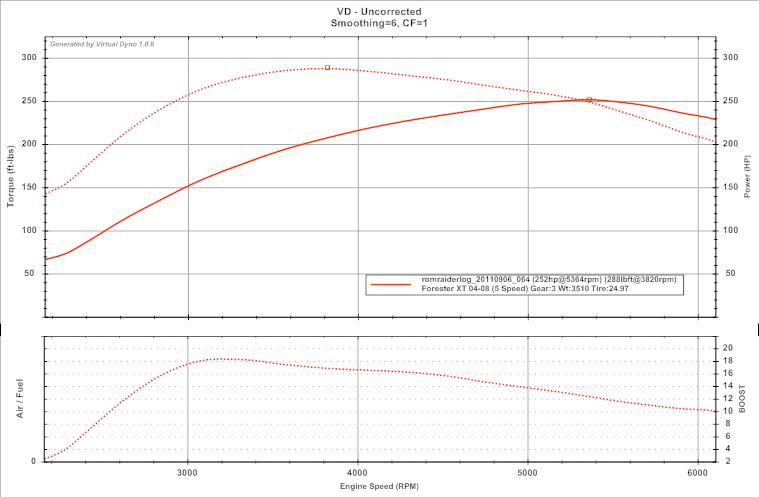

here's some motivation for you
yes, that's a td04
It would feel so much better at 2k lb instead of 3350
Attached Thumbnails sean's cheap thrills, 90 1.6 with subaru td04-08fxtstg23port.jpg
18psi is offline
Old 09-01-2015, 01:39 AM
  #832
SadFab CEO
Thread Starter
iTrader: (3)

hi_im_sean's Avatar

Join Date: Sep 2012
Location: your mom's house phoenix, AZ
Posts: 4,560
Total Cats: 1,142
Default

hi_im_sean is offline
Old 09-01-2015, 01:46 AM
  #833
SADFab Destructive Testing Engineer
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 18,642
Total Cats: 1,866
Default

Find a shop doing like a promo day. Cheap pulls
aidandj is offline
Old 09-01-2015, 01:47 AM
  #834
VladiTuned
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 35,821
Total Cats: 3,481
Default

how is he gonna blow the motor tho?
and why does he even need a dyno for 200?
I mean, it would take some serious effort to blow it now with the rods

I bet you can set boost to 12-13, afr's in the upper 11's, and timing in the 15 tapering to 20 range and it will be within 5hp of your goal

do it and report back. tell me how close i was
18psi is offline
Old 09-01-2015, 01:50 AM
  #835
SADFab Destructive Testing Engineer
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 18,642
Total Cats: 1,866
Default

I have a td04-15g. 14-15 gives me 200ft/lbs...
<br />Which killed my 5 speed
aidandj is offline
Old 09-01-2015, 01:52 AM
  #836
VladiTuned
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 35,821
Total Cats: 3,481
Default

after you nearly demolished all the pavement at the track with dat hop

18psi is offline
Old 09-01-2015, 01:55 AM
  #837
VladiTuned
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 35,821
Total Cats: 3,481
Default

also your timing must be pretty conservative
...or I'm forgetting just how terrible the 1.fail is

18psi is offline
Old 09-01-2015, 01:56 AM
  #838
SADFab Destructive Testing Engineer
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 18,642
Total Cats: 1,866
Default

Never wheel hopped in 3rd.
<br />
<br />3rd blew rolling onto the throttle. I should pull apart that trans tomorrow.
aidandj is offline
Old 09-01-2015, 01:57 AM
  #839
SADFab Destructive Testing Engineer
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 18,642
Total Cats: 1,866
Default

We tuned timing on the dyno. Didn't really gain anything.
<br />200kpa, 225hp
aidandj is offline
Old 09-01-2015, 01:58 AM
  #840
VladiTuned
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 35,821
Total Cats: 3,481
Default

look at the turbo specs, y'all don't have identical snails
....also just cause you blew 3rd doesn't mean a chunk of 1st/2nd didn't come off and take out 3rd

just sayin
18psi is offline
