Old 01-14-2014, 08:24 AM   #441
Elite Member
iTrader: (1)

Join Date: Jun 2006
Location: Warrington/Birmingham
Posts: 2,658
Total Cats: 41
Default

Quote:
Originally Posted by Erat View Post
I can't remember why you didn't go for a ride, it was right out front. lol


Edit* NB clutch chatter is REALLLLYYY getting annoying.
You can 'fix' this by slipping the clutch at low speed in 5th (so a high speed differential between clutch and flywheel).

It'll absolutely stink, and you'll take some life off the clutch, but for the next month or so it'll work perfectly, no judder at all.

Been doing this on my MK2.5 for the last 24 months, damn thing still hasn't died, FML.
richyvrlimited is offline   Reply With Quote
Old 01-18-2014, 01:54 PM   #442
Elite Member
Thread Starter
iTrader: (5)

Erat's Avatar

Join Date: Oct 2011
Location: Detroit
Posts: 3,926
Total Cats: 224
Default

Slipping the clutch helped. Thanks fellas.

But i've got a CEL for the rear O2 sensor. Reset the battery, still comes back.
I got under it and it looks like someone spliced in a new sensor (maybe used). I found a loose connection, fixed it and it's still throwing the CEL... This could be cause for my misfire, hesitation and slight bucking at low RPM.

I guess i'm going to have to leave it for now. The other O2 sensor is still working fine, that should keep things in check.
Erat is offline   Reply With Quote
Old 01-18-2014, 09:06 PM   #443
Junior Member
iTrader: (2)

williams805's Avatar

Join Date: Oct 2013
Location: Goleta, Southern California
Posts: 498
Total Cats: 24
Default

Quote:
Originally Posted by Erat View Post
Slipping the clutch helped. Thanks fellas.

But i've got a CEL for the rear O2 sensor. Reset the battery, still comes back.
I got under it and it looks like someone spliced in a new sensor (maybe used). I found a loose connection, fixed it and it's still throwing the CEL... This could be cause for my misfire, hesitation and slight bucking at low RPM.

I guess i'm going to have to leave it for now. The other O2 sensor is still working fine, that should keep things in check.
The secondary O2 would not cause drivability problems in a vehicle of this vintage. It's there to monitor the catalyst and that's about it.

What is the code exactly? If it has something to do with "secondary O2 heater", it's most likely the sensor is bad. Obviously check powers and grounds first but 99% of the time a heater code is a bad sensor.

Sometimes they will cause inefficient catalyst codes. I would look else where for drivability issues.
williams805 is offline   Reply With Quote
Old 01-22-2014, 10:30 PM   #444
Newb

Join Date: Jan 2013
Posts: 10
Total Cats: -1
Default

Can you post the last spark map please?
mxturbo is offline   Reply With Quote
Old 01-24-2014, 08:59 PM   #445
Elite Member
Thread Starter
iTrader: (5)

Erat's Avatar

Join Date: Oct 2011
Location: Detroit
Posts: 3,926
Total Cats: 224
Default

Quote:
Originally Posted by mxturbo View Post
Can you post the last spark map please?
Not sure why. Are you trying to embarrass me?

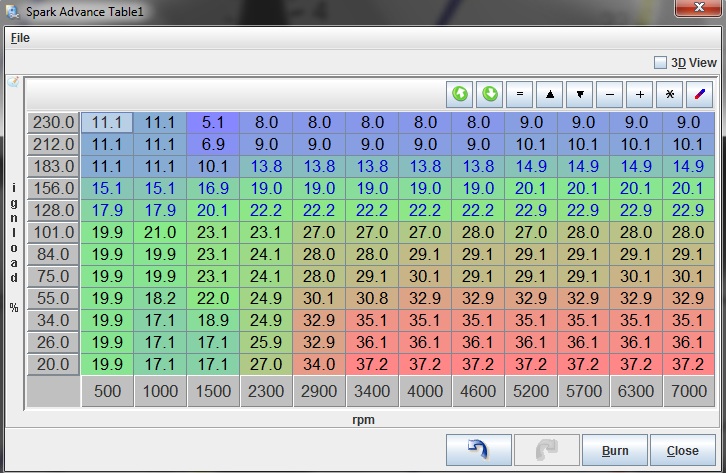

Anyway, tunerstudio updated and now it wont open. But i have this. This should be current, except i added either 5* or 8* in everything 128kpa and up.
It's pretty generic and somewhat conservative if i must say so.
Attached Thumbnails
Slowest turbo Miata ever-spark.jpg
Erat is offline   Reply With Quote
Old 01-27-2014, 10:16 PM   #446
Newb

Join Date: Jan 2013
Posts: 10
Total Cats: -1
Default

Thanks!
mxturbo is offline   Reply With Quote
Old 02-04-2014, 09:37 PM   #447
Elite Member
Thread Starter
iTrader: (5)

Erat's Avatar

Join Date: Oct 2011
Location: Detroit
Posts: 3,926
Total Cats: 224
Default

NB clutch chatter is still there. Maybe it's due to the fact that i never drive above 35mph and it's mainly stop signs every day of the week.
Finally got pissed off ended up power shifting it a few times and generally ragged on it, that's when it drives fine. I couldn't make this up. If i drive it slow / normal i get tons of chatter, bucking, jerking, bogging, ect. I've got an O2 sensor code pop up #2 so that needs to get fixed. I may end up with a new clutch in this thing very very soon...

But i have a new keychain.

It matches the NB and is a turbo... Guess i gotta turbo the NB now?

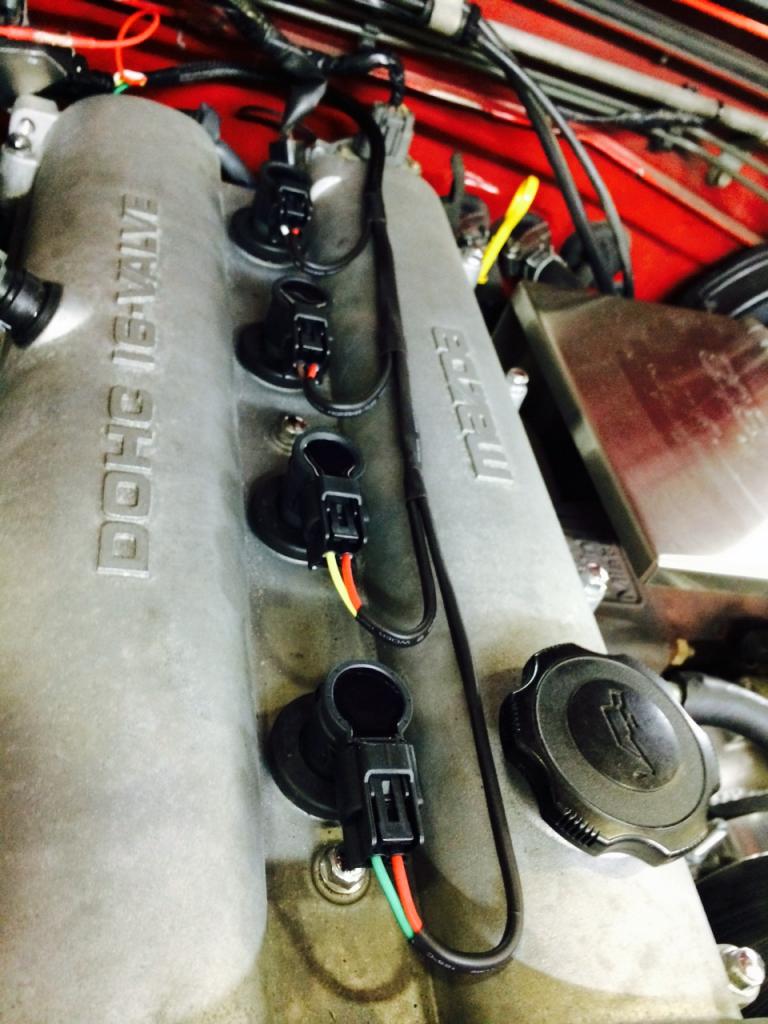

In news on the NA, obviously i installed my COP's.


I still need to do a bunch of wire sorting / tucking and generally clean things up. Along with somehow tie down the COP wires. It's all going to get sorted. Which brings me to my next thing.
I started ordering some fuel upgrade parts. So i'll do both at once while i'm in there. Along with a bunch of new tools to hopefully help me work on cars easier. This winter has really been killing me lately. No motivation.
Attached Thumbnails
Slowest turbo Miata ever-dsc05622-1.jpg   Slowest turbo Miata ever-photo4.jpg
Erat is offline   Reply With Quote
Old 02-05-2014, 09:46 AM   #448
Elite Member
iTrader: (1)

Join Date: Jun 2006
Location: Warrington/Birmingham
Posts: 2,658
Total Cats: 41
Default

Yeah, that's normal MK2.5 clutch judder.

Seriously slip it till it stinks to hell, then it won't judder again for a week or two.
richyvrlimited is offline   Reply With Quote
Old 02-05-2014, 12:36 PM   #449
Destroyer of Inconel
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 8,895
Total Cats: 774
Default

Erat, where did you mount the black box thing for the COPs?
EO2K is offline   Reply With Quote
Old 02-05-2014, 04:55 PM   #450
Elite Member
Thread Starter
iTrader: (5)

Erat's Avatar

Join Date: Oct 2011
Location: Detroit
Posts: 3,926
Total Cats: 224
Default

Haven't mounted it yet.

When i do my fuel, i'm going to run SS lines and probably a pressure gauge. So i may make some type of bracket. I'm not sure. I don't really want to screw into my firewall or any of that.
Erat is offline   Reply With Quote
Old 02-05-2014, 04:57 PM   #451
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: woosta, ma
Posts: 8,686
Total Cats: 93
Default

Quote:
Originally Posted by Erat View Post
Haven't mounted it yet.

When i do my fuel, i'm going to run SS lines and probably a pressure gauge. So i may make some type of bracket. I'm not sure. I don't really want to screw into my firewall or any of that.
Screwing into the cowl area is ok the plastic cover thing on the passenger's side makes it a pain in the dick to get to the nuts though. I tired sheet metal screws once, the FPR was supported by only the fuel line with the screws nowhere to be found after a few auto-x's.
Leafy is offline   Reply With Quote
Old 02-05-2014, 04:59 PM   #452
Elite Member
Thread Starter
iTrader: (5)

Erat's Avatar

Join Date: Oct 2011
Location: Detroit
Posts: 3,926
Total Cats: 224
Default

I'm thinking i just get an adapter for my OEM fuel rail, and hook the FPR onto that...
Erat is offline   Reply With Quote
Old 02-05-2014, 05:29 PM   #453
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: woosta, ma
Posts: 8,686
Total Cats: 93
Default

I doubt you can make one, besides stock, fit directly on the rail.
Leafy is offline   Reply With Quote
Old 03-16-2014, 02:54 PM   #454
Elite Member
Thread Starter
iTrader: (5)

Erat's Avatar

Join Date: Oct 2011
Location: Detroit
Posts: 3,926
Total Cats: 224
Default

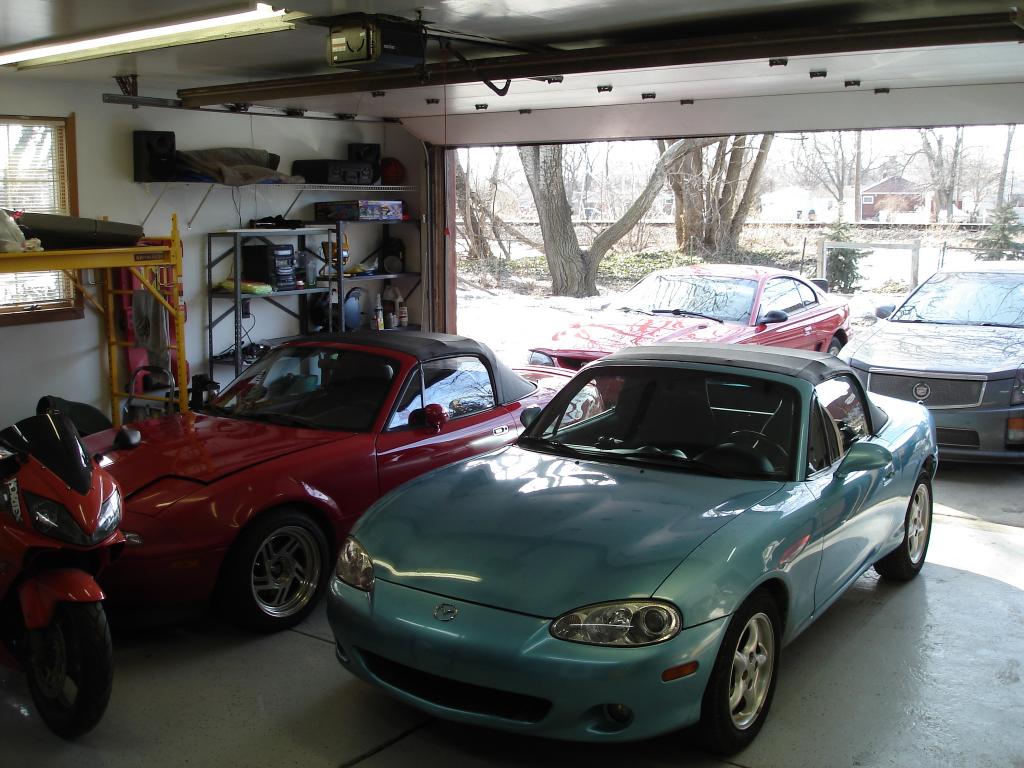

Was a nice day yesterday.



Started the miata, started rebuilding the VE map from 100kpa+. Took it for a spin. Plugs are to hot, was blowing out spark.
We knew this going in, but tried anyway. Colder spark plugs will be coming
Can't get the car to idle worth a damn. I've about exhausted my tuning abilities. But, i can't give up yet.
More parts should be on the way too.
Attached Thumbnails
Slowest turbo Miata ever-dsc05643.jpg
Erat is offline   Reply With Quote
Old 03-18-2014, 08:12 PM   #455
Elite Member
Thread Starter
iTrader: (5)

Erat's Avatar

Join Date: Oct 2011
Location: Detroit
Posts: 3,926
Total Cats: 224
Default

Parts are rolling in.

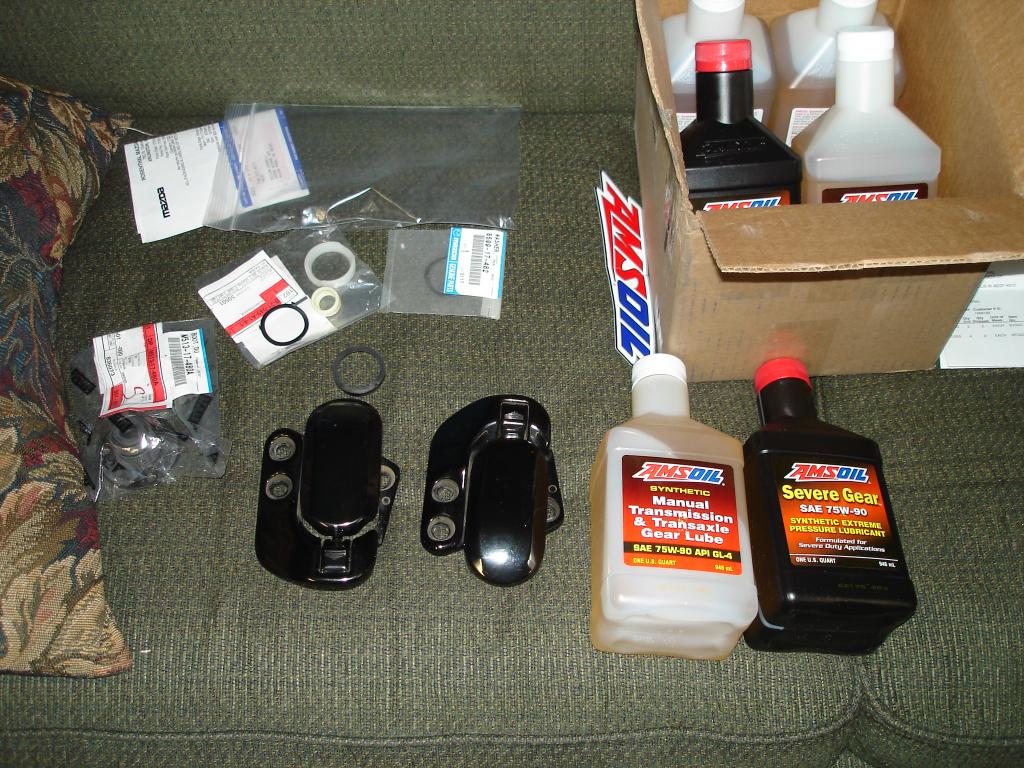

Six speed rebuild, and fluids are in. I bought latches for the NB, but they're shiny and i kinda like them so i may toss them on the NA, then put the NA latches in the NB. Not sure yet.

Took the car up to Bryan to get some different plugs. Didn't fix the problem.
After more digging we opened up the MS to find that only 2 of the 4 logic level outputs had pullups, IGN1 & IGN2 had pullups. WLED & ALED did not.
So i'm not even sure how my stock ignition setup was working. Perhaps it was only working at half it's potential?
Sent off an email to Matt at DIY and he said to put a specific resistor in for the ignition we're using, but i forgot which. We called it quits for the night. Will report back with the outcome on that.
I suppose i could add 4 of these and then have full sequential control over my coils.
http://www.diyautotune.com/catalog/b...kit-p-230.html
Attached Thumbnails
Slowest turbo Miata ever-dsc05646.jpg
Erat is offline   Reply With Quote
Old 03-19-2014, 11:35 AM   #456
Elite Member
iTrader: (3)

Join Date: Aug 2011
Posts: 7,237
Total Cats: 554
Default

Quote:
Originally Posted by Leafy View Post
I doubt you can make one, besides stock, fit directly on the rail.

I'll bet you could. In the Honda world, there's AFPRs that mount on the rail in factory location. They're pretty low profile, and there's a good amount of room where ours mount.

In fact.... somewhere i have a write-up on how to get one to work on an F2T, and there's less room on one of those.
concealer404 is offline   Reply With Quote
Old 03-19-2014, 11:39 AM   #457
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: woosta, ma
Posts: 8,686
Total Cats: 93
Default

Quote:
Originally Posted by concealer404 View Post
I'll bet you could. In the Honda world, there's AFPRs that mount on the rail in factory location. They're pretty low profile, and there's a good amount of room where ours mount.

In fact.... somewhere i have a write-up on how to get one to work on an F2T, and there's less room on one of those.
On what intake manifold. The stock NA FPR barely fits on an NB manifold. Maybe there's room on an NA but I forget.
Leafy is offline   Reply With Quote
Old 03-19-2014, 11:45 AM   #458
Elite Member
iTrader: (3)

Join Date: Aug 2011
Posts: 7,237
Total Cats: 554
Default

Quote:
Originally Posted by Leafy View Post
On what intake manifold. The stock NA FPR barely fits on an NB manifold. Maybe there's room on an NA but I forget.

Our car has a stock NA FPR on a VICS manifold. Room for days.
concealer404 is offline   Reply With Quote
Old 03-19-2014, 02:36 PM   #459
Destroyer of Inconel
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 8,895
Total Cats: 774
Default

Correct me if I'm wrong (and I generally am) but I believe there are 2 variations of the NB fuel rail. One of them is far easier to fit an NA regulator on than the other.

Quote:
Originally Posted by concealer404 View Post
Our car has a stock NA FPR on a VICS manifold. Room for days.
Pics or GTFO (Please? )
EO2K is offline   Reply With Quote
Old 03-19-2014, 02:38 PM   #460
Elite Member
iTrader: (3)

Join Date: Aug 2011
Posts: 7,237
Total Cats: 554
Default

I don't know about stock ****, what do i look like? M-Tuned rail. Don't know if that makes a big difference?
concealer404 is offline   Reply With Quote
