Old 10-28-2014, 04:48 PM   #581
Elite Member
Thread Starter
iTrader: (5)

Erat's Avatar

Join Date: Oct 2011
Location: Detroit
Posts: 3,924
Total Cats: 224
Default

Yup. That was Rogers CRZ. I believe he now drives a Fiat 500 Abarth. He was the person who originally got me down to the dragon years ago.

I have a heat gun and fender roller, thanks though.
Erat is online now   Reply With Quote
Old 10-28-2014, 07:27 PM   #582
Elite Member
Thread Starter
iTrader: (5)

Erat's Avatar

Join Date: Oct 2011
Location: Detroit
Posts: 3,924
Total Cats: 224
Default

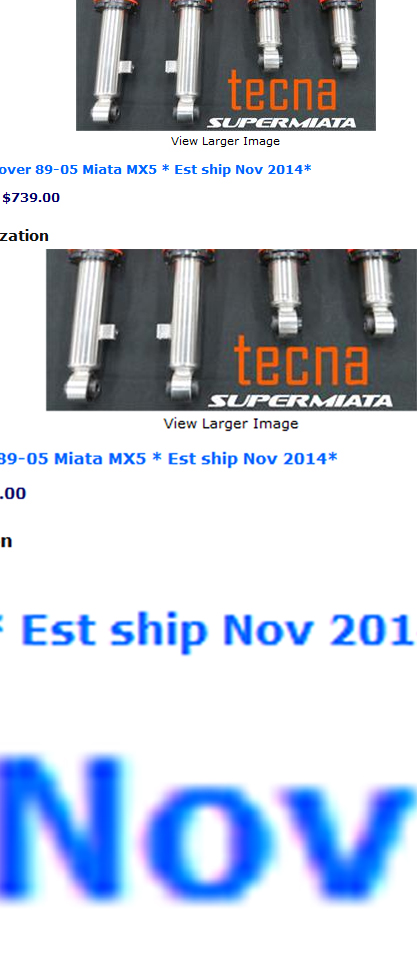

OOOOOOOOHHHHHHHH




MEHHH
Attached Thumbnails
Slowest turbo Miata ever-tecna.jpg
Erat is online now   Reply With Quote
Old 11-16-2014, 06:23 PM   #583
Elite Member
Thread Starter
iTrader: (5)

Erat's Avatar

Join Date: Oct 2011
Location: Detroit
Posts: 3,924
Total Cats: 224
Default

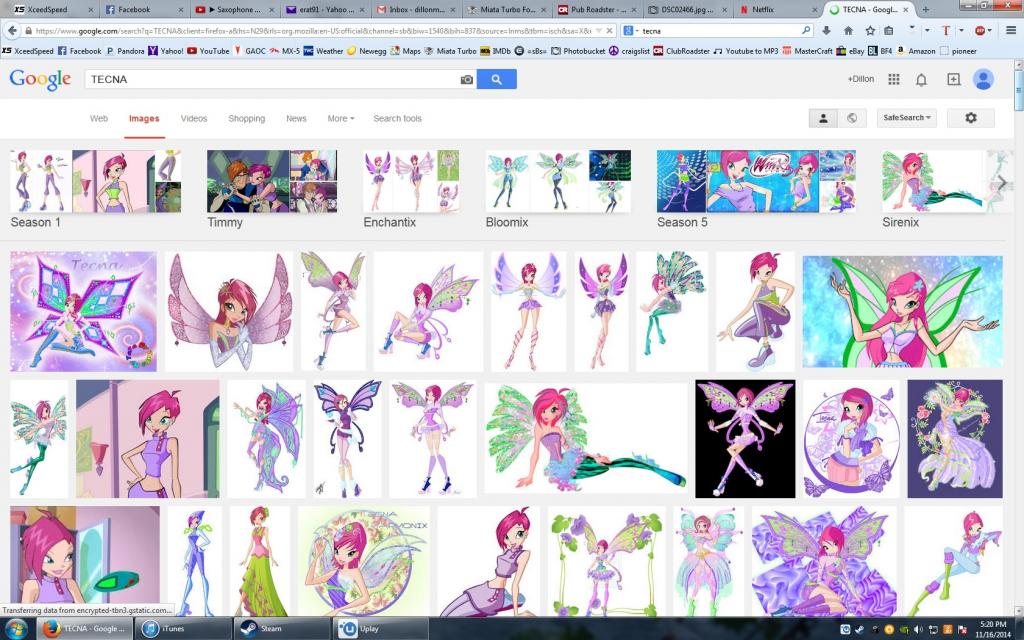

What is this, i don't even, EMIIILLOOOOOOOOO



I think our good buddies over at 949 are trolling us.


Sources

My mouse turns into something i don't even know on that site.
Attached Thumbnails
Slowest turbo Miata ever-idonteven.jpg
Erat is online now   Reply With Quote
Old 11-21-2014, 08:39 PM   #584
Elite Member
Thread Starter
iTrader: (5)

Erat's Avatar

Join Date: Oct 2011
Location: Detroit
Posts: 3,924
Total Cats: 224
Default

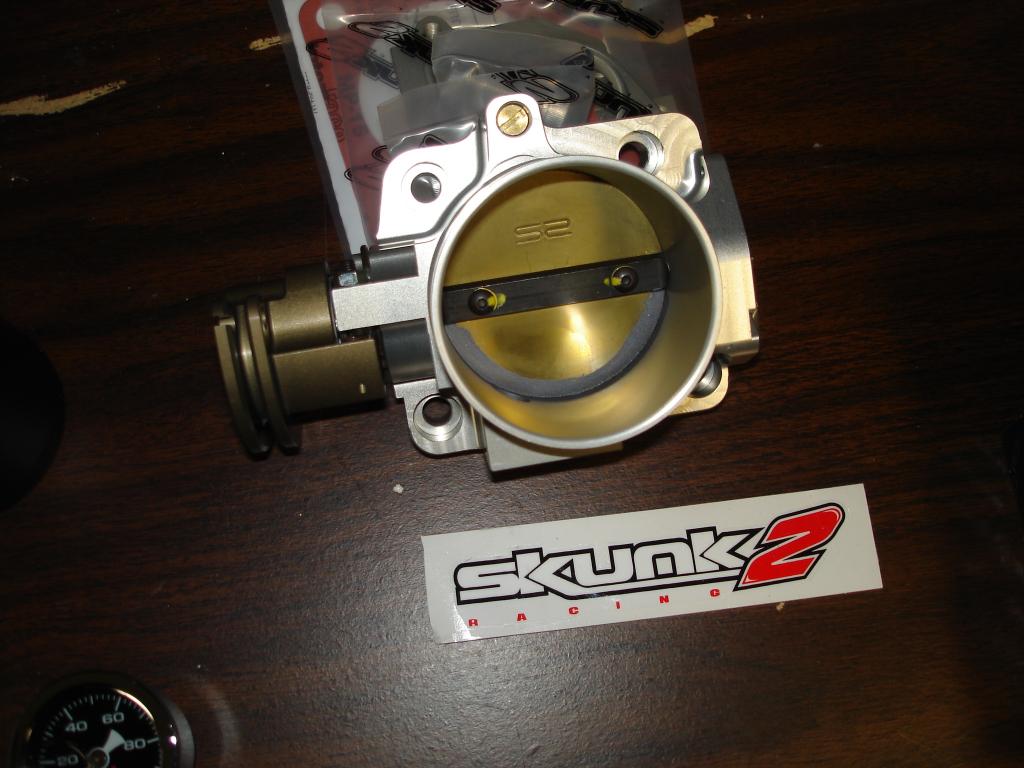

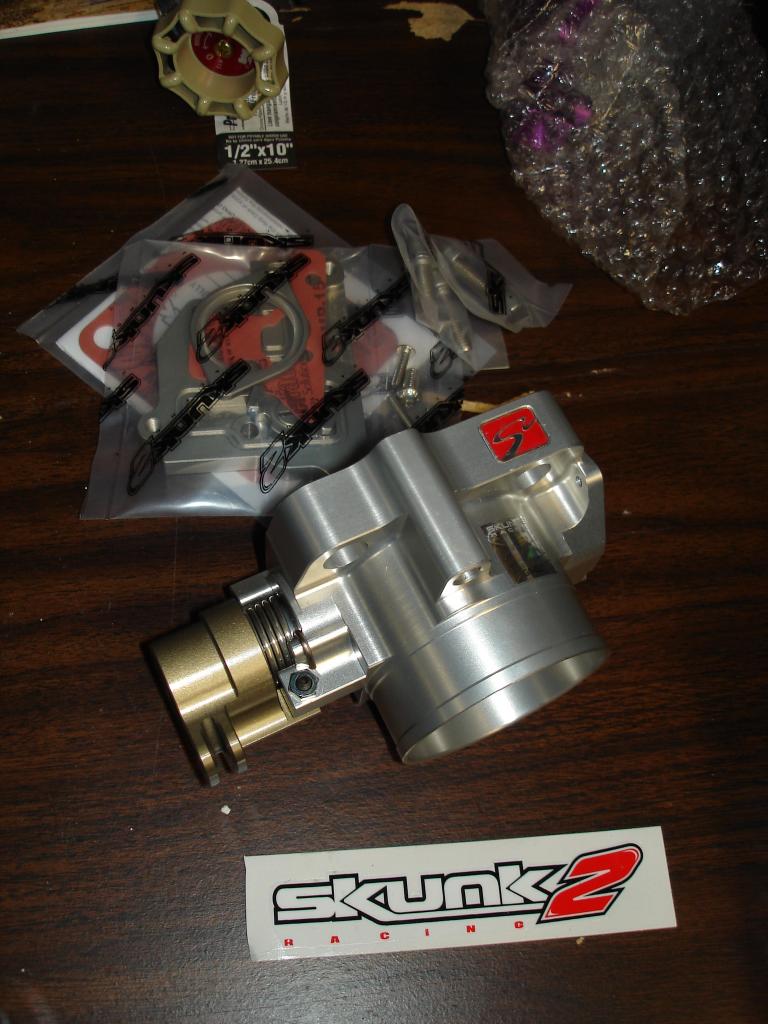

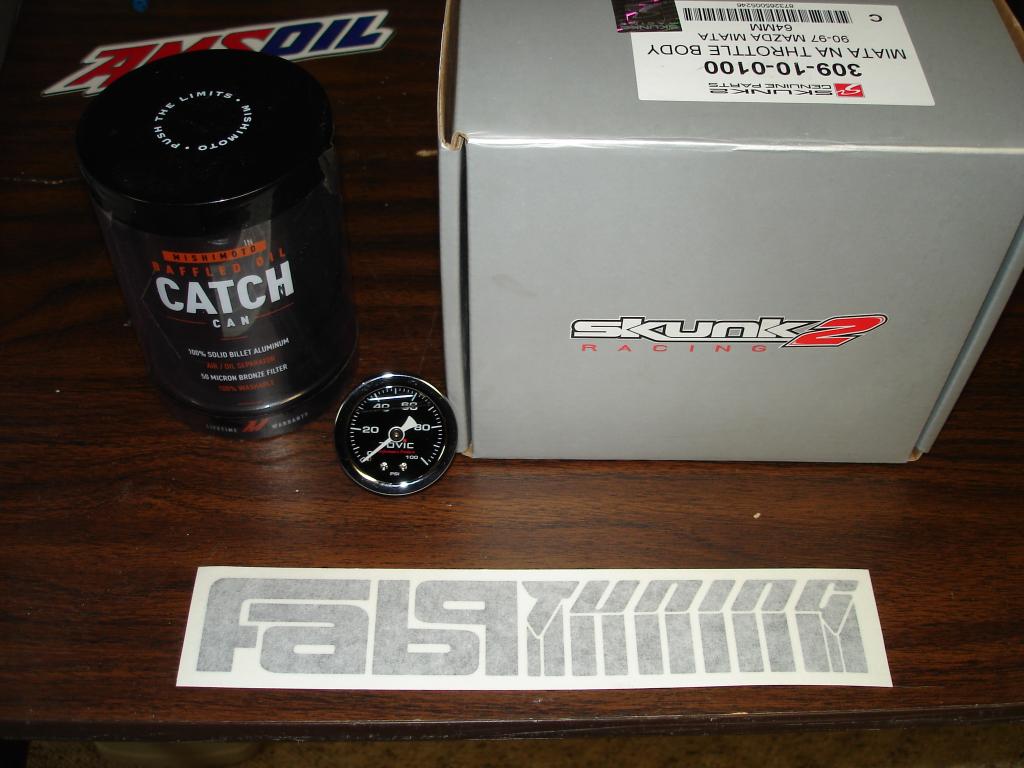

Quick little update. Ran up to Fab9 and picked up some parts today.





Attached Thumbnails
Slowest turbo Miata ever-dsc06001.jpg   Slowest turbo Miata ever-dsc05998.jpg   Slowest turbo Miata ever-dsc05996.jpg
Erat is online now   Reply With Quote
Old 11-21-2014, 08:46 PM   #585
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: woosta, ma
Posts: 8,674
Total Cats: 93
Default

The graphics on that catch can makes it look like some sort of hard core weightlifting supplement.
Leafy is online now   Reply With Quote
Old 11-22-2014, 07:23 PM   #586
Elite Member
Thread Starter
iTrader: (5)

Erat's Avatar

Join Date: Oct 2011
Location: Detroit
Posts: 3,924
Total Cats: 224
Default

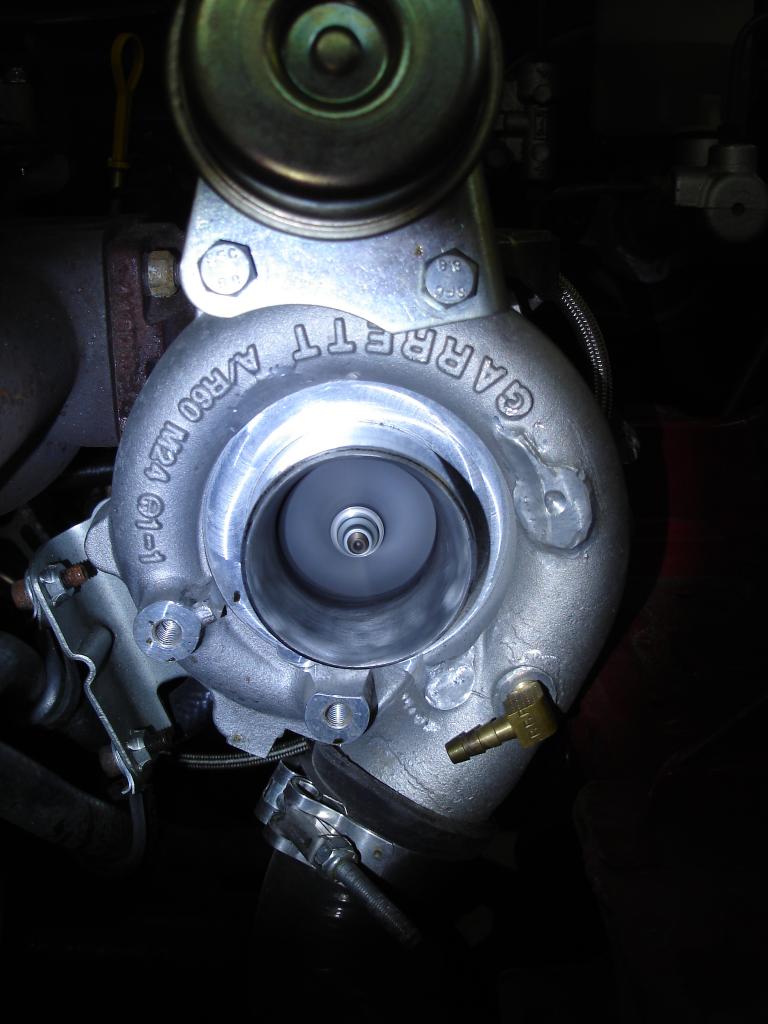

Found a little motivation today before i got too drunk. Not sure why i've had such a lack of motivation, i have a nice toasty climate controlled garage with cold beers and kitties for company.

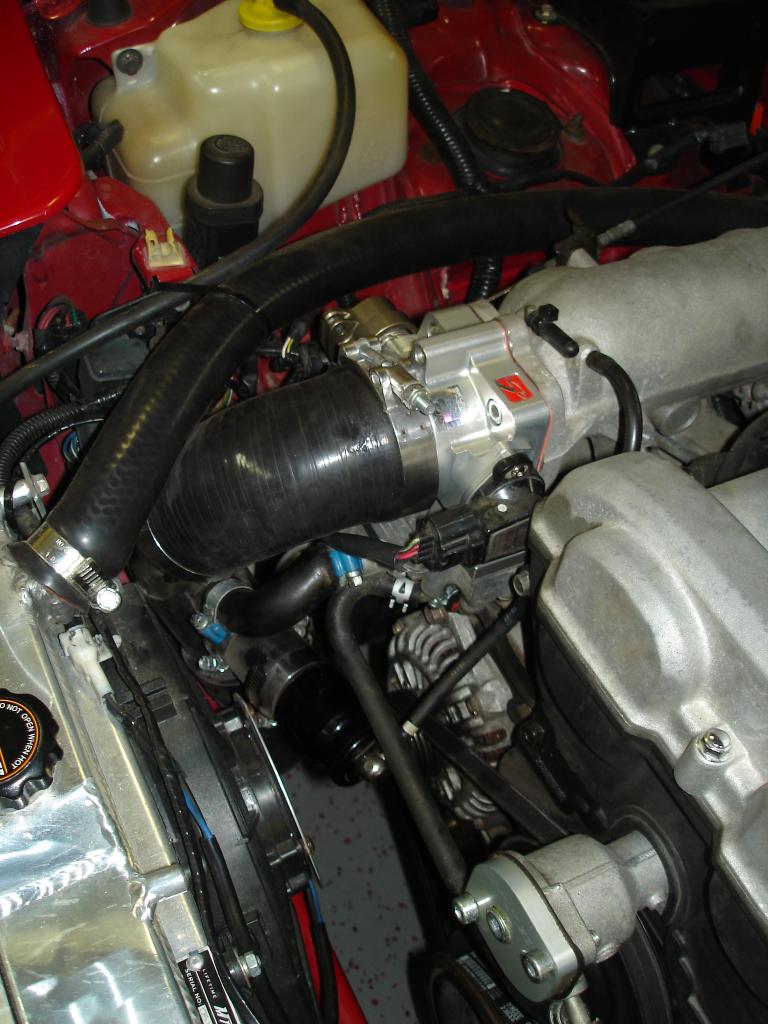

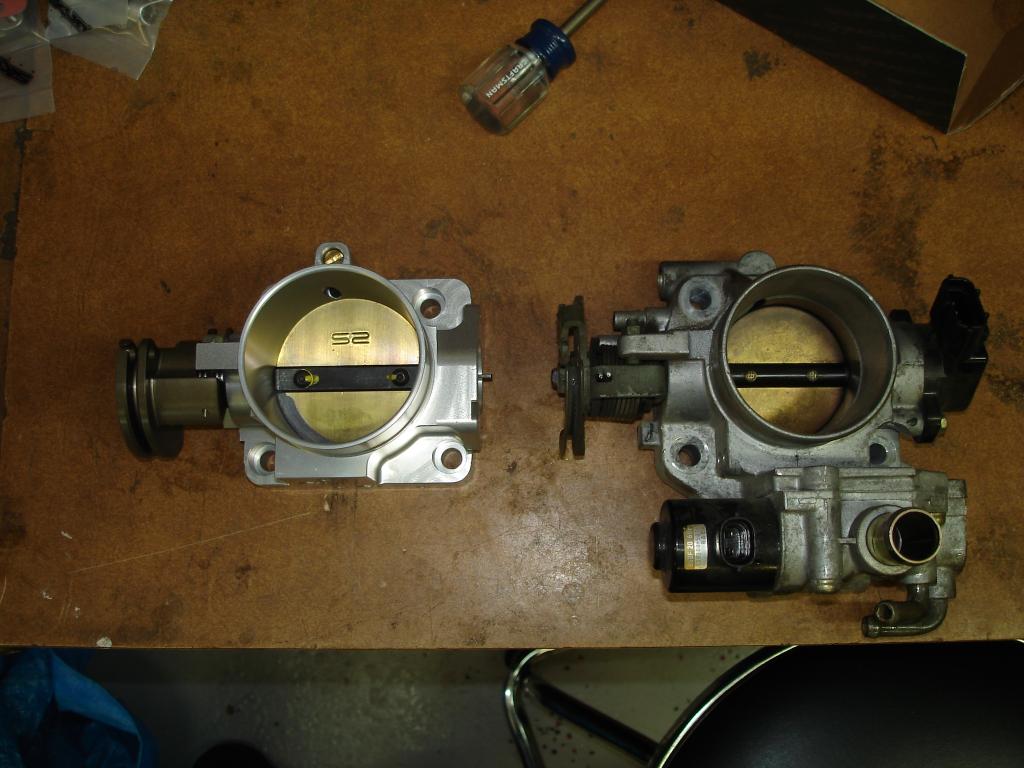

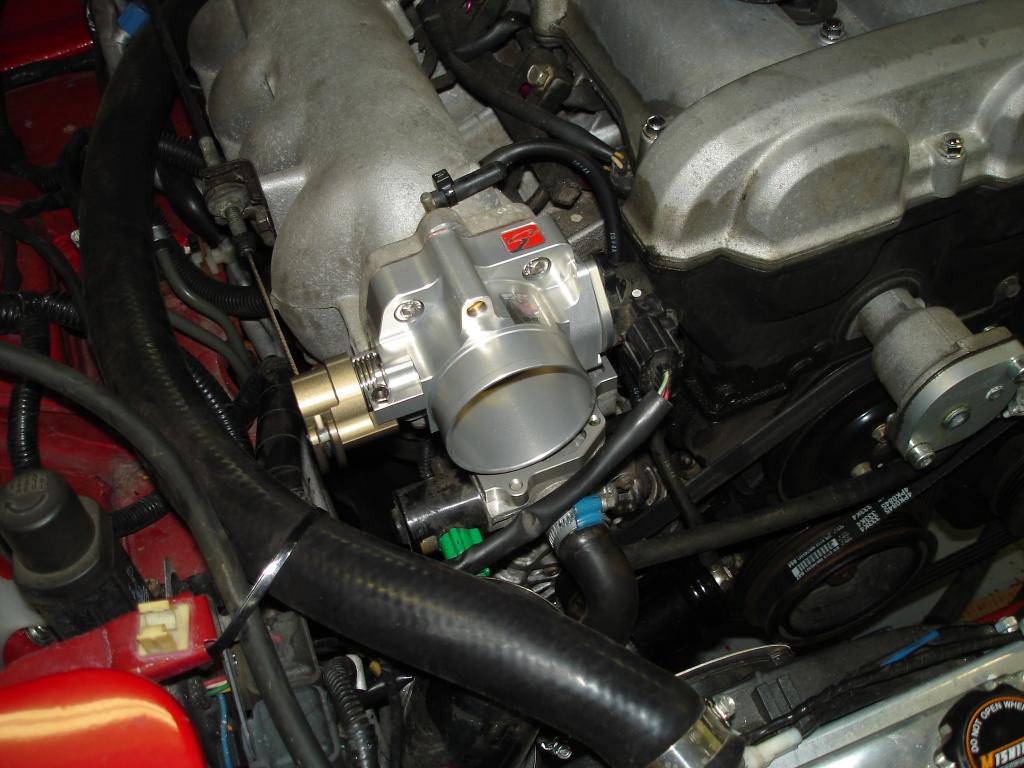

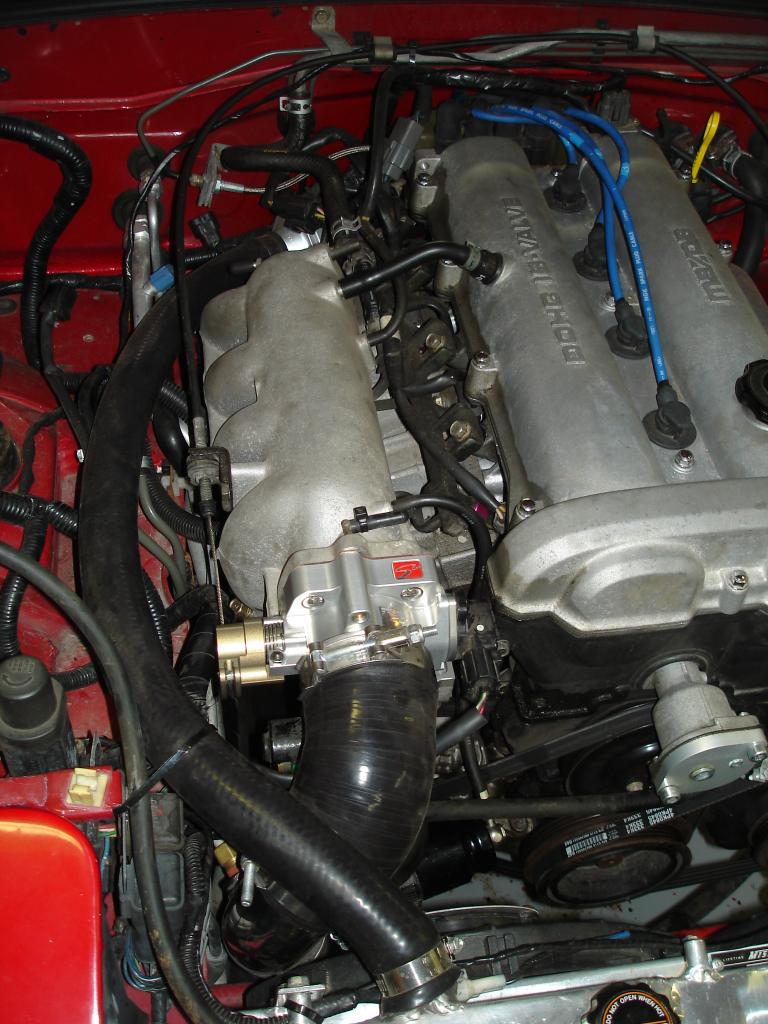

Getting this intake elbow on was a PITA. The new TB is like 1/4" wider.




Runs beautifully.


Next i may start rolling the fenders. My MS2 sold and i'll be ordering tires sometime during the month of December, hopefully. My mortgage company dicked me around on my escrow.
Going to start building my fuel system too here very soon.
Fab9 has a some of the good ignitors on order, hopefully i can get one of them and remove these stock coils. Clean up the bay a little as it's going to get a little more messy with upgrades.
Attached Thumbnails
Slowest turbo Miata ever-dsc06002.jpg   Slowest turbo Miata ever-dsc06003.jpg   Slowest turbo Miata ever-dsc06004.jpg   Slowest turbo Miata ever-dsc06006.jpg   Slowest turbo Miata ever-dsc06008.jpg

Erat is online now   Reply With Quote
Old 11-24-2014, 08:33 PM   #587
Elite Member
Thread Starter
iTrader: (5)

Erat's Avatar

Join Date: Oct 2011
Location: Detroit
Posts: 3,924
Total Cats: 224
Default

And so it ...begins ...continues? My quest to the $1000 fuel system, that is. ugghh i can't even think about that number. :lol:

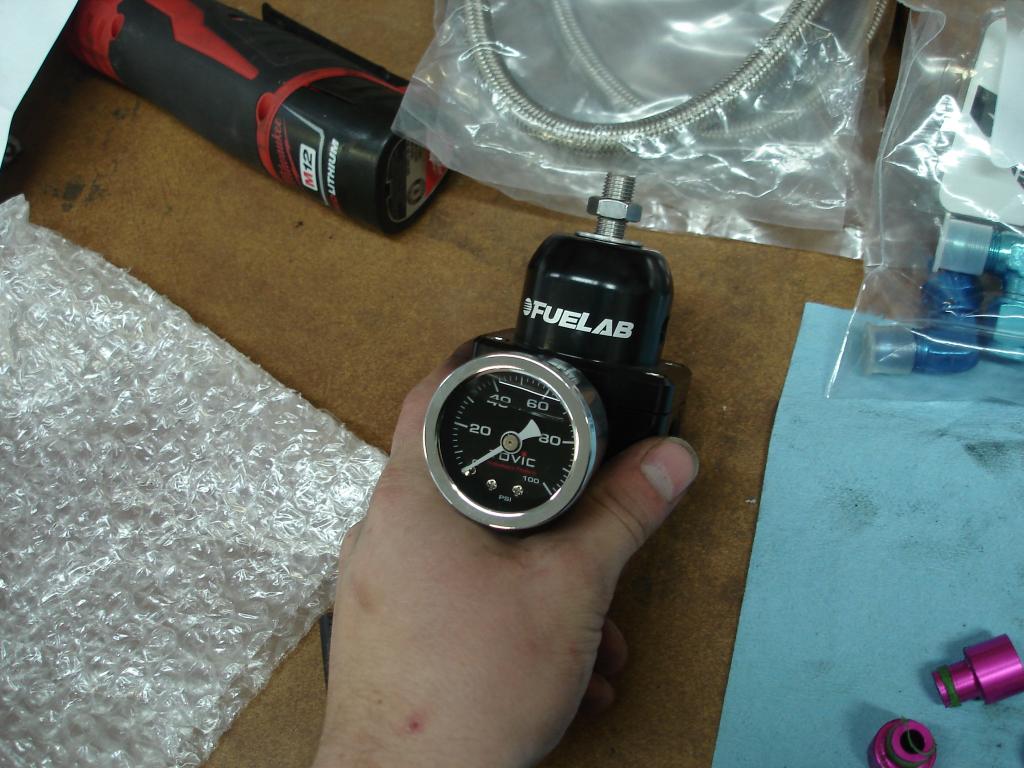

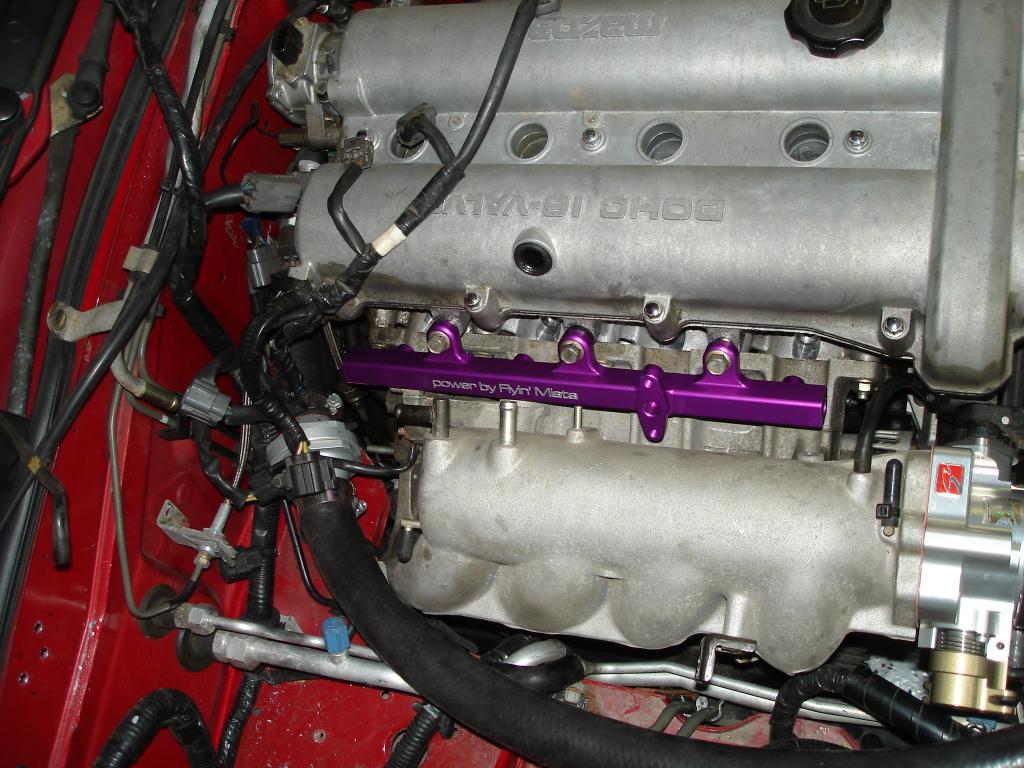

A little mockup.


Looking good.

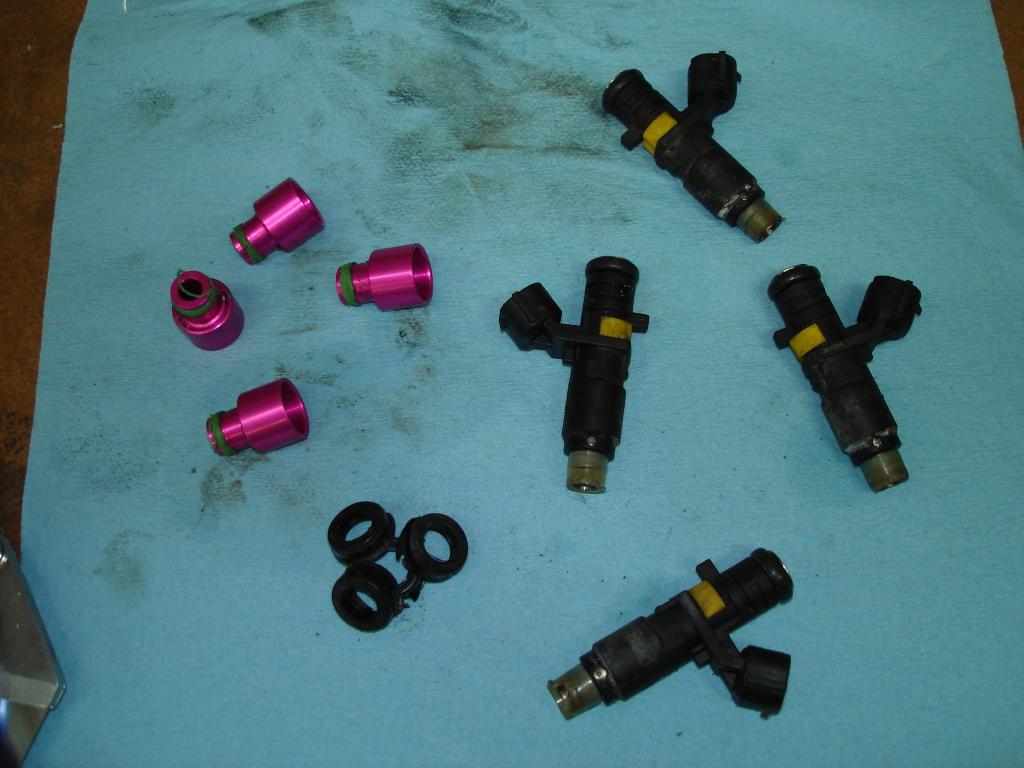

My SMOKED injectors. These poor things have been put on and taken off way to many times with the original o rings.
They will be sent back to Fiveo to be rebuilt. (oops did i say that name out loud)


I've got over $200 of fittings and hose and adapters and connections in the cart. Hopefully it all works and fits, i'm sure i'll have a few extra fittings though.
The plan is to run the rail as a dual feed setup with an adapter for where the FPR would go. But, if i can't get an adapter to work with an AN fitting(as in there is no room, or i just fail at everything) i'll just cap it and run the rail in a single feed system. It doesn't matter for what i'm doing i'm just overbuilding. I'll be cutting my hardlines and using a compression to AN fitting. All stainless braided line.
My biggest fear is the stupid stainless lines rubbing through other important things such as my big *** coolant reroute. I know they make it, but i'm having a difficult time finding the rubber coated braided stainless line in 6an. I know they make it because my stainless braided brake lines have it.
Attached Thumbnails
Slowest turbo Miata ever-dsc06016.jpg   Slowest turbo Miata ever-dsc06018.jpg   Slowest turbo Miata ever-dsc06020.jpg
Erat is online now   Reply With Quote
Old 11-24-2014, 09:02 PM   #588
Elite Member
Thread Starter
iTrader: (5)

Erat's Avatar

Join Date: Oct 2011
Location: Detroit
Posts: 3,924
Total Cats: 224
Default

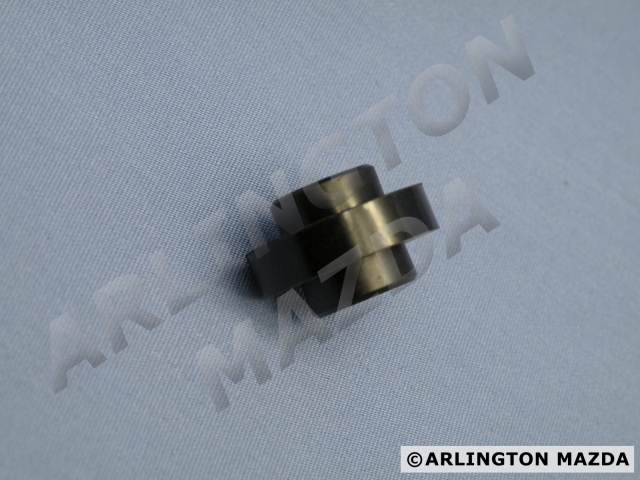

So i had two of these, and after tonight i have one.
I REFUSE to pay $5 a piece for these stupid things.


INSULATOR, FUEL (B675-13-158) - $5.58 - B67513158

I get pretty bored at work so i'm going to attempt to turn a few of them out of aluminum. Then i'll try and get them anodized, since i already work in an anodizing plant.
Attached Thumbnails
Slowest turbo Miata ever-7f8b5ce89820e4c32f7947cf7d8a92df__50928_zoom.jpg
Erat is online now   Reply With Quote
Old 11-24-2014, 09:36 PM   #589
Destroyer of Inconel
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 8,882
Total Cats: 774
Default

And then epoxy them to your head or fuel rail and never worry about it again.
EO2K is offline   Reply With Quote
Old 11-25-2014, 04:58 PM   #590
Elite Member
Thread Starter
iTrader: (5)

Erat's Avatar

Join Date: Oct 2011
Location: Detroit
Posts: 3,924
Total Cats: 224
Default

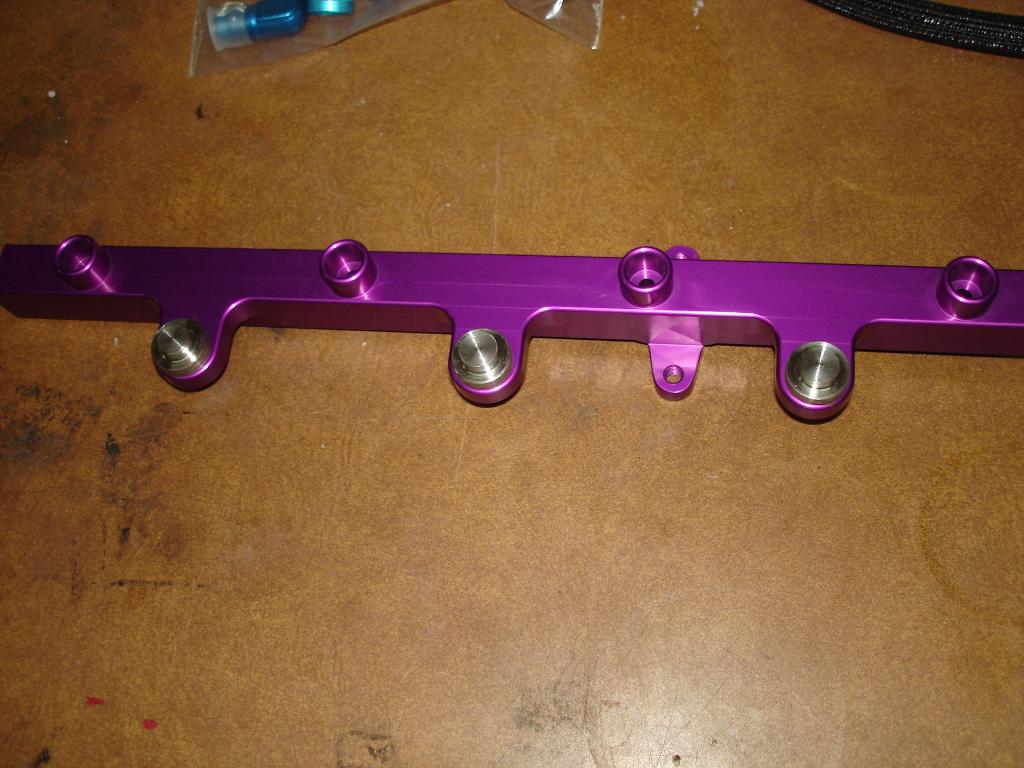

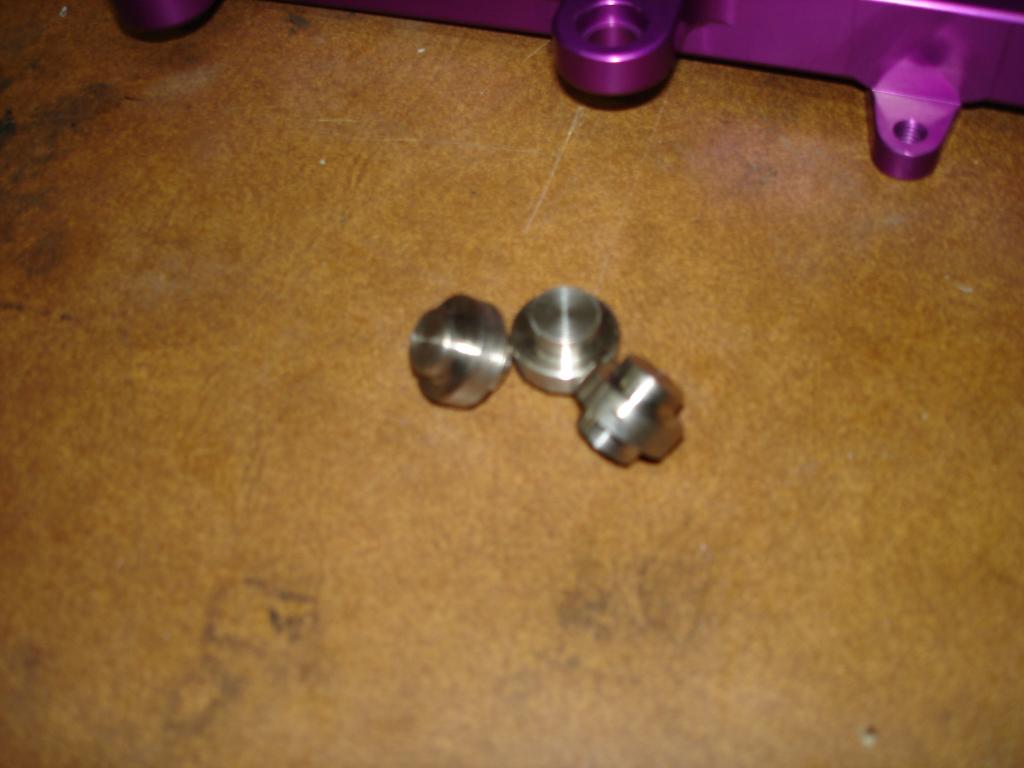

Well, i decided to do one better.

I found a bit of titanium bar stock laying in the back. I can't think of a better material to make these out of. First time ever turning titanium. The only tailstock chuck i could find was a live center, which was no use to me for drilling a hole. I'll either find one, order one, or just chuck it somehow in the bridgeport.

My old camera will not focus.


They fit like a glove.


I'm not even sure if this will work, maybe they need to be plastic. In which case, we have a metric shitload of polypro i can make it out of too. I will never pay $5 a piece for them though.
Attached Thumbnails
Slowest turbo Miata ever-dsc06026.jpg   Slowest turbo Miata ever-dsc06023.jpg
Erat is online now   Reply With Quote
Old 11-25-2014, 05:16 PM   #591
Senior Member
iTrader: (1)

Join Date: Dec 2010
Location: Farmington Hills, MI
Posts: 625
Total Cats: 45
Default

I love turning titanium!
acedeuce802 is offline   Reply With Quote
Old 11-25-2014, 09:08 PM   #592
Elite Member
Thread Starter
iTrader: (5)

Erat's Avatar

Join Date: Oct 2011
Location: Detroit
Posts: 3,924
Total Cats: 224
Default

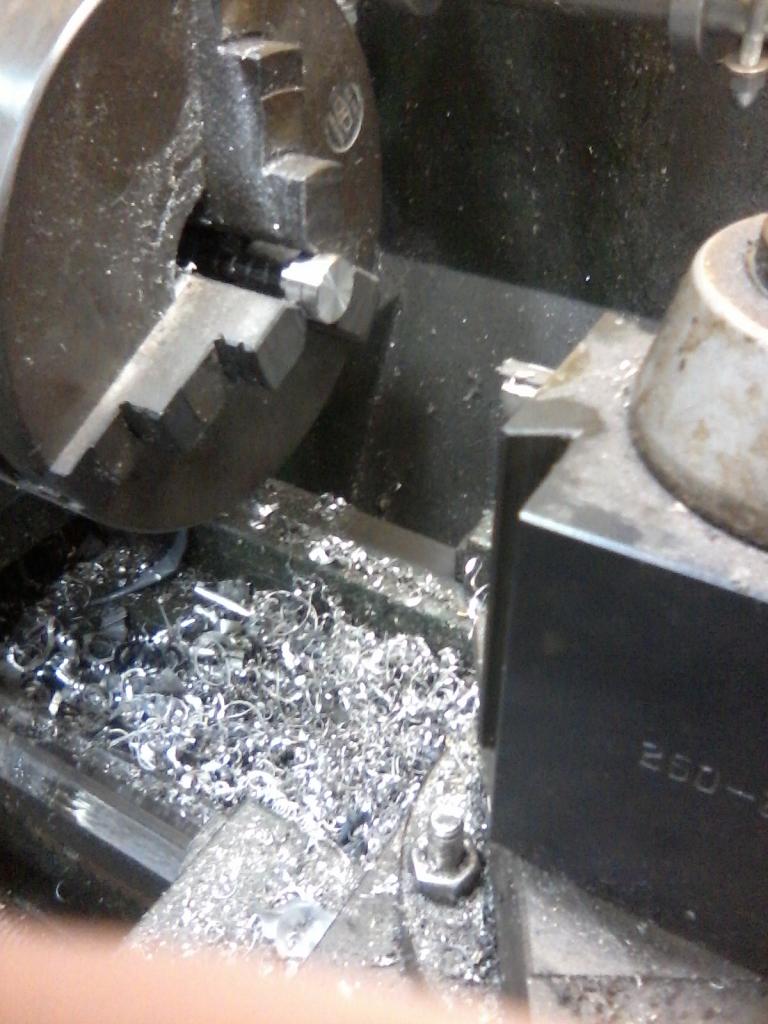

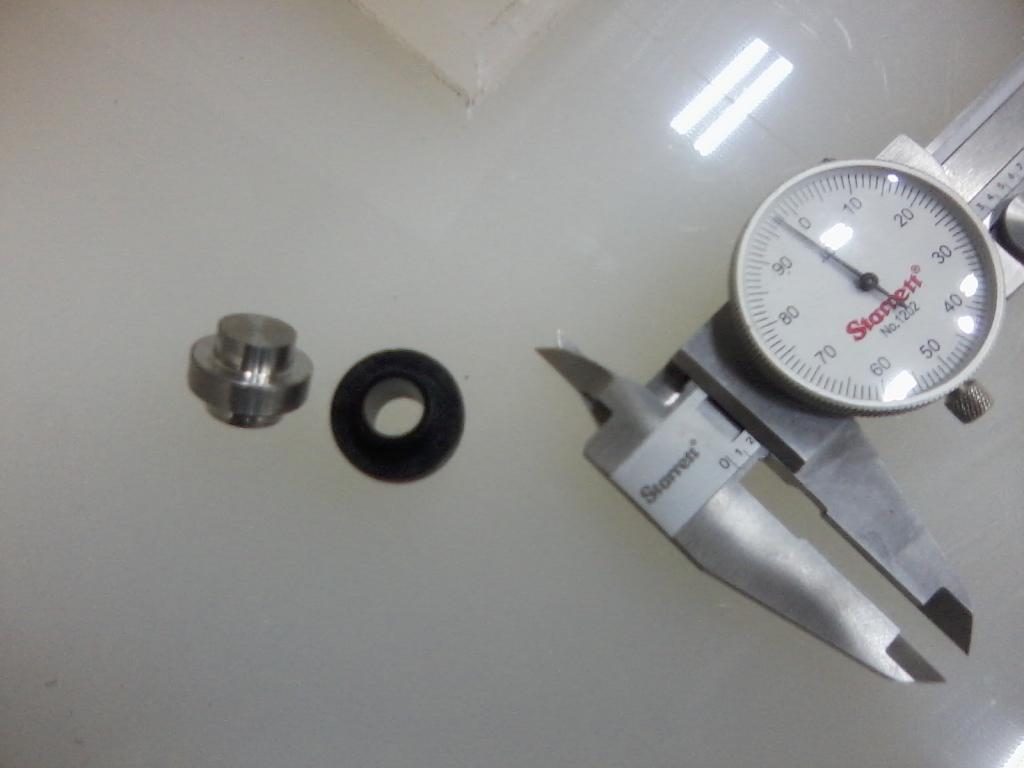

I agree. It's actually pretty nice to work with. It's not very easy to file and clean up though.





These things are so dang small that the only difficulty i had was getting them held in the chuck.
Attached Thumbnails
Slowest turbo Miata ever-image11252014090117.jpg   Slowest turbo Miata ever-image11252014091400.jpg
Erat is online now   Reply With Quote
Old 11-26-2014, 07:34 PM   #593
Elite Member
Thread Starter
iTrader: (5)

Erat's Avatar

Join Date: Oct 2011
Location: Detroit
Posts: 3,924
Total Cats: 224
Default

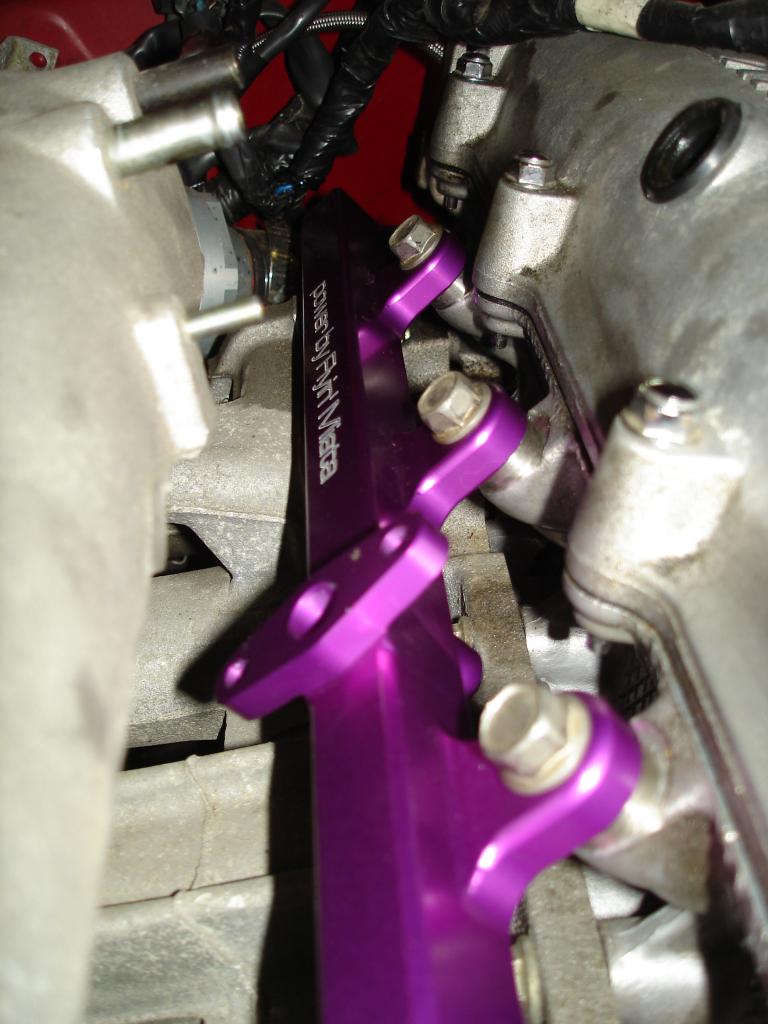

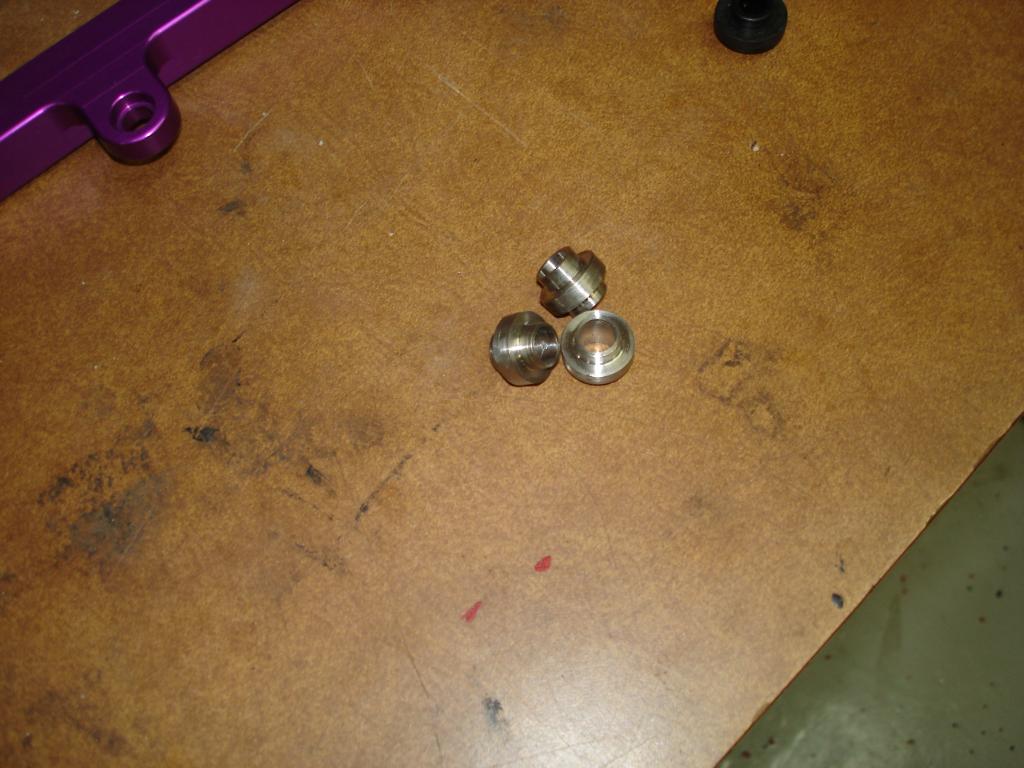

All done.

This is without a doubt, the best part i've ever made for my car.



Attached Thumbnails
Slowest turbo Miata ever-dsc06029.jpg   Slowest turbo Miata ever-dsc06034.jpg
Erat is online now   Reply With Quote
Old 11-26-2014, 07:43 PM   #594
Destroyer of Inconel
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 8,882
Total Cats: 774
Default

I don't see epoxy on there...
EO2K is offline   Reply With Quote
Old 11-27-2014, 03:33 AM   #595
Junior Member

Join Date: Jan 2014
Location: Finland
Posts: 79
Total Cats: -10
Default

Tell me how it turns out with the fuel return fitting on the rail. I have the same V1 FM rail and it's impossible to fit anything on the return with this intake manifold.
Super low 90deg AN-fitting with miata flange would do the case but does not exist...
Vuti is offline   Reply With Quote
Old 12-01-2014, 07:54 PM   #596
Elite Member
Thread Starter
iTrader: (5)

Erat's Avatar

Join Date: Oct 2011
Location: Detroit
Posts: 3,924
Total Cats: 224
Default

We'll find out^

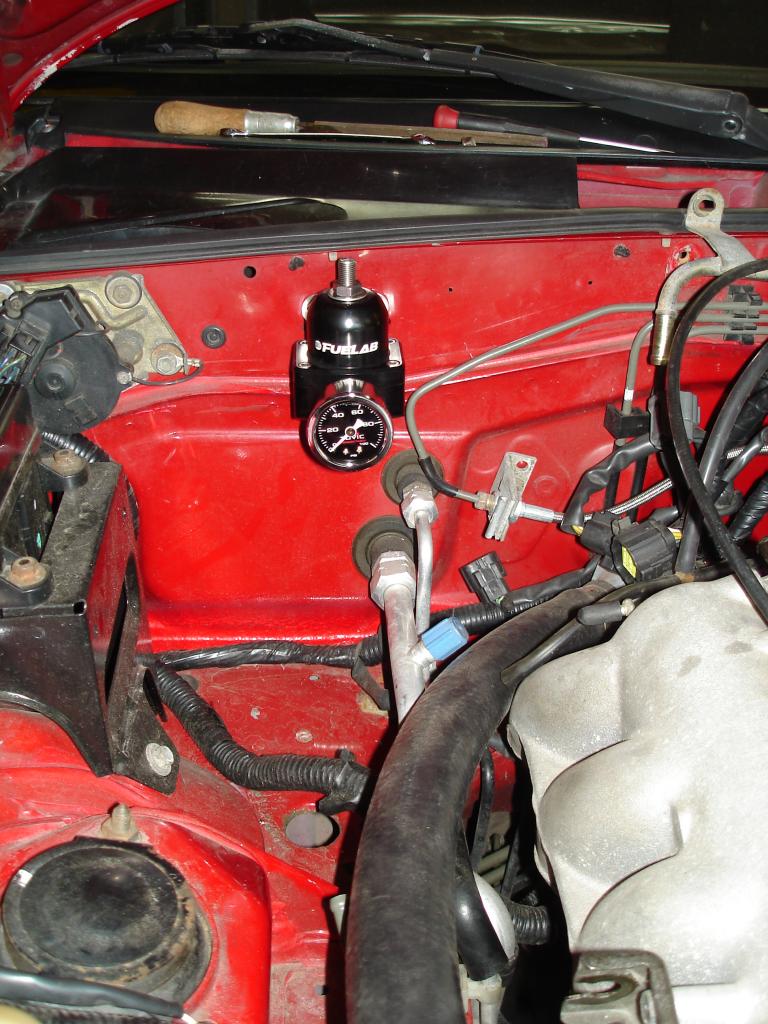

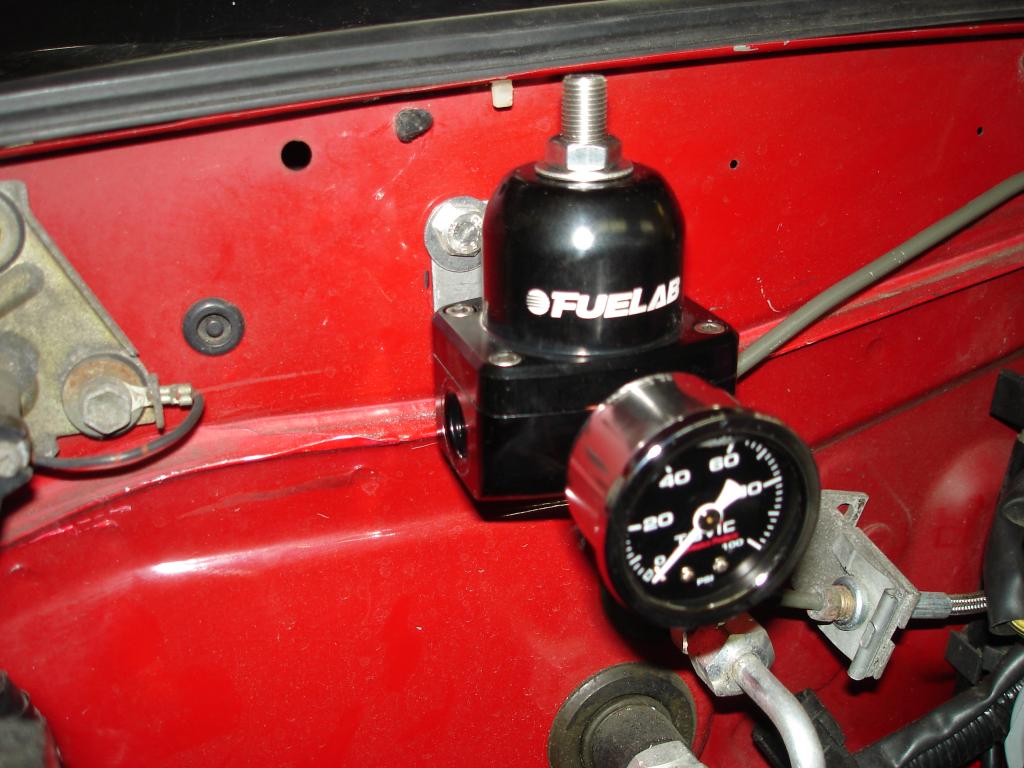

FPR is on.
Now just a waiting game on parts to show up. Delivery people will hate me this next week. Well, i think delivery people hate their jobs the entire month of December to be honest.


Attached Thumbnails
Slowest turbo Miata ever-dsc06040.jpg   Slowest turbo Miata ever-dsc06039.jpg
Erat is online now   Reply With Quote
Old 12-02-2014, 02:39 PM   #597
I take big bites
iTrader: (1)

turbofan's Avatar

Join Date: Sep 2010
Location: Portland, OR
Posts: 6,083
Total Cats: 424
Default

In Michigan I'm sure delivery people hate their jobs from November til March.
turbofan is online now   Reply With Quote
Old 12-02-2014, 03:10 PM   #598
Senior Member
iTrader: (1)

Join Date: Dec 2010
Location: Farmington Hills, MI
Posts: 625
Total Cats: 45
Default

Quote:
Originally Posted by turbofan View Post
In Michigan I'm sure everyone hates everything from November til March.
FTFY
acedeuce802 is offline   Reply With Quote
Old 12-02-2014, 03:15 PM   #599
Elite Member
iTrader: (3)

Join Date: Aug 2011
Posts: 7,237
Total Cats: 554
Default

April to October, there's just roaming gang wars and bloodshed. Nice place.
concealer404 is offline   Reply With Quote
Old 12-02-2014, 03:32 PM   #600
I take big bites
iTrader: (1)

turbofan's Avatar

Join Date: Sep 2010
Location: Portland, OR
Posts: 6,083
Total Cats: 424
Default

turbofan is online now   Reply With Quote
