Old 05-07-2012, 04:04 PM   #181
Elite Member
Thread Starter
iTrader: (10)

soviet's Avatar

Join Date: Jan 2010
Location: VA
Posts: 3,509
Total Cats: 248
Default

Quote:
Originally Posted by shuiend View Post
Is there at least enough of the bolts exposed to pull out the old ones? Also have you run over to finishline to pick up brand new ones yet?
I'm almost certain that I'll just drill and tap the pulley boss for larger bolts (M8 I'm guessing). It's the best and also cheapest way. I also have a lot of 10.9 grade bolts from McMaster so I'll just use those.

Pulley Boss is expensive.
soviet is offline   Reply With Quote
Old 05-07-2012, 04:44 PM   #182
mkturbo.com
iTrader: (24)

shuiend's Avatar

Join Date: May 2006
Location: Charleston SC
Posts: 12,214
Total Cats: 750
Default

Quote:
Originally Posted by soviet View Post
I'm almost certain that I'll just drill and tap the pulley boss for larger bolts (M8 I'm guessing). It's the best and also cheapest way. I also have a lot of 10.9 grade bolts from McMaster so I'll just use those.

Pulley Boss is expensive.
Also make sure you have the 96+ pulley boss so that it is spaced correctly for the trigger wheel.
shuiend is offline   Reply With Quote
Old 05-07-2012, 05:08 PM   #183
Elite Member
Thread Starter
iTrader: (10)

soviet's Avatar

Join Date: Jan 2010
Location: VA
Posts: 3,509
Total Cats: 248
Default

Quote:
Originally Posted by shuiend View Post
Also make sure you have the 96+ pulley boss so that it is spaced correctly for the trigger wheel.
I do
I actually had this one for past 2 years and I bought it new at rosenthal. I broke a chunk off the original pulley boss, trying to remove it. Back then, I didn't realize you had to remove the crankshaft bolt first.....
soviet is offline   Reply With Quote
Old 05-08-2012, 02:03 PM   #184
Elite Member
Thread Starter
iTrader: (10)

soviet's Avatar

Join Date: Jan 2010
Location: VA
Posts: 3,509
Total Cats: 248
Default



1st run - blue = 299hp, 19-20 psi, my super-conservative timing
2nd run - green = 287hp, 17-18psi same timing
3rd run - red = 318hp, same boost but 3* more timing everywhere in boost
soviet is offline   Reply With Quote
Old 05-08-2012, 02:10 PM   #185
Senior Member
iTrader: (3)

Join Date: Dec 2007
Location: Seven Valleys, PA
Posts: 626
Total Cats: 10
Default

ok, i am sold. now i have to build one!
swimming108 is offline   Reply With Quote
Old 05-08-2012, 02:12 PM   #186
mkturbo.com
iTrader: (24)

shuiend's Avatar

Join Date: May 2006
Location: Charleston SC
Posts: 12,214
Total Cats: 750
Default

The question is why are you making slightly less power than 99mx5 with 5+psi more of boost.
shuiend is offline   Reply With Quote
Old 05-08-2012, 02:22 PM   #187
Boost Czar

iTrader: (60)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 70,179
Total Cats: 1,402
Default

because 99mx5 has the squaretop IM and some extra headwork and apparently never stops mkaing torque?


looks like your soft cut limiter is on at ~6800? killing your total HP.
Braineack is offline   Reply With Quote
Old 05-08-2012, 02:25 PM   #188
Elite Member
Thread Starter
iTrader: (10)

soviet's Avatar

Join Date: Jan 2010
Location: VA
Posts: 3,509
Total Cats: 248
Default

Quote:
Originally Posted by shuiend View Post
The question is why are you making slightly less power than 99mx5 with 5+psi more of boost.
he probably runs a ton more timing. I don't know. I don't really believe his numbers because he's also at 4000ft elevation

the dip in power at high rpm is just fuel map going rich as ----. I don't have a soft cut. Just hard at 7200.
soviet is offline   Reply With Quote
Old 05-08-2012, 02:37 PM   #189
Boost Czar

iTrader: (60)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 70,179
Total Cats: 1,402
Default

oh okay yeah i see that.
Braineack is offline   Reply With Quote
Old 05-08-2012, 02:37 PM   #190
Elite Member
Thread Starter
iTrader: (10)

soviet's Avatar

Join Date: Jan 2010
Location: VA
Posts: 3,509
Total Cats: 248
Default

tune (after 3rd pull) & 2 logs.

first log has 1st pull (299 hp)
second log has 2 & 3 pull (287 and 318 hp)

my wideband is SPOT ON as the dyno shop wideband. makes me warm and fuzzy inside.
Attached Files
File Type: msq 2012-05-08_13.35.33.msq (79.4 KB, 86 views)
File Type: msl 2012-05-08_12.31.06.msl (940.8 KB, 106 views)
File Type: msl 2012-05-08_12.35.27.msl (903.2 KB, 105 views)
soviet is offline   Reply With Quote
Old 05-08-2012, 06:28 PM   #191
Elite Member
Thread Starter
iTrader: (10)

soviet's Avatar

Join Date: Jan 2010
Location: VA
Posts: 3,509
Total Cats: 248
Default

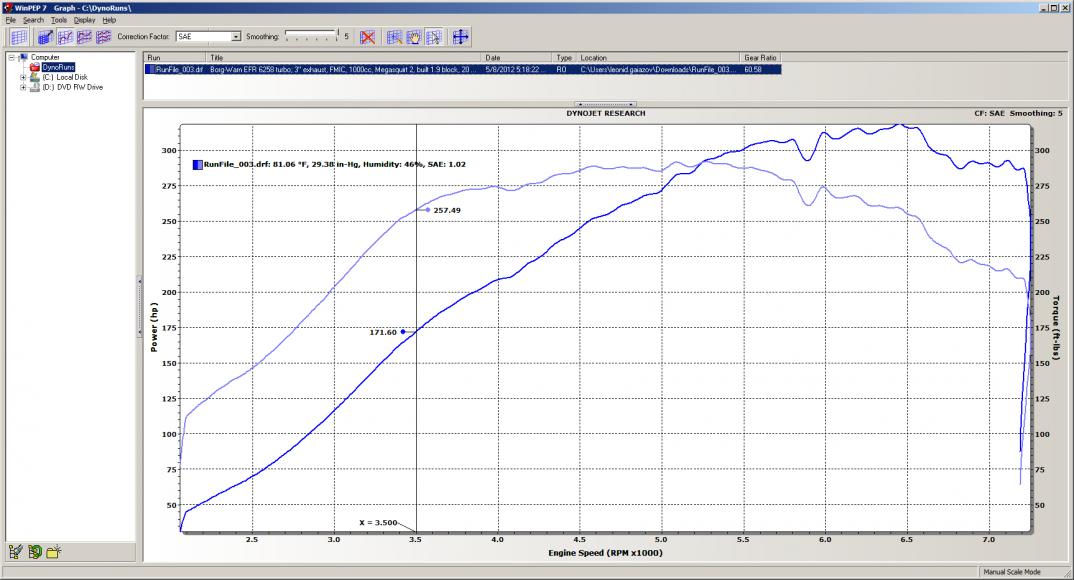

Also, while it was expensive - $100 (I got AFR as well, but normally that's $35 more) - the service was damn good. They even emailed me the actual dynojet run files so I can play around with them. Finally, RPM is exactly what the engine is doing because they use a sensor and reflective tape on the crank pulley.

250lb/ft at 3.5rpm.


http://s95367906.onlinehome.us/photo/dyno.png
Attached Thumbnails
In Soviet Russia car build YOU!-dyno.jpg
soviet is offline   Reply With Quote
Old 05-09-2012, 02:23 AM   #192
A living god
iTrader: (23)

viperormiata's Avatar

Join Date: Aug 2008
Location: Key West
Posts: 5,934
Total Cats: 222
Default

Leonid I am so happy for you.

You've broken the dyno curse.
viperormiata is offline   Reply With Quote
Old 05-09-2012, 08:01 AM   #193
Hear me Meow
iTrader: (3)

skidude's Avatar

Join Date: Apr 2008
Location: Outside Portland Maine
Posts: 1,973
Total Cats: 11
Default

What is the dip in power at ~5900rpm? It's there in a couple different graphs.
skidude is offline   Reply With Quote
Old 05-09-2012, 09:59 AM   #194
Boost Czar

iTrader: (60)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 70,179
Total Cats: 1,402
Default

wanna race? I'll beat you at being slow.
Braineack is offline   Reply With Quote
Old 05-09-2012, 02:57 PM   #195
Elite Member
Thread Starter
iTrader: (10)

soviet's Avatar

Join Date: Jan 2010
Location: VA
Posts: 3,509
Total Cats: 248
Default

Quote:
Originally Posted by skidude View Post
What is the dip in power at ~5900rpm? It's there in a couple different graphs.
I'm not sure. In the log, the RPM goes 7826 - 7820 - 7920. So it drops by 6 then shoots up by 100rpm. Weird.

I have these PW spikes as well. I have no idea what they are but they don't cause driveability issues.


I'm not too concerned since I'm upgrading to MS3x and 36-1 crank trigger wheel setup.
soviet is offline   Reply With Quote
Old 05-09-2012, 06:13 PM   #196
Senior Member
iTrader: (13)

Join Date: Oct 2006
Location: Las Cruces, NM
Posts: 1,282
Total Cats: 158
Default

Quote:
Originally Posted by soviet View Post
he probably runs a ton more timing. I don't know. I don't really believe his numbers because he's also at 4000ft elevation

the dip in power at high rpm is just fuel map going rich as ----. I don't have a soft cut. Just hard at 7200.
My timing map is based off of y8s' map and the tuner tweaked it on the dyno.
99mx5 is offline   Reply With Quote
Old 05-09-2012, 06:46 PM   #197
Elite Member
iTrader: (2)

Faeflora's Avatar

Join Date: Jan 2007
Location: Los Angeles, CA
Posts: 8,763
Total Cats: 115
Default

changed my mind

Last edited by Faeflora; 05-09-2012 at 06:47 PM. Reason: blah
Faeflora is offline   Reply With Quote
Old 05-09-2012, 06:52 PM   #198
Elite Member
iTrader: (2)

Faeflora's Avatar

Join Date: Jan 2007
Location: Los Angeles, CA
Posts: 8,763
Total Cats: 115
Default

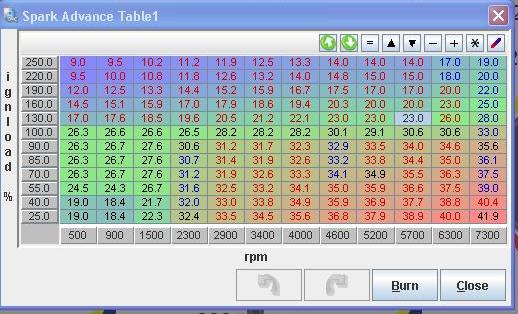

The timing in the msq was funky. I attached a modified msq. Only change made was to the timing table.

Here's a screenshot.



Gave you a bit more timing at the very top and quite a bit less during peak tq and below. It will prob feel noticeably slower, but will be much safer. -Should- be. You never know until you hook up knock sensor. You may be able to get away with more timing but the way the map was, you were probably knocking at full boost. If you want supersafe, I would take out another 2 degrees everywhere in boost. Nice and inefficient but who cares rape is still rape power

Also ramped your timing for vac cells too.
Attached Thumbnails
In Soviet Russia car build YOU!-0aiqo.jpg
Attached Files
File Type: msq soviet modified timing.msq (79.4 KB, 78 views)
Faeflora is offline   Reply With Quote
Old 05-10-2012, 02:50 PM   #199
Elite Member
Thread Starter
iTrader: (10)

soviet's Avatar

Join Date: Jan 2010
Location: VA
Posts: 3,509
Total Cats: 248
Default

right so I figured out what happened. I was running Braineack's AC map as my souper-safe timing map. At the last pull I wanted to just bump timing by 3* but fat fingered and hit the "interpolate" button while having all the boost rows selected.

So yeah the map I got 318whp on is interpolated from 500 to 7200 RPM and 100 to 250kpa.

The map I was running for 1200 miles

http://s95367906.onlinehome.us/photo/ign.brain-ac.table

The map I fat fingered but made loads of power on

http://s95367906.onlinehome.us/photo...iet-dyno.table

The map Faeflora adjusted

http://s95367906.onlinehome.us/photo/ign.fae.table
soviet is offline   Reply With Quote
Old 05-10-2012, 03:22 PM   #200
Elite Member
iTrader: (2)

Faeflora's Avatar

Join Date: Jan 2007
Location: Los Angeles, CA
Posts: 8,763
Total Cats: 115
Default

Ya so comparing the the maps

With mine you will loose some power under the curve but gain some up top.
Faeflora is offline   Reply With Quote
