Old 05-11-2012, 07:42 PM   #221
Elite Member
Thread Starter
iTrader: (10)

soviet's Avatar

Join Date: Jan 2010
Location: VA
Posts: 3,505
Total Cats: 248
Default

I have a DW300. It should be enough of pump.
-10AN feed is insanely overkill and expensive. -8AN, maybe, but I think even -6AN will be sufficient for my needs. I'm perfectly happy daily driving at 300whp.

Flex fuel sensor is something I'll be looking for tomorrow at junk yard
soviet is offline   Reply With Quote
Old 05-11-2012, 07:53 PM   #222
Elite Member
iTrader: (2)

miata2fast's Avatar

Join Date: Aug 2009
Location: Dover, FL
Posts: 2,669
Total Cats: 83
Default

Have you changed to a larger line from the tank?
miata2fast is offline   Reply With Quote
Old 05-11-2012, 08:07 PM   #223
Elite Member
iTrader: (2)

miata2fast's Avatar

Join Date: Aug 2009
Location: Dover, FL
Posts: 2,669
Total Cats: 83
Default

Let me try again. I skipped over Fae's post by accident.

Typically if you have an external pump, you have a larger feed coming from the tank to the pump. The line from the pump is stepped down one size. For instance, most big cars will have a 10 coming from the tank to the pump, and an 8 from the pump to the regulator. An 8 is more than enough for you, no matter how crazy you will get. Particularly with higher pressure pumps.

If you have an intank pump, you skip the feed part of the system.

Just like Fae suggested, go with the next size down as your return. In the above example it would be a 6.

Go with a flexible line from the tank to the under body, and then go with an aluminum hard line along the underbody of the car till you get to a point where you need the flex, and then run the flex of your choice to the regulator. This is the lightest, most durable, and easiest to work with.

Hope that helps.

Edit: The above AN sizes are examples only. You maybe able to step everything down one size. Check with your fuel component suppliers with the optimal size.
miata2fast is offline   Reply With Quote
Old 05-11-2012, 08:14 PM   #224
Elite Member
Thread Starter
iTrader: (10)

soviet's Avatar

Join Date: Jan 2010
Location: VA
Posts: 3,505
Total Cats: 248
Default

The only things I replaced in the fuel system right now are the rubber lines (they were 20 years old) and fuel pump (switched to DW300).
soviet is offline   Reply With Quote
Old 05-11-2012, 08:16 PM   #225
Elite Member
Thread Starter
iTrader: (10)

soviet's Avatar

Join Date: Jan 2010
Location: VA
Posts: 3,505
Total Cats: 248
Default

Ugh I posted before I read your 2nd post. It all makes sense, thanks!!

Quote:
Originally Posted by miata2fast View Post
Go with a flexible line from the tank to the under body, and then go with an aluminum hard line along the underbody of the car till you get to a point where you need the flex, and then run the flex of your choice to the regulator. This is the lightest, most durable, and easiest to work with.
where do I get aluminium hard lines? I was thinking of doing flex lines all the way but it's $$$$.
soviet is offline   Reply With Quote
Old 05-11-2012, 08:18 PM   #226
Elite Member
Thread Starter
iTrader: (10)

soviet's Avatar

Join Date: Jan 2010
Location: VA
Posts: 3,505
Total Cats: 248
Default

yay triple post!

Aluminum lines look good - http://www.russellperformance.com/mc/fuel/lines.shtml looks like I don't need a flare tool, either.
soviet is offline   Reply With Quote
Old 05-11-2012, 08:21 PM   #227
Elite Member
iTrader: (2)

miata2fast's Avatar

Join Date: Aug 2009
Location: Dover, FL
Posts: 2,669
Total Cats: 83
Default

Hard line is the way to go when practicle. It is much lighter and easier to work with. Flex line would have to be secured in more locations, and can still sag causing an unsafe situation.

I think I have a pic of my set up somewhere. Give me time to look it up.
miata2fast is offline   Reply With Quote
Old 05-11-2012, 08:41 PM   #228
Elite Member
iTrader: (2)

Faeflora's Avatar

Join Date: Jan 2007
Location: Los Angeles, CA
Posts: 8,763
Total Cats: 115
Default

Ya if i had known how easy hard line is i p
would havr use it for everything including my WI.

BTW -6 sized hard line is hard to make tight radiuses with.

The only reason i say -10 is just cause big is brtter when it comes to fuel. Also i thought one was supposed to spend ALLOFIT on their car :(
Faeflora is offline   Reply With Quote
Old 05-17-2012, 04:03 AM   #229
Elite Member
Thread Starter
iTrader: (10)

soviet's Avatar

Join Date: Jan 2010
Location: VA
Posts: 3,505
Total Cats: 248
Default

hey guys!
I've been getting the car ready for my first track day on Saturday. I lowered the boost to 10-14psi (20% duty on EBC - basically almost purely wastegate).

I'm having some issues. I had misfires, which turned out to be another dying COP. Now I just have random hiccups, but only under max load - like 5th gear WOT.

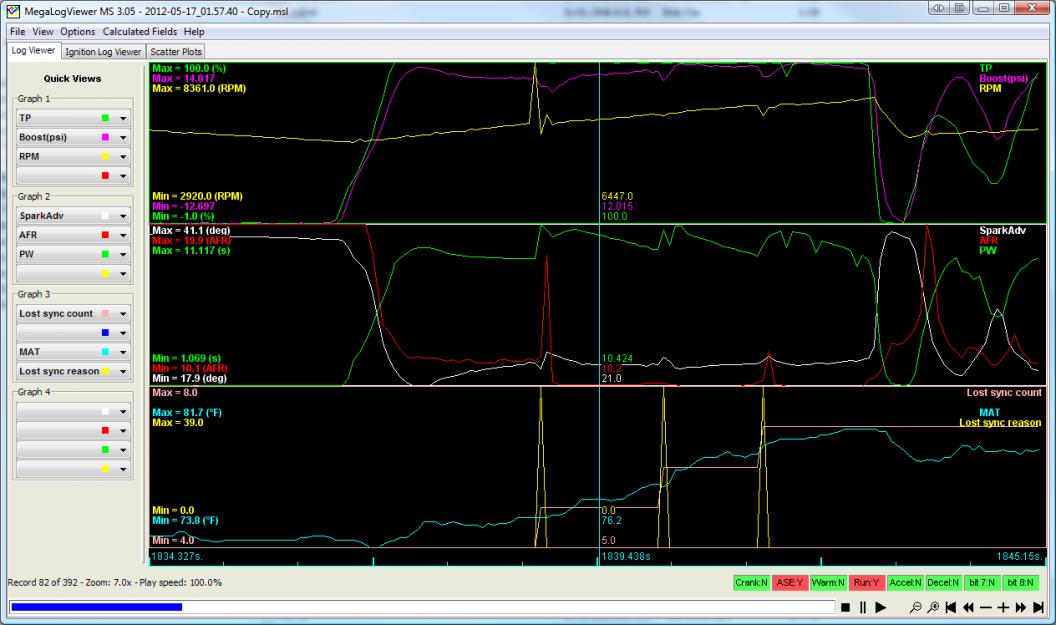

Here's a log of 5/6th gear pull. Tell me how I fix it. Is this detonation? There is loss of sync and RPM shoot up to 8300. Is my CAS dying? I have opto-isolator circuit. This basically never happens in 4th, sometimes in 5th and 6th.. uhh... no data available. Too much timing? Misfire? Tell me!!!


http://s95367906.onlinehome.us/photo....40 - Copy.msl

I was running VE Analyze, so I can only assume AFRs going super-rich after the first sync loss is due to it shitting bricks.
Attached Thumbnails
In Soviet Russia car build YOU!-datalog.jpg
Attached Files
File Type: msl 2012-05-17_01.57.40 - Copy.msl (107.3 KB, 42 views)
soviet is offline   Reply With Quote
Old 05-17-2012, 10:50 AM   #230
Elite Member
iTrader: (2)

Faeflora's Avatar

Join Date: Jan 2007
Location: Los Angeles, CA
Posts: 8,763
Total Cats: 115
Default

No idea what those spikes are.

In my experience that can be a ground/short/overvoltage issue. Not guessing det. Take my det cans !

Which map was this? Timing looks weird.
Faeflora is offline   Reply With Quote
Old 05-17-2012, 12:56 PM   #231
Elite Member
Thread Starter
iTrader: (10)

soviet's Avatar

Join Date: Jan 2010
Location: VA
Posts: 3,505
Total Cats: 248
Default

I'mma lower timing, put my resistorless plugs in and I have a spare working CAS.

If that won't fix it, I dunno :(
soviet is offline   Reply With Quote
Old 05-17-2012, 06:54 PM   #232
Junior Member
iTrader: (3)

Join Date: Apr 2010
Location: San Antonio, TX
Posts: 408
Total Cats: 1
Default

Sweet setup so far; nice autox vids. Subscribing.
RavynX is offline   Reply With Quote
Old 05-17-2012, 07:05 PM   #233
Supporting Vendor
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 13,359
Total Cats: 807
Default

Quote:
Originally Posted by miata2fast View Post

Just like Fae suggested, go with the next size down as your return. In the above example it would be a 6.

Go with a flexible line from the tank to the under body, and then go with an aluminum hard line along the underbody of the car till you get to a point where you need the flex, and then run the flex of your choice to the regulator. This is the lightest, most durable, and easiest to work with.
No, no, no, no. Do not do any of this.

Smaller return than feed is an awesome way to get fuel pressure fluctuations at idle and low RPM which will wreak havoc on the driveability of the car. The return line needs to be the same size as the feed line. There is no reason to downsize it, and every reason not to.

Aluminum hardline under the car? Sure, if you like things puncturing it. Aluminum hardline is probably the most useless material on the planet for automotive applications - it's weak, impossible to flare easily, and highly susceptible to vibration and fatigue failure. If you really feel the need to use hardlines, then do stainless steel hardline, or don't bother and just run braided SS w/ PTFE internals. If you do it right you can delete 4 fittings, which reduces the number of failure points in the system as well.

Remember that with E85, there are three things that are allowed to be in the fuel system:
-Anodized aluminum
-Stainless steel
-Teflon

No rubber, no bare aluminum.
Savington is offline   Reply With Quote
Old 05-17-2012, 07:06 PM   #234
Supporting Vendor
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 13,359
Total Cats: 807
Default

Quote:
Originally Posted by soviet View Post
I have a spare 99 fuel rail. I'll play around it. Grinding it an option.

This is another option.
http://www.dormanproducts.com/p-13751-800-080.aspx
That's what you need to do. Grinding the flange down will just cut the hose in the long run.

If you have the fittings that came on the '99 rail, just cut the hard-ish hose off one of them and use that. That's what I have done on all of the NA-VVT cars we've built.
Savington is offline   Reply With Quote
Old 05-17-2012, 07:17 PM   #235
Elite Member
Thread Starter
iTrader: (10)

soviet's Avatar

Join Date: Jan 2010
Location: VA
Posts: 3,505
Total Cats: 248
Default

Yeah I have those fittings now. I haven't put them on but it's really a no brainer. I tried cutting off the stock lines but they are so ------- hard (nylon lines? really?) that I'd rather spend $5 and get the adapters.

Now for fuel. Actually, what you're saying makes sense with the same size lines. 1/2" feed and return? Sure why not. I guess I'll go stainless hard lines. I like the idea and I need to learn how to flare my own lines anyways.

Any input about insulating fuel lines? I was thinking of getting some pipe insulation from McMaster and then maybe some reflective wrapping. Because might as well.
http://www.mcmaster.com/#catalog/118/3512/=hku9ns part #4463K122
soviet is offline   Reply With Quote
Old 05-18-2012, 03:16 PM   #236
Elite Member
Thread Starter
iTrader: (10)

soviet's Avatar

Join Date: Jan 2010
Location: VA
Posts: 3,505
Total Cats: 248
Default

So I built MS3+MS3X+wired in sequential. Overnight. It runs great!

For what it's worth, building an MS3 is about a million times than doing MS2 + input mods + ignition mods + all the other ------' mods
soviet is offline   Reply With Quote
Old 05-18-2012, 03:28 PM   #237
mkturbo.com
iTrader: (24)

shuiend's Avatar

Join Date: May 2006
Location: Charleston SC
Posts: 12,184
Total Cats: 748
Default

Quote:
Originally Posted by soviet View Post
So I built MS3+MS3X+wired in sequential. Overnight. It runs great!
Well your car was running great when you first got it going on MS2, so give it a little time before you say it is running great.
shuiend is offline   Reply With Quote
Old 05-18-2012, 03:35 PM   #238
Elite Member
Thread Starter
iTrader: (10)

soviet's Avatar

Join Date: Jan 2010
Location: VA
Posts: 3,505
Total Cats: 248
Default

Quote:
Originally Posted by shuiend View Post
Well your car was running great when you first got it going on MS2, so give it a little time before you say it is running great.
well, truth be told I always had sync issues with my MS2. It was random occurence - once a month, once a week, etc. And my MS2 really looks like a clusterfuck. So I think some solder joint is loose somewhere maybe.... I don't know.

I'm just sad I didn't do MS3 earlier. It was cake and I just re-soldered my old harness.
soviet is offline   Reply With Quote
Old 05-18-2012, 04:43 PM   #239
Boost Czar

iTrader: (60)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 70,100
Total Cats: 1,400
Default

ms3x is so easy it hurts.
Braineack is offline   Reply With Quote
Old 05-18-2012, 04:51 PM   #240
Junior Member
iTrader: (3)

Join Date: Apr 2010
Location: San Antonio, TX
Posts: 408
Total Cats: 1
Default

Makes me wish I built my own rather than ordering the MS2 v3. Still waiting after almost 2 months; darn delays. :(
RavynX is offline   Reply With Quote
