ok so pornography time.

I actually kept my first EFR6258 (as in, haven't sent it in for replacement YET). So I can compare old EFR6258 to new EFR6758

First of all, ALL HAIL INTACT TURBINE WHEEL in it's Gamma-Ti glory

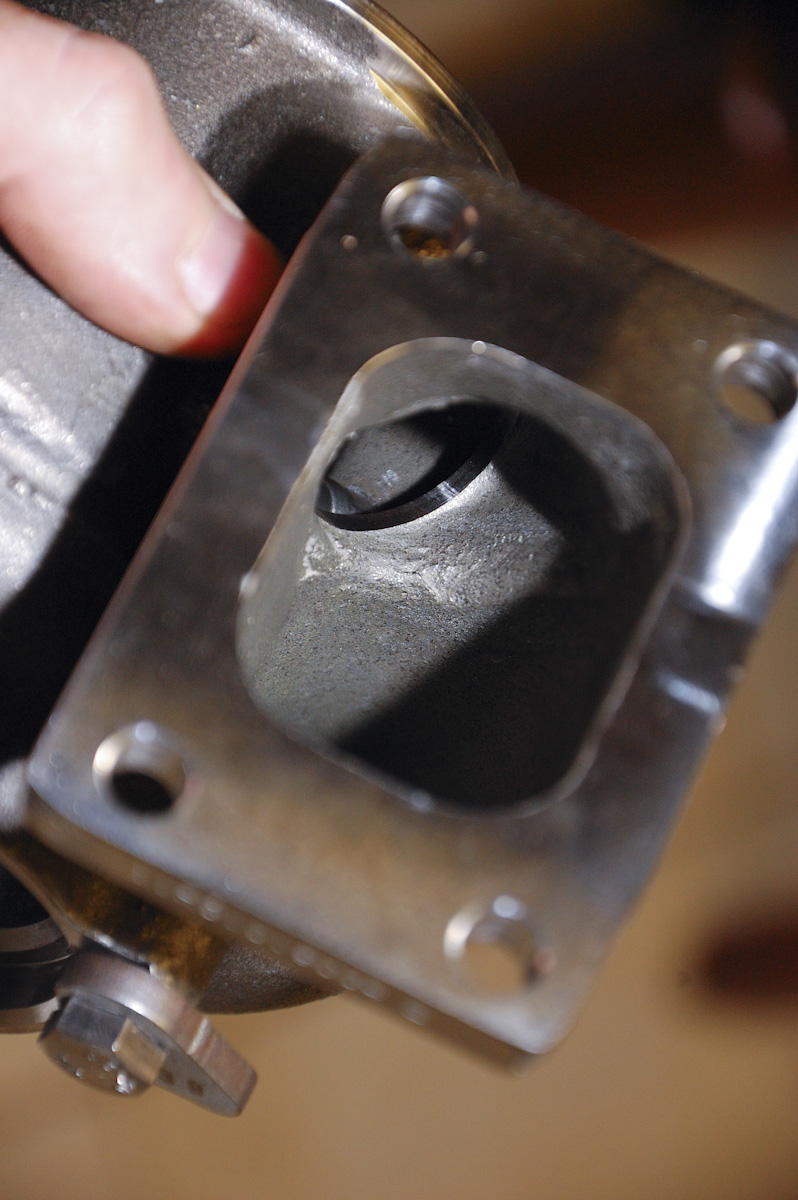

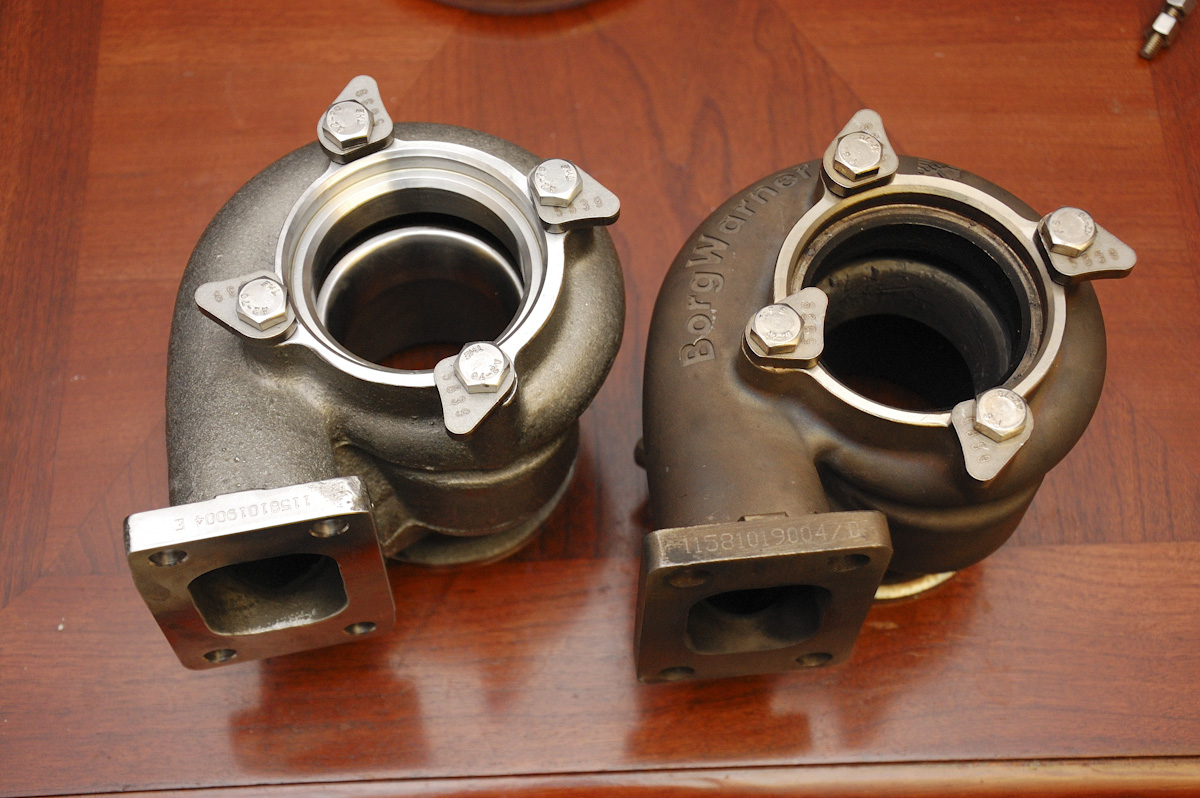

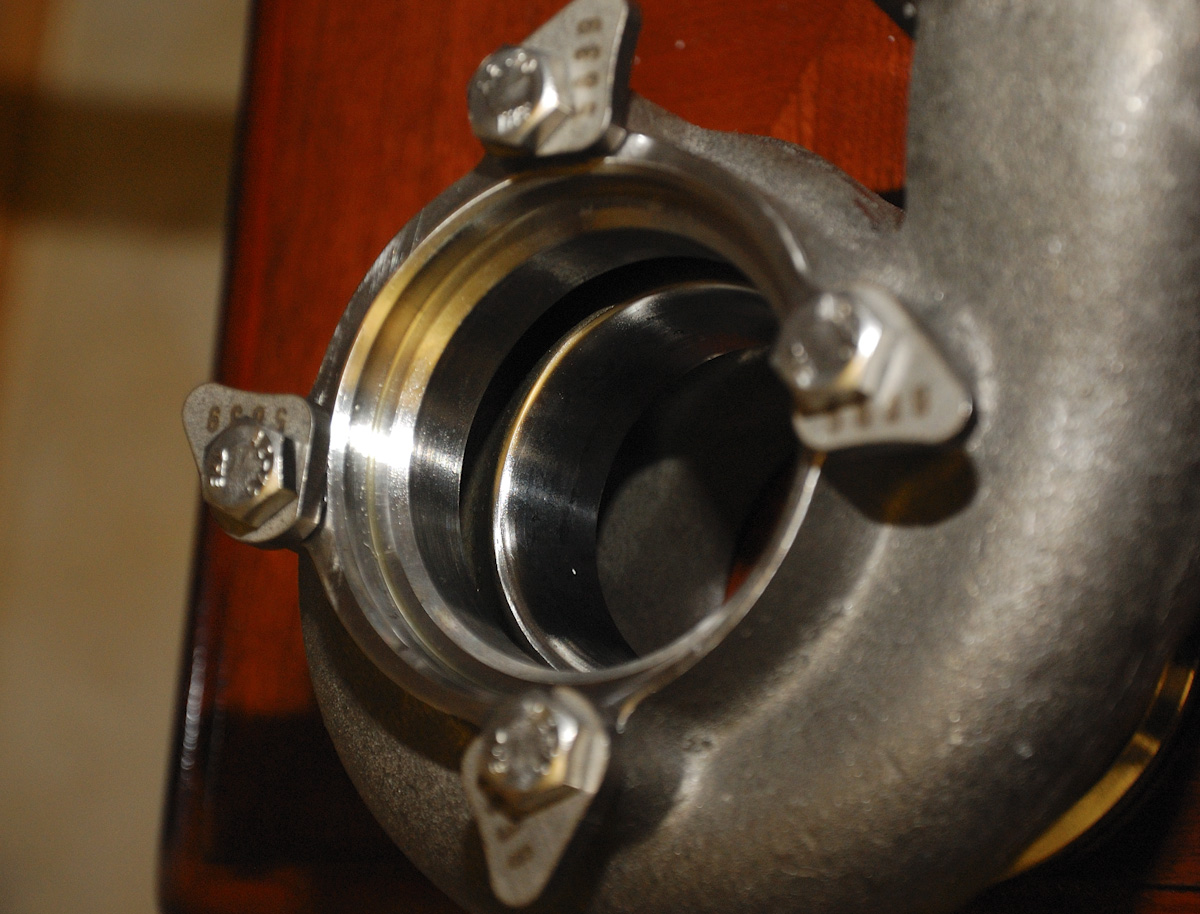

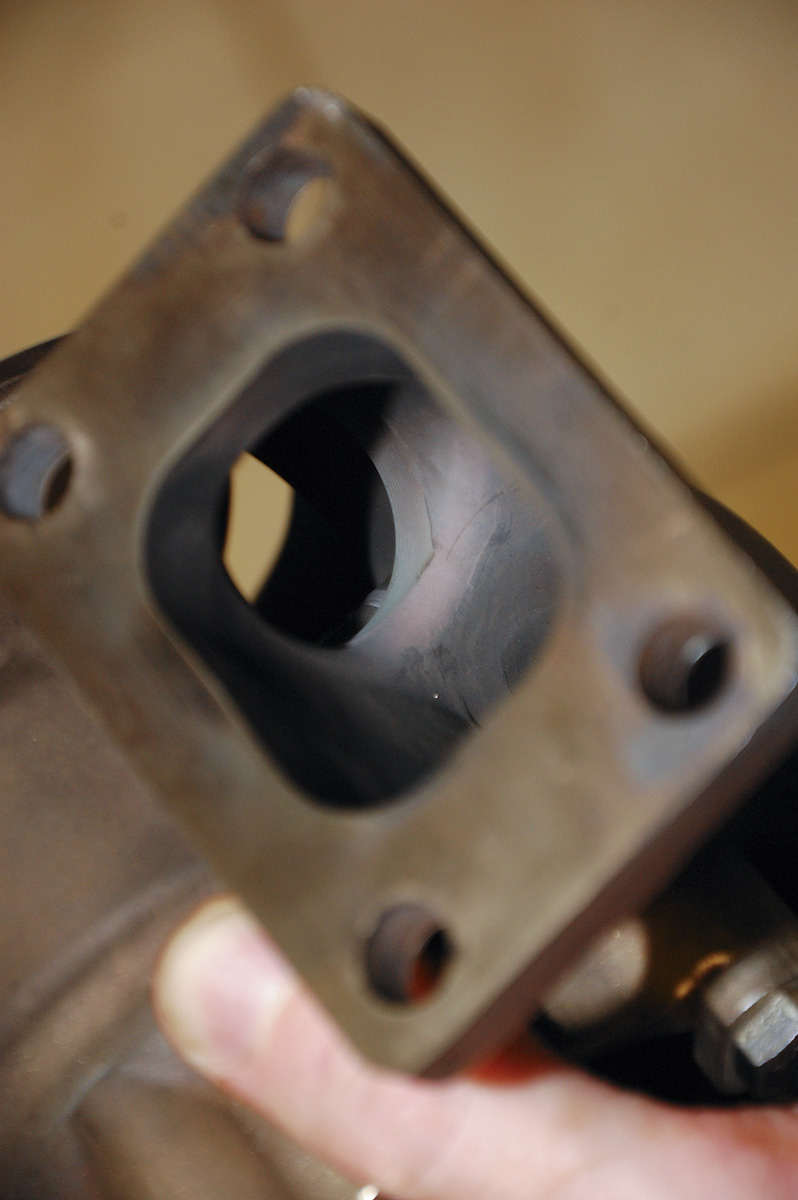

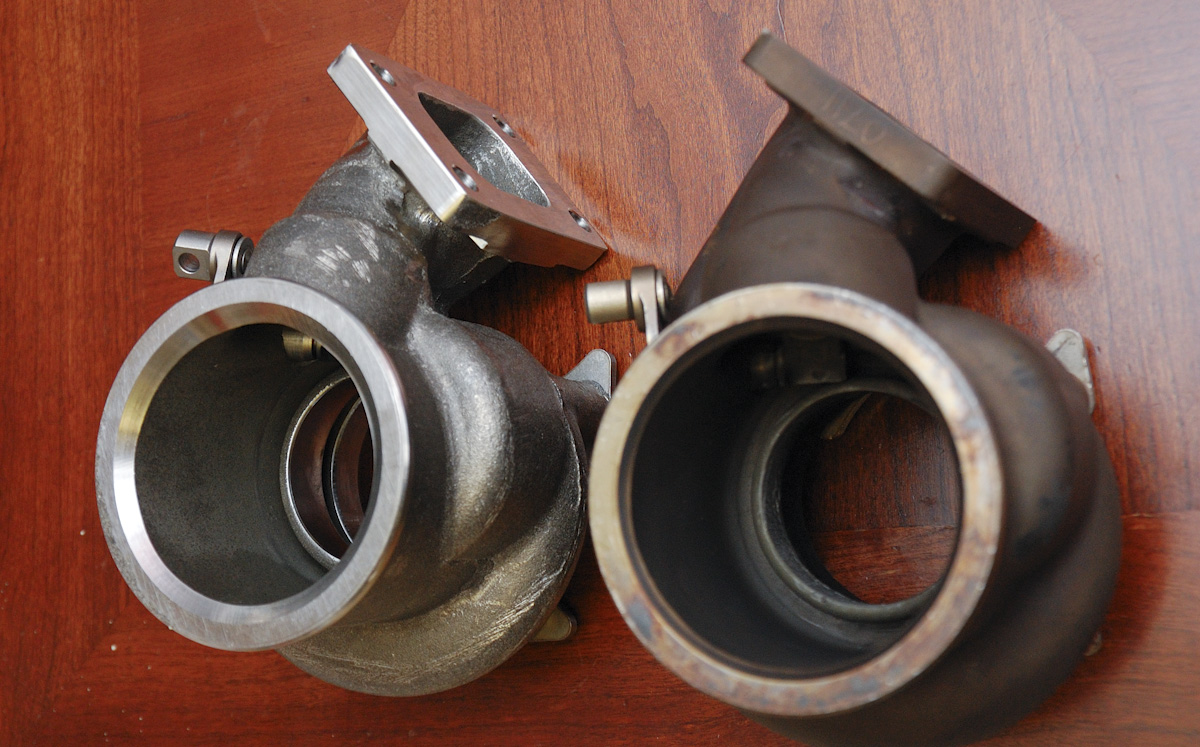

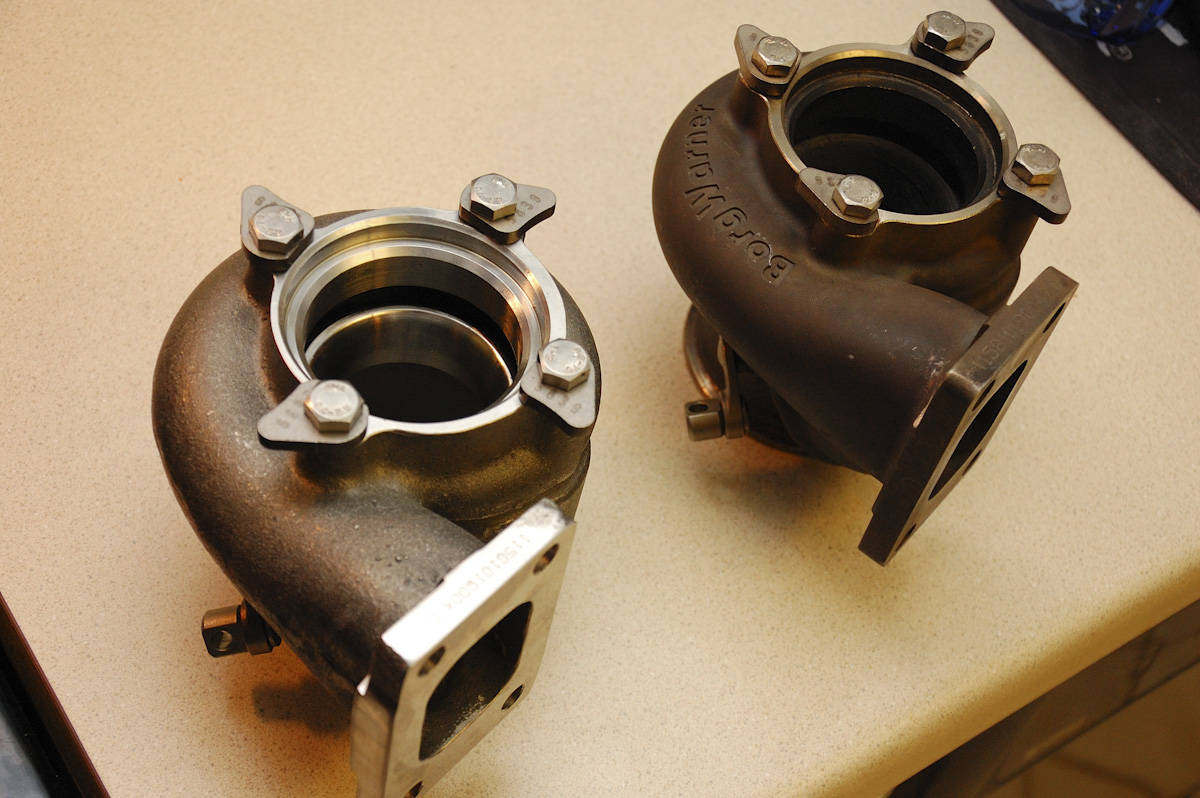

Then, turbine housings. This is one area that changed, and imho, got worse. Before it was gorgeous now it's a bit worse. There are casting marks and it just doesn't look as sexy anymore.



Wastegate are in particular was smoother before. I'll probably polish the new housing a bit to make it smoother.



Slight, minor differences everywhere


Area around turbine wheel is machined and is same, though.

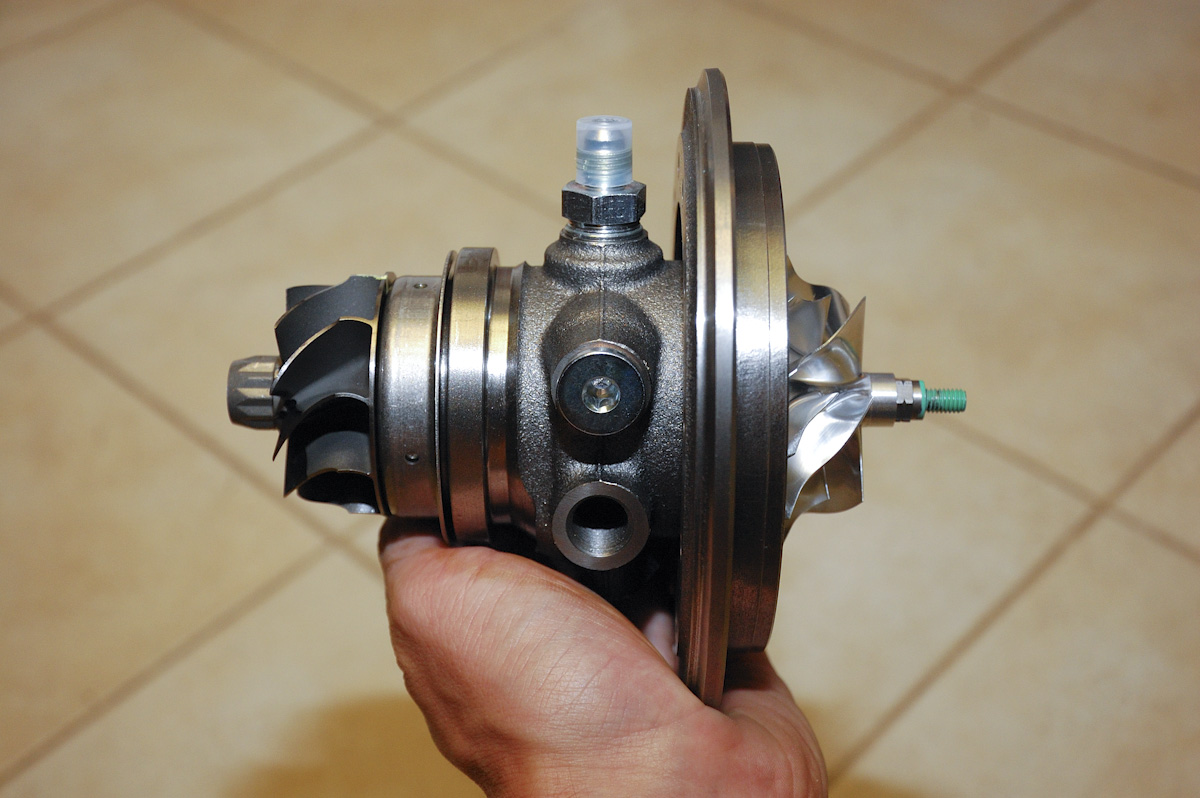

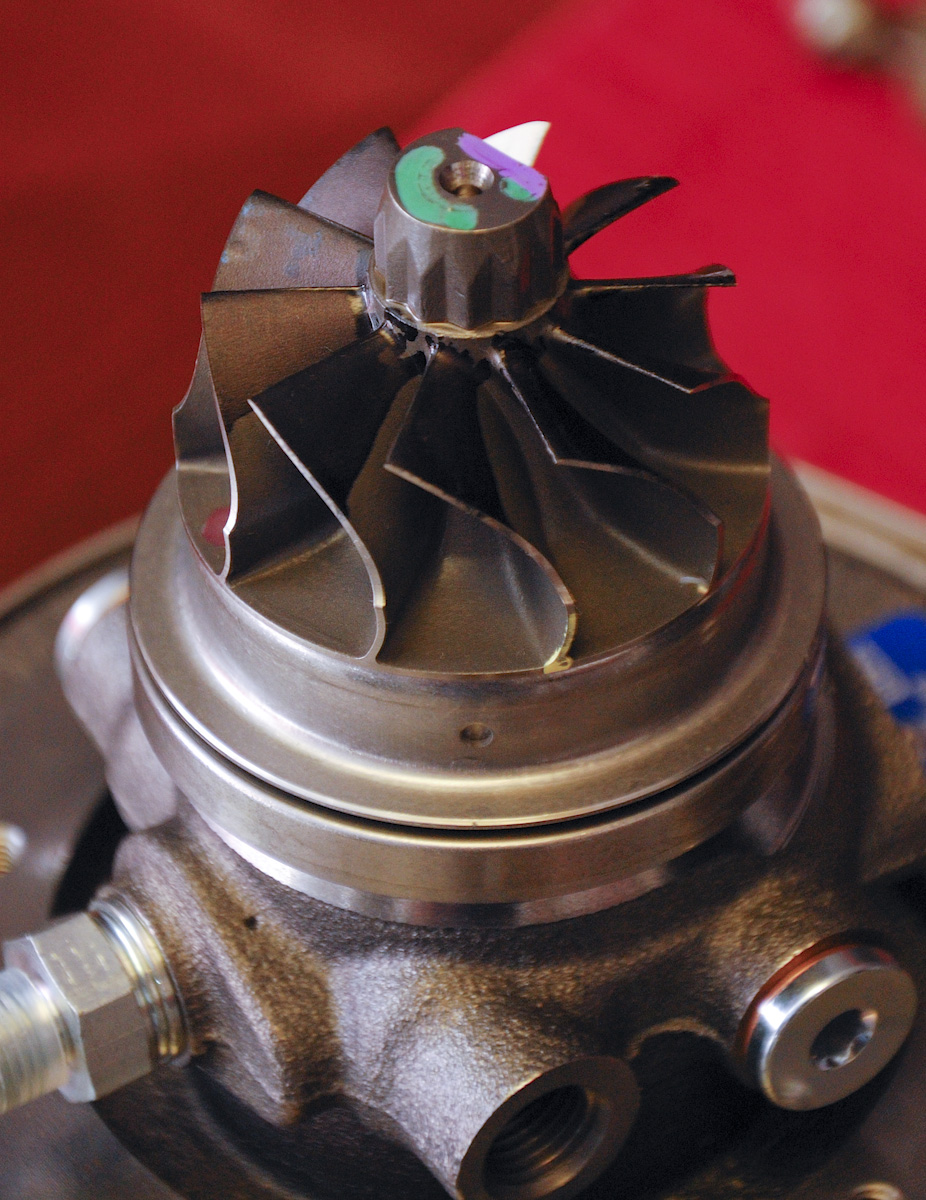

Awesome CHRA with mega-super-awesome bearings and stuff.

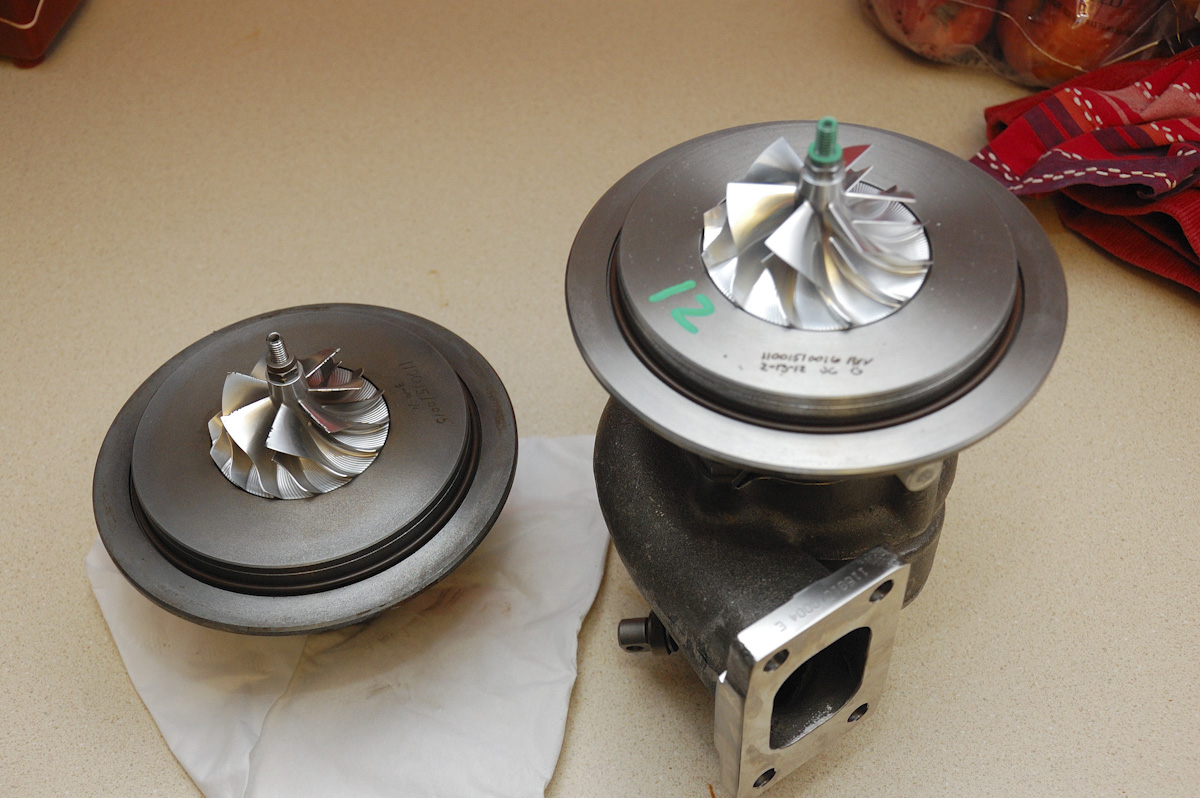

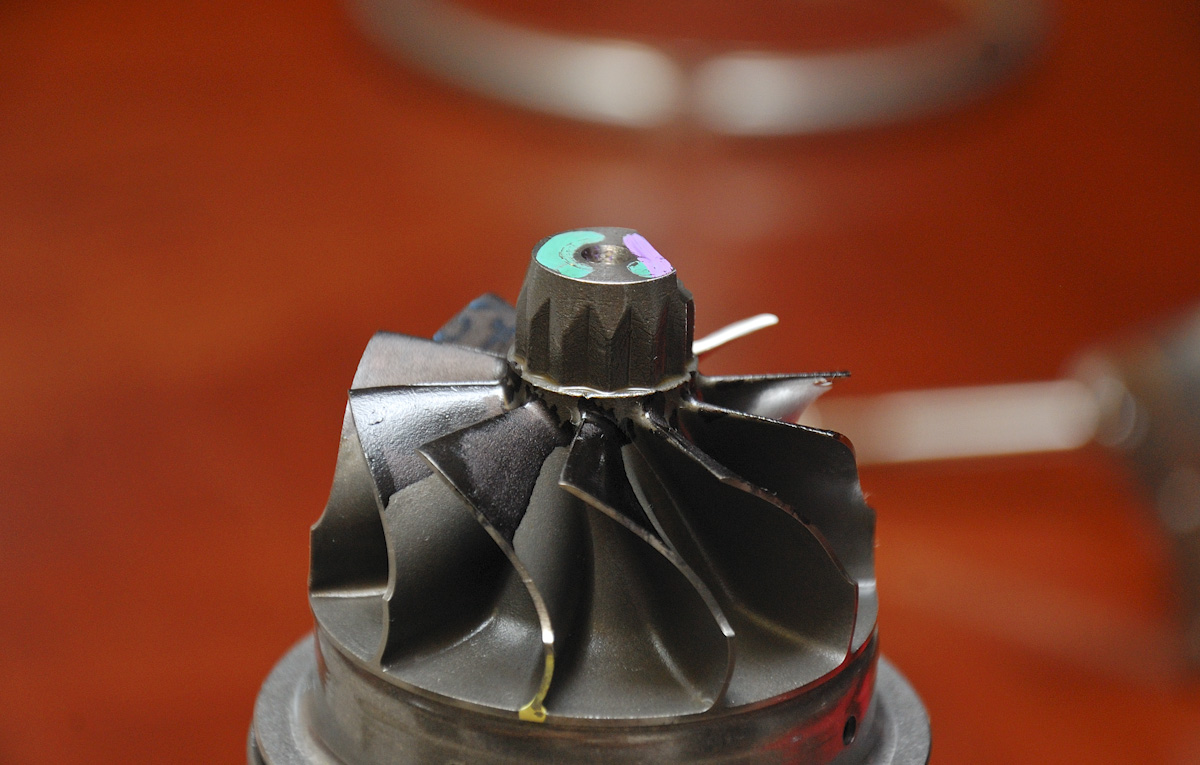

Old vs new. Old compressor wheel ingested some shavings early in it's life (i'm sorry...) so there's that. Lesson learned - keep compressor housing clean and filter ON.

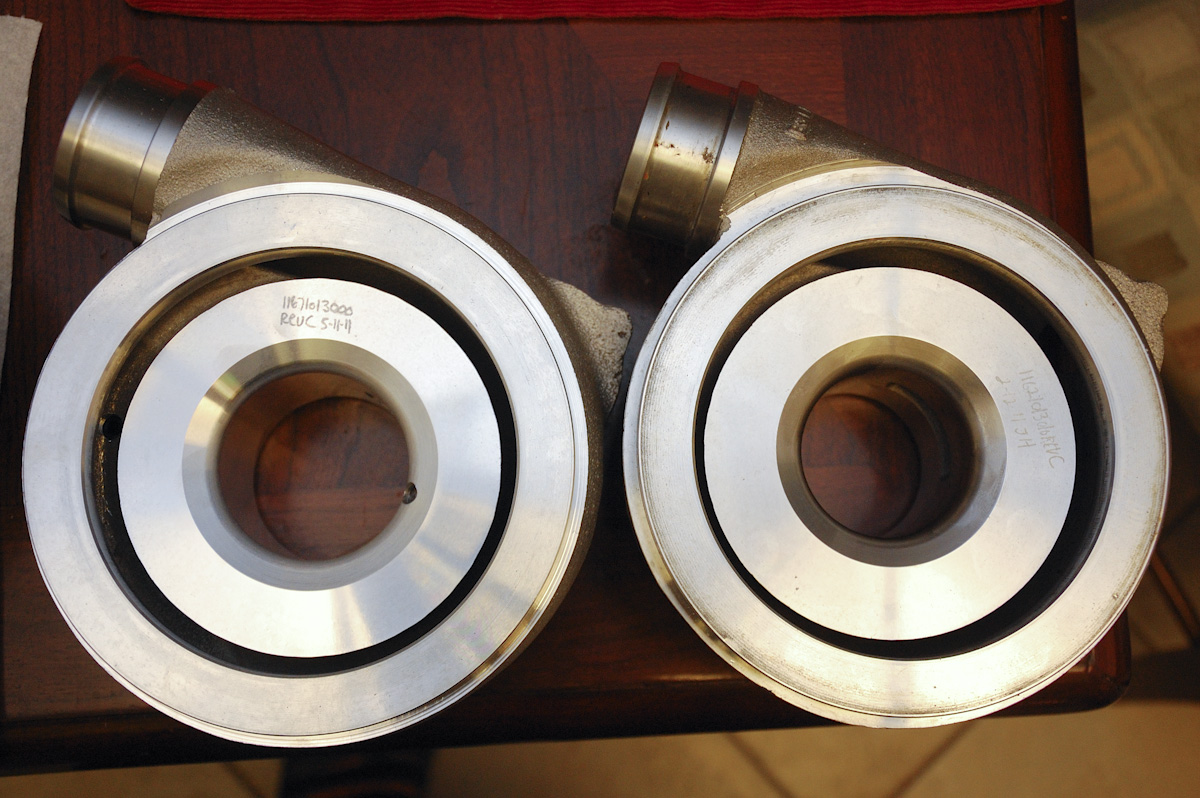

Compressor housings haven't changed slightest bit - other than the fact that they are for different wheels

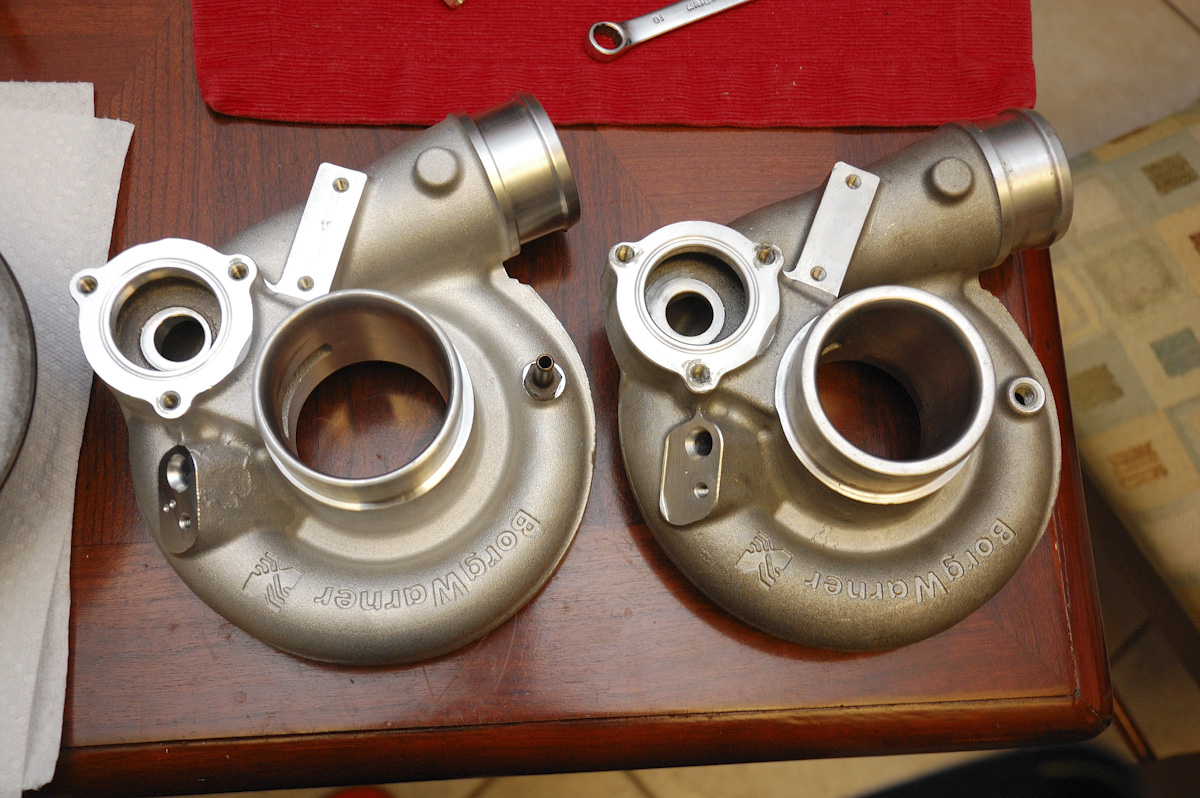

6758 housing with 6258 compressor wheel shows the size diffeerence pretty clearly. It's not much but good enough to change 'rated' hp from 400 to 450.

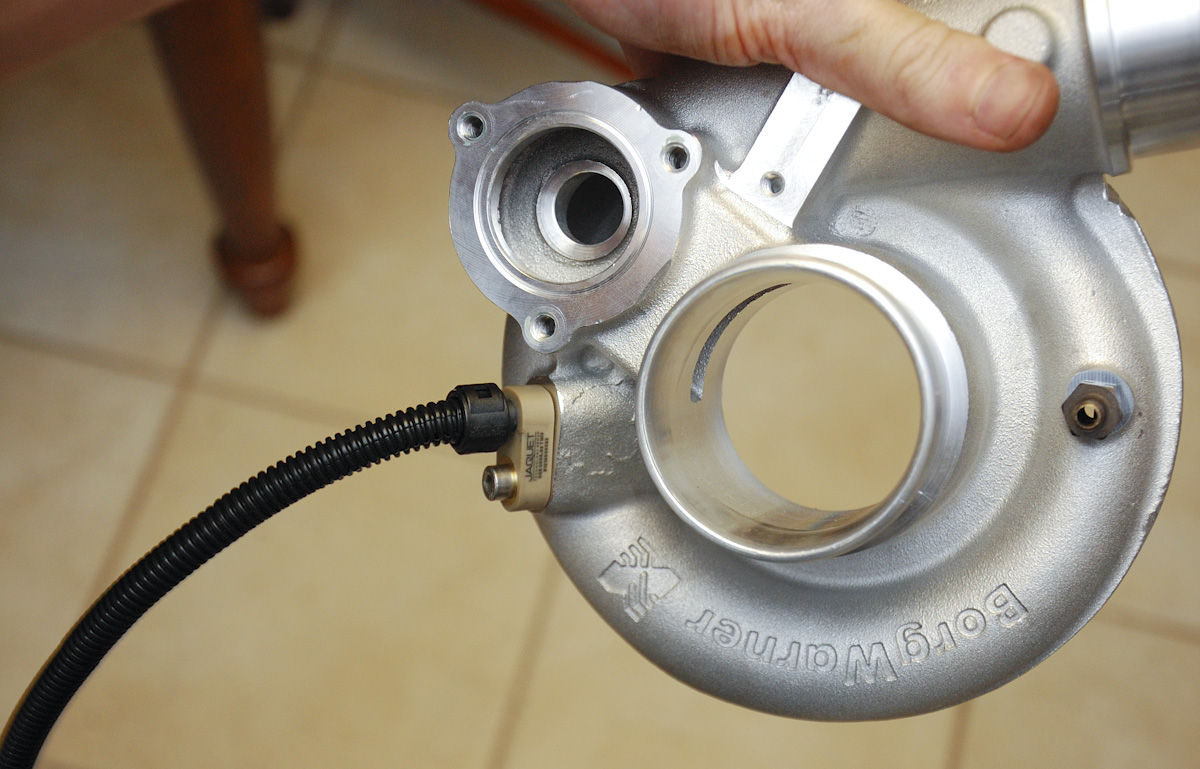

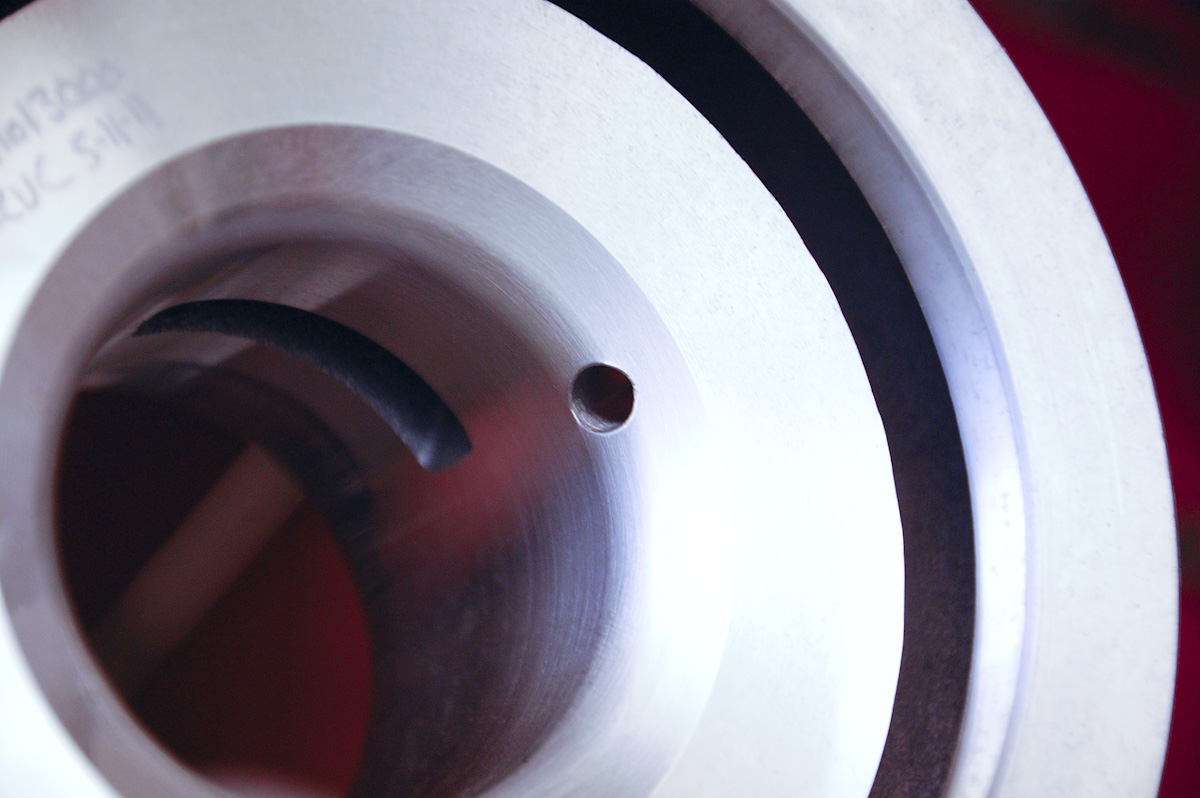

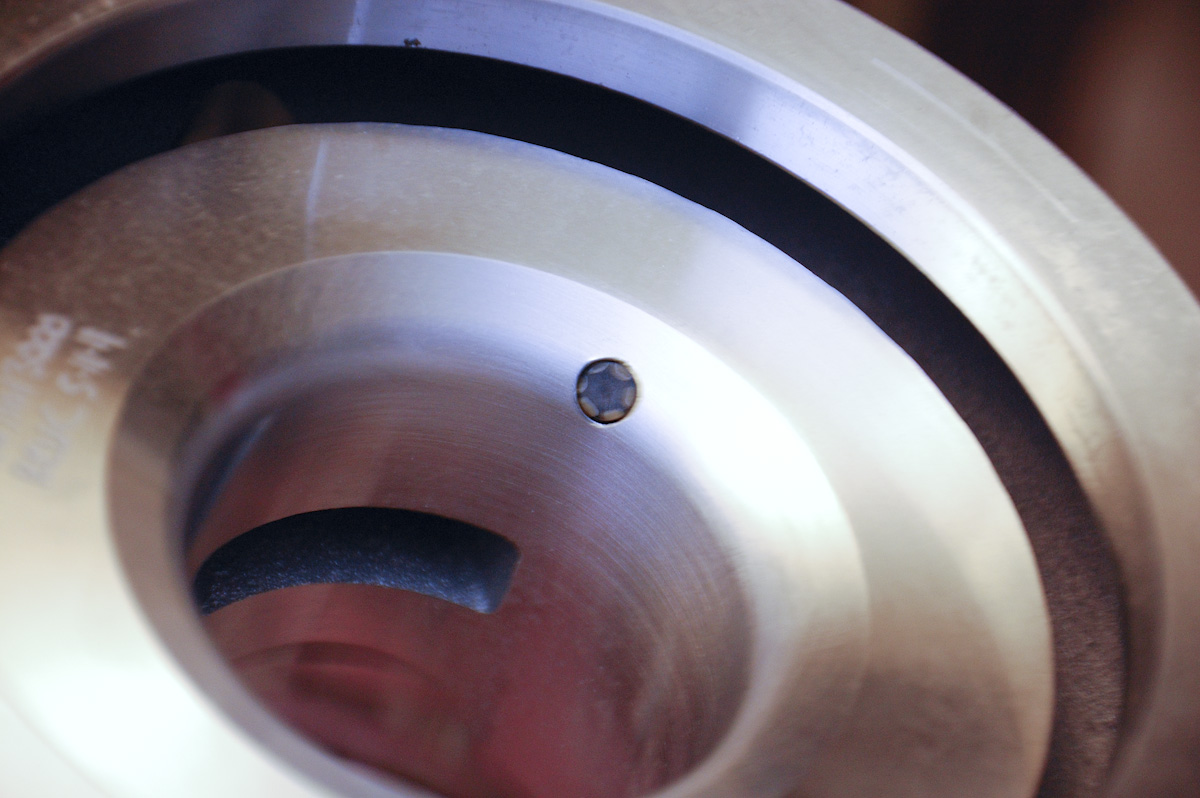

The hole is for the speed sensor, which I got for free (winning!)

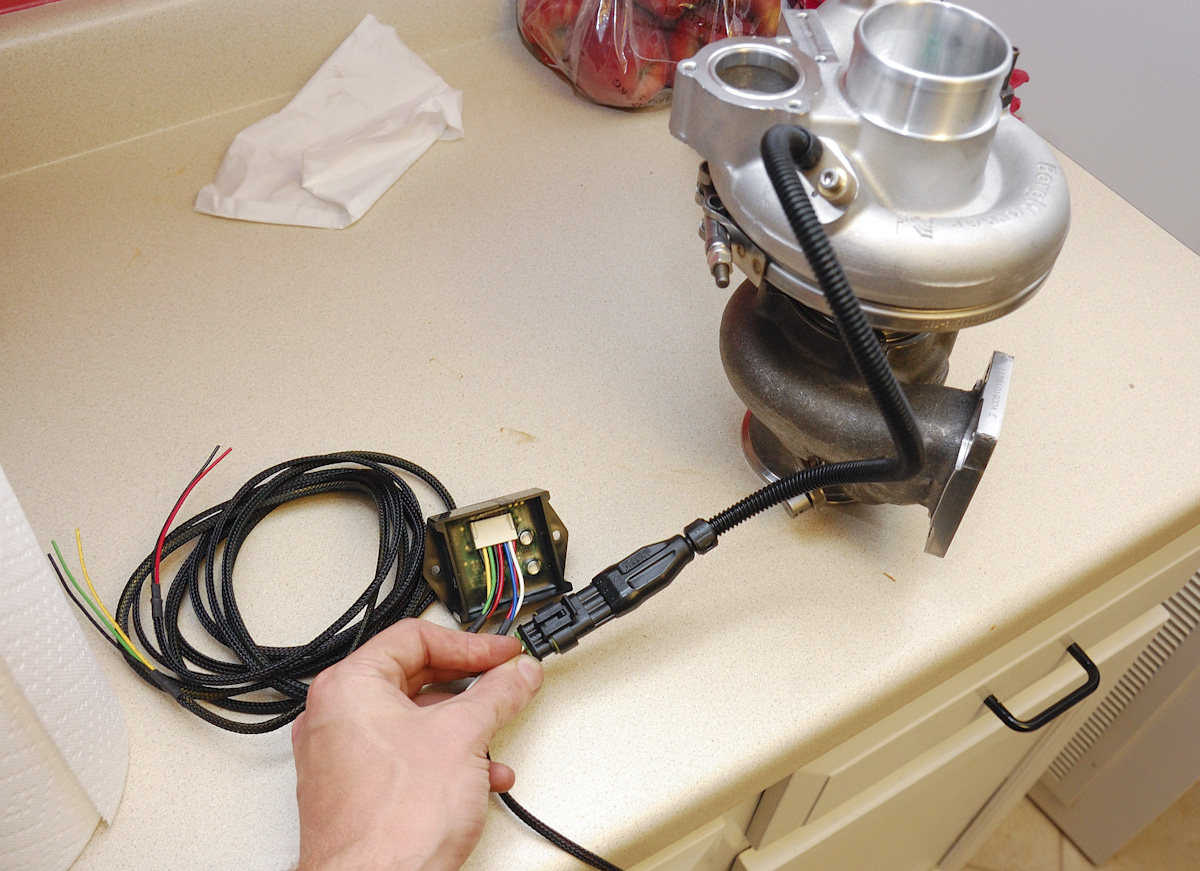

The box is a "speed converter" box. It's like $60 and converts a square wave signal into 0-5V reading, 5V being 200'000 RPM. It's made specifically for EFR speed sensor and comes with with nice sleeved connectors. Me likey. It was also a freebie.

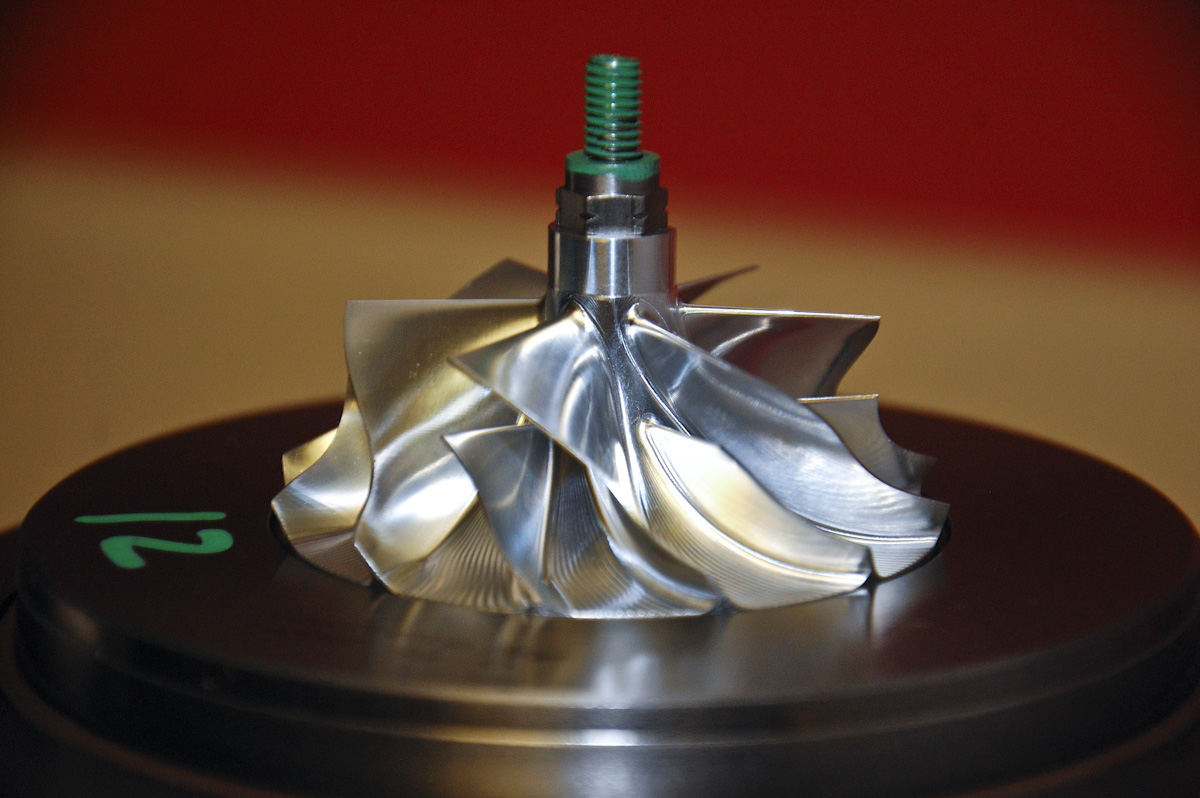

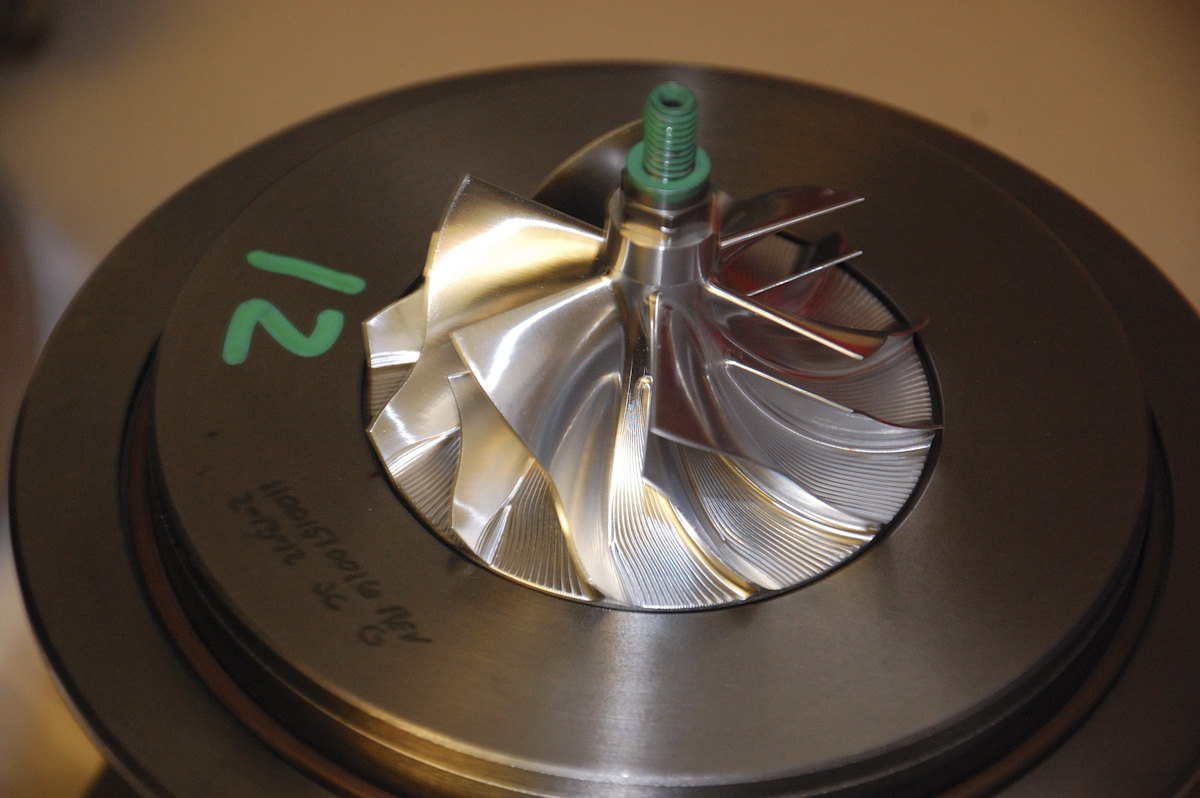

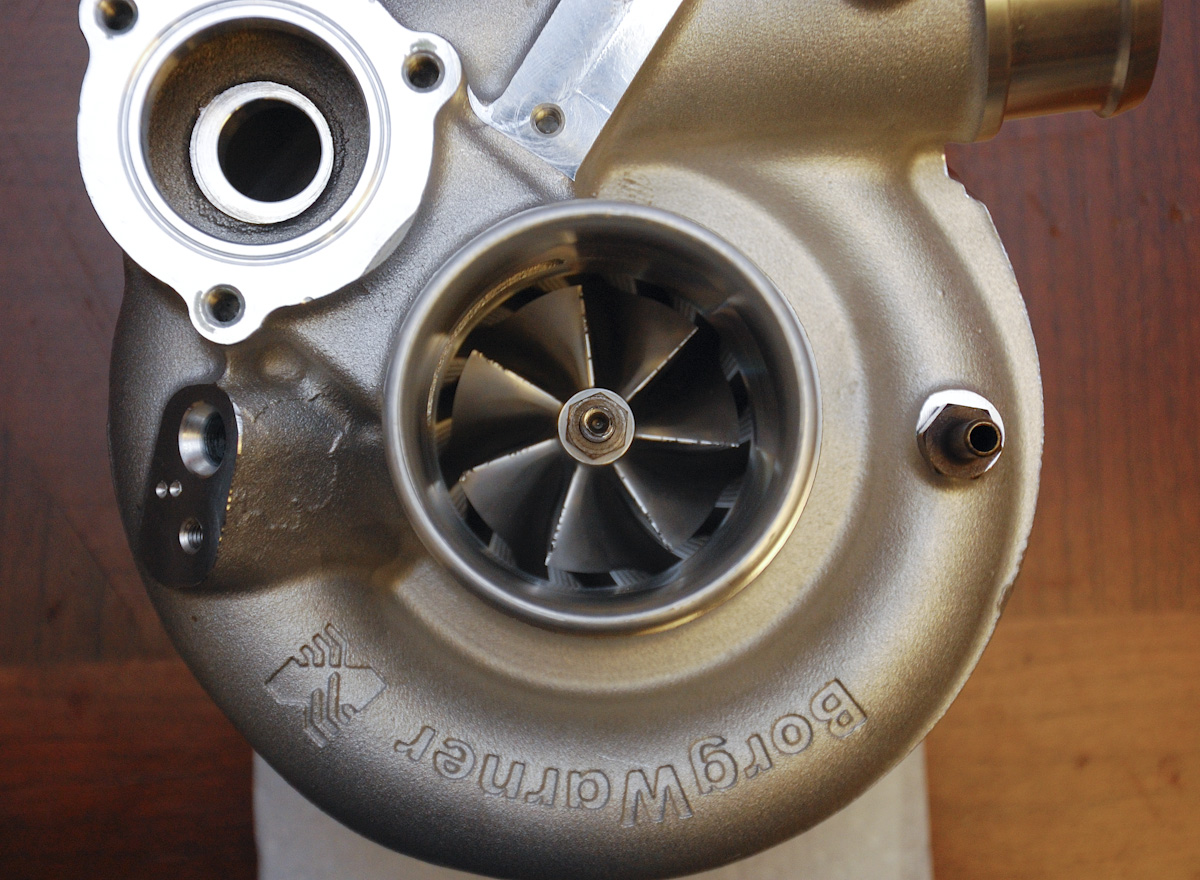

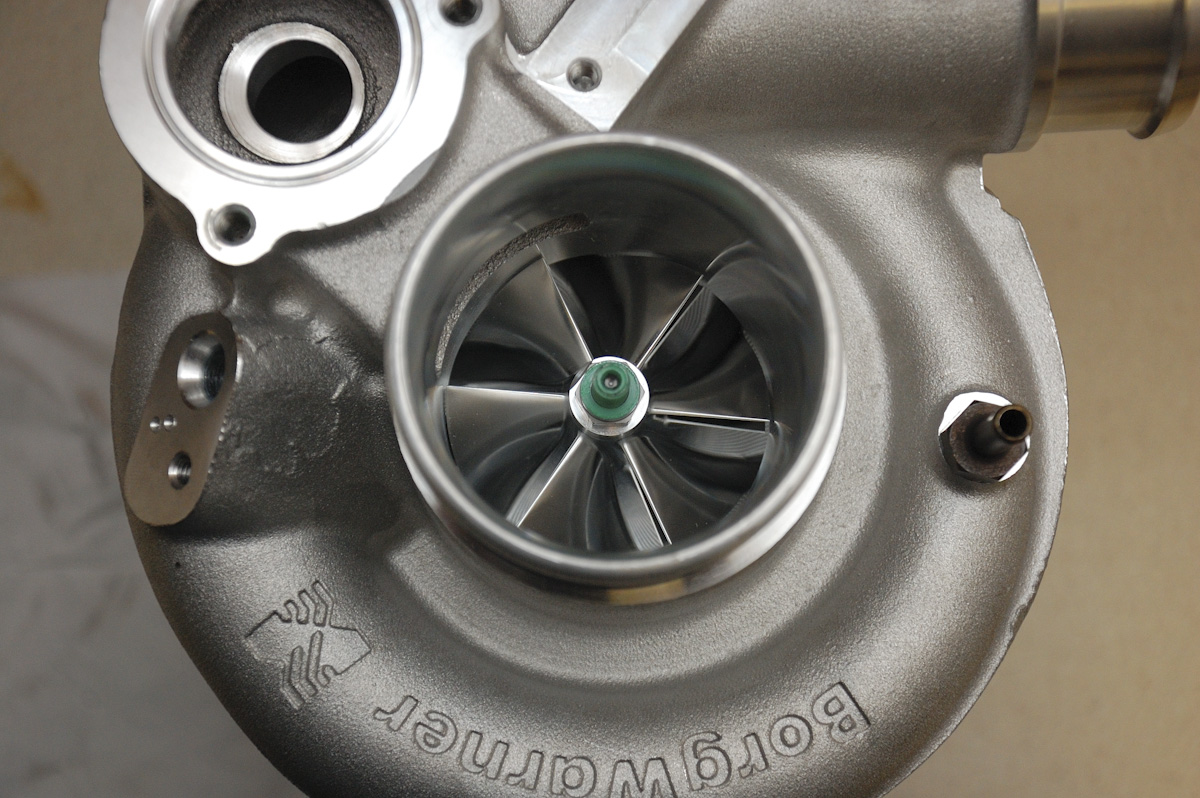

And just some compressor wheel pornography.

Attached Thumbnails
In Soviet Russia car build YOU!-dsc_1382.jpg   In Soviet Russia car build YOU!-dsc_1383.jpg   In Soviet Russia car build YOU!-dsc_1384.jpg   In Soviet Russia car build YOU!-dsc_1388.jpg   In Soviet Russia car build YOU!-dsc_1390.jpg

In Soviet Russia car build YOU!-dsc_1391.jpg   In Soviet Russia car build YOU!-dsc_1392.jpg   In Soviet Russia car build YOU!-dsc_1395.jpg   In Soviet Russia car build YOU!-dsc_1396.jpg   In Soviet Russia car build YOU!-dsc_1397.jpg

In Soviet Russia car build YOU!-dsc_1398.jpg   In Soviet Russia car build YOU!-dsc_1399.jpg   In Soviet Russia car build YOU!-dsc_1400.jpg   In Soviet Russia car build YOU!-dsc_1401.jpg   In Soviet Russia car build YOU!-dsc_1402.jpg

In Soviet Russia car build YOU!-dsc_1403.jpg   In Soviet Russia car build YOU!-dsc_1404.jpg   In Soviet Russia car build YOU!-dsc_1408.jpg   In Soviet Russia car build YOU!-dsc_1405.jpg   In Soviet Russia car build YOU!-dsc_1406.jpg


Last edited by soviet; 08-31-2012 at 02:09 AM.
soviet is offline   Reply With Quote
Old 08-31-2012, 02:10 AM   #682
Elite Member
iTrader: (2)

Mobius's Avatar

Join Date: May 2008
Location: Portland, Oregon
Posts: 2,782
Total Cats: 205
Default

Everything looks good both times!
Mobius is offline   Reply With Quote
Old 08-31-2012, 03:21 AM   #683
Supporting Vendor
iTrader: (10)

Reverant's Avatar

Join Date: Jun 2006
Location: Athens, Greece
Posts: 5,327
Total Cats: 183
Default

Can't tell from the pics - where does the speed sensor read from? Are there teeth on the back of the wheel? How many?
Reverant is offline   Reply With Quote
Old 08-31-2012, 03:23 AM   #684
Elite Member
iTrader: (24)

Join Date: Jul 2007
Location: Cypress, TX
Posts: 3,778
Total Cats: 35
Default

Based on the marketing literature. The investment casting process (which I have not looked up) is how the turbine housing for the original was so sweet and smooth.
Bryce is offline   Reply With Quote
Old 08-31-2012, 04:21 AM   #685
Supporting Vendor
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 13,402
Total Cats: 835
Default

Quote:
Originally Posted by Reverant View Post
Can't tell from the pics - where does the speed sensor read from? Are there teeth on the back of the wheel? How many?
No teeth, it sees the blades themselves IIRC.
Savington is offline   Reply With Quote
Old 08-31-2012, 04:24 AM   #686
Elite Member
iTrader: (24)

Join Date: Jul 2007
Location: Cypress, TX
Posts: 3,778
Total Cats: 35
Default

^Yup. It appears to be reading a few mm up from the base of the blades.
Bryce is offline   Reply With Quote
Old 08-31-2012, 04:30 AM   #687
Supporting Vendor
iTrader: (10)

Reverant's Avatar

Join Date: Jun 2006
Location: Athens, Greece
Posts: 5,327
Total Cats: 183
Default

That's a lot of triggering at 200,000rpm. No wonder they used that circuit, no ECU will be able to handle ~33,000 interrupts per second just for the speed sensor of the turbo.
Reverant is offline   Reply With Quote
Old 08-31-2012, 02:31 PM   #688
Elite Member
Thread Starter
iTrader: (10)

soviet's Avatar

Join Date: Jan 2010
Location: VA
Posts: 3,509
Total Cats: 248
Default

Quote:
Originally Posted by Reverant View Post
That's a lot of triggering at 200,000rpm. No wonder they used that circuit, no ECU will be able to handle ~33,000 interrupts per second just for the speed sensor of the turbo.
It's got a built in divider of 8, but still, reading 12 (or 14 for most EFR) blades @ 160000rpm is like 4000hz

You can read more about the speed sensor here - http://www.full-race.com/articles/efrturbotechbrief.pdf - just go down to Speed Sensor section.

converter box thingy: TSS - Turbo Speed Scaler for use exclusively with Borg Warner speed sensor equipped turbos
soviet is offline   Reply With Quote
Old 08-31-2012, 02:40 PM   #689
Elite Member
iTrader: (2)

Join Date: Aug 2012
Location: Indianapolis
Posts: 3,325
Total Cats: 231
Default

Eventually I will have to get one of those, just to have it on a gauge to amaze passengers or something.

Can MS3 log it? It would also be cool to see that data included with boost and hp/tq numbers.
thenuge26 is offline   Reply With Quote
Old 08-31-2012, 02:41 PM   #690
Elite Member
Thread Starter
iTrader: (10)

soviet's Avatar

Join Date: Jan 2010
Location: VA
Posts: 3,509
Total Cats: 248
Default

yes, MS can log a bunch of 0-5v inputs. Almost any EMS can log analog 0-5v inputs.
I also bought this $13 beauty. I might get it working
http://www.ebay.com/itm/280903275997...84.m1497.l2649
soviet is offline   Reply With Quote
Old 08-31-2012, 02:47 PM   #691
Elite Member
iTrader: (2)

Join Date: Aug 2012
Location: Indianapolis
Posts: 3,325
Total Cats: 231
Default

Quote:
Originally Posted by soviet View Post
yes, MS can log a bunch of 0-5v inputs. Almost any EMS can log analog 0-5v inputs.
Duh, I guess I can't read

But your $13 display is one digit short! If there is some way you can get it to show
Code:
turbine speed / 10
it would work though.

Edit: answered my own question.

Quote:
Originally Posted by Ebay listing
Divider concept:

The number of the singal the gears get for one circle. For example, a gear can take 20 pulse signal for one circle , the divider value could be set to 20.
I assume this means you can just set it for 10 pulses = 1 rpm, and then it will display the rpm/10.
thenuge26 is offline   Reply With Quote
Old 08-31-2012, 02:50 PM   #692
Elite Member
Thread Starter
iTrader: (10)

soviet's Avatar

Join Date: Jan 2010
Location: VA
Posts: 3,509
Total Cats: 248
Default

Quote:
Originally Posted by thenuge26 View Post
Duh, I guess I can't read

But your $13 display is one digit short! If there is some way you can get it to show
Code:
turbine speed / 10
it would work though.
well, it's made in china and instructions are machine translated from chinese to english. but with that said...
Quote:
  • Keys to set the divider value, divided by the value of 1-99999 and 0.0001-9.9999 file, the frequency value of power-down save
  • Beautiful appearance, sophisticated technology and easy to use
  • Divider Value Set
    (Please disconnect the input signal before setting when the input signal is High level voltage signal)

    Open the back cover, press the "S1" key to enter the Sub-frequency Value Set interface,"S1" key is the shift key, "S2" key is the value plus key, the divider value must be set in 1-99999 or 0.0001-9.9999 figures, and other value is invalid;After the set of the desired divider value via "S1" and "S2", wait 10 seconds and the meter will automatically return to the measurement mode, or power-off and then restart to return to the measurement mode .
  • Divider concept:

    The number of the singal the gears get for one circle. For example, a gear can take 20 pulse signal for one circle , the divider value could be set to 20.
so there is an option to specfiy a divider...
soviet is offline   Reply With Quote
Old 08-31-2012, 02:51 PM   #693
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: woosta, ma
Posts: 8,610
Total Cats: 91
Default

I wonder if MS3 can do turbo over speed protection. You know, for when you run allofit.
Leafy is offline   Reply With Quote
Old 08-31-2012, 02:52 PM   #694
Elite Member
Thread Starter
iTrader: (10)

soviet's Avatar

Join Date: Jan 2010
Location: VA
Posts: 3,509
Total Cats: 248
Default

Quote:
Originally Posted by Leafy View Post
I wonder if MS3 can do turbo over speed protection. You know, for when you run allofit.
pretty sure I would have to code that myself.
soviet is offline   Reply With Quote
Old 08-31-2012, 03:03 PM   #695
Boost Czar

iTrader: (60)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 70,179
Total Cats: 1,402
Default

I bet if you bugged Ken or James it would take them ten minutes.
Braineack is offline   Reply With Quote
Old 08-31-2012, 03:14 PM   #696
Elite Member
Thread Starter
iTrader: (10)

soviet's Avatar

Join Date: Jan 2010
Location: VA
Posts: 3,509
Total Cats: 248
Default

Quote:
Originally Posted by Braineack View Post
I bet if you bugged Ken or James it would take them ten minutes.
Uh.. I'm a developer myself. Would be a good time to dick around with MS code anyways.
soviet is offline   Reply With Quote
Old 08-31-2012, 03:17 PM   #697
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: woosta, ma
Posts: 8,610
Total Cats: 91
Default

Oh so you could write it to be as awesome as you wanted. Any where between a closed loop control that reduces the EBC boost target to switching to a conservative boost table if the value is exceeded. Or something.
Leafy is offline   Reply With Quote
Old 08-31-2012, 03:26 PM   #698
Boost Czar

iTrader: (60)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 70,179
Total Cats: 1,402
Default

Quote:
Originally Posted by soviet View Post
Uh.. I'm a developer myself. Would be a good time to dick around with MS code anyways.
I forgot you're russian. Of course.
Braineack is offline   Reply With Quote
Old 08-31-2012, 03:29 PM   #699
Elite Member
Thread Starter
iTrader: (10)

soviet's Avatar

Join Date: Jan 2010
Location: VA
Posts: 3,509
Total Cats: 248
Default

Quote:
Originally Posted by Leafy View Post
Oh so you could write it to be as awesome as you wanted. Any where between a closed loop control that reduces the EBC boost target to switching to a conservative boost table if the value is exceeded. Or something.
sure.
could have a setting to automatically submit an RMA request if turbine spins over 300k or something
soviet is offline   Reply With Quote
Old 08-31-2012, 03:36 PM   #700
Elite Member
iTrader: (12)

Join Date: Dec 2006
Location: Taos, New mexico
Posts: 5,662
Total Cats: 227
Default

Holy ****, had no idea those had a speed sensor. That is rad.
Fireindc is offline   Reply With Quote
