Old 10-04-2012, 10:16 AM   #821
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 33,168
Total Cats: 1,990
Default

The only person that liked that thread was pushy. You poz bros should go out and bang trannies together.
18psi is offline   Reply With Quote
Old 10-04-2012, 03:59 PM   #822
Elite Member
Thread Starter
iTrader: (10)

soviet's Avatar

Join Date: Jan 2010
Location: VA
Posts: 3,507
Total Cats: 248
Default

Quote:
Originally Posted by Braineack View Post
so when exactly will you be at the dyno? you make it hard from this trogldyte to go outside if i dont have a good time.
dyno day starts at like ~5:20 next Friday. I'll be there earlier - like 4pm.
soviet is offline   Reply With Quote
Old 10-05-2012, 12:31 AM   #823
Elite Member
Thread Starter
iTrader: (10)

soviet's Avatar

Join Date: Jan 2010
Location: VA
Posts: 3,507
Total Cats: 248
Default

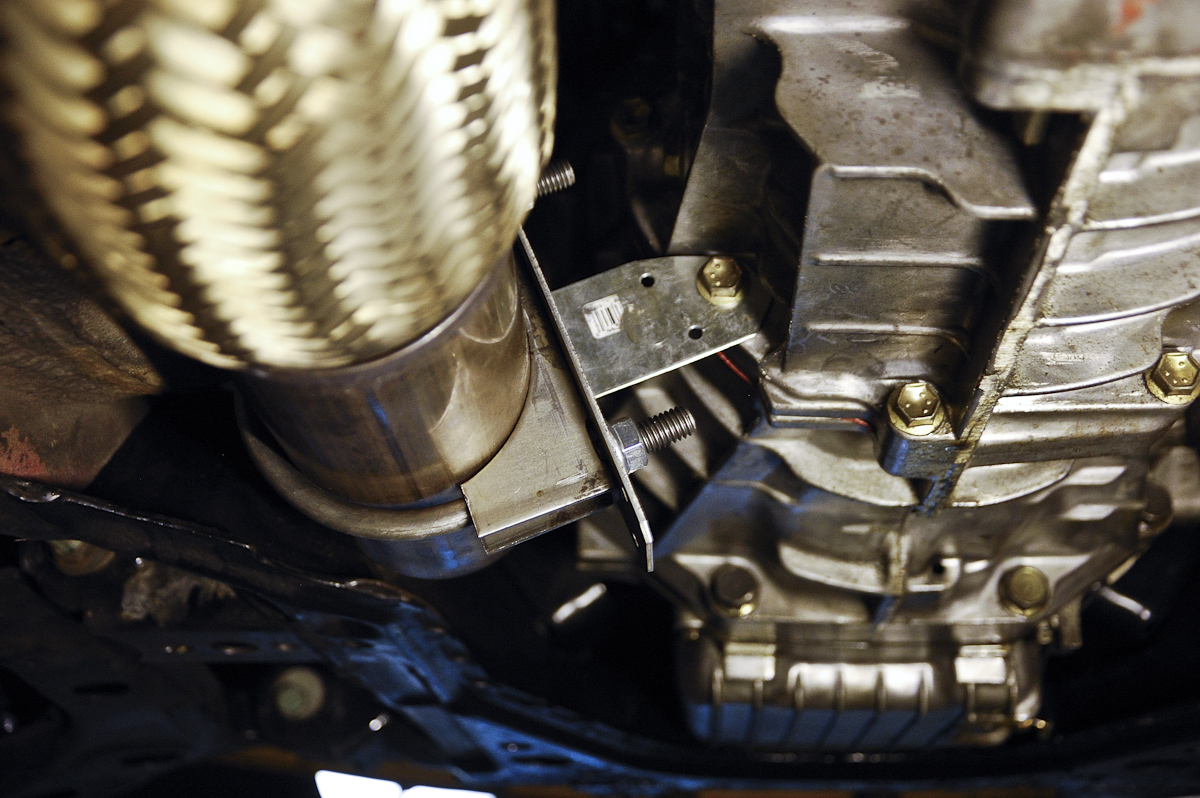

Today, I made a downpipe bracket. The purpose is the bracket is not to support the weight of the downpipe, but rather to restrict it's movement. Since it's all V-band, it can rotate, if, for example, part of the exhaust hits a speed bump.


I made it out of a 3" exhaust clamp and a 6" T strap bent 90*. The strap is like 12 or 14 gauge galvanized steel, so it's sturdier than it looks in the photo.

exhaust clamp - Buy Rol Exhaust 3" Heavy-Duty Muffler Clamp 517300 at Advance Auto Parts
t-strap - 6 in. T Strap-66T at The Home Depot

All the holes even lined up - I didn't have to drill anything, just trim the edge of the strap.

I don't know how I feel about using that bolt on the transmisison.... technically it just holds the transmission bellhousing.
Attached Thumbnails
In Soviet Russia car build YOU!-dsc_2190.jpg
soviet is offline   Reply With Quote
Old 10-05-2012, 12:34 AM   #824
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 33,168
Total Cats: 1,990
Default

That bolt is fine, and that's the one I use for all my dp brackets too. And hte bracket looks good too. All around win IMO. Good job.
18psi is offline   Reply With Quote
Old 10-05-2012, 12:41 AM   #825
Elite Member
Thread Starter
iTrader: (10)

soviet's Avatar

Join Date: Jan 2010
Location: VA
Posts: 3,507
Total Cats: 248
Default

Quote:
Originally Posted by 18psi View Post
That bolt is fine, and that's the one I use for all my dp brackets too. And hte bracket looks good too. All around win IMO. Good job.
yay winning!
I also had a small issue with, what appeared to be, minor misfire/hesitation at WOT. I changed spark plugs and it went away. Plugs looked good BUT first plug hole had oil in it. Uh-oh. Turned out I just spilled some oil in it

Compression tested the first cylinder and it's still at 170psi. So no problem.

FYI these spark plugs - NGK Spark Plugs 4091 - NGK Racing Spark Plugs - Overview - SummitRacing.com - resistor-less NGK
soviet is offline   Reply With Quote
Old 10-05-2012, 12:50 AM   #826
Elite Member
iTrader: (2)

Faeflora's Avatar

Join Date: Jan 2007
Location: Los Angeles, CA
Posts: 8,763
Total Cats: 115
Default

bracket look fantabulous
Faeflora is offline   Reply With Quote
Old 10-05-2012, 01:23 AM   #827
Elite Member
Thread Starter
iTrader: (10)

soviet's Avatar

Join Date: Jan 2010
Location: VA
Posts: 3,507
Total Cats: 248
Default

Quote:
Originally Posted by Faeflora View Post
bracket look fantabulous
you can get a 4" exhaust clamp. didn't see them in store so you might have to order online.
soviet is offline   Reply With Quote
Old 10-05-2012, 03:15 AM   #828
Elite Member
Thread Starter
iTrader: (10)

soviet's Avatar

Join Date: Jan 2010
Location: VA
Posts: 3,507
Total Cats: 248
Default

did a few pulls, tried a timing map faeflora made me (a little bit more timing everywhere) and tried virtual dyno. car runs like a champ although exhaust still makes some odd noise... I thought it wasn't hitting anything anymore QQ

red is 13-20* timing, blue is flat 11* and slightly rich AFR in top end. This is 4th gear.. unfortunately the app is semi-broken... have to use NB profile becase no option for 6spd NA, lol.


oh and knock is exactly the same for both maps. so I'm happy.
soviet is offline   Reply With Quote
Old 10-05-2012, 09:19 AM   #829
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: woosta, ma
Posts: 8,605
Total Cats: 91
Default

Look at that flat torque curve.
Leafy is offline   Reply With Quote
Old 10-05-2012, 09:33 AM   #830
Elite Member
iTrader: (2)

Faeflora's Avatar

Join Date: Jan 2007
Location: Los Angeles, CA
Posts: 8,763
Total Cats: 115
Default

Glad to see all is ok.

You prob have 15-25hp left on the table under the curve with timing.

We can work on that a little tomorrow.
Faeflora is offline   Reply With Quote
Old 10-05-2012, 09:37 AM   #831
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 33,168
Total Cats: 1,990
Default

I'd try working on the topend actually. See if you can get that torque not to drop off past 6....Otherwise thats a glorious curve, if it looks the same on a real dyno that's just bauce
18psi is offline   Reply With Quote
Old 10-05-2012, 01:58 PM   #832
Elite Member
Thread Starter
iTrader: (10)

soviet's Avatar

Join Date: Jan 2010
Location: VA
Posts: 3,507
Total Cats: 248
Default

Quote:
Originally Posted by 18psi View Post
I'd try working on the topend actually. See if you can get that torque not to drop off past 6....Otherwise thats a glorious curve, if it looks the same on a real dyno that's just bauce
It looks very similar to my actual dyno, except actual dyno spooled faster and made moar torques.

Drove the car to work this morning and now I have 4x the knock for some reason. Went from 6-8% knock @ 2500rpm cruise to 20% knock @ 2500rpm.

There is a new exhaust noise and I think sensor picks it up as knock
soviet is offline   Reply With Quote
Old 10-05-2012, 02:01 PM   #833
Boost Czar

iTrader: (60)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 70,163
Total Cats: 1,401
Default

or you listened to faelfora.
Braineack is offline   Reply With Quote
Old 10-05-2012, 02:04 PM   #834
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 33,168
Total Cats: 1,990
Default

yeah that......Its blowing my mind that you're letting him "tune" your car.

No offense fae
18psi is offline   Reply With Quote
Old 10-05-2012, 02:08 PM   #835
Elite Member
Thread Starter
iTrader: (10)

soviet's Avatar

Join Date: Jan 2010
Location: VA
Posts: 3,507
Total Cats: 248
Default

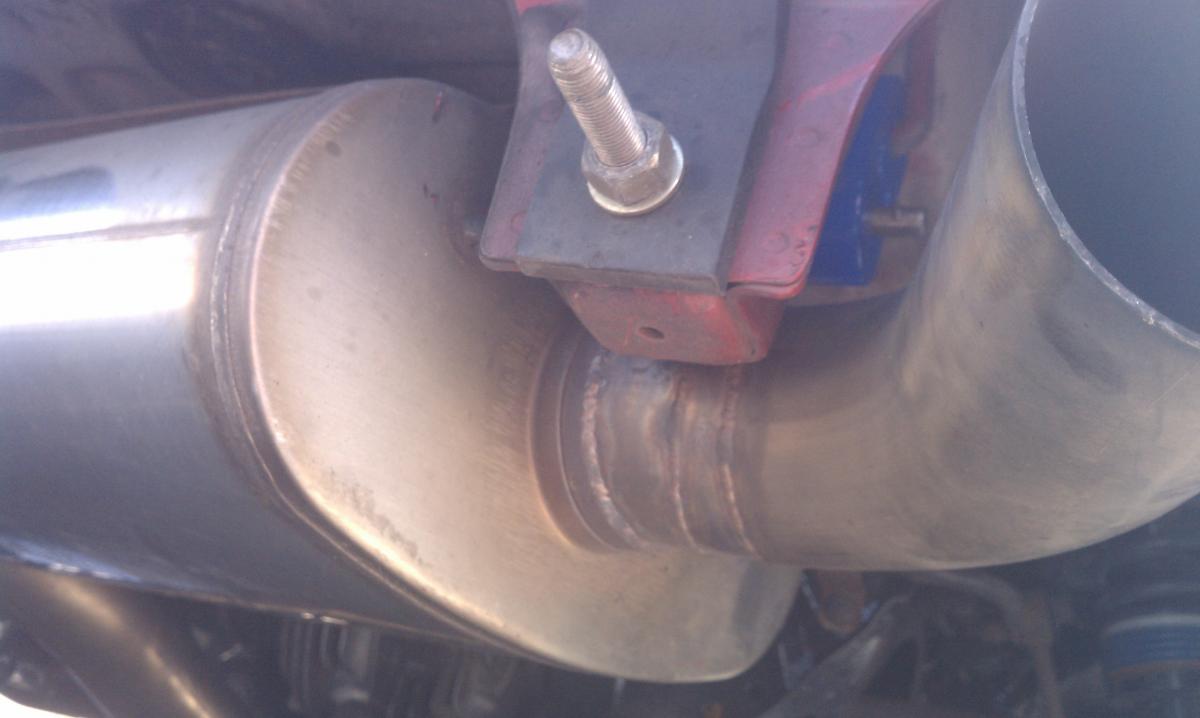

found source of noise... ugh.

exhaust tip area goes around the rear bumper support and hits it. might just run straight pipe on dyno/strip :P
Attached Thumbnails
In Soviet Russia car build YOU!-imag0423.jpg
soviet is offline   Reply With Quote
Old 10-05-2012, 02:09 PM   #836
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: woosta, ma
Posts: 8,605
Total Cats: 91
Default

Just clearance that clarkson style.
Leafy is offline   Reply With Quote
Old 10-05-2012, 02:14 PM   #837
Elite Member
Thread Starter
iTrader: (10)

soviet's Avatar

Join Date: Jan 2010
Location: VA
Posts: 3,507
Total Cats: 248
Default

Quote:
Originally Posted by Braineack View Post
or you listened to faelfora.
Quote:
Originally Posted by 18psi View Post
yeah that......Its blowing my mind that you're letting him "tune" your car.

No offense fae
If I didn't take Fae's advice I'd still be running a T25 on a stock motor. He gives good advice mixed with bad advice, you just have to figure out which is a good idea and which isn't.
soviet is offline   Reply With Quote
Old 10-05-2012, 02:14 PM   #838
Elite Member
Thread Starter
iTrader: (10)

soviet's Avatar

Join Date: Jan 2010
Location: VA
Posts: 3,507
Total Cats: 248
Default

Quote:
Originally Posted by Leafy View Post
Just clearance that clarkson style.
Unfortunately that part holds my tow hitch, otherwise I'd cut it off ages ago. I might "notch" it a bit though.
soviet is offline   Reply With Quote
Old 10-05-2012, 02:14 PM   #839
Boost Czar

iTrader: (60)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 70,163
Total Cats: 1,401
Default

ive seen him tune.
Braineack is offline   Reply With Quote
Old 10-05-2012, 02:16 PM   #840
Elite Member
iTrader: (2)

Join Date: Aug 2012
Location: Indianapolis
Posts: 3,325
Total Cats: 231
Default

Quote:
Originally Posted by soviet View Post
found source of noise... ugh.

exhaust tip area goes around the rear bumper support and hits it. might just run straight pipe on dyno/strip :P
See, this is where you need Fae. Not tuning your car. Doing what he does best.
thenuge26 is offline   Reply With Quote
