Old 07-12-2013, 03:33 PM   #1241
Elite Member
iTrader: (3)

AbeFM's Avatar

Join Date: Aug 2006
Location: San Diego, CA
Posts: 3,047
Total Cats: 9
Default

$180? Man, I wouldn't spend $180 to get my car out of impound.


Item title Price
Shipping price
Qty Item total
WALBRO F90000262 400LPH UNIVERSAL RACING FUEL PUMP IN TANK W-INSTALLATION KIT. ( 170920168201 )

Paid on Mar-04-13 $118.00 Free 1 $118.00
Shipped on Mar-04-13
USPS Priority Mail Small Flat Rate Box


The trick is the non-e85 pump is 9/10ths (better, really, in some ways) as the e85 version and best estimates say it'll only shorten life by <10% (i.e. 200,000 miles MTBF or something ridiculous). Of course, a pump in the tank is worth two in the bush.
AbeFM is offline   Reply With Quote
Old 07-12-2013, 03:37 PM   #1242
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: woosta, ma
Posts: 8,596
Total Cats: 91
Default

Does the wally400 come in miata fitment? The crux of the matter is that without the OEM sock you cant quite run as deep into the tank. If you dont want to run super deep into the tank you might as well just get the 044 for 80 bucks and $20 worth of adapters and sock to make it work.
Leafy is offline   Reply With Quote
Old 07-12-2013, 04:25 PM   #1243
Elite Member
iTrader: (3)

AbeFM's Avatar

Join Date: Aug 2006
Location: San Diego, CA
Posts: 3,047
Total Cats: 9
Default

One of the nicest parts is that it's quiet! I mean, it's way way way louder than the stock pump, but it sounds like you parked 500 feet from niagra falls, not 100 feet. :-)



Huh. You know, I wonder how well that's all holding up. I don't have a good feeling (I took no "before" pictures) for how deep the sock went, but I thought it was fairly comparable.

I wish I'd put some rubber between pump and bracket, I bet it would have all been more quiet if I'd done so.

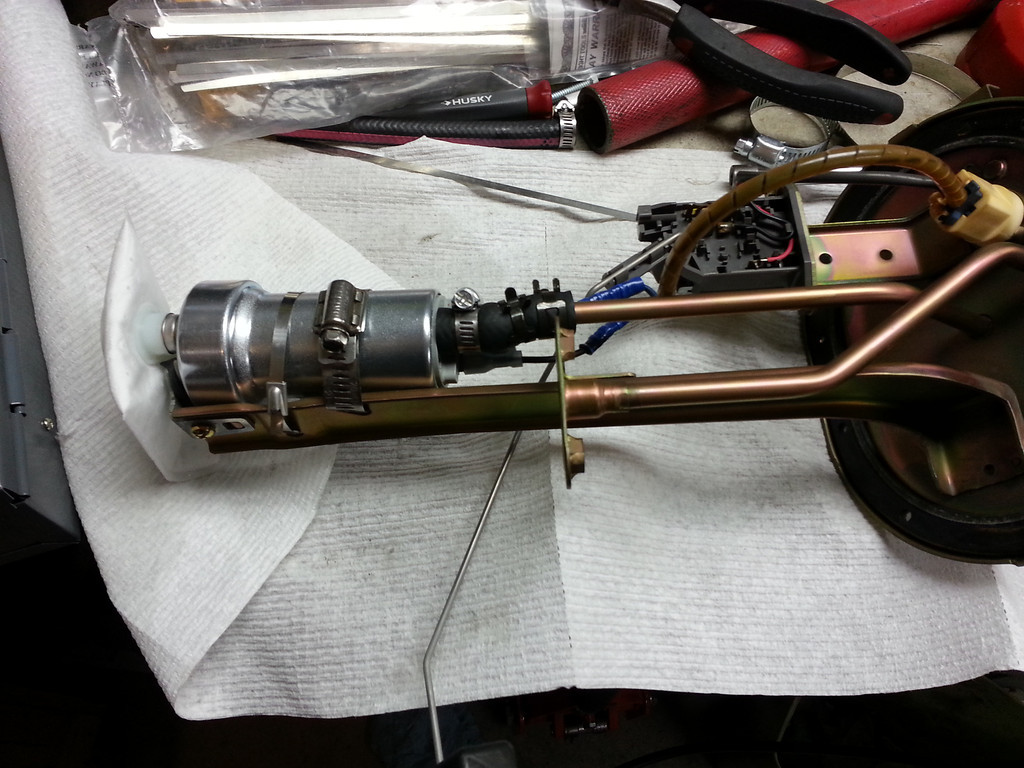

Attached Thumbnails
In Soviet Russia car build YOU!-20130308_210044-l.jpg
AbeFM is offline   Reply With Quote
Old 07-12-2013, 04:30 PM   #1244
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: woosta, ma
Posts: 8,596
Total Cats: 91
Default

Can you still hear it when your car is off but you're in a noisy area like a paddock or side of a busy road? Being able to hear the pump is great for troubleshooting. My other issue with the 044 is that its too quiet to hear it if the s2000 paddocked next to you is warming its engine.
Leafy is offline   Reply With Quote
Old 07-12-2013, 04:36 PM   #1245
Elite Member
iTrader: (3)

AbeFM's Avatar

Join Date: Aug 2006
Location: San Diego, CA
Posts: 3,047
Total Cats: 9
Default

Guess it depends on the particular StooGAY. I can hear it over my motor at idle without any difficulty, "low" volume on the stereo is now higher than it used to be. It's great if you want a street car, but if I were that worried, I'd put an LED across the power pins of the pump. :-) You could hear it with quite a bit of noise if you stuck head near the tank cover. In a quiet environment I can hear it from ten feet from the car (just barely) with OEM sound deadening in place.
AbeFM is offline   Reply With Quote
Old 07-12-2013, 04:42 PM   #1246
Elite Member
Thread Starter
iTrader: (10)

soviet's Avatar

Join Date: Jan 2010
Location: VA
Posts: 3,505
Total Cats: 248
Default

Quote:
Originally Posted by AbeFM View Post
$180? Man, I wouldn't spend $180 to get my car out of impound.


Item title Price
Shipping price
Qty Item total
WALBRO F90000262 400LPH UNIVERSAL RACING FUEL PUMP IN TANK W-INSTALLATION KIT. ( 170920168201 )

Paid on Mar-04-13 $118.00 Free 1 $118.00
Shipped on Mar-04-13
USPS Priority Mail Small Flat Rate Box


The trick is the non-e85 pump is 9/10ths (better, really, in some ways) as the e85 version and best estimates say it'll only shorten life by <10% (i.e. 200,000 miles MTBF or something ridiculous). Of course, a pump in the tank is worth two in the bush.
I'd rather have the E85 version
With Walbro pumps I'm worried about fakes. Cheapest I found a legit one is $150ish from Racetronix - Racetronix - F90000267 - Fuel Pump - 430L/Hr, E85 Turbine HP

044 quiet
wut

soviet is offline   Reply With Quote
Old 07-12-2013, 04:47 PM   #1247
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: woosta, ma
Posts: 8,596
Total Cats: 91
Default

I dono, from behind the car with the stock exhaust you could hear it from ~10 feet away idling. With the current ~86db@75' exhaust you cant hear it with the car running. You cant hear it from the drivers seat with the car running, unless the car is stopped close to something sound reflective. And its not loud enough to hear if its working with the car off if you're on the side of the highway and sitting in the drivers seat.
Leafy is offline   Reply With Quote
Old 07-12-2013, 04:53 PM   #1248
Elite Member
iTrader: (3)

AbeFM's Avatar

Join Date: Aug 2006
Location: San Diego, CA
Posts: 3,047
Total Cats: 9
Default

[QUOTE=soviet;1031208]I'd rather have the E85 version
[\quote]
Lame. No reason. Much more green, much less performance. If I got 5 years out of it and had to buy another, there'll be something better out then anyway. Odds are, you'll get more than that. The digging I'd done at the time told me in reality, nearly no one has problems with e85, and there's precious little wrong with the regular kit.


Quote:
With Walbro pumps I'm worried about fakes.
Totally reasonable. No idea what I got, or how to tell. So far, car runs. I'd rather spend extra money getting a genuine gas version over a possibly fake e85 one though.
AbeFM is offline   Reply With Quote
Old 07-12-2013, 05:31 PM   #1249
Elite Member
Thread Starter
iTrader: (10)

soviet's Avatar

Join Date: Jan 2010
Location: VA
Posts: 3,505
Total Cats: 248
Default

I agree that paying a premium for E85 compatibility is silly. However, in this case, the E85 version also flows more.

Walbro 400 E85 - Part #F90000267, actual flow @ 13.5V - 454 lph @ 0psi, 328 lph @ 80psi
Walbro 400 Vanilla - Part #F90000262, actual flow @ 14.0V - 424 lph @ 0psi, 287lph @ 80psi

E85 version also draws more current and is only about $10 more than the vanilla version.

sauce:
Racetronix - F90000267 - Fuel Pump - 430L/Hr, E85 Turbine HP
Racetronix - F90000262 - Fuel Pump - 386L/Hr, Turbine HP

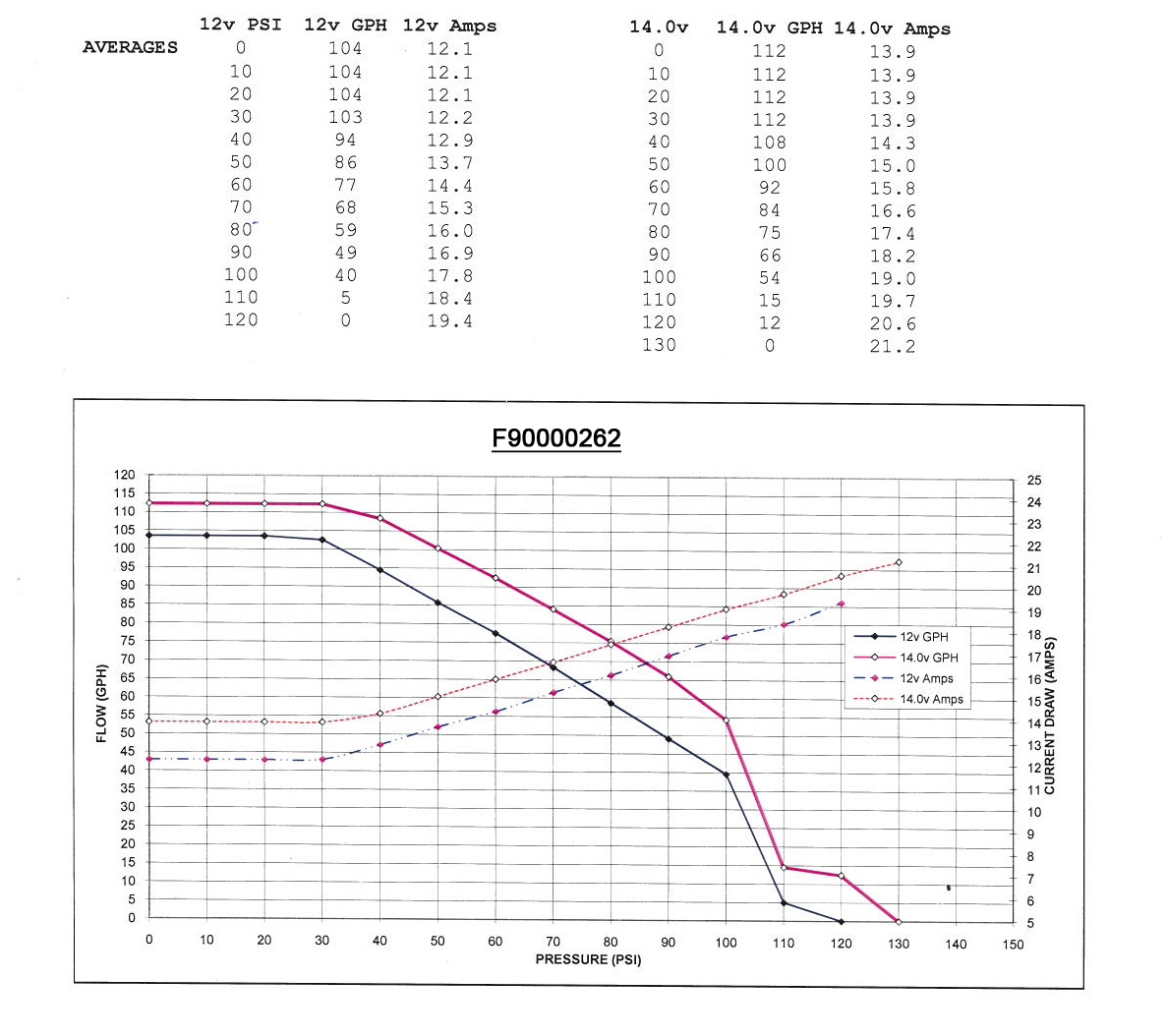

http://www.racetronix.com/product/F9...00262Graph.jpg

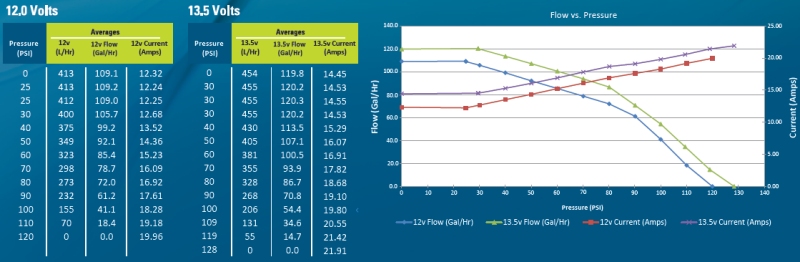

http://www.racetronix.com/product/F9...0267_Specs.jpg
soviet is offline   Reply With Quote
Old 07-12-2013, 05:54 PM   #1250
Elite Member
iTrader: (3)

AbeFM's Avatar

Join Date: Aug 2006
Location: San Diego, CA
Posts: 3,047
Total Cats: 9
Default

Well, I remember back in the day, reading a very in depth article (which I can't find after WAY too much time searching) that said that the pumps were odd in that they behaved differently for gas and e85 between them - i.e. the e85 pump was better at pumping gas but the gas pump was better at pumping e85 or some silliness.

The big issue is when I got them, the price difference was nearly a factor of two... For very little gain.

With $10 between them, why NOT get the bigger one?
AbeFM is offline   Reply With Quote
Old 07-12-2013, 06:01 PM   #1251
Elite Member
Thread Starter
iTrader: (10)

soviet's Avatar

Join Date: Jan 2010
Location: VA
Posts: 3,505
Total Cats: 248
Default

With the big pump I could max out my FPR AND fuel pressure sender - 70psi base pressure, 30psi boost, 100psi fuel pressure ;D

That's almost 5 bar of base pressure

edit: ok maybe not 100psi of fuel pressure... it only provides 200lph at that pressure and I'd probably need more @ 30psi.

Last edited by soviet; 07-12-2013 at 06:14 PM.
soviet is offline   Reply With Quote
Old 07-12-2013, 06:13 PM   #1252
Elite Member
iTrader: (3)

AbeFM's Avatar

Join Date: Aug 2006
Location: San Diego, CA
Posts: 3,047
Total Cats: 9
Default

The only reasonable course of action for you is mailing me your regulator. I'll definately like you on facebook if you do.
AbeFM is offline   Reply With Quote
Old 07-12-2013, 06:22 PM   #1253
Senior Member
iTrader: (3)

Join Date: Dec 2007
Location: Seven Valleys, PA
Posts: 626
Total Cats: 10
Default

So... who wants to see Soviet pull an all night fuel system thrash, get his pressure issues fixed, and then bring his car to the drag race tomorrow?

sorry buddy, had to poke the frustrated Russian with a pointy stick
swimming108 is offline   Reply With Quote
Old 07-12-2013, 06:34 PM   #1254
Elite Member
iTrader: (3)

AbeFM's Avatar

Join Date: Aug 2006
Location: San Diego, CA
Posts: 3,047
Total Cats: 9
Default

Backup plan - point fuel nozzle to rear of car. Start pump. Light stream. Afterburner!
AbeFM is offline   Reply With Quote
Old 07-14-2013, 04:53 AM   #1255
Elite Member
iTrader: (3)

AbeFM's Avatar

Join Date: Aug 2006
Location: San Diego, CA
Posts: 3,047
Total Cats: 9
Default

To follow up on the MSDroid stuff before - my USB OTG cable just showed up ($10, free ship) and... well, I didn't try talking to the MS as it's kinda halfway stuffed into my car, but on my Samsung Galaxy S3 I was able to get mouse and keyboard working just by plugging in the keyboard (and a mouse into it).

So no drivers, ROM flashing, root access or anything. Just a vanilla T-Mobile S3.
AbeFM is offline   Reply With Quote
Old 07-15-2013, 02:42 PM   #1256
Elite Member
Thread Starter
iTrader: (10)

soviet's Avatar

Join Date: Jan 2010
Location: VA
Posts: 3,505
Total Cats: 248
Default

That's pretty awesome
Components for fuel pump wiring arrived (well, except 12ga splices) so I'll take out the pump and start rewiring tonight.

Pep Boys still haven't received the replacement Bosch battery - it's been over 10 days since they ordered it. FML.
soviet is offline   Reply With Quote
Old 07-15-2013, 03:54 PM   #1257
Elite Member
iTrader: (3)

AbeFM's Avatar

Join Date: Aug 2006
Location: San Diego, CA
Posts: 3,047
Total Cats: 9
Default

Are you putting in a new relay? Do you have any idea what the rating is on the stock one?

'Course, it's probably better on mine since my car was made this century.
AbeFM is offline   Reply With Quote
Old 07-15-2013, 04:41 PM   #1258
Elite Member
Thread Starter
iTrader: (10)

soviet's Avatar

Join Date: Jan 2010
Location: VA
Posts: 3,505
Total Cats: 248
Default

yep, putting a new, generic 30A relay into the trunk. The stock one ("circuit opening relay") being under the steering wheel is in the worst possible location. Its also connected to the ECU, ST_IGN fuse and AFM connector at the same ******* time. **** that noise, I'll stick with a regular 4-pin $3 relay.
soviet is offline   Reply With Quote
Old 07-15-2013, 06:07 PM   #1259
Elite Member
iTrader: (3)

AbeFM's Avatar

Join Date: Aug 2006
Location: San Diego, CA
Posts: 3,047
Total Cats: 9
Default

What do you power your WB off of? I've been told to power it off FP relay, but that seems silly - keeps it from warming up if you want to monitor start up conditions.
AbeFM is offline   Reply With Quote
Old 07-15-2013, 06:11 PM   #1260
Boost Czar

iTrader: (60)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 70,100
Total Cats: 1,400
Default

doesn't the voltage drop during cranking prevent that regardless?
Braineack is offline   Reply With Quote
