Old 09-05-2013, 07:21 PM   #1461
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 33,170
Total Cats: 1,990
Default

cool beans

what is the foam for?
18psi is offline   Reply With Quote
Old 09-05-2013, 07:23 PM   #1462
Elite Member
Thread Starter
iTrader: (10)

soviet's Avatar

Join Date: Jan 2010
Location: VA
Posts: 3,509
Total Cats: 248
Default

dunno, to make it quieter?

I have a 94 gas tank in my garage, I'll eventually install it and remount the pump. 90-93 gas tank is the worst (1.6 lol)
soviet is offline   Reply With Quote
Old 09-05-2013, 07:54 PM   #1463
Elite Member
iTrader: (3)

Join Date: Aug 2011
Posts: 7,237
Total Cats: 554
Default

Vibration and noise dampening.
concealer404 is offline   Reply With Quote
Old 09-05-2013, 09:27 PM   #1464
Elite Member
Thread Starter
iTrader: (10)

soviet's Avatar

Join Date: Jan 2010
Location: VA
Posts: 3,509
Total Cats: 248
Default

Car runs good but sputters a bit at >20psi. Turbo speed looks normal so I'm guessing I just need to tighten all the clamps and zip-tie every vacuum line. Battery voltage also looks a little bit low, not quite sure why. Finally, valve cover gasket seeps oil after boost. Its minimal but annoying - I have some 10.9 grade bolts coming in, so I'll just tighten it s'more

Spins 3rd
soviet is offline   Reply With Quote
Old 09-05-2013, 11:56 PM   #1465
Elite Member
iTrader: (3)

AbeFM's Avatar

Join Date: Aug 2006
Location: San Diego, CA
Posts: 3,047
Total Cats: 9
Default

So Gay! no DW?

I like the little sock. Oh, you got the e-85 one, fancy connector and all that. I'm curious how loud it is....
AbeFM is offline   Reply With Quote
Old 09-06-2013, 12:42 AM   #1466
Elite Member
Thread Starter
iTrader: (10)

soviet's Avatar

Join Date: Jan 2010
Location: VA
Posts: 3,509
Total Cats: 248
Default

Sock is from Walbro Miata kit for 255 pump. Fits perfectly. No DW because it doesn't support my goals on e85. I'm sure it died because I pushed it past its limits.
soviet is offline   Reply With Quote
Old 09-08-2013, 04:39 PM   #1467
Elite Member
Thread Starter
iTrader: (10)

soviet's Avatar

Join Date: Jan 2010
Location: VA
Posts: 3,509
Total Cats: 248
Default

Well I fixed the fluttering issue. I forgot to tighten down the compressor housing v-band, woops

Now I have another issue. I think I'm lifting the head starting at 20psi or so. During a pull, past 4000rpm it makes a cracking sound , kind of like machine gun, and there is a smell of exhaust. I haven't looked further than that but I think I need to check head stud torque...

I did a run on just wastegate, for fun. Sorry for vertical video

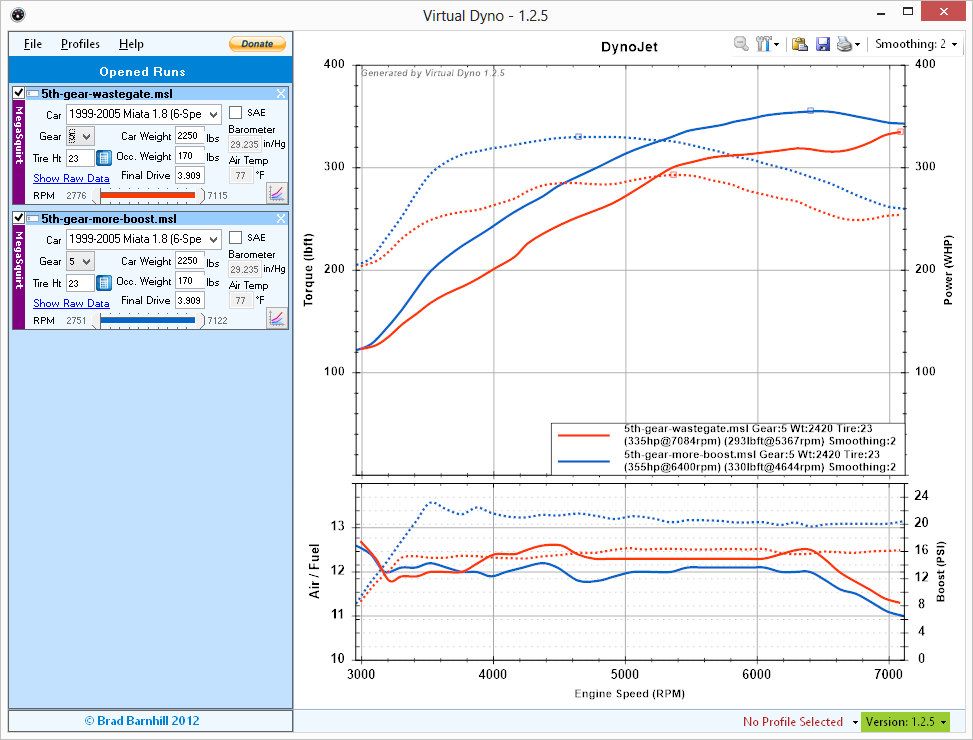

And virtual dyno:

Blue line is with cracking noises, red is wastegate. Red corresponds to the video above. Obviously blue line should more (look at the torque)
Attached Thumbnails
In Soviet Russia car build YOU!-lifting-head.png
soviet is offline   Reply With Quote
Old 09-08-2013, 05:48 PM   #1468
Elite Member
iTrader: (2)

triple88a's Avatar

Join Date: Apr 2006
Location: Chicago, IL
Posts: 8,876
Total Cats: 487
Default

5th gear? holy **** i wish i could find a place to rev my bitch up :/ Can barely do a 2nd gear pull without getting in trouble. :(
triple88a is offline   Reply With Quote
Old 09-08-2013, 06:33 PM   #1469
Elite Member
Thread Starter
iTrader: (10)

soviet's Avatar

Join Date: Jan 2010
Location: VA
Posts: 3,509
Total Cats: 248
Default

I'm sure there are plenty of empty straight highways in Chicago, have you tried checking at 4am? If I can street tune in VA then anyone can.

5th gear realistically tops out at 120. Both my tach and speedo are inaccurate
soviet is offline   Reply With Quote
Old 09-08-2013, 07:10 PM   #1470
Elite Member
iTrader: (3)

AbeFM's Avatar

Join Date: Aug 2006
Location: San Diego, CA
Posts: 3,047
Total Cats: 9
Default

Quote:
Originally Posted by soviet View Post
5th gear realistically tops out at 120. Both my tach and speedo are inaccurate
My MS knows how fast I am going. More of a long term project is to get the OEM speedo to show the right number.

What's wrong with the tach? The OEM non-linearity of it, or something more?

Quote:
Originally Posted by triple88a View Post
5th gear? holy **** i wish i could find a place to rev my bitch up :/ Can barely do a 2nd gear pull without getting in trouble. :(
I was going to say something clever about them never finding the blue car they saw race by, but I'm too drunk to pull of something so Einsteinian.
AbeFM is offline   Reply With Quote
Old 09-08-2013, 09:45 PM   #1471
Senior Member

Join Date: May 2011
Location: Pennsylvania
Posts: 1,119
Total Cats: 33
Default

Think its the head lifting, and not something on the Manifold/turbo/exhaust???
supercooper is offline   Reply With Quote
Old 09-08-2013, 10:17 PM   #1472
Elite Member
iTrader: (3)

AbeFM's Avatar

Join Date: Aug 2006
Location: San Diego, CA
Posts: 3,047
Total Cats: 9
Default

I've had a lot of heads lift. Where's the oil? Should be plenty of leaks. :-) Have a leak-down tester and a decent sized air compressor? Might learn something.
AbeFM is offline   Reply With Quote
Old 09-11-2013, 11:32 AM   #1473
Elite Member
Thread Starter
iTrader: (10)

soviet's Avatar

Join Date: Jan 2010
Location: VA
Posts: 3,509
Total Cats: 248
Default

Head lifting was false alarm. Its something else.

Oil is perfect, coolant is perfect, there are no oil leaks. Plugs were all gapped between 0.032-0.035, i made them all 0.035. One plug wire wasn't fully seated on the spark plug so that was probably the most likely issue. AFR wasn't affected though like it would if it was not firing.. but who knows.

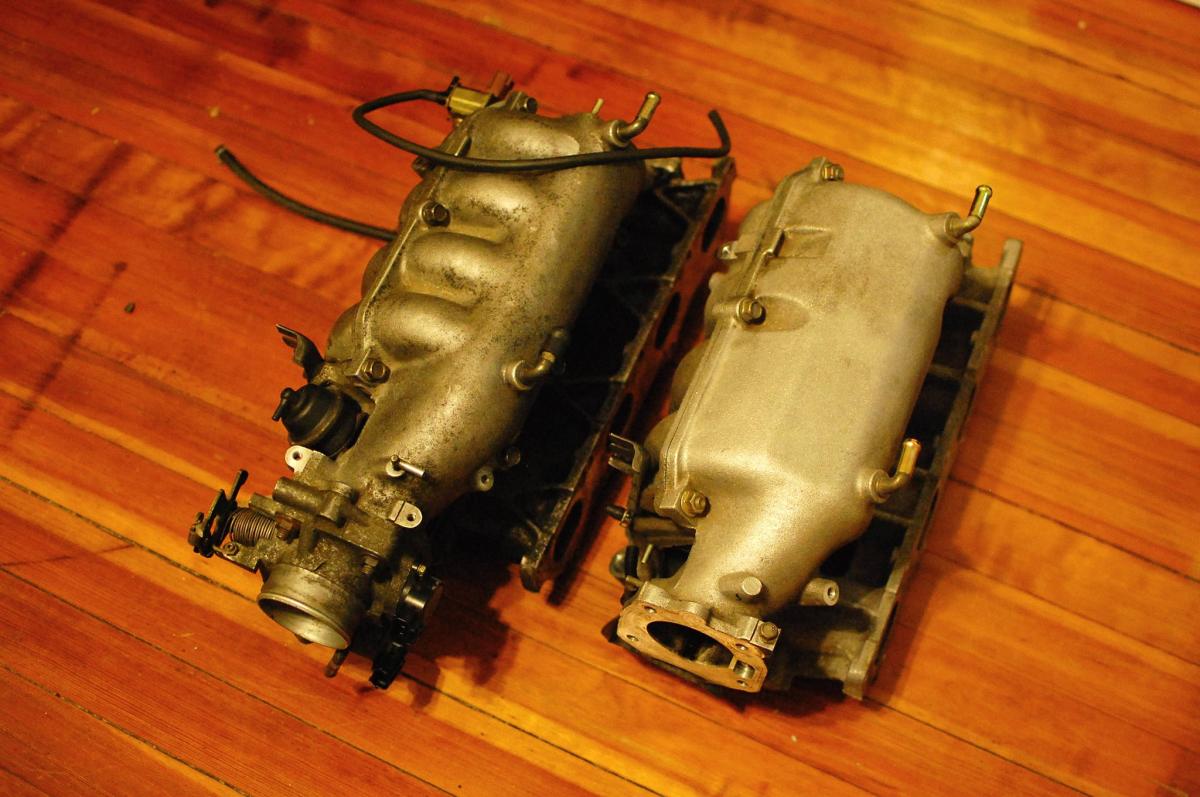

Finishing installing this tonight:
Attached Thumbnails
In Soviet Russia car build YOU!-1294587_10151899754476823_1626072110_o.jpg
soviet is offline   Reply With Quote
Old 09-12-2013, 05:52 AM   #1474
Elite Member
Thread Starter
iTrader: (10)

soviet's Avatar

Join Date: Jan 2010
Location: VA
Posts: 3,509
Total Cats: 248
Default

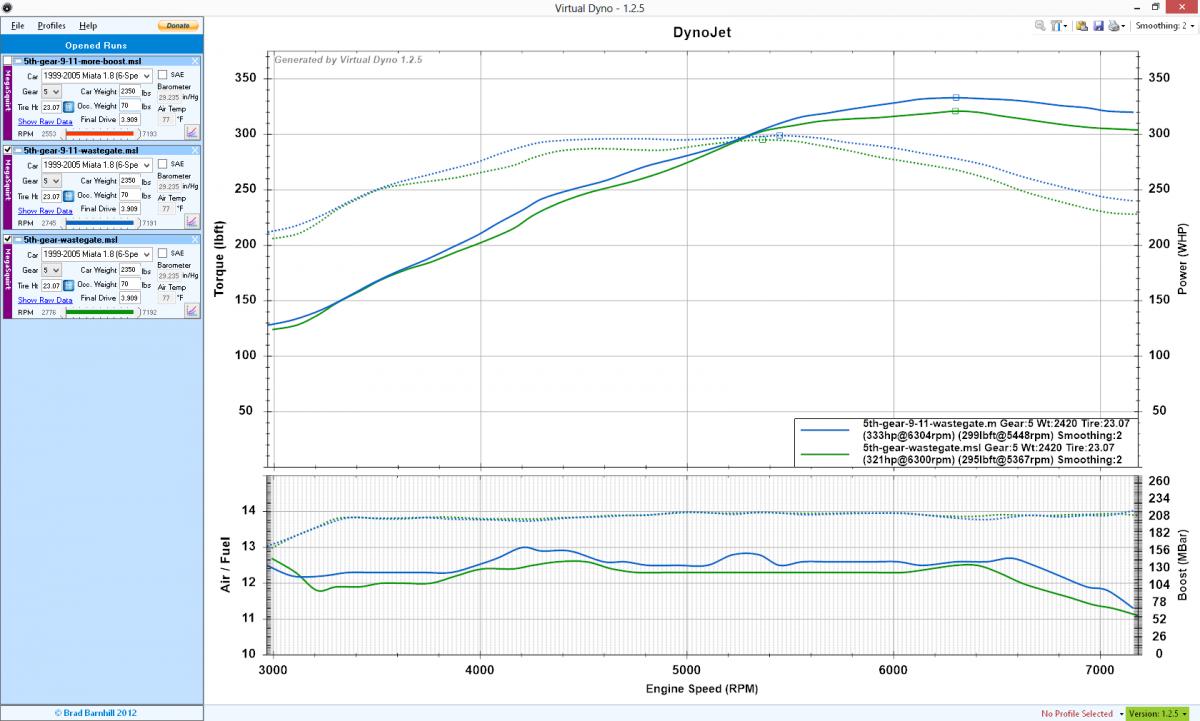

This is not a very good comparison, but unfortunately, all I got.
Same tune, same settings, same fuel. No boost control, just wastegate. Different ambient temperature (blue line was 10* hotter). There was, what I now determined, some spark blow out, which kind of throws this comparison out of the window.

But still every log I have shows flat top to be faster.
Attached Thumbnails
In Soviet Russia car build YOU!-1240662_10151900822556823_1833713236_n.jpg   In Soviet Russia car build YOU!-flattop.jpg
soviet is offline   Reply With Quote
Old 09-12-2013, 06:58 AM   #1475
Senior Member

Join Date: Mar 2006
Location: Schwarzenberg, Germany
Posts: 1,473
Total Cats: 79
Default

I like the zipties.... !
Zaphod is offline   Reply With Quote
Old 09-12-2013, 06:59 AM   #1476
I haz no trubo
iTrader: (2)

Oscar's Avatar

Join Date: Jan 2007
Location: Bolton, UK
Posts: 2,976
Total Cats: 103
Default

Who would've thought....

How much did you pay for it? (ballpark).
Oscar is offline   Reply With Quote
Old 09-12-2013, 09:13 AM   #1477
mkturbo.com
iTrader: (24)

shuiend's Avatar

Join Date: May 2006
Location: Charleston SC
Posts: 12,215
Total Cats: 750
Default

Quote:
Originally Posted by Oscar View Post
Who would've thought....

How much did you pay for it? (ballpark).
A whole lot less then the going market rate.
shuiend is offline   Reply With Quote
Old 09-12-2013, 10:11 AM   #1478
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 33,170
Total Cats: 1,990
Default

So green is the 99-00 and blue is the flattop? Not bad. Gains abaove 5500 as expected. I wonder if at 400 it will be much more drastic
18psi is offline   Reply With Quote
Old 09-12-2013, 11:09 AM   #1479
Elite Member
Thread Starter
iTrader: (10)

soviet's Avatar

Join Date: Jan 2010
Location: VA
Posts: 3,509
Total Cats: 248
Default

Quote:
Originally Posted by 18psi View Post
So green is the 99-00 and blue is the flattop? Not bad. Gains abaove 5500 as expected. I wonder if at 400 it will be much more drastic
I wonder if gains are more if my spark isnt blowing out
soviet is offline   Reply With Quote
Old 09-12-2013, 11:30 AM   #1480
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 33,170
Total Cats: 1,990
Default

probably not

But this has me wondering: what do people do when they want to go higher boost?
We already know the limit for toyota cops is like 21psi on e85.
Apparently 25 or whatever you're maxed out at is the limit for gm coils?
Or do you think you're having a malfunction?
18psi is offline   Reply With Quote
