In Soviet Russia car build YOU! - Page 76 - Miata Turbo Forum -Boost cars, acquire cats.

Welcome to Miataturbo.net   Members



Build Threads Building a motor? Post the progress here.

Reply



LinkBack Thread Tools Search this Thread
Old 09-13-2013, 11:53 AM   #1501
Elite Member
iTrader: (17)

Join Date: Aug 2007
Location: Fort Myers, FL
Posts: 2,613
Total Cats: 102
Default

I don't know why I come to this thread, I just get more depressed everytime. So jelly
pdexta is offline   Reply With Quote
Old 09-13-2013, 12:10 PM   #1502
Elite Member
Thread Starter
iTrader: (10)

soviet's Avatar

Join Date: Jan 2010
Location: VA
Posts: 3,509
Total Cats: 248
Default

Quote:
Originally Posted by pdexta View Post
I don't know why I come to this thread, I just get more depressed everytime. So jelly
Just go back to the part where I dropped the bolt down the cylinder and had to pull off the head. It'll make you feel better

I had a lot of aids and fails with this car.
soviet is offline   Reply With Quote
Old 09-13-2013, 12:11 PM   #1503
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 33,168
Total Cats: 1,990
Default

lol I still can't believe you did that

But the fails are heavily outweighed by the winz
18psi is offline   Reply With Quote
Old 09-13-2013, 12:22 PM   #1504
Elite Member
iTrader: (2)

Join Date: Aug 2012
Location: Indianapolis
Posts: 3,325
Total Cats: 231
Default

Seriously this thread just makes me sad I already bought a walboro 255. There's not a lot of E85 near me but it is making me think I should get a bigger pump just in case.
thenuge26 is offline   Reply With Quote
Old 09-13-2013, 12:37 PM   #1505
Elite Member
iTrader: (3)

Join Date: Aug 2011
Posts: 7,237
Total Cats: 554
Default

Quote:
Originally Posted by thenuge26 View Post
Seriously this thread just makes me sad I already bought a walboro 255. There's not a lot of E85 near me but it is making me think I should get a bigger pump just in case.


How hard can you ball?

Dual Bosch 044 Horizontal FST


And there's enough E85 around us. Enough that i'm looking seriously at something retarded like that for my 93.
concealer404 is offline   Reply With Quote
Old 09-13-2013, 01:10 PM   #1506
Elite Member
Thread Starter
iTrader: (10)

soviet's Avatar

Join Date: Jan 2010
Location: VA
Posts: 3,509
Total Cats: 248
Default

This is my new pump:
Racetronix - F90000267 - Fuel Pump - 430L/Hr, E85 Turbine HP
Its only $140 and is a monster. You need to get a sock for it, but it installs fairly easy.
soviet is offline   Reply With Quote
Old 09-13-2013, 01:14 PM   #1507
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: woosta, ma
Posts: 8,610
Total Cats: 91
Default

And you said the stock sock fits on it? Did you use that connector or directly splice?
Leafy is offline   Reply With Quote
Old 09-13-2013, 02:13 PM   #1508
Elite Member
Thread Starter
iTrader: (10)

soviet's Avatar

Join Date: Jan 2010
Location: VA
Posts: 3,509
Total Cats: 248
Default

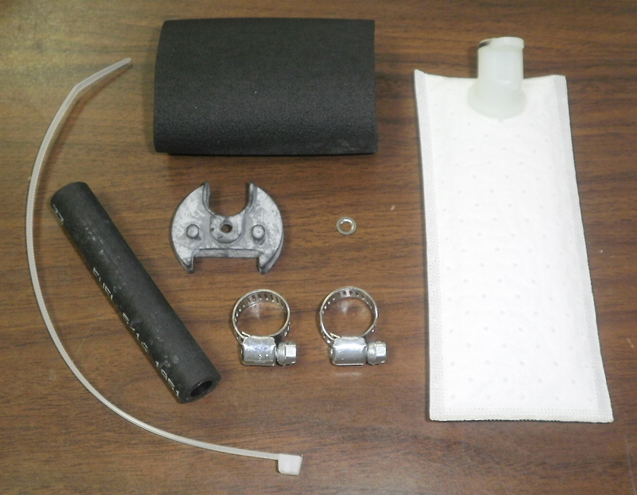

Its still a walbro pump so all walbro socks fit. I used 94-05 miata mounting kit. It costs a whooping $3.30 -> Racetronix - Fuel Pump Installation Kit

Its like $20 everywhere else, lol

Attached Thumbnails
In Soviet Russia car build YOU!-p8100049.jpg
soviet is offline   Reply With Quote
Old 09-13-2013, 02:17 PM   #1509
Senior Member
iTrader: (8)

Join Date: Feb 2012
Location: Raleigh, NC
Posts: 617
Total Cats: 52
Default

Quote:
Originally Posted by soviet View Post
Surprisingly I'd say it gets easier to do pulls the more power you have - because it takes a lot less time and road. Giant brakes help immensely
Good point, smaller window of copportunity.

BTW I like how you make a few adjustments and pick up ~100hp.
petrolmed is offline   Reply With Quote
Old 09-13-2013, 02:19 PM   #1510
Elite Member
iTrader: (3)

AbeFM's Avatar

Join Date: Aug 2006
Location: San Diego, CA
Posts: 3,047
Total Cats: 9
Default

Quote:
Originally Posted by soviet View Post
I had a lot of aids and fails with this car.
There has to be a gay joke in there somewhere....


Quote:
Originally Posted by soviet View Post
Couple of more things
- I hit 88% injector duty - woo hoo 8% fuel still left!
- Boost control hits a low 12% at redline trying to maintain 26psi. 0% is ALLOFIT, so I'm very, very close.
- Intake Temperature only goes up 20*
- Full boost at 3600rpm
- Lowest voltage during the pull was 13.4V
That IS a lot of timing, how much was it up top? Looks close to 30*? I like watching the IC heat soak, gives you a good idea of how much margin there was.
The whole displayed log was only 12 seconds - ~9 of it in boost.
I'm assuming the displayed fuel pressure was differential and not absolute?

What pump were you running? It sure looks like it did fine. I guess 1300's might be in your future. Any idea what power you'd make on pump gas?

Quote:
Originally Posted by soviet View Post
I fixed everything. This time it was ANOTHER LOOSE PLUG WIRE, this time the cap was not fully seated on the coil. FML there are only 4 wires with 8 connections, I'm retarded.

Anyways, hope in LS coils restored. 0.035" gap is great and ******* huge.
I so want those coils to suck and the Toyos to win... so much easier. I've gone from 2 sets of plug wires a year (and stop-and-check-connections 5 or 6 times for each of those) to.... Well, I put them on years ago and that's it. I just drive.

Quote:
No biggie but annoying (and mind blowing, tbh. We're talking about 5th gear here...)
Heh. 400 hp to spin 25 lbs in wheel? I could see how that could happen fairly quickly. :-) With the car geared that way, what speeds were you hitting? Why did you stop at 7200? Looked like rev limiter, but the log says you hit 8k at some point...
AbeFM is offline   Reply With Quote
Old 09-13-2013, 02:22 PM   #1511
Elite Member
iTrader: (3)

AbeFM's Avatar

Join Date: Aug 2006
Location: San Diego, CA
Posts: 3,047
Total Cats: 9
Default

P.S. Implied: Torque seemed to fall off for a bit after the peak, but then.... stayed flat to redline. So it looks like there's more to go.
AbeFM is offline   Reply With Quote
Old 09-13-2013, 02:23 PM   #1512
Elite Member
Thread Starter
iTrader: (10)

soviet's Avatar

Join Date: Jan 2010
Location: VA
Posts: 3,509
Total Cats: 248
Default

I setup my megalogviewer to specify min/max for a lot of fields - so even though RPM scale shows 0-8000 I never hit it, its just the min/max for that field.

I hit exactly 120mph in 5th. It *should* be 126 but thanks to things like tire deformation, its not. Its 120.

At 26 psi, timing goes from 12* @ 3500 to 25* @ 7200.

I'm running the E85 walbro, and its great. Yes displayed fuel pressure is the differential - fuel pressure minus boost pressure.
soviet is offline   Reply With Quote
Old 09-13-2013, 02:31 PM   #1513
Elite Member
iTrader: (3)

AbeFM's Avatar

Join Date: Aug 2006
Location: San Diego, CA
Posts: 3,047
Total Cats: 9
Default

Tire deformation? I've heard this before. It has to be slippage, or something. Because most things get bigger when you spin them. Like earth. :-)

So it would make you go faster if that were the only effect. At least, that's how I see it.
AbeFM is offline   Reply With Quote
Old 09-13-2013, 02:47 PM   #1514
Elite Member
Thread Starter
iTrader: (10)

soviet's Avatar

Join Date: Jan 2010
Location: VA
Posts: 3,509
Total Cats: 248
Default

Turn Zero Technical Resources :: Gear Calculator
This calculator has an option for tire deformation - for my case it reduces top speed in 5th @ 7200 from 126 to 122. The 120mph number I get, btw, is from GPS.

I'm assuming this just means that the tire gets flattened at the point where it contacts the road so the effective radius is a little bit smaller.
soviet is offline   Reply With Quote
Old 09-13-2013, 02:57 PM   #1515
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 33,168
Total Cats: 1,990
Default

I hope your tires are up to snuff doing those pulls.

We had a blowout at 140+ and it was not very fun.
18psi is offline   Reply With Quote
Old 09-13-2013, 07:28 PM   #1516
Elite Member
iTrader: (3)

AbeFM's Avatar

Join Date: Aug 2006
Location: San Diego, CA
Posts: 3,047
Total Cats: 9
Default

I don't believe tires can deform while on a vehicle.

Attached Thumbnails
In Soviet Russia car build YOU!-65298_10151582136412112_783956960_n.jpg
AbeFM is offline   Reply With Quote
Old 09-13-2013, 07:30 PM   #1517
Elite Member
iTrader: (3)

AbeFM's Avatar

Join Date: Aug 2006
Location: San Diego, CA
Posts: 3,047
Total Cats: 9
Default

I guess I always thought the centrifugal forces would overcome anything else, but the ground is giving you a standing wave, and of course it makes sense you'd have a node there at the ground, so it would get lower.

Still weird though.
AbeFM is offline   Reply With Quote
Old 09-13-2013, 07:32 PM   #1518
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: woosta, ma
Posts: 8,610
Total Cats: 91
Default

Quote:
Originally Posted by AbeFM View Post
I guess I always thought the centrifugal forces would overcome anything else, but the ground is giving you a standing wave, and of course it makes sense you'd have a node there at the ground, so it would get lower.

Still weird though.
Just watch emilion's video from inside the fenderwell of crusher.
Leafy is offline   Reply With Quote
Old 09-14-2013, 12:46 AM   #1519
Elite Member
iTrader: (3)

AbeFM's Avatar

Join Date: Aug 2006
Location: San Diego, CA
Posts: 3,047
Total Cats: 9
Default

oh, where?! I want to see that. Darn it, this may take digging.
AbeFM is offline   Reply With Quote
Old 09-14-2013, 11:13 AM   #1520
Elite Member
iTrader: (2)

Join Date: Aug 2012
Location: Indianapolis
Posts: 3,325
Total Cats: 231
Default

949 Racing SuperMiata - YouTube

Hmm never mind it's not on there.

Last edited by thenuge26; 09-14-2013 at 11:28 AM.
thenuge26 is offline   Reply With Quote
