Old 05-19-2016, 07:43 PM   #41
Junior Member
Thread Starter

Join Date: Dec 2014
Location: San Antonio, Texas
Posts: 154
Total Cats: 1
Default

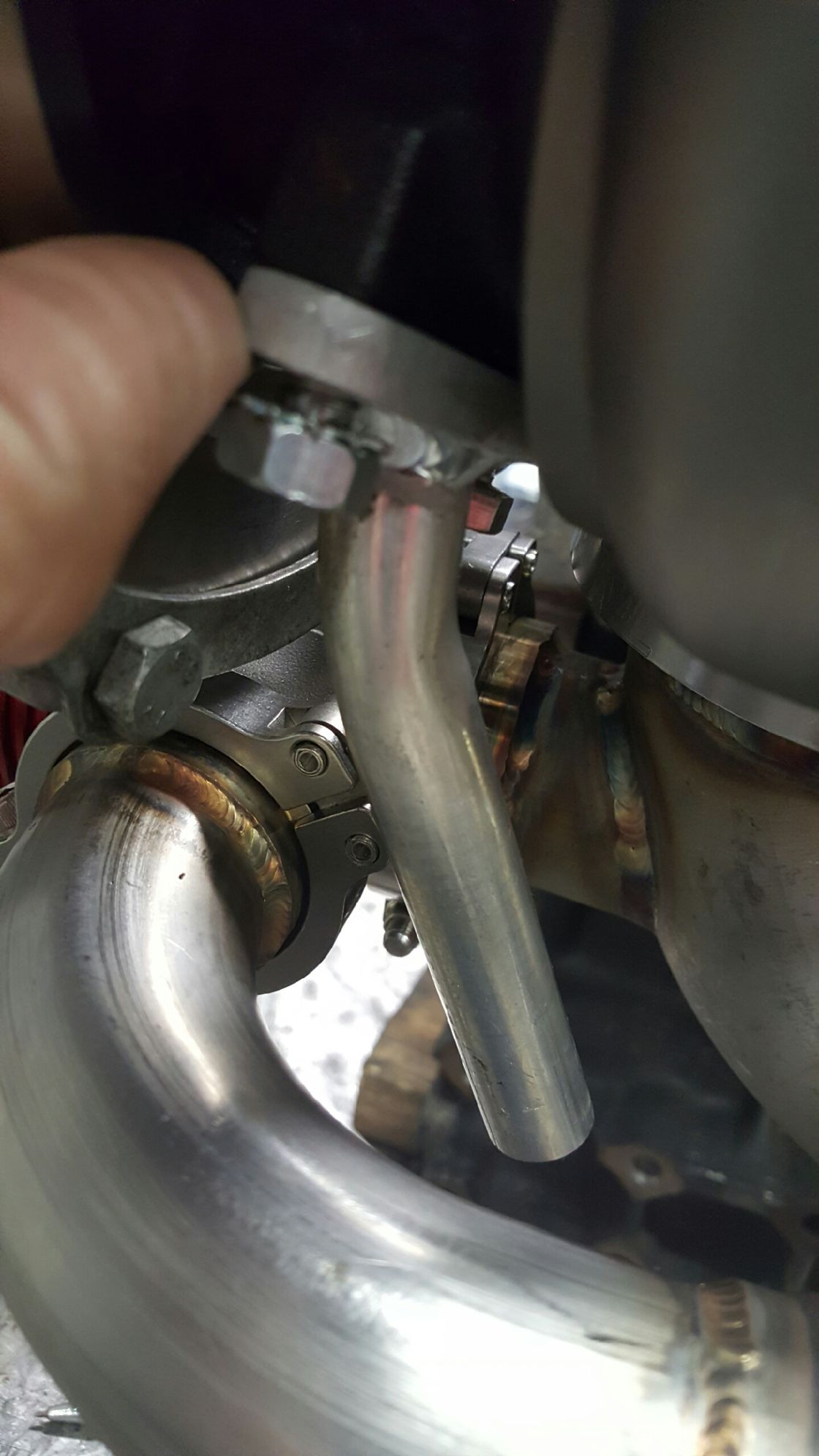

Talk about a tight fit....So close to being done!

Also, Matt at Kotzur Racing is going to have to touch up my manifold. He found some suspect beads in the time I left the setup with him to mock up the oil supply. No biggie. Probably should've had him build the manifold from the get-go.

Attached Thumbnails
A Tale of Two Miatas: Hraday93's MSM Build-80-img_20160519_183854_01_3962d5ea8f6da6ae2031ed27a29b72392f397ceb.jpg   A Tale of Two Miatas: Hraday93's MSM Build-80-img_20160519_184059_01_37f30a3cdc0a0bcf259379974f1fa09b70abc141.jpg
hraday93 is offline   Reply With Quote
Old 05-19-2016, 07:58 PM   #42
Elite Member

DNMakinson's Avatar

Join Date: Jan 2013
Location: Seneca, SC
Posts: 2,025
Total Cats: 185
Default

Paid subscription for TS and MLV.
Don't be so sure that an open waste gate will prevent boost. You still may have to watch that you don't over-run the injectors, assuming stock FPR.
Do you have your intercooler in and charge pipes? I don't see any pictures.
Best of luck.
DNMakinson is offline   Reply With Quote
Old 05-20-2016, 12:51 PM   #43
Junior Member
Thread Starter

Join Date: Dec 2014
Location: San Antonio, Texas
Posts: 154
Total Cats: 1
Default

Can you elaborate on the acronyms? Sadly I've been programmed by mazdaspeedforums and have no clue what any of that means. *newb* I'm sure the turbo will spool some, but my break-in procedure is simply varying the RPMs. I won't be banging through gears for at least 1000 miles per the doctor's orders.



Intercooler is in. Had to set up a plan to have new piping made as my original setup fit with the BEGi cold air intake. As you can see its no longer a part of the build.

*edit* I assume you mean fuel pressure regulator? Yes stock for break-in period

hraday93 is offline   Reply With Quote
Old 05-20-2016, 05:10 PM   #44
Elite Member

DNMakinson's Avatar

Join Date: Jan 2013
Location: Seneca, SC
Posts: 2,025
Total Cats: 185
Default

Quote:
Originally Posted by hraday93 View Post
Thanks. I figured that was a 99% percent chance the lack of MAF would "decide" for me

Also is it normal to have a registration key for the software or did any of you have to pay for the TunerStudio and LogViewer?
I did, and suggest that you do also, pay for TunerStudio (TS) and LogViewer (MLV).
DNMakinson is offline   Reply With Quote
Old 05-20-2016, 06:05 PM   #45
Junior Member
Thread Starter

Join Date: Dec 2014
Location: San Antonio, Texas
Posts: 154
Total Cats: 1
Default

I planned on using it. But I was wondering if anybody received it with their ECU.
hraday93 is offline   Reply With Quote
Old 05-20-2016, 07:11 PM   #46
Junior Member
Thread Starter

Join Date: Dec 2014
Location: San Antonio, Texas
Posts: 154
Total Cats: 1
Default

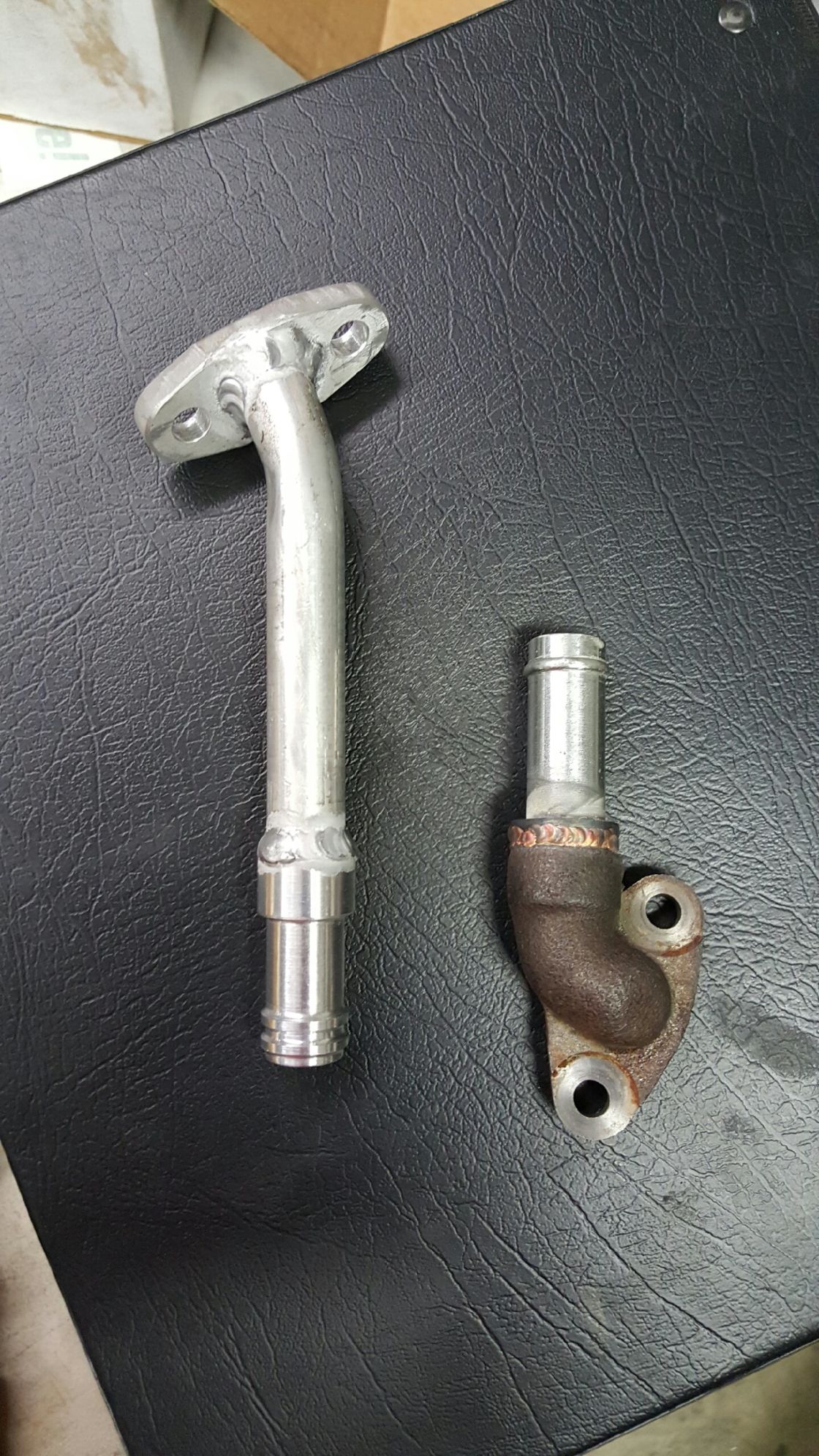

Got my drain line finally. I really dig the function over form visage all my custom fabbed parts are taking on. Stark contrast to the shiny 3 stage paintjob and overly cheesy Mazdaspeed branding in the interior.

Attached Thumbnails
A Tale of Two Miatas: Hraday93's MSM Build-80-img_20160520_180658_01_a945180e3e26a9a687ca5bcc5daae92b3dae8c5b.jpg
hraday93 is offline   Reply With Quote
Old 05-20-2016, 07:52 PM   #47
Junior Member
Thread Starter

Join Date: Dec 2014
Location: San Antonio, Texas
Posts: 154
Total Cats: 1
Default

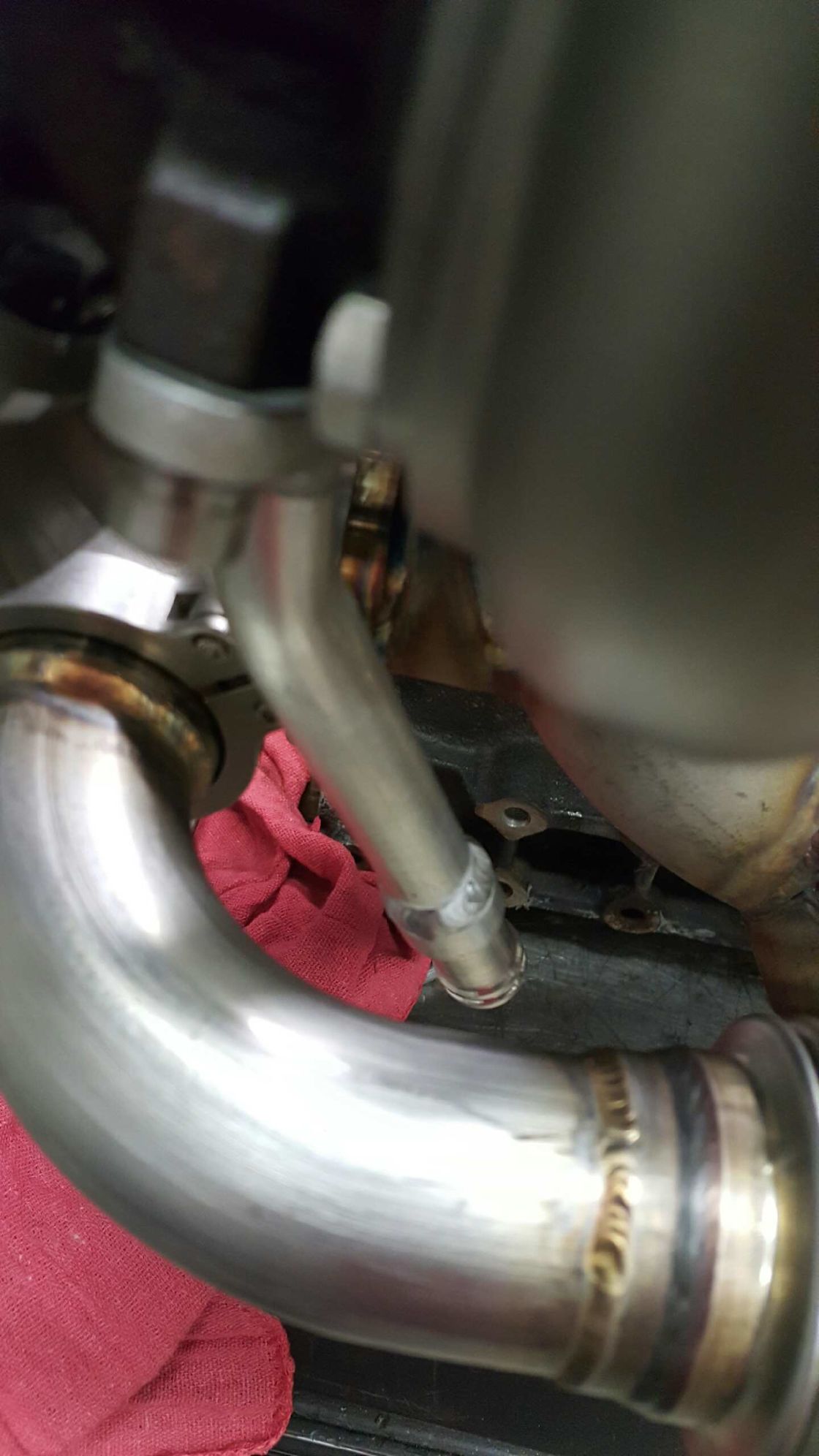

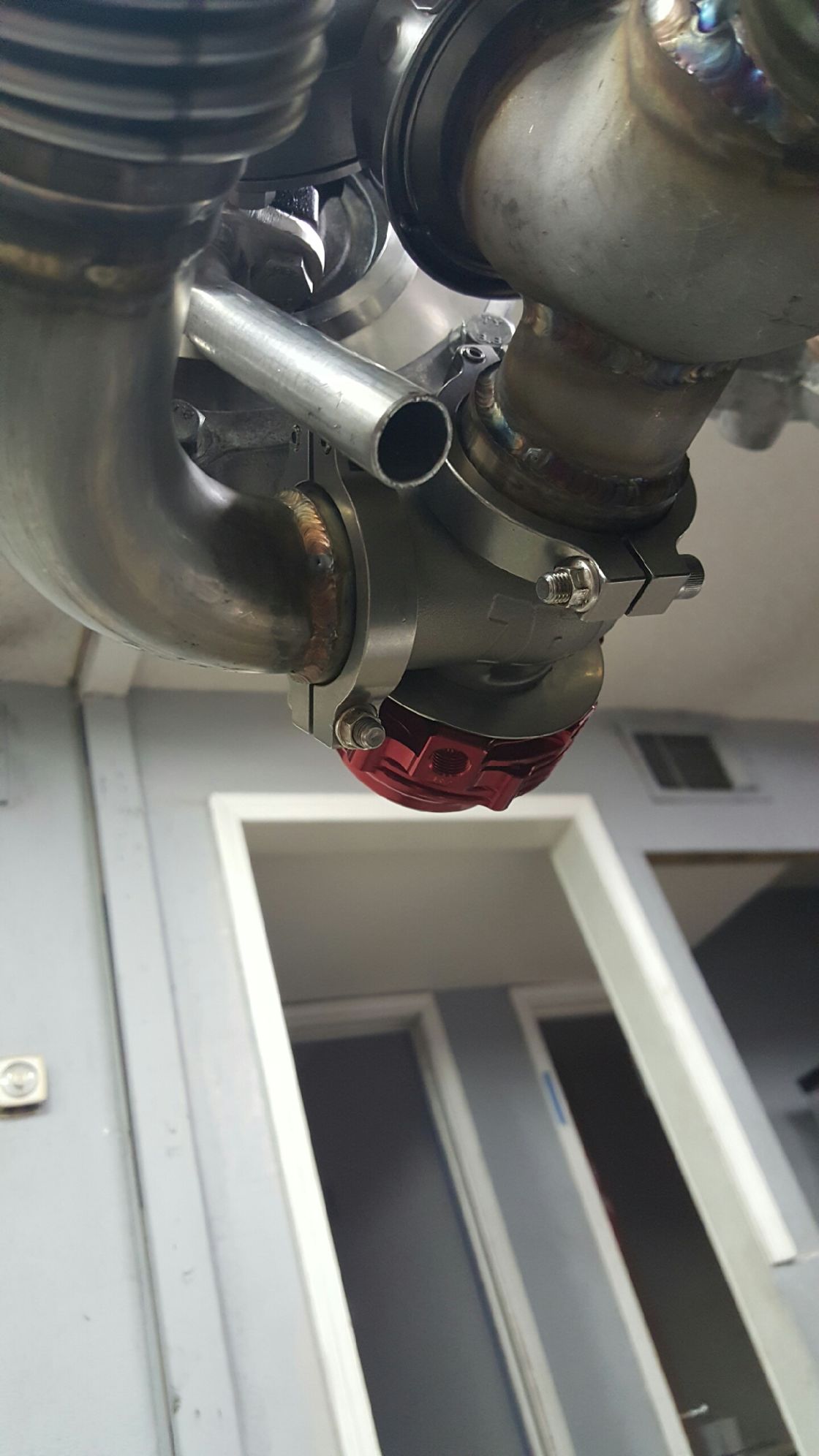

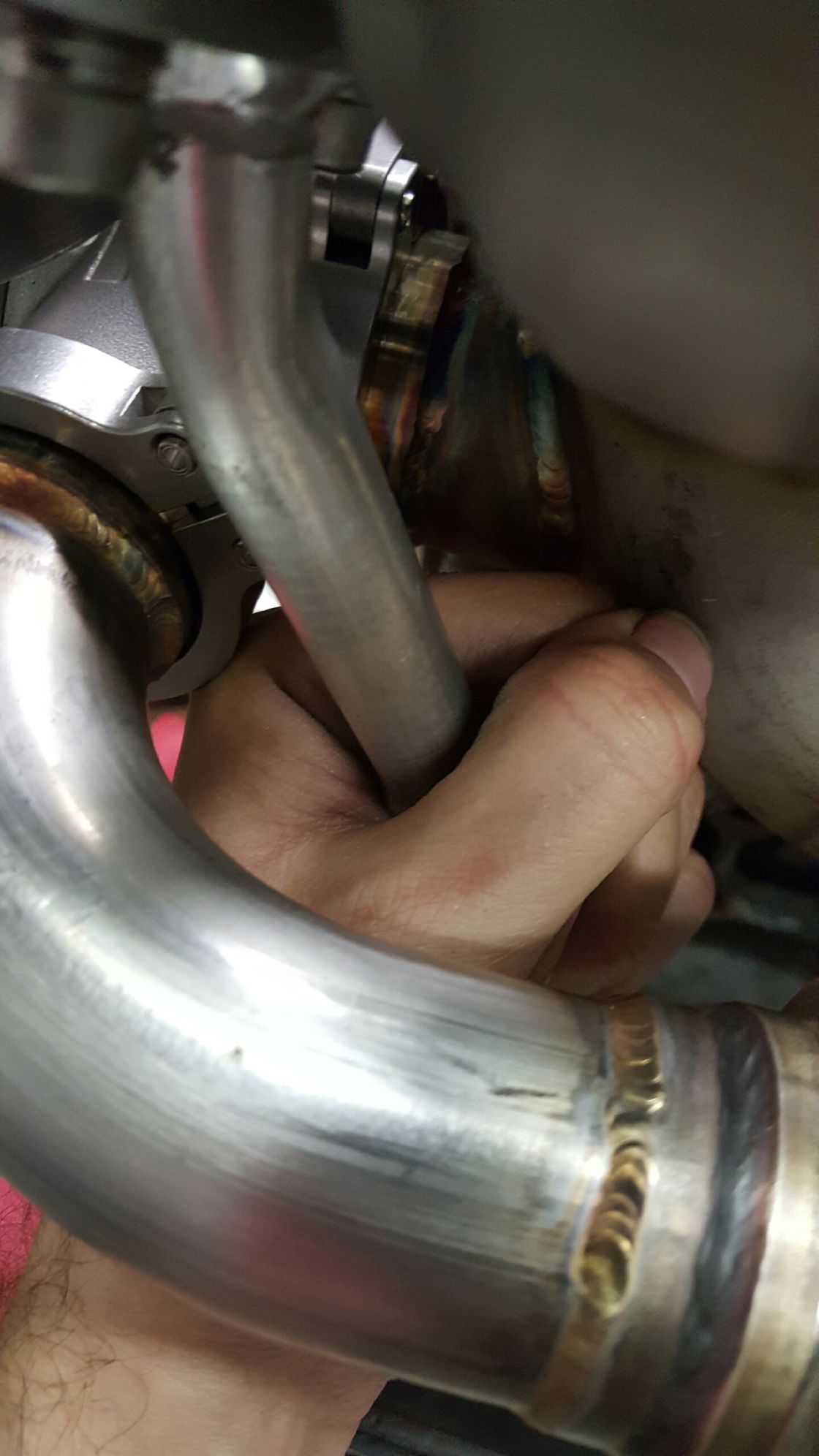

Decent clearance on the mock up. Should be a cakewalk next week getting everything put BACK into the real car, now that I've practiced with the fitment of the manifold and turbo already.



Attached Thumbnails
A Tale of Two Miatas: Hraday93's MSM Build-80-img_20160519_184059_01_4433dd1845759193f71dce40635bdaec98bd2de3.jpg   A Tale of Two Miatas: Hraday93's MSM Build-80-img_20160520_182419_01_393cf3c8238935d238d857069032996be40b457e.jpg   A Tale of Two Miatas: Hraday93's MSM Build-80-img_20160520_182419_02_a5ac2e9efbe286ce14806594223c68f4a9a645f0.jpg
hraday93 is offline   Reply With Quote
Old 05-21-2016, 04:18 PM   #48
Junior Member
Thread Starter

Join Date: Dec 2014
Location: San Antonio, Texas
Posts: 154
Total Cats: 1
Default

Here's my pouty cry baby moment for the day. I was sitting in the car messing with stereo wiring and remembered I had a full tank of gas when the motor blew. Didn't even make it far enough to move the damn needle LMAO.



Also...does anybody have a Throttle Inlet tube and IAT sensor combo lying around? OEM or the BEGi one w/ GM IAT will suffice. I mistakenly shipped mine off in a pile of parts for the cold air intake because the powdercoating was the same color and didn't even think about it until last nightwhile trying to put the intake back on. The guy I sold it to hasn't gotten back to me.
hraday93 is offline   Reply With Quote
Old 05-24-2016, 12:06 PM   #49
Junior Member
Thread Starter

Join Date: Dec 2014
Location: San Antonio, Texas
Posts: 154
Total Cats: 1
Default

Derek13p from the Mazdaspeedforums helped me get a lot done over the past few days. I'd say the car is 90% complete with the last 10% being way over my head, meaning I'll have to hunker down and do A LOT of reading.

So far, we've got the bad gas removed from the tank, all of the vacuum hoses are run (except for a few pesky bastards that connect to the throttle body inlet tube, I assume). I have a few missing pieces to track down, namely the throttle body inlet tube. I'm positive I accidentally shipped it off with the cold air intake kit I sold a while back. It's the same powdercoat BEGi uses on all their stuff so I think I overlooked it. Coolant hoses are run, and I'm working on figuring out how to move my thermostat back toward the head. I just got my Tunerstudio and MLV registration so I'm still figuring out what is next to get this baby to start up. I've had a terrible time over the past few months finding things on the forum. I guess my noob status still stands
hraday93 is offline   Reply With Quote
Old 05-24-2016, 04:09 PM   #50
Junior Member
Thread Starter

Join Date: Dec 2014
Location: San Antonio, Texas
Posts: 154
Total Cats: 1
Default

I got the base map for the car loaded on. Changed it to speed density settings already since I have no MAF anymore. Any pointers as to what else I should be looking for in the software before I attempt to turn the engine over and let it idle?
hraday93 is offline   Reply With Quote
Old 05-24-2016, 09:35 PM   #51
SadFab Sales Lady
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 15,886
Total Cats: 1,092
Default

Did you set the Req_fuel correctly?

Post your tune. Log of trying to start, and a composite log. Then we can actually see whats wrong.
aidandj is offline   Reply With Quote
Old 05-24-2016, 10:26 PM   #52
Junior Member
Thread Starter

Join Date: Dec 2014
Location: San Antonio, Texas
Posts: 154
Total Cats: 1
Default

This is the log while cranking. It's on stock MSM '04 tune with speed density change instead of MAF
Attached Files
File Type: csv 2016-05-24_21.06.58.csv (50.5 KB, 7 views)
hraday93 is offline   Reply With Quote
Old 05-31-2016, 10:47 PM   #53
Junior Member
Thread Starter

Join Date: Dec 2014
Location: San Antonio, Texas
Posts: 154
Total Cats: 1
Default

Got some attempted startup logs. Any advice? Car is still trying to crank up but just keeps turning over.
Attached Files
File Type: msl 2016-05-31_21.33.35.startuplog.msl (852.8 KB, 11 views)
File Type: msl 2016-05-31_21.39.16.startuplog.msl (152.0 KB, 9 views)
hraday93 is offline   Reply With Quote
Old 06-01-2016, 12:40 AM   #54
Junior Member
Thread Starter

Join Date: Dec 2014
Location: San Antonio, Texas
Posts: 154
Total Cats: 1
Default

Sigh...did a compression test. All cylinders are at 60 something. Thats at least ONE of my issues getting it fired up. Should've known with a completely fresh rebuild.

Oh well, gonna try some tricks in the morning to raise it and get these rings to seal hopefully.
hraday93 is offline   Reply With Quote
Old 06-01-2016, 12:53 AM   #55
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 33,801
Total Cats: 2,116
Default

are you doing test with throttle open?
18psi is offline   Reply With Quote
Old 06-01-2016, 12:59 AM   #56
Junior Member
Thread Starter

Join Date: Dec 2014
Location: San Antonio, Texas
Posts: 154
Total Cats: 1
Default

Quote:
Originally Posted by 18psi View Post
are you doing test with throttle open?
So far, no
hraday93 is offline   Reply With Quote
Old 06-01-2016, 02:04 AM   #57
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 33,801
Total Cats: 2,116
Default

then you're doing it wrong.
though that's still pretty low, even with closed throttle
18psi is offline   Reply With Quote
Old 06-01-2016, 12:49 PM   #58
Junior Member
Thread Starter

Join Date: Dec 2014
Location: San Antonio, Texas
Posts: 154
Total Cats: 1
Default

Quote:
Originally Posted by 18psi View Post
then you're doing it wrong.
though that's still pretty low, even with closed throttle
Would it really make a difference with the motor not firing up anyways? What's up with the logs?
hraday93 is offline   Reply With Quote
Old 06-01-2016, 12:56 PM   #59
SadFab Sales Lady
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 15,886
Total Cats: 1,092
Default

Are you getting spark and fuel while cranking? Pull a plug and see if it's wet. If it isn't. No fuel. Ground the plug and see if it sparks while cranking. If it doesn't, no spark.
aidandj is offline   Reply With Quote
Old 06-01-2016, 01:03 PM   #60
Junior Member
Thread Starter

Join Date: Dec 2014
Location: San Antonio, Texas
Posts: 154
Total Cats: 1
Default

Okay I'll clear up that all of the basics are covered and the car is legitimately trying to start up but won't keep running. Spark, fuel, air are good. Aside from compression (which is a major problem but that has a straight forward way to address it) whats up with the logs? Anything out of the ordinary?
hraday93 is offline   Reply With Quote
