Old 12-28-2014, 04:52 AM   #61
Senior Member
Thread Starter
iTrader: (3)

Join Date: Jul 2011
Location: STL
Posts: 528
Total Cats: 24
Default

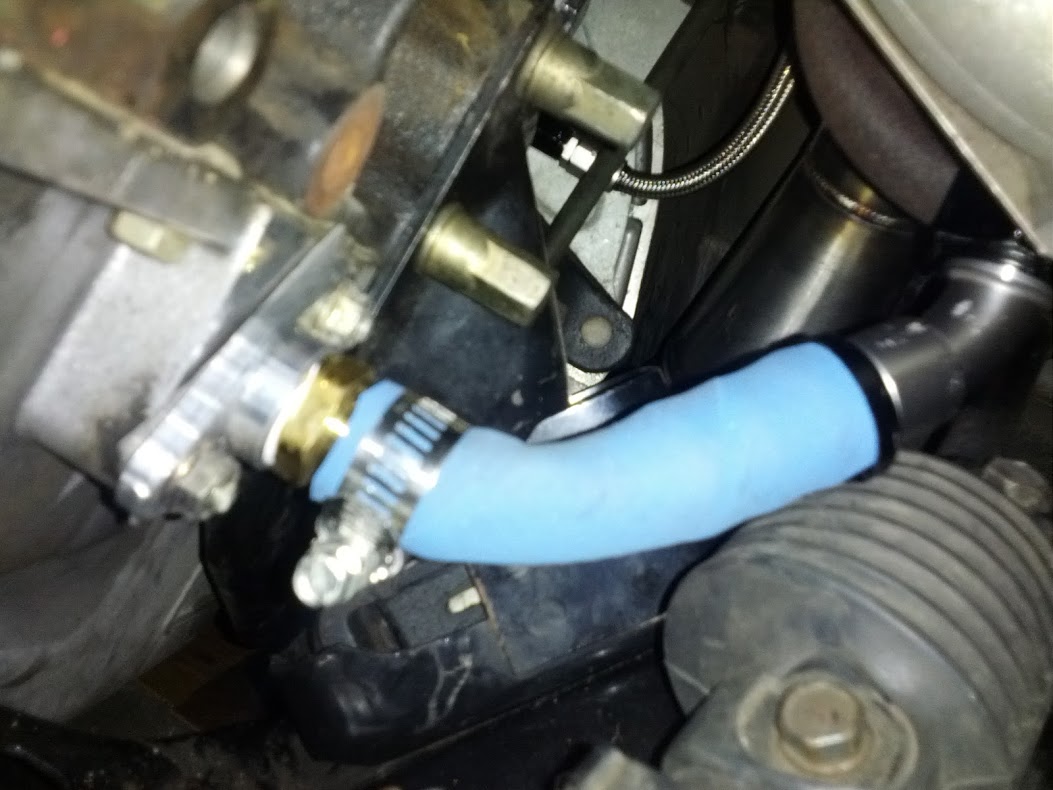

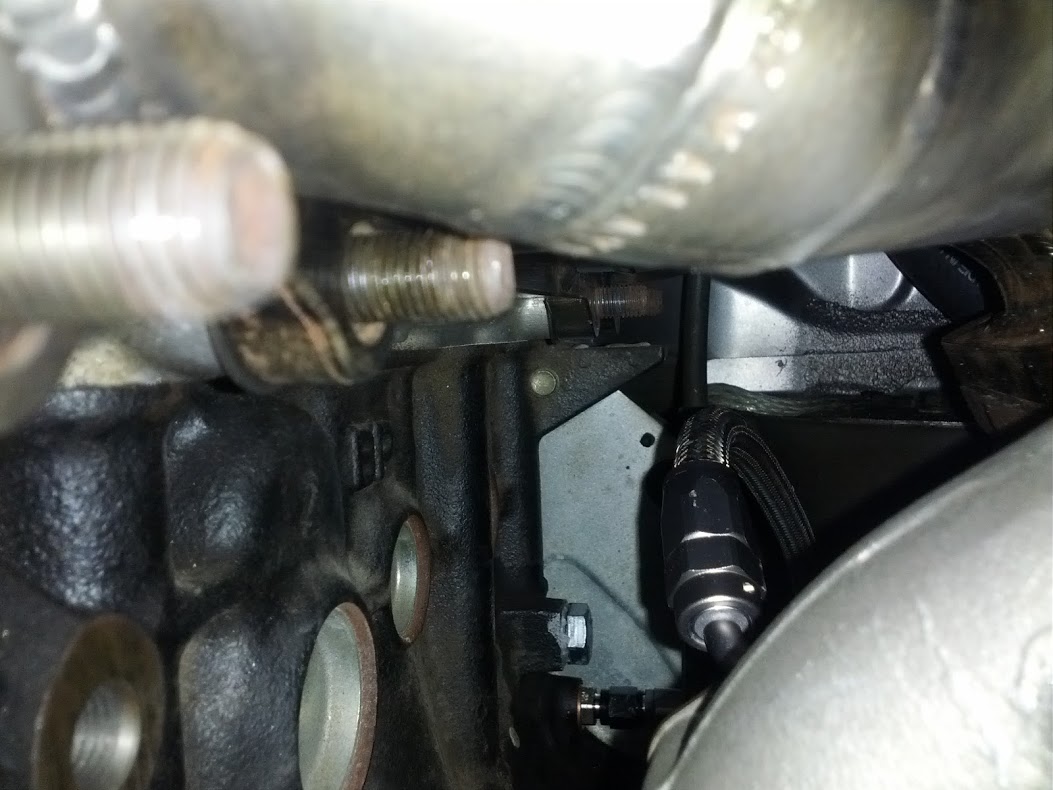

This is what I ended up with for the oil drain. The hose is slightly kinked. I'm also using a barbed fitting with AN hose. Is either of these going to be a problem?

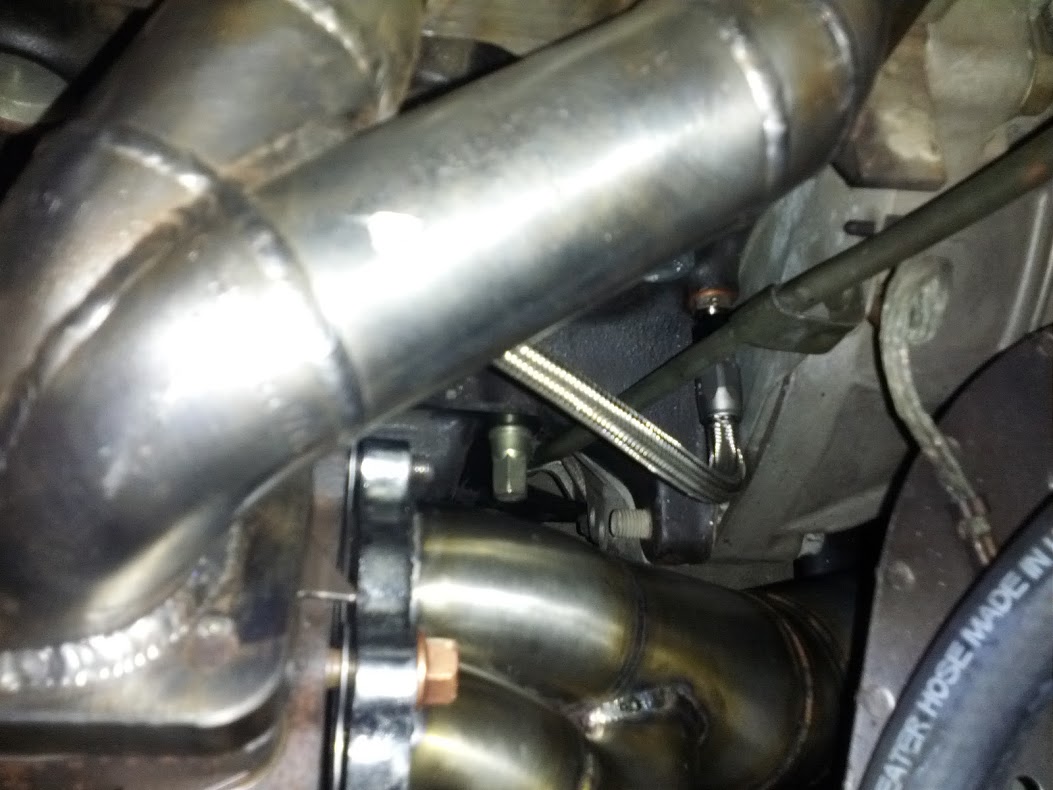

Oil feed came out better than expected.




Banjo was a huge help on the feed line, drain is now almost straight down.

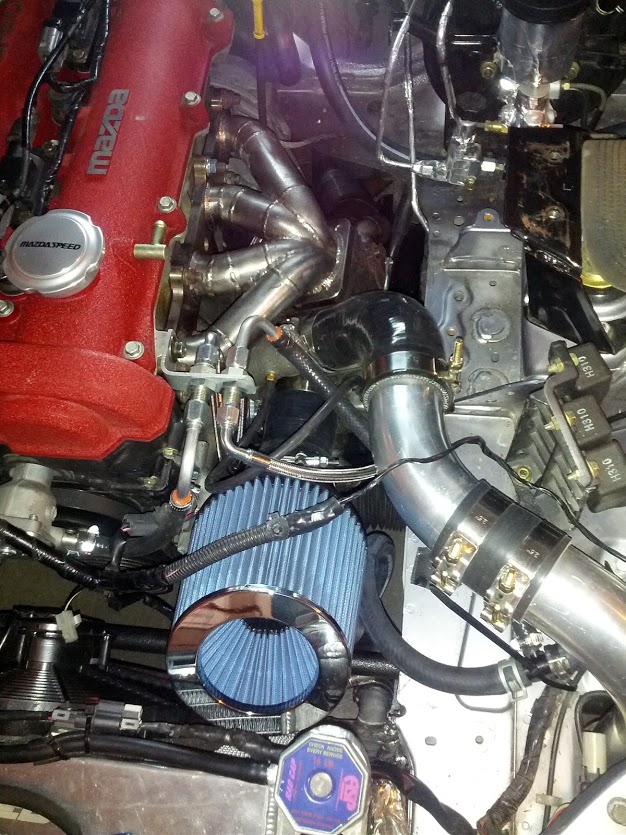

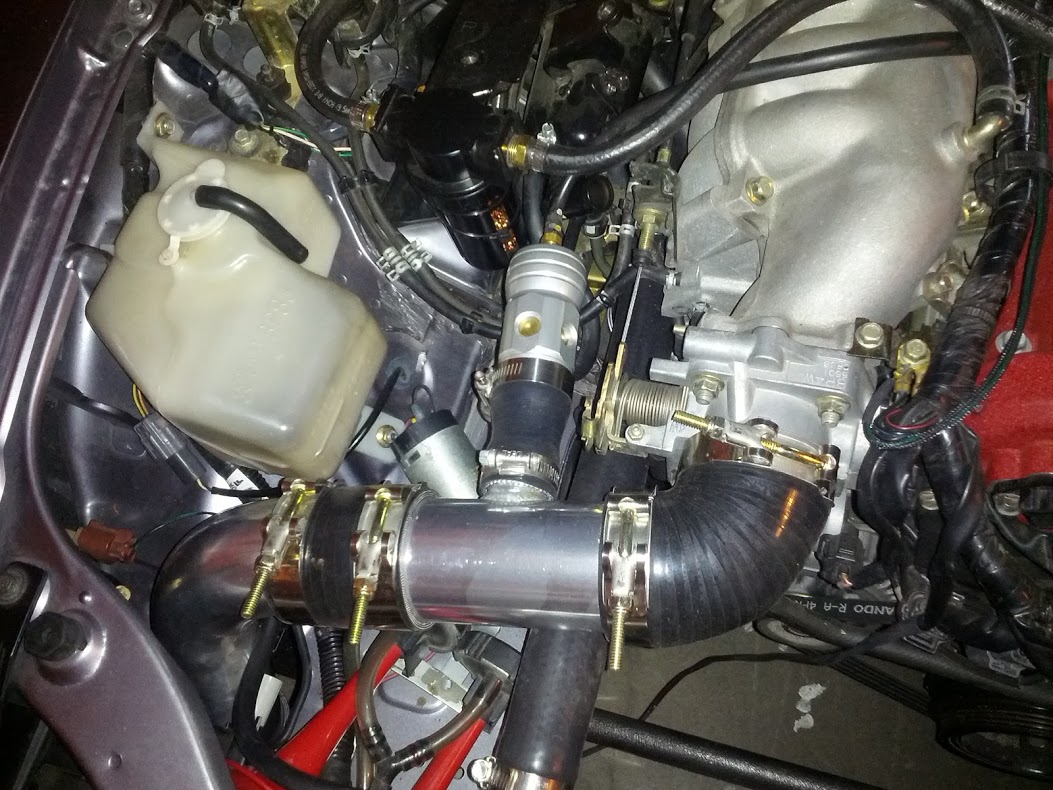

Kept the behind the headlight hot side routing. Bundle of snakes for coolant lines and unused electrical connections. A bitching new air filter. Amsoil EaAU3560 FTW.


Added a big *** hole on the passenger side, now they both match!



And the best ******* part? It still runs! Started it up and let it idle for a couple minutes, aside from an O2 bung sized exhaust leak it sounded pretty ******* awesome, if not a little tame. I am stoked! Next up is a fresh batch of Rotella, install the O2 sensor, and go for a drive. **** YES.

Stupid question time. MSM came with 2 AIT sensors, one before throttle body and another in the filter. Megasquirt only cares about the throttle body one, right? I can remove the air filter one, right?
Attached Thumbnails
Track and occasional street MSM-img_20141227_231129.jpg   Track and occasional street MSM-img_20141227_223523.jpg   Track and occasional street MSM-img_20141227_223505.jpg   Track and occasional street MSM-img_20141228_012458.jpg   Track and occasional street MSM-img_20141228_012505.jpg

midpack is offline   Reply With Quote
Old 12-29-2014, 06:38 PM   #62
Senior Member
Thread Starter
iTrader: (3)

Join Date: Jul 2011
Location: STL
Posts: 528
Total Cats: 24
Default

It's alive! Took it out for a first drive today and quickly came back in for a boost controller. Waste gate only maxed out at a rather boring 3psi.

Exhaust sounds fantastic. My early comment about it being tame is only true at idle, it sounds bad *** as the revs climb. Sounds like racecar. 3" turbo-back, no cat, and a big *** MagnaFlow muffler. Even after clearancing on the stock "butterfly" brace it's still hitting there and at the rear brace.

It feels much faster, even with less boost, compared to the stock turbo. Could be the cold (35f) weather, or being used to my slow *** truck.

Goes in for our biennial safety inspection tomorrow and then the paperwork gets sent off for an emissions waver.
midpack is offline   Reply With Quote
Old 12-29-2014, 06:43 PM   #63
The Discreet
iTrader: (1)

Ryephile's Avatar

Join Date: Jun 2014
Location: Metro Detroit
Posts: 265
Total Cats: 26
Default

Congrats on the resurrection!

Random question: Is that an S&B air filter?
Ryephile is offline   Reply With Quote
Old 12-29-2014, 06:53 PM   #64
Senior Member
Thread Starter
iTrader: (3)

Join Date: Jul 2011
Location: STL
Posts: 528
Total Cats: 24
Default

It feels so good having a running car again.


Amsoil EAAU3560
midpack is offline   Reply With Quote
Old 12-29-2014, 07:24 PM   #65
The Discreet
iTrader: (1)

Ryephile's Avatar

Join Date: Jun 2014
Location: Metro Detroit
Posts: 265
Total Cats: 26
Default

Oh I know the feeling. For me it emphasizes how I prefer to drive than wrench.

Thanks for the linkie.
Ryephile is offline   Reply With Quote
Old 12-30-2014, 02:55 PM   #66
Senior Member
Thread Starter
iTrader: (3)

Join Date: Jul 2011
Location: STL
Posts: 528
Total Cats: 24
Default

Quote:
Originally Posted by Onyxyth View Post
Hey that Turbo looks familiar
As it should
Nice job on the porting, no creep at all. I'm glad you posted it up when you did, I was only a day away from ordering a new one and was happy to save a few $$$. Thanks!

Couldn't resit taking it for a quick drive this afternoon. Compared to the wimpy little IHI, this ting is a monster. Spools better and doesn't have the awful boost taper. This thing is gonna be fun

midpack is offline   Reply With Quote
Old 12-30-2014, 03:08 PM   #67
Senior Member
Thread Starter
iTrader: (3)

Join Date: Jul 2011
Location: STL
Posts: 528
Total Cats: 24
Default

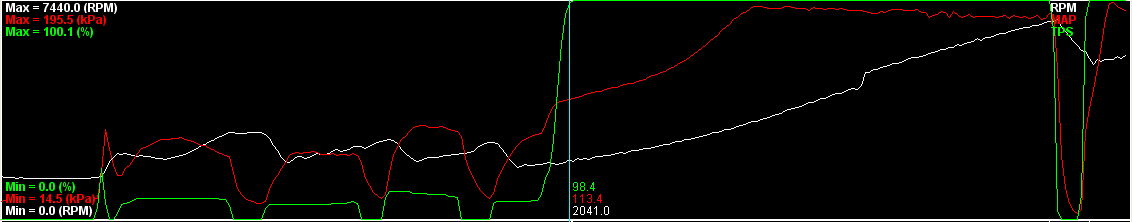

Mmmmm delicious boost at 2k RPM
midpack is offline   Reply With Quote
Old 12-31-2014, 03:23 PM   #68
The Discreet
iTrader: (1)

Ryephile's Avatar

Join Date: Jun 2014
Location: Metro Detroit
Posts: 265
Total Cats: 26
Default

Very nice. Perhaps just as impressive is at the end of that screenshot, it shows how quickly boost builds after a gear change.

Any idea what that glitch is on the RPM halfway through the pull?
Ryephile is offline   Reply With Quote
Old 12-31-2014, 09:04 PM   #69
Senior Member
Thread Starter
iTrader: (3)

Join Date: Jul 2011
Location: STL
Posts: 528
Total Cats: 24
Default

Hey good catch. It took 0.53 seconds to go from 0 TPS to full boost in a 4-5 gear change.

0.63 seconds of missing log data. Ever since upgrading my MS2 it has been plagued with issues that Reverant has yet to fix. The most minor of the issues is occasional periods of missing log data. Should have taken the money spent on that and put it towards a PNP Pro from DIY.
midpack is offline   Reply With Quote
Old 02-27-2015, 09:20 PM   #70
Senior Member
Thread Starter
iTrader: (3)

Join Date: Jul 2011
Location: STL
Posts: 528
Total Cats: 24
Default

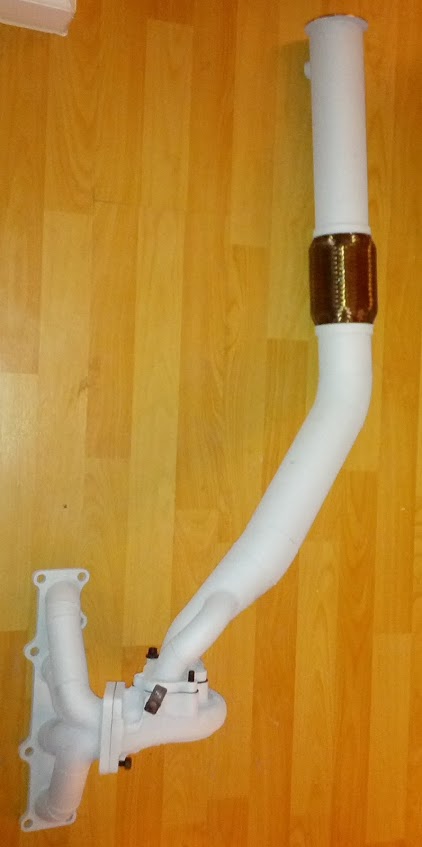

Got some parts back from SwainTech.



Waiting for Resbond and warmer weather for the reinstall.
Attached Thumbnails
Track and occasional street MSM-img_20150227_180225.jpg
midpack is offline   Reply With Quote
Old 03-09-2015, 12:29 AM   #71
Senior Member
Thread Starter
iTrader: (3)

Join Date: Jul 2011
Location: STL
Posts: 528
Total Cats: 24
Default

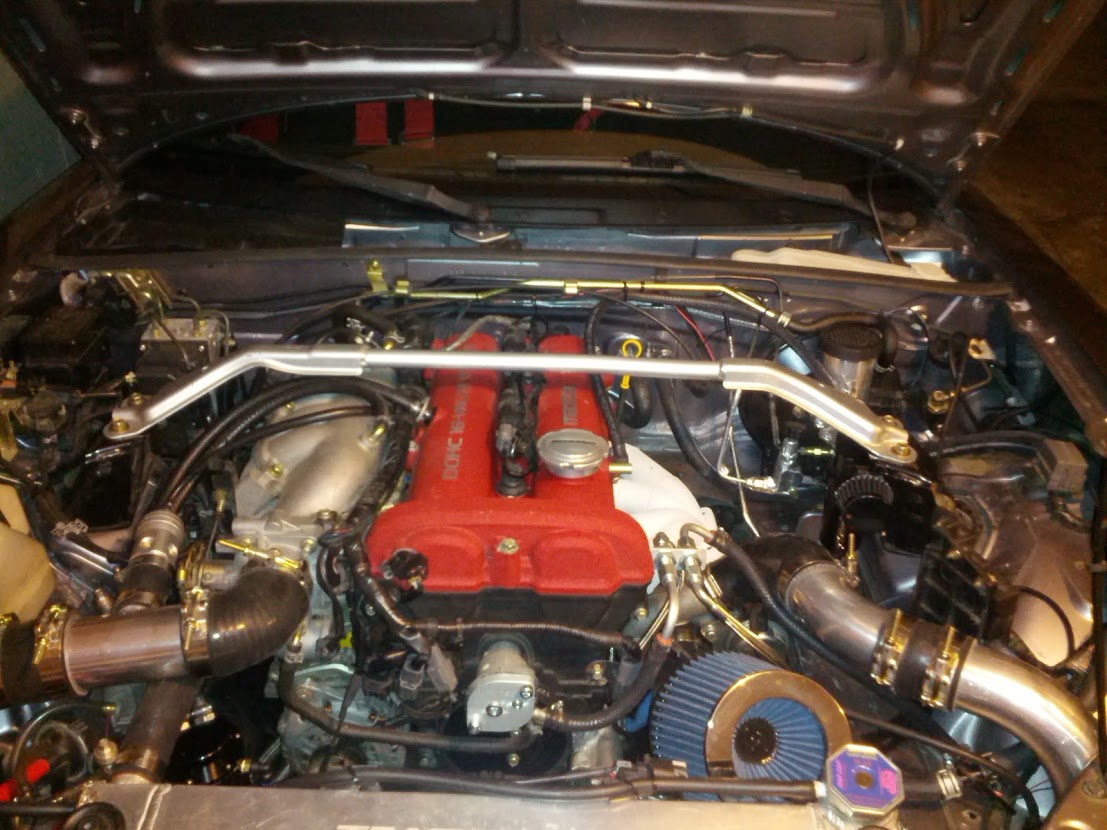

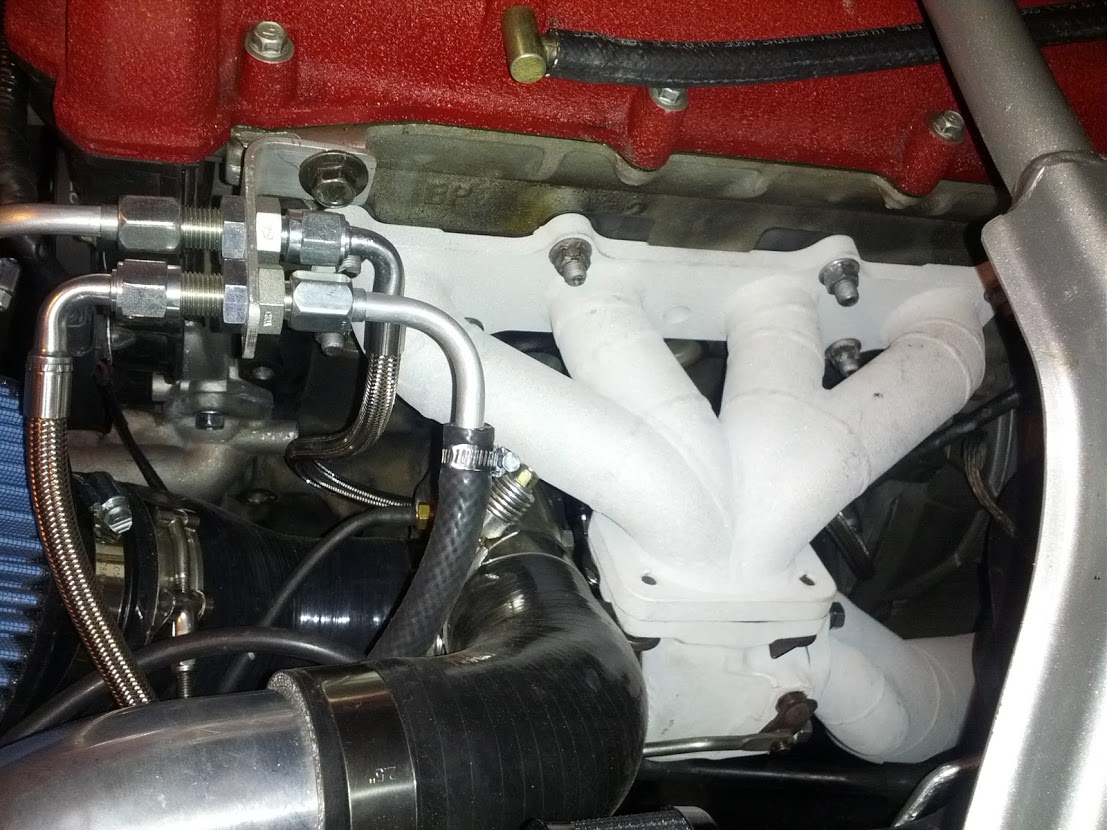

Had some nice weather this weekend and this happened.

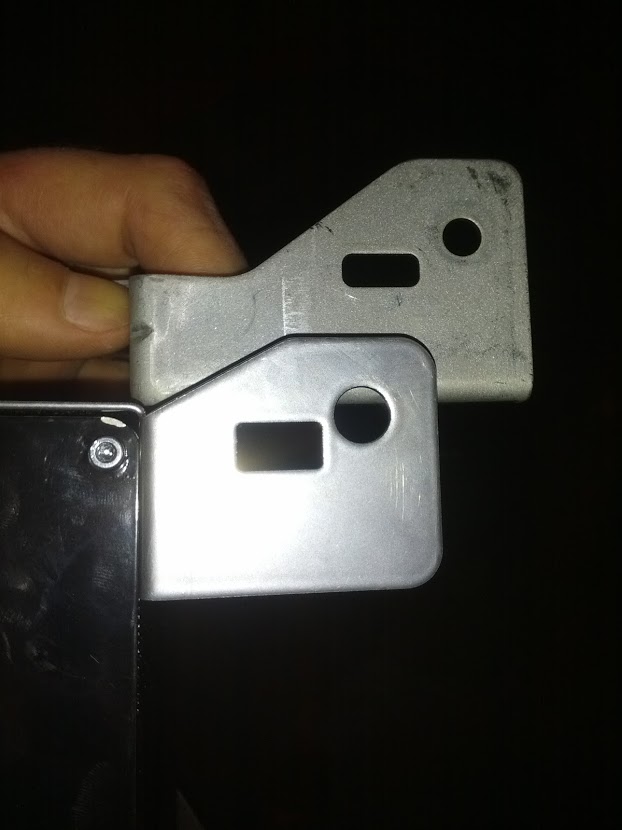

Discovered my new Singular Motorsports ECU bracket will not work, the upper mounting tab is too short and holes are in the wrong spot.

Attached Thumbnails
Track and occasional street MSM-img_20150308_203413.jpg   Track and occasional street MSM-img_20150308_203354.jpg   Track and occasional street MSM-img_20150308_210930.jpg
midpack is offline   Reply With Quote
Old 03-09-2015, 01:16 AM   #72
Elite Member
iTrader: (15)

patsmx5's Avatar

Join Date: Aug 2007
Location: Houston, TX
Posts: 7,947
Total Cats: 126
Default

Sweet build sir, just found it and read it. If you're still having exhaust hanger problems by chance, I "adjust" mine with a zip tie around the rubber part to make ones that are too long shorter. It works, it's reliable, it's light, it's cheap!
patsmx5 is offline   Reply With Quote
Old 03-11-2015, 02:42 AM   #73
Senior Member
Thread Starter
iTrader: (3)

Join Date: Jul 2011
Location: STL
Posts: 528
Total Cats: 24
Default

As it turns out, I am in idiot. Once the door lock relay bracket was removed Singular's ECU mount slid right in no problem. For some reason I was thinking that bracket was welded in place and part of the whole ECU mount infrastructure.

Exhaust clearance was mostly taken care of by some longer hangers that ended up being a little too long so hose clamps were added to shorten them up a bit. I can't imagine zip ties holding up under there.
midpack is offline   Reply With Quote
Old 03-11-2015, 02:48 AM   #74
Elite Member
iTrader: (15)

patsmx5's Avatar

Join Date: Aug 2007
Location: Houston, TX
Posts: 7,947
Total Cats: 126
Default

I used zip ties on the rear ones, they lasted for years, DD, autocross, drag racing. But I used man zip ties, probably have a 300 lb rating.
patsmx5 is offline   Reply With Quote
Old 03-11-2015, 12:24 PM   #75
Destroyer of Inconel
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 8,732
Total Cats: 746
Default

Use a hose clamp to snug them up, then use zip ties to tie the clamp to the rubber hanger. Unless you have a massive amount of force on the clamp, it can slide off the end.

Looking good! I'm glad you figured out the ECU mount thing, I was getting nervous.
EO2K is offline   Reply With Quote
Old 03-13-2015, 01:08 AM   #76
Senior Member
Thread Starter
iTrader: (3)

Join Date: Jul 2011
Location: STL
Posts: 528
Total Cats: 24
Default

Ah yes, my zip ties are all shitty HF ones. They break if you look at them wrong.

I don't think the hose clamps are going anywhere. Most of the rear mounts ended up smashed all the way together with the hollow section completely eliminated. I don't think Abe accounted for the MSM bumper when he built my exhaust and once I dropped the tailpipe side down that pushed the driver's side into the bracing. Not a big deal to resolve but was slightly annoying.

Yeah I was a complete buffoon with the ECU mount. It's been so long since I pulled the stock ECU that I was thinking the relay bracket was part of the dash mount. It's not and the Singular mount slides right in once removed (if your car even has the same relay bracket). Well worth the $70
midpack is offline   Reply With Quote
Old 04-10-2015, 10:18 PM   #77
Senior Member
Thread Starter
iTrader: (3)

Join Date: Jul 2011
Location: STL
Posts: 528
Total Cats: 24
Default

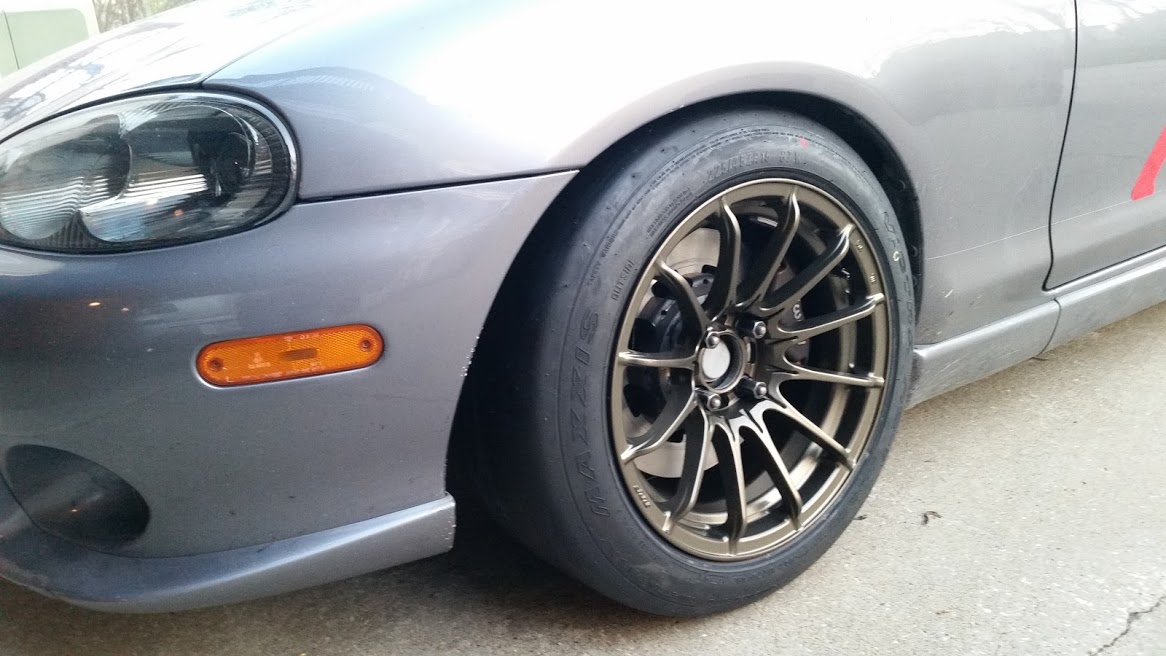

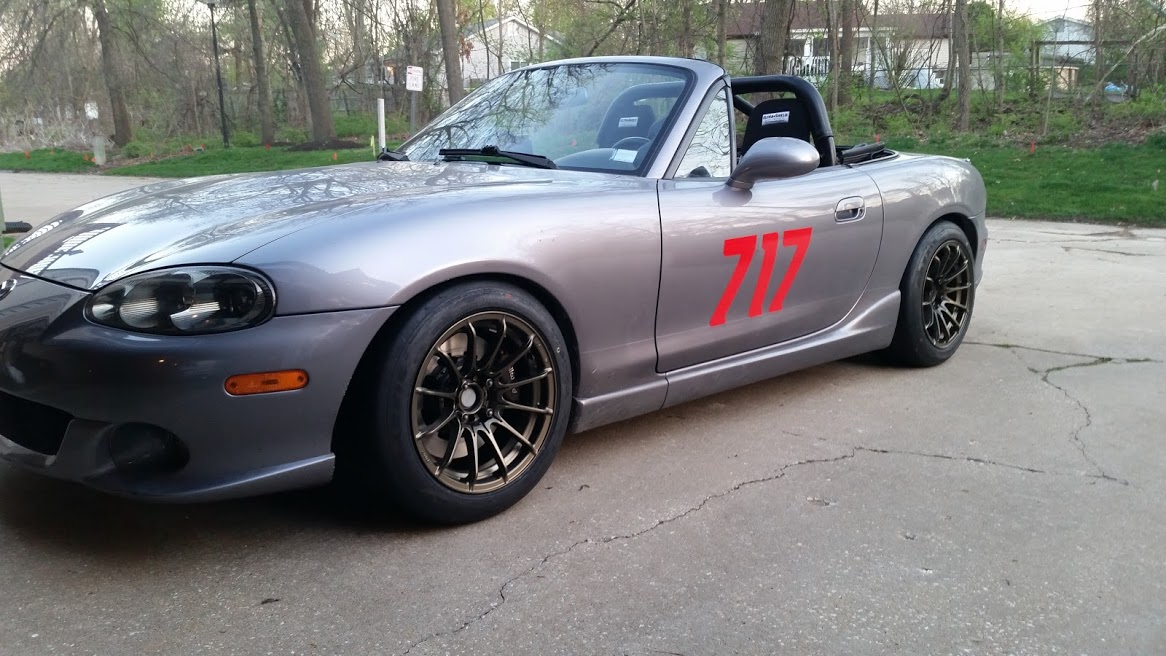

Some new wheels and tires on a dirty car. Headed to Gateway Motorsports Park tomorrow for the first event since my little IHI fell apart.

15x9 bronze Konig Dial-In
225x45 Maxxis RC1



Attached Thumbnails
Track and occasional street MSM-20150410_192410.jpg   Track and occasional street MSM-20150410_192425.jpg
midpack is offline   Reply With Quote
Old 04-26-2015, 08:04 PM   #78
Senior Member
Thread Starter
iTrader: (3)

Join Date: Jul 2011
Location: STL
Posts: 528
Total Cats: 24
Default

I was out enjoying the nice weather and doing some tuning on my new Reverant built MS3 Basic when I picked up a large nail in the driver's rear tire. A lack of anywhere to pull off and my inability to diagnose the interesting handling aspects means the tire is completely shot now. So now I need some new street tires that can double duty as rain track tires.

Trying to decide between these options:
225 RS3 v2 - $545
205 Z2 Star Specs - $511
205 Kumho V720 - $451
205 595 RSR - $357

Primary concern is how well they handle standing water on a track. I liked the RS3s better than my current Rivals (on the track) and know they can handle water without issues. Based on past reading I have faith the Star Specs will handle wet weather just as well, if not better, and are slightly cheaper. The XS is not known for wet weather performance and I don't have a lot of faith the V720 will be much better, nice price though. Construction quality of the 595s concerns me even though reviews are mostly positive in dry and wet conditions. That price though.

Why do there have to be so many options in the super-awesome-street-tire category?
midpack is offline   Reply With Quote
Old 04-26-2015, 08:38 PM   #79
Junior Member

Join Date: Dec 2009
Location: Brisbane, AUSTRALIA
Posts: 359
Total Cats: 29
Default

FWIW, my 205 Z2 Star Specs handle better in the wet than my near-new 225 Toyo R1Rs handled at the track. The Star Specs are my DD tyres and I'd much rather them on a wet track that the R1Rs.
Lokiel is offline   Reply With Quote
Old 04-27-2015, 11:24 PM   #80
Senior Member
Thread Starter
iTrader: (3)

Join Date: Jul 2011
Location: STL
Posts: 528
Total Cats: 24
Default

Quote:
Originally Posted by Lokiel View Post
FWIW, my 205 Z2 Star Specs handle better in the wet than my near-new 225 Toyo R1Rs handled at the track. The Star Specs are my DD tyres and I'd much rather them on a wet track that the R1Rs.
Thanks for the info. Just ordered a set of Star Specs and they should be here Wednesday. Came close to ordering the RE71R, $70 rebate and likely better wet traction made them appealing. 7" tread width vs Star Specs 7.5" however was not. Now I'm really looking forward to having a wet trackday this year! Had no complaints about the RS3 on a wet track and these should be even better.
midpack is offline   Reply With Quote
