Old 06-24-2016, 07:34 PM
  #21
Junior Member
Thread Starter

mx5psi's Avatar

Join Date: Mar 2013
Posts: 209
Total Cats: 35
Default exhaust is done

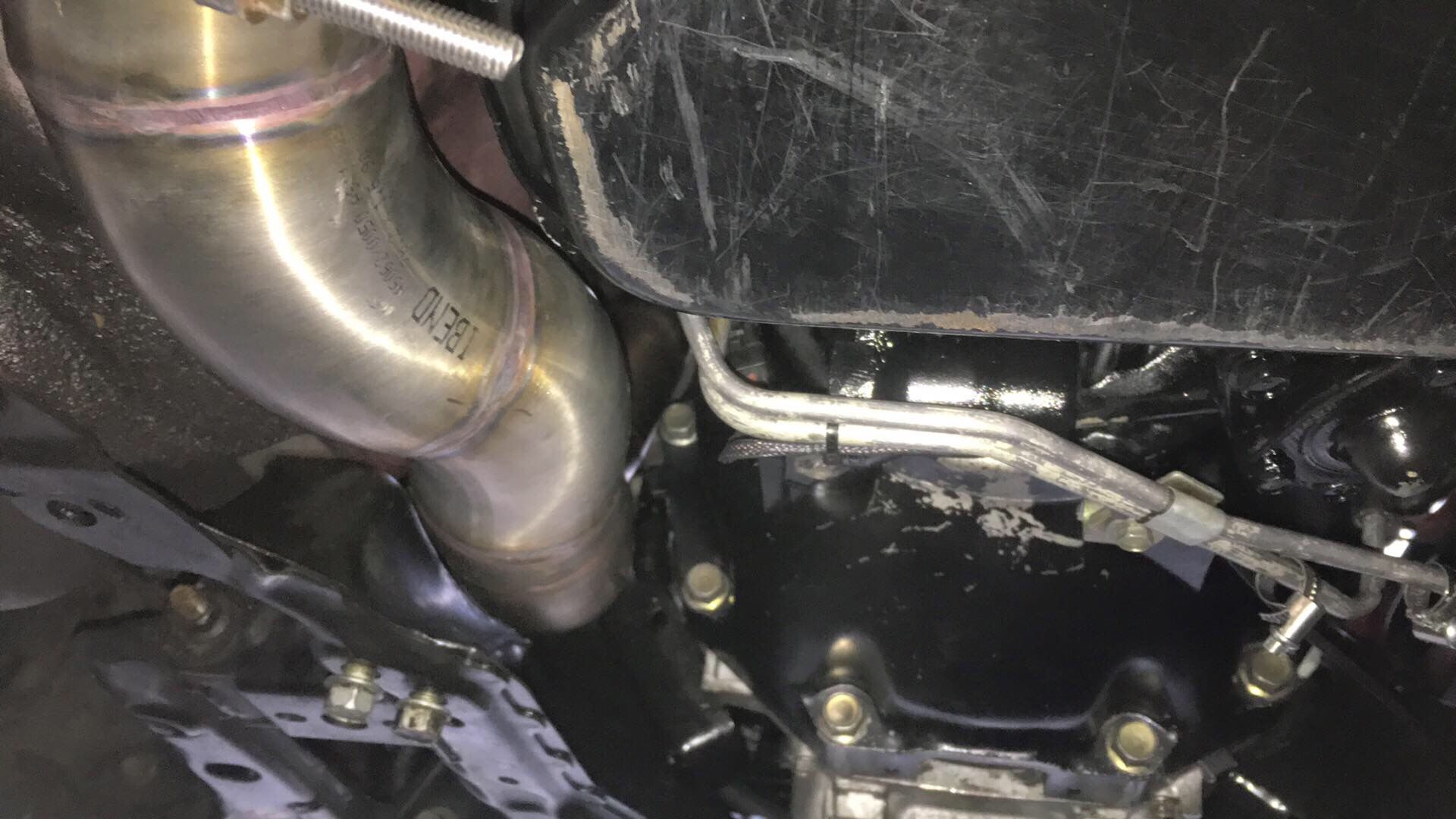

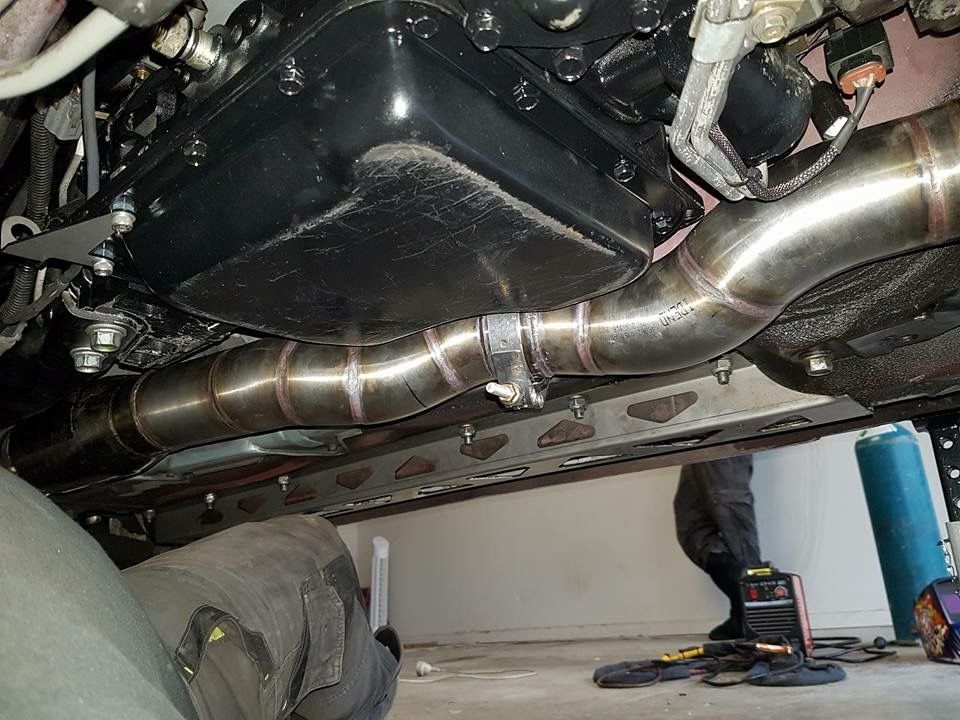

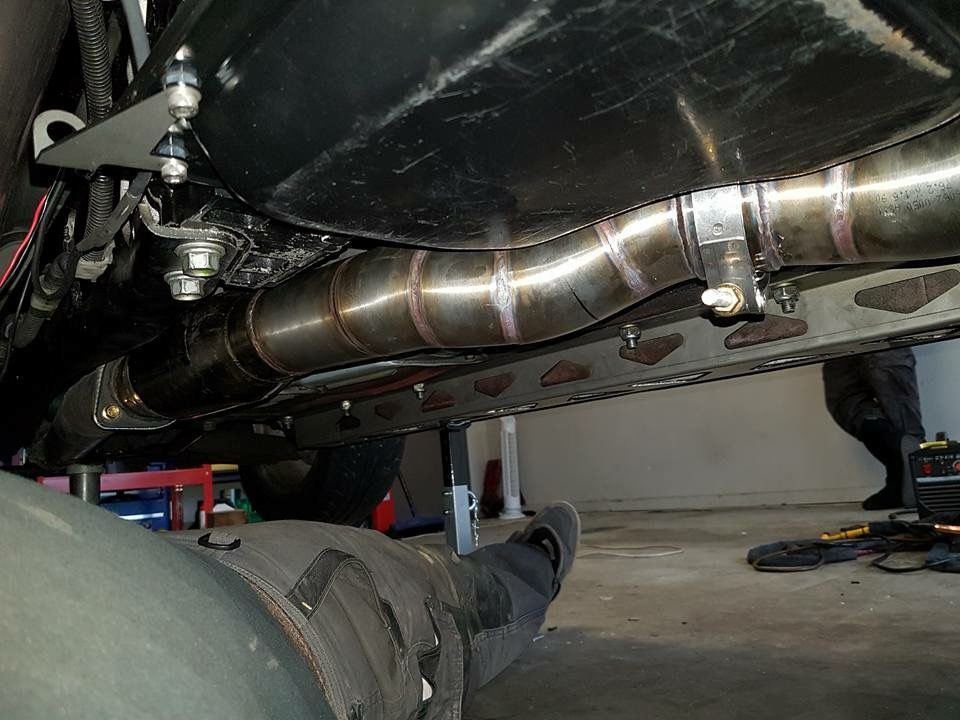

well a 3" exhaust shouldn't really fit with an auto we had a hard time keeping it above the frame rails as i wanted them to be the lowest point on the car



Attached Thumbnails TURBO AUTO NB-80-img_7849_90c4ad24fd9dbb5cadc59066dba383e3a10fef66.jpg   TURBO AUTO NB-80-img_7850_4bfb8c97d0dc3743d9f24becc6ea69ad25c6382d.jpg   TURBO AUTO NB-80-img_7854_7f99ae52d84fe4ed334b2362664feab5c8acaaf4.jpg
mx5psi is offline
Old 06-28-2016, 05:29 AM
  #22
Junior Member
Thread Starter

mx5psi's Avatar

Join Date: Mar 2013
Posts: 209
Total Cats: 35
Default

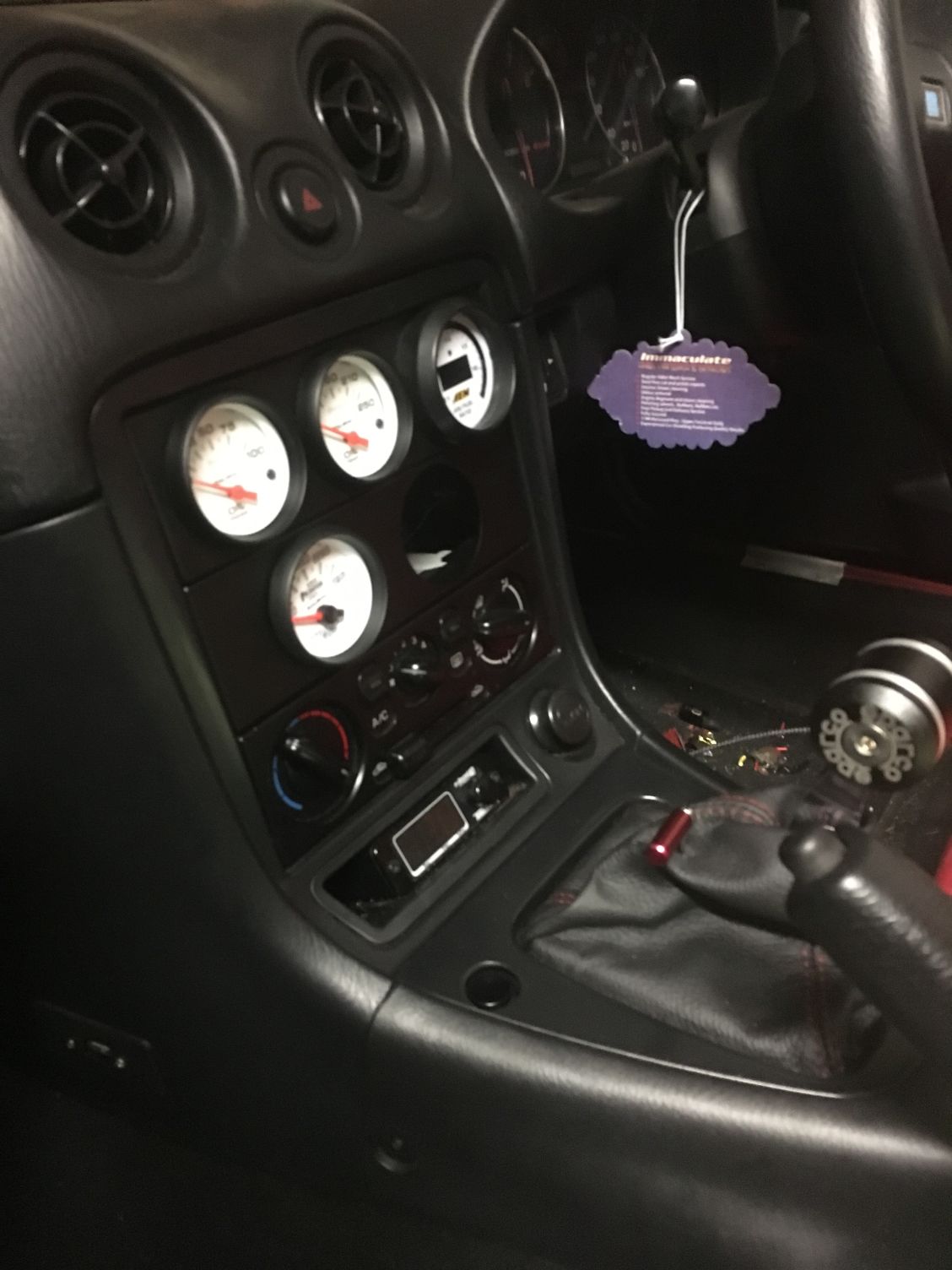

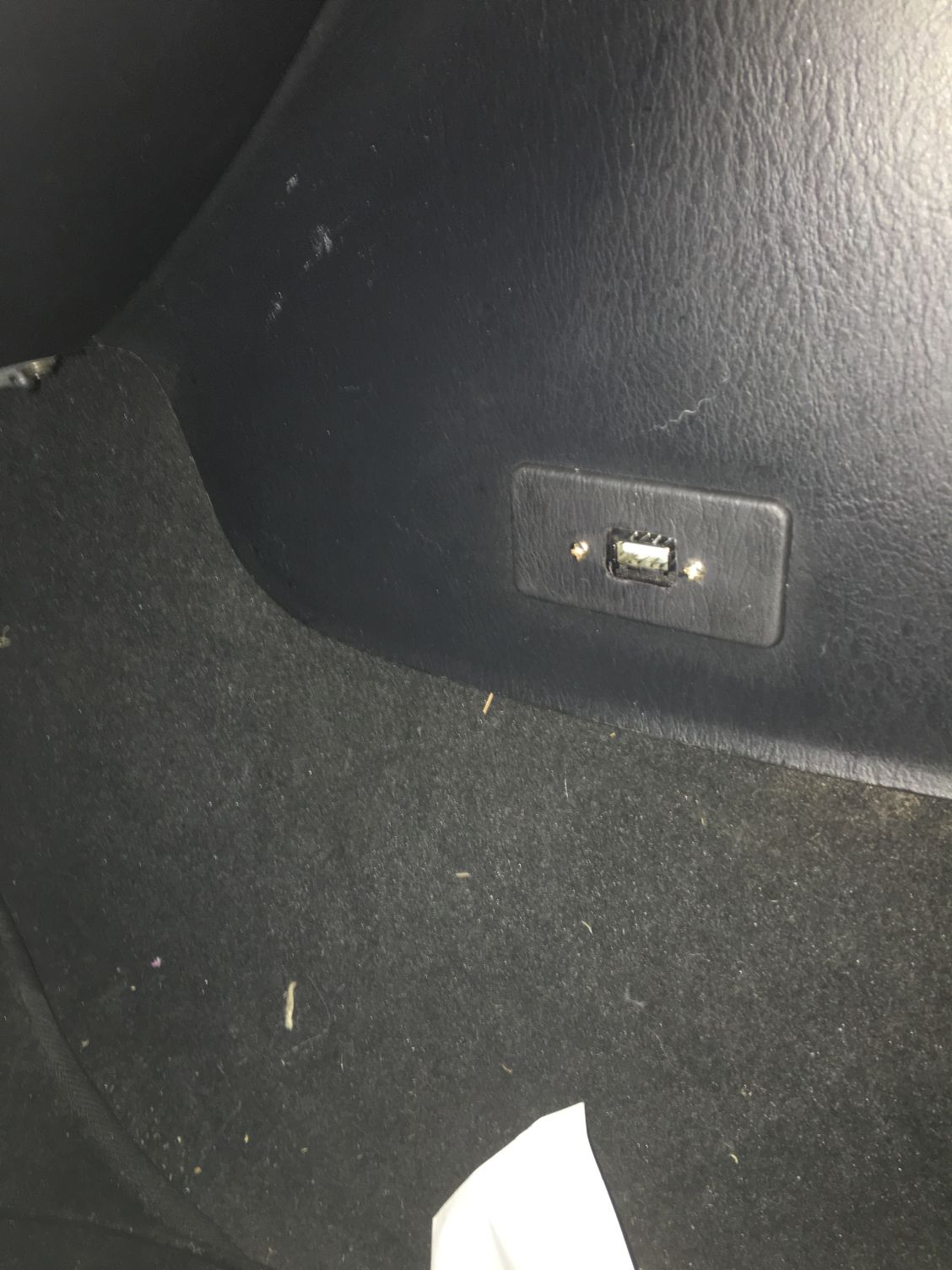

Some more updates added trans gauge probably adding a fuel pressure one too and a surface mount usb thought it was a cool little touch

Attached Thumbnails TURBO AUTO NB-80-image_07ca351bb5fdd0d2553627761b88f91d6738aef4.jpeg   TURBO AUTO NB-80-image_b4d21a502d23209b6c997e49238eaa213a48ef98.jpeg   TURBO AUTO NB-80-image_ee8d9122be87cce00b5564212aa72dac471fa516.jpeg
mx5psi is offline
Old 07-10-2016, 09:25 PM
  #23
Junior Member
Thread Starter

mx5psi's Avatar

Join Date: Mar 2013
Posts: 209
Total Cats: 35
Default Updates

Trans temp gauge and wiring all done
mx5psi is offline
Old 07-11-2016, 08:55 AM
  #24
Junior Member
Thread Starter

mx5psi's Avatar

Join Date: Mar 2013
Posts: 209
Total Cats: 35
Default



mx5psi is offline
Old 07-11-2016, 10:38 PM
  #25
Junior Member
Thread Starter

mx5psi's Avatar

Join Date: Mar 2013
Posts: 209
Total Cats: 35
Default Its all a go runs and drives soo good needs better tyres

mx5psi is offline
Old 07-12-2016, 03:04 AM
  #26
Newb

smy0003's Avatar

Join Date: Nov 2015
Location: Melbourne, Australia
Posts: 8
Total Cats: 0
Default

Probably the least impressive part of your build, but the USB socket in the removable dash trim piece is a bit genius. Will be copying.
smy0003 is offline
Old 07-12-2016, 07:39 AM
  #27
Junior Member
Thread Starter

mx5psi's Avatar

Join Date: Mar 2013
Posts: 209
Total Cats: 35
Default

Its cheap aswell

mx5psi is offline
Old 07-12-2016, 12:15 PM
  #28
Junior Member

Shortpersonbk's Avatar

Join Date: Sep 2013
Posts: 193
Total Cats: 7
Default

10/10 love built auto turbo miata
Shortpersonbk is offline
Old 07-19-2016, 04:43 AM
  #29
Junior Member
Thread Starter

mx5psi's Avatar

Join Date: Mar 2013
Posts: 209
Total Cats: 35
Default Testing

Needs a thermo fan on the auto cooler its 10 deg F warmer than id like but my auto builder laughed and said its perfect if thats the temp im getting without one it sits between 200-210 i want it solid on 200 engine is also 5 deg up on normal driving with the manual so ill probably change some stuff around bring it down a tiny bit other than that it drives amazing spins tyres into 3rd on low boost which used to be around 240kws its a heap of fun

*there cheap 205's so thats not impresive but we will see how sticky tyres go with more boost


Last edited by mx5psi; 07-19-2016 at 05:07 AM.
mx5psi is offline
Old 07-19-2016, 05:22 AM
  #30
Elite Member
iTrader: (5)

Erat's Avatar

Join Date: Oct 2011
Location: Detroit (the part with no rules or laws)
Posts: 5,677
Total Cats: 800
Default

Get some video.
Erat is offline
Old 07-19-2016, 11:10 AM
  #31
Junior Member
Thread Starter

mx5psi's Avatar

Join Date: Mar 2013
Posts: 209
Total Cats: 35
Default

Ill try id like to sort those issues again before it goes out again
mx5psi is offline
Old 07-21-2016, 04:01 AM
  #32
Junior Member
Thread Starter

mx5psi's Avatar

Join Date: Mar 2013
Posts: 209
Total Cats: 35
Default

Next jobs is trans cooler fan

Last edited by mx5psi; 07-21-2016 at 09:29 AM.
mx5psi is offline
Old 07-21-2016, 08:54 AM
  #33
Junior Member
Thread Starter

mx5psi's Avatar

Join Date: Mar 2013
Posts: 209
Total Cats: 35
Default

Thought i had alot more room than i did



mx5psi is offline
Old 07-27-2016, 08:23 AM
  #34
Junior Member
Thread Starter

mx5psi's Avatar

Join Date: Mar 2013
Posts: 209
Total Cats: 35
Default

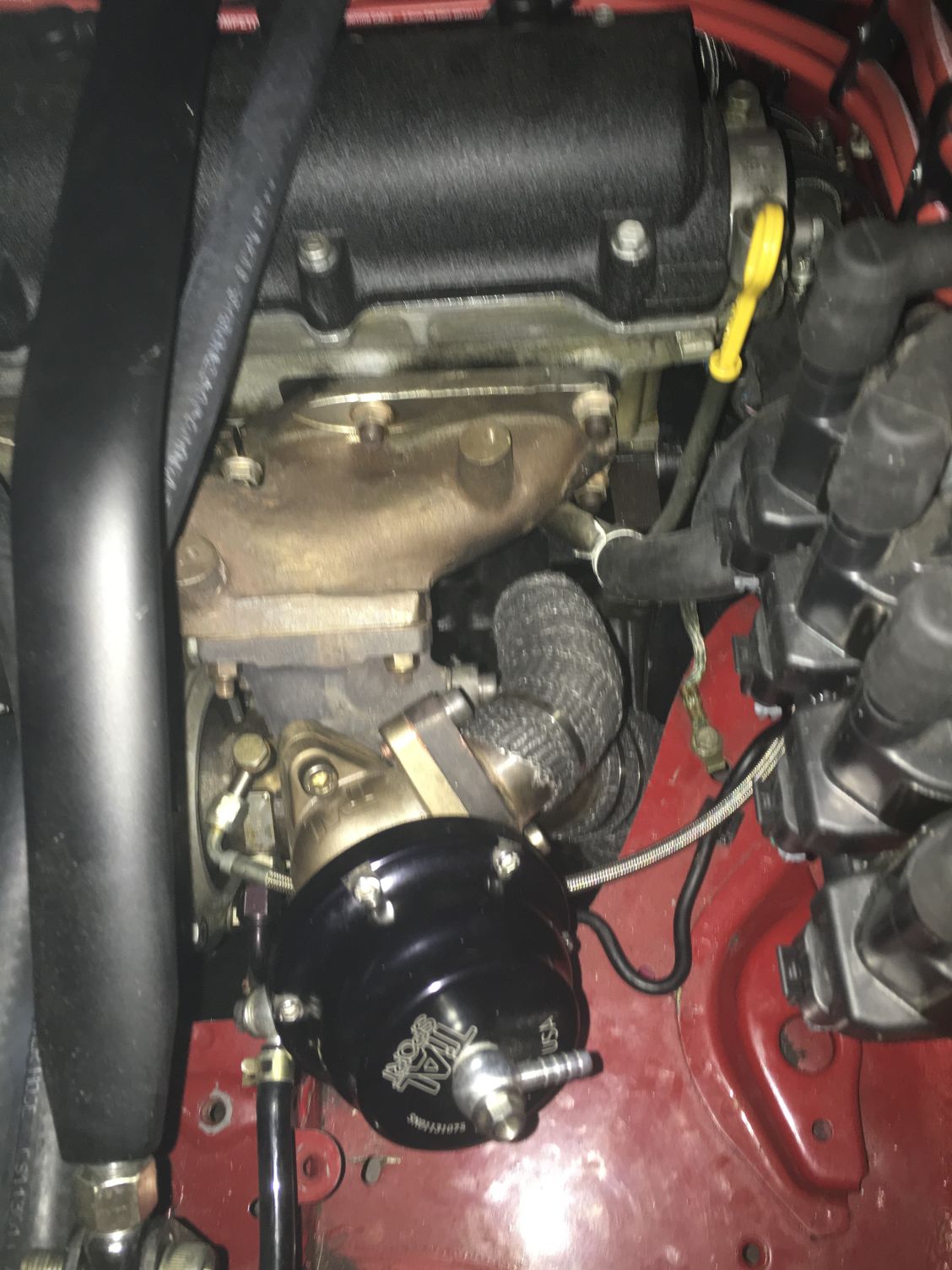

Plumbed my bov return in today try and make the car a little more subtle




mx5psi is offline
Old 08-04-2016, 10:31 AM
  #35
Junior Member
Thread Starter

mx5psi's Avatar

Join Date: Mar 2013
Posts: 209
Total Cats: 35
Default

Went for a drive sat night and decided it was time to put my big boy pants on and try high boost its not slow you can only use half throttle in second and third breaks down im guessing cause my plug gaps at .9 are too big so i changed plugs and gapped them down to .7 im hoping it will fix the issue

Half throttle in second is faster than wot on low its a heap of fun

Next job is new front rotors and brakes and clean up wiring for auto fan


mx5psi is offline
Old 08-04-2016, 10:37 AM
  #36
VladiTuned
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 35,821
Total Cats: 3,481
Default

Very cool. Might want to clean up the oil on the VC
18psi is offline
Old 08-04-2016, 08:49 PM
  #37
Junior Member
Thread Starter

mx5psi's Avatar

Join Date: Mar 2013
Posts: 209
Total Cats: 35
Default

Yeah my bad left the cap a little loose when i changed the oil
mx5psi is offline
Old 08-04-2016, 09:41 PM
  #38
Elite Member
iTrader: (5)

Erat's Avatar

Join Date: Oct 2011
Location: Detroit (the part with no rules or laws)
Posts: 5,677
Total Cats: 800
Default

.7?
I'm guessing .7mm which is roughly 0.028". I've got my plugs at .025" on stock ignition and it's fine at around 15-17psi. Any more is bad news(for me on pump gas), so i'm not sure what "high boost" is for you unless it's the 28psi referenced in the first post.

I must have missed it, what is the ECU?
Erat is offline
Old 08-05-2016, 12:31 AM
  #39
Junior Member
Thread Starter

mx5psi's Avatar

Join Date: Mar 2013
Posts: 209
Total Cats: 35
Default

25psi is high i might bump it up in the next few weeks to 27-28psi
mx5psi is offline
Old 08-05-2016, 09:18 AM
  #40
VladiTuned
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 35,821
Total Cats: 3,481
Default

I'm impressed you're not getting spark blowout at that gap on stock ignition.
I was never able to go past 18 on stock '00 setup, and about 22 on Toyota cops
18psi is offline
