Old 04-27-2016, 01:27 PM   #481
Ich verstehe nur Bahnhof
Thread Starter
iTrader: (2)

psyber_0ptix's Avatar

Join Date: Mar 2012
Location: Northern VA
Posts: 2,773
Total Cats: 221
Default

Quote:
Originally Posted by EO2K View Post
What the hell? Is that a legit manual NB rack?
Seems like it.


That being said, are there no seals on the front hub on the spindle nut side? I feel like grease could evacuate
psyber_0ptix is offline   Reply With Quote
Old 04-27-2016, 06:34 PM   #482
Junior Member
iTrader: (1)

Join Date: Apr 2014
Location: Mountain View, CA
Posts: 333
Total Cats: 19
Default

As an owner of a legit NB manual rack, I can tell you are in for a treat. Super jealous if that thing is brand new. I wanted one for my MSM but couldn't justify a $600 rack from Mazda.
OneTwo is offline   Reply With Quote
Old 04-27-2016, 08:44 PM   #483
Ich verstehe nur Bahnhof
Thread Starter
iTrader: (2)

psyber_0ptix's Avatar

Join Date: Mar 2012
Location: Northern VA
Posts: 2,773
Total Cats: 221
Default

I am just using this for the front subframe which has nb mounts. Is it any different than the manual NA rack?
psyber_0ptix is offline   Reply With Quote
Old 04-27-2016, 09:11 PM   #484
Junior Member
iTrader: (1)

Join Date: Apr 2014
Location: Mountain View, CA
Posts: 333
Total Cats: 19
Default

Other than being a zero mile unicorn, nope! Same ratio as an NA manual rack.
OneTwo is offline   Reply With Quote
Old 04-28-2016, 10:04 AM   #485
Ich verstehe nur Bahnhof
Thread Starter
iTrader: (2)

psyber_0ptix's Avatar

Join Date: Mar 2012
Location: Northern VA
Posts: 2,773
Total Cats: 221
Default

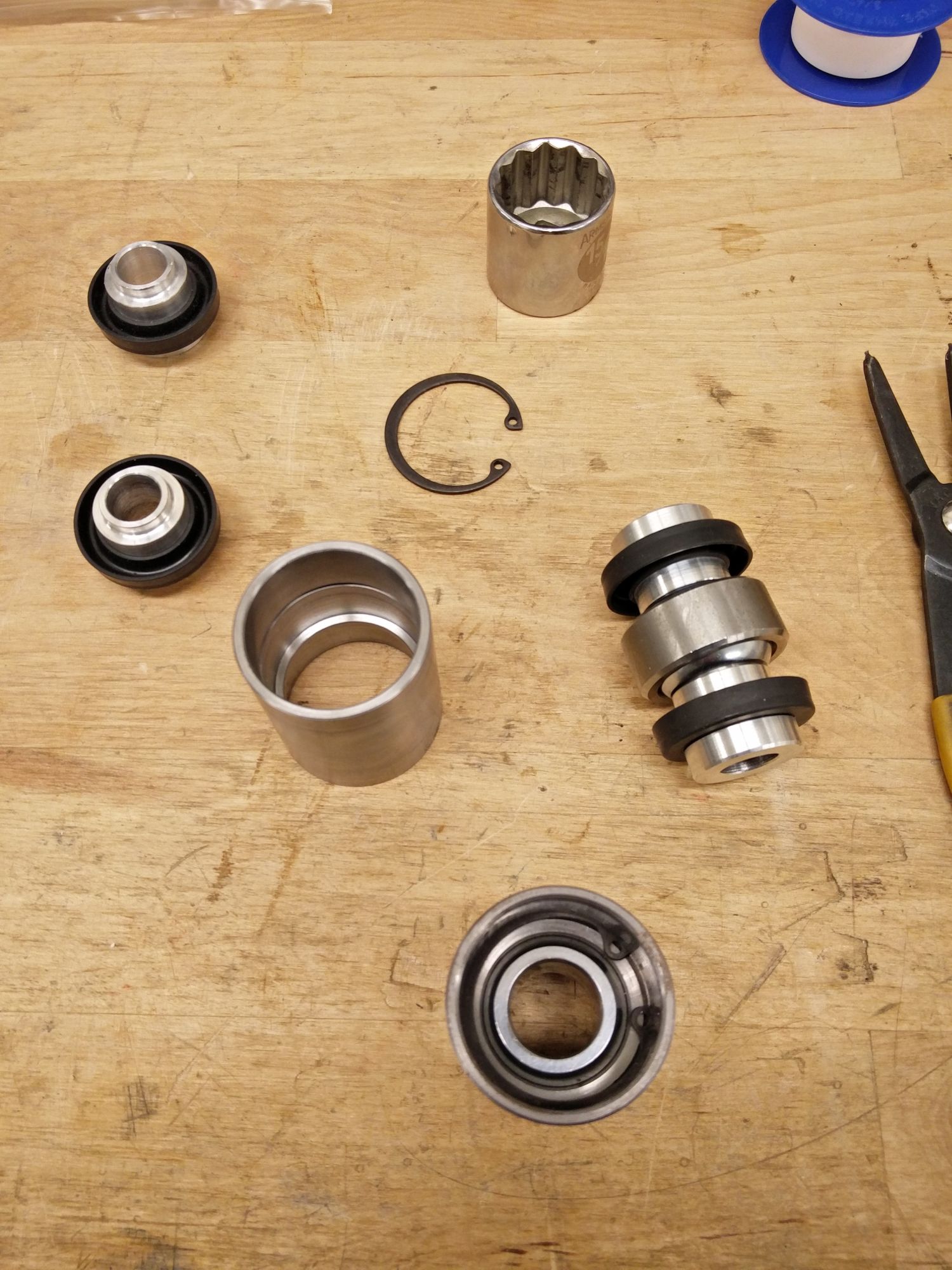

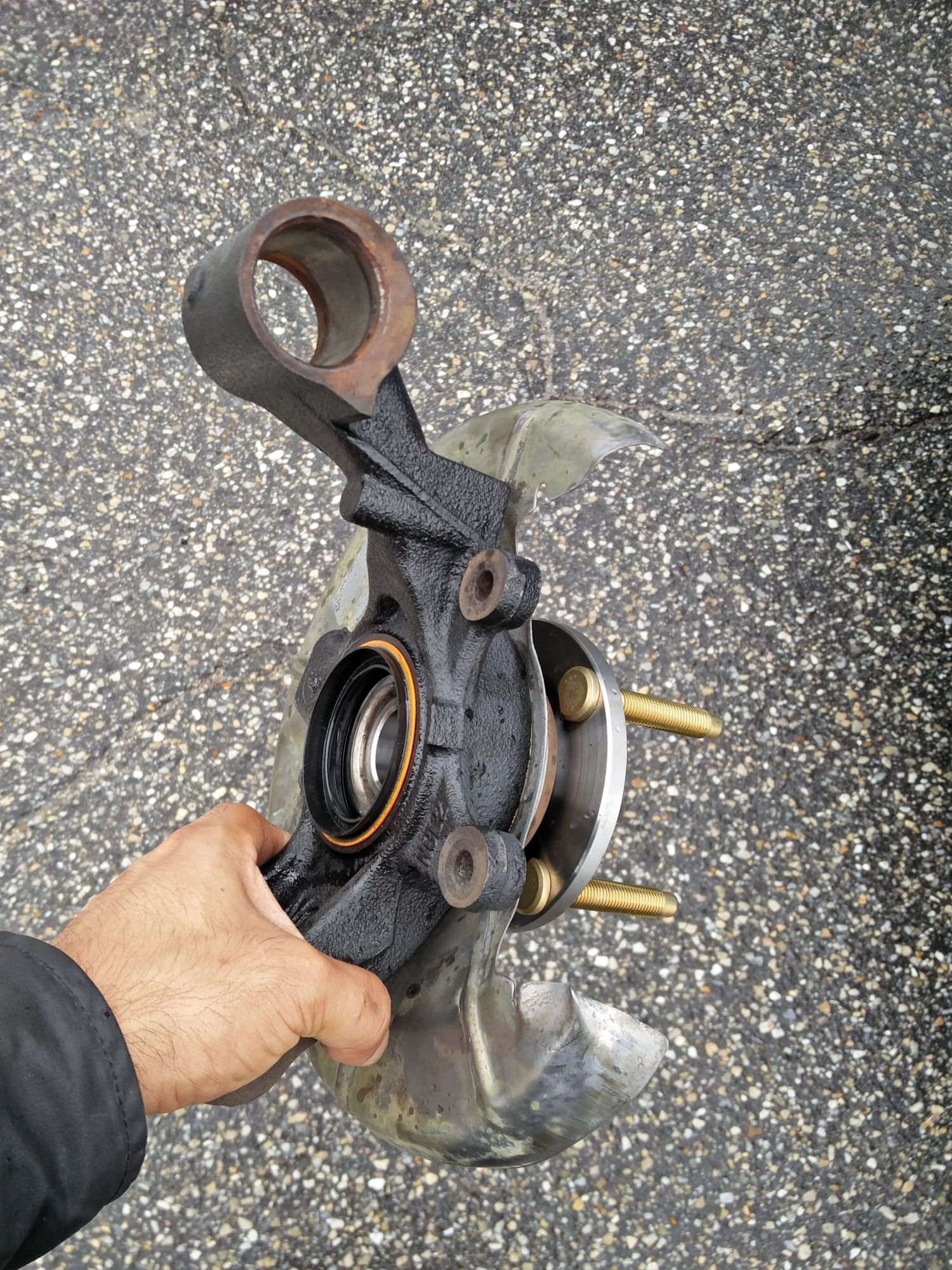

Finally starting this bit. Bearings are pressed into sleeves, need to clean up the knuckle and decide if I should have kept the dust shield back there. I need to pull it slightly to clear the 10.9" rotors or just remove completely. What would you do?

Pillow ***** press in by hand with some effort. Hopefully this sleeve juice from locate will set up nicely. Almost looks like there's enough meat on the knuckle to drill a blind tapped hole for a machine screw so the cap can retain the sleeve
Attached Thumbnails
Turbo Smurfette - Build in progress (slow)-80-img_20160428_081719_9f4107e2c3e28380898541bad85286a57715e27f.jpg   Turbo Smurfette - Build in progress (slow)-80-img_20160428_084239_ee9c99de9ac26b46fad72e60e97fac1243d103d6.jpg
psyber_0ptix is offline   Reply With Quote
Old 04-28-2016, 01:15 PM   #486
Elite Member
iTrader: (5)

Join Date: Feb 2013
Location: Staunton, Va
Posts: 1,661
Total Cats: 112
Default

I clearanced my rotor covers with a 3/8 extension. put it between the rotor and cover, rolled it back and fort a few times.
ryansmoneypit is offline   Reply With Quote
Old 04-28-2016, 01:50 PM   #487
Ich verstehe nur Bahnhof
Thread Starter
iTrader: (2)

psyber_0ptix's Avatar

Join Date: Mar 2012
Location: Northern VA
Posts: 2,773
Total Cats: 221
Default

Like rolling fenders with a bat. -_-
I'll try your technique.



Brake question for you all. I have my trackspeed kit 11.75" kit sitting pretty but not sure what pads to run. I have a set of Polymatrix E pads in hand, and need to replace the rear HPS pads.

Any ideas on which pad combo to run for a very spirited 350whp street car and maybe some autocross if this car will ever pass tech? I want to do HPDE later once I iron out the rest of my suspension, but that's in the distance.
psyber_0ptix is offline   Reply With Quote
Old 04-28-2016, 03:42 PM   #488
I take big bites
iTrader: (1)

turbofan's Avatar

Join Date: Sep 2010
Location: Portland, OR
Posts: 6,000
Total Cats: 409
Default

I just have the cheapy wilwood pads (BP10 I think?) that came with my kit in front, and whatever was on the car before in rear... I think it was Hawk HPS. Works fine for autox at the one event I went to, and fine in aggressive street driving so far. Won't be sufficient for track -- I switch to DTC 60 front and DTC 30 rear for track.

Overall happy with this stuff. on the street I can't seem to stress these big brakes significantly... 11.75" rotors and air ducts will do that.

turbofan is offline   Reply With Quote
Old 04-28-2016, 04:03 PM   #489
Ich verstehe nur Bahnhof
Thread Starter
iTrader: (2)

psyber_0ptix's Avatar

Join Date: Mar 2012
Location: Northern VA
Posts: 2,773
Total Cats: 221
Default

I'm thinking of using hps in the back or the Porterfield r4s.

Was thinking about the DTC-30 for fronts but already had these polyE 's
psyber_0ptix is offline   Reply With Quote
Old 04-29-2016, 01:44 PM   #490
Moderator
iTrader: (9)

sixshooter's Avatar

Join Date: Nov 2008
Location: Tampa, FL
Posts: 13,430
Total Cats: 1,015
Default

Yes the BP 10 is just a street pad. I went through one all the way down to the metal in 1/2 of one track day.
sixshooter is offline   Reply With Quote
Old 04-29-2016, 02:23 PM   #491
I take big bites
iTrader: (1)

turbofan's Avatar

Join Date: Sep 2010
Location: Portland, OR
Posts: 6,000
Total Cats: 409
Default

Indeed. As I mentioned, I use it on the street and in aggressive street driving I've had no issues, and the one Autox I went to also didn't stress it significantly.

Did you have brake ducts on your car when you used the BP10's on track?
turbofan is offline   Reply With Quote
Old 05-02-2016, 08:10 AM   #492
Moderator
iTrader: (9)

sixshooter's Avatar

Join Date: Nov 2008
Location: Tampa, FL
Posts: 13,430
Total Cats: 1,015
Default

No, I had only just installed the 11.75 brakes I was assured that the BP tens would get me through the weekend before I could upgrade.
sixshooter is offline   Reply With Quote
Old 05-03-2016, 05:34 PM   #493
Senior Member
iTrader: (1)

Join Date: Nov 2007
Location: Saint Paul, MN
Posts: 1,164
Total Cats: 18
Default

Reading through your thread, very nice work man. You've had setbacks but stayed with it, right on.

For brakes, I plan to pickup 11.75 fronts (have sport rears on hand) as well and I've heard the XP8 suggested a lot.
Der_Idiot is offline   Reply With Quote
Old 05-06-2016, 01:48 PM   #494
Ich verstehe nur Bahnhof
Thread Starter
iTrader: (2)

psyber_0ptix's Avatar

Join Date: Mar 2012
Location: Northern VA
Posts: 2,773
Total Cats: 221
Default

Quote:
Originally Posted by Der_Idiot View Post
Reading through your thread, very nice work man. You've had setbacks but stayed with it, right on.
Honestly I owe a lot to the support of folks on this site as well as Braineack and all the guru's who've been able to offer constructive guidance. This car functions only because of the knowledge found here.



Happy Friday everyone


The other half is still in the trunk, outside, in the rain, at work.
Attached Thumbnails
Turbo Smurfette - Build in progress (slow)-80-image_20160506_123439_f228e3426eb7a8a9817fd7fefe1c7ccd3c52c5db.jpg
psyber_0ptix is offline   Reply With Quote
Old 05-06-2016, 01:59 PM   #495
Junior Member
iTrader: (1)

Downmented's Avatar

Join Date: Oct 2014
Location: Annapolis, MD
Posts: 384
Total Cats: 49
Default

Downmented is offline   Reply With Quote
Old 05-06-2016, 02:03 PM   #496
I take big bites
iTrader: (1)

turbofan's Avatar

Join Date: Sep 2010
Location: Portland, OR
Posts: 6,000
Total Cats: 409
Default

I about had a seizure looking at the paper it's sitting on.

nooooooo thank you.
turbofan is offline   Reply With Quote
Old 05-06-2016, 02:05 PM   #497
Ich verstehe nur Bahnhof
Thread Starter
iTrader: (2)

psyber_0ptix's Avatar

Join Date: Mar 2012
Location: Northern VA
Posts: 2,773
Total Cats: 221
Default

Quote:
Originally Posted by Downmented View Post
Ach mensch. Schadenfreude ist die schönste Freude.
psyber_0ptix is offline   Reply With Quote
Old 05-06-2016, 02:07 PM   #498
Ich verstehe nur Bahnhof
Thread Starter
iTrader: (2)

psyber_0ptix's Avatar

Join Date: Mar 2012
Location: Northern VA
Posts: 2,773
Total Cats: 221
Default

Quote:
Originally Posted by turbofan View Post
I about had a seizure looking at the paper it's sitting on.

nooooooo thank you.
Just a one-dimensional homogeneous boundary-value problem in a finite medium. I just put my coffee mug on it, and I don't drink coffee.
psyber_0ptix is offline   Reply With Quote
Old 05-06-2016, 03:30 PM   #499
Senior Member

Join Date: Oct 2013
Location: NorthWest NJ
Posts: 754
Total Cats: 28
Default

Better than my friend's car at least. His key is broken off in the ignition. It has become a pass time for my friends and I to move it in parking lots when he isn't looking.
x_25 is offline   Reply With Quote
Old 05-06-2016, 03:31 PM   #500
Ich verstehe nur Bahnhof
Thread Starter
iTrader: (2)

psyber_0ptix's Avatar

Join Date: Mar 2012
Location: Northern VA
Posts: 2,773
Total Cats: 221
Default

Quote:
Originally Posted by x_25 View Post
Better than my friend's car at least. His key is broken off in the ignition. It has become a pass time for my friends and I to move it in parking lots when he isn't looking.
This happened to me four years ago. Disassembling an ignition cylinder was not my idea of fun.
psyber_0ptix is offline   Reply With Quote
