Old 01-12-2016, 08:40 PM   #61
SadFab Sales Lady
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 14,839
Total Cats: 934
Default

Details on the sexy orange jeep?
aidandj is offline   Reply With Quote
Old 01-12-2016, 08:41 PM   #62
SadFab Sales Lady
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 14,839
Total Cats: 934
Default

advance auto. not vatozone.

Return that **** and get the new ones!

http://shop.advanceautoparts.com/p/c...590/10419415-P
aidandj is offline   Reply With Quote
Old 01-12-2016, 09:08 PM   #63
Goin Innnnn!!!
Thread Starter
iTrader: (7)

Chooofoojoo's Avatar

Join Date: May 2014
Location: Denver, Co.
Posts: 458
Total Cats: 40
Default

Sonofabitch. Reading comprehension fail. For whatever reason I always mix up the Autozone and the Advance Auto. No idea why.

Well. They were $70 bucks and *should work. Not the absolute end of the world.

Jeep is/was rad. 2001 TJ, Rubicon express lift of some sort, Dynatrac Dana 44s, 35x12.5", proper manuel transmission. It's my friend's who moved to Whistler BC and left it with me for a year. I used it as a winter vehicle last winter (and beat the living **** out of it), but he came back to the states and picked it up this past summer. It now lives in the land of amazing mountain biking and ski-boarding. Shocking the only decent picture I have of it:


Attached Thumbnails
Ze Potato Build-80-20150221_094610_0a48253b9b42cc7c22032c12e0baf06e12022756.jpg
Chooofoojoo is offline   Reply With Quote
Old 01-14-2016, 06:20 PM   #64
Goin Innnnn!!!
Thread Starter
iTrader: (7)

Chooofoojoo's Avatar

Join Date: May 2014
Location: Denver, Co.
Posts: 458
Total Cats: 40
Default

BFH to the Rescue

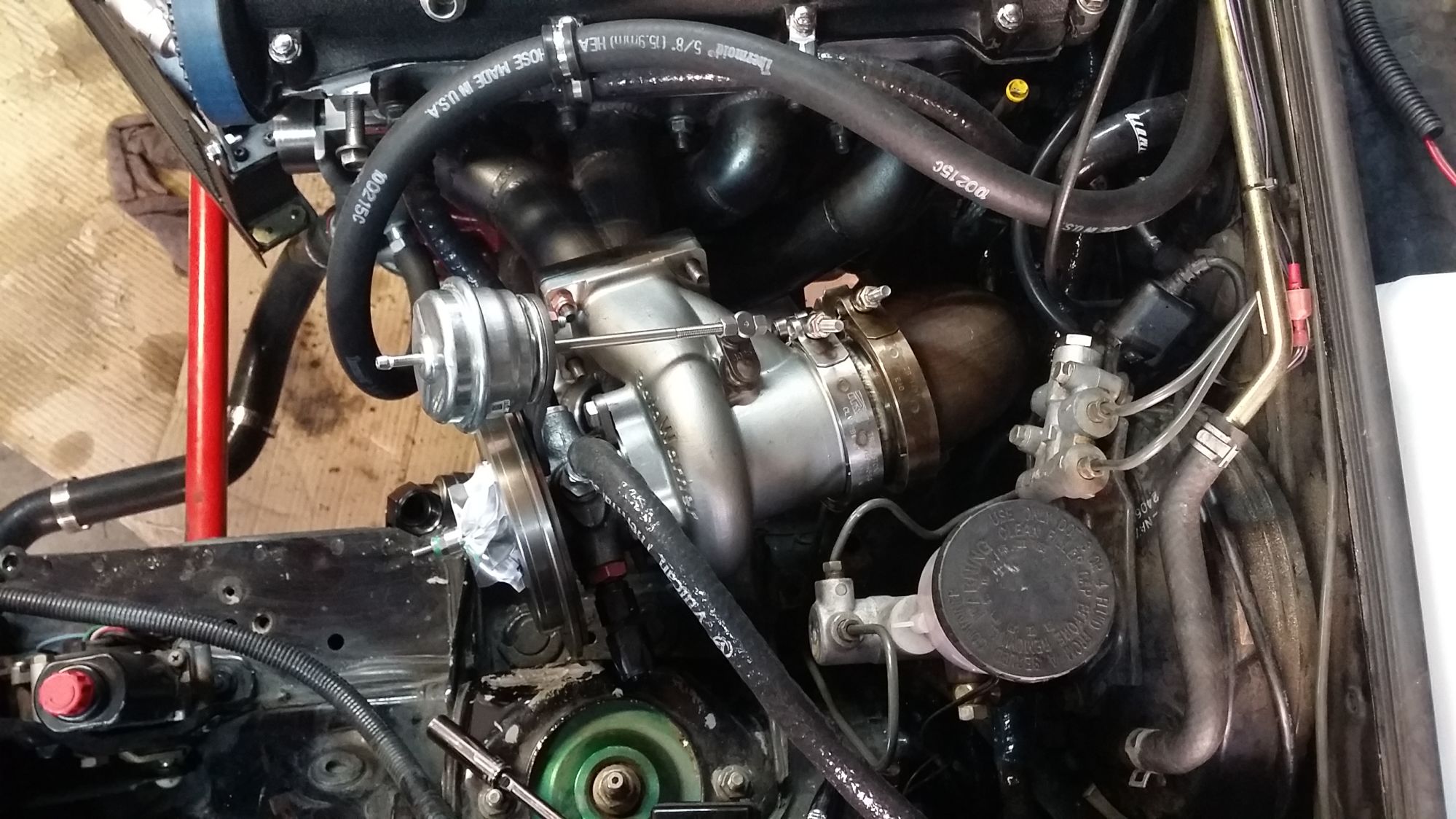

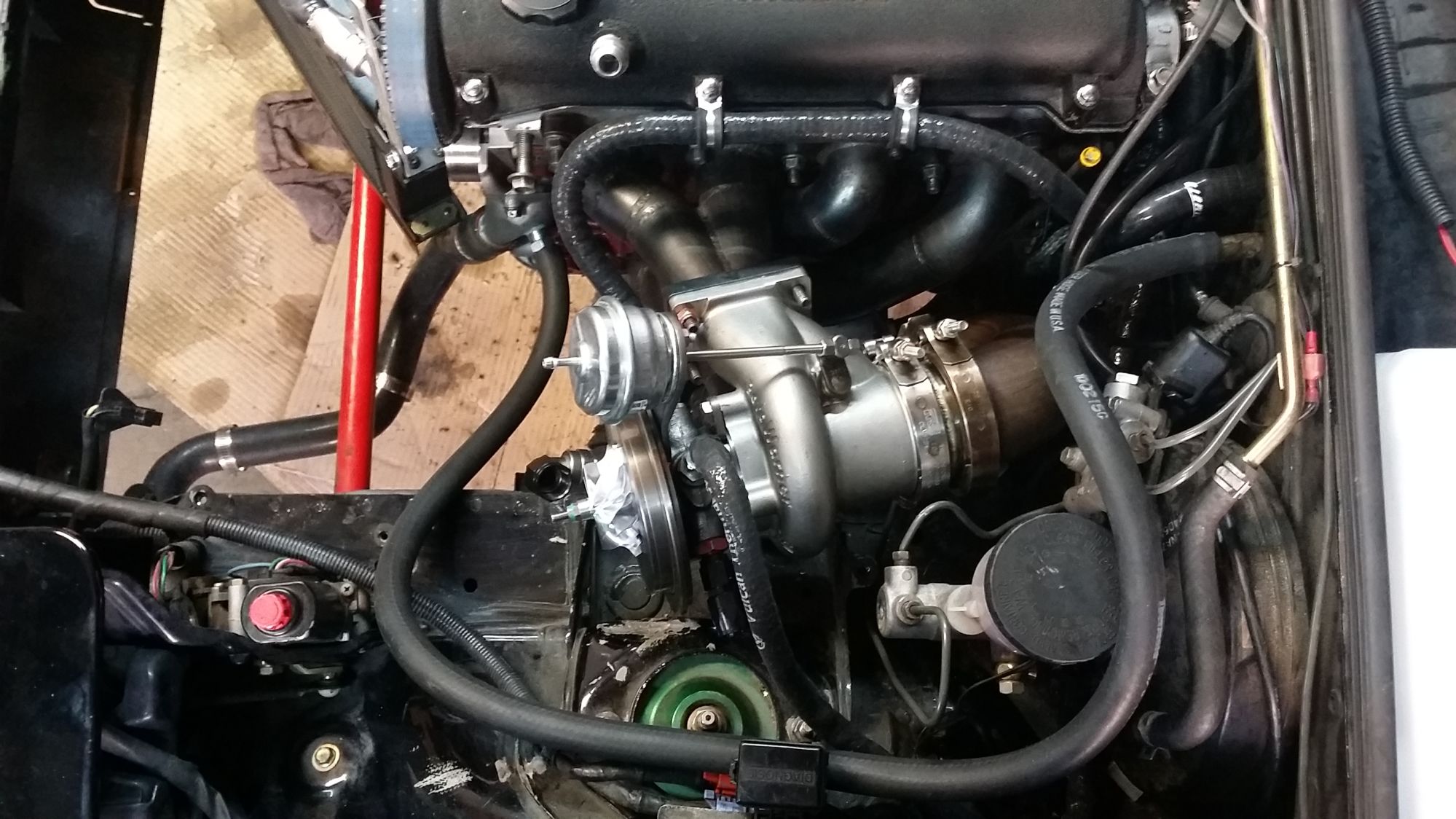

Beat the **** out of the shock tower. Unsurprising, it was a very strong point on the car. Gained about 5-6mm of clearance of compressor cover clocked appropriately.

Bad News

Waste gate will for sure not clear hood. Will cut out the bracing on the hood in that area and see if she fits. No clue what to do if that doesn't work.





Help me choose Heater-core return routing!

Option 1: The Scenic route :




Option 2: Up N Over :
Use 2 cushion clamps and mount it directly on-top of the turbo coolant feed. It would be fire-sleeved and all that jazz too. In picture I only used one cushion clamp to get an idea. Leaning towards this plan.








Still turning out to be a **** show of an install.
Attached Thumbnails
Ze Potato Build-80-20160114_132433_770d6e5d560bfefd8eb759d67c3fe00514763844.jpg   Ze Potato Build-80-20160114_145713_90e6eb53584c483ee12644479df8f4076cdeefc1.jpg   Ze Potato Build-80-20160114_150020_35403e1960ae5f15e9a40e5e67fc7958ba705956.jpg   Ze Potato Build-80-20160114_150027_fcbcaff23d761fe2a3d9ed32ec7c184e6cc5792f.jpg
Chooofoojoo is offline   Reply With Quote
Old 01-14-2016, 06:24 PM   #65
SadFab Sales Lady
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 14,839
Total Cats: 934
Default

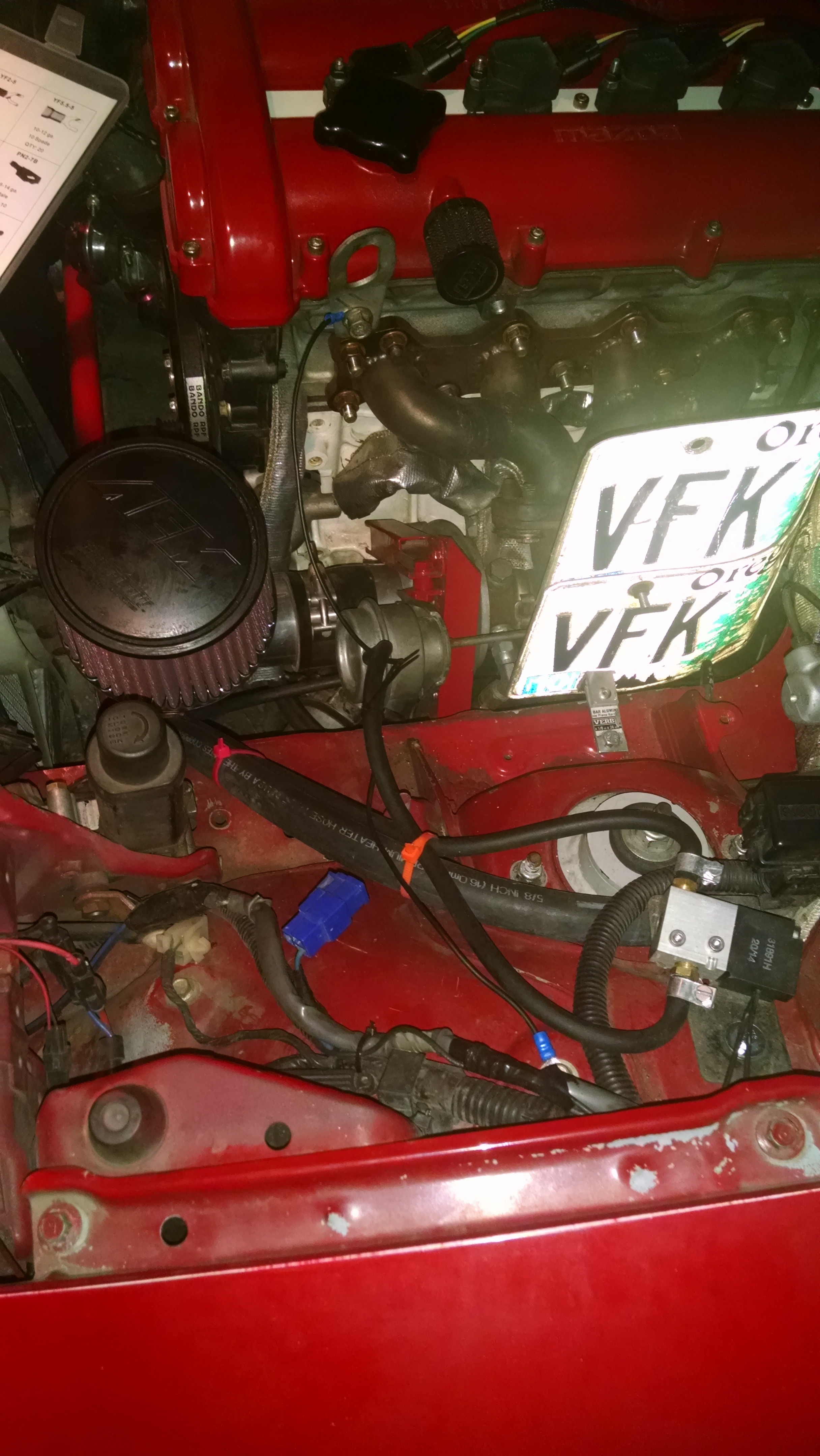

I rock the scenic route, but I tucked it under the diag port bracket behind the shock, and wrapped it in heat sleeve. I'll try and get a picture.

This picture kinda show it:

Attached Thumbnails
Ze Potato Build-n2ppepg.jpg
aidandj is offline   Reply With Quote
Old 01-15-2016, 12:11 AM   #66
Supporting Vendor
iTrader: (3)

emilio700's Avatar

Join Date: May 2005
Posts: 4,537
Total Cats: 840
Default

Seeing the relatively delicate compressor wheel just hanging out there me nervous. Protect it with something, if not the actual housing.
emilio700 is offline   Reply With Quote
Old 01-15-2016, 12:20 AM   #67
Goin Innnnn!!!
Thread Starter
iTrader: (7)

Chooofoojoo's Avatar

Join Date: May 2014
Location: Denver, Co.
Posts: 458
Total Cats: 40
Default

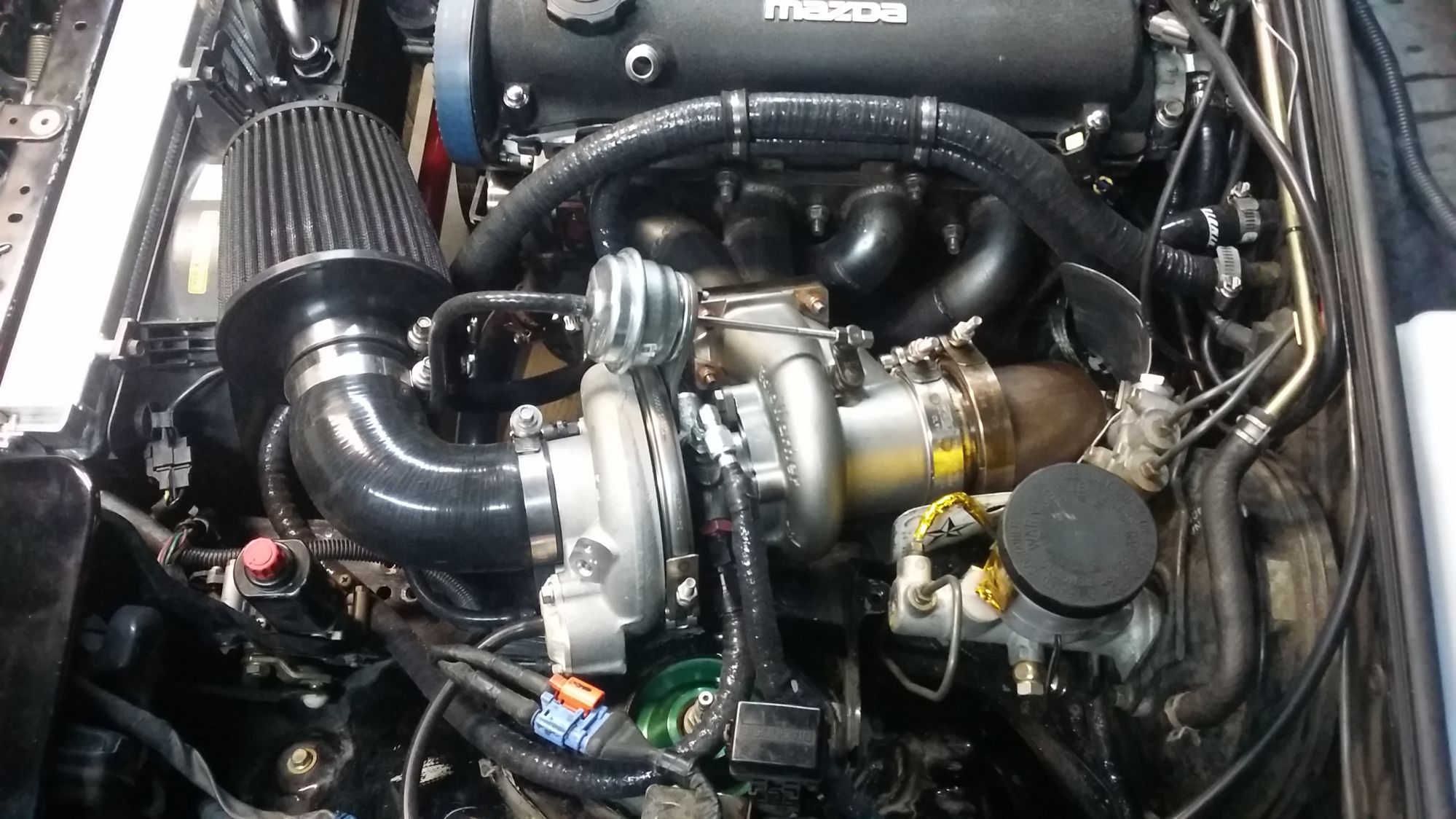

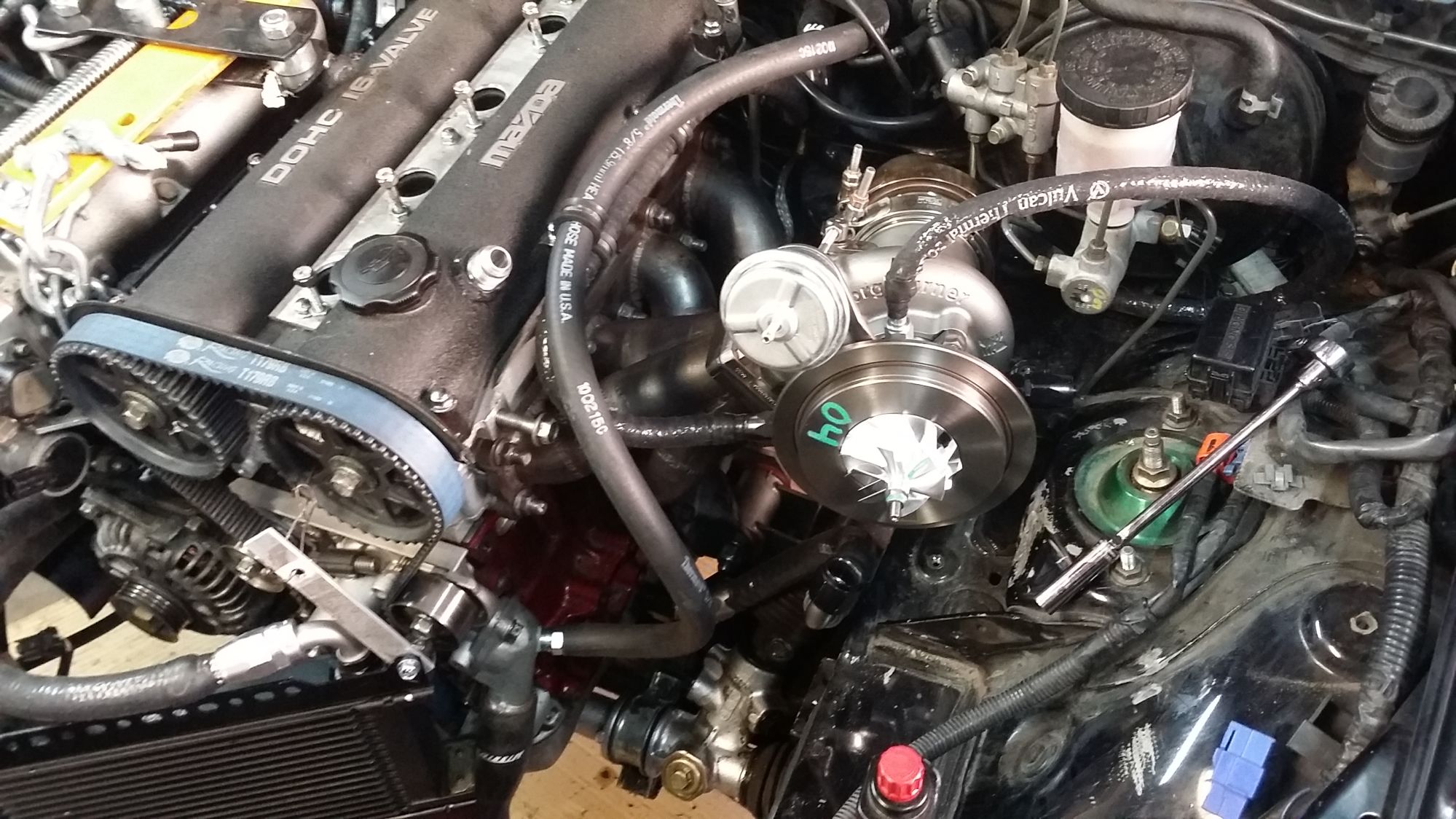

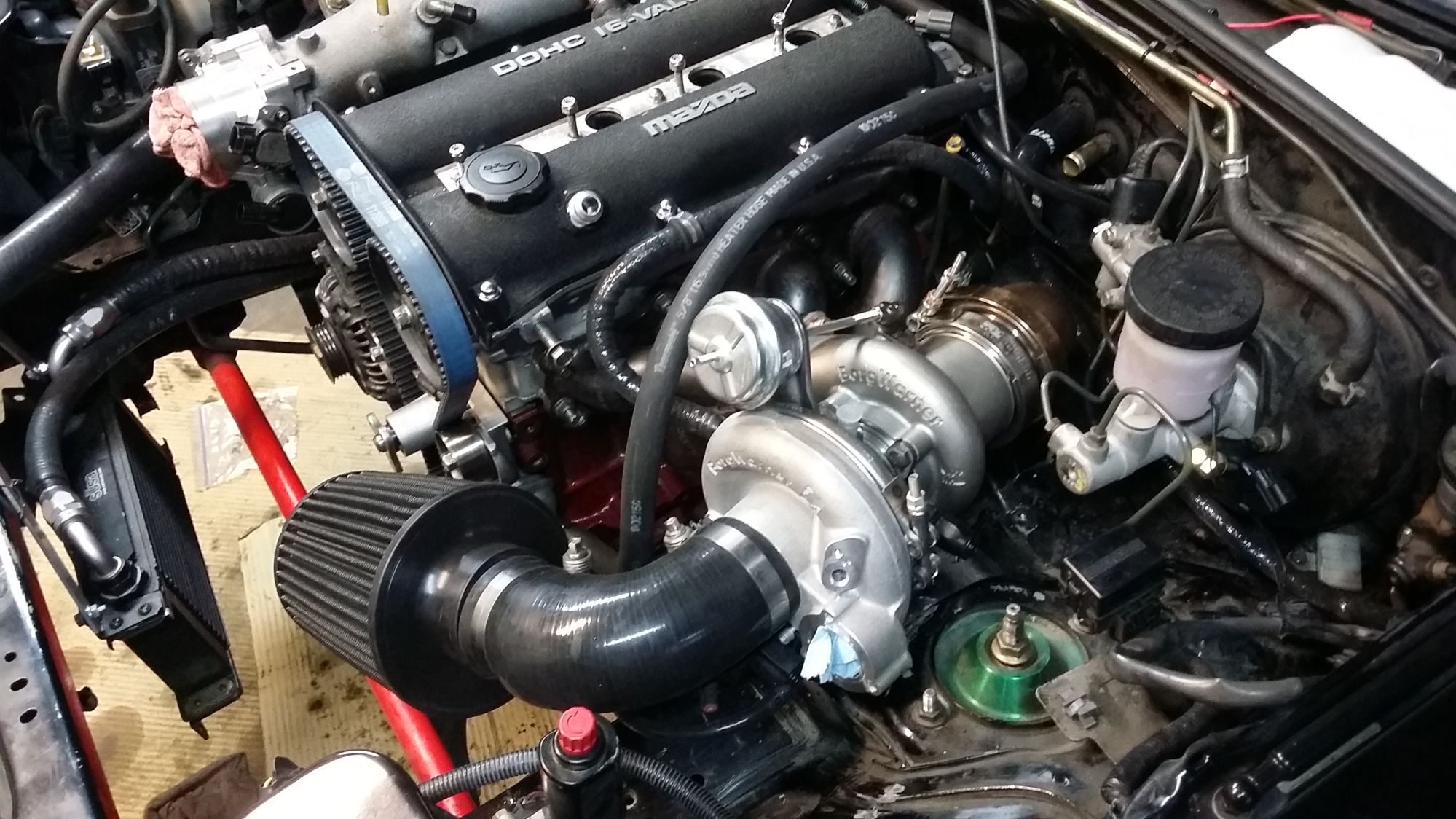

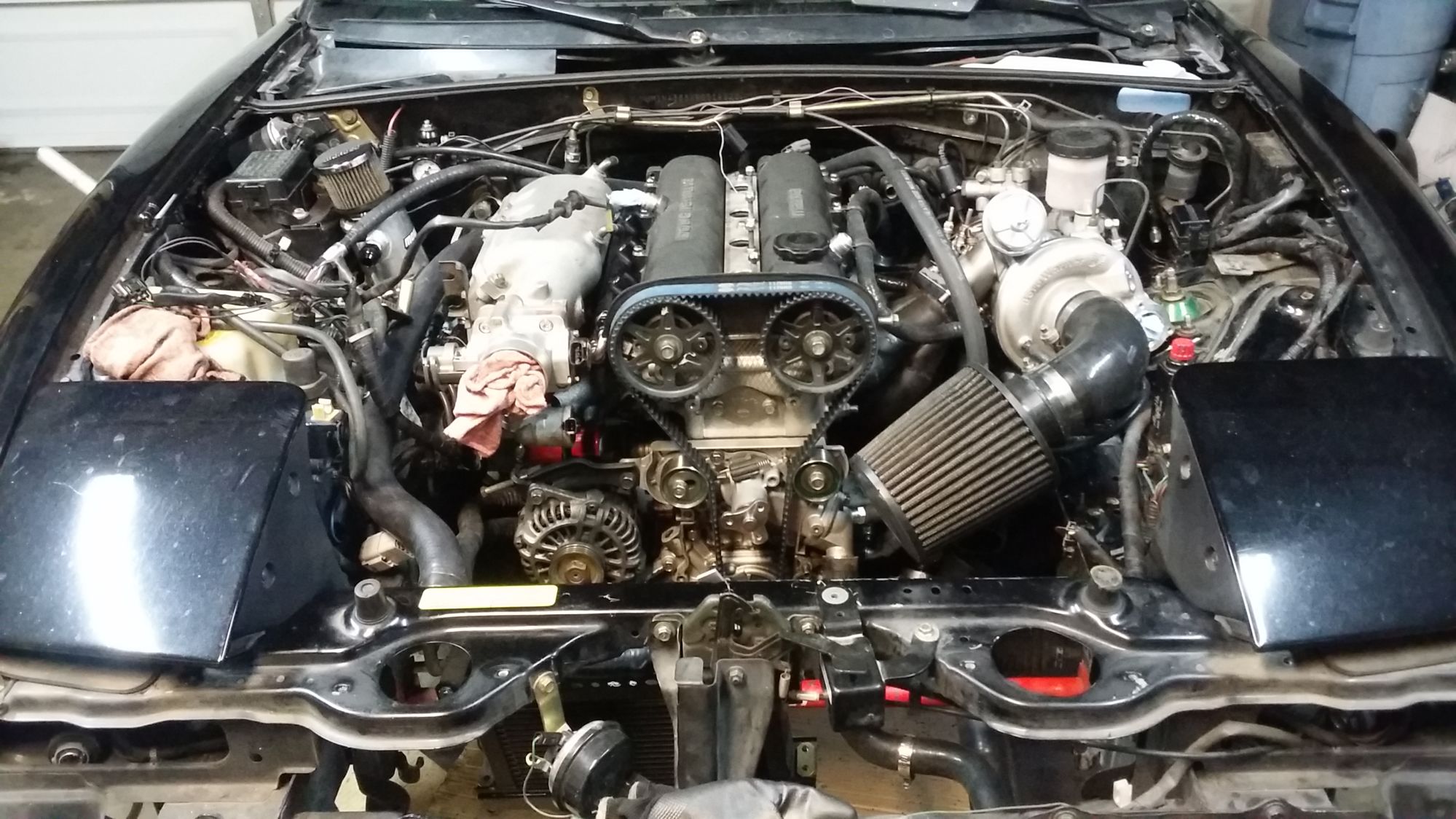

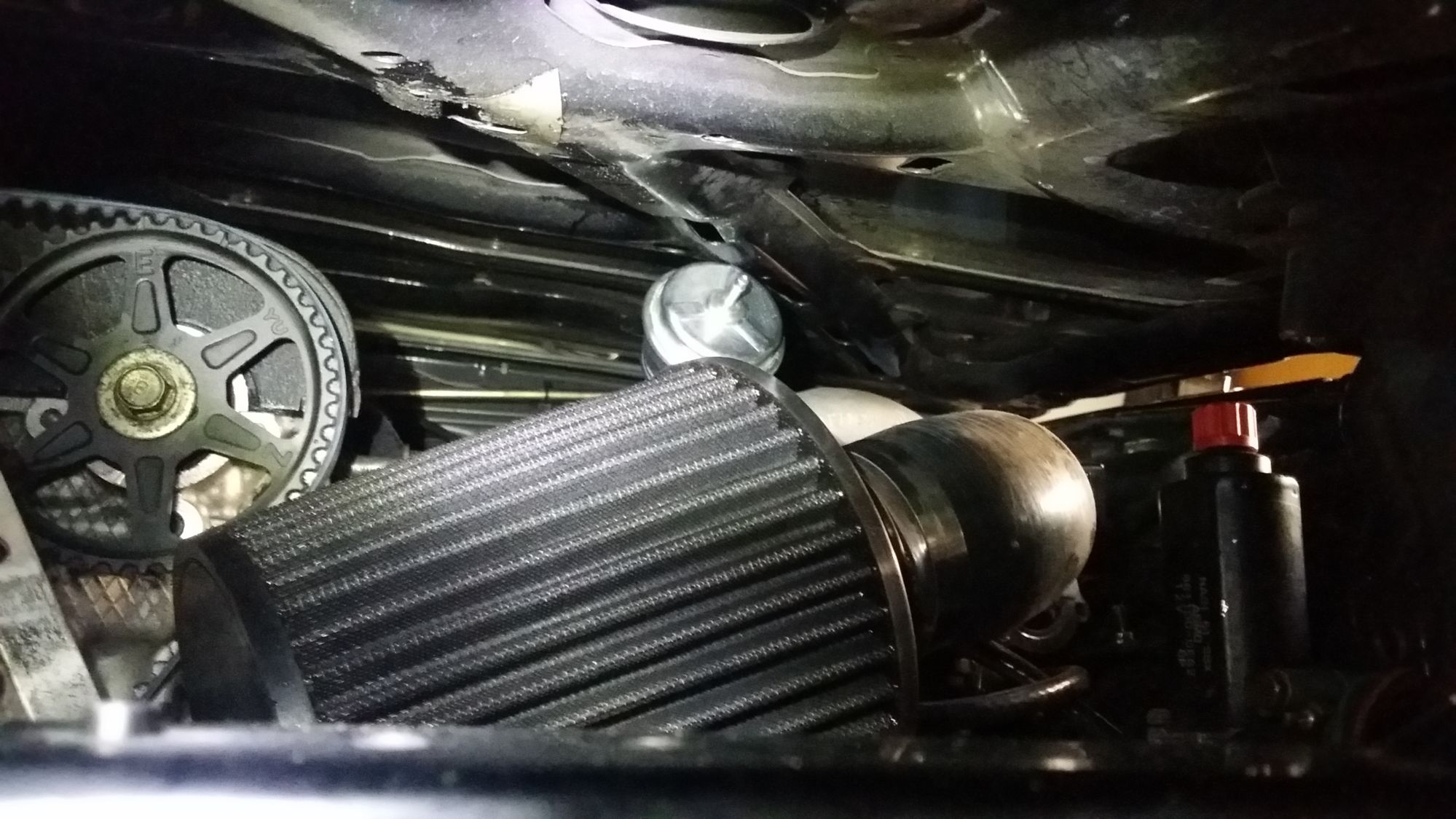

Just noticed almost all pictures I posted earlier were with the compressor housing off. In reality the housing was off for all of 10 min today as I checked for clearances of the housing. It's safely buttoned up now. Sure does look pretty though.





Attached Thumbnails
Ze Potato Build-80-20160114_164739_bfd16d8937fe55b45907ba3866f55e626b0f67ff.jpg   Ze Potato Build-80-20160114_164751_ca024d77ee88afd88653790b51478c7b3268bfc9.jpg
Chooofoojoo is offline   Reply With Quote
Old 01-15-2016, 12:56 AM   #68
SOMEOFIT
iTrader: (1)

Girz0r's Avatar

Join Date: Jun 2014
Location: Austin, TX
Posts: 2,511
Total Cats: 219
Default

Now you need a trumpet piece inside the air filter and you'll max out to 10101010000kpz and be eelite.
Girz0r is online now   Reply With Quote
Old 01-17-2016, 10:31 PM   #69
Goin Innnnn!!!
Thread Starter
iTrader: (7)

Chooofoojoo's Avatar

Join Date: May 2014
Location: Denver, Co.
Posts: 458
Total Cats: 40
Default

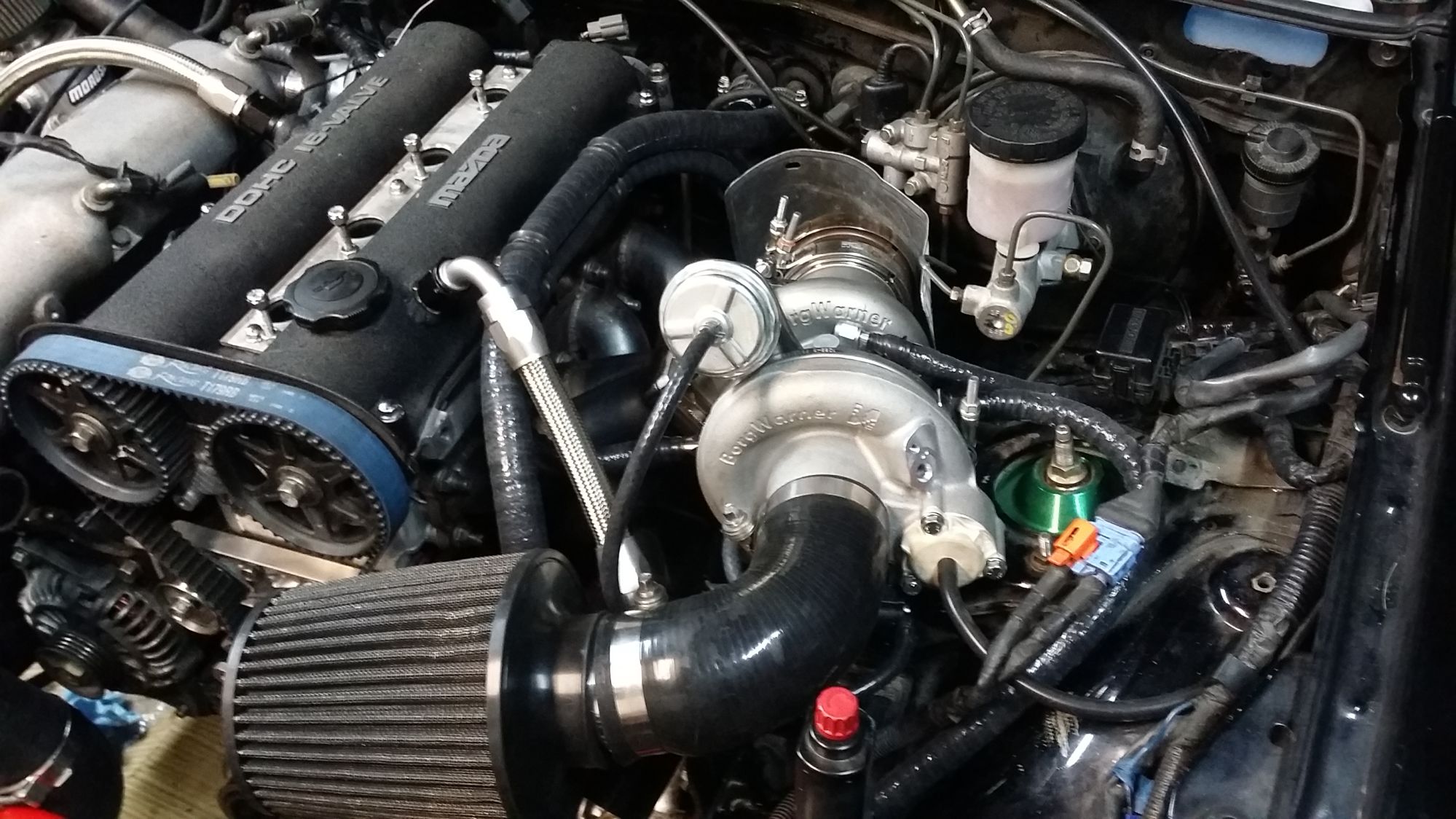

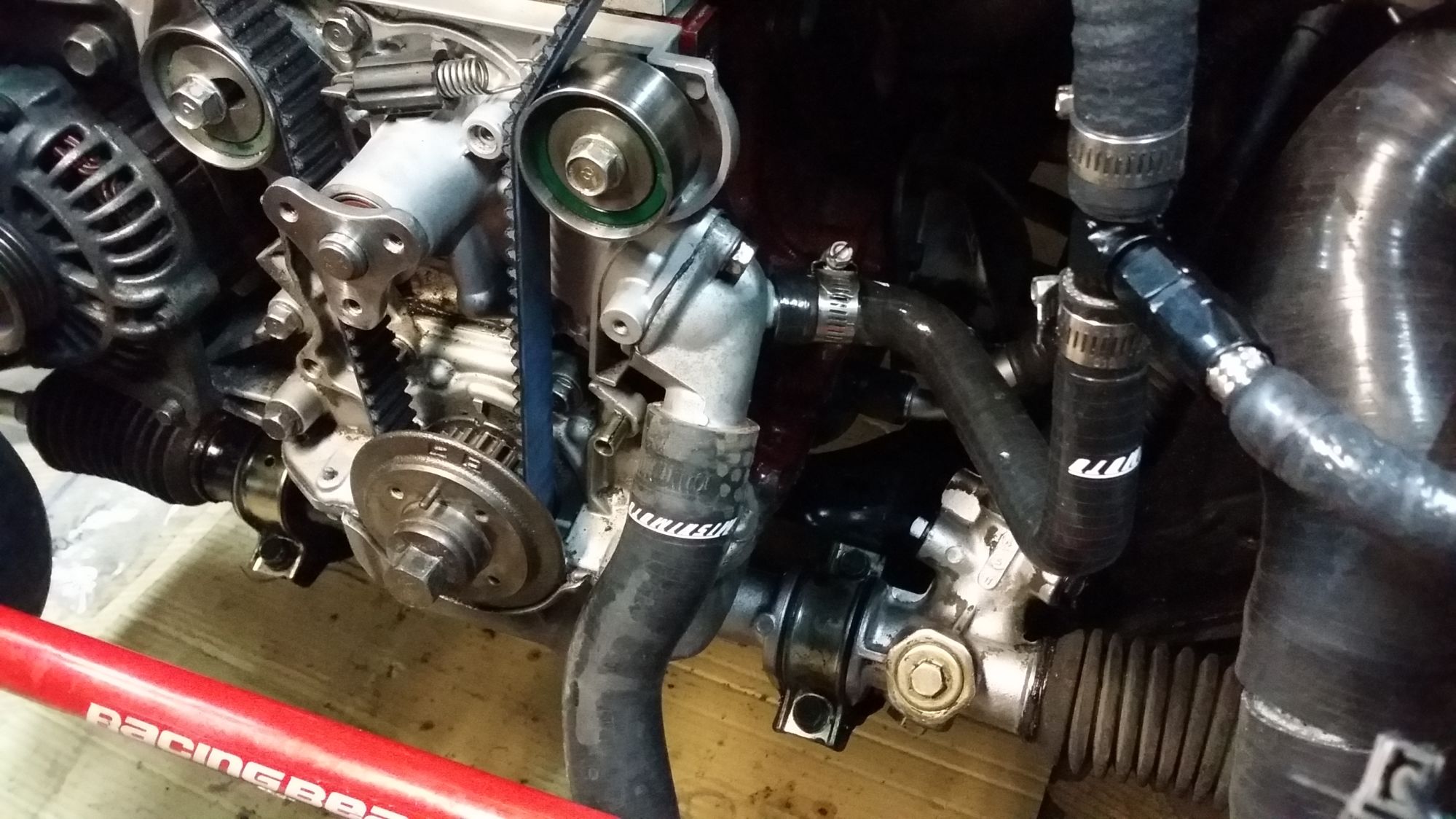

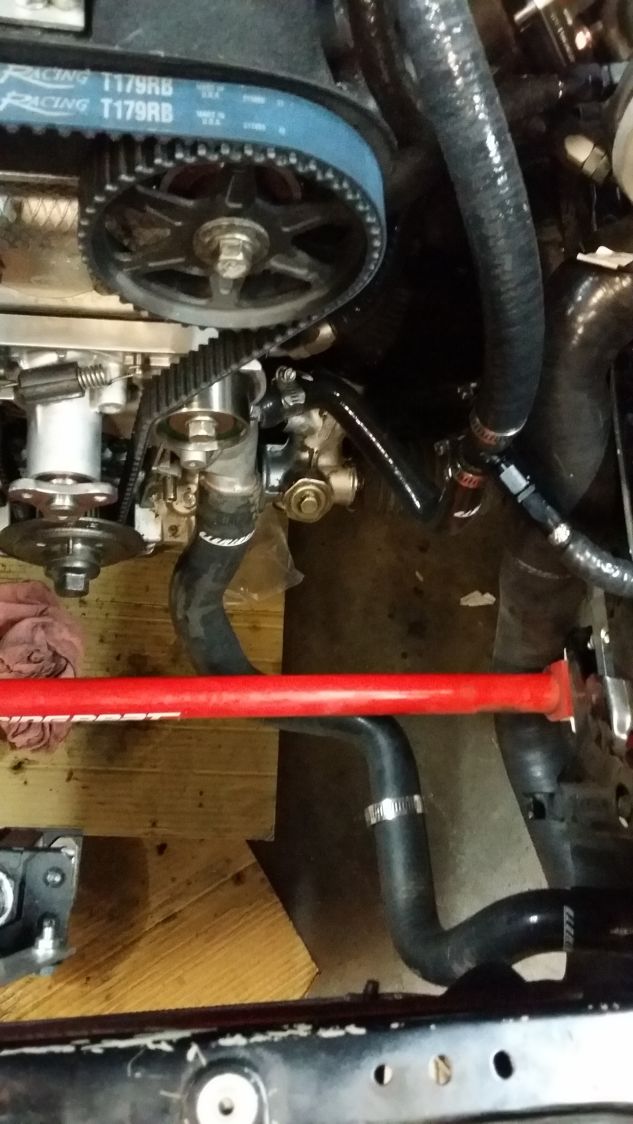

Small Plumbing Work

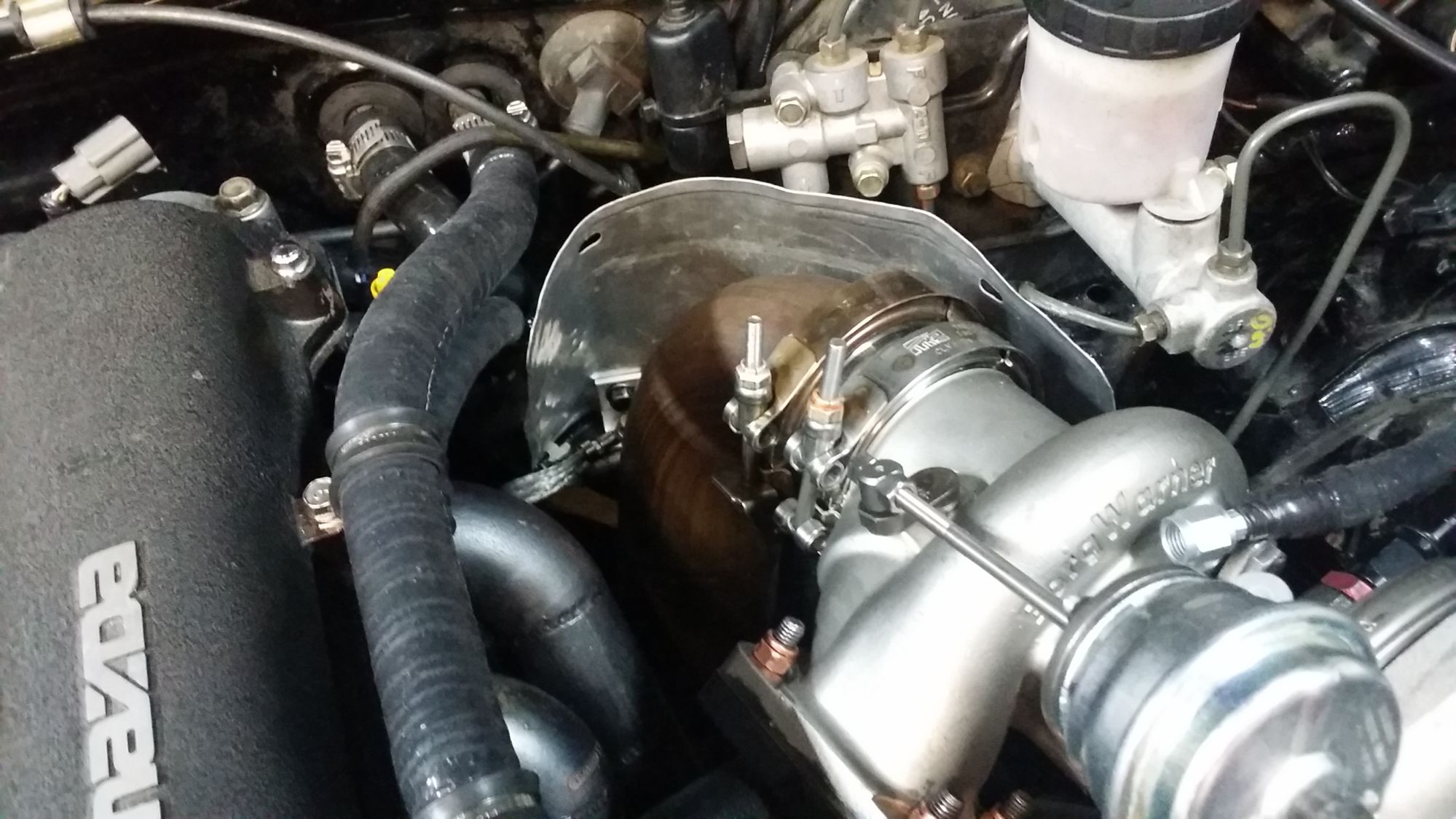

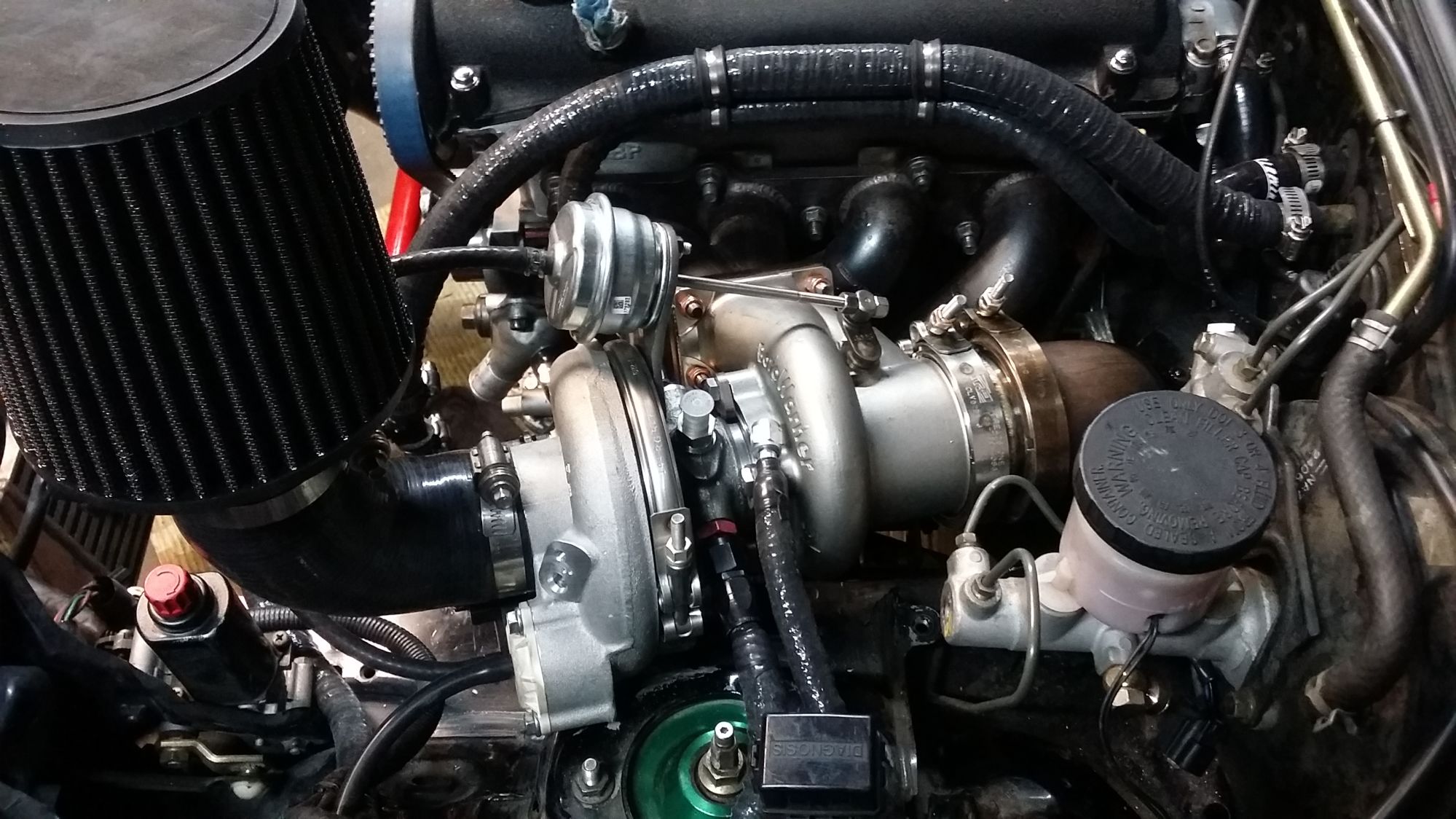

-Had about two hours to work on car this afternoon post-work. Boring update really, I made the turbo coolant return hose, and the heater return to mixing-manifold. I chose the Up N Over option due to very little space to route the hose going The Scenic Route as well as hose to down-pipe proximity with that option. Also took a handful of pictures to show my new mixing manifold design/routing. Works well. In hindsight I wish I had drilled/tapped the heater-core return in a better spot/angle. Meh.
-I also found some random Texas license plate by the side of the road and made the base of a heat shield out of it. Probably off some Texas transplant that doesn't know how to drive in Colorado winters. Bet they smashed it off somehow as it was pretty beat up. I'll be picking up some sort of a heat-shield blanket to add and heat-wrapping the master cylinder/brake lines with some gold stuff.

All in all I hate the way my everything looks so far. I imagined it so much cleaner in my head .

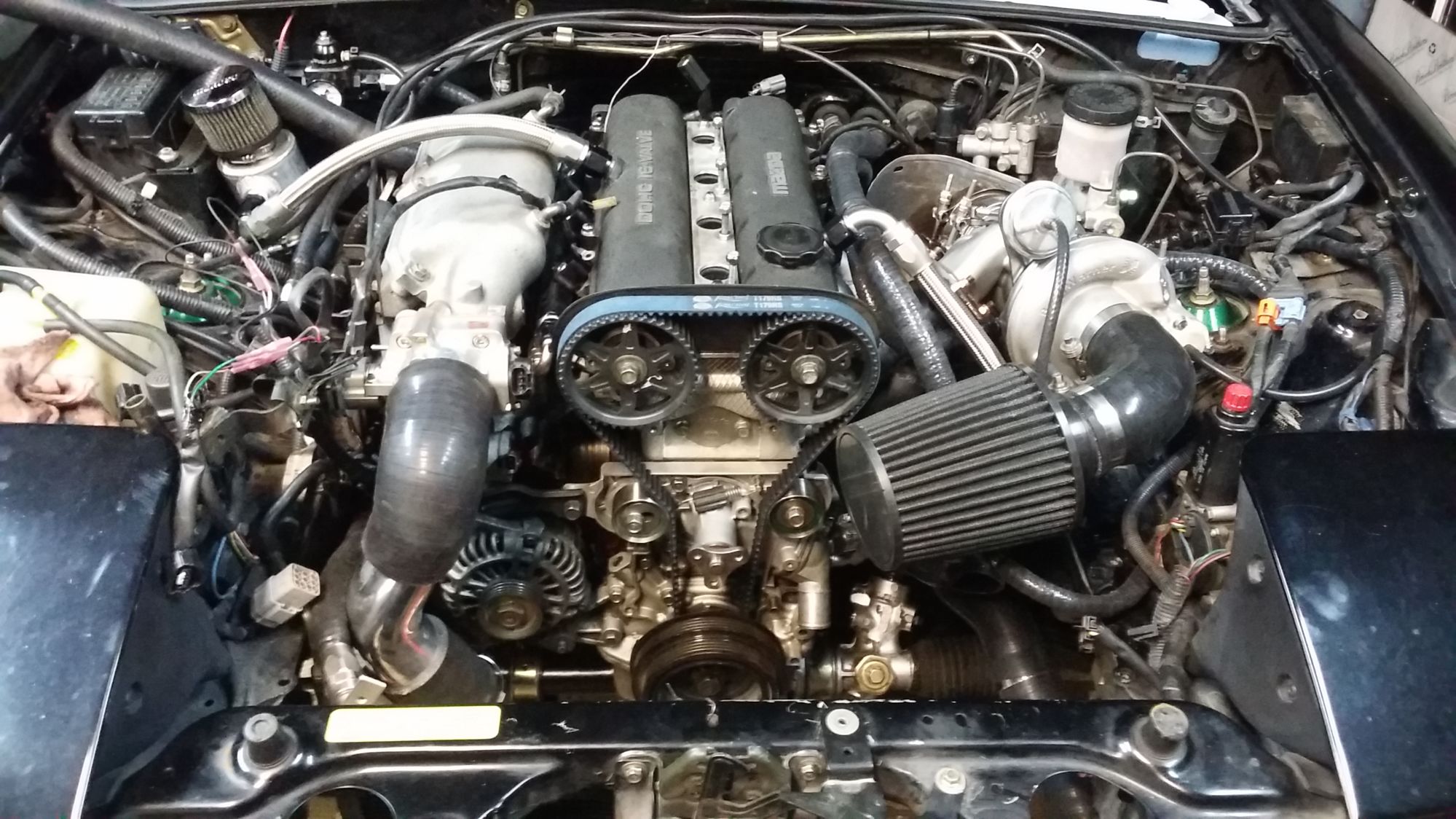

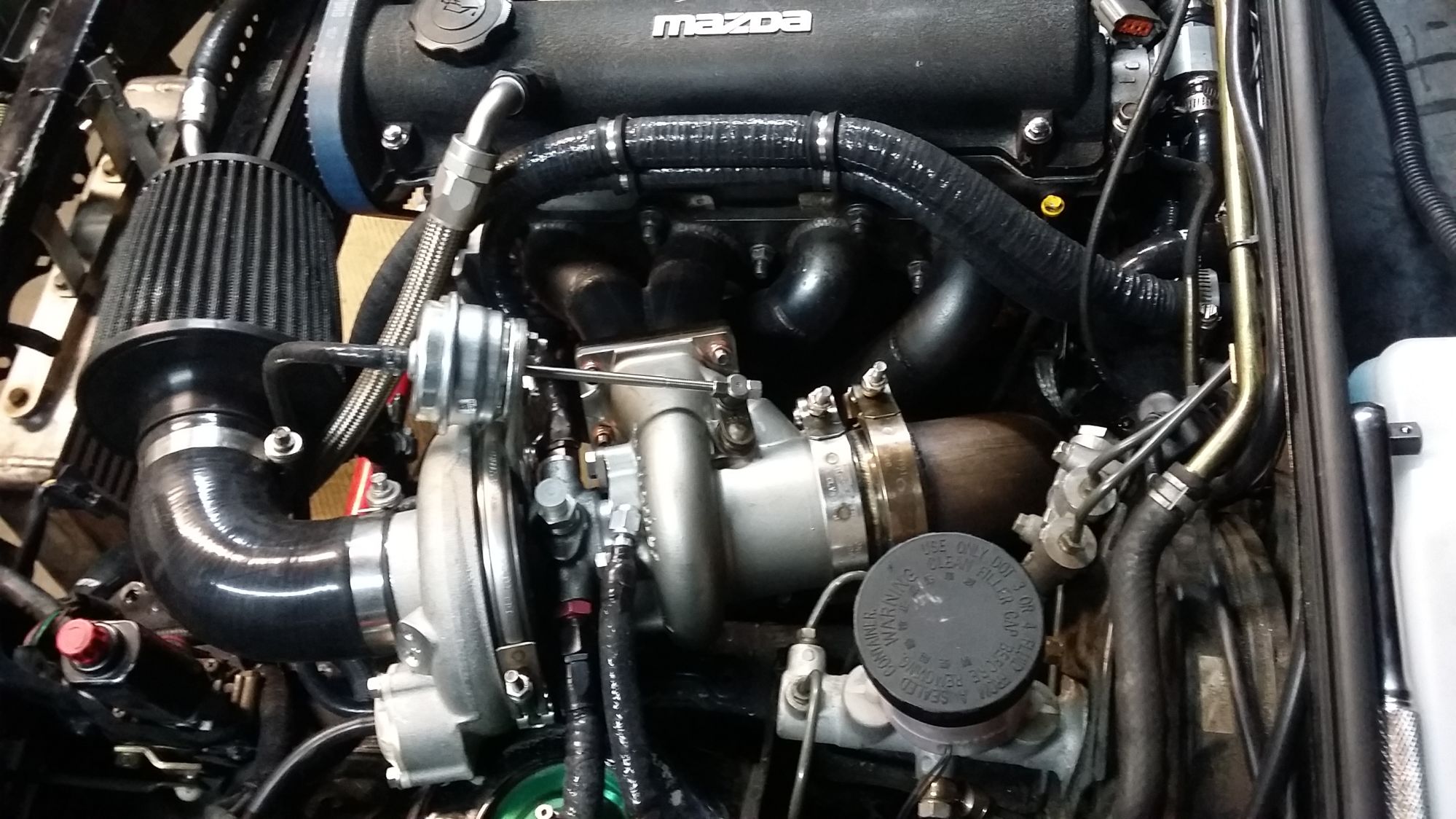

Pics :

















Attached Thumbnails
Ze Potato Build-80-20160117_171337_6e891a3ac13224d040c50922146122cbda620887.jpg   Ze Potato Build-80-20160117_171611_7933348ed5a735728ffd14e54d2369158ac09ffd.jpg   Ze Potato Build-80-20160117_171618_768b81c794d38bce9e38f4e7aca3c071b58aef2f.jpg   Ze Potato Build-80-20160117_172217_b89f9aff4ffc85f1ad37d948b82213a18b0769c4.jpg   Ze Potato Build-80-20160117_181029_81013fe509737e9f2658d1dde9d2fc465fd26c5a.jpg

Ze Potato Build-80-20160117_182423_0a91491afea6fcfb151b070fde7206cb05863777.jpg   Ze Potato Build-80-20160117_182433_9475135ae5ca798549656857a65a9b5954632403.jpg
Chooofoojoo is offline   Reply With Quote
Old 01-18-2016, 01:23 AM   #70
SadFab Sales Lady
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 14,839
Total Cats: 934
Default

Just ran out and took some pics of mine for reference. Also here is a picture of how curly kept it away from the downpipe.

Imgur: The most awesome images on the Internet

Quote:
Originally Posted by aidandj View Post
Curly's car:


My car:

aidandj is offline   Reply With Quote
Old 01-18-2016, 03:50 PM   #71
Goin Innnnn!!!
Thread Starter
iTrader: (7)

Chooofoojoo's Avatar

Join Date: May 2014
Location: Denver, Co.
Posts: 458
Total Cats: 40
Default

Hmm. That 90 degree barb option looks good. I still think It's too damn crowded and am relatively-ok with the Up N Over execution.

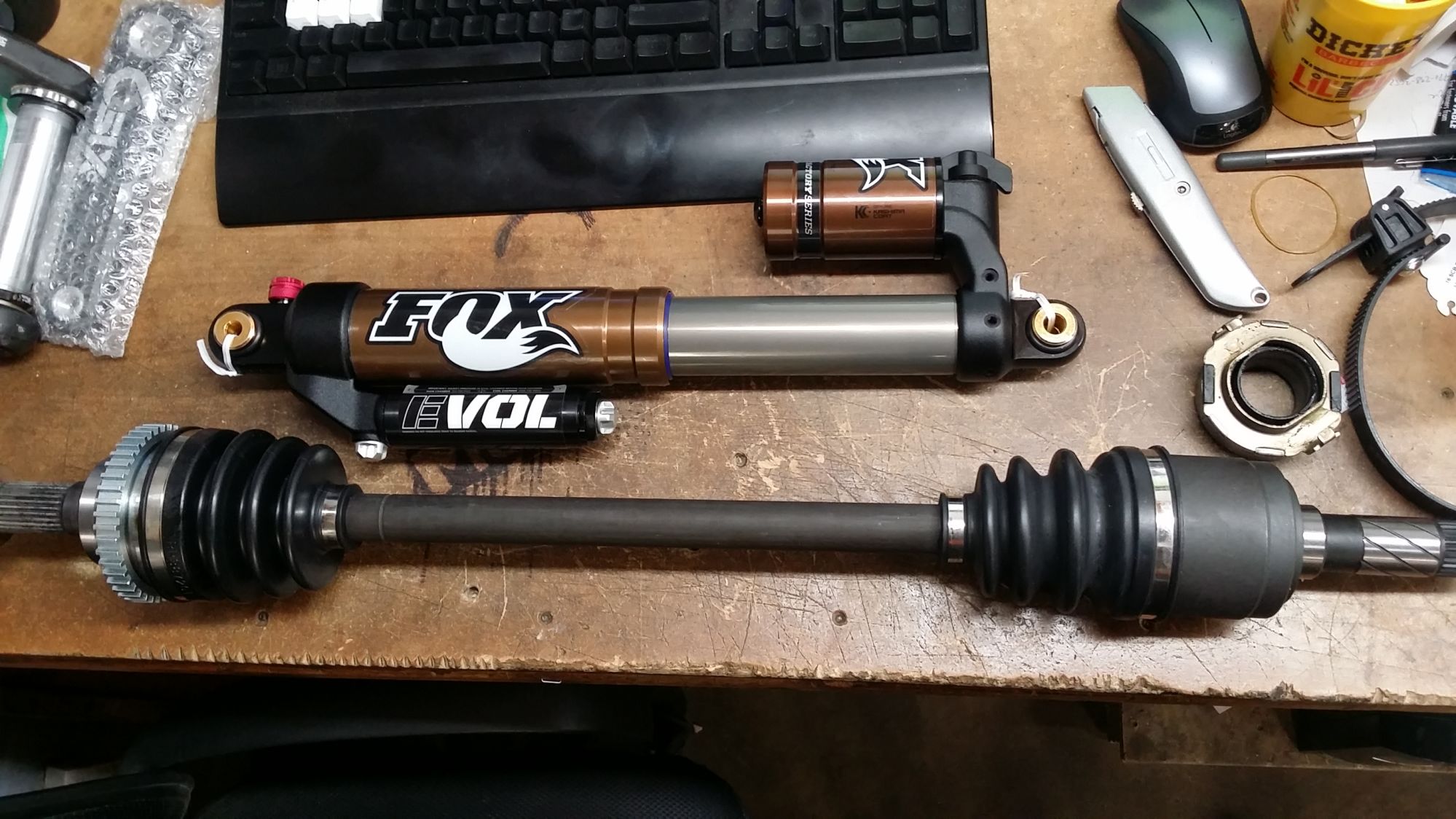

In other news my remanufactured NEW Axles showed up. New as hell. Win.

Also need to find a way to mount these bitches up to the Miata. Have a stack of them to play with.


Attached Thumbnails
Ze Potato Build-80-20160118_123443_e57388de25dd28c256641a8b7c60525e1be8feb8.jpg
Chooofoojoo is offline   Reply With Quote
Old 01-28-2016, 05:48 PM   #72
Goin Innnnn!!!
Thread Starter
iTrader: (7)

Chooofoojoo's Avatar

Join Date: May 2014
Location: Denver, Co.
Posts: 458
Total Cats: 40
Default

Non-Update Update

Since we spoke last I have had a whopping 4hrs to work on poor potato.

accomplished :

-Installed 1-piece axles. Love working on this car. Not a single bolt has given me grief ever. Both axle to spindle nuts came off without any drama, and old axles slid out with ease. New diff seals and the new ones slid in just as nicely.

-Mocked up intercooler routing - I have a new-found appreciation for how tight these engine bays are to do anything in. Everything mocks up nicely, just need to start t-bolting things in place. I did order a 15* pipe to try on the cold-side up to the Throttle body to replace the 45* I have now. It may work, but it might push the TB coupler into the radiator hose too much.. Or I may just buy a crossflow so the damn inlet isn't pointed right at the TB.


Last Items on list of crap to do for first start:
-Drill + tap cold-side intercooler pipe for IAT and Meth nozzle.
-Clamp intercooler piping together.
-Wire in IAT more-better.
-Redo up-n-over heater return with silicone hose instead of shitty recalcitrant rubber hose.
-Fill fluids
-Wrestle with exhaust to clamp together (25mm too short somewhere along the line)
-Prime + Start?!?

Chooofoojoo is offline   Reply With Quote
Old 02-03-2016, 08:49 PM   #73
Goin Innnnn!!!
Thread Starter
iTrader: (7)

Chooofoojoo's Avatar

Join Date: May 2014
Location: Denver, Co.
Posts: 458
Total Cats: 40
Default

Did some stuff

Well, as this 'build' drags on and on and on I have most things hooked up and am damn-close to start her up.

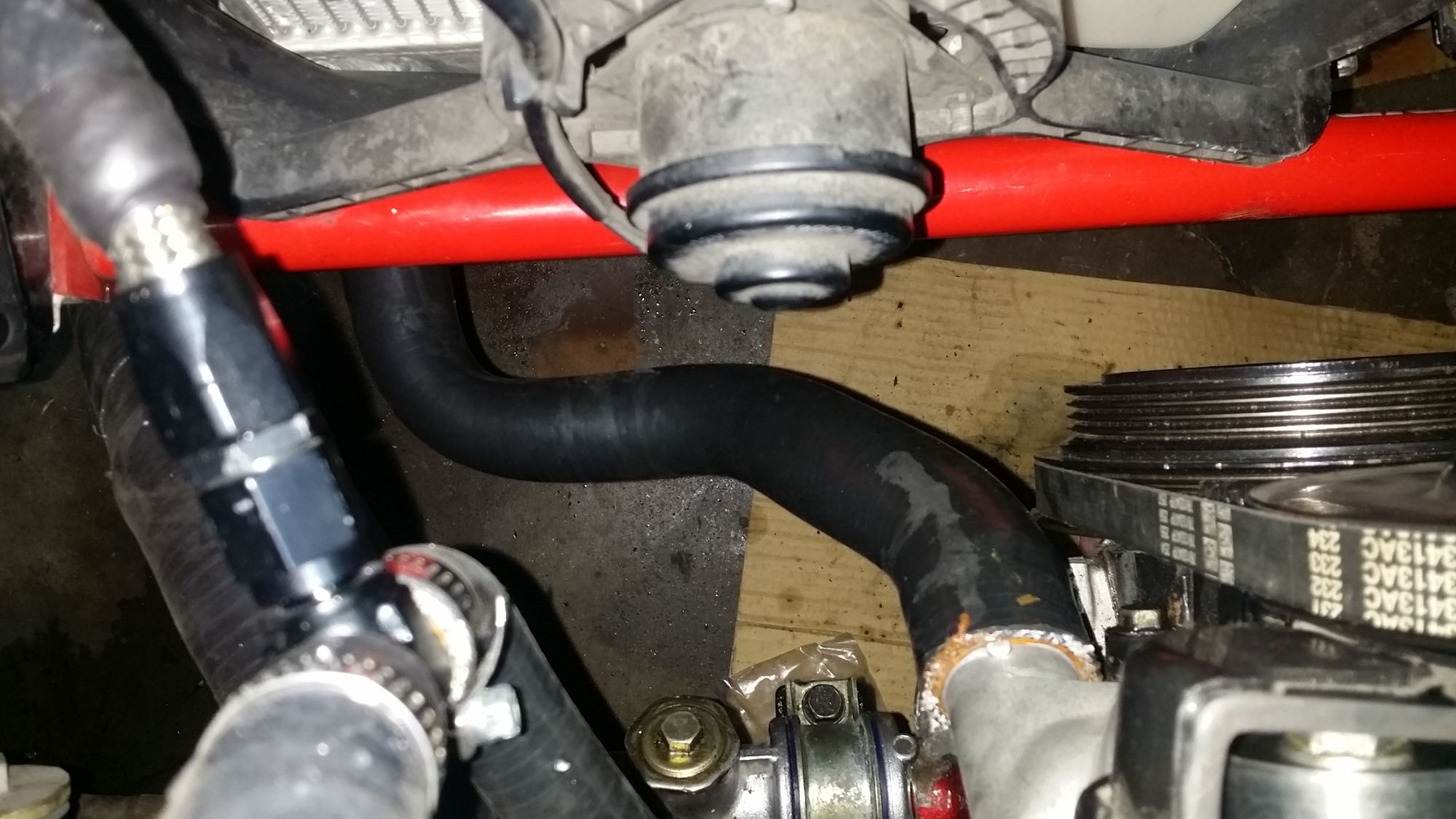

-Finalized intercooler routing and clamped all them bitches down.
-Made a lower radiator hose for my custom mixing manifold.

Still need to do :
-Install exhaust
-Fill with fluids
-Wire up IAT
-Zip-tie all my vac lines
-Double and triple check ALLTHETHINGS.








Attached Thumbnails

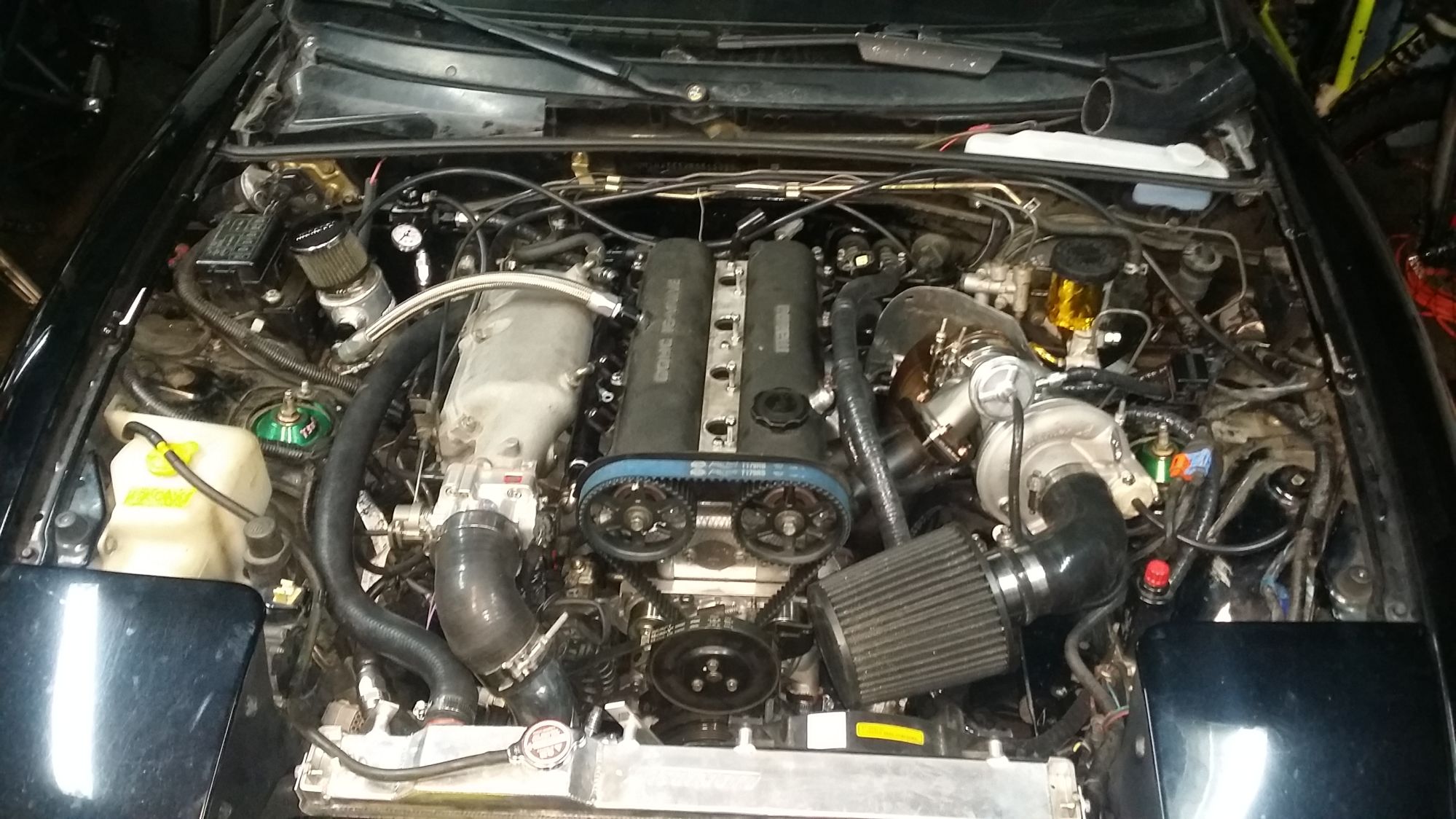

Ze Potato Build-80-20160131_181416_55919f8191b43e034ceab486993cbf3b8d44852c.jpg   Ze Potato Build-80-20160131_181438_928dcdc1daf14505fdb00cc273528711059f639f.jpg   Ze Potato Build-80-20160131_173702_6c5e902fcf15392648429c51b10081d497c4944b.jpg
Chooofoojoo is offline   Reply With Quote
Old 02-03-2016, 08:56 PM   #74
SOMEOFIT
iTrader: (1)

Girz0r's Avatar

Join Date: Jun 2014
Location: Austin, TX
Posts: 2,511
Total Cats: 219
Default

I can't wait to hear this thing running

Attached Thumbnails
Ze Potato Build-096740e5b32daa411f5ca25501132ee9.jpg
Girz0r is online now   Reply With Quote
Old 02-03-2016, 08:59 PM   #75
Goin Innnnn!!!
Thread Starter
iTrader: (7)

Chooofoojoo's Avatar

Join Date: May 2014
Location: Denver, Co.
Posts: 458
Total Cats: 40
Default

Quote:
Originally Posted by Girz0r View Post
I can't wait to hear this thing running

I bought a go-pro hero 4 black for exactly this purpose. And a gazillion mounts.

I even plan to stuff that bitch in the engine bay and see if I can get glowing turbine goodness... Hopefully the lens won't melt. I'll DEI the rest of the case for good measure.
Chooofoojoo is offline   Reply With Quote
Old 02-03-2016, 09:00 PM   #76
SOMEOFIT
iTrader: (1)

Girz0r's Avatar

Join Date: Jun 2014
Location: Austin, TX
Posts: 2,511
Total Cats: 219
Default

Girz0r is online now   Reply With Quote
Old 02-07-2016, 05:33 PM   #77
Goin Innnnn!!!
Thread Starter
iTrader: (7)

Chooofoojoo's Avatar

Join Date: May 2014
Location: Denver, Co.
Posts: 458
Total Cats: 40
Default

Welp...

She didn't start. Having a hard time figuring out why.

Everything together and figured she'd start right up with prior known-good tune.

Symptoms are as follows :

-Cranked with CAS unplugged to prime oil
-Plugged CAS back in, cranked for 2-3s then flood-cleared cranked for another 2-3s.
-Cranked again and POW the loudest backfire i've heard. I actually checked the block because it sounded like I ventilated my block at first. Scary loud.

-This happened 2 more times. Thought the neighbors were going to call the police with all these loud gun-shots happening.


Pulled a plug, it smelled of gas, but wasn't wet. FPR shows correct fuel psi, vac-guage shows I have vacuum while cranking (compression), and so I would think that I have spark due to back-fires.

-The one thing I thought of last night was that I may have mixed-up the COP connectors to the factory coil connectors. Would having 1/4 & 2/3 firing order mixed up cause the loud backfires?? Will pull off sheathing tonight and check wire color to verify correct triggers.

At any rate, I haz sad.

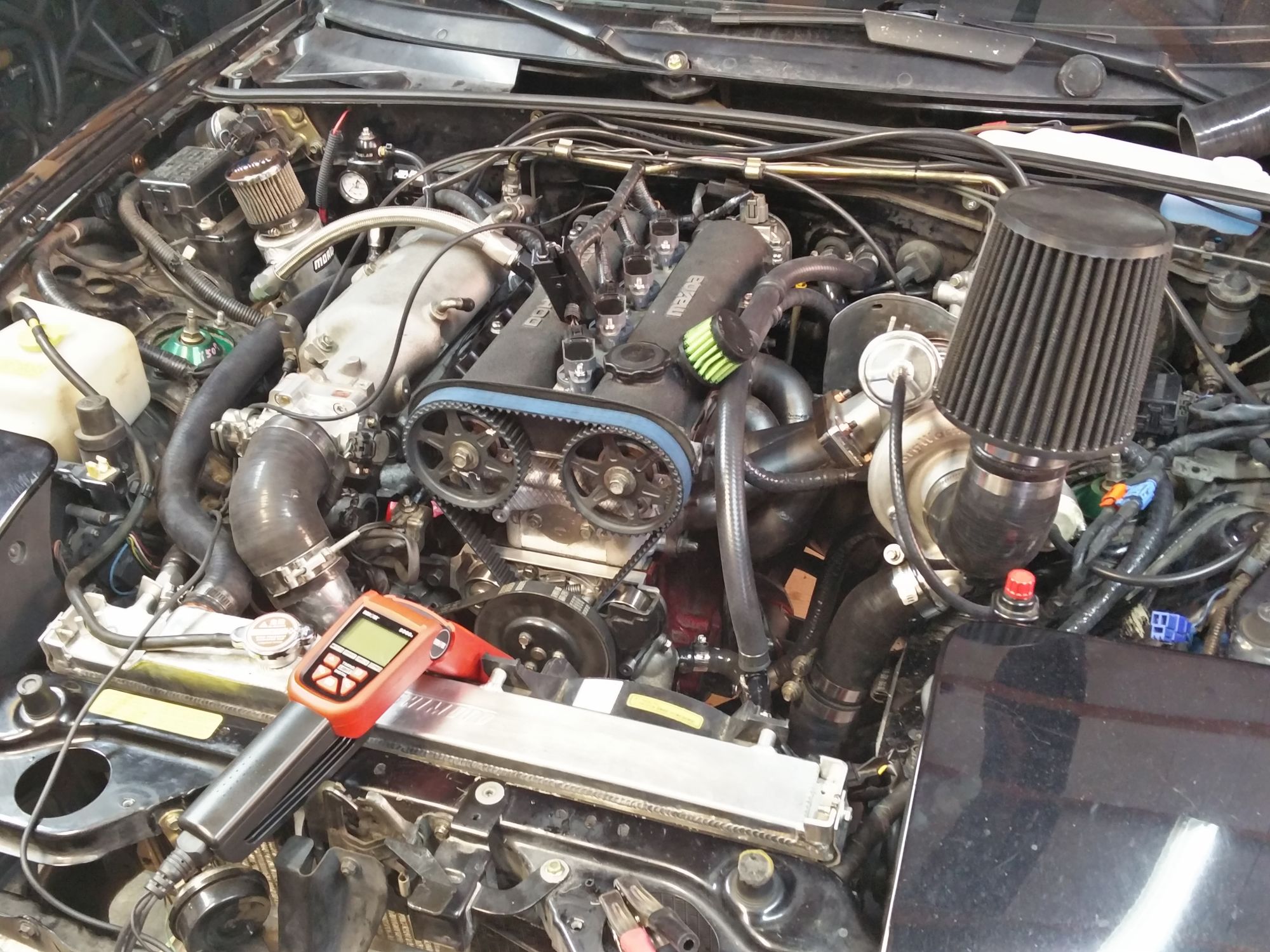

The ugliest engine bay of all time :


Attached Thumbnails
Ze Potato Build-80-img_20160206_163425_4b3ab82c9217b3a207d55f7a1d9b04a19b6fc16c.jpg
Chooofoojoo is offline   Reply With Quote
Old 02-07-2016, 05:35 PM   #78
SadFab Sales Lady
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 14,839
Total Cats: 934
Default

We need the following to help you.

-msq
-composite log
-normal log
-picture of front cam lobes at TDC
-picture of cam timing at TDC
aidandj is offline   Reply With Quote
Old 02-07-2016, 05:38 PM   #79
SOMEOFIT
iTrader: (1)

Girz0r's Avatar

Join Date: Jun 2014
Location: Austin, TX
Posts: 2,511
Total Cats: 219
Default

Sounds like what you're guessing Incorrect firing order wouldn't be optimal
Girz0r is online now   Reply With Quote
Old 02-07-2016, 05:38 PM   #80
SadFab Sales Lady
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 14,839
Total Cats: 934
Default

Put the timing light on each coil wire and use the megasquirt coil testing to see how they are wired.

It should be:

If sequential:

Spark A - coil 1
Spark B - coil 3
Spark C - coil 4
Spark D - coil 2

If batch:

Spark A - coil 1/4
Spark B - coil 3/2
aidandj is offline   Reply With Quote
