Why don't people use an FD diff? They already use a PPF, and they're an R230, i.e. a 9.1" ring gear. They should be indestructible... you'd have to fab a rear bridge to use Miata diff mount spacing, and probably a power plant frame, but it really shouldn't be rocket science...
vehicular is offline   Reply With Quote
Old 02-20-2012, 04:02 PM   #202
Elite Member
iTrader: (3)

Join Date: Feb 2008
Location: Huntsville, AL
Posts: 1,867
Total Cats: 45
Default

As far as to answer your original question, I don't know how to quantify how strong either diff really is. I've heard of people breaking stock Miata diffs at stock power levels, and I've heard of 7.5s living in Mustangs up to 400+hp for a while. I've also heard of the exact opposite. I'd put the stock 3.90 diff back in your car and see what happens if it were me. If you go out trying to break it, you will, but if you drive it like a human being, you may never have an issue...
vehicular is offline   Reply With Quote
Old 02-20-2012, 06:29 PM   #203
Junior Member
iTrader: (2)

Join Date: Apr 2010
Location: albion, mi
Posts: 262
Total Cats: 13
Default

Again, i am most certain that the 1.8 diff is strong enough for 350 plus wtq, however I believe the worm gear start shearing in the torsen unit somewhere near 300 wtq. Its in a thread on m.net, I just haven't located it.

I would think you will have no issues driving it sensibly, even at much higher power levels, but it may only last one good launch, then blow she goes...

Hell, look at failflop, he's making a bajillion horsepower, with videos to prove it, and his is still intact.


Edit: found it http://forum.miata.net/vb/showthread.php?t=315963
glade is offline   Reply With Quote
Old 02-20-2012, 06:45 PM   #204
Elite Member
iTrader: (2)

Faeflora's Avatar

Join Date: Jan 2007
Location: Los Angeles, CA
Posts: 8,763
Total Cats: 115
Default

Tim just uae the miata torsen. If i can do it so can you. Besides you know you will just part it out in 2000 miles nyways
Faeflora is offline   Reply With Quote
Old 02-20-2012, 07:15 PM   #205
Elite Member
Thread Starter
iTrader: (9)

TurboTim's Avatar

Join Date: Jun 2006
Location: Chesterfield, NJ
Posts: 6,173
Total Cats: 198
Default

Quote:
Originally Posted by glade View Post
Again, i am most certain that the 1.8 diff is strong enough for 350 plus wtq, however I believe the worm gear start shearing in the torsen unit somewhere near 300 wtq. Its in a thread on m.net, I just haven't located it.

I would think you will have no issues driving it sensibly, even at much higher power levels, but it may only last one good launch, then blow she goes...

Hell, look at failflop, he's making a bajillion horsepower, with videos to prove it, and his is still intact.


Edit: found it http://forum.miata.net/vb/showthread.php?t=315963
failfloral isn't making impressive HP until we see a dyno. Otherwise, it's just noise. I'll check out that link in a minute. Thanks!

Quote:
Originally Posted by Faeflora View Post
Tim just uae the miata torsen. If i can do it so can you. Besides you know you will just part it out in 2000 miles nyways
Oh heya Fai Theoretically I should make more torque than you, but I probably won't ever get there. Another reason to keep the 3.90.

But damn, I was looking forward to the 3.42 CTS diff. The ratios are already silly with the 1.8 powa.

Megan says do it right the first time.

Oh, and I'll probably sell it before I reach 2000miles. I don't think I'll enjoy daily driving a racespec 2618 piston/wall clearance. Or I will find another $500 junkyard engine (coincidentally what the head job cost), leave it stock internally and swap that in there. That would have been smarter.
TurboTim is offline   Reply With Quote
Old 02-20-2012, 07:59 PM   #206
Elite Member
iTrader: (2)

Faeflora's Avatar

Join Date: Jan 2007
Location: Los Angeles, CA
Posts: 8,763
Total Cats: 115
Default

Quote:
Originally Posted by TurboTim View Post
Otherwise, it's just noise.
Assuming equivalent exhausts and motors,


more noise is more power!!!!
Faeflora is offline   Reply With Quote
Old 02-20-2012, 09:21 PM   #207
Elite Member
Thread Starter
iTrader: (9)

TurboTim's Avatar

Join Date: Jun 2006
Location: Chesterfield, NJ
Posts: 6,173
Total Cats: 198
Default

True Fae! VTA EWG?

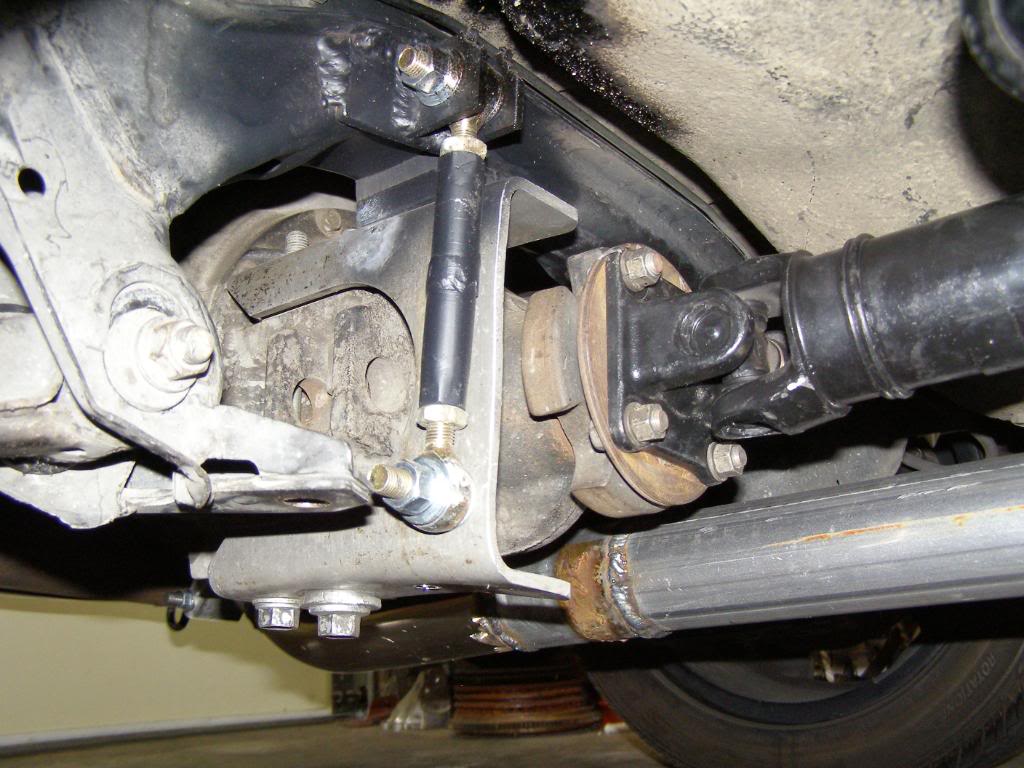

Thinking about how to locate the miata diff without a PPF. There's an idea from a F20c guy.

Attached Thumbnails
ABSURDflow Turbo KLDE Mazda V6 Thread-p1010093-1.jpg
TurboTim is offline   Reply With Quote
Old 02-20-2012, 10:37 PM   #208
y8s
2 Props,3 Dildos,& 1 Cat
iTrader: (8)

y8s's Avatar

Join Date: Jun 2005
Location: Fake Virginia
Posts: 18,765
Total Cats: 324
Default

come on tim, you can weld aluminum. weld up your own PPF with custom mounting points on the drivetrain.
y8s is offline   Reply With Quote
Old 02-21-2012, 11:35 AM   #209
Elite Member
iTrader: (3)

Join Date: Feb 2008
Location: Huntsville, AL
Posts: 1,867
Total Cats: 45
Default

If you use a V6 F-body tailshaft housing, it will have the torque arm mount on it already. I imagine it would be pretty easy to build a PPF off of that...
vehicular is offline   Reply With Quote
Old 02-21-2012, 01:29 PM   #210
Elite Member
Thread Starter
iTrader: (9)

TurboTim's Avatar

Join Date: Jun 2006
Location: Chesterfield, NJ
Posts: 6,173
Total Cats: 198
Default

This looks pretty easy.

TurboTim is offline   Reply With Quote
Old 02-21-2012, 04:18 PM   #211
Boost Czar

iTrader: (60)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 70,100
Total Cats: 1,400
Default

is that strong enough? oh wait yeah, the wing mounts are still there right?
Braineack is online now   Reply With Quote
Old 02-21-2012, 04:24 PM   #212
Elite Member
Thread Starter
iTrader: (9)

TurboTim's Avatar

Join Date: Jun 2006
Location: Chesterfield, NJ
Posts: 6,173
Total Cats: 198
Default

Yep, wingadig is still there.

Strong enough? A long torque arm/ppf is better but obviously not as simple at that heimjoint solution. i can make it more strong-looking than that pic. And by that I mean cleaner and Tigged. The lower bolt is still cantilevered though
TurboTim is offline   Reply With Quote
Old 02-21-2012, 04:26 PM   #213
Boost Czar

iTrader: (60)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 70,100
Total Cats: 1,400
Default

when I first looked at it I thought that was holding up the entire rear section...I'm fail.
Braineack is online now   Reply With Quote
Old 02-21-2012, 04:30 PM   #214
Elite Member
Thread Starter
iTrader: (9)

TurboTim's Avatar

Join Date: Jun 2006
Location: Chesterfield, NJ
Posts: 6,173
Total Cats: 198
Default

It's in compression. The body of the joint i'd do as one piece of probably some tool steel we have here, not that snot of weld there in the middle. You'd want it as short as possible too.

The heim makes it simple to adjust pinion angle too. Win.
TurboTim is offline   Reply With Quote
Old 02-21-2012, 07:09 PM   #215
Elite Member
iTrader: (2)

Faeflora's Avatar

Join Date: Jan 2007
Location: Los Angeles, CA
Posts: 8,763
Total Cats: 115
Default

But it has to be purple.
Faeflora is offline   Reply With Quote
Old 02-22-2012, 12:46 AM   #216
Elite Member
iTrader: (3)

Join Date: Feb 2008
Location: Huntsville, AL
Posts: 1,867
Total Cats: 45
Default

I think it's hood rich. Using a chopped up PPF as a diff mount just feels half *** to me. The subframe not being designed to be loaded in the middle of the front span, and the bolt being loaded in single sheer not withstanding.



Quote:
Originally Posted by Faeflora View Post
But it has to be purple.
Don't listen to this guy.
vehicular is offline   Reply With Quote
Old 02-22-2012, 01:16 AM   #217
Elite Member
iTrader: (2)

Faeflora's Avatar

Join Date: Jan 2007
Location: Los Angeles, CA
Posts: 8,763
Total Cats: 115
Default

Cheerio Tim. We--of the Spear-Danes in the days of yore--say thou shall put a thick-*** plate between thee darn trans and diff. Thee shall henseforth welds that shiz up; thou shall make haste and throve in honours--bright fire ball in the sky.

Last edited by Braineack; 02-22-2012 at 09:42 AM.
Faeflora is offline   Reply With Quote
Old 02-22-2012, 08:58 AM   #218
Elite Member
Thread Starter
iTrader: (9)

TurboTim's Avatar

Join Date: Jun 2006
Location: Chesterfield, NJ
Posts: 6,173
Total Cats: 198
Default

B- for effort, B+ for idea Fae.
TurboTim is offline   Reply With Quote
Old 02-22-2012, 09:36 AM   #219
Boost Czar

iTrader: (60)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 70,100
Total Cats: 1,400
Default

lawl.
Braineack is online now   Reply With Quote
Old 02-23-2012, 12:26 AM   #220
Elite Member
iTrader: (15)

Join Date: Dec 2007
Location: San Antonio, Texas
Posts: 4,889
Total Cats: 25
Default

I have essentially done something similar to that photo above albeit with a Ford Explorer housing (Ford 8.8" carrier). It works great, no issues.

I think what is shown in that picture would be fine. Personally I would use poly diff bushings. As far as single shear on the bolt, use a large grade 8 bolt, properly torqued, and it will be plenty strong. An aluminum doubler plate welded onto the cut PPF at the heim joint attachment point would help with load distribution, but I'll guess it is not strictly required.

I agree, I also like the easy driveshaft angle adjustment with the heim joint. That is a win.
