Old 06-05-2014, 11:30 AM   #541
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: woosta, ma
Posts: 8,604
Total Cats: 91
Default

Quote:
Originally Posted by vehicular View Post
I chopped the bracing out of my hood in that area for a Ford GT500 vent, and it was VERY limp. I took the latch out and ran hood pins because I was afraid of the hood buckling under latching forces.
Oh yeah, same here. I love it when someone goes to lean on the hood and ***** the ******* pants when it just collapses under them. That paint has a crap load of flex in it.
Leafy is offline   Reply With Quote
Old 06-05-2014, 11:41 AM   #542
Elite Member
Thread Starter
iTrader: (9)

TurboTim's Avatar

Join Date: Jun 2006
Location: Chesterfield, NJ
Posts: 6,175
Total Cats: 198
Default

Well, I'm glad I couldn't find a GT500 vent then.
TurboTim is offline   Reply With Quote
Old 06-05-2014, 12:11 PM   #543
Elite Member
iTrader: (2)

Join Date: Aug 2012
Location: Indianapolis
Posts: 3,325
Total Cats: 231
Default

Quote:
Originally Posted by Fireindc View Post
THAT is one of the few extractor hoods i can get behind. Nice job Tim, i'd love to see some pictures of it out in the sun sometime.
I want to see it at night after a nice long pull. The turbo sits right under it doesn't it? In for orange glowing hood vent.
thenuge26 is offline   Reply With Quote
Old 06-05-2014, 12:28 PM   #544
Senior Member
iTrader: (1)

Join Date: Sep 2008
Location: Tucson, Arizona
Posts: 887
Total Cats: 54
Default

in4 drift vids breh!
krissetsfire is offline   Reply With Quote
Old 06-05-2014, 01:30 PM   #545
Elite Member
Thread Starter
iTrader: (9)

TurboTim's Avatar

Join Date: Jun 2006
Location: Chesterfield, NJ
Posts: 6,175
Total Cats: 198
Default

I'll see what I can do but yeah, the turbo is below the vent. I may not work tomorrow and reinstall the turbo. The base map looks pretty good this time. BTW, if you are reading this, buy one of these KL's. It's seriously fun and adequately quick NA. Churps second tehehehe. Great midrange, no top end though. Like a BP, but 25% more. It sounds great reving it, but it doesn't go anywhere. Much better to short shift it (at 7k ). I recorded my ride home from work last night and will stitch worthwhile sections into a viewable video shortly. Garbles and pops on decel are glorious without the turbo. I hope they come thru on the video.

But yeah, the heat waves thru the vent...not the car to drive in stop & go traffic if you're hungover.

Coolant temps on the highway have dropped another 6-7 F. I'm now kissing upper 180's (avg 192) at 75+mph. Back roads/stop & go i'm at the usual upper 190's. I was around 210+ this time last year before sealing the radiator inlet and adding the oil cooler.
TurboTim is offline   Reply With Quote
Old 06-05-2014, 01:35 PM   #546
Elite Member
iTrader: (3)

Join Date: Aug 2011
Posts: 7,237
Total Cats: 554
Default

Top end is a manifold and cams away.
concealer404 is offline   Reply With Quote
Old 06-06-2014, 10:30 AM   #547
Elite Member
Thread Starter
iTrader: (9)

TurboTim's Avatar

Join Date: Jun 2006
Location: Chesterfield, NJ
Posts: 6,175
Total Cats: 198
Default

Very true. Still working on my intake manifold.

Here's the drive home with no turbo video from the other day. Kinda boring, it doesn't capture the sound or the sense of speed very well. But whatever, I may as well post it.



Time to go reinstall the turbo.
TurboTim is offline   Reply With Quote
Old 06-06-2014, 10:35 AM   #548
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 33,152
Total Cats: 1,990
Default

Quote:
Originally Posted by TurboTim View Post
Time to go reinstall the turbo.
best thing you've said this week

loving the sound of this beast.
18psi is offline   Reply With Quote
Old 06-06-2014, 12:43 PM   #549
Senior Member
iTrader: (1)

Join Date: Apr 2011
Location: Columbia, SC
Posts: 1,294
Total Cats: 72
Default

Tardy to the party, but read the whole thread in one go. Sick build, sicker fab skills, looking forward to seeing more!
Schuyler is offline   Reply With Quote
Old 06-06-2014, 01:23 PM   #550
Elite Member
Thread Starter
iTrader: (9)

TurboTim's Avatar

Join Date: Jun 2006
Location: Chesterfield, NJ
Posts: 6,175
Total Cats: 198
Default

Thanks Schuyler!

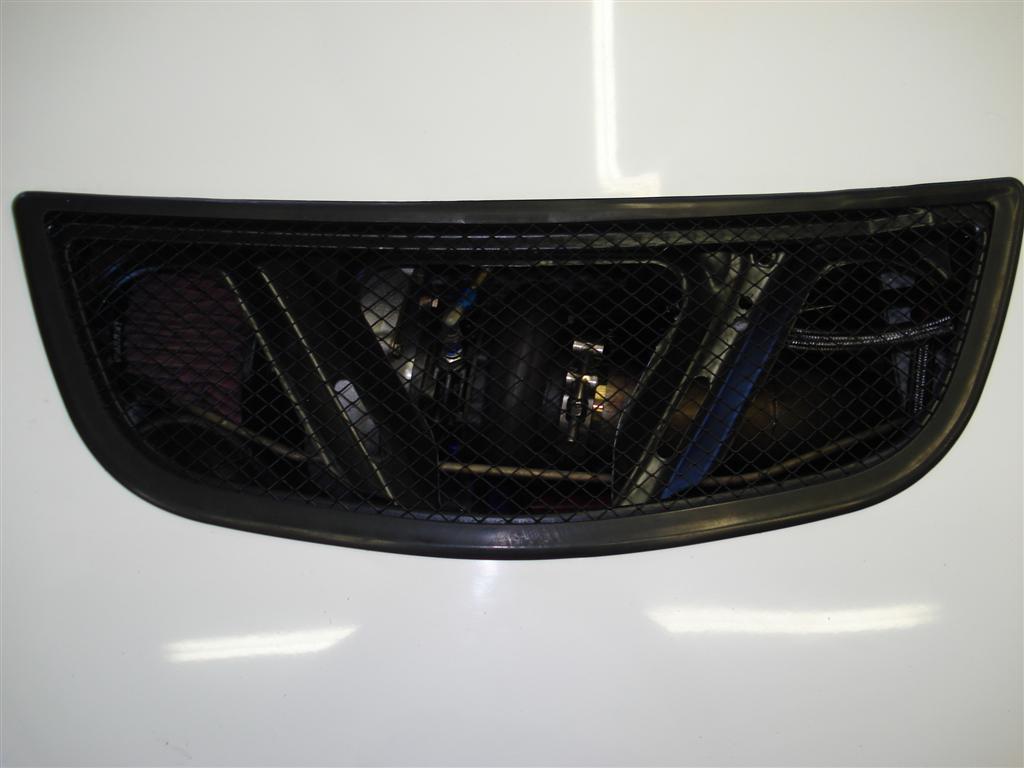

Horray Vbands. Time for lunch.
Attached Thumbnails
ABSURDflow Turbo KLDE Mazda V6 Thread-evohood10.jpg
TurboTim is offline   Reply With Quote
Old 06-06-2014, 11:04 PM   #551
Elite Member
iTrader: (4)

Join Date: Dec 2008
Location: Kingston, Ontario
Posts: 2,631
Total Cats: 60
Default

Jealous. Im sure that this setup really moves once that turbo gets up to speed.
shlammed is offline   Reply With Quote
Old 06-07-2014, 09:30 PM   #552
Elite Member
iTrader: (4)

Pen2_the_penguin's Avatar

Join Date: Dec 2009
Location: Reno, NV
Posts: 3,688
Total Cats: 93
Default

that looks like so much friggin fun!
Pen2_the_penguin is offline   Reply With Quote
Old 06-08-2014, 10:35 PM   #553
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: woosta, ma
Posts: 8,604
Total Cats: 91
Default

Quote:
Originally Posted by TurboTim View Post
Thanks Schuyler!

Horray Vbands. Time for lunch.
That angle makes the vent look like you took the grill off of a happy face generation mazda 6. I almost mean that in a cool way.
Leafy is offline   Reply With Quote
Old 01-29-2015, 12:47 PM   #554
Elite Member
Thread Starter
iTrader: (9)

TurboTim's Avatar

Join Date: Jun 2006
Location: Chesterfield, NJ
Posts: 6,175
Total Cats: 198
Default

Wintertime bump.

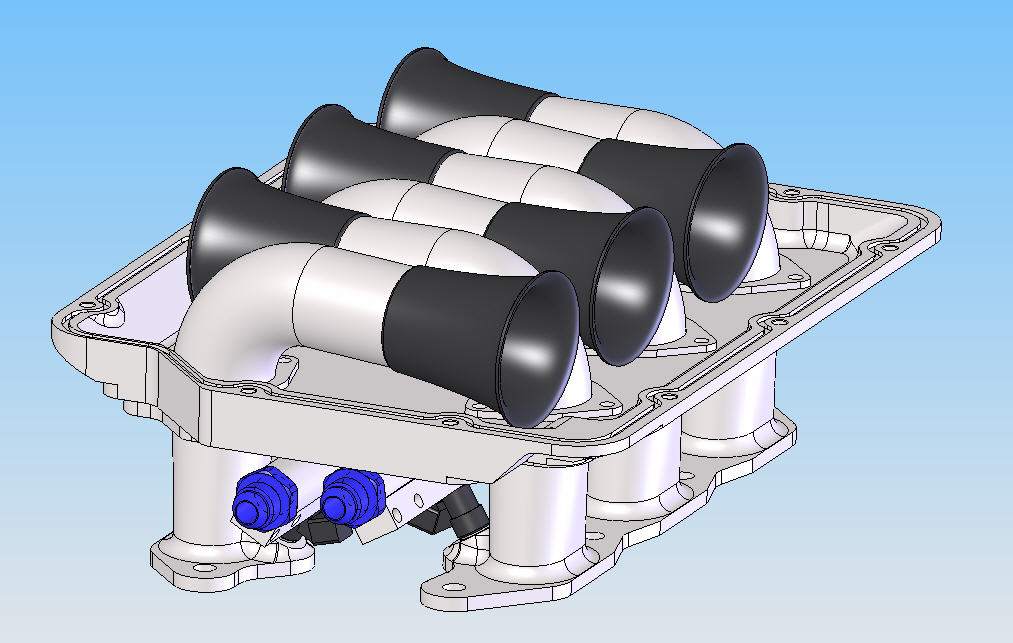

I'm getting closer to getting something to fit under the hood. Hopefully this will all be done by warm weather.

Attached Thumbnails
ABSURDflow Turbo KLDE Mazda V6 Thread-intake012915.jpg
TurboTim is offline   Reply With Quote
Old 01-29-2015, 12:52 PM   #555
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 33,152
Total Cats: 1,990
Default

that is one sick looking manifold

I'm guessing you're making the runners long for teh torquez?
18psi is offline   Reply With Quote
Old 01-29-2015, 12:56 PM   #556
Elite Member
iTrader: (3)

Join Date: Aug 2011
Posts: 7,237
Total Cats: 554
Default

Yeah i was wondering about runners/trumpets as well.

I know it matters a LOT in an N/A car, but wasn't sure about how much it matters under boost.

Of course, when i boost cars, i tend to not give a **** about the intricate details and just twist a boost controller more.
concealer404 is offline   Reply With Quote
Old 01-29-2015, 03:58 PM   #557
Elite Member
Thread Starter
iTrader: (9)

TurboTim's Avatar

Join Date: Jun 2006
Location: Chesterfield, NJ
Posts: 6,175
Total Cats: 198
Default

Thanks guys. I wanted to be able to fit as long a runner as I could while clearing the hood and cam sprocket towers. Yeah, to try to get more low end torque. I have a rougher dual plenum design with two butterflies like the factory intake too, but that will be too complicated for now. Instead I will try to make this with the longer runners, and I could make some shorter trumpets as well to try.

I'm trying to decide if I want transparent panels, necessitating a flat top to the plenum, or make the top all curvey/3-D but not able to see the insides.

Option 1 would also let me see how much oil is getting inside the intake...After 3000 miles put on this past summer, there was a surprising amount of oil in the intake manifold when I removed it. Hopefully it was the full oil catchcan.

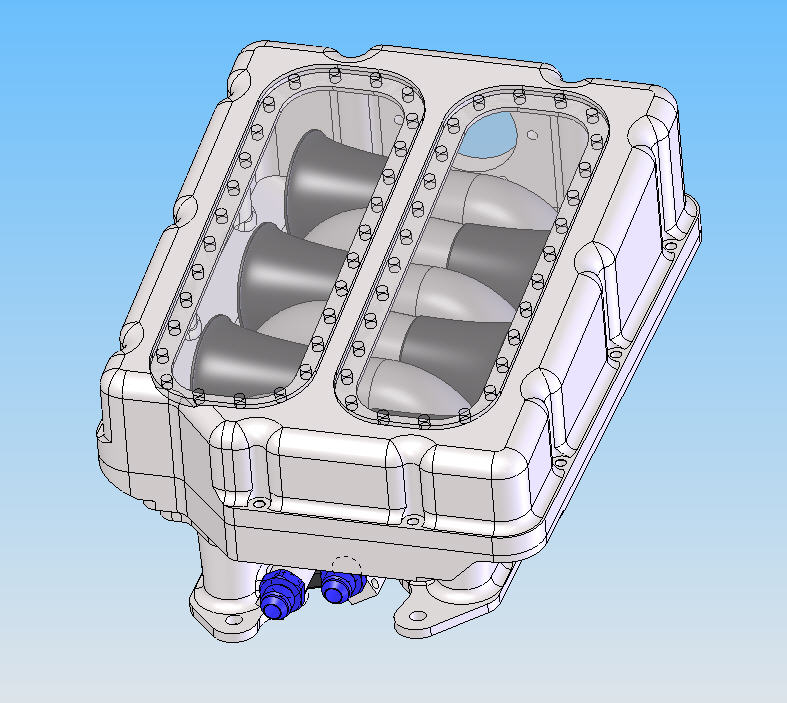

Quickie top modeled during lunch, still tweaking it:

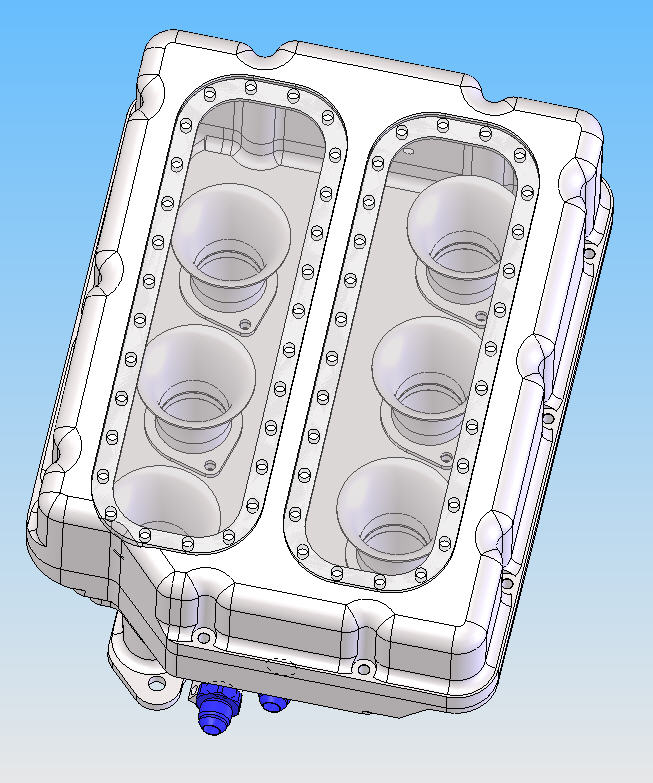

Short trumpets easily done for testing:
Attached Thumbnails
ABSURDflow Turbo KLDE Mazda V6 Thread-intake012915_2.jpg   ABSURDflow Turbo KLDE Mazda V6 Thread-intake012915_3.jpg
TurboTim is offline   Reply With Quote
Old 01-29-2015, 04:18 PM   #558
Junior Member
iTrader: (2)

Join Date: Apr 2010
Location: albion, mi
Posts: 263
Total Cats: 13
Default

If you produce two of those, I will swap a kl into my car in no time just to utilize it. Well...*******.....done!!!
glade is online now   Reply With Quote
Old 01-29-2015, 04:28 PM   #559
Elite Member
iTrader: (4)

Pen2_the_penguin's Avatar

Join Date: Dec 2009
Location: Reno, NV
Posts: 3,688
Total Cats: 93
Default

ohhh myyyyy... that is one sexy intake manifold!


I wish I could be like Tim.
Pen2_the_penguin is offline   Reply With Quote
Old 01-29-2015, 05:00 PM   #560
SadFab Sales Lady
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 14,805
Total Cats: 931
Default

Why no turbo videos?
aidandj is offline   Reply With Quote
