Old 05-19-2015, 02:33 PM   #641
Junior Member

Join Date: Mar 2012
Posts: 297
Total Cats: 18
Default ABSURDflow Turbo KLDE Mazda V6 Thread

Tim this car is awesome. Have you had it on a dyno yet?

Also I sent you a PM regarding some KL information, not sure if you got it.
M.Adamovits is offline   Reply With Quote
Old 05-19-2015, 03:10 PM   #642
Elite Member
iTrader: (4)

Pen2_the_penguin's Avatar

Join Date: Dec 2009
Location: Reno, NV
Posts: 3,687
Total Cats: 91
Default

I need a change of pants... again. brb
Pen2_the_penguin is offline   Reply With Quote
Old 05-19-2015, 04:36 PM   #643
Destroyer of Inconel
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 8,732
Total Cats: 746
Default

Quote:
Originally Posted by Pen2_the_penguin View Post
I need a change of pants... again. brb
Busy morning, eh?
EO2K is offline   Reply With Quote
Old 05-19-2015, 04:38 PM   #644
Newb

Join Date: May 2015
Location: Fort Worth, Tx
Posts: 21
Total Cats: -2
Default

Quote:
Originally Posted by TurboTim View Post


Are you worried about the belt at all?

Looks like the turbine housing is only an inch or two form the belt. I have to believe your belt will work fine, just not live to see 100k.
Hpprose is offline   Reply With Quote
Old 05-20-2015, 09:35 AM   #645
Elite Member
Thread Starter
iTrader: (9)

TurboTim's Avatar

Join Date: Jun 2006
Location: Chesterfield, NJ
Posts: 6,173
Total Cats: 198
Default

Yeah it's close. Maybe I'll build a heat shield if I track the car. The turbine is ceramic coated but a shield will be helpful once all that stuff up there starts to glow.

The car won't live to see another 100k. The last few years I've averaged 3000mi/year.

If the belt pops and the valves go ouch-ie, it'll give me a reason to do the next swap.

I drove it to work today. I do have to spend some time on the fuel map as it's a little lean in spots, but it's definitely smoother and pulls pretty damn linearly now....doesn't fall on its face at 7000. I still have no torques down low though (compared to what I'm used to in the subaru), but that's not surprising.

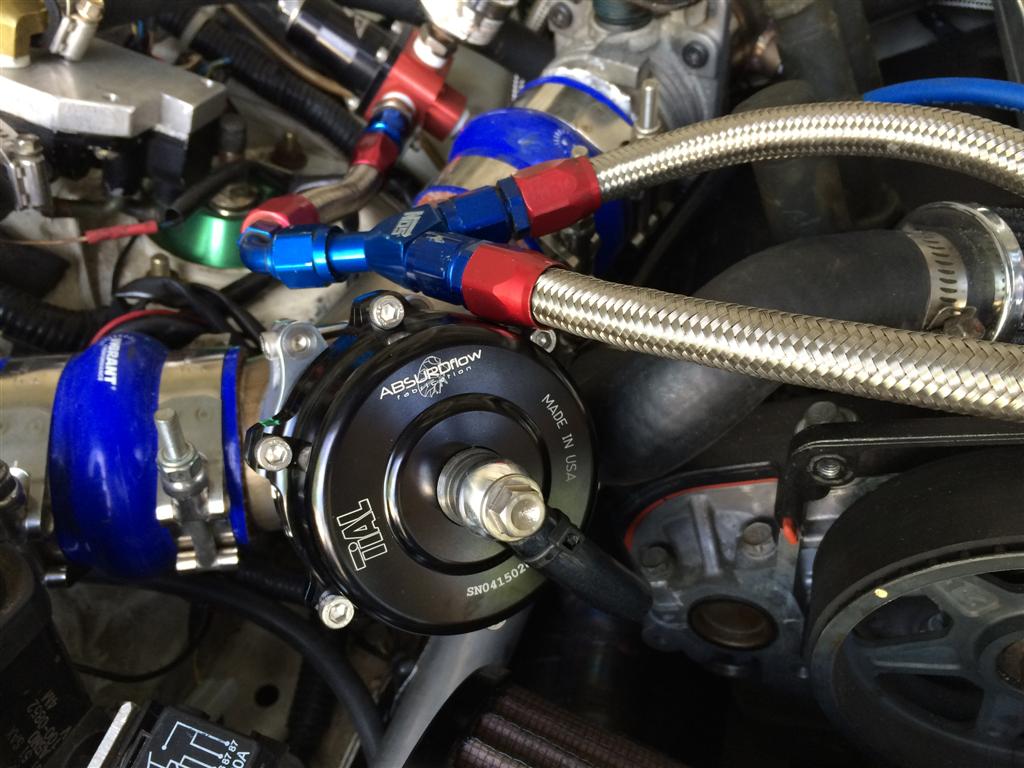

EDIT: Tial Q BOV is quiet...I don't hear much really at all. The turbo is quiet too...no whirll when driving around which is sorta sad.

Attached Thumbnails
ABSURDflow Turbo KLDE Mazda V6 Thread-newintake25.jpg

Last edited by TurboTim; 05-20-2015 at 09:56 AM.
TurboTim is offline   Reply With Quote
Old 05-20-2015, 10:37 AM   #646
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 33,150
Total Cats: 1,988
Default

had to do a double-take on that tial to make sure I wasn't imagining "absurdflow" etched on there

very nice touch

next swap: v10? just cause
18psi is offline   Reply With Quote
Old 05-20-2015, 11:07 AM   #647
Elite Member
iTrader: (2)

Join Date: Aug 2012
Location: Indianapolis
Posts: 3,325
Total Cats: 231
Default

4L V8 from 2 K20s. Like how the Ariel Atom V8 is 2 Hayabusa's welded together (ok not really welded but you get the idea).
thenuge26 is offline   Reply With Quote
Old 05-20-2015, 01:48 PM   #648
Elite Member
Thread Starter
iTrader: (9)

TurboTim's Avatar

Join Date: Jun 2006
Location: Chesterfield, NJ
Posts: 6,173
Total Cats: 198
Default

Thanks. As I was walking out last week before my mini vacation, I figured I may as well take a few minutes to buzz the logo on the BOV.

The next swap wouldn't be as interesting. There's an old aluminum small block Ford SVO V8 block here (mid 2000's PRI show display motor...had all our parts on it under plexiglass driven with an electric motor), along with some old somewhat fancy nascar heads in storage that I could use to build a short stroke high RPM V8. Plus I already have the T5 and ford flywheel/clutch setup with the V6, although my trans placement is probably too far forward as it sits now.

Anyway, hopefully the V6 stays together.
TurboTim is offline   Reply With Quote
Old 05-20-2015, 02:03 PM   #649
mkturbo.com
iTrader: (24)

shuiend's Avatar

Join Date: May 2006
Location: Charleston SC
Posts: 12,184
Total Cats: 748
Default

Random question Tim, what type of device do you use to etch your logo on things?
shuiend is offline   Reply With Quote
Old 05-20-2015, 02:43 PM   #650
Destroyer of Inconel
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 8,732
Total Cats: 746
Default

Quote:
Originally Posted by TurboTim View Post
There's an old aluminum small block Ford SVO V8 block here (mid 2000's PRI show display motor...had all our parts on it under plexiglass driven with an electric motor), along with some old somewhat fancy nascar heads in storage that I could use to build a short stroke high RPM V8. Plus I already have the T5 and ford flywheel/clutch setup with the V6, although my trans placement is probably too far forward as it sits now.
You should send those to me, I'll give thema good home. Sounds like a good trade for the stock and barrel I sent you

I'm guessing the KLDE is an interference motor?
EO2K is offline   Reply With Quote
Old 05-20-2015, 02:45 PM   #651
Destroyer of Inconel
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 8,732
Total Cats: 746
Default

Quote:
Originally Posted by shuiend View Post
Random question Tim, what type of device do you use to etch your logo on things?
I got this:

Attached Thumbnails
ABSURDflow Turbo KLDE Mazda V6 Thread-sharks-lasers.jpg
EO2K is offline   Reply With Quote
Old 05-20-2015, 02:52 PM   #652
mkturbo.com
iTrader: (24)

shuiend's Avatar

Join Date: May 2006
Location: Charleston SC
Posts: 12,184
Total Cats: 748
Default

Quote:
Originally Posted by EO2K View Post
I got this:

I have one of those sitting on my desk, it was ineffective.
shuiend is offline   Reply With Quote
Old 05-20-2015, 03:37 PM   #653
Elite Member
Thread Starter
iTrader: (9)

TurboTim's Avatar

Join Date: Jun 2006
Location: Chesterfield, NJ
Posts: 6,173
Total Cats: 198
Default

Quote:
Originally Posted by shuiend View Post
Random question Tim, what type of device do you use to etch your logo on things?
Laser Marking Technologies LLC. COBALTŪ LT -Simple Laser Marking



Quote:
Originally Posted by EO2K View Post
You should send those to me, I'll give thema good home. Sounds like a good trade for the stock and barrel I sent you

I'm guessing the KLDE is an interference motor?

I assume my KL is an interference with the new pistons. Not sure really...Does the BP turn into one with aftermarket ~9.0:1 pistons? Apples/oranges I know.
TurboTim is offline   Reply With Quote
Old 05-20-2015, 03:57 PM   #654
Destroyer of Inconel
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 8,732
Total Cats: 746
Default

Quote:
Originally Posted by shuiend View Post
I have one of those sitting on my desk, it was ineffective.
You need to dial up your training intensity then.
Quote:
Originally Posted by TurboTim View Post
I assume my KL is an interference with the new pistons. Not sure really...Does the BP turn into one with aftermarket ~9.0:1 pistons? Apples/oranges I know.
I'm going to say yes, but only when representing very large volumes of no.

I'm pretty sure my 8.6:1 CR Supertecs are not interference by themselves, but with the +1 valves now in my head I don't know. And I don't want to find out

Not even a Virtual Dyno plot to at least slake our lust?
EO2K is offline   Reply With Quote
Old 05-20-2015, 06:11 PM   #655
Elite Member
iTrader: (4)

Pen2_the_penguin's Avatar

Join Date: Dec 2009
Location: Reno, NV
Posts: 3,687
Total Cats: 91
Default

Tim wont accept my FB friend request so I can send him D pics.
Pen2_the_penguin is offline   Reply With Quote
Old 10-08-2015, 11:26 AM   #656
Elite Member
Thread Starter
iTrader: (9)

TurboTim's Avatar

Join Date: Jun 2006
Location: Chesterfield, NJ
Posts: 6,173
Total Cats: 198
Default

Virtual dyno eh. Hmm.

I swapped the wastegate spring from 6psi to 10. Car felt slower (with 10psi spring/no EBC than 10psi EBC with 6psi spring) and quieter. I'll have to play around.

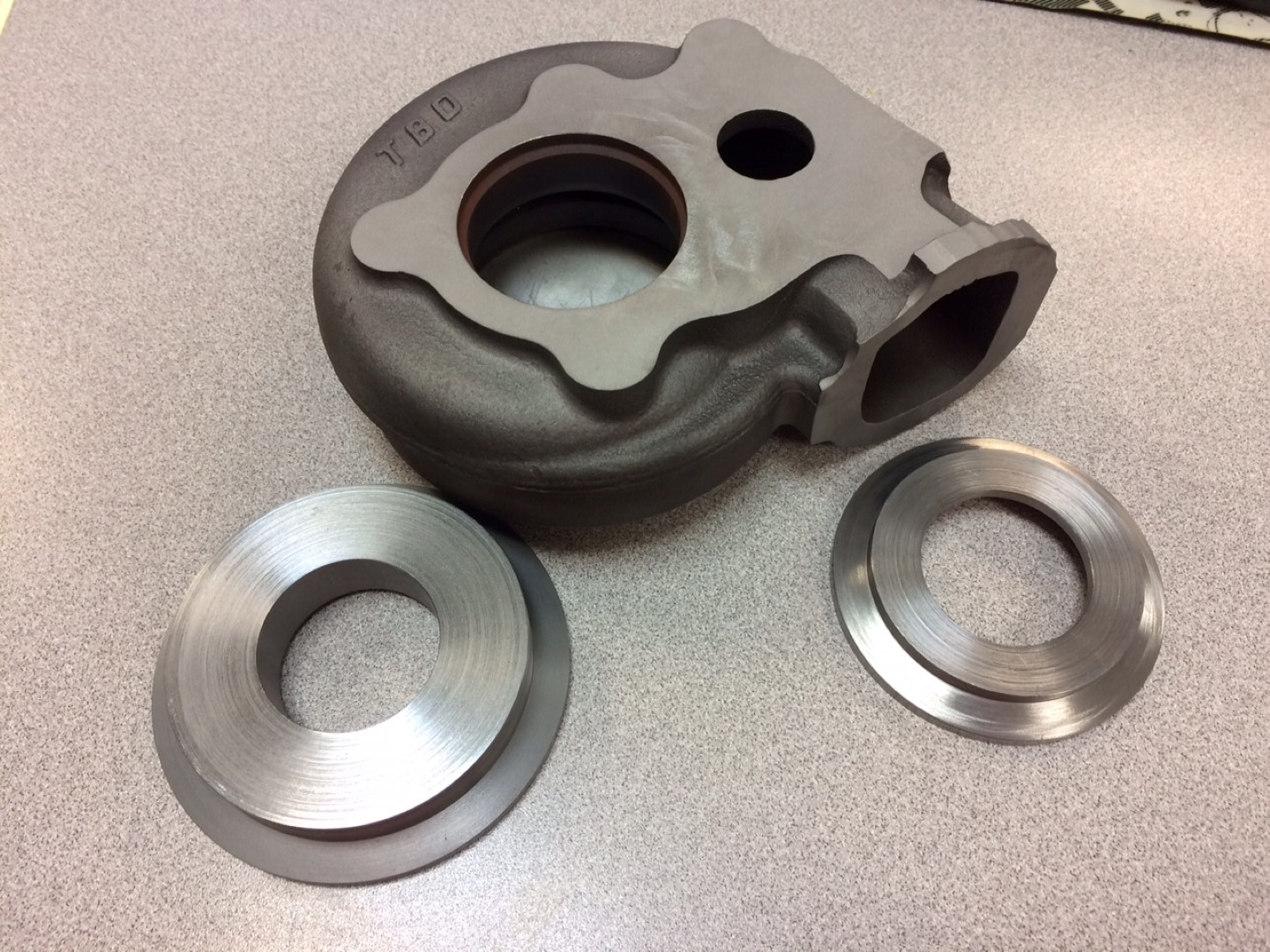

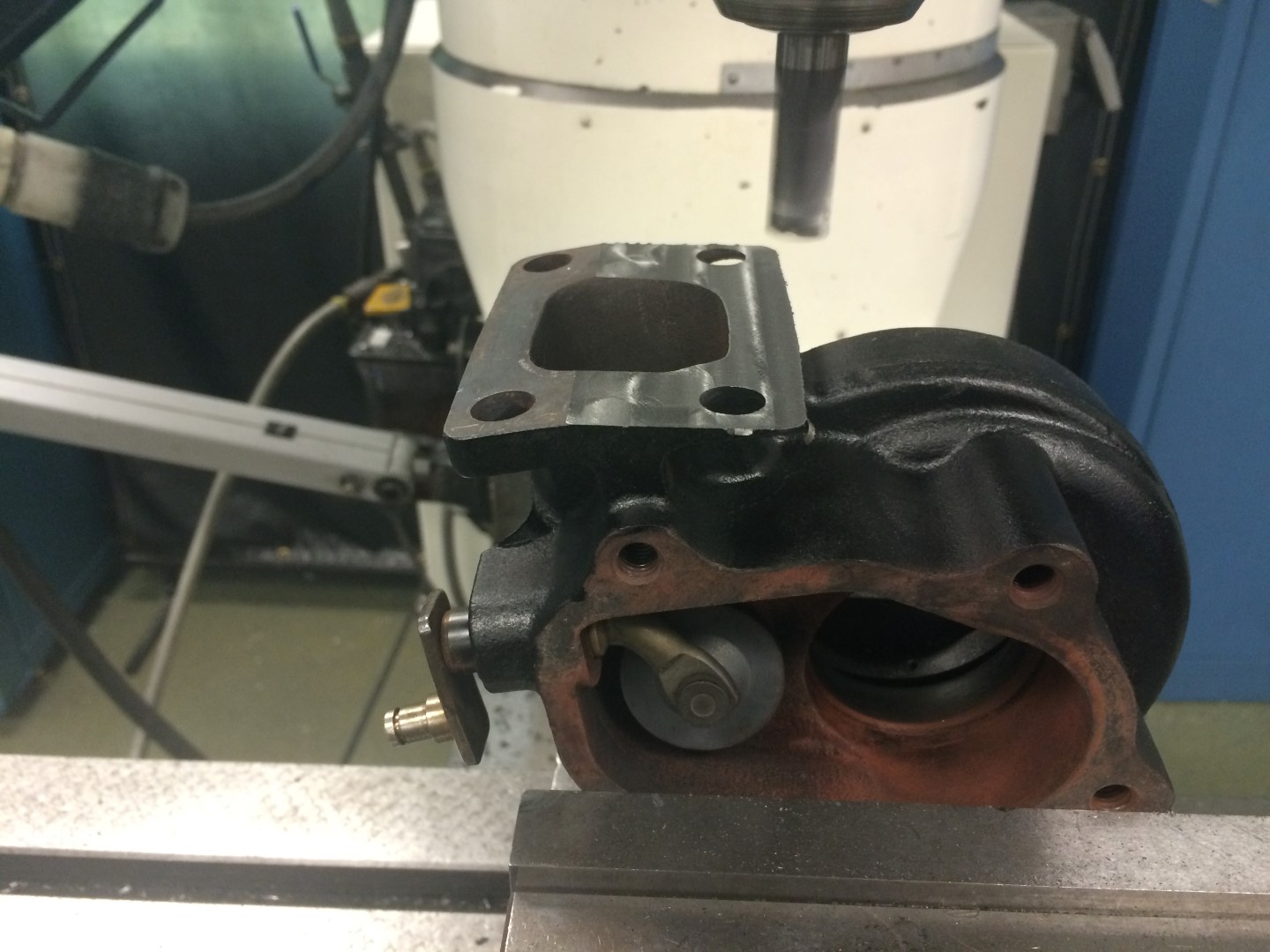

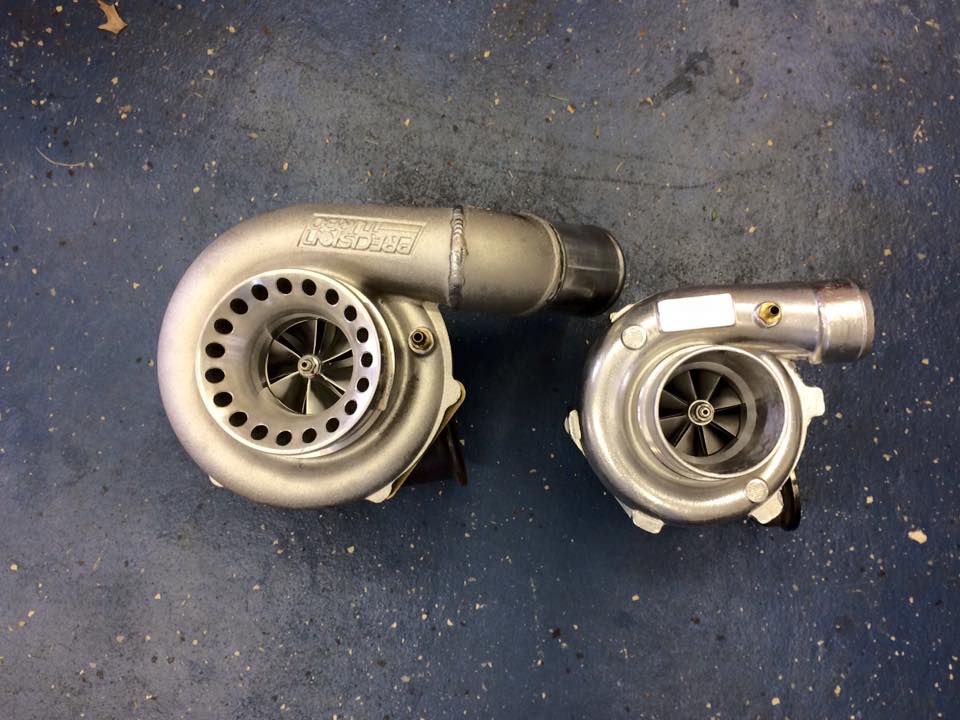

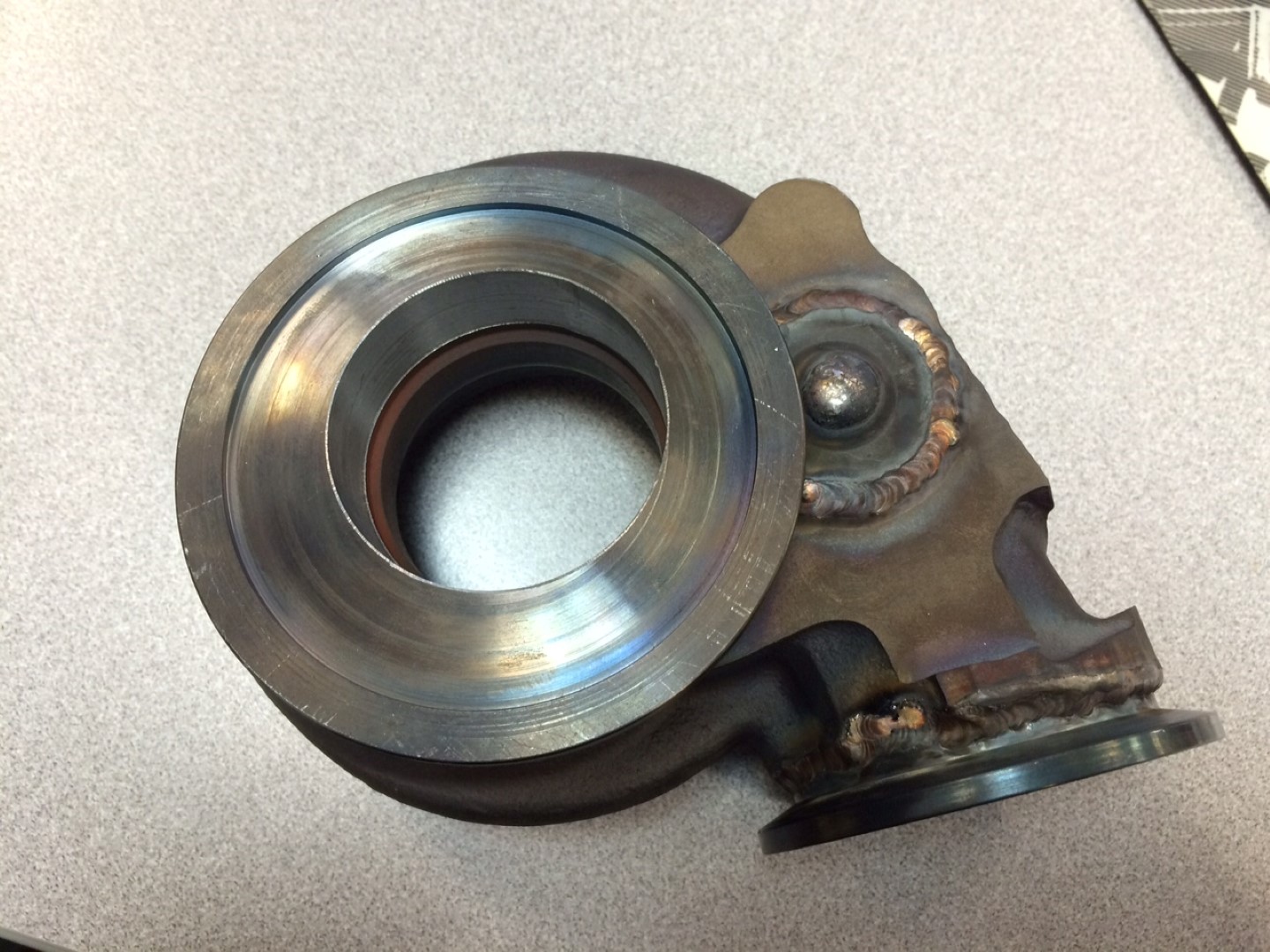

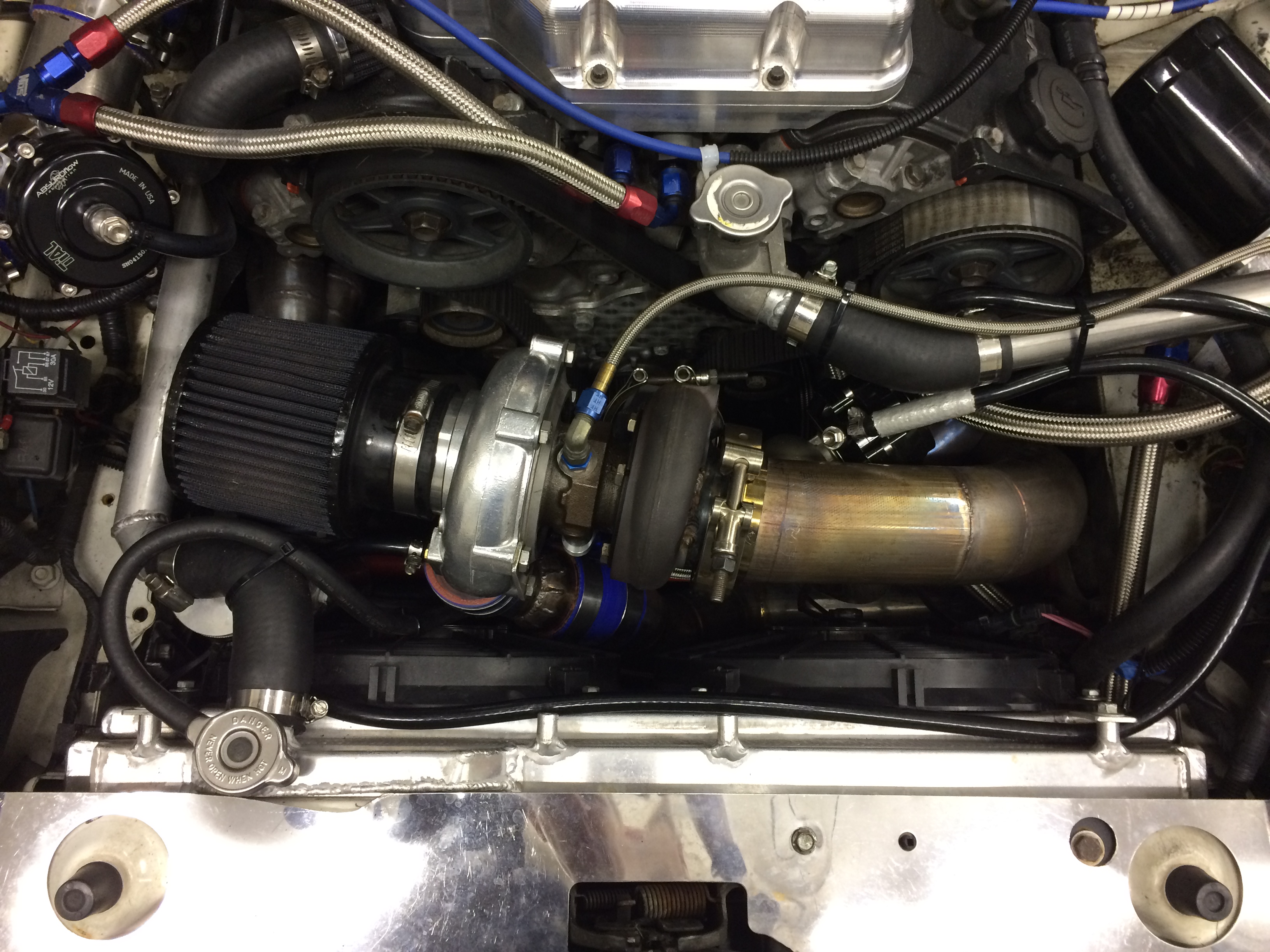

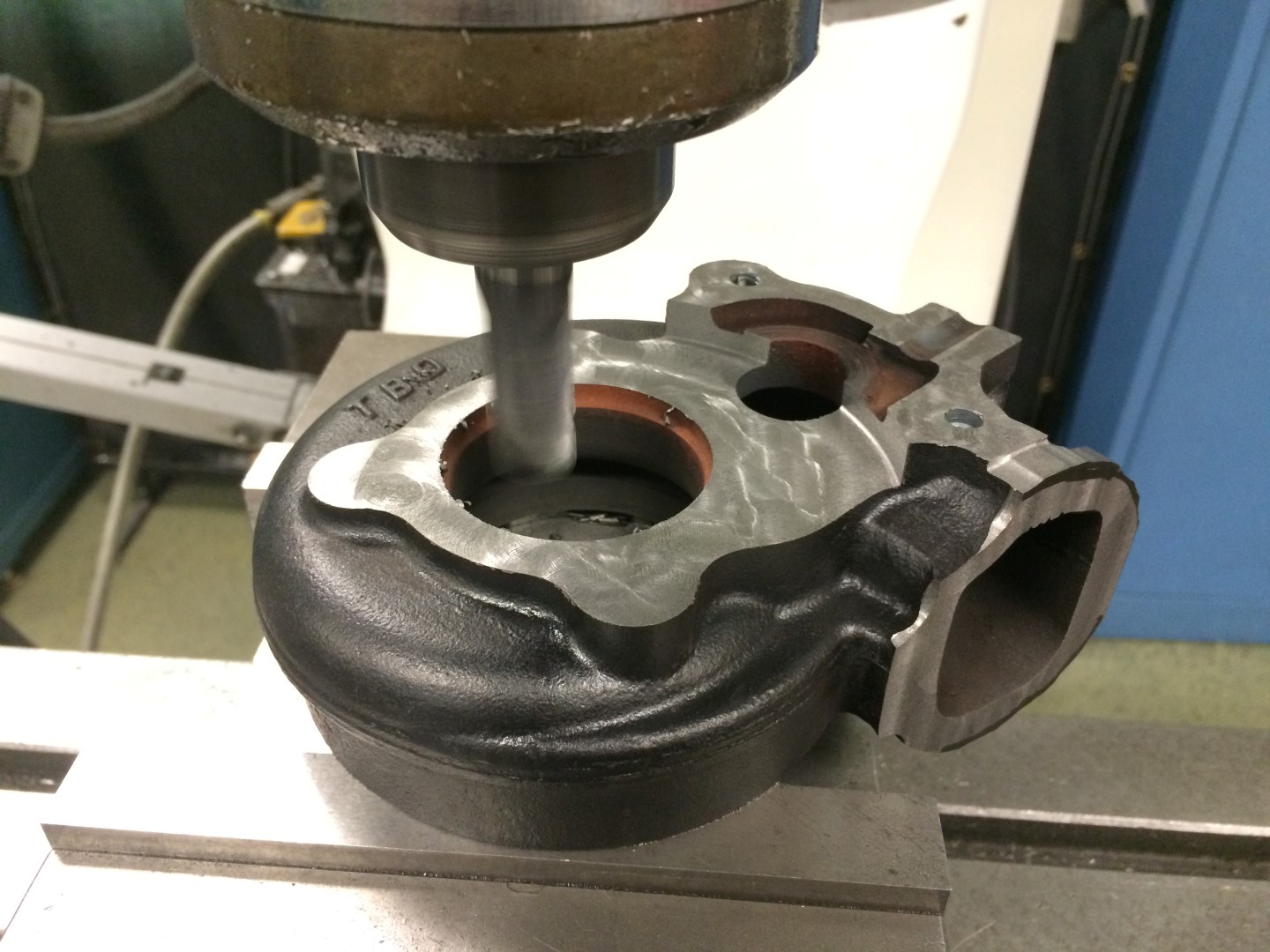

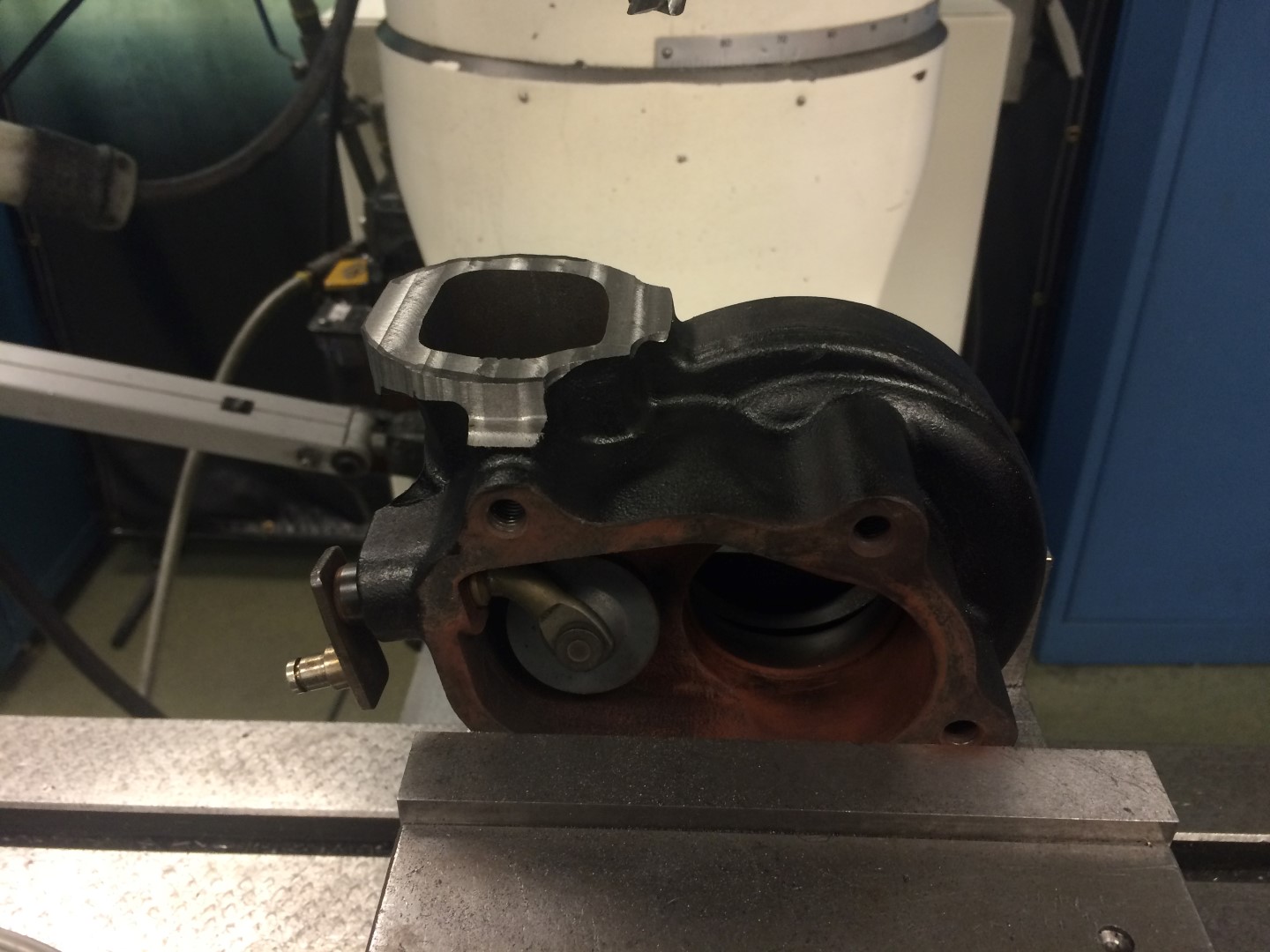

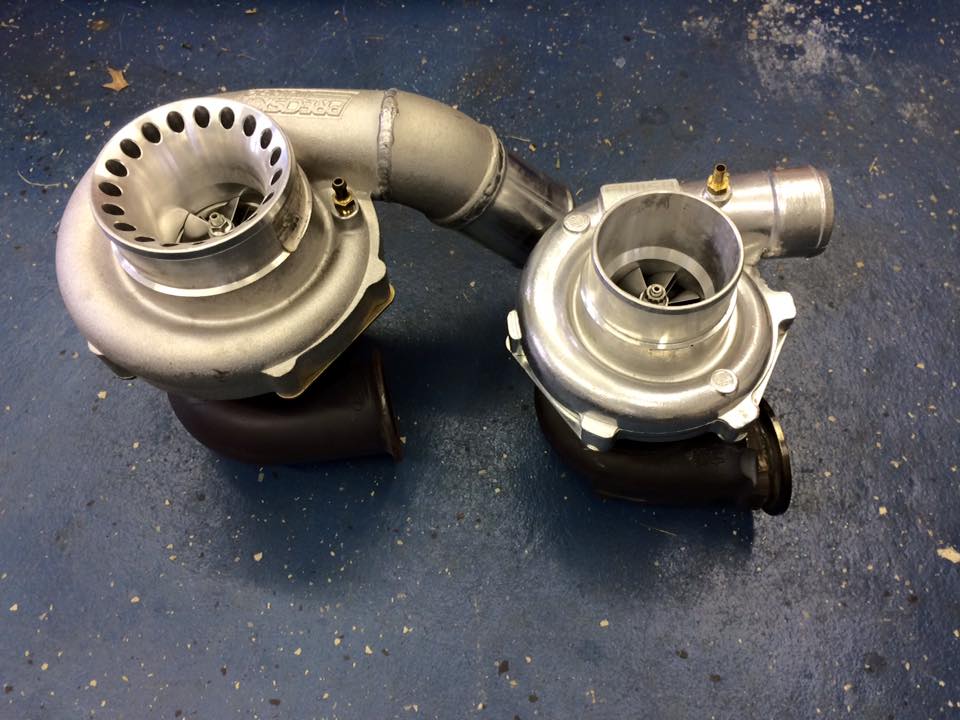

I Had this EMUSA turbo from lars for a while, decided to make it a direct replacement for the Precision 5858. Smaller wheels, chinese journal bearing. Hoping for more low end squirt (think subaru) for daily driving.















Attached Thumbnails
ABSURDflow Turbo KLDE Mazda V6 Thread-emusa1.jpg   ABSURDflow Turbo KLDE Mazda V6 Thread-emusa2.jpg   ABSURDflow Turbo KLDE Mazda V6 Thread-emusa3.jpg   ABSURDflow Turbo KLDE Mazda V6 Thread-emusa4.jpg   ABSURDflow Turbo KLDE Mazda V6 Thread-emusa5.jpg

ABSURDflow Turbo KLDE Mazda V6 Thread-emusa8.jpg   ABSURDflow Turbo KLDE Mazda V6 Thread-emusa9.jpg   ABSURDflow Turbo KLDE Mazda V6 Thread-emusa7.jpg
TurboTim is offline   Reply With Quote
Old 10-08-2015, 11:28 AM   #657
mkturbo.com
iTrader: (24)

shuiend's Avatar

Join Date: May 2006
Location: Charleston SC
Posts: 12,184
Total Cats: 748
Default

How does my Churbo feel on the v6? I bet it is a hell of a lot better then when I had it on my Miata.
shuiend is offline   Reply With Quote
Old 10-08-2015, 11:29 AM   #658
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 33,150
Total Cats: 1,988
Default

Well? did you achieve dat lowend squirt?
Isn't the KL more of a topend hitter and not a lowend grunter anyway?

while the housings look drastically different, the wheels kinda look similarly sized, so I'm not sure how much lowend it will achieve
18psi is offline   Reply With Quote
Old 10-08-2015, 11:34 AM   #659
Elite Member
Thread Starter
iTrader: (9)

TurboTim's Avatar

Join Date: Jun 2006
Location: Chesterfield, NJ
Posts: 6,173
Total Cats: 198
Default

So I did that and:

1. wow, lots of heat coming off this thing. Ceramic coating your turbine housing is a good idea. As is a big hood vent above your turbo, assuming above said hood vent is in a low pressure area.

2. Chinese turbos are not as good as American turbos. There is a significant difference between the performance of these turbos. The larger Precision turbo is better everywhere, by a lot. Like.....not even close. Precision builds boost sooner and more of it quicker. Precision is also a lot quieter, which may note be a good thing for ricer types. The chinese turbo makes a lot of the typical turbo compressor surge garble on part throttle shifts, etc.

I never looked at the precision turbo while idling (you can hear it whhirrrllll for a while after shutting off the car), but at idle with the chinese turbo, it doesn't spin. Blip the throttle and it does, but then it quickly stops. It's a little hard to rotate too. Shut off the car and it spins easily.
TurboTim is offline   Reply With Quote
Old 10-08-2015, 11:41 AM   #660
Elite Member
Thread Starter
iTrader: (9)

TurboTim's Avatar

Join Date: Jun 2006
Location: Chesterfield, NJ
Posts: 6,173
Total Cats: 198
Default

By down on power, I typically can power spin 3rd in the 90+F summer. Chinese turbo: can't spin second in the 60F/cold tire weather we have currently.
TurboTim is offline   Reply With Quote
