Old 11-22-2011, 12:33 PM   #61
Elite Member
Thread Starter
iTrader: (9)

TurboTim's Avatar

Join Date: Jun 2006
Location: Chesterfield, NJ
Posts: 6,173
Total Cats: 198
Default

Ordered the pistons, rods, pins, rings from Wiseco; they have everything so it was easy to order from one place.

Block is being bored & honed locally +0.5mm cause the bores were oval.

Shipping valve seals to the head guy today.

I'm making the bellhousing and crankshaft adapter drawings now during lunch.

Picking up an engine crane from Paul!! so i can yank the 1.8 stuff out after thanksgiving.

T5 trans ordered, should arrive today. The gutted mockup trans is supposed to be from a mustang but the shifter is rotated from vertical; internet says that is on Camaro T5's so I ordered a brand new one from Ford to compare. I'd hate to make my trans mounts or whatnot for the wrong trans.

Last edited by TurboTim; 12-28-2011 at 07:39 PM.
TurboTim is offline   Reply With Quote
Old 11-22-2011, 02:34 PM   #62
Junior Member
iTrader: (2)

Join Date: Apr 2010
Location: albion, mi
Posts: 262
Total Cats: 13
Default

Awesome!
glade is offline   Reply With Quote
Old 11-22-2011, 03:37 PM   #63
Elite Member
Thread Starter
iTrader: (9)

TurboTim's Avatar

Join Date: Jun 2006
Location: Chesterfield, NJ
Posts: 6,173
Total Cats: 198
Default

And yarrr T5 arrived. According to my dad, the ford T5 is square (shifter pad is parallel to the mount pad), unlike the mockup "mustang" trans I have here which is probably really from a old camaro or S10. I'll pick that up tomorrow and make sure the pad is in the same spot with respect to the bell, hopefully it is so I can still use it to mock up cause it's obviously super light with no steel inside it.

EDIT: So I pick up the trans and the shifter pad is rotated. I guess this is normal. I found some of McCully Racing Motor's pictures of his V8 shifter and it is offset to get the shift **** back in the center.

Last edited by TurboTim; 11-22-2011 at 08:09 PM.
TurboTim is offline   Reply With Quote
Old 11-22-2011, 07:44 PM   #64
Junior Member
iTrader: (2)

Join Date: May 2008
Location: Bethalto, Il
Posts: 318
Total Cats: 2
Default

awesome post some pictures of the motor when you start putting it together.

i have been looking for a donor car or motor. But im leaning towards just an engine for now to build it while i wait for the swap.
turbotyla is offline   Reply With Quote
Old 11-22-2011, 08:24 PM   #65
Elite Member
Thread Starter
iTrader: (9)

TurboTim's Avatar

Join Date: Jun 2006
Location: Chesterfield, NJ
Posts: 6,173
Total Cats: 198
Default

I'll post pictures of the shiny new parts once they arrive.

OH! Besides the trans I also picked up my aluminum ford motorsports flywheel tonight too (the cheapest light 0 balance flywheel I could find). The first one was missing a rivet that holds the friction surface to the aluminum. "Made in the USA".
TurboTim is offline   Reply With Quote
Old 11-22-2011, 10:36 PM   #66
Elite Member
iTrader: (5)

m2cupcar's Avatar

Join Date: Jan 2005
Location: Atlanta
Posts: 6,949
Total Cats: 139
Default

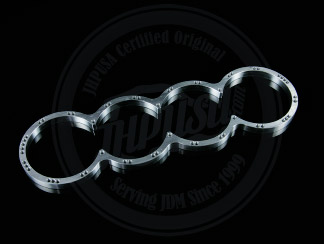

I know the "floating cylinders" were an issue if the engine got heated, it would blow a gasket and was trash after. I've seen inserts like this honda one. I wonder if it would be worth considering with boost- and "while you're at it".
Attached Thumbnails
ABSURDflow Turbo KLDE Mazda V6 Thread-blox.blockguard_g.jpg
m2cupcar is offline   Reply With Quote
Old 11-22-2011, 10:58 PM   #67
Elite Member
iTrader: (1)

Join Date: May 2009
Location: Jacksonville, FL
Posts: 4,654
Total Cats: 209
Default

Meh.
Thats what is known as a "block guard", and I wouldnt recommend it.
Its one of those things that makes sense in theory, but has never actually been proven. Then, when you think about it, it could actually make the situation worse.

The water jacket is cast, which means a rough, inconsistent surface. The block guard does not fit perfectly, it presses hard in some places and doesnt touch in others. It could actually put sideways pressure on the sleeves making them more prone cracking.

Furthermore, it decreases the volume of water in the upper art of the water jacket, this water is what takes the heat away and by removing some of its volume you are negatively effecting cooling.

Finally, its not making the block closed deck at all. You have to press it down below the deck surface for it to fit tightly, so youre not getting any improvement in head gasket seal, or the strength associated by having solid contact all the way across the mating surface.


Its one of those things that a lot of people do, but most have ever asked why, or how. In fact, many of the highest numbers made on stock Honda blocks have been made without block guards.
Full_Tilt_Boogie is offline   Reply With Quote
Old 11-22-2011, 11:26 PM   #68
Elite Member
iTrader: (5)

m2cupcar's Avatar

Join Date: Jan 2005
Location: Atlanta
Posts: 6,949
Total Cats: 139
Default

Ok- I figured they were more than just pressed in- and then milled flat with the deck.
m2cupcar is offline   Reply With Quote
Old 11-23-2011, 07:19 PM   #69
Elite Member
iTrader: (2)

triple88a's Avatar

Join Date: Apr 2006
Location: Chicago, IL
Posts: 8,869
Total Cats: 483
Default

Block guards are crap... After installing one expect the cylinders to overheat where the guard is at, also expect oval cylinders impossible to seal from piston rings.

Honda did use closed blocks in few of their models and due to the above issues their models went open.
triple88a is offline   Reply With Quote
Old 11-23-2011, 07:58 PM   #70
Elite Member
Thread Starter
iTrader: (9)

TurboTim's Avatar

Join Date: Jun 2006
Location: Chesterfield, NJ
Posts: 6,173
Total Cats: 198
Default

No block guard will be used, but thanks for the suggestion. That was suggested by someone at work too. But I'm too cheap and lazy to bother. Another part to wait to get machined, etc. I don't think this will be too high-strung anyway.
TurboTim is offline   Reply With Quote
Old 11-29-2011, 07:19 PM   #71
Elite Member
Thread Starter
iTrader: (9)

TurboTim's Avatar

Join Date: Jun 2006
Location: Chesterfield, NJ
Posts: 6,173
Total Cats: 198
Default

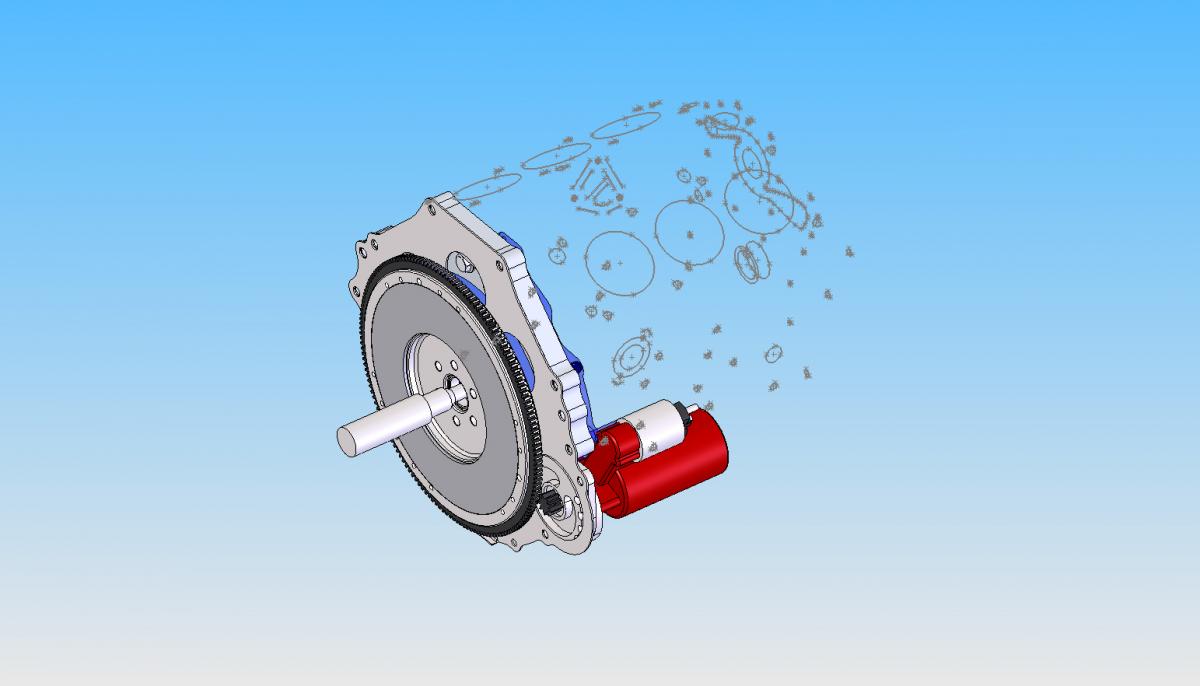

Ford aluminum flywheel arrived, Faro'ed, and added to the assembly. I also threw the T5z input shaft in there to make sure it all still lines up. So far so good. Raw Faro V6 pointcloud data shown for reference.
Attached Thumbnails
ABSURDflow Turbo KLDE Mazda V6 Thread-kldeassembly2.jpg
TurboTim is offline   Reply With Quote
Old 11-29-2011, 07:45 PM   #72
Elite Member
iTrader: (15)

Join Date: Dec 2007
Location: San Antonio, Texas
Posts: 4,889
Total Cats: 25
Default

Cool. What Faro device are you using?
ZX-Tex is offline   Reply With Quote
Old 11-29-2011, 08:23 PM   #73
Senior Member
iTrader: (1)

Join Date: May 2008
Location: south texas
Posts: 1,419
Total Cats: 9
Default

used a block guard, no "oval" cylinders or other bullshit. car ran fine for years boosted. did another one, no block guard, car ran fine for years boosted. no ill effects either way. so why buy it right? if you were gonna really go crazy you would do darton sleeves or something to make a solid deck.
spoolin2bars is offline   Reply With Quote
Old 11-29-2011, 10:06 PM   #74
Elite Member
Thread Starter
iTrader: (9)

TurboTim's Avatar

Join Date: Jun 2006
Location: Chesterfield, NJ
Posts: 6,173
Total Cats: 198
Default

Quote:
Originally Posted by ZX-Tex View Post
Cool. What Faro device are you using?
I think it's a Platinum Arm, 6x.
TurboTim is offline   Reply With Quote
Old 11-29-2011, 10:57 PM   #75
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 28,962
Total Cats: 327
Default

Quote:
Originally Posted by spoolin2bars View Post
used a block guard, no "oval" cylinders or other bullshit. car ran fine for years boosted. did another one, no block guard, car ran fine for years boosted. no ill effects either way. so why buy it right? if you were gonna really go crazy you would do darton sleeves or something to make a solid deck.
WTF do you know about tracking anything?
hustler is online now   Reply With Quote
Old 11-30-2011, 11:21 AM   #76
Junior Member
iTrader: (1)

Join Date: Oct 2008
Location: Palm Harbor FL
Posts: 332
Total Cats: 4
Default

BW s200 sounds a bit small for the application, i was thinking more along the lines of-
http://store.forcedperformance.net/m...y_Code=Turbo-F
Guess its all about how much power you want, but with a t5 and a built motor you really have very few limitations, tat t5 will hold 300ft lbs in a lightened up miata all day and once u got the tranny in there upgrades are a snap. A 3550 would hold up to anything and should bolt right into the place of a t5.
1slowna is offline   Reply With Quote
Old 11-30-2011, 11:54 AM   #77
Elite Member
Thread Starter
iTrader: (9)

TurboTim's Avatar

Join Date: Jun 2006
Location: Chesterfield, NJ
Posts: 6,173
Total Cats: 198
Default

Quote:
Originally Posted by 1slowna View Post
BW s200 sounds a bit small for the application, i was thinking more along the lines of-
http://store.forcedperformance.net/m..._Code=Turbo-Fp
Guess its all about how much power you want, but with a t5 and a built motor you really have very few limitations, tat t5 will hold 300ft lbs in a lightened up miata all day and once u got the tranny in there upgrades are a snap. A 3550 would hold up to anything and should bolt right into the place of a t5.
you need to add a "p" to the end of your link.
http://store.forcedperformance.net/m..._Code=Turbo-Fp

That turbo is a lot of money, but I guess right in line with the billet wheel stuff. B200sx is....much much cheaper. I will go with something like that as a stop-gap until I either have enough money for a baller turbo or have a real good feeling about a baller turbo, fitment wise.

I'm going to try to stop at all baller turbo manufacturers at PRI tomorrow. I am taking a day out of my Disney vacation to browse the show

Thanks for the link!

EDIT: And I am a little weary of the 300 ft-lb rated capacity of the T5z. I should be well north of that, but I'm not drag racing a 3500lb 'stang with slicks. So....who knows. A new TKO600 was twice the price. Maybe I can find a 3550 somewhere in the middle?
TurboTim is offline   Reply With Quote
Old 11-30-2011, 05:26 PM   #78
Senior Member

ianferrell's Avatar

Join Date: Aug 2010
Location: Maumelle, AR
Posts: 617
Total Cats: 2
Default

T5z is rated 330 ft/lbs I had one in my rx7.... Really, you're going to be ~1000 lbs under the weight of a mustang so it'll put up with more power than that..... And I'm pretty sure the mustang guys reliably run more than 330 out of those transmissions at their weight.
ianferrell is offline   Reply With Quote
Old 11-30-2011, 09:10 PM   #79
Elite Member
iTrader: (2)

Faeflora's Avatar

Join Date: Jan 2007
Location: Los Angeles, CA
Posts: 8,763
Total Cats: 115
Default

s300+ or bust!
Faeflora is offline   Reply With Quote
Old 12-28-2011, 07:47 PM   #80
Elite Member
Thread Starter
iTrader: (9)

TurboTim's Avatar

Join Date: Jun 2006
Location: Chesterfield, NJ
Posts: 6,173
Total Cats: 198
Default

Quote:
Originally Posted by MD323 View Post
the rod bearings end up starved for oil at higher loads, here is a good thread about it, some of the fixes suggested and his rebuild: http://forums.probetalk.com/showthre...d+bearing+soup

though a local car made 500 wheel without oiling issues on a precision 6265 with just rods/pistons so it is not a guaranteed death either.
More info on this 500whp with precision 6265 would be great. I'm leaning towards them now, I told them what I want basically response over a '500hp' number with pump fuel, they are going to get back to me. I mentioned the 6262 (cause that's popular on the sti and evo ~2.5's and that powa level) and the phone kinda went silent, like a 'you must be smoking crack with a turbo that big' kinda silence. Basically I'm thinking my target hp with pump gas friendly psi level would require a not street friendly turbo size.

Although last weekend I saw my first E85 gas station. I was drunk so i don't remember exactly where, but it's somewhat close.

EDIT: Block still being bored. Pistons/rods/pins/rings came in a while back from Wiseco. "rear" crank adapter halfway machined yesterday. Getting stuff for cheap means waiting a very long time. Picked up the engine hoist from Paul today.

I am playing around with different intake manifold designs but I don't know how to calculate proper runner length.
TurboTim is offline   Reply With Quote
