Old 01-12-2012, 11:28 PM   #141
Junior Member

Join Date: Jan 2005
Location: Fort Worth, Texas
Posts: 242
Total Cats: -1
Default

hustler, who did you have edm your stuff?
fwMiata is offline   Reply With Quote
Old 01-21-2012, 08:35 AM   #142
Junior Member
iTrader: (2)

Join Date: Apr 2010
Location: albion, mi
Posts: 262
Total Cats: 13
Default

Any updates?
glade is offline   Reply With Quote
Old 01-21-2012, 11:21 AM   #143
Elite Member
Thread Starter
iTrader: (9)

TurboTim's Avatar

Join Date: Jun 2006
Location: Chesterfield, NJ
Posts: 6,173
Total Cats: 198
Default

I yanked the 1.8 engine/trans last weekend. Rear end still has to come out. Must clean the engine bay.

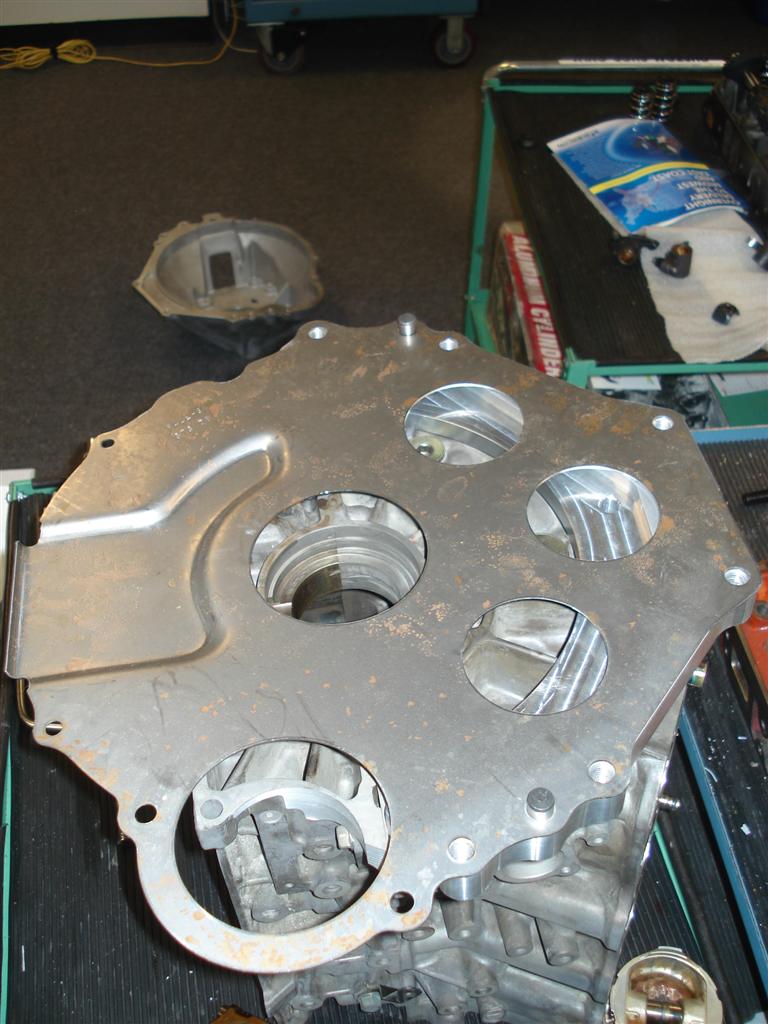

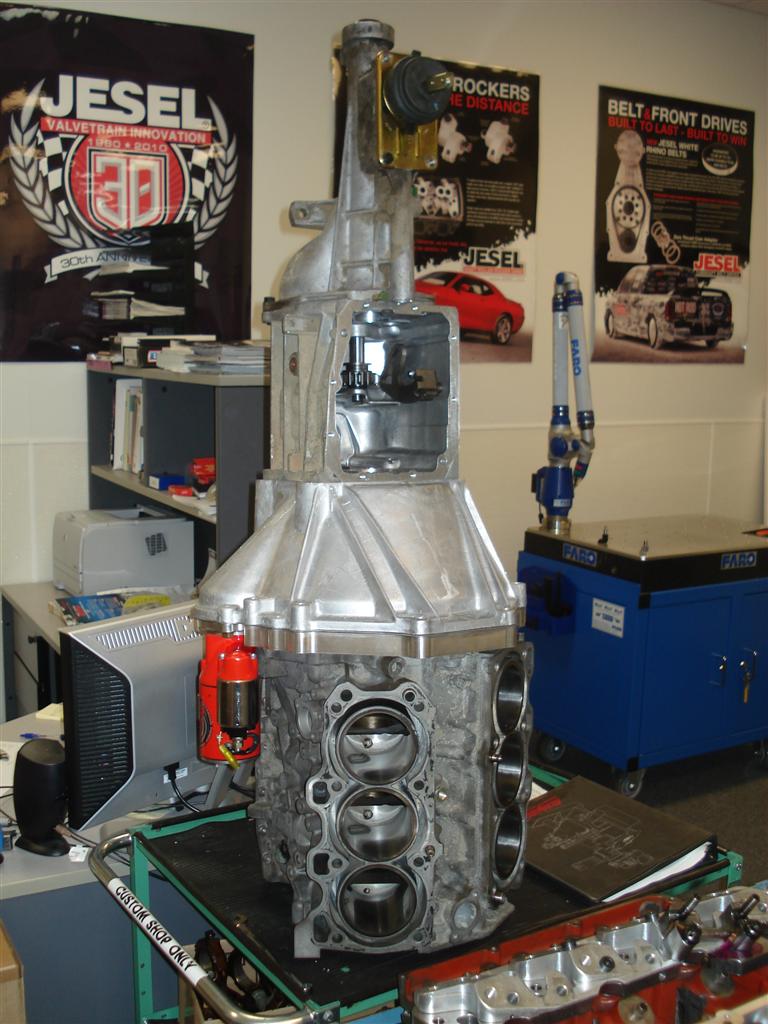

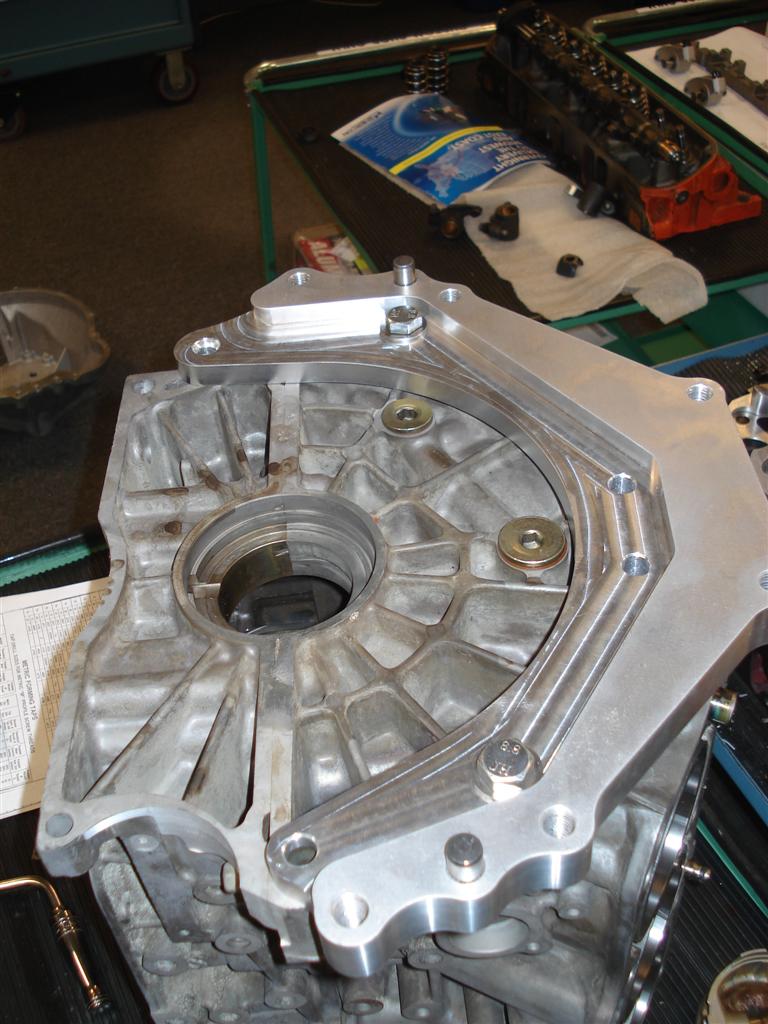

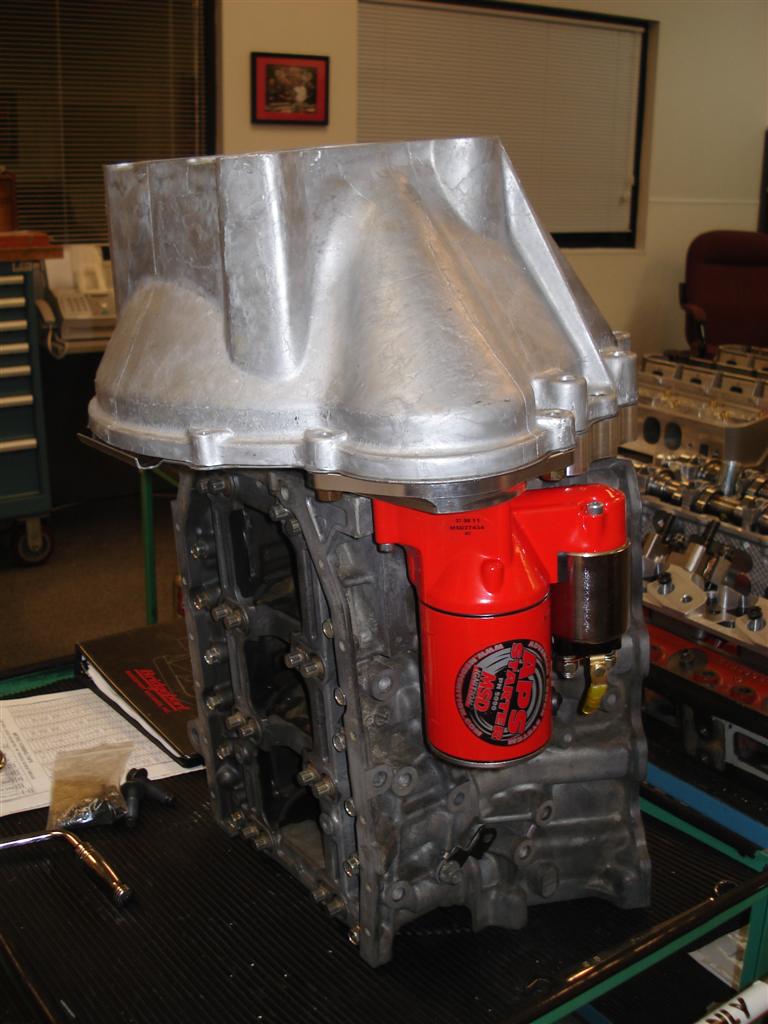

I finished the crank adapters yesterday and the bellhousing adapter is mostly done, should be finished monday morning. It ended up being done on the CNC in the prototype dept. which is fine with me. I took lots of pictures but I left the camera at work. Boo.

I have to trim the crank bolts because they are too long. In typical absurdflow fashion I would grind them down with my trusty angle grinder but they guys at work want to cut them down in the lathe...it would be more pretty but a lot more complicated.

Plain ol' Ford Mustang clutch kit arrived.

I picked up the block from the machinist earlier this week. It's all nice & clean now. STILL waiting for my cylinder heads. Hopefully those will be just as clean.

Pictures coming sometime next week.

Oh, and:

Last edited by TurboTim; 01-21-2012 at 11:36 AM.
TurboTim is offline   Reply With Quote
Old 01-23-2012, 09:05 PM   #144
Elite Member

Join Date: Mar 2010
Location: Detroit
Posts: 1,524
Total Cats: 27
Default

Has anyone tried just using cheap studs and nicking/crushing the threads right at the nut after they''ve been tightened down? Wouldn't that keep the nut from backing off too?
flounder is offline   Reply With Quote
Old 01-23-2012, 09:20 PM   #145
Junior Member
iTrader: (2)

Join Date: Apr 2010
Location: albion, mi
Posts: 262
Total Cats: 13
Default

If you've ever stripped out a stud, then you'll know that that method can't work. Think about the nut starting to back off, then just aimlessly spinning, and spinning. I.e. you'll never keep the nut torqued at the correct value. Saftey wire not only locks the nut in place, but keeps it torqued properly through the heat cycles.
glade is offline   Reply With Quote
Old 01-23-2012, 10:39 PM   #146
Elite Member
Thread Starter
iTrader: (9)

TurboTim's Avatar

Join Date: Jun 2006
Location: Chesterfield, NJ
Posts: 6,173
Total Cats: 198
Default

You guys rock at hijacking this thread. Truely.

Pictures & descriptions here:
V6 pictures







































Attached Thumbnails

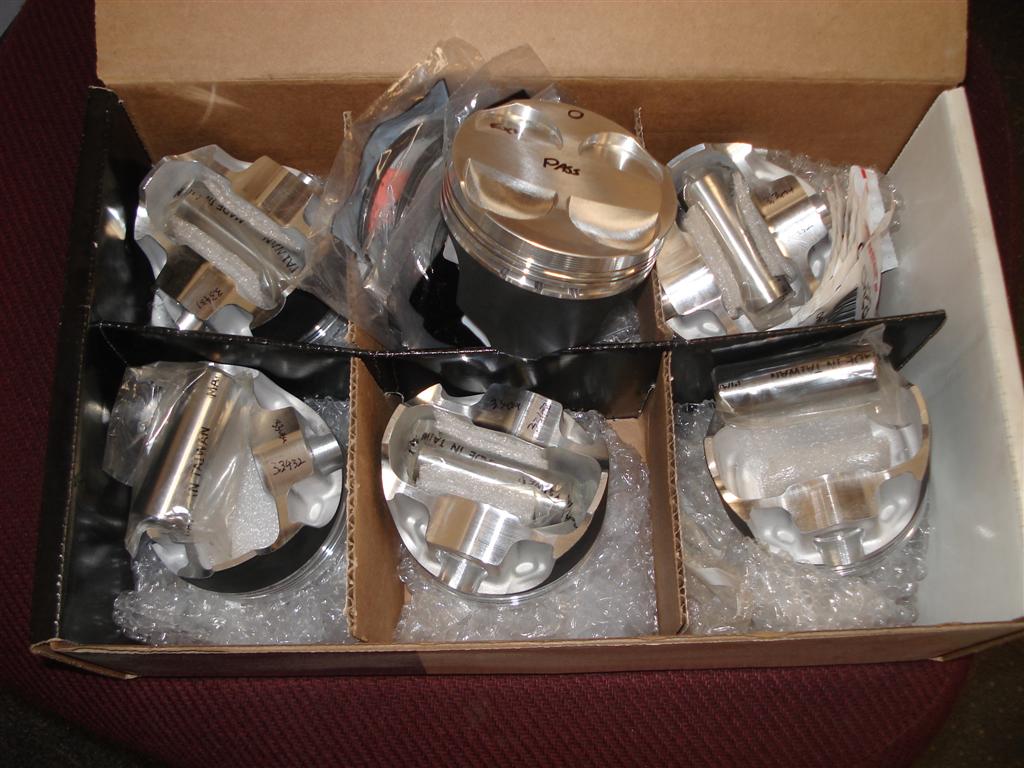

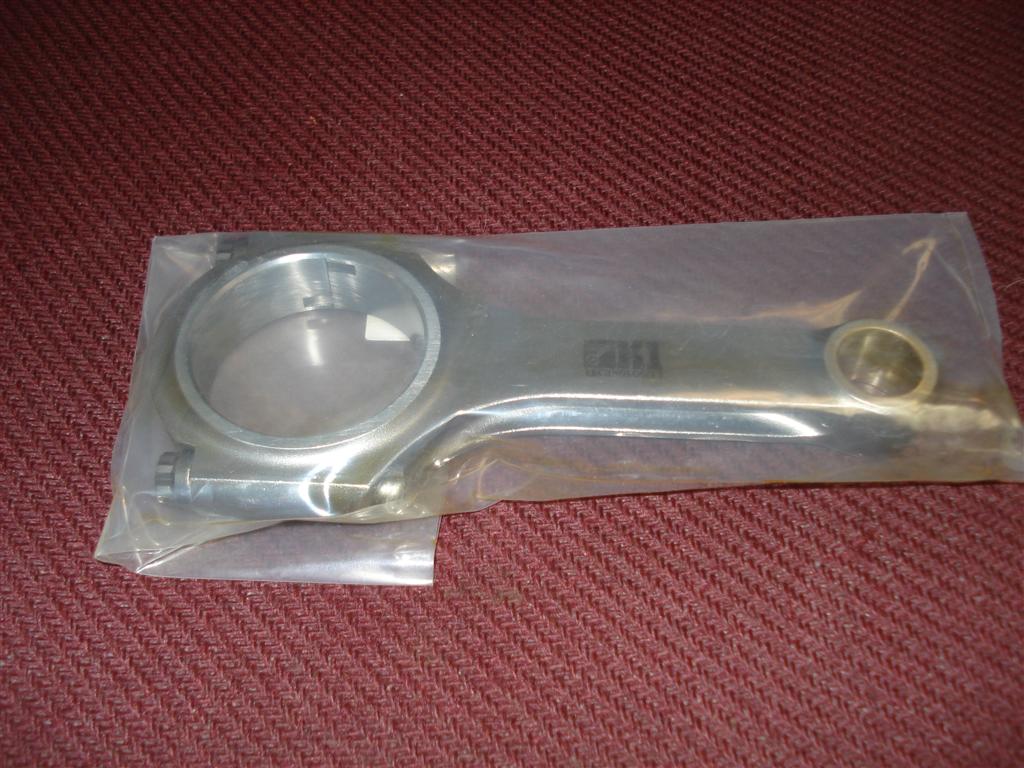

ABSURDflow Turbo KLDE Mazda V6 Thread-pistons.jpg   ABSURDflow Turbo KLDE Mazda V6 Thread-conrod.jpg   ABSURDflow Turbo KLDE Mazda V6 Thread-flywheeladapterassy3.jpg   ABSURDflow Turbo KLDE Mazda V6 Thread-flywheeladapterassy4.jpg   ABSURDflow Turbo KLDE Mazda V6 Thread-flywheeladapterassy5.jpg

ABSURDflow Turbo KLDE Mazda V6 Thread-flywheeladapterassy6.jpg   ABSURDflow Turbo KLDE Mazda V6 Thread-flywheeladapterassy7.jpg   ABSURDflow Turbo KLDE Mazda V6 Thread-flywheeladapterassy8.jpg   ABSURDflow Turbo KLDE Mazda V6 Thread-flywheeladapterassy9.jpg   ABSURDflow Turbo KLDE Mazda V6 Thread-flywheeladapterassy10.jpg

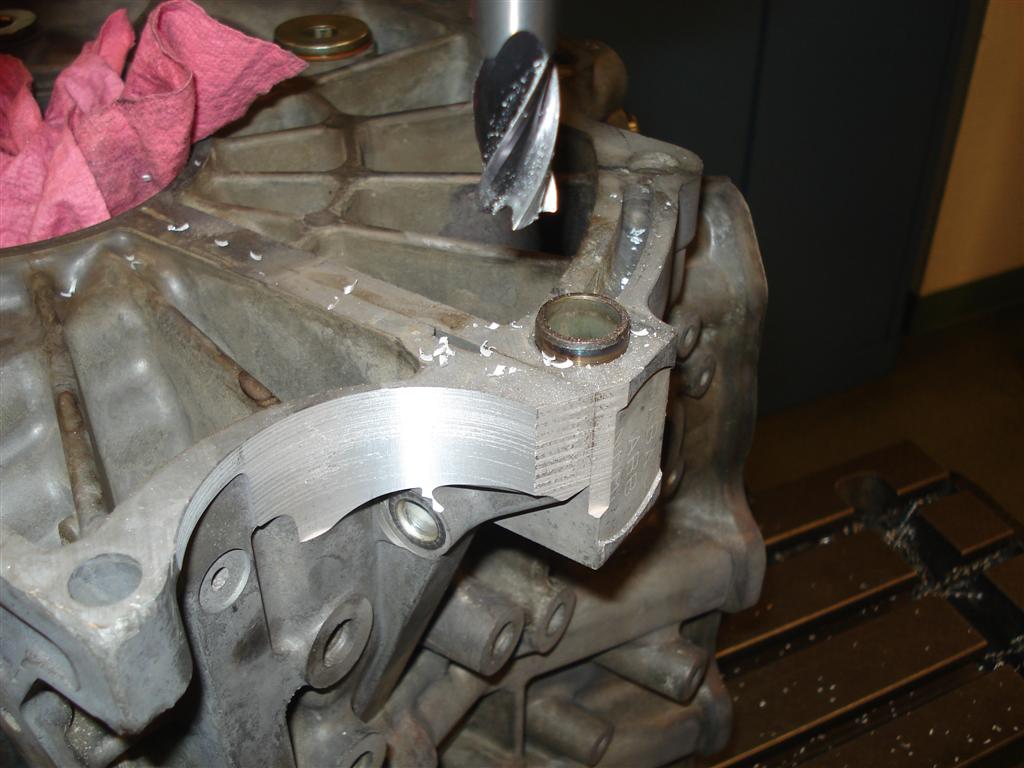

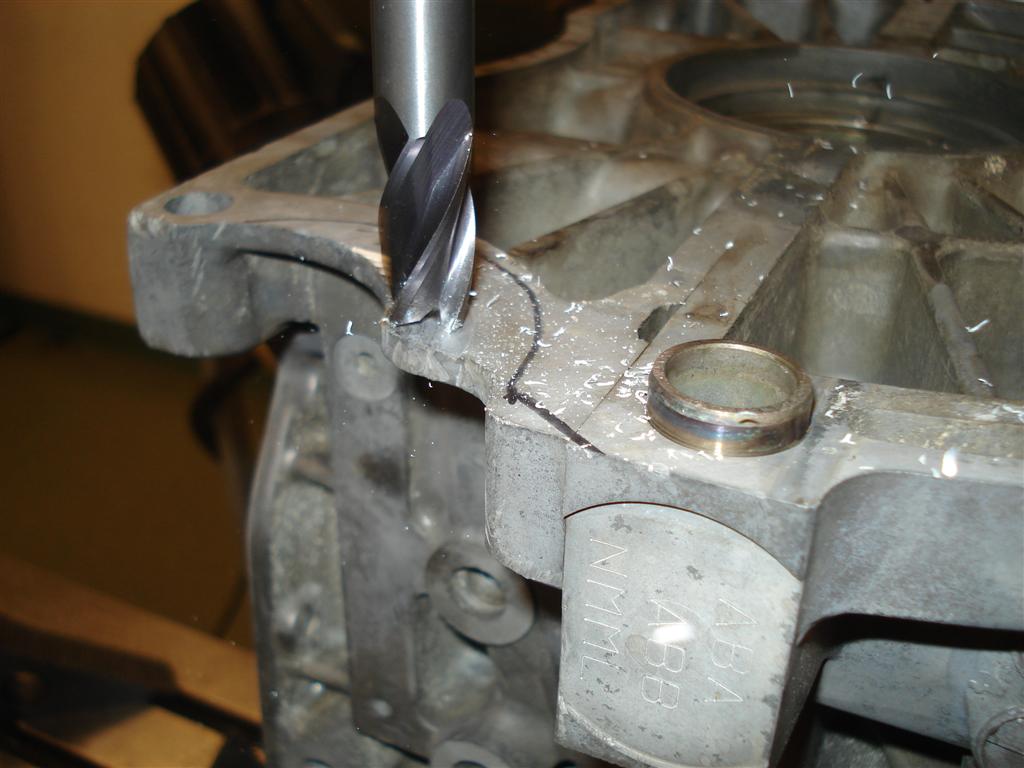

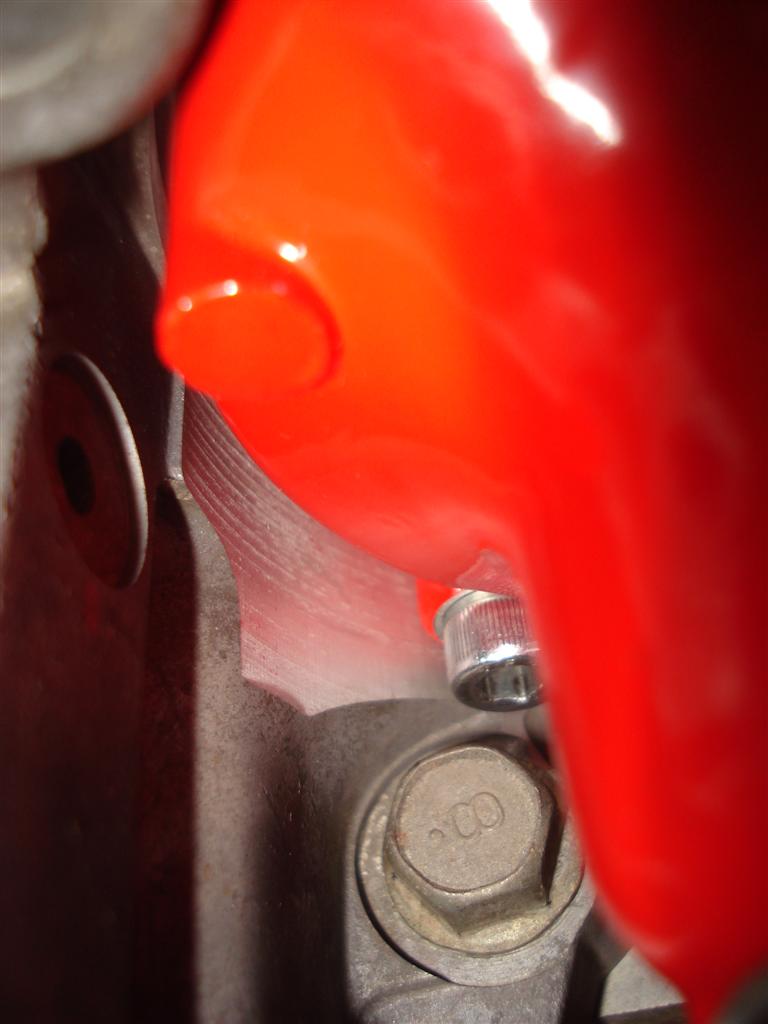

ABSURDflow Turbo KLDE Mazda V6 Thread-starterclearance1.jpg   ABSURDflow Turbo KLDE Mazda V6 Thread-starterclearance2.jpg   ABSURDflow Turbo KLDE Mazda V6 Thread-starterclearance3.jpg   ABSURDflow Turbo KLDE Mazda V6 Thread-bellhousingadapter1.jpg   ABSURDflow Turbo KLDE Mazda V6 Thread-bellhousingadapter2.jpg

ABSURDflow Turbo KLDE Mazda V6 Thread-bellhousingadapter3.jpg   ABSURDflow Turbo KLDE Mazda V6 Thread-bellhousingadapter4.jpg   ABSURDflow Turbo KLDE Mazda V6 Thread-kldeassembly3.jpg   ABSURDflow Turbo KLDE Mazda V6 Thread-kldeassembly4.jpg   ABSURDflow Turbo KLDE Mazda V6 Thread-kldeassembly5.jpg

TurboTim is offline   Reply With Quote
Old 01-23-2012, 10:43 PM   #147
Elite Member
iTrader: (1)

Join Date: May 2009
Location: Jacksonville, FL
Posts: 4,654
Total Cats: 209
Default

Thread just got awesome.
Full_Tilt_Boogie is offline   Reply With Quote
Old 01-23-2012, 10:49 PM   #148
Elite Member
iTrader: (10)

soviet's Avatar

Join Date: Jan 2010
Location: VA
Posts: 3,505
Total Cats: 248
Default

soviet is offline   Reply With Quote
Old 01-23-2012, 11:06 PM   #149
Elite Member
iTrader: (5)

Join Date: Dec 2010
Location: Raleigh, NC
Posts: 1,968
Total Cats: 50
Default

^ What they said.
Seefo is offline   Reply With Quote
Old 01-23-2012, 11:20 PM   #150
Junior Member

Join Date: Nov 2009
Location: Jax Fl
Posts: 469
Total Cats: 30
Default

Speechless.
Tw34k is offline   Reply With Quote
Old 01-23-2012, 11:36 PM   #151
Senior Member
iTrader: (6)

Join Date: Aug 2009
Location: Charlotte, NC
Posts: 924
Total Cats: 16
Default

I came
Gryff is offline   Reply With Quote
Old 01-24-2012, 12:19 AM   #152
Senior Member
iTrader: (1)

Join Date: Jun 2007
Posts: 656
Total Cats: 28
Default

^ why i didn't do this swap.

All them tools make me jelly..
yank is offline   Reply With Quote
Old 01-24-2012, 12:25 AM   #153
I'm a terrible person
iTrader: (19)

FRT_Fun's Avatar

Join Date: Apr 2009
Location: Arizona
Posts: 7,292
Total Cats: 178
Default

+1 for having all the tools. Great pics. I'm now 1000% jelly.
FRT_Fun is offline   Reply With Quote
Old 01-24-2012, 04:46 AM   #154
Junior Member

Join Date: Sep 2008
Posts: 62
Total Cats: 1
Default

Impressive !
arildh is offline   Reply With Quote
Old 01-24-2012, 05:07 AM   #155
Junior Member
iTrader: (1)

Join Date: Oct 2008
Location: Palm Harbor FL
Posts: 332
Total Cats: 4
Default

Looks like some quality stuff your turnin out there
1slowna is offline   Reply With Quote
Old 01-24-2012, 05:40 AM   #156
Elite Member
iTrader: (1)

Join Date: Jun 2006
Location: Warrington/Birmingham
Posts: 2,657
Total Cats: 42
Default

:fap:

Thread just got epic.
richyvrlimited is offline   Reply With Quote
Old 01-24-2012, 01:23 PM   #157
Elite Member
iTrader: (2)

triple88a's Avatar

Join Date: Apr 2006
Location: Chicago, IL
Posts: 8,869
Total Cats: 483
Default

"I'm going to be in my bunk"
triple88a is offline   Reply With Quote
Old 01-24-2012, 02:27 PM   #158
Junior Member

Join Date: Aug 2008
Location: Toronto, Canada
Posts: 129
Total Cats: -1
Default

Top shelf machining! Wish my adaptor plate looked that good. I take it that's a CNC controlled milling machine?
GT42R is offline   Reply With Quote
Old 01-24-2012, 02:43 PM   #159
Elite Member
Thread Starter
iTrader: (9)

TurboTim's Avatar

Join Date: Jun 2006
Location: Chesterfield, NJ
Posts: 6,173
Total Cats: 198
Default

Quote:
Originally Posted by GT42R View Post
Top shelf machining! Wish my adaptor plate looked that good. I take it that's a CNC controlled milling machine?

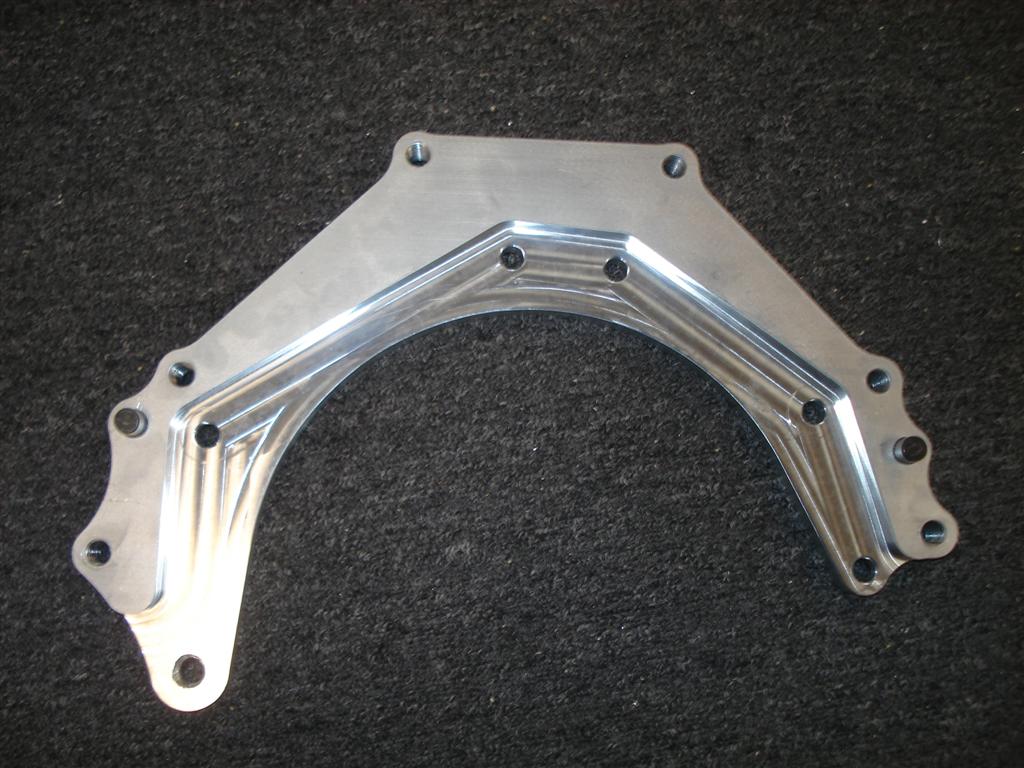

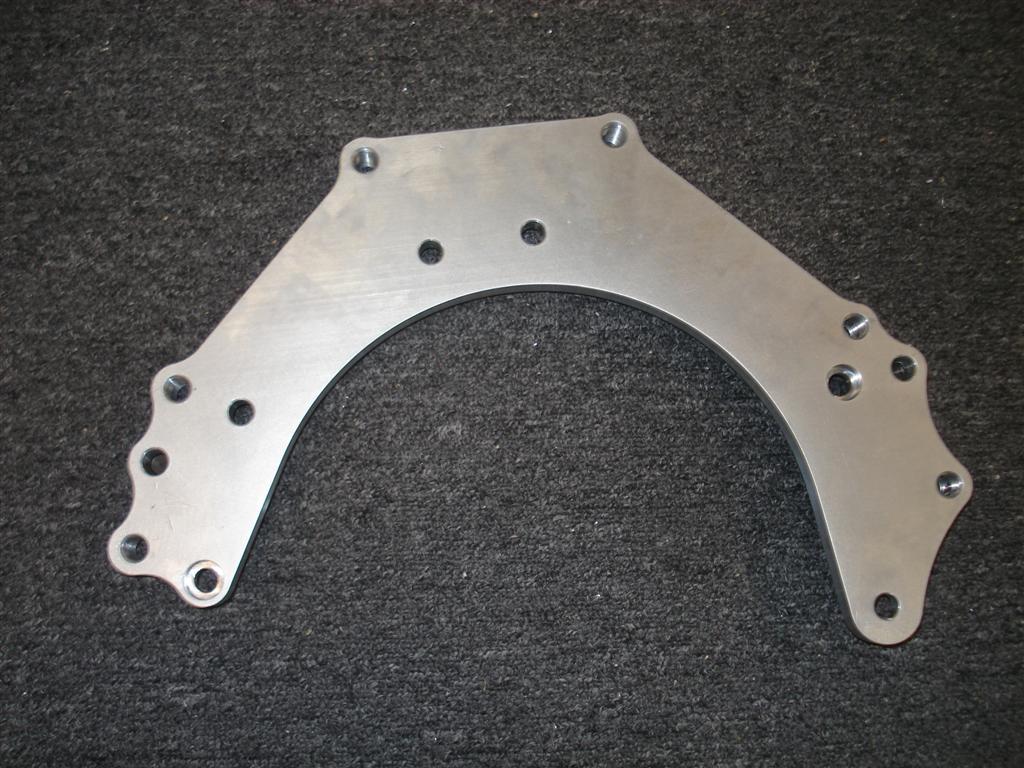

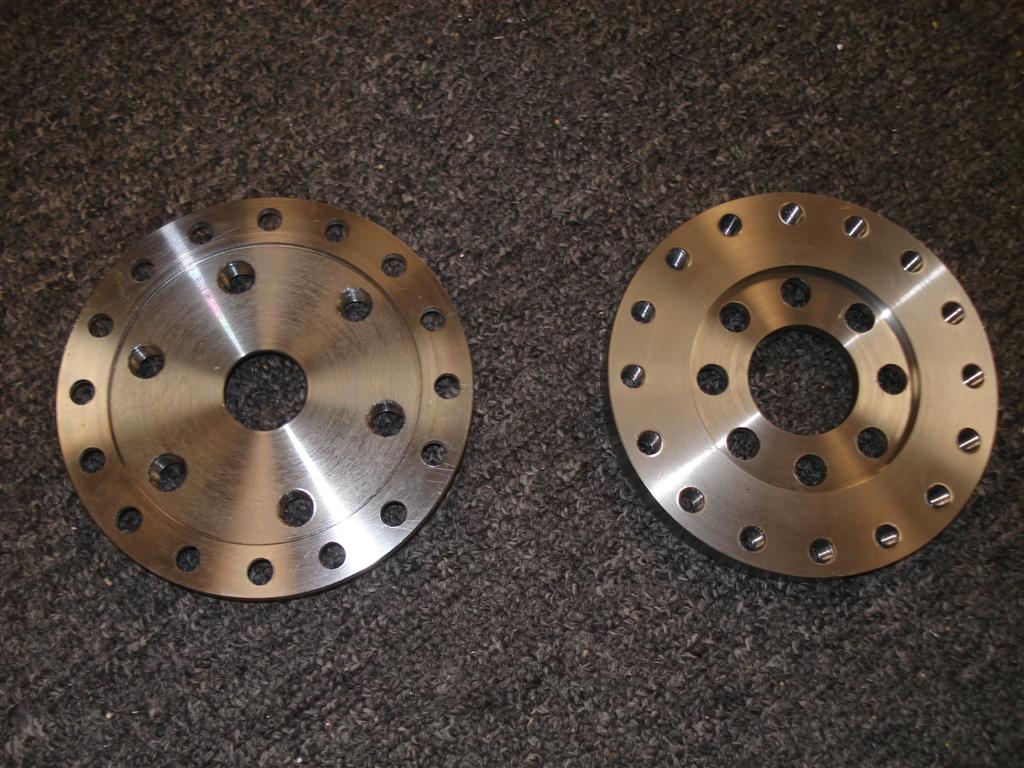

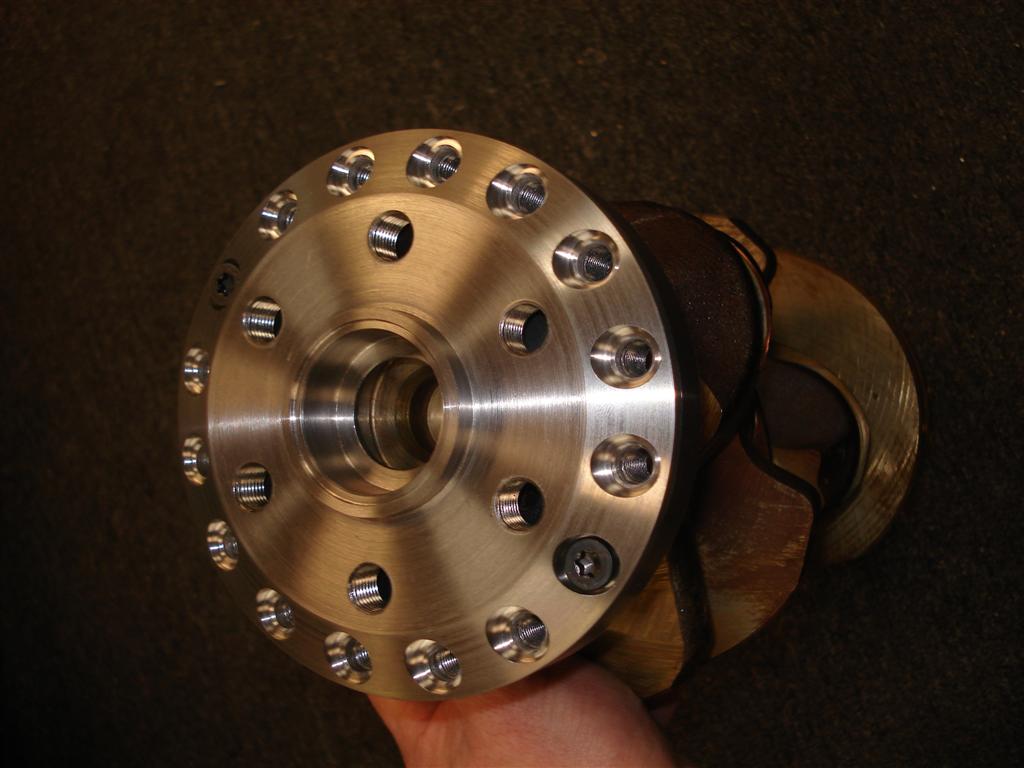

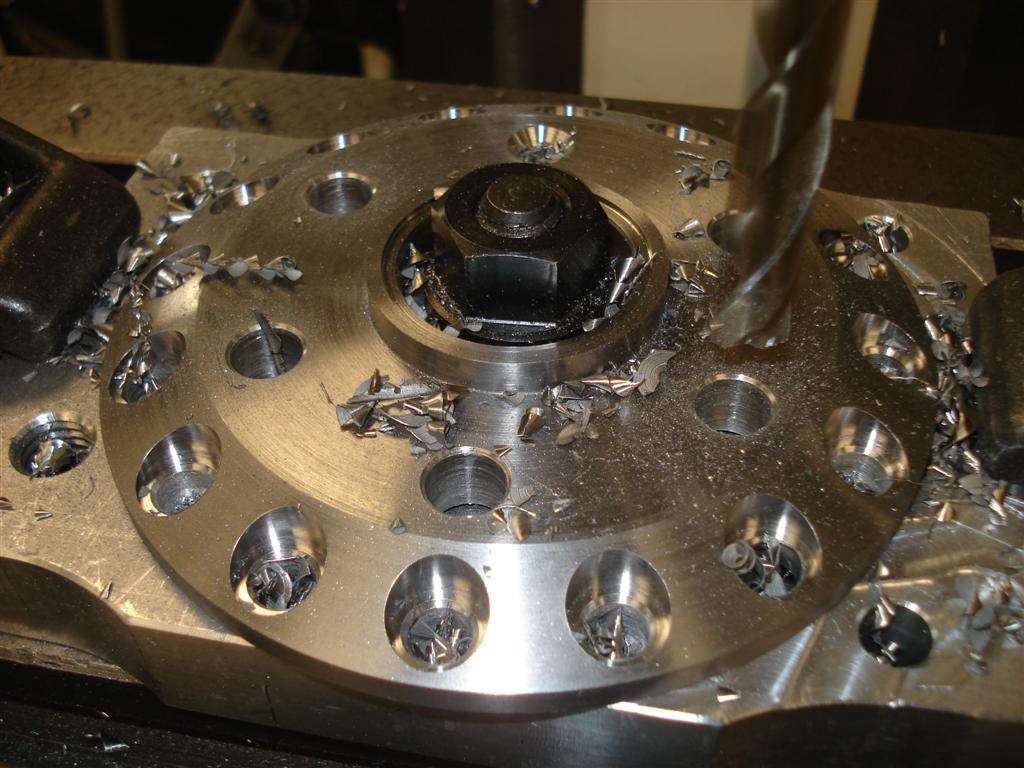

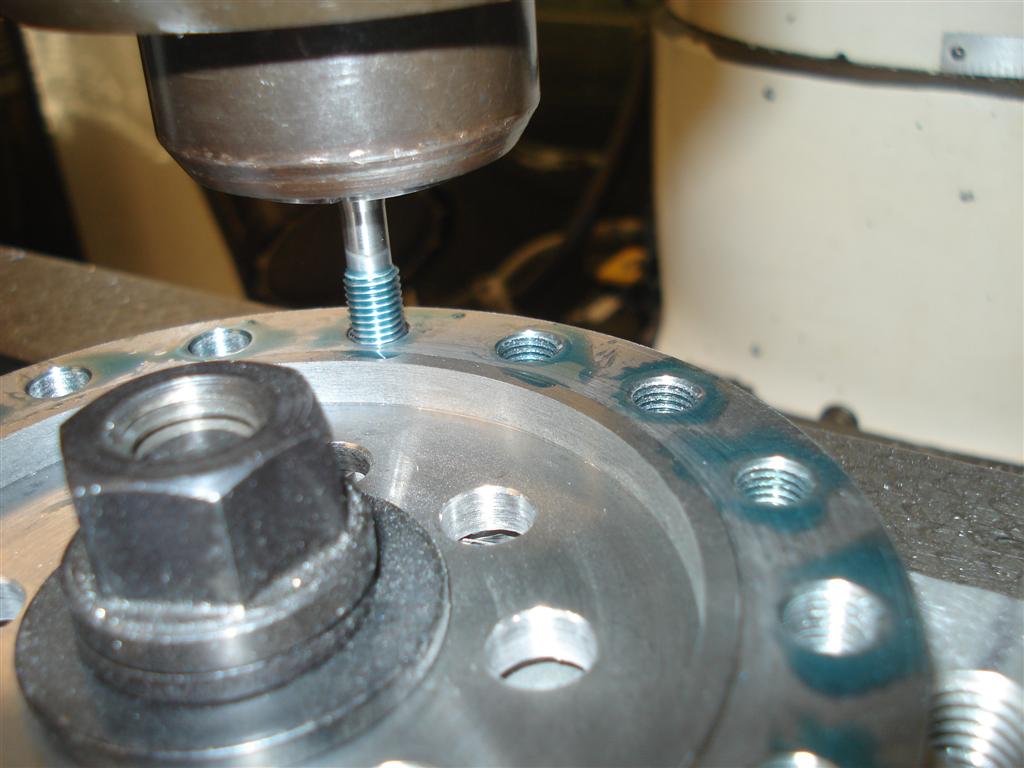

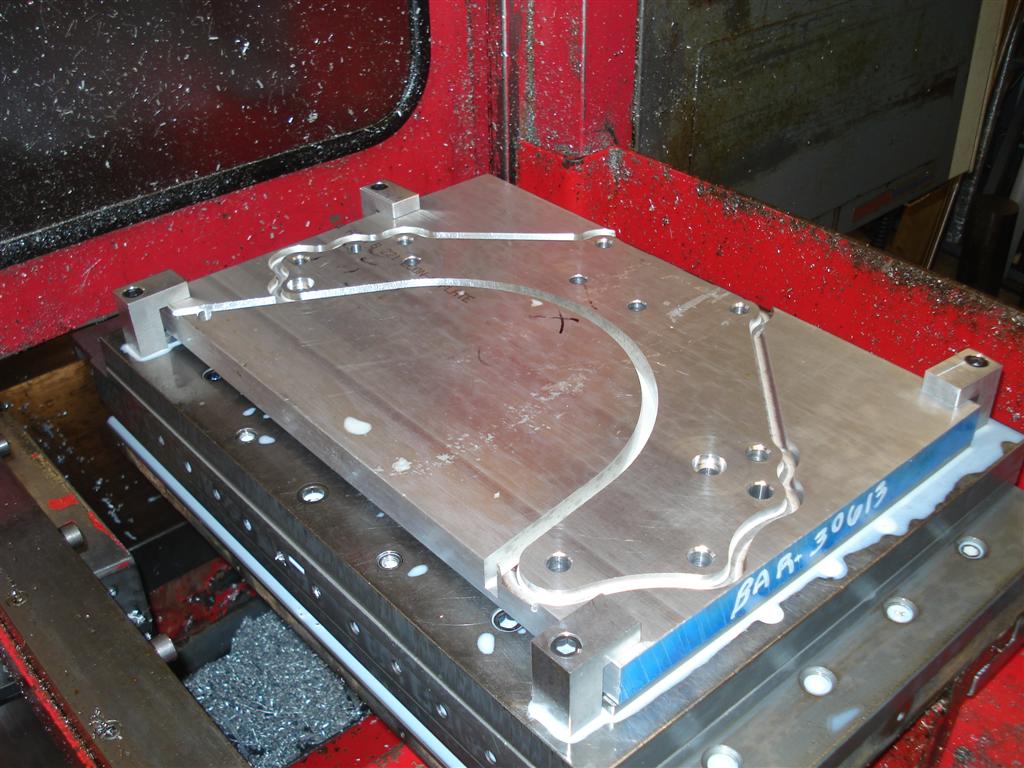

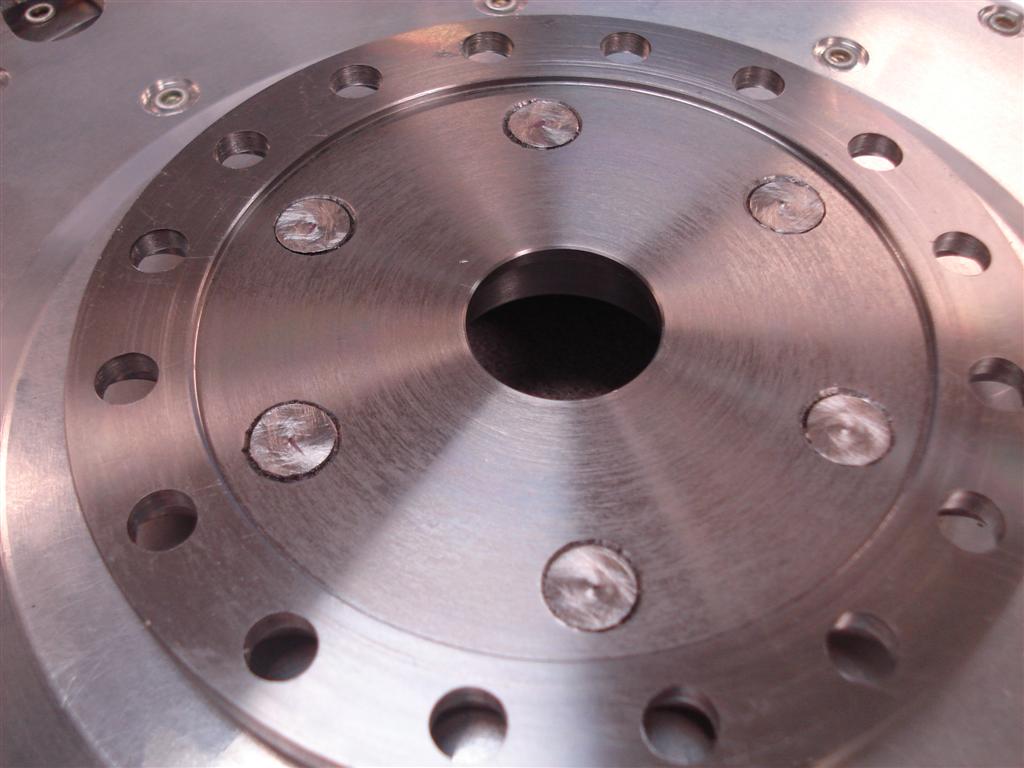

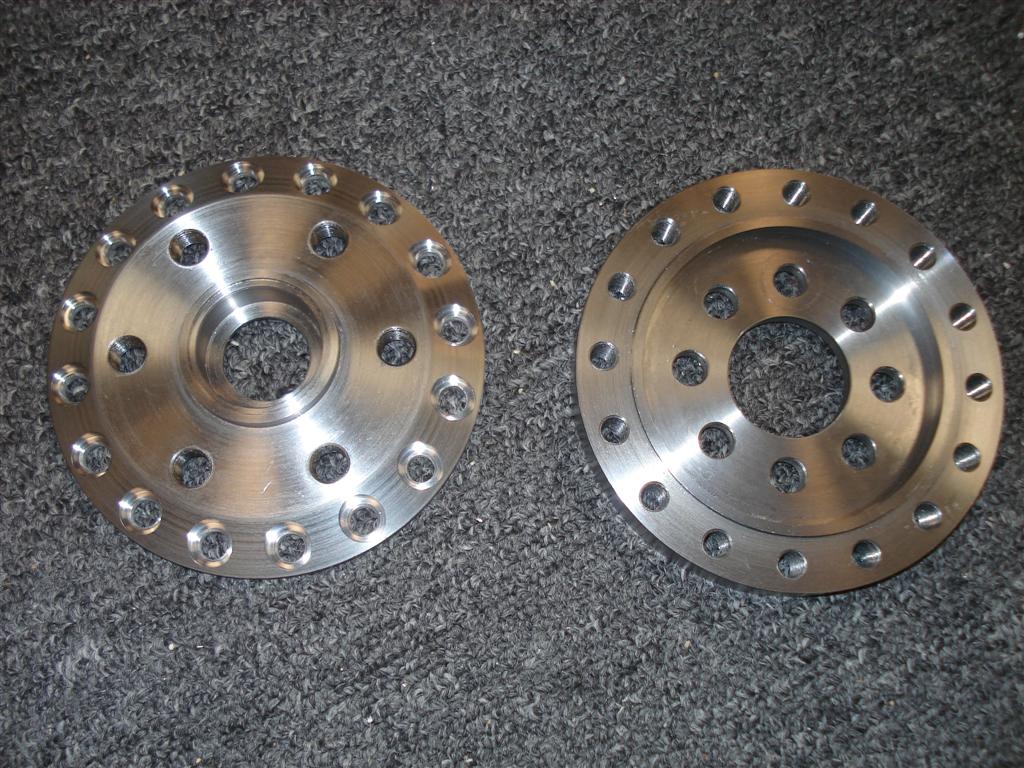

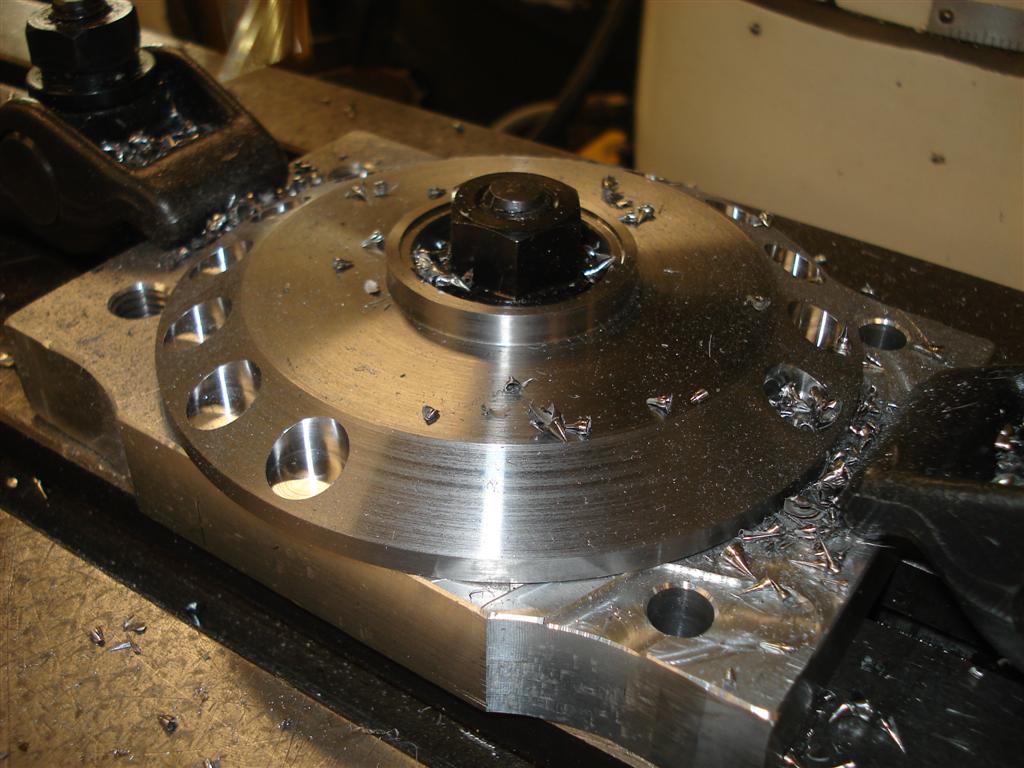

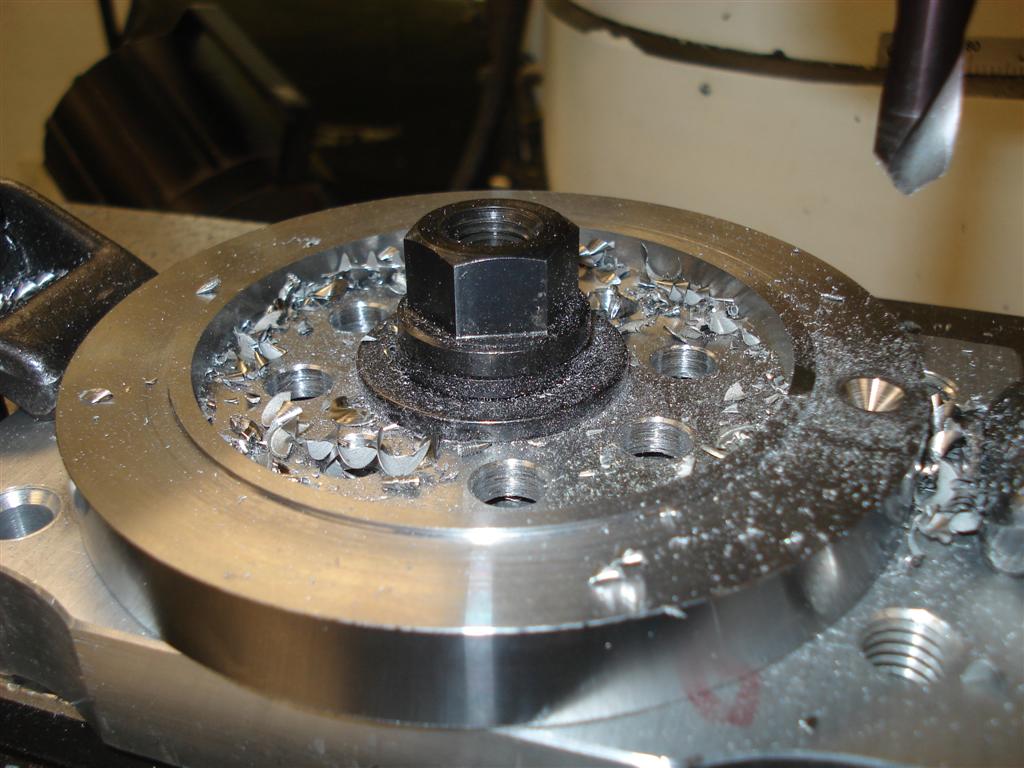

The bellhousing adapter was done in a CNC. I just modeled it in solidworks and one of the prototype guys programmed and ran it. The crank adapters were made by me on a manual lathe and an 'ez trak' equipped bridgeport. This is an old 2 axis controller that has some preprogrammed canned cycles built in, perfect for doing bolt circles or simple circle/pocket milling by someone who isn't allowed to use the fancier CNC machines like me No one here actually knew how to use it, it was only turned on to use the display as a fancy DRO. I got the manual and did the milling on my day off. Maybe i can convince them it's a POS and they should sell it to me for the scrap value.
TurboTim is offline   Reply With Quote
Old 01-24-2012, 02:47 PM   #160
Junior Member

Join Date: Aug 2008
Location: Toronto, Canada
Posts: 129
Total Cats: -1
Default

I forget the name of this badass piece of kit sitting on the bench in the background, to the right, but I take it you used it to model your engine bay in solid works, and all the components going in?

http://www.miataturbo.net/attachment...ine=1327372791

It's so nice to have this sort of equipment and resources to your disposal! Rest of us peasants are stuck using more traditional machine shops!!!
