Old 01-24-2012, 03:34 PM   #161
Elite Member
Thread Starter
iTrader: (9)

TurboTim's Avatar

Join Date: Jun 2006
Location: Chesterfield, NJ
Posts: 6,177
Total Cats: 198
Default

Ahh yeah that's the Faro arm, it creates points in space right within solidworks. I haven't measured my engine bay though, I'm not sure what sort of useful information I can get...perhaps the motor mount locations and the intercooler pipes? Shifter hole? Hmmm....

I guess now is the time to if I ever were to measure it. It's somewhat portable, I'd just need something flat and magnetic to attach it to so I don't have to make a mount. Maybe the middle of the cross member is flat enough. I'll take a look.
TurboTim is offline   Reply With Quote
Old 01-24-2012, 03:37 PM   #162
Junior Member

Join Date: Aug 2008
Location: Toronto, Canada
Posts: 129
Total Cats: -1
Default

Yes, middle of the crossframe should work great, then you model the interior dimensions of your engine bay, and start dropping in twin turbo's off the side's of the block and see how it fits!
GT42R is offline   Reply With Quote
Old 01-24-2012, 05:37 PM   #163
Elite Member
Thread Starter
iTrader: (9)

TurboTim's Avatar

Join Date: Jun 2006
Location: Chesterfield, NJ
Posts: 6,177
Total Cats: 198
Default

But I already ordered one Precision PT5858.
TurboTim is offline   Reply With Quote
Old 01-24-2012, 05:50 PM   #164
Junior Member

Join Date: Aug 2008
Location: Toronto, Canada
Posts: 129
Total Cats: -1
Default

Yea I know, but let me know if you ever do that rendering anyways! Twin internally gated 25R's or something. Hmm... think I know what I'm building next...
GT42R is offline   Reply With Quote
Old 01-24-2012, 08:47 PM   #165
Elite Member
Thread Starter
iTrader: (9)

TurboTim's Avatar

Join Date: Jun 2006
Location: Chesterfield, NJ
Posts: 6,177
Total Cats: 198
Default

I seriously thought about that, two GT2554R's. It would cost a few hundred more outright compared to the baller Precision stuff and cost more to plumb (and be more aggravating) but it would look cool. It's also been my personal experience that one properly sized single turbo works better than two properly sized parallel turbos.
TurboTim is offline   Reply With Quote
Old 01-24-2012, 09:09 PM   #166
Junior Member

Join Date: Aug 2008
Location: Toronto, Canada
Posts: 129
Total Cats: -1
Default

Quote:
Originally Posted by TurboTim View Post
It's also been my personal experience that one properly sized single turbo works better than two properly sized parallel turbos.
Totally agree with you there, but something's I like to do just for badassness; this would be one of them.
GT42R is offline   Reply With Quote
Old 01-24-2012, 10:23 PM   #167
Elite Member
iTrader: (5)

Join Date: Dec 2010
Location: Raleigh, NC
Posts: 1,968
Total Cats: 50
Default

Quote:
Originally Posted by TurboTim View Post
I seriously thought about that, two GT2554R's. It would cost a few hundred more outright compared to the baller Precision stuff and cost more to plumb (and be more aggravating) but it would look cool. It's also been my personal experience that one properly sized single turbo works better than two properly sized parallel turbos.
Don't tell that to the guys who designed the Veyron!
Seefo is offline   Reply With Quote
Old 01-25-2012, 10:21 AM   #168
Elite Member
Thread Starter
iTrader: (9)

TurboTim's Avatar

Join Date: Jun 2006
Location: Chesterfield, NJ
Posts: 6,177
Total Cats: 198
Default

OK I won't!

By your logic, if more, smaller turbos is better, I wonder why they didn't put 8 turbos on there, or 16?
TurboTim is offline   Reply With Quote
Old 01-25-2012, 10:34 AM   #169
Junior Member

Join Date: Aug 2008
Location: Toronto, Canada
Posts: 129
Total Cats: -1
Default

I think part of splitting up banks/cylinders into individual turbo's has to do with pulse timing optimization. I.E. same premise on which twin-scroll is based.

Packaging/exhaust routing constraints are probably another big one.
GT42R is offline   Reply With Quote
Old 01-25-2012, 10:40 AM   #170
Elite Member
Thread Starter
iTrader: (9)

TurboTim's Avatar

Join Date: Jun 2006
Location: Chesterfield, NJ
Posts: 6,177
Total Cats: 198
Default

I seriously thought about two GT2554R's. It would cost a few hundred more outright compared to the baller Precision stuff and cost more and be more difficult to do oil, coolant, and exhaust/intake pipes. The financial reasons above all are why I did not go with two or more turbos.
TurboTim is offline   Reply With Quote
Old 01-25-2012, 11:17 AM   #171
Junior Member

Join Date: Aug 2008
Location: Toronto, Canada
Posts: 129
Total Cats: -1
Default

Agreed, added complexity and cost of going twins never seems to be worth it for us aftermarket builders. Depends on your goals for the project as well. If it's a showcase of a badass design and build, seeing those twins would be pretty slick.
GT42R is offline   Reply With Quote
Old 01-25-2012, 11:30 AM   #172
Elite Member
iTrader: (1)

Join Date: May 2009
Location: Jacksonville, FL
Posts: 4,654
Total Cats: 209
Default

I think the problem wit the twin turbo BP was that you had the wrong cylinders paired, or that there were just not enough pulses for the turbos to be happy like that.
Even if the veyron has 4 turbos, each turbo has 4 cylinders feeding into it.
Full_Tilt_Boogie is offline   Reply With Quote
Old 01-25-2012, 12:13 PM   #173
Elite Member
iTrader: (5)

Join Date: Dec 2010
Location: Raleigh, NC
Posts: 1,968
Total Cats: 50
Default

I certainly think you made a good choice in the one big turbo here. the veyron is certainly different in that its a w16, plus there has to be a sweet spot for the performance gain from turbos compared to the number of cylinders.

I don't know ---- about ----, I was just stating that to be the devil's advocate...not meant to be serious at all!
Seefo is offline   Reply With Quote
Old 01-25-2012, 01:39 PM   #174
Senior Member
iTrader: (12)

Join Date: Jan 2007
Location: Murfreesboro,TN
Posts: 1,156
Total Cats: 27
Default

The Veyron was also build just to show case what Bugatti could do with very little consideration to cost.
Midtenn is offline   Reply With Quote
Old 01-25-2012, 03:36 PM   #175
Elite Member
iTrader: (2)

Faeflora's Avatar

Join Date: Jan 2007
Location: Los Angeles, CA
Posts: 8,763
Total Cats: 115
Default

5857 is not a big turbo. . nyah
Faeflora is offline   Reply With Quote
Old 01-25-2012, 03:52 PM   #176
Elite Member
Thread Starter
iTrader: (9)

TurboTim's Avatar

Join Date: Jun 2006
Location: Chesterfield, NJ
Posts: 6,177
Total Cats: 198
Default

I won't need much to beat you cause you'll just be burning up your tires. 5858, not 5857 too.
TurboTim is offline   Reply With Quote
Old 01-25-2012, 05:39 PM   #177
I'm Miserable!

Join Date: Dec 2011
Posts: 346
Total Cats: -222
Default

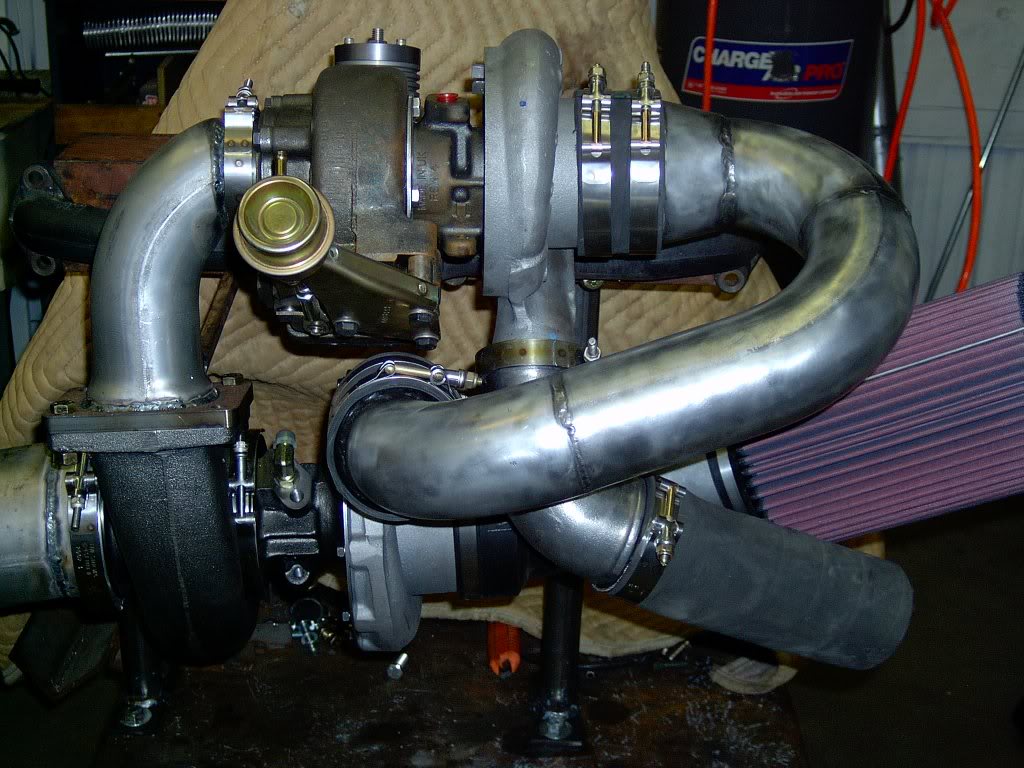

Sequential turbos?
Attached Thumbnails
ABSURDflow Turbo KLDE Mazda V6 Thread-stagedturbos.jpg
Boost Joose is offline   Reply With Quote
Old 01-27-2012, 11:39 AM   #178
Elite Member
Thread Starter
iTrader: (9)

TurboTim's Avatar

Join Date: Jun 2006
Location: Chesterfield, NJ
Posts: 6,177
Total Cats: 198
Default

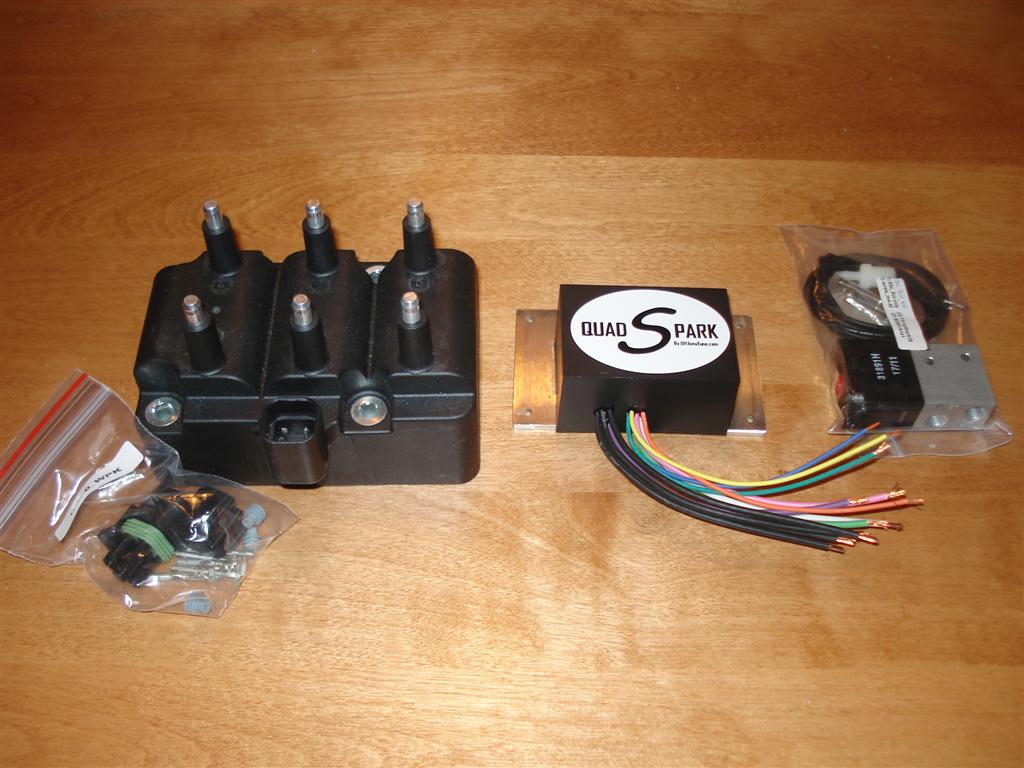

I forgot to take pics of my sweet ignition stuffs I got from DIYAutotune a while back! I got their boost control solenoid too because my 10 year old GM solenoid is starting to stick.

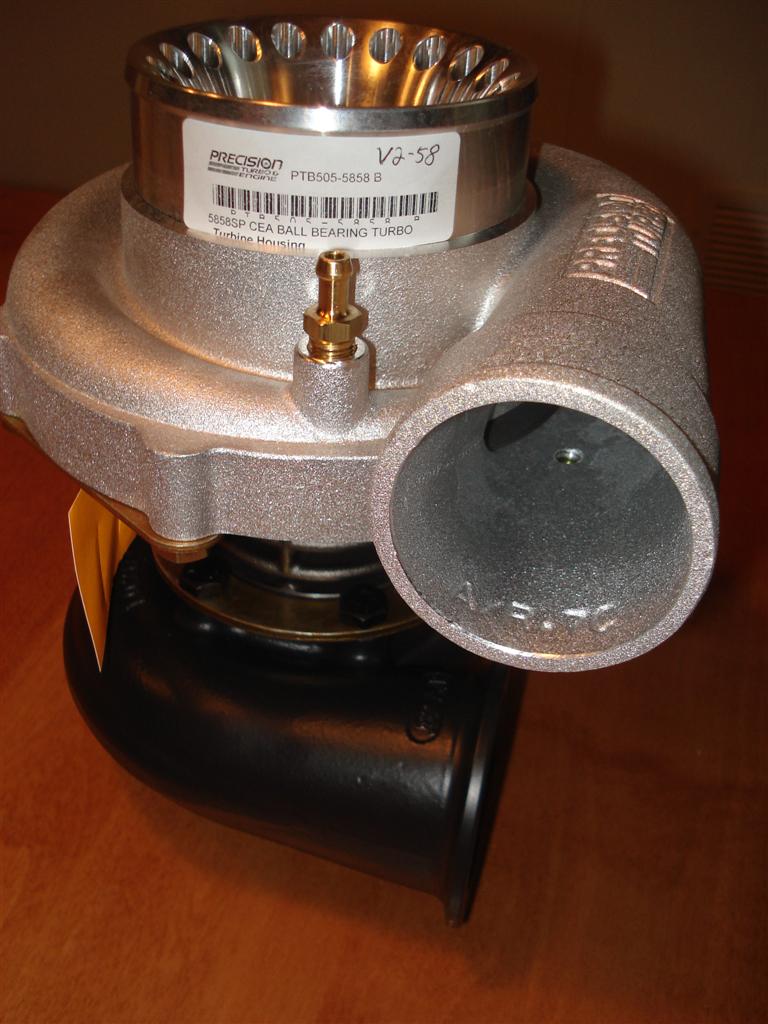

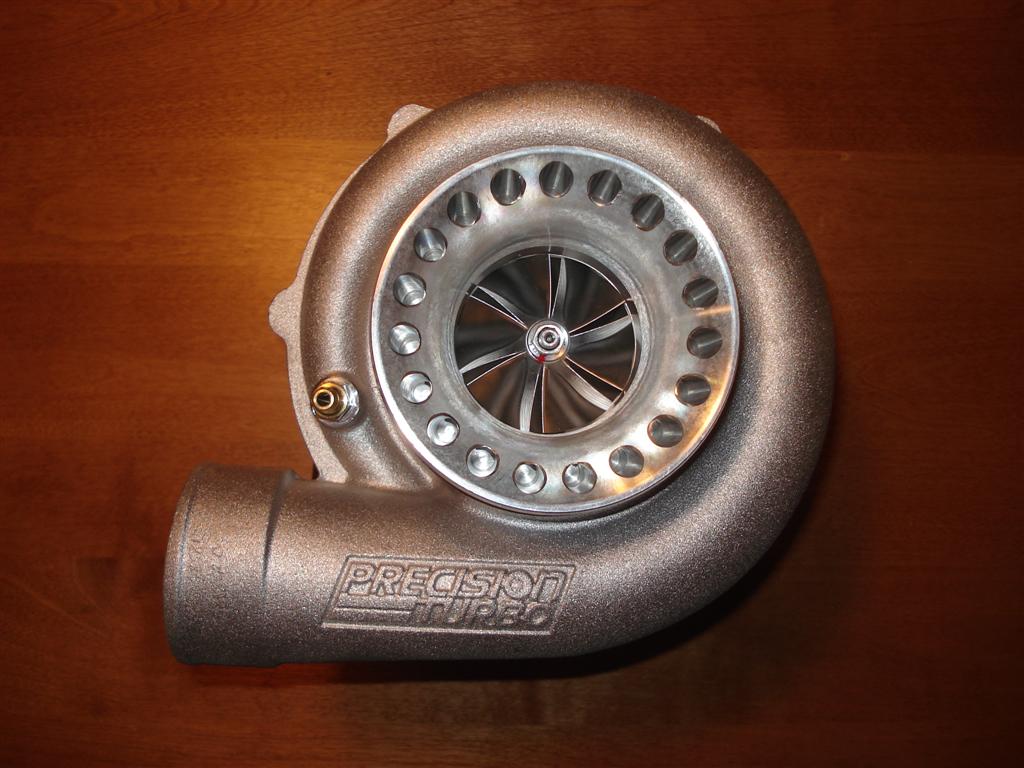

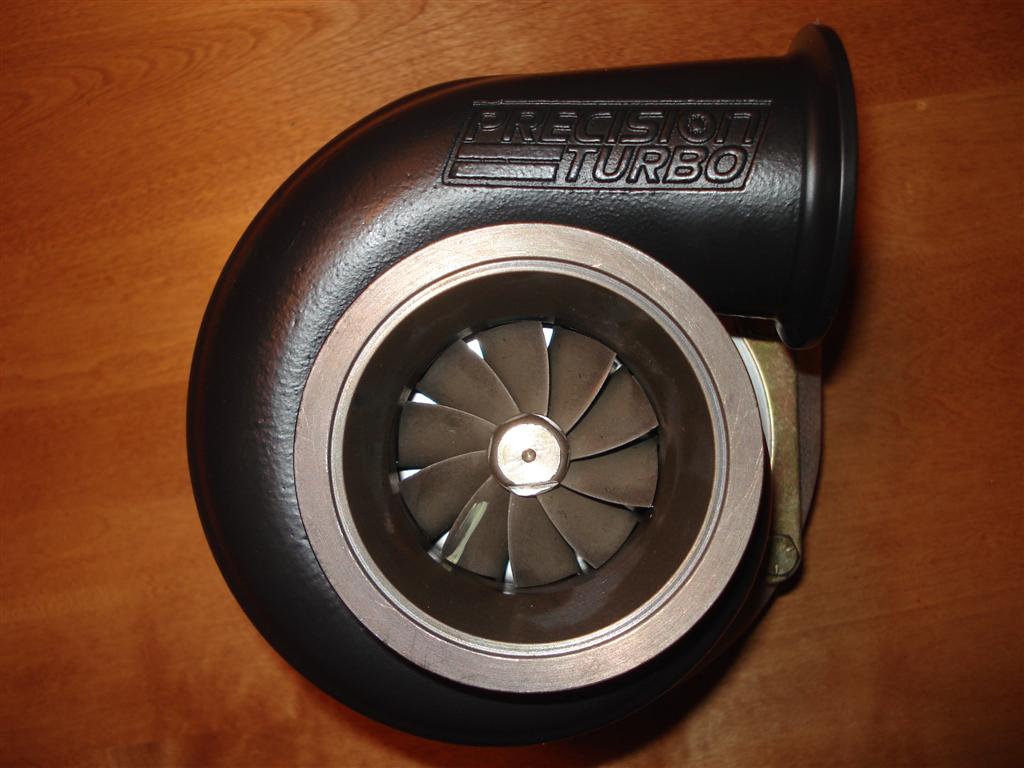

Turbo arrived today. Precision PT5858CEA with ported S cover, ceramic ball bearing, billet wheel, ceramic coated vband turbine. The stainless turbine housing ETA is the middle/end of this summer, oh well. And I think I'm a precision dealer now








46mm EWG is backordered, should arrive in a few weeks.
Attached Thumbnails
ABSURDflow Turbo KLDE Mazda V6 Thread-ignition.jpg   ABSURDflow Turbo KLDE Mazda V6 Thread-pt5858a.jpg   ABSURDflow Turbo KLDE Mazda V6 Thread-pt5858b.jpg   ABSURDflow Turbo KLDE Mazda V6 Thread-pt5858c.jpg
TurboTim is offline   Reply With Quote
Old 01-27-2012, 11:43 AM   #179
Junior Member

Join Date: Aug 2008
Location: Toronto, Canada
Posts: 129
Total Cats: -1
Default

Curious. What's the a/r on the vband turbine housing? Also, how big is the inlet diameter?
GT42R is offline   Reply With Quote
Old 01-27-2012, 11:51 AM   #180
Elite Member
Thread Starter
iTrader: (9)

TurboTim's Avatar

Join Date: Jun 2006
Location: Chesterfield, NJ
Posts: 6,177
Total Cats: 198
Default

.82 a/r turbine. The inlet flange is about 2.050".

4" inlet, 2.5" outlet compressor.
TurboTim is offline   Reply With Quote
