Old 04-06-2016, 04:20 PM   #461
Supporting Vendor
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 13,734
Total Cats: 981
Default

The blue rotors indicate a proper transfer layer and proper operation. No need to worry
Savington is offline   Reply With Quote
Old 04-06-2016, 06:48 PM   #462
Moderator
iTrader: (11)

sixshooter's Avatar

Join Date: Nov 2008
Location: Tampa, FL
Posts: 14,094
Total Cats: 1,168
Default

Nice brakes. Now you need very sticky tires. Try to find used race tires in the correct size for track days.
sixshooter is offline   Reply With Quote
Old 04-10-2016, 01:09 PM   #463
Junior Member
Thread Starter

Join Date: Nov 2013
Location: Sardinia, Italy
Posts: 369
Total Cats: 49
Default

I've broke my first 6spd gearbox

I'm cruising at 100 kph to home now, without 4th gear, it's making terrible sounds
DNA54 is offline   Reply With Quote
Old 04-10-2016, 05:59 PM   #464
Moderator
iTrader: (11)

sixshooter's Avatar

Join Date: Nov 2008
Location: Tampa, FL
Posts: 14,094
Total Cats: 1,168
Default

What flywheel are you using?
sixshooter is offline   Reply With Quote
Old 04-10-2016, 06:05 PM   #465
Junior Member
Thread Starter

Join Date: Nov 2013
Location: Sardinia, Italy
Posts: 369
Total Cats: 49
Default

Stock one, I think that it can help to suppress the crankshaft pulses before they go into the gearbox
DNA54 is offline   Reply With Quote
Old 04-11-2016, 04:11 AM   #466
Junior Member
Thread Starter

Join Date: Nov 2013
Location: Sardinia, Italy
Posts: 369
Total Cats: 49
Default

DNA54 is offline   Reply With Quote
Old 04-11-2016, 06:55 AM   #467
Moderator
iTrader: (11)

sixshooter's Avatar

Join Date: Nov 2008
Location: Tampa, FL
Posts: 14,094
Total Cats: 1,168
Default

Quote:
Originally Posted by DNA54 View Post
Stock one, I think that it can help to suppress the crankshaft pulses before they go into the gearbox
Yes. That's why I asked.

How much power are you making now?
sixshooter is offline   Reply With Quote
Old 04-11-2016, 07:26 AM   #468
Junior Member
Thread Starter

Join Date: Nov 2013
Location: Sardinia, Italy
Posts: 369
Total Cats: 49
Default

Around 300, but driving hard...
Now I'm swapping another 6 spd and the efr 6758
DNA54 is offline   Reply With Quote
Old 04-11-2016, 08:53 AM   #469
Junior Member

Join Date: Nov 2013
Location: Sicily
Posts: 103
Total Cats: 3
Default

Quote:
Originally Posted by DNA54 View Post
Around 300, but driving hard...
Now I'm swapping another 6 spd and the efr 6758
Should be not so hard as you still got 5 gears...


So let's see how will go with efr...
Pepino is offline   Reply With Quote
Old 04-11-2016, 11:08 PM   #470
Senior Member

Join Date: Aug 2009
Location: Long Island, NY
Posts: 576
Total Cats: 0
Default

Thanks for posting the build DNA54 really enjoy reading it. Also I am moving to Ireland soon and plan to do my own turbo build so its nice to know I can get parts in Europe haha
02semiata is offline   Reply With Quote
Old 04-13-2016, 08:32 AM   #471
Junior Member
Thread Starter

Join Date: Nov 2013
Location: Sardinia, Italy
Posts: 369
Total Cats: 49
Default

The clutch is gone, 1.5mm abrasion on the flywheel, time for a new one.
Since I'm in Italy I have to wait at least one month for a new clutch, so I'm using the same until it arrives

The gearbox is in btw
DNA54 is offline   Reply With Quote
Old 04-13-2016, 08:34 AM   #472
Junior Member
Thread Starter

Join Date: Nov 2013
Location: Sardinia, Italy
Posts: 369
Total Cats: 49
Default

Quote:
Originally Posted by 02semiata View Post
Thanks for posting the build DNA54 really enjoy reading it. Also I am moving to Ireland soon and plan to do my own turbo build so its nice to know I can get parts in Europe haha
If you need it, I'm selling the entire exhaust setup (manifold, gt2560r, 2.5" exhaust) since I'm swapping the trackspeed efr setup
DNA54 is offline   Reply With Quote
Old 04-16-2016, 03:20 PM   #473
Junior Member
Thread Starter

Join Date: Nov 2013
Location: Sardinia, Italy
Posts: 369
Total Cats: 49
Default

I'm coming from a trackday, the car was terrible.. I've had to run just 6 psi because, well... with street tyres I really see the limits of the stock suspensions.
The car was "jumping" from a turn to another and oversteer was real, funny, but laptimes are slow.. terrible!

I'm looking at the tein flex z now, great price!
DNA54 is offline   Reply With Quote
Old 04-16-2016, 06:41 PM   #474
Moderator
iTrader: (11)

sixshooter's Avatar

Join Date: Nov 2008
Location: Tampa, FL
Posts: 14,094
Total Cats: 1,168
Default

Have you seen the DIY Bilstein coilover thread? I can send you parts if you need them.
sixshooter is offline   Reply With Quote
Old 04-17-2016, 02:37 PM   #475
Junior Member
Thread Starter

Join Date: Nov 2013
Location: Sardinia, Italy
Posts: 369
Total Cats: 49
Default

Quote:
Originally Posted by sixshooter View Post
Have you seen the DIY Bilstein coilover thread? I can send you parts if you need them.
yes, but I need 4 things:
-stock height && adjustable (or similar, but not slammed)
-adjustable damping force
-I must adjust the dampening in short time, so without taking off the wheel
-no more than 6/7 kg/mm (336/392 lbs/in)

blisteins are not adjustable, and I want to choose good and choose once, so I have two ways:

tein flex z: TEIN Flex-Z Coilover Kit (With Upper Mount) FRONT 392 lbs/in, REAR 336 lbs/in. for Miata

and the maxspeedingrods, chinese I suppose, but the springs are 1 kg over what I'm looking for (336/448 lbs/in): High Performance 90-98 Mazda Miata MX5 24 Ways Adjustable Coilover Suspension Kits - Maxspeedingrods.co.uk

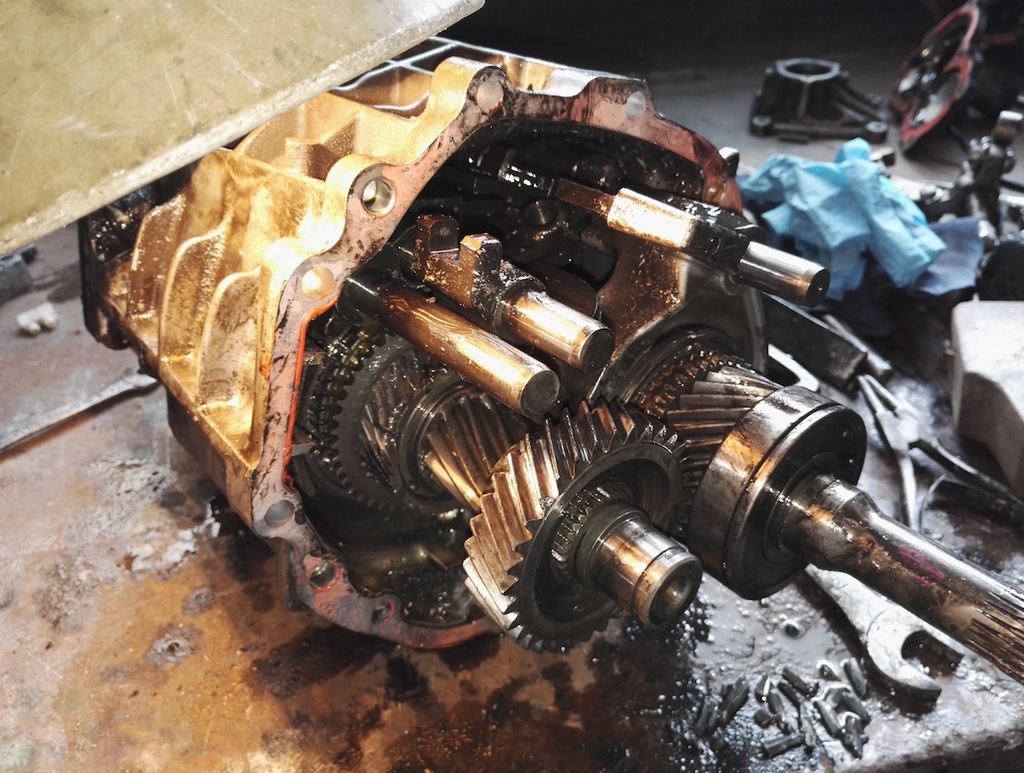

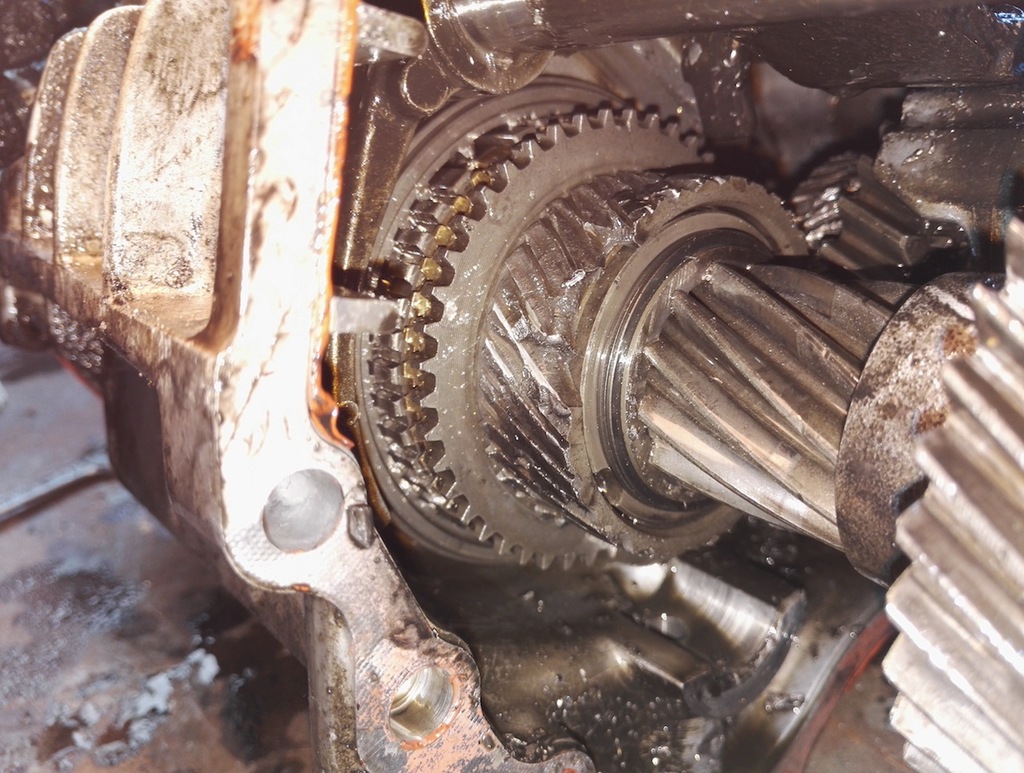

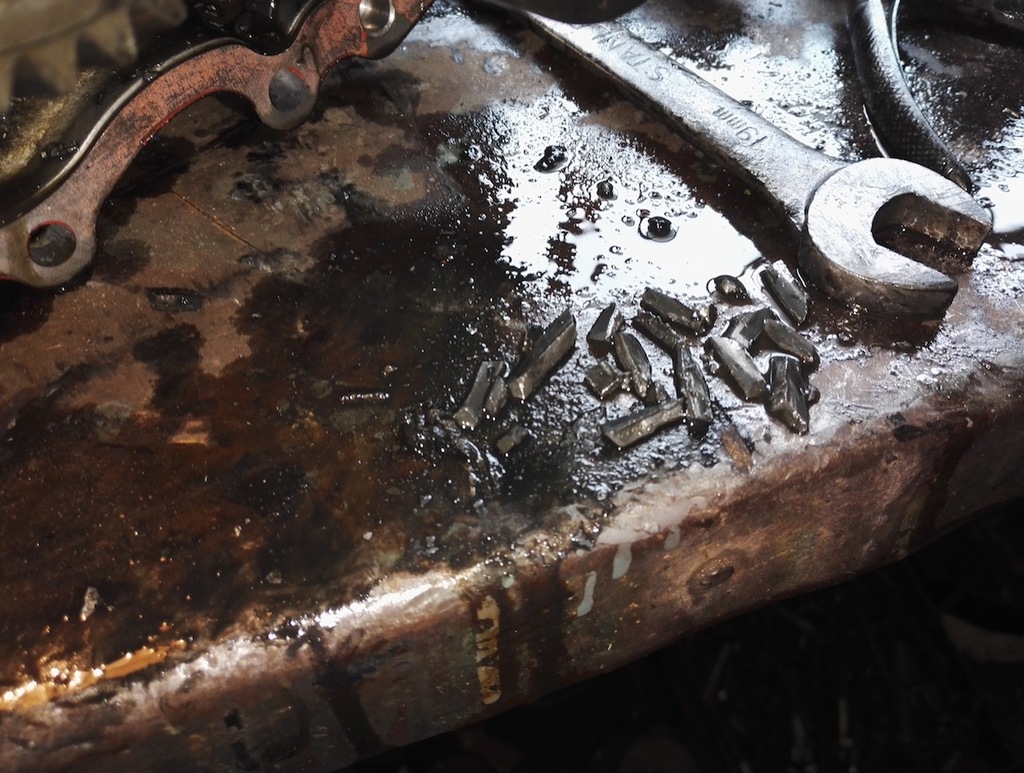

Today I opened the gearbox:







and for those who love hi-res: http://i1379.photobucket.com/albums/...psflucpovg.jpg
Attached Thumbnails
diy "turbo no hit block" '00 BP miata-img_20160417_173758_zpsq3jondzj.jpg   diy "turbo no hit block" '00 BP miata-img_20160417_173805_zpshtknuafo.jpg   diy "turbo no hit block" '00 BP miata-img_20160417_173753%2520copia_zpsbyo47mrs.jpg
DNA54 is offline   Reply With Quote
Old 04-17-2016, 03:35 PM   #476
I take big bites
iTrader: (1)

turbofan's Avatar

Join Date: Sep 2010
Location: Portland, OR
Posts: 6,120
Total Cats: 426
Default

Why the requirement for such low spring rates?
turbofan is offline   Reply With Quote
Old 04-17-2016, 03:37 PM   #477
Junior Member
Thread Starter

Join Date: Nov 2013
Location: Sardinia, Italy
Posts: 369
Total Cats: 49
Default

because it's my daily car, and I like to enjoy street driving too, I don't want a track only car
DNA54 is offline   Reply With Quote
Old 04-17-2016, 05:58 PM   #478
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 33,845
Total Cats: 2,123
Default

forget the maxspeedingjunk. don't even consider it
18psi is offline   Reply With Quote
Old 04-17-2016, 06:23 PM   #479
I take big bites
iTrader: (1)

turbofan's Avatar

Join Date: Sep 2010
Location: Portland, OR
Posts: 6,120
Total Cats: 426
Default

Quality shocks will give you a good ride. Xidas at a lower spring rate with ride fantastic. I had FCMs at 550/350 rates and the ride was phenomenal.
turbofan is offline   Reply With Quote
Old 04-18-2016, 07:41 PM   #480
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 8,820
Total Cats: 92
Default

You dont need adjustable ****.
Leafy is offline   Reply With Quote
