Old 04-20-2016, 02:49 PM   #481
Junior Member
Thread Starter

Join Date: Nov 2013
Location: Sardinia, Italy
Posts: 369
Total Cats: 49
Default

Attached Thumbnails

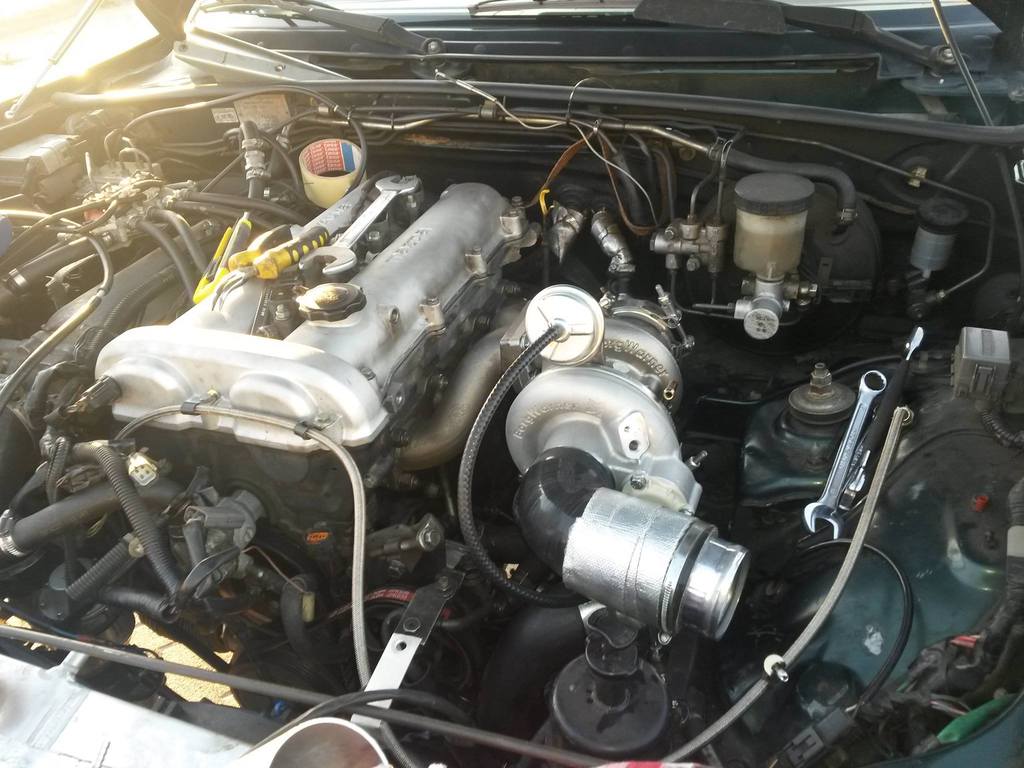

diy "turbo no hit block" '00 BP miata-13002612_10209667722153777_6542800640583676910_o_zpsji0yf74t.jpg
DNA54 is offline   Reply With Quote
Old 04-20-2016, 02:58 PM   #482
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 33,829
Total Cats: 2,122
Default

ooh, nice

you'll be able to break so many more things now
18psi is offline   Reply With Quote
Old 04-20-2016, 04:08 PM   #483
mkturbo.com
iTrader: (24)

shuiend's Avatar

Join Date: May 2006
Location: Charleston SC
Posts: 12,702
Total Cats: 847
Default

Quote:
Originally Posted by DNA54 View Post
You going to build your own DP or wait for the TSE one?
shuiend is offline   Reply With Quote
Old 04-20-2016, 05:30 PM   #484
Moderator
iTrader: (10)

sixshooter's Avatar

Join Date: Nov 2008
Location: Tampa, FL
Posts: 14,094
Total Cats: 1,168
Default

Adjustable shocks for for people with incorrect spring rates and bad shock damping. A good shock will be good on the street and track. A 450/300 rate with Bilstein "Hard S" valving was the best combination I have used for controlled comfort and some track driving on treaded tires. You only need stronger springs with gummy slicks. I wouldn't steer you wrong. And it will work fine at stock height.
sixshooter is offline   Reply With Quote
Old 04-21-2016, 04:48 PM   #485
Junior Member
Thread Starter

Join Date: Nov 2013
Location: Sardinia, Italy
Posts: 369
Total Cats: 49
Default

Quote:
Originally Posted by 18psi View Post
ooh, nice

you'll be able to break so many more things now
don't tell me this please!



Quote:
Originally Posted by shuiend View Post
You going to build your own DP or wait for the TSE one?
wait? Are you sayin that I can... wait?

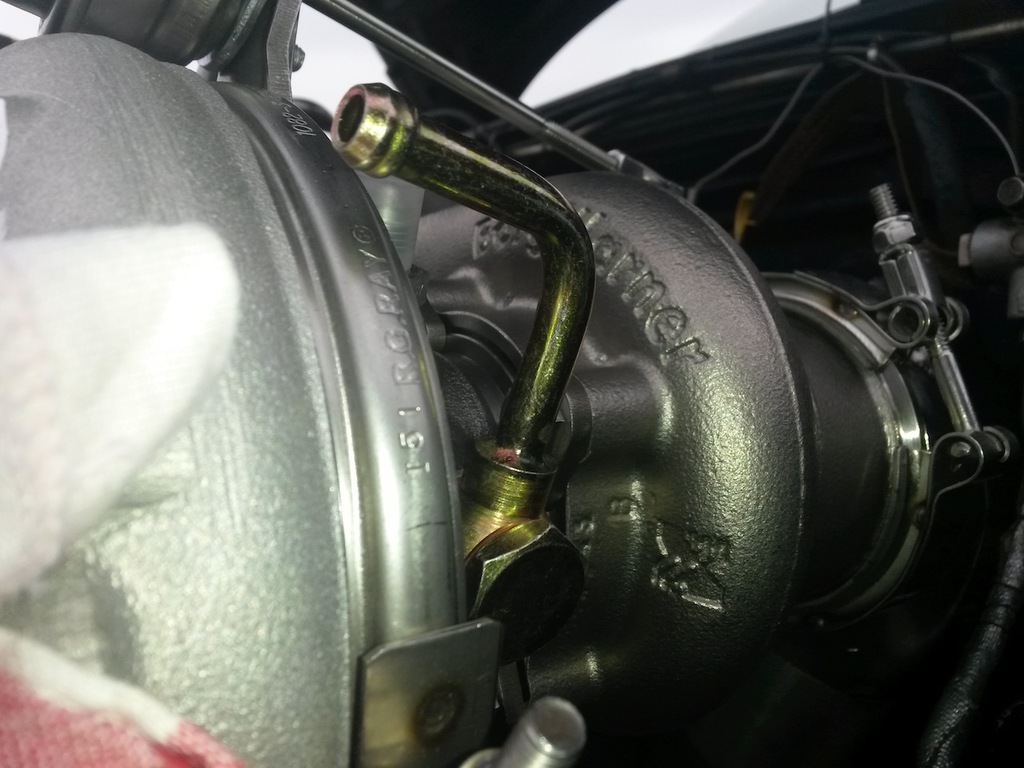

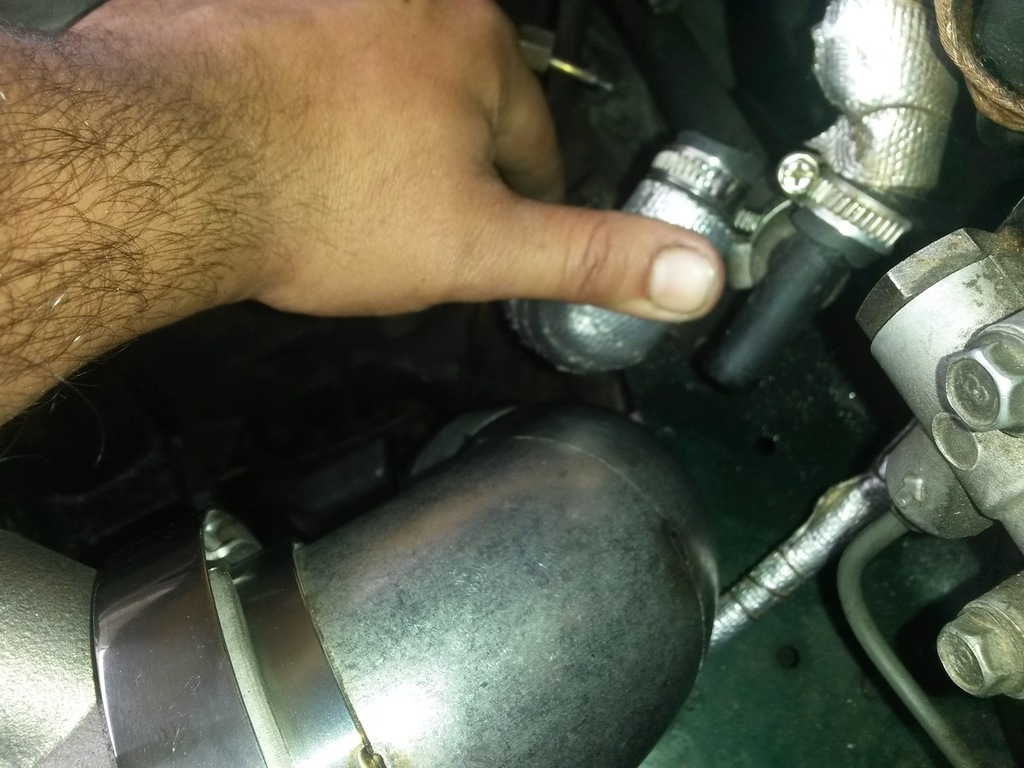

these are the water ports

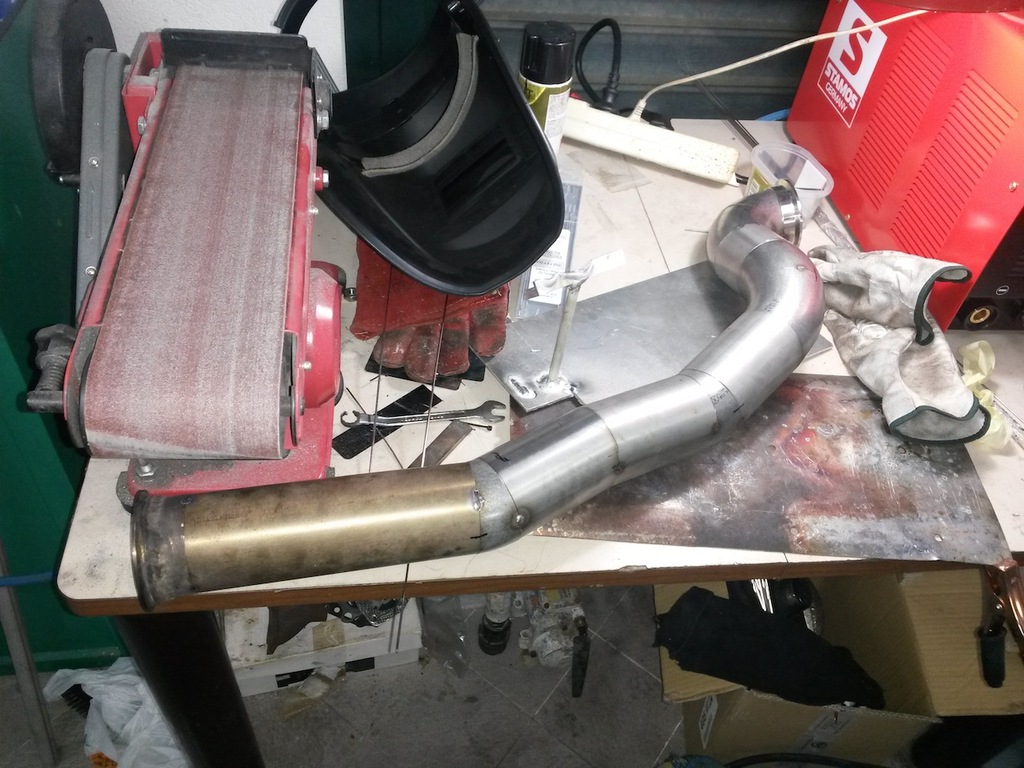

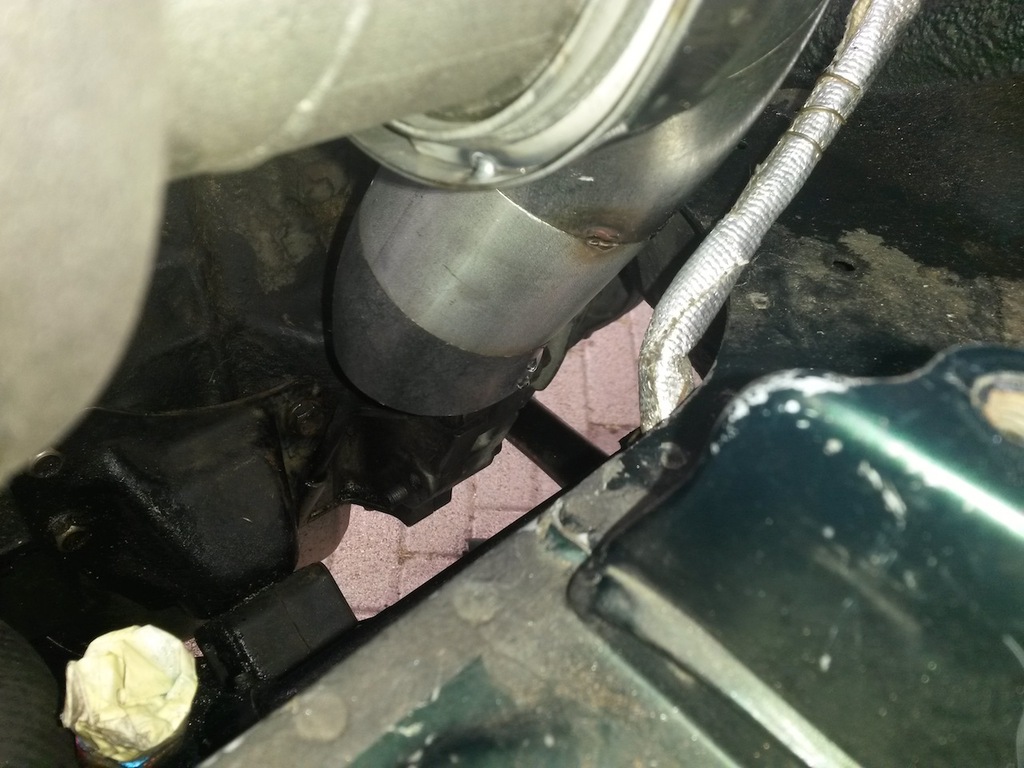

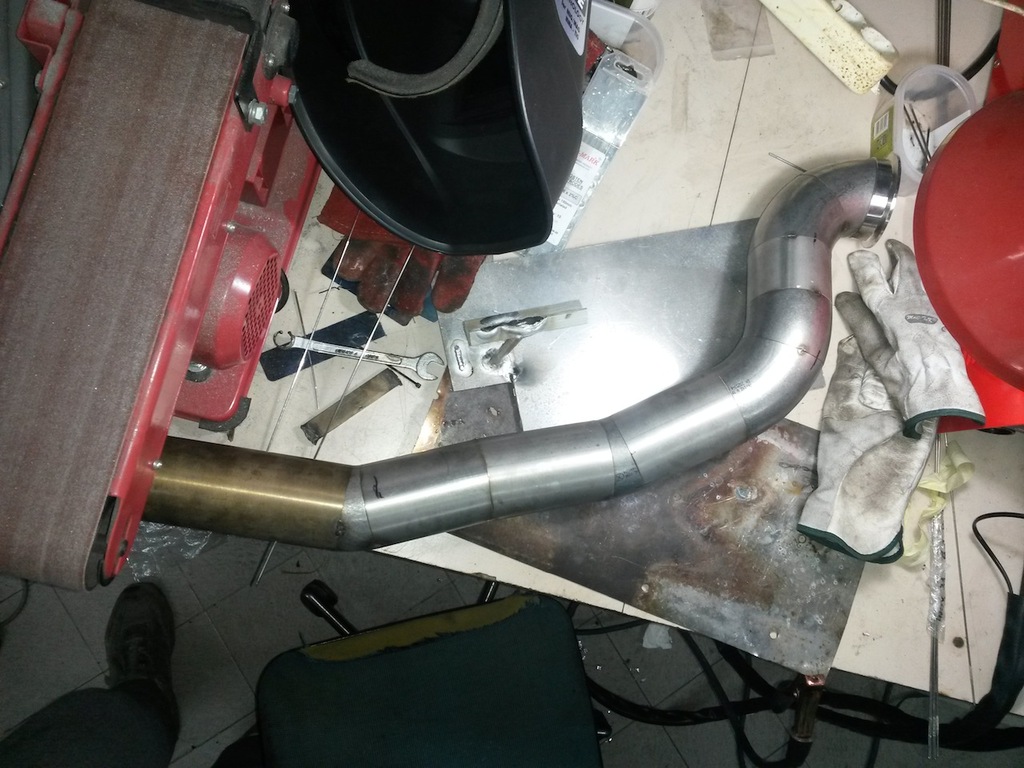

And... done!

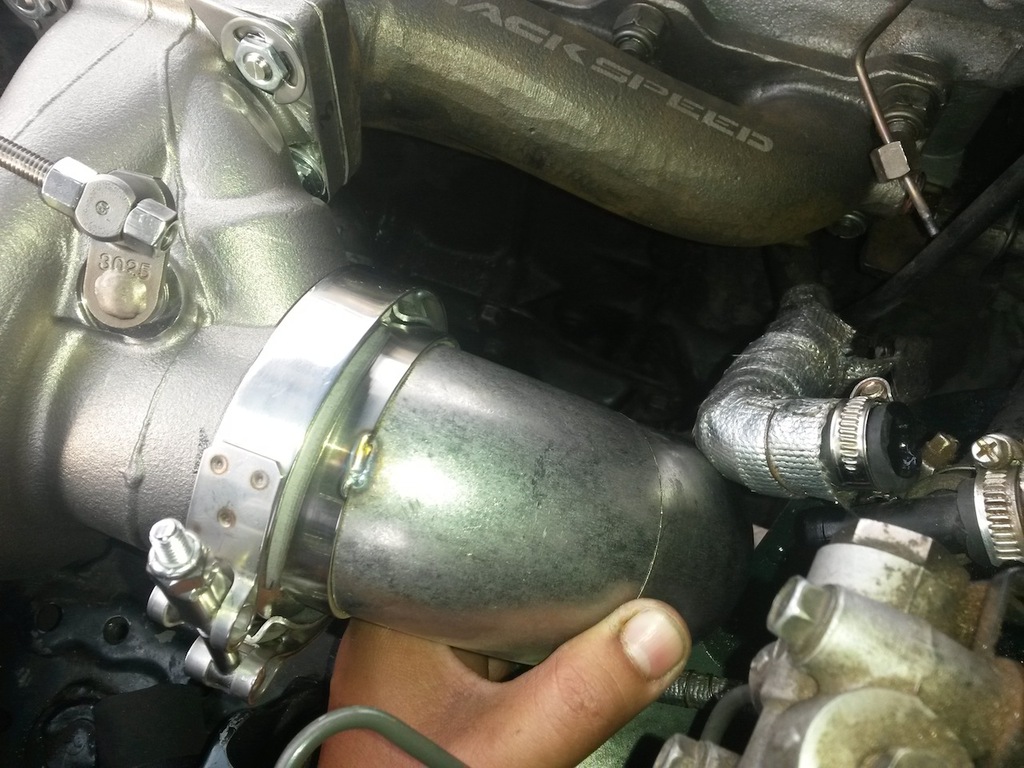

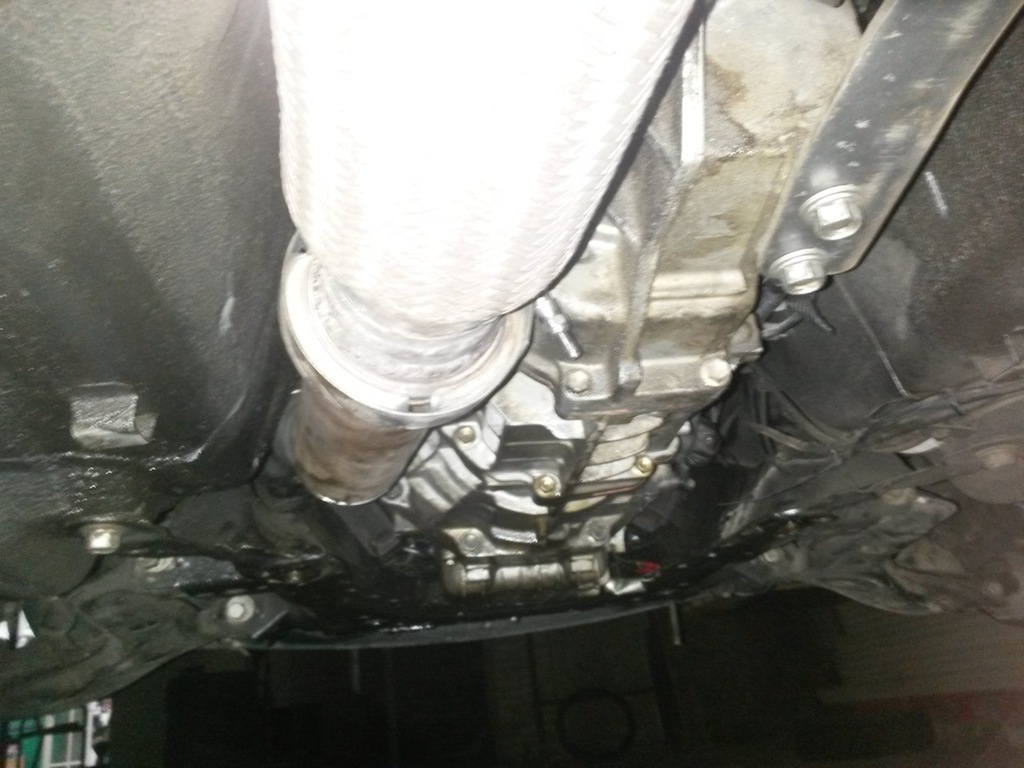

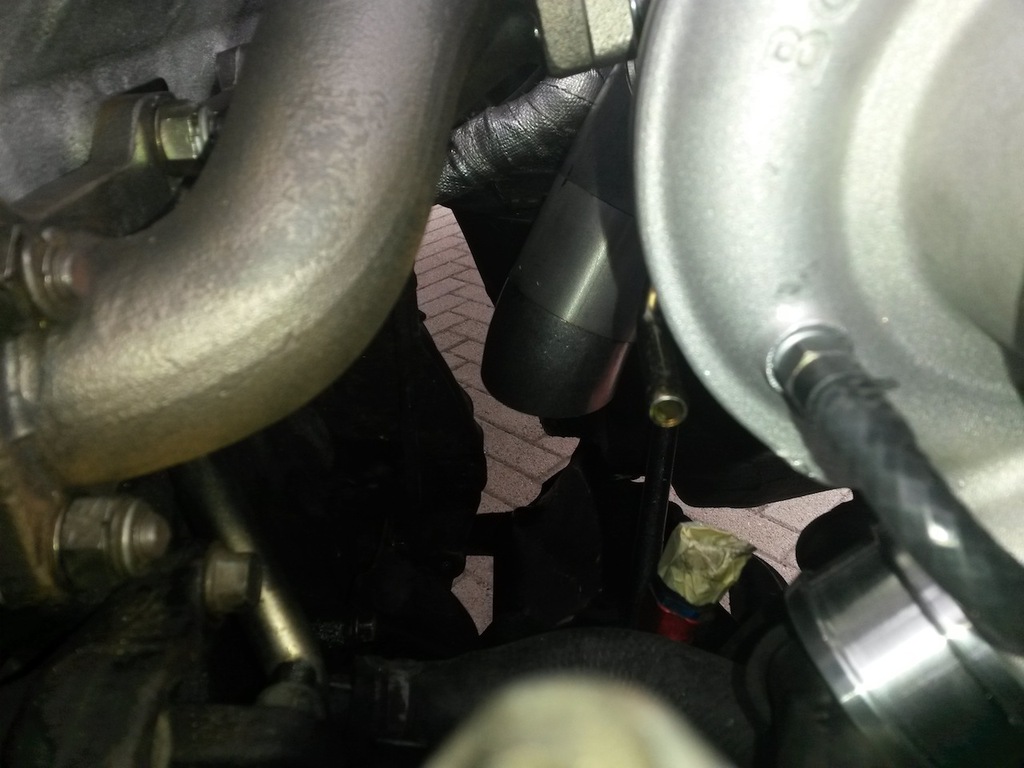

The only way to install the downpipe is from the upside, removing the rod under the gearbox. That's the only thing required to install it, after that it can be reinstalled


Quote:
Originally Posted by sixshooter View Post
Adjustable shocks for for people with incorrect spring rates and bad shock damping. A good shock will be good on the street and track. A 450/300 rate with Bilstein "Hard S" valving was the best combination I have used for controlled comfort and some track driving on treaded tires. You only need stronger springs with gummy slicks. I wouldn't steer you wrong. And it will work fine at stock height.
I could try this solution, but where I can find the right springs?
Attached Thumbnails

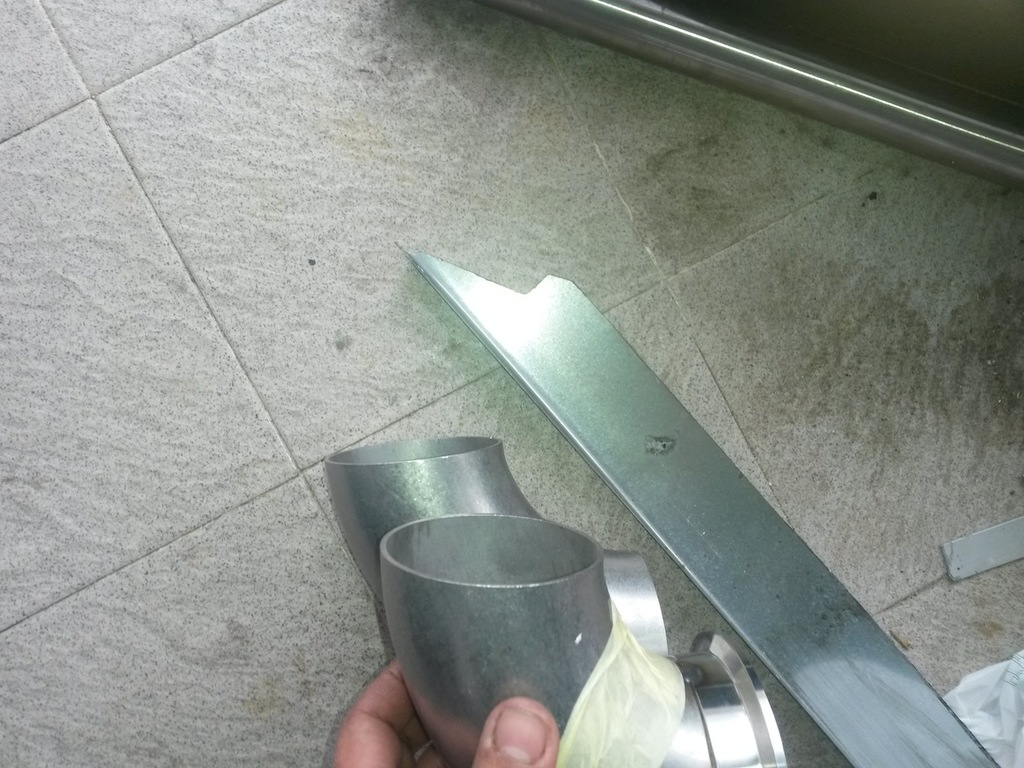

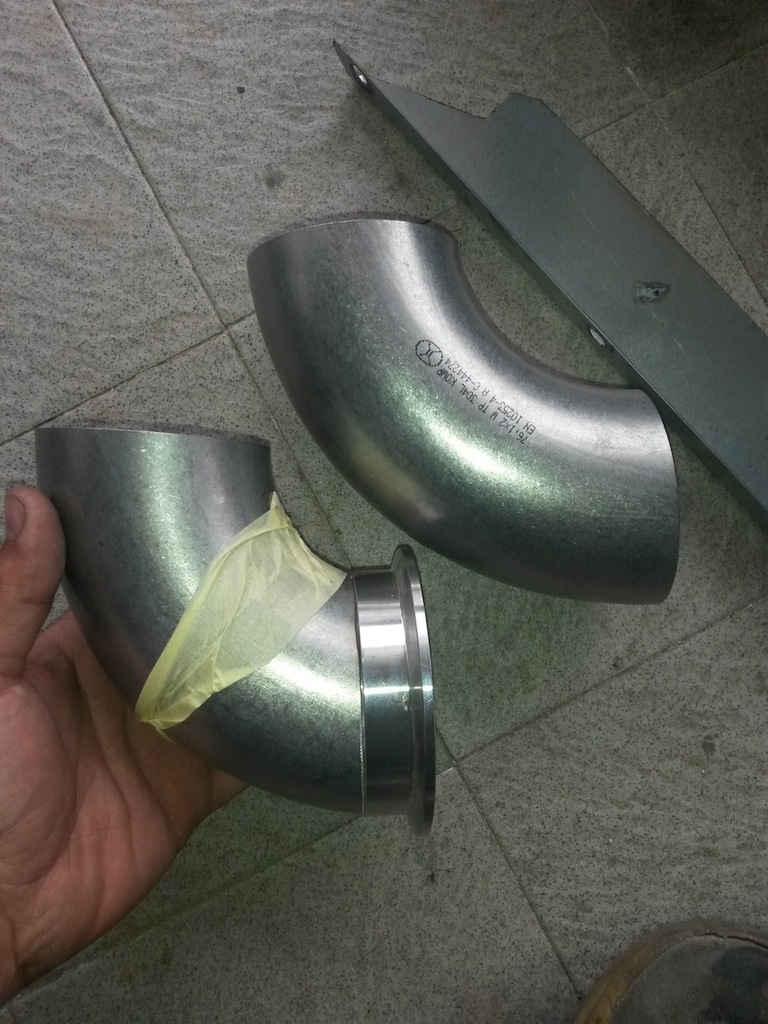

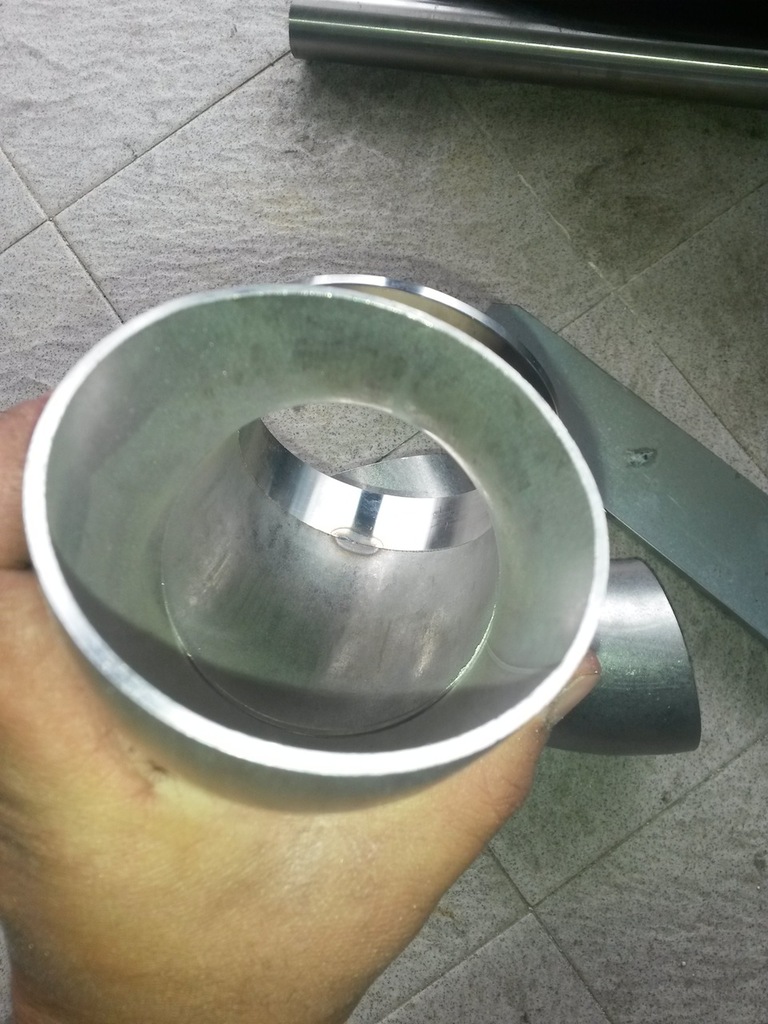

diy "turbo no hit block" '00 BP miata-20160421_081210_zpszhikxojh.jpg   diy "turbo no hit block" '00 BP miata-20160421_133124_zpsdfpyphwx.jpg   diy "turbo no hit block" '00 BP miata-20160421_133130_zpsb2bqnyv1.jpg   diy "turbo no hit block" '00 BP miata-20160421_133151_zpstcsvhre3.jpg   diy "turbo no hit block" '00 BP miata-20160421_143418_zpsobyhixgc.jpg

diy "turbo no hit block" '00 BP miata-20160421_143426_zpsicszlx0i.jpg   diy "turbo no hit block" '00 BP miata-20160421_143437_zpsvqtktph7.jpg   diy "turbo no hit block" '00 BP miata-20160421_143447_zps5wztq1c4.jpg   diy "turbo no hit block" '00 BP miata-20160421_203223_zpsl3wp3poc.jpg   diy "turbo no hit block" '00 BP miata-20160421_203228_zpsixwdt5rf.jpg

diy "turbo no hit block" '00 BP miata-20160421_204943_zpstpuuiile.jpg
DNA54 is offline   Reply With Quote
Old 04-21-2016, 05:02 PM   #486
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 33,829
Total Cats: 2,122
Default

hahaha this guy doesnt wait

he will have broken and rebuilt his 4 times by the time some of the other people will just be receiving theirs
18psi is offline   Reply With Quote
Old 04-21-2016, 05:24 PM   #487
Elite Member
iTrader: (1)

Join Date: Jun 2014
Location: Austin, TX
Posts: 2,613
Total Cats: 229
Default

Nice!
Girz0r is offline   Reply With Quote
Old 04-21-2016, 08:44 PM   #488
Moderator
iTrader: (10)

sixshooter's Avatar

Join Date: Nov 2008
Location: Tampa, FL
Posts: 14,094
Total Cats: 1,168
Default

Can I send you the springs or something?
sixshooter is offline   Reply With Quote
Old 04-21-2016, 10:54 PM   #489
I take big bites
iTrader: (1)

turbofan's Avatar

Join Date: Sep 2010
Location: Portland, OR
Posts: 6,117
Total Cats: 426
Default

Kitty awarded for TSE trubo kit ****.

Quote:
Originally Posted by sixshooter View Post
Adjustable shocks for for people with incorrect spring rates and bad shock damping. A good shock will be good on the street and track. A 450/300 rate with Bilstein "Hard S" valving was the best combination I have used for controlled comfort and some track driving on treaded tires. You only need stronger springs with gummy slicks. I wouldn't steer you wrong. And it will work fine at stock height.
I used to think this way, but after owning Xidas I no longer feel that way. Shocks that are comfy on the street are too soft for a smooth track with sticky tires, and shocks that are stiff enough to avoid wallowing on the track are too stiff for the street.

I run 700/400 spring rates on my car, and I seriously would be OK daily driving it. If you want a truly sweet street ride while still having good track performance, going one step softer to 650 or 600 front and 350 rear would likely be a very very nice setup.

I will not do a flat rate shock setup again now that I've seen how effective adjustable shocks can be in terms of comfort and performance.
turbofan is offline   Reply With Quote
Old 04-21-2016, 11:13 PM   #490
Supporting Vendor
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 13,733
Total Cats: 978
Default

Quote:
Originally Posted by sixshooter View Post
Adjustable shocks for for people with incorrect spring rates and bad shock damping.
Serious or trolling? Proper damping changes based on surface condition and pavement quality. Super smooth tracks or roads can get away with very low rebound damping because there's nothing to upset the chassis. Start throwing in some pavement undulations and kerbs and you start to need more rebound to control the chassis appropriately. The higher rebound required at the rougher track will make the car slower at the smoother track. All high-end shocks are adjustable. You can have a good non-adjustable shock, but the adjustment allows the shock to be optimal in more situations.
Savington is offline   Reply With Quote
Old 04-22-2016, 07:06 AM   #491
Moderator
iTrader: (10)

sixshooter's Avatar

Join Date: Nov 2008
Location: Tampa, FL
Posts: 14,094
Total Cats: 1,168
Default

The people I have encountered with adjustable shocks on a street car always have too little spring and they end up overcompensating with damping which leads to jacking down. Or they have too much spring for the car to be comfortable on the street and dialing the adjustable rate down only makes the car uncontrolled on rough pavement.

Ideally, one would have shocks and springs set up perfectly for the particular track, or adjustability to fine tune for the track surfaces (Xidas). But if he is looking at cheapo Chinese adjustables (MaXpeedingRods) or adjustable Teins set up for something that isn't a Miata (392 Front/336 Rear for $830) I would say he will be very unhappy and should either save for Xidas or if the budget won't allow, go budget Bilstein. I don't know if you have ever driven in Italy, but many roads there make rural roads in south Georgia seem smooth as glass.

It was a generalization about cheap adjustables and poorly matched springs commonly sold on them and not expensive, properly matched racing adjustables tailored specifically to fine tune for track duty (which the OP was not discussing). He is daily driving on street tires and poor roads where he needs big ground clearance and driving to the track on the same tires. I would say save for the Xidas with helper springs, but if you can't do it, go budget Bilstein instead of Chinese adjustable.

Excuse my over-generalization that was not intended to cover $2000+ adjustable racing shocks, but rather the under $900 type the OP was particularly discussing purchasing. I should have been more succinct in my statement.

Last edited by sixshooter; 04-22-2016 at 08:34 AM.
sixshooter is offline   Reply With Quote
Old 04-23-2016, 03:08 PM   #492
Junior Member
Thread Starter

Join Date: Nov 2013
Location: Sardinia, Italy
Posts: 369
Total Cats: 49
Default

Just finished to tune just the ve table and wow... it's... wow
I thought my car was fast but, now... well it's another thing

Quote:
Originally Posted by sixshooter View Post
The people I have encountered with adjustable shocks on a street car always have too little spring and they end up overcompensating with damping which leads to jacking down. Or they have too much spring for the car to be comfortable on the street and dialing the adjustable rate down only makes the car uncontrolled on rough pavement.

Ideally, one would have shocks and springs set up perfectly for the particular track, or adjustability to fine tune for the track surfaces (Xidas). But if he is looking at cheapo Chinese adjustables (MaXpeedingRods) or adjustable Teins set up for something that isn't a Miata (392 Front/336 Rear for $830) I would say he will be very unhappy and should either save for Xidas or if the budget won't allow, go budget Bilstein. I don't know if you have ever driven in Italy, but many roads there make rural roads in south Georgia seem smooth as glass.

It was a generalization about cheap adjustables and poorly matched springs commonly sold on them and not expensive, properly matched racing adjustables tailored specifically to fine tune for track duty (which the OP was not discussing). He is daily driving on street tires and poor roads where he needs big ground clearance and driving to the track on the same tires. I would say save for the Xidas with helper springs, but if you can't do it, go budget Bilstein instead of Chinese adjustable.

Excuse my over-generalization that was not intended to cover $2000+ adjustable racing shocks, but rather the under $900 type the OP was particularly discussing purchasing. I should have been more succinct in my statement.
yes, italian roads are devastated, and it's an euphemism
Do you think that the tein flex have a wrong spring ratio for the miata?
DNA54 is offline   Reply With Quote
Old 04-23-2016, 03:24 PM   #493
Junior Member
Thread Starter

Join Date: Nov 2013
Location: Sardinia, Italy
Posts: 369
Total Cats: 49
Default

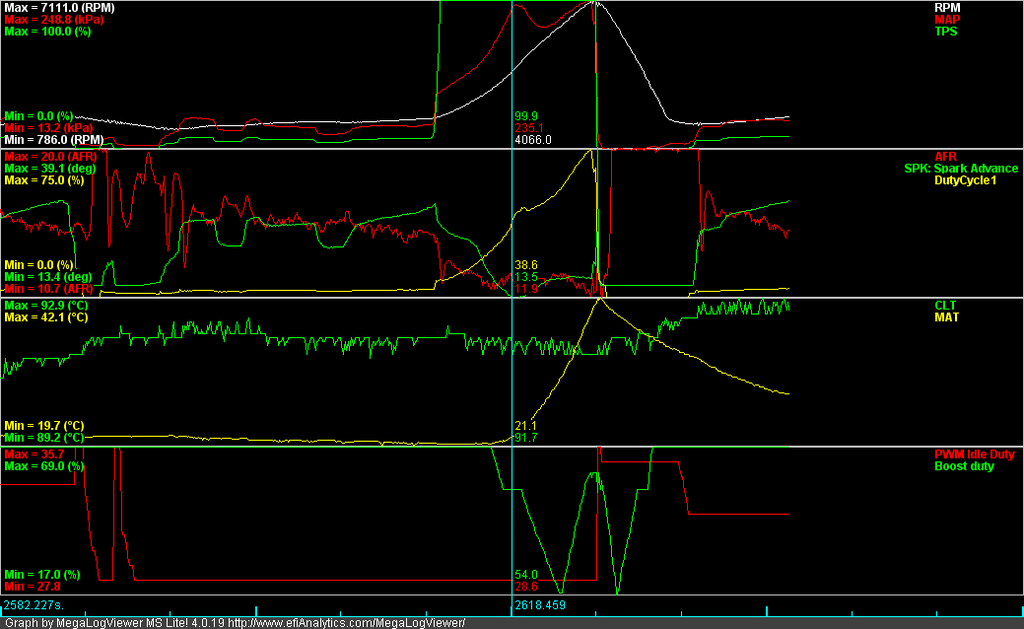

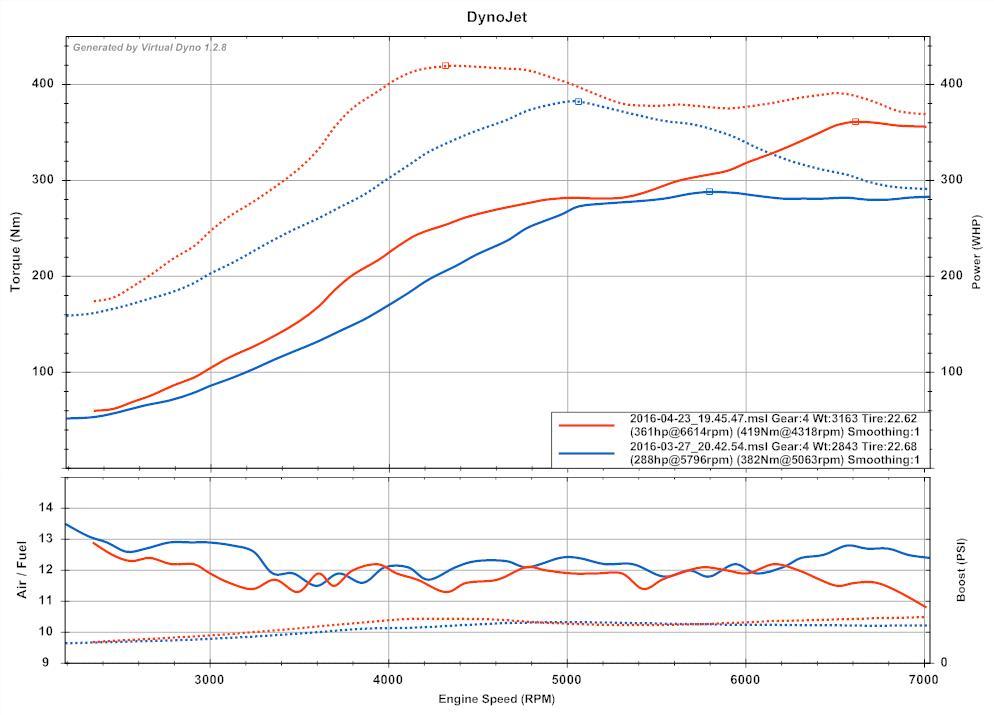

and this without tune at all, and a big pressure drop at 5000
Attached Thumbnails
diy "turbo no hit block" '00 BP miata-wow_zps5410tufw.jpg   diy "turbo no hit block" '00 BP miata-efr_zpsboe0uzau.png
DNA54 is offline   Reply With Quote
Old 04-23-2016, 03:25 PM   #494
Boost Czar

iTrader: (60)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 70,938
Total Cats: 1,470
Default

why doesnt the virtual dyno boost match the log?
Braineack is offline   Reply With Quote
Old 04-23-2016, 03:38 PM   #495
Junior Member
Thread Starter

Join Date: Nov 2013
Location: Sardinia, Italy
Posts: 369
Total Cats: 49
Default

if you look veeery close you can see the red line drop from 240kpa to 205kpa I don't know how to rescale the boost graph, it never worked with me
DNA54 is offline   Reply With Quote
Old 04-23-2016, 06:10 PM   #496
Moderator
iTrader: (10)

sixshooter's Avatar

Join Date: Nov 2008
Location: Tampa, FL
Posts: 14,094
Total Cats: 1,168
Default

Yes, the Tein has bad spring rates for a Miata. There should be a greater difference between front and rear. That setup would likely generate significant oversteer with most sway bar combinations. Unless your trunk has a spare engine block in it they would be bad.
sixshooter is offline   Reply With Quote
Old 04-23-2016, 06:38 PM   #497
Junior Member
Thread Starter

Join Date: Nov 2013
Location: Sardinia, Italy
Posts: 369
Total Cats: 49
Default

Quote:
Originally Posted by sixshooter View Post
Yes, the Tein has bad spring rates for a Miata. There should be a greater difference between front and rear. That setup would likely generate significant oversteer with most sway bar combinations. Unless your trunk has a spare engine block in it they would be bad.
In this case, where I can find a set of stiffer springs that takes the stock ride height?

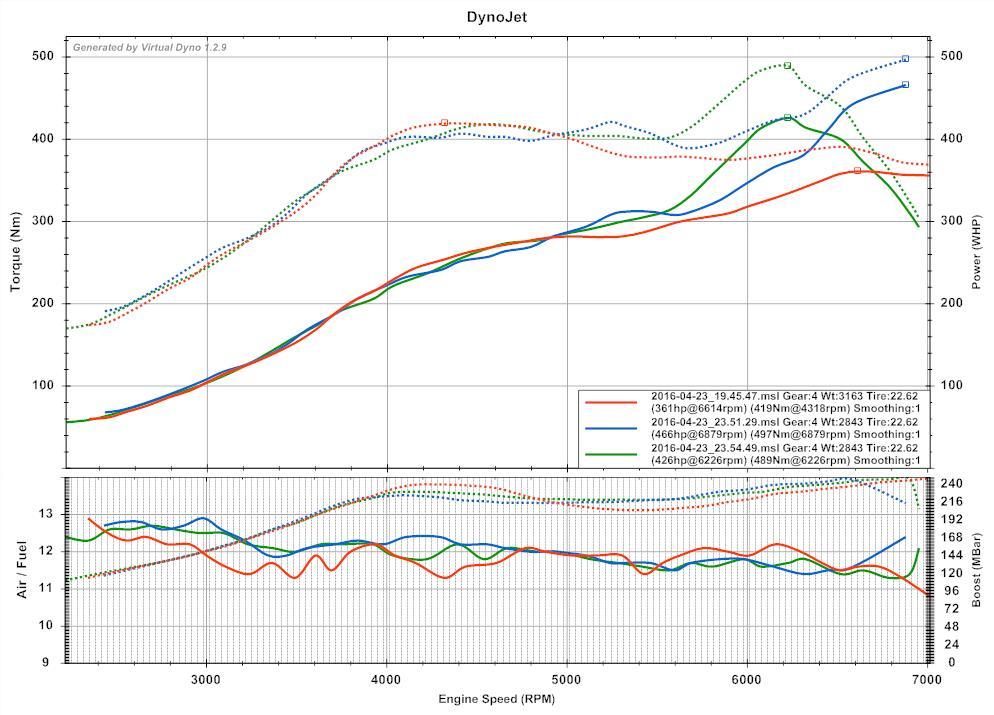

Tonight I was tuning open loop ebc and just the ve table, this is the result:



red is the very first log
There are three possibilites:
-the tyres are slipping in 4th
-the clutch is gone
-I'm really making 466hp at 21psi

I just ordered a new clutch, hoping it's its fault
Attached Thumbnails
diy "turbo no hit block" '00 BP miata-egolo_zpshfsokoxm.jpg
DNA54 is offline   Reply With Quote
Old 04-23-2016, 06:46 PM   #498
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 33,829
Total Cats: 2,122
Default

probably clutch slipping

you're making proper power now

congrats man
18psi is offline   Reply With Quote
Old 04-23-2016, 07:03 PM   #499
I take big bites
iTrader: (1)

turbofan's Avatar

Join Date: Sep 2010
Location: Portland, OR
Posts: 6,117
Total Cats: 426
Default

very nice work sir. I think you're the first person to actually pour the boost to a TSE kit, no?
turbofan is offline   Reply With Quote
Old 04-24-2016, 03:29 AM   #500
Junior Member
Thread Starter

Join Date: Nov 2013
Location: Sardinia, Italy
Posts: 369
Total Cats: 49
Default

well, yes I think
you know, it's the first time I'm more scared than happy for a power increase, and it's have potential... now the boost duty is at 40%
DNA54 is offline   Reply With Quote
