Default Run what I have or upgrade?

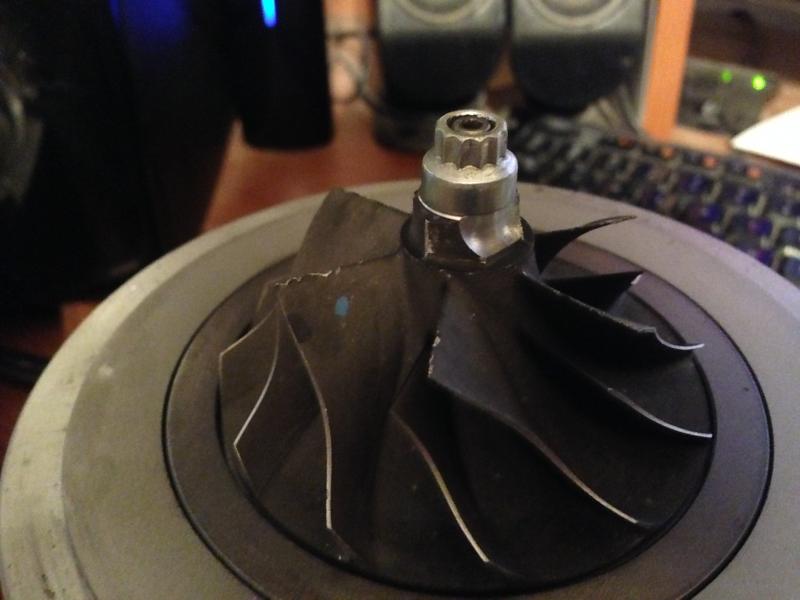

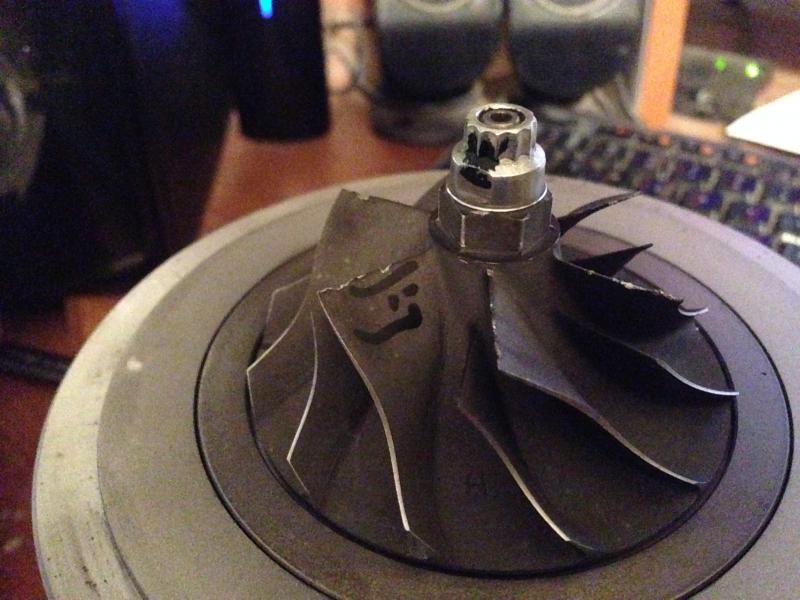

I have a GT2871 with a Tial turbine housing that I was originally planning on using on my setup (AbsurdFlow EWG manifold/DP). One thing that has me a little worried about this turbo is that there are a few nicks/dents on some of the turbine blades. I've been told they resemble balancing marks, but I don't think so.

What do y'all think?

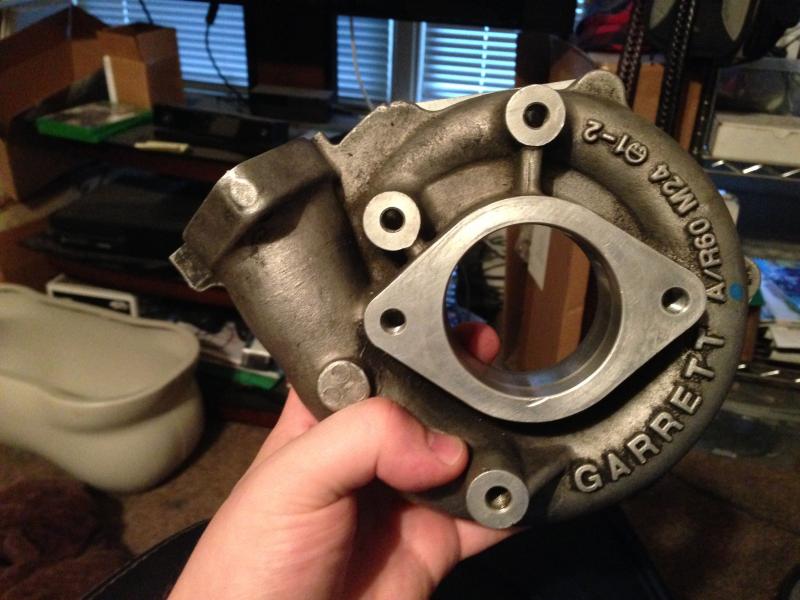

The other thing I don't like about this turbo is the compressor housing. It's tiny! The inlet is setup to put an adapter on it which I'm not a big fan of and the outlet is only 2", when I'd like to run 2.5".

Now, if the turbine blades are in fact in good condition I could just purchase something like this to step up in size. T04S frame .70 A/R Compressor housing for GT3071R/GT2871R 71mm 56 trim wheel :

The other option would be to switch turbos. I can pick up a PTE 5858 from a buddy for a good price. I can also consider getting something else. Before everyone starts saying "EFR! EFR!", the first size of EFR that is EWG is the 7163 and it costs a pretty penny (it's compressor housing outlet is also 2" which I'd preffer 2.5").

Thing is I don't want a "peaky" setup. I'd like the car to have decent power under the curve and not have high boost threshold or lag. I understand this depends on my motor, which is a 1.9L with a BP4W head (+1mm intake/exhaust valves, SuperTech 56 lbs springs, MSM intake cam) (More info on my setup here Let's make a Miata that shoots rainbows). This is the first Miata I've owned that I will be doing FI to; all my turbo knowledge comes from the Evo world and things are quite different over there lol.
Attached Thumbnails
Run what I have or upgrade?-img_2807_zps43b6eee3.jpg   Run what I have or upgrade?-img_2808_zps086f29e3.jpg   Run what I have or upgrade?-img_2806_zps1e647162.jpg
SmOky is offline   Reply With Quote
Old 03-10-2014, 01:24 PM   #2
Elite Member
iTrader: (1)
Join Date: May 2009
Location: Jacksonville, FL
Posts: 4,652
Total Cats: 209

Those are not balancing marks.

It ate something chunky.

Id pick up that precision if its in good condition. Is it T3 flanged?
Attached Thumbnails
Run what I have or upgrade?-2434.png
Full_Tilt_Boogie is offline   Reply With Quote
Old 03-10-2014, 03:31 PM   #3
Elite Member
iTrader: (1)
Leafy's Avatar
Join Date: Jun 2012
Location: woosta, ma
Posts: 8,532
Total Cats: 87

Its a v-band setup right? wait for the TiAL v-band EFR housing obviously.
Leafy is offline   Reply With Quote
Old 03-10-2014, 09:49 PM   #4
Elite Member
iTrader: (2)
triple88a's Avatar
Join Date: Apr 2006
Location: Chicago, IL
Posts: 8,748
Total Cats: 452

If whoever sold it to you told you they are balancing marks then all credibility goes out the window as that person is full of ****.. What did they use a hammer to "balance" the wheel? Truth is that turbo chewed something up, probably put some runout on the shaft and that person is trying to get some money out of it.

You can try deburing the edges however it would **** up the balance more.
triple88a is online now   Reply With Quote
Old 03-11-2014, 12:08 AM   #5
Junior Member
Thread Starter
iTrader: (2)
Join Date: Jan 2013
Location: San Marcos, TX/ Houston,TX
Posts: 49
Total Cats: 5

Damn. So after doing some research the PTE vband isn't the same as the Tial Vband. The PTE's OD is slightly bigget than the Tial so I wont be able to get a complete seal around it. So it's back to the drawing board on what turbo I'll use.
SmOky is offline   Reply With Quote
Old 03-24-2014, 02:16 PM   #6
Join Date: Nov 2013
Posts: 11
Total Cats: -35

those are defiantly no balancing marks.
tylerart is offline   Reply With Quote
Old 03-25-2014, 07:17 AM   #7
Boost Czar

iTrader: (60)
Braineack's Avatar
Join Date: May 2005
Location: Chantilly, VA
Posts: 69,693
Total Cats: 1,363

how is that a 2871? i bet that wheel measures closer to 60mm.
