Default GTX2867R, FM log mani, 1.8, 8.4cr

1.8, iron log FM manifold, GTX2867R, 3in turbo back, pump 93, MS1, Deatchwerks 750cc injectors, LS2 coils, 8.4cr Supertech pistons, Crower rods, Boundary pump, NA8 head ported by Miata2fast, stock valves, Supertech light double springs, stock cams.

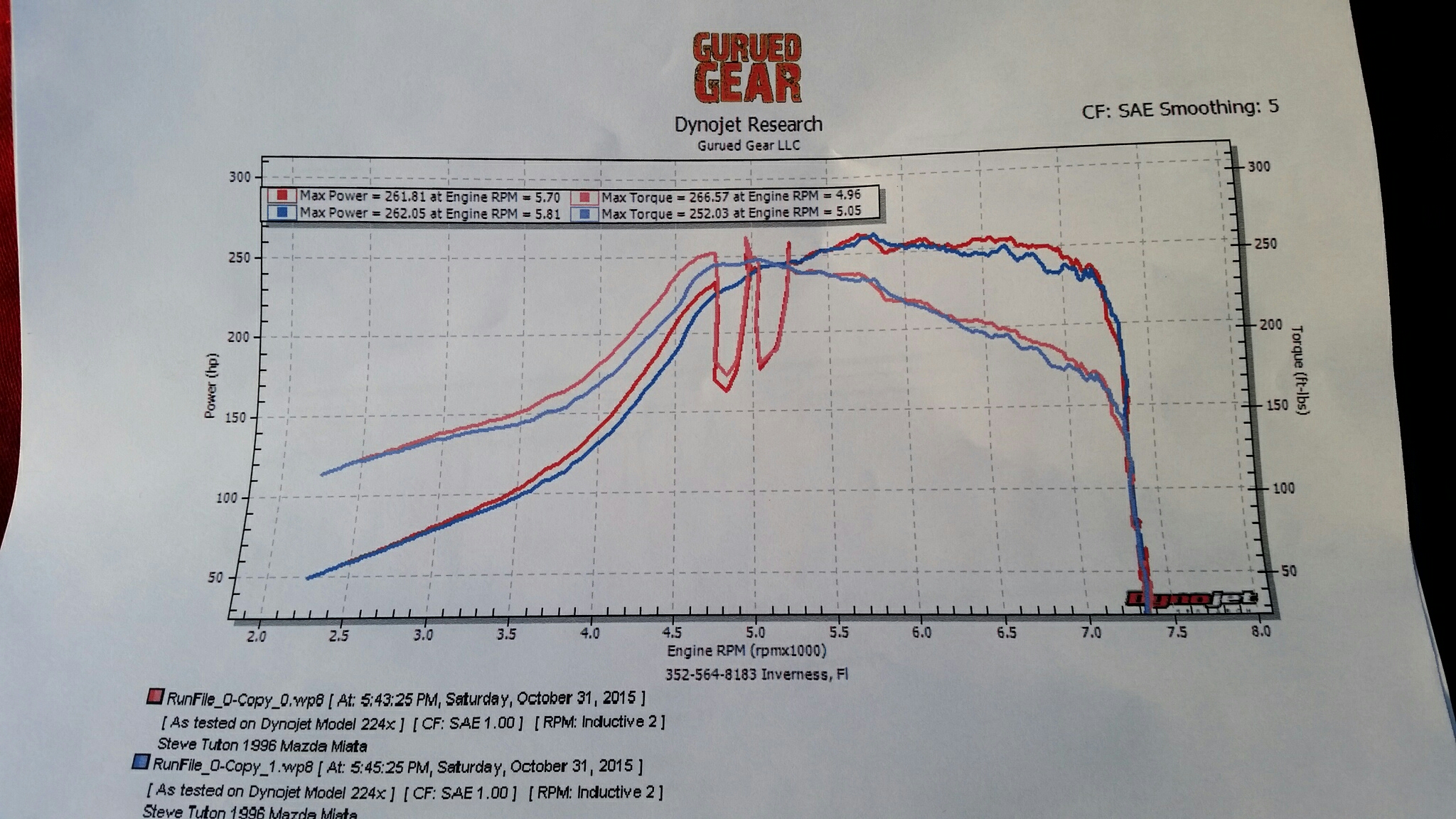

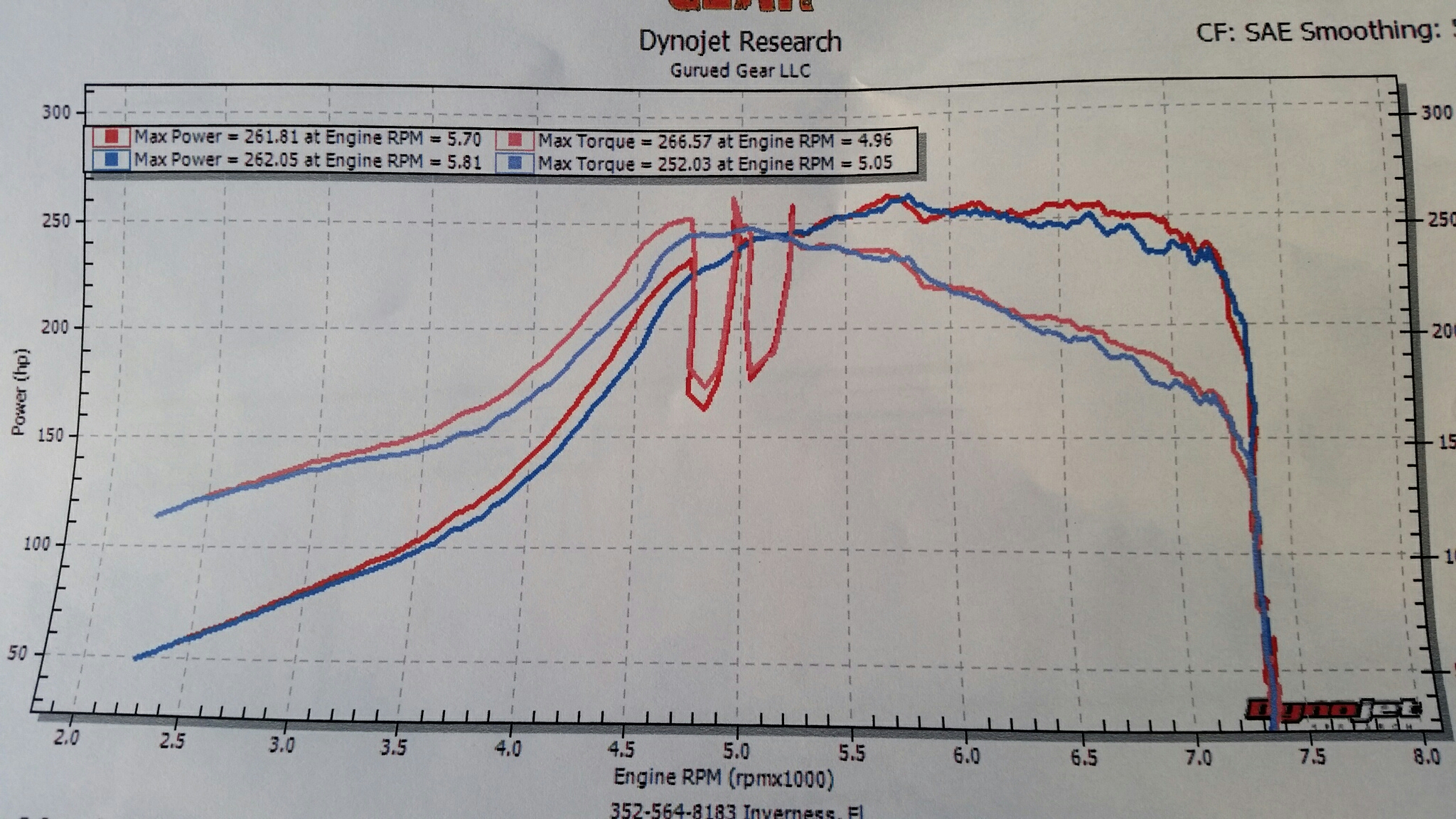

The blips in the first run were where it was hitting overboost at about 15.25psi

About 15psi
262whp @ 5810rpm
252tq @ 5050rpm




Attached Thumbnails
GTX2867R, FM log mani, 1.8, 8.4cr-20151031_175429.jpg   GTX2867R, FM log mani, 1.8, 8.4cr-20151031_175419.jpg   GTX2867R, FM log mani, 1.8, 8.4cr-153833d1446392203-gtx2867r-fm-log-mani-conservative-tune-20151031_175429.jpg   GTX2867R, FM log mani, 1.8, 8.4cr-153834d1446392354-gtx2867r-fm-log-mani-conservative-tune-20151031_175419.jpg

Last edited by sixshooter; 11-02-2015 at 09:03 AM.
sixshooter is offline   Reply With Quote
Old 11-01-2015, 12:33 PM   #2
Hittin' Boost & Cones
iTrader: (2)

240_to_miata's Avatar

Join Date: May 2007
Location: Cromwell, Connecticut
Posts: 2,555
Total Cats: 11
Default

screenshot of spark map?
240_to_miata is offline   Reply With Quote
Old 11-01-2015, 05:44 PM   #3
Moderator
Thread Starter
iTrader: (9)

sixshooter's Avatar

Join Date: Nov 2008
Location: Tampa, FL
Posts: 13,697
Total Cats: 1,053
Default

Attached Thumbnails

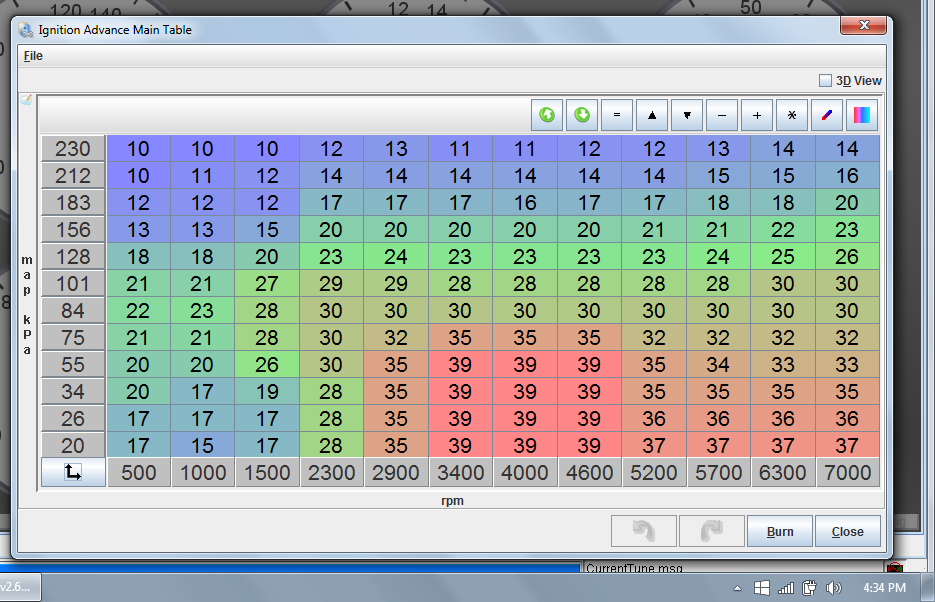

GTX2867R, FM log mani, 1.8, 8.4cr-80-tuning_map_nov15_042780414f0f981cdbc5ab58516a999dccc0fcd4.png
sixshooter is offline   Reply With Quote
Old 11-01-2015, 05:51 PM   #4
Moderator
Thread Starter
iTrader: (9)

sixshooter's Avatar

Join Date: Nov 2008
Location: Tampa, FL
Posts: 13,697
Total Cats: 1,053
Default

Attached Thumbnails

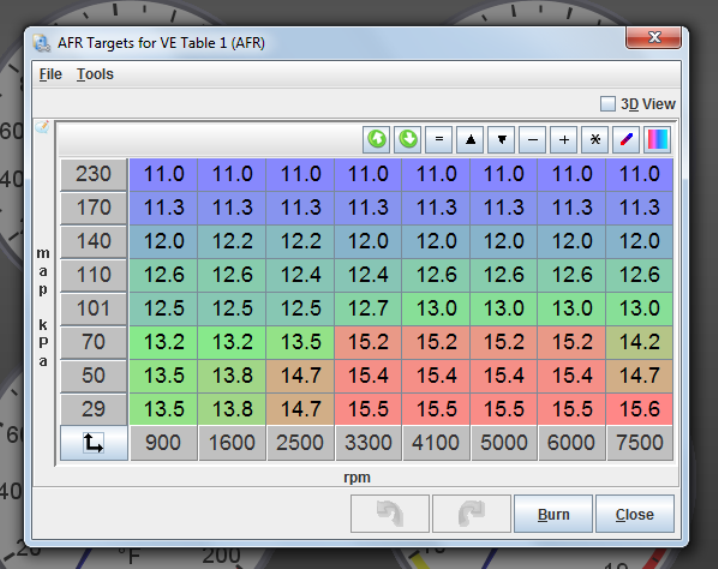

GTX2867R, FM log mani, 1.8, 8.4cr-80-afr_table_nov15_acc5699aa8c5bee6459c68dc73738cb6026533cb.png
sixshooter is offline   Reply With Quote
Old 11-01-2015, 08:00 PM   #5
Hittin' Boost & Cones
iTrader: (2)

240_to_miata's Avatar

Join Date: May 2007
Location: Cromwell, Connecticut
Posts: 2,555
Total Cats: 11
Default

Nice, thanks. That's about where I am right now with timing & afr on my gt2560r
240_to_miata is offline   Reply With Quote
Old 11-01-2015, 08:48 PM   #6
Supporting Vendor
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 13,501
Total Cats: 874
Default

I don't think I'd call that spark table conservative.
Savington is offline   Reply With Quote
Old 11-01-2015, 08:58 PM   #7
Elite Member
iTrader: (5)

Erat's Avatar

Join Date: Oct 2011
Location: Detroit
Posts: 3,924
Total Cats: 224
Default

I wouldn't call it conservative either.

Why is the spark table 8x8?
Erat is offline   Reply With Quote
Old 11-01-2015, 09:02 PM   #8
mkturbo.com
iTrader: (24)

shuiend's Avatar

Join Date: May 2006
Location: Charleston SC
Posts: 12,374
Total Cats: 771
Default

Quote:
Originally Posted by Erat View Post
I wouldn't call it conservative either.

Why is the spark table 8x8?
It is an MS1, so smaller fuel and spark tables.
shuiend is online now   Reply With Quote
Old 11-01-2015, 09:22 PM   #9
Elite Member
iTrader: (15)

patsmx5's Avatar

Join Date: Aug 2007
Location: Houston, TX
Posts: 8,023
Total Cats: 129
Default

Quote:
Originally Posted by sixshooter View Post
very conservative spark
Ha, you're running within a couple degrees as much as I'm running on E85. I would hardly call that very conservative.
patsmx5 is offline   Reply With Quote
Old 11-02-2015, 09:02 AM   #10
Moderator
Thread Starter
iTrader: (9)

sixshooter's Avatar

Join Date: Nov 2008
Location: Tampa, FL
Posts: 13,697
Total Cats: 1,053
Default

Quote:
Originally Posted by Savington View Post
I don't think I'd call that spark table conservative.
Even with 8.4cr and 93 octane? Hmm. What would you expect for the top couple of rows?
Quote:
Originally Posted by Erat View Post
I wouldn't call it conservative either.
There seems to be a consensus brewing.
I seem to recall adding two degrees to the top of the map back a year and a half ago because I felt there was too much heat in the exhaust because of the (I thought) overly retarded timing. I saw a few others running more and felt I could safely add a couple.

Quote:
Originally Posted by patsmx5 View Post
Ha, you're running within a couple degrees as much as I'm running on E85. I would hardly call that very conservative.
Are you using low or high compression pistons with the E85?
sixshooter is offline   Reply With Quote
Old 11-02-2015, 12:04 PM   #11
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 33,386
Total Cats: 2,032
Default

IMO the 183 row is really the one that's kinda aggressive, and maybe the 212 by 1 or 2, top row aint that bad.
and y'all have proper fuel and not CA 91oct water, so I don't even think it's that bad.
also the spark is not 8x8, that's the afr target table, unless we're looking at different tables.

...I'm not really impressed with how late that thing comes on though, that's for sure.
18psi is offline   Reply With Quote
Old 11-02-2015, 12:22 PM   #12
mkturbo.com
iTrader: (24)

shuiend's Avatar

Join Date: May 2006
Location: Charleston SC
Posts: 12,374
Total Cats: 771
Default

Quote:
Originally Posted by 18psi View Post
...I'm not really impressed with how late that thing comes on though, that's for sure.
I think that is due to the cast manifold. Hustler had some old threads about his 2860 spooling like donkey **** on a begi cast manifold.
shuiend is online now   Reply With Quote
Old 11-02-2015, 12:35 PM   #13
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 33,386
Total Cats: 2,032
Default

Yep, I remember that.
18psi is offline   Reply With Quote
Old 11-02-2015, 12:43 PM   #14
Elite Member

Chiburbian's Avatar

Join Date: Feb 2008
Location: Gilberts, IL
Posts: 1,964
Total Cats: 108
Default

I know it's not apples to apples but at 10:1 and with VVT I was able to get over 200lbft by 3750 rpm on a precision 4828 on a BEGI cast manifold. (195kpa)
Chiburbian is offline   Reply With Quote
Old 11-02-2015, 02:17 PM   #15
Elite Member
iTrader: (15)

patsmx5's Avatar

Join Date: Aug 2007
Location: Houston, TX
Posts: 8,023
Total Cats: 129
Default

Quote:
Originally Posted by sixshooter View Post
...
Are you using low or high compression pistons with the E85?
FM 9.0:1 Weisco pistons. Nothing crazy.

FWIW I think your spark map is great if it doesn't knock, just noting that's not super conservative.
patsmx5 is offline   Reply With Quote
Old 11-02-2015, 05:50 PM   #16
Moderator
Thread Starter
iTrader: (9)

sixshooter's Avatar

Join Date: Nov 2008
Location: Tampa, FL
Posts: 13,697
Total Cats: 1,053
Default

Quote:
Originally Posted by 18psi View Post
...I'm not really impressed with how late that thing comes on though, that's for sure.
Me either. It has the .86 hotside but with ball bearings and a billet wheel I expected better.
sixshooter is offline   Reply With Quote
Old 11-02-2015, 06:59 PM   #17
Elite Member
iTrader: (15)

patsmx5's Avatar

Join Date: Aug 2007
Location: Houston, TX
Posts: 8,023
Total Cats: 129
Default

Quote:
Originally Posted by sixshooter View Post
Me either. It has the .86 hotside but with ball bearings and a billet wheel I expected better.
On my GT3271, I found a lot of spoolage by not running pig rich while it spools. I ran it around 14:1 at 100kPa, 13:1 at 140kPa, etc, tapering to target AFRs when you get to target. That made a very very nice improvement in both driveability and spool. Worth a shot since your posted AFR target table is richer than needed at very low boost.
patsmx5 is offline   Reply With Quote
Old 11-02-2015, 08:23 PM   #18
Supporting Vendor
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 13,501
Total Cats: 874
Default

Quote:
Originally Posted by patsmx5 View Post
On my GT3271, I found a lot of spoolage by not running pig rich while it spools. I ran it around 14:1 at 100kPa, 13:1 at 140kPa, etc, tapering to target AFRs when you get to target. That made a very very nice improvement in both driveability and spool. Worth a shot since your posted AFR target table is richer than needed at very low boost.
Great advice if you want to blow your motor up.
Savington is offline   Reply With Quote
Old 11-02-2015, 11:15 PM   #19
Moderator
Thread Starter
iTrader: (9)

sixshooter's Avatar

Join Date: Nov 2008
Location: Tampa, FL
Posts: 13,697
Total Cats: 1,053
Default

Quote:
Originally Posted by Savington View Post
Great advice if you want to blow your motor up.
Lol. Please give me some notes if you have any to share. I'm winging it carrying the Miata flag in the land of vettes and mustangs.
sixshooter is offline   Reply With Quote
Old 11-03-2015, 12:10 AM   #20
Elite Member
iTrader: (15)

patsmx5's Avatar

Join Date: Aug 2007
Location: Houston, TX
Posts: 8,023
Total Cats: 129
Default

Quote:
Originally Posted by Savington View Post
Great advice if you want to blow your motor up.
I didn't say run stoich at full boost. I did what I wrote for a few years and didn't blow an engine up at 140kPa or 100kPa doing it. Det cans and common sense.
