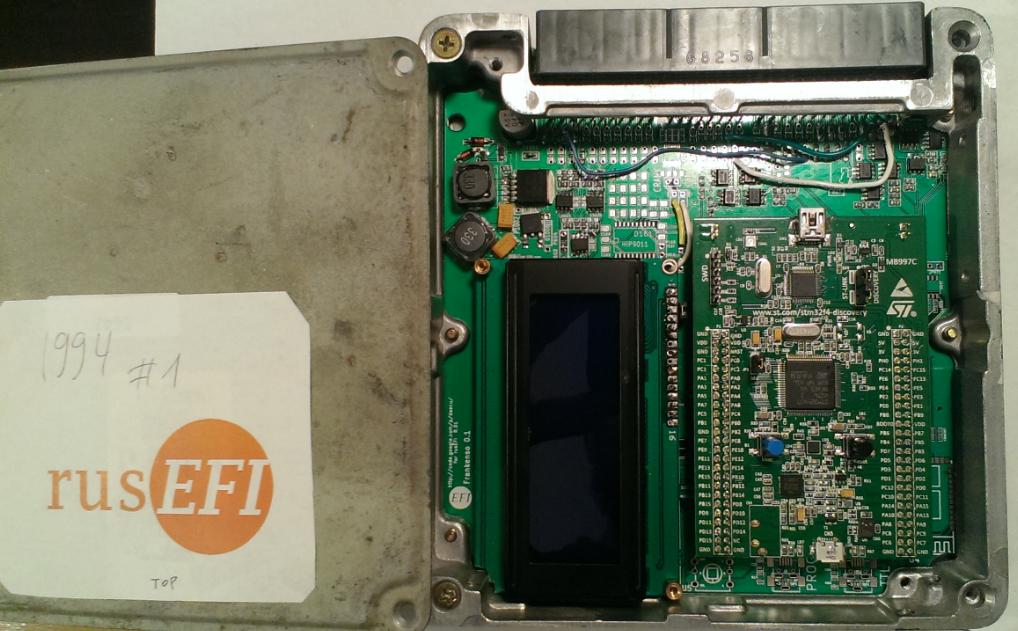

This board was designed for an OBD1 Miata pinout, so this 1994 PnPish prototype has less wiring clutter:

Attached Thumbnails
anyone to get involved with a DIY ecu?-1994_pnp.jpg
russian is offline   Reply With Quote
Old 09-19-2014, 01:56 PM   #62
Junior Member
Thread Starter

Join Date: May 2012
Location: Jersey City, NJ
Posts: 87
Total Cats: 10
Default

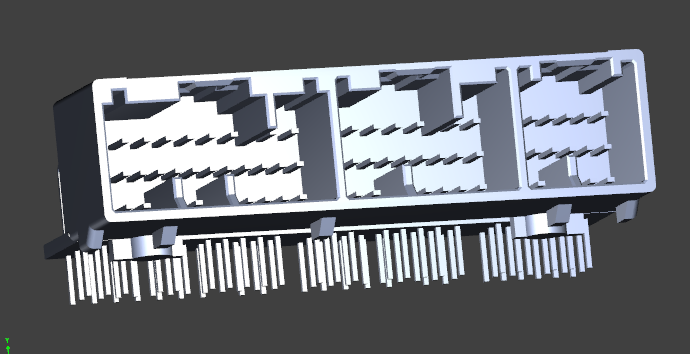

Does this look like a 2001-2005 miata connector? These are available new so a board could be made for that connector. 1123038-2 Product Details - TE
Attached Thumbnails
anyone to get involved with a DIY ecu?-j4v7m7v.png
russian is offline   Reply With Quote
Old 09-27-2014, 11:45 PM   #63
Junior Member
Thread Starter

Join Date: May 2012
Location: Jersey City, NJ
Posts: 87
Total Cats: 10
Default

We are trying to start another Miata and there is this scary sound and then we kill it. We've got it twice already, and switched to stock ECU since - the engine runs perfectly on stock ECU without the sound. What is it?

Here is the youtube:

Last edited by russian; 09-28-2014 at 12:29 AM. Reason: typo
russian is offline   Reply With Quote
Old 09-28-2014, 01:40 AM   #64
Destroyer of Inconel
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 8,764
Total Cats: 750
Default

Hard to tell from the video, but is that belt squeal? Like maybe the alternator is kicking up the load trying to charge after the engine starts?
EO2K is offline   Reply With Quote
Old 12-17-2014, 09:00 PM   #65
Junior Member
Thread Starter

Join Date: May 2012
Location: Jersey City, NJ
Posts: 87
Total Cats: 10
Default

russian is offline   Reply With Quote
Old 11-29-2015, 12:55 PM   #66
Junior Member
Thread Starter

Join Date: May 2012
Location: Jersey City, NJ
Posts: 87
Total Cats: 10
Default

Has been a while since the last update, life was a bit in the way and then racing and wrenching etc.

Anyway

russian is offline   Reply With Quote
Old 11-29-2015, 12:57 PM   #67
Junior Member
Thread Starter

Join Date: May 2012
Location: Jersey City, NJ
Posts: 87
Total Cats: 10
Default

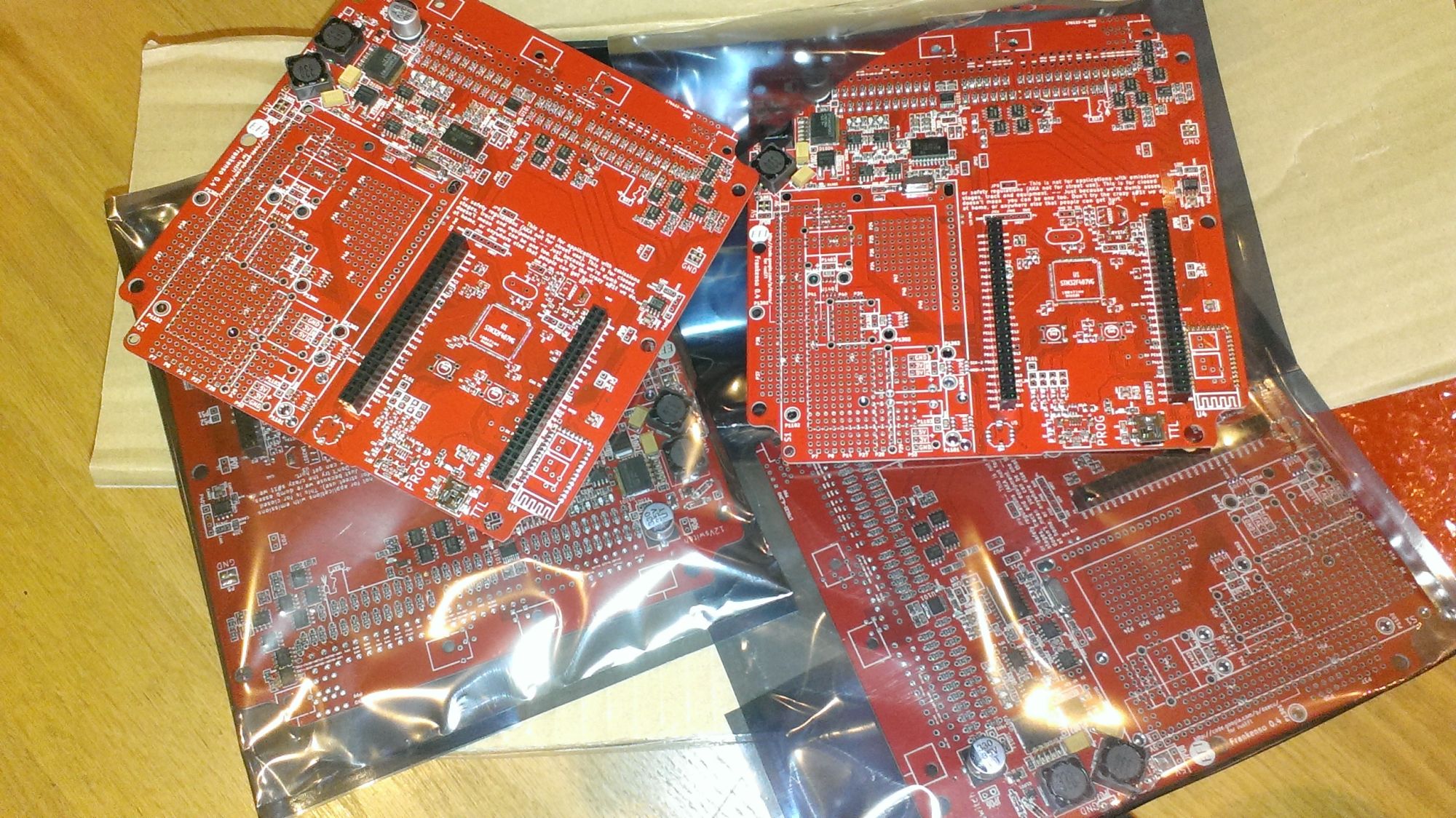

Hardware design is good enough - recently got a second batch of same rev 0.4 assembled in China:


Attached Thumbnails
anyone to get involved with a DIY ecu?-80-imag1600_5b1_5d_6ffd81245b523a9b0e5a1d5c8678ac74333304ef.jpg
russian is offline   Reply With Quote
Old 11-29-2015, 01:42 PM   #68
SadFab Sales Lady
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 14,852
Total Cats: 937
Default

How's your experience been getting things assembled there. Who did you use, good QC? Etc? Feel free to PM me.
aidandj is offline   Reply With Quote
Old 12-02-2015, 10:08 PM   #69
Boosting since 1984
iTrader: (1)

stefanst's Avatar

Join Date: Sep 2011
Location: Levittown
Posts: 994
Total Cats: 38
Default

Where can I find your schematics?
stefanst is offline   Reply With Quote
Old 12-02-2015, 10:10 PM   #70
Junior Member
Thread Starter

Join Date: May 2012
Location: Jersey City, NJ
Posts: 87
Total Cats: 10
Default

Quote:
Originally Posted by stefanst View Post
Where can I find your schematics?
https://svn.code.sf.net/p/rusefi/cod...are/frankenso/
https://svn.code.sf.net/p/rusefi/cod..._schematic.pdf
Manual:Hardware Frankenso board - rusEfi
russian is offline   Reply With Quote
Old 12-02-2015, 11:04 PM   #71
Boosting since 1984
iTrader: (1)

stefanst's Avatar

Join Date: Sep 2011
Location: Levittown
Posts: 994
Total Cats: 38
Default

Awesome stuff.
That power supply looks like it can handle just about anything a Miata alternator can throw at it.

TPS on Inp5 looks like it's missing a connection from TPS to opamp input.
stefanst is offline   Reply With Quote
Old 12-02-2015, 11:09 PM   #72
Junior Member
Thread Starter

Join Date: May 2012
Location: Jersey City, NJ
Posts: 87
Total Cats: 10
Default

Quote:
Originally Posted by stefanst View Post
Awesome stuff.
...
TPS on Inp5 looks like it's missing a connection from TPS to opamp input.
I am the software guy, I'll pass the glitch note to the hardware guy
rusefi.com ? View topic - Frankenso - ECU shield compatible with OEM case
russian is offline   Reply With Quote
Old 02-14-2016, 08:02 PM   #73
Junior Member
Thread Starter

Join Date: May 2012
Location: Jersey City, NJ
Posts: 87
Total Cats: 10
Default

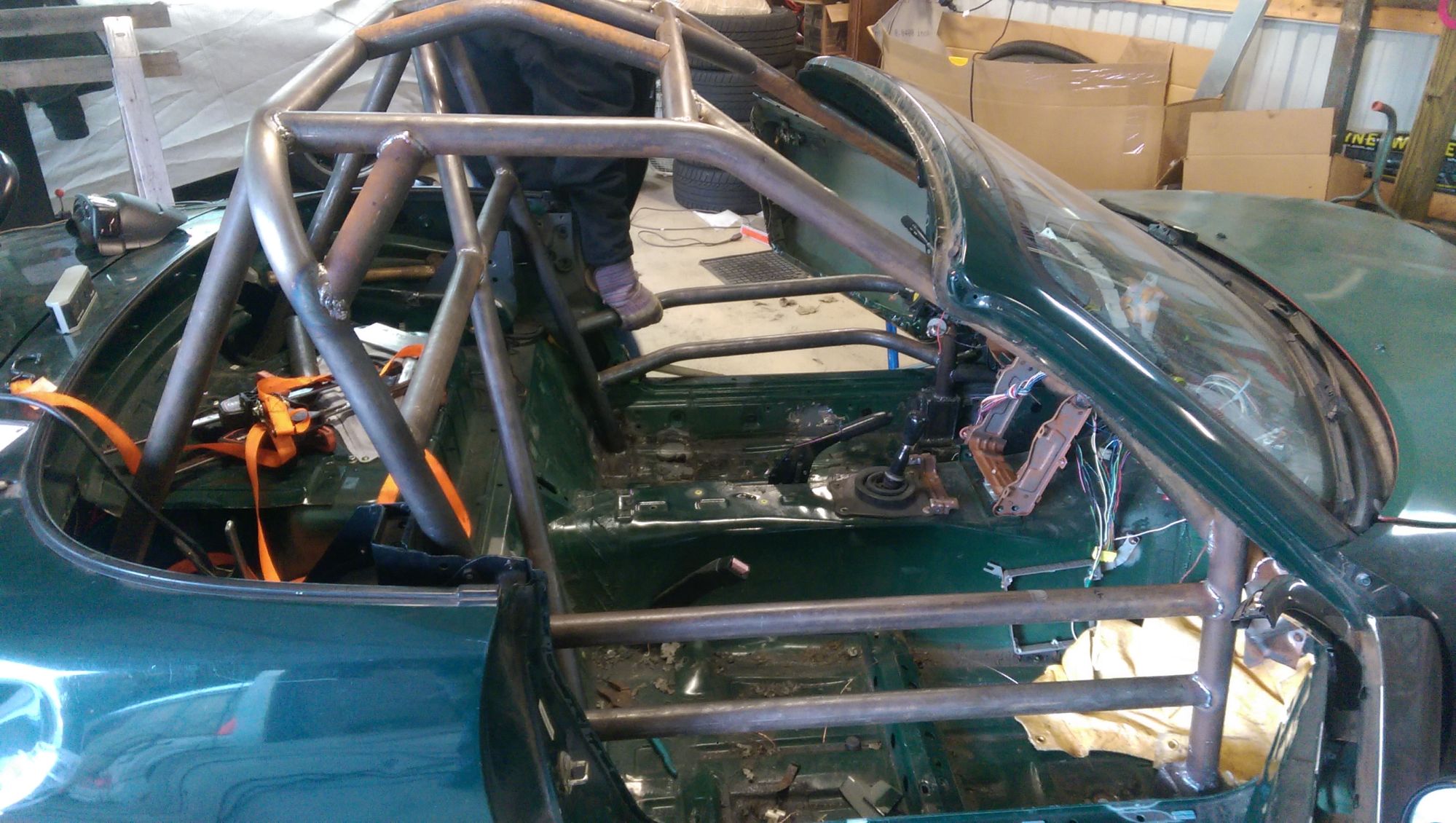

Test mule progress


Attached Thumbnails
anyone to get involved with a DIY ecu?-80-2016_02_14_17_05_30_3c0fe22b51d88cb19bb692d2a554f9a5f9a1e705.jpg
russian is offline   Reply With Quote
Old 02-14-2016, 08:07 PM   #74
Boosting since 1984
iTrader: (1)

stefanst's Avatar

Join Date: Sep 2011
Location: Levittown
Posts: 994
Total Cats: 38
Default

Nickname: the Cagey Mule
stefanst is offline   Reply With Quote
Old 02-15-2016, 01:18 PM   #75
Junior Member
Thread Starter

Join Date: May 2012
Location: Jersey City, NJ
Posts: 87
Total Cats: 10
Default

got a PM asking where is all this at the moment.

This ECU project is somewhat stalled in beta version: the hardware design is pretty settled and looks good, software is still lacking a bit but kind-of-good-enough, but no one with advanced car & tuning experienced has played with this yet to really test it. Until someone who would really be able to evaluate it tries it, I am in the dark in terms of what is missing to make the last steps towards having something useful.

I have a prototyping shop assembling these boards for us, a bunch of people got these but troubleshooting this is really requiring some advanced skills.
russian is offline   Reply With Quote
Old 02-15-2016, 04:22 PM   #76
Boosting since 1984
iTrader: (1)

stefanst's Avatar

Join Date: Sep 2011
Location: Levittown
Posts: 994
Total Cats: 38
Default

If cost is not too crazy (which I assume it isn't), I'll buy a board and try it out on my '99 turbo. It's a fairly well running and reliable double-duty driver/track car.

I'm not too far away from Jersey City- working in the Princeton area.
stefanst is offline   Reply With Quote
Old 02-15-2016, 04:31 PM   #77
Junior Member
Thread Starter

Join Date: May 2012
Location: Jersey City, NJ
Posts: 87
Total Cats: 10
Default

Are you Levittown, PA? That's just an hour from me!
russian is offline   Reply With Quote
Old 02-15-2016, 04:34 PM   #78
Boosting since 1984
iTrader: (1)

stefanst's Avatar

Join Date: Sep 2011
Location: Levittown
Posts: 994
Total Cats: 38
Default

Indeed. PM me.
stefanst is offline   Reply With Quote
Old 03-13-2016, 11:49 PM   #79
Boosting since 1984
iTrader: (1)

stefanst's Avatar

Join Date: Sep 2011
Location: Levittown
Posts: 994
Total Cats: 38
Default

Just to keep this updated: I got my frankenso and am in the process of making sure, everything works OK. I had it run successfully on the Jimstim today, so it looks like it may actually be able to run an engine.
The firmware already has a lot of basic options, but of course it's no Megasquirt just yet. However, if things go OK, I may be selling an MS3X soon

I also witnessed a frankenso (rusefi) successfully running a Miata engine transplanted into the #33 Festiva that everybody is afraid of in LeMons racing. It was performing really well. I got to drive the car too (Up and down a REALLY long driveway). Woohoo!

So kudos to the rusefi team. I definitely see a lot of potential here.
stefanst is offline   Reply With Quote
Old 03-17-2016, 11:04 AM   #80
Junior Member
iTrader: (5)

Join Date: Oct 2014
Posts: 395
Total Cats: 16
Default

Very cool thread to stumble upon. More options is always a good thing for consumers. I am not at all an advanced user and can really offer nothing in advancing this project outside of my moral support and attaboys. Great work, mostly commenting for the sub.
