It's been a long time
Hi flyingchameleon,
The last code I posted is as far as I got with the Arduino. Using the on board timers and the timing/fuelling tables from the original ROM etc I was able to simulate engine Miata engine control at least as effectively as the original hardware. I then moved my code to the Teensy 3.1, which being ARM M4 based, gave far more had room for engine management. Unfortunately real life got in the way and I never managed to produce any actual hardware to interface with a real engine (which would have introduced some interesting problems). I'm currently restoring an Avro Vulcan, which you can imagine is more fun than a Miata.
The last code I posted is as far as I got with the Arduino. Using the on board timers and the timing/fuelling tables from the original ROM etc I was able to simulate engine Miata engine control at least as effectively as the original hardware. I then moved my code to the Teensy 3.1, which being ARM M4 based, gave far more had room for engine management. Unfortunately real life got in the way and I never managed to produce any actual hardware to interface with a real engine (which would have introduced some interesting problems). I'm currently restoring an Avro Vulcan, which you can imagine is more fun than a Miata.
Reply
0
0
06-14-2015, 09:14 PM
#284
Junior Member
Join Date: Jun 2015
Posts: 75
Total Cats: 11
Hey all... In case anyone was still interested in an Arduino based ECU, I'm the author of the above linked Speeduino project and am currently in the process of fitting it to a '91 NA6.
Given the testing that has occurred to date on other engines, the NA6 should be a nice simple candidate to get up and running. The usual things apply for this setup (Namely the requirement for a variable TPS and IAT sensor when the AFM is deleted), but on the whole it's a lovely straightforward engine to work with.
Happy to answer any questions or anything if people are interested in the project, otherwise I'll report back with updates.
Given the testing that has occurred to date on other engines, the NA6 should be a nice simple candidate to get up and running. The usual things apply for this setup (Namely the requirement for a variable TPS and IAT sensor when the AFM is deleted), but on the whole it's a lovely straightforward engine to work with.
Happy to answer any questions or anything if people are interested in the project, otherwise I'll report back with updates.
Reply
0
0
08-23-2015, 08:29 AM
#286
Junior Member
Join Date: Jun 2015
Posts: 75
Total Cats: 11
Quick update on my project in case anyone is interested. I've got my na6 up and running on this now, though the tune needs some work and I need to sort out things like the fans etc, but it's all running.
Obligatory quick and dirty video at
A number of other people have working setups with this now too, so its starting to become viable. I'll post back once the pnp boards for the na6 are all done.
Obligatory quick and dirty video at
A number of other people have working setups with this now too, so its starting to become viable. I'll post back once the pnp boards for the na6 are all done.
Reply
0
0
08-25-2015, 10:30 AM
#287
Junior Member
Join Date: Mar 2012
Posts: 110
Total Cats: 13
I had a stab at this last year.
The engine is a subaru/robin ex13, about 125ccc making about 4hp. I tore the carb, intake and ignition coil off and replaced the coil with an inductive sensor.
3D printed an intake manifold and used a huge ball valve as a throttle. DONT DO THIS. 3d prints are porus and dont hold vacuum, and are weak as hell.
Used a Lm1815 for input conditioning (should have used a max998)
Cheap 3 pin map sensor for load sensing.
Injector was some small motorbike injector, yamaha i think. Drove it with a Mosfet.
Coil was some 2 pin unit that i had laying around, which i drove with a V3040P IGBT.
Wiring it all together was pretty simple, connected the output of the LM1815 into an inturrupt pin on the uno.
Programming the whole thing was a nightmare, but i am the worlds most useless coder at the moment. I would have liked spark to interpolate/extrapolate based on engine speed and fuelling interpolate based off the map sensor, but my coding-fu wasnt up to the task. In the end i just set the fuel and spark at set values and the engine ran like crap. Doesnt rev as you can see in the vid.
Probably an easy project if you can code. Would still be a nightmare to do on a boosted miata though....
The engine is a subaru/robin ex13, about 125ccc making about 4hp. I tore the carb, intake and ignition coil off and replaced the coil with an inductive sensor.
3D printed an intake manifold and used a huge ball valve as a throttle. DONT DO THIS. 3d prints are porus and dont hold vacuum, and are weak as hell.
Used a Lm1815 for input conditioning (should have used a max998)
Cheap 3 pin map sensor for load sensing.
Injector was some small motorbike injector, yamaha i think. Drove it with a Mosfet.
Coil was some 2 pin unit that i had laying around, which i drove with a V3040P IGBT.
Wiring it all together was pretty simple, connected the output of the LM1815 into an inturrupt pin on the uno.
Programming the whole thing was a nightmare, but i am the worlds most useless coder at the moment. I would have liked spark to interpolate/extrapolate based on engine speed and fuelling interpolate based off the map sensor, but my coding-fu wasnt up to the task. In the end i just set the fuel and spark at set values and the engine ran like crap. Doesnt rev as you can see in the vid.
Probably an easy project if you can code. Would still be a nightmare to do on a boosted miata though....
Reply
0
0
09-30-2015, 02:15 AM
#288
Junior Member
Join Date: Jun 2015
Posts: 75
Total Cats: 11
If anyone is interested in what's capable using an arduino, I've just put together a video showing the current features of Speeduino. It's obviously not competing with the big name established commercial units, but it's starting to cover off most of the bases:
Last edited by noisymime; 09-30-2015 at 10:10 PM.
Reply
0
0
12-13-2015, 07:32 AM
#291
Junior Member
Join Date: Jun 2015
Posts: 75
Total Cats: 11
Nothing too exciting to report, lots of progress on the project but nothing too specific to the MX5 / Miata world. The only thing around that is that the first style of interface board has arrived for the 48-pin NA6 connector. Testing has revealed there are some improvements to be made, but it is working no worries and plugged straight into the stock loom. It has screw connector inputs for TPS and CLT (Was meant to be IAT, I cocked this up).
In case anyone is interested, there's a shot of it at the end of this video:
In case anyone is interested, there's a shot of it at the end of this video:
Reply
0
0
12-15-2015, 12:43 PM
#292
Elite Member
Join Date: Oct 2013
Location: NorthWest NJ
Posts: 1,821
Total Cats: 141
Watching with interest. You wouldn't happen to be in the eastern PA area? One of my friends mentioned a year or two ago, that he was helping someone get a miata running on an Arduino.
Reply
0
0
12-26-2015, 07:14 AM
#294
Junior Member
Join Date: Jun 2015
Posts: 75
Total Cats: 11
Out and about testing in the sun this evening. Wanted to see whether the gauges through Race Render would work from the log that is being produced.
The tune itself is still pretty terrible. Timing is very conservative and the fuel is a bit rubbish, but it's good for a drive and nicer than the stock ECU now.
The tune itself is still pretty terrible. Timing is very conservative and the fuel is a bit rubbish, but it's good for a drive and nicer than the stock ECU now.
Reply
0
0
02-13-2016, 10:05 PM
#295
Junior Member
Join Date: Jun 2015
Posts: 75
Total Cats: 11

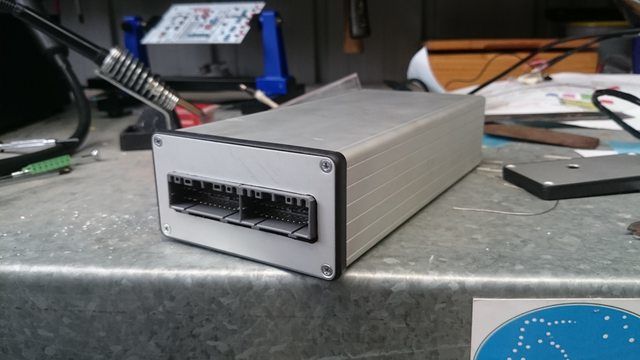

OK, so it's not the most professional looking thing, but all boxed up I don't think this comes out too badly:
There's 2 MX5/Miatas running with this now and another 2-3 in the works (Including a turbo). Looking into various options for a more automated manufacture friendly board at the moment which will hopefully help bring the pricing down. With the ECU connector and things included I'm hoping the price will land somewhere around $150-200 USD
There's 2 MX5/Miatas running with this now and another 2-3 in the works (Including a turbo). Looking into various options for a more automated manufacture friendly board at the moment which will hopefully help bring the pricing down. With the ECU connector and things included I'm hoping the price will land somewhere around $150-200 USD
Reply
0
0
03-31-2016, 10:55 AM
#296
Junior Member
Join Date: Jun 2015
Posts: 75
Total Cats: 11

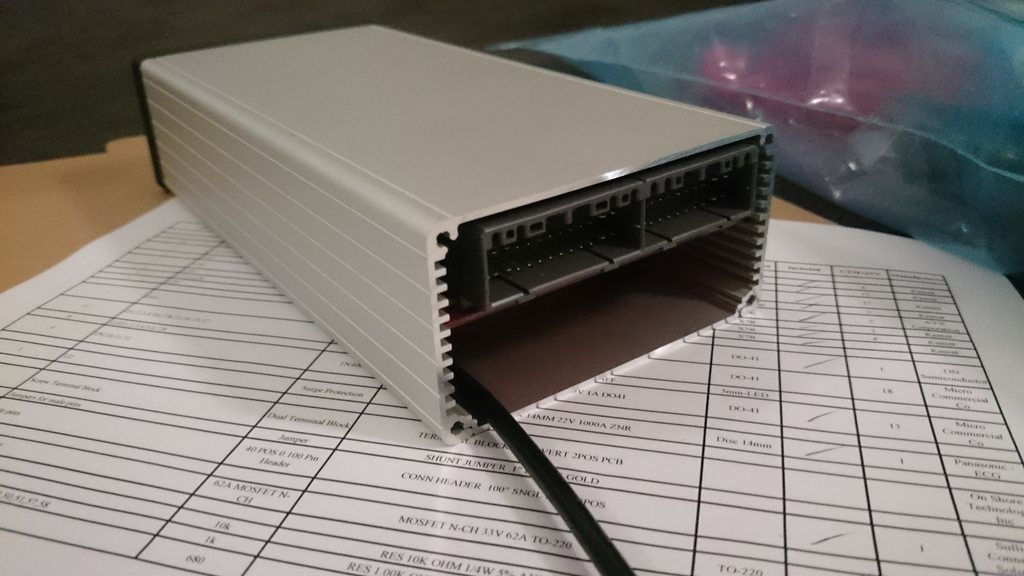

Have finished up all the testing and now boxed the unit up for permanent mounting:
Have been running this regularly without issue for about 6 weeks now. Used a 14point7 wideband to 'autotune' it in, which worked no worries.
Next board to be tested soon will be a surface mount design aimed at being easier/cheaper to produce in volume. Purely for my own simplicity, I'll probably do an initial run of these with a 48-pin connector on it, which will make it near plug and play (Normal TPS and fuel pump relay mods still needed). Will make these available if there's any interest.
Have been running this regularly without issue for about 6 weeks now. Used a 14point7 wideband to 'autotune' it in, which worked no worries.
Next board to be tested soon will be a surface mount design aimed at being easier/cheaper to produce in volume. Purely for my own simplicity, I'll probably do an initial run of these with a 48-pin connector on it, which will make it near plug and play (Normal TPS and fuel pump relay mods still needed). Will make these available if there's any interest.
Reply
1
1
03-31-2016, 04:53 PM
#300
Junior Member
Join Date: Jun 2015
Posts: 75
Total Cats: 11
Yeah, this is certainly a challenge. Kits and DIY projects are great and there is definitely interest enough to move them (I think there's about 10 cars and multiple bikes/karts running this now), they are a lot of effort to prepare. What I am seeing is that people really want something that is more complete and can be sold as a largely ready to go solution. This is what I'm currently working on at the moment, but it all takes time.
Reply
