Looking for O2 sensor signal - stock ECU


Old 03-11-2015, 10:22 AM
  #1
Junior Member
Thread Starter

Engi-ninja's Avatar

Join Date: Feb 2014
Location: Columbus, IN
Posts: 324
Total Cats: 37
Default Looking for O2 sensor signal - stock ECU
I'm looking for the front O2 signal pin to wire in a UEGO to my stock ECU, but I can't seem to find it anywhere on that pinout sheet. I see the front and rear O2 heater control pins on 3J and 3P...is that the signal line? Or am I just missing something?

Thanks!
Engi-ninja is offline
Reply
Leave a poscat 0 Leave a negcat
Old 03-11-2015, 09:22 PM
  #2
Boost Pope
iTrader: (8)

Joe Perez's Avatar

Join Date: Sep 2005
Location: Chicago. (The less-murder part.)
Posts: 33,017
Total Cats: 6,587
Default

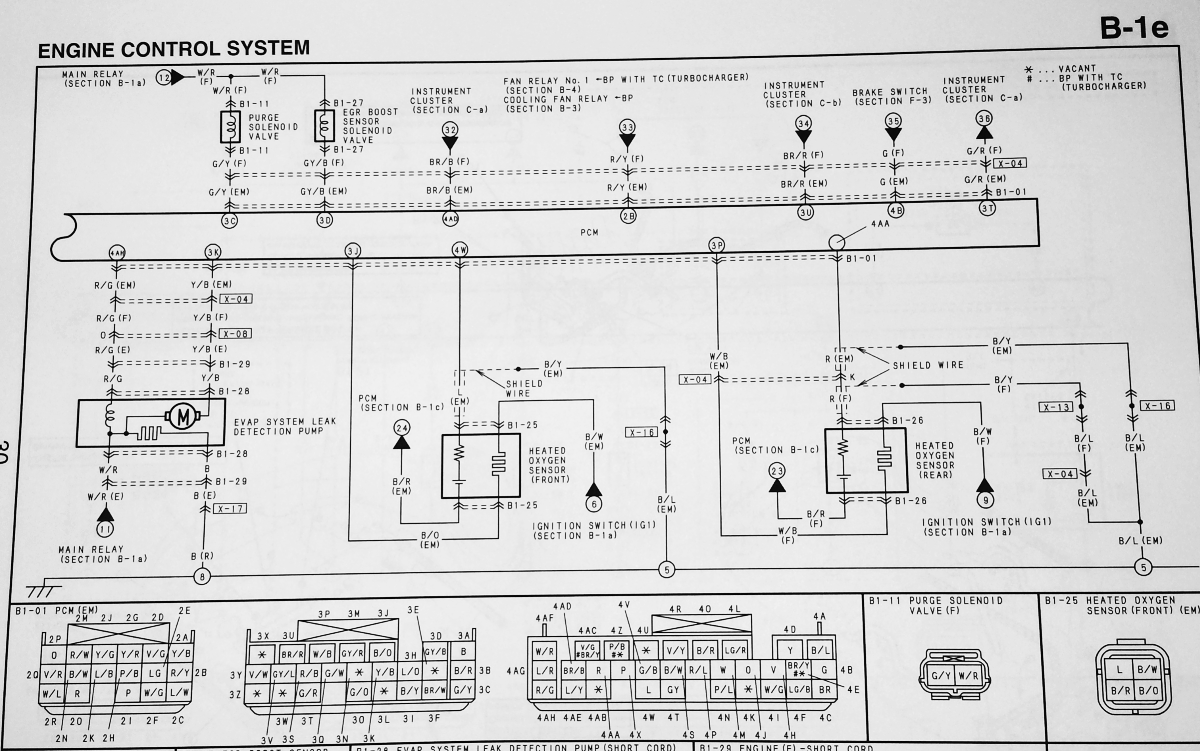

Front O2 signal is the blue wire at 4W:

Attached Thumbnails Looking for O2 sensor signal - stock ECU-b1e.gif
Joe Perez is offline
Reply
Leave a poscat 0 Leave a negcat
Old 03-11-2015, 10:30 PM
  #3
Junior Member
Thread Starter

Engi-ninja's Avatar

Join Date: Feb 2014
Location: Columbus, IN
Posts: 324
Total Cats: 37
Default
Thanks Joe, that diagram is very helpful!
