Old 05-20-2013, 03:01 PM   #681
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 33,429
Total Cats: 2,035
Default

or make lowend torque..


but who needs lowend torque, right?
18psi is offline   Reply With Quote
Old 05-20-2013, 06:10 PM   #682
Senior Member
iTrader: (1)

Join Date: Jan 2011
Location: Chattanooga, Tn
Posts: 986
Total Cats: 115
Default

Mine seems to crack every 4 or 5 events. I have tried bracing, having it welded by a shop that builds 6 second 200+ MPH 275mm radial cars and a few other things. I have just came to the conclusion that I will just have to take the manifold off every 4 or 5 events and re weld it. It made too much power to go back to a stock manifold.
TNTUBA is offline   Reply With Quote
Old 05-20-2013, 06:15 PM   #683
Elite Member
iTrader: (2)

Join Date: Aug 2012
Location: Indianapolis
Posts: 3,325
Total Cats: 231
Default

I remember earlier in the thread everyone was making fun of someone who wanted to use silicone couplers.

Who's laughing now?
thenuge26 is offline   Reply With Quote
Old 05-20-2013, 06:17 PM   #684
Senior Member
iTrader: (5)

Join Date: Jun 2010
Location: San Rafael, CA
Posts: 946
Total Cats: 19
Default

Quote:
Originally Posted by TNTUBA View Post
Mine seems to crack every 4 or 5 events. I have tried bracing, having it welded by a shop that builds 6 second 200+ MPH 275mm radial cars and a few other things. I have just came to the conclusion that I will just have to take the manifold off every 4 or 5 events and re weld it. It made too much power to go back to a stock manifold.
Nooooooo

Did you gusset it or just brace it?
k24madness is offline   Reply With Quote
Old 05-20-2013, 06:27 PM   #685
Senior Member
iTrader: (1)

Join Date: Jan 2011
Location: Chattanooga, Tn
Posts: 986
Total Cats: 115
Default

Quote:
Originally Posted by k24madness View Post
Nooooooo

Did you gusset it or just brace it?
Both.
TNTUBA is offline   Reply With Quote
Old 05-20-2013, 06:29 PM   #686
Senior Member
iTrader: (5)

Join Date: Jun 2010
Location: San Rafael, CA
Posts: 946
Total Cats: 19
Default

Quote:
Originally Posted by TNTUBA View Post
Both.
Damn it!

I am going sheet metal intake if I have more problems!
k24madness is offline   Reply With Quote
Old 05-20-2013, 06:32 PM   #687
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: woosta, ma
Posts: 8,684
Total Cats: 93
Default

Quote:
Originally Posted by k24madness View Post
Damn it!

I am going sheet metal intake if I have more problems!
Its probably the way to go, even for the weight reduction benefits alone. Our stock manifolds weigh a ton, I'm sure the honda isnt much lighter. And with a sheet metal intake you can get real trumpets the go into the plenum and get off the walls.
Leafy is offline   Reply With Quote
Old 05-20-2013, 06:45 PM   #688
Junior Member

muoto's Avatar

Join Date: Jun 2008
Location: Finland
Posts: 382
Total Cats: 60
Default

Quote:
Originally Posted by viperormiata View Post
I have no idea what I'm doing with my life.
As a Honda ITR manifold owner, this is what I think every time I look at the engine
muoto is offline   Reply With Quote
Old 05-20-2013, 06:53 PM   #689
Junior Member

Join Date: Jan 2010
Location: Helsinki, Finland
Posts: 153
Total Cats: 9
Default

Quote:
Originally Posted by Leafy View Post
Its probably the way to go, even for the weight reduction benefits alone. Our stock manifolds weigh a ton, I'm sure the honda isnt much lighter. And with a sheet metal intake you can get real trumpets the go into the plenum and get off the walls.

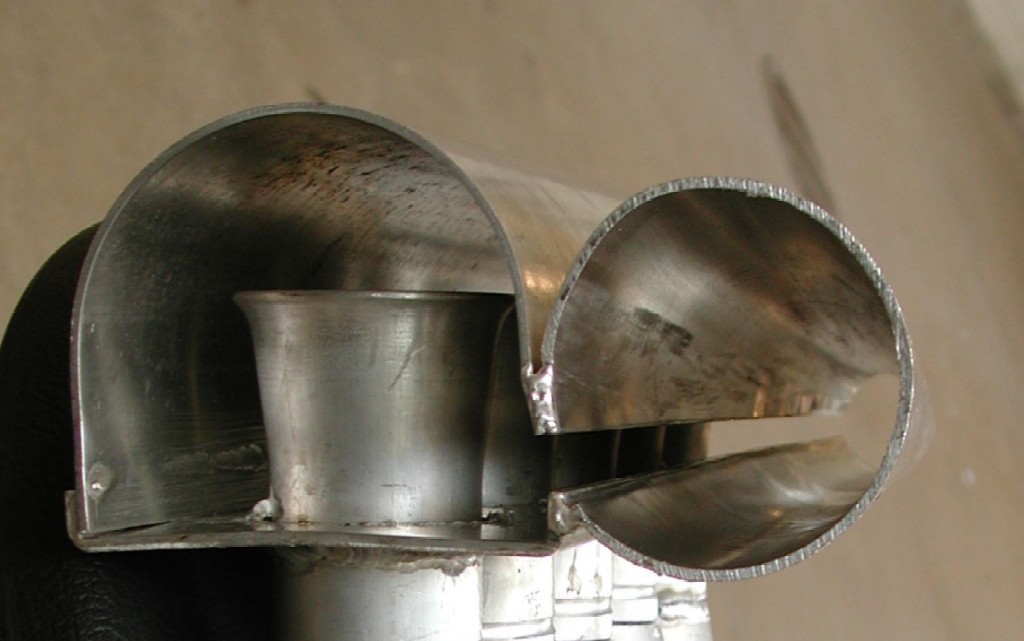

So who calculates the correct measures for proper group B style intake manifold?

Attached Thumbnails
Honda intake manifold-taper.jpg
samulis is offline   Reply With Quote
Old 05-20-2013, 07:07 PM   #690
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 33,429
Total Cats: 2,035
Default

Quote:
Originally Posted by Leafy View Post
Its probably the way to go, even for the weight reduction benefits alone. Our stock manifolds weigh a ton, I'm sure the honda isnt much lighter. And with a sheet metal intake you can get real trumpets the go into the plenum and get off the walls.
You're wrong. Its a lot lighter
18psi is offline   Reply With Quote
Old 05-20-2013, 10:00 PM   #691
Junior Member

Join Date: Mar 2012
Posts: 111
Total Cats: 8
Default

Quote:
Originally Posted by thenuge26 View Post
I remember earlier in the thread everyone was making fun of someone who wanted to use silicone couplers.

Who's laughing now?
Why did people shoot it down so much? Will the rough join disrupt the flow? I remember seeing photos of Group B rally cars with couplers mid runner. So if properly braced is reliability really an issue?
Vilko is offline   Reply With Quote
Old 05-20-2013, 10:06 PM   #692
A living god
iTrader: (23)

viperormiata's Avatar

Join Date: Aug 2008
Location: Key West
Posts: 5,951
Total Cats: 228
Default

Quote:
Originally Posted by muoto View Post
As a Honda ITR manifold owner, this is what I think every time I look at the engine
Haha. Luckily my sheet metal intake is fine...for now. But, yes, I cringe when I look at my lump of **** and consider killing myself. Even if it is coming along.
viperormiata is offline   Reply With Quote
Old 05-20-2013, 10:24 PM   #693
Senior Member
iTrader: (2)

Join Date: Oct 2011
Location: Hickory, NC
Posts: 681
Total Cats: 3
Default

I am starting a composites company. I plan on starting with fender flares and other smaller items but a composite intake manifold is definitely on the list. Maybe it needs to be at the top? I can do carbon fiber runners like the sheet metal ones, actually I plan to make the whole thing out of carbon except the flanges. Thoughts? I was going to copy the Blox/mazda bastardized mani.....
Amellrotts is offline   Reply With Quote
Old 05-20-2013, 10:27 PM   #694
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 33,429
Total Cats: 2,035
Default

thoughts? cool story bro
do it
you're only the 10th person to say something like that. seriously

others, like travis from boundary engineering, gave up long ago
18psi is offline   Reply With Quote
Old 05-20-2013, 10:33 PM   #695
Elite Member
iTrader: (5)

Erat's Avatar

Join Date: Oct 2011
Location: Detroit
Posts: 3,924
Total Cats: 224
Default

Now that i see pictures.
Was the manifold even post stress relieved? Was it preheated? Does this epic famous welder know what he's welding, and how / what to pre / post heat it to? Do we know what this cast aluminum even is? With that being said, not all aluminum can be heat treated. But very little preheat is never a bad idea.

One of the first things i learned (i don't build million dollar custom one off race cars at a high end fancy shop somewhere, so who knows) is that in steel you can make the weld as strong as the metal you're welding to. But in aluminum that's not always the case(your cracked welds are a fine example).
Erat is offline   Reply With Quote
Old 05-21-2013, 01:00 AM   #696
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: woosta, ma
Posts: 8,684
Total Cats: 93
Default

Quote:
Originally Posted by Amellrotts View Post
I am starting a composites company. I plan on starting with fender flares and other smaller items but a composite intake manifold is definitely on the list. Maybe it needs to be at the top? I can do carbon fiber runners like the sheet metal ones, actually I plan to make the whole thing out of carbon except the flanges. Thoughts? I was going to copy the Blox/mazda bastardized mani.....
I'll give you the simple version. Runners 16" long. Machine the flange out of aluminum with raised bosses for the CF runners to bond to, set it up to use viton oring seals on the ports. Hard anno the flange. Bond the formed CF runners to the flange. D shaped tapered plenum with the runners ending in velocity stacks an inch or so into the plenum. I would make the stacks a separate piece from the runners and the plenum, bond the stacks to the runners and the runners to the plenum. Throttle body flange, just like the head flange. Finish coat of resin to ensure minimal porosity. Its the simplest way to make a pimpy CF manifold that will absolutely seal like the dickens. Leaking custom composite intakes have been the bane of my existence before.
Leafy is offline   Reply With Quote
Old 05-21-2013, 09:15 AM   #697
Senior Member
iTrader: (2)

Join Date: Oct 2011
Location: Hickory, NC
Posts: 681
Total Cats: 3
Default

Leafy,
Why would you make the velocity stacks a separate piece? I plan to mold it all in one piece. The rest is pretty much as I planned. No I guess I will go out and work on my spray booth (I have a chopper gun and need a spray booth, plus is will double as a paint booth).
Amellrotts is offline   Reply With Quote
Old 05-21-2013, 09:37 AM   #698
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: woosta, ma
Posts: 8,684
Total Cats: 93
Default

Quote:
Originally Posted by Amellrotts View Post
Leafy,
Why would you make the velocity stacks a separate piece? I plan to mold it all in one piece.
Um, so you can actually assemble it. The holes in the plenum are going to be runner sized, the runners will be too long to slip in from inside the plenum an the stacks wont fit through the hole. And trying to put the runners into the plenum before its formed, then forming it, would be too complicated IMO. This way all your molds, besides the stacks, are simple re-usable plug molds that should be easy to vac bag over.
Leafy is offline   Reply With Quote
Old 05-21-2013, 09:47 AM   #699
Senior Member
iTrader: (2)

Join Date: Oct 2011
Location: Hickory, NC
Posts: 681
Total Cats: 3
Default

My plan was to ......you know what, I don't want to hi-jack this great thread. I will start a new one soon. Thanks for your ideas!
Amellrotts is offline   Reply With Quote
Old 05-21-2013, 02:34 PM   #700
Senior Member
iTrader: (5)

Join Date: Jun 2010
Location: San Rafael, CA
Posts: 946
Total Cats: 19
Default

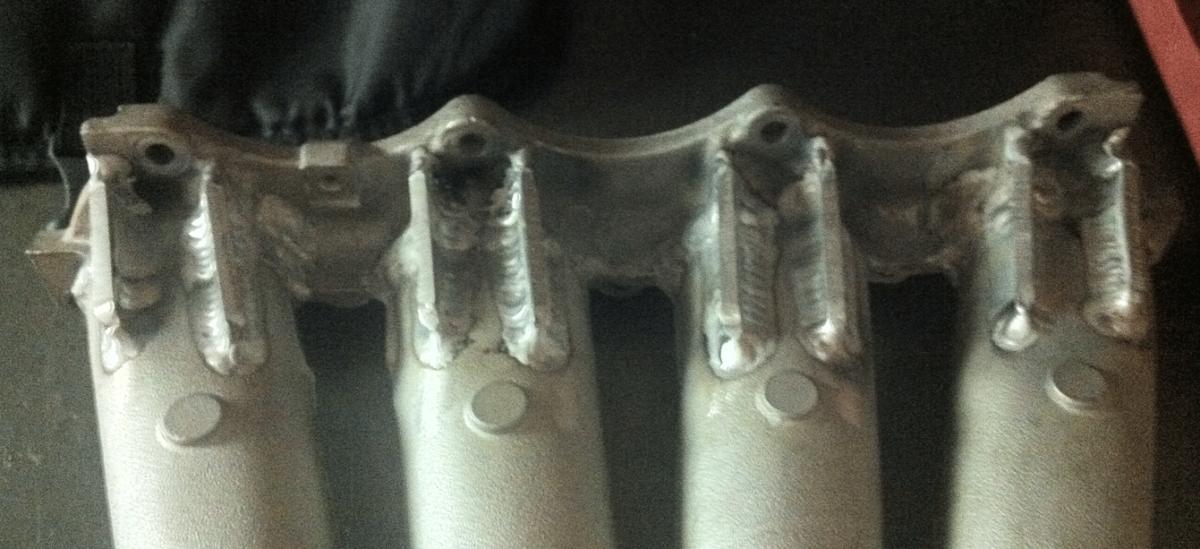

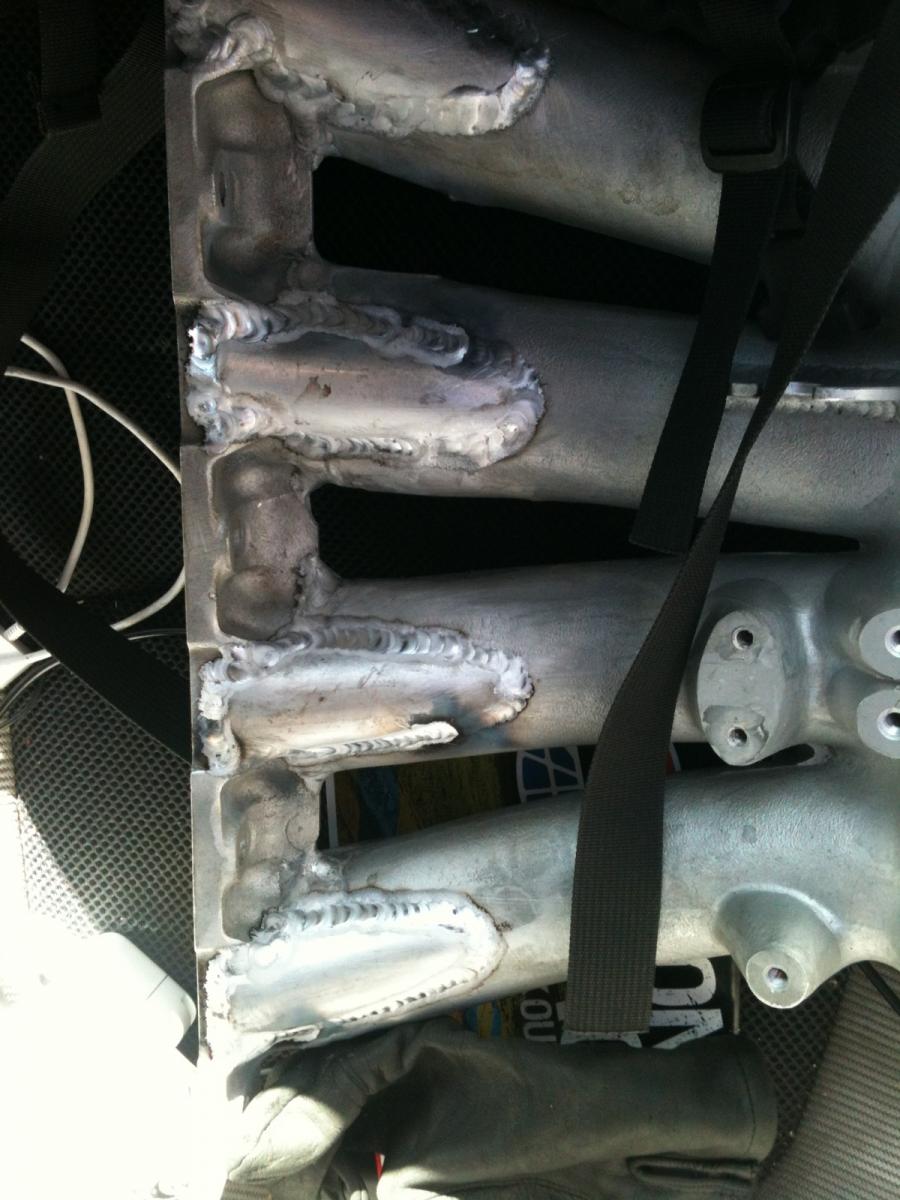

I am taking this serious!

Next up bracing. Not taking any chances!!!
Attached Thumbnails
Honda intake manifold-photo.jpg   Honda intake manifold-manifold-bracing.jpg
k24madness is offline   Reply With Quote
