Old 08-23-2013, 05:37 PM   #741
I haz no trubo
iTrader: (2)

Oscar's Avatar

Join Date: Jan 2007
Location: Bolton, UK
Posts: 3,012
Total Cats: 108
Default

Skunk tb will work with the oem idle valve.
Oscar is offline   Reply With Quote
Old 08-24-2013, 06:23 PM   #742
Senior Member
iTrader: (13)

Join Date: Jan 2007
Location: Murfreesboro,TN
Posts: 1,184
Total Cats: 36
Default

Quote:
Originally Posted by Leafy View Post
I need to check and see if I have a drawing of the intake flange kicking around on my hard drive. I'd be totally cool with uploading it in, dwg, dxf, sldrprt, stp, and iges, which should cover every freaking piece of software and mechanism for cutting one.
Way ahead of you. I can send it to you when I get to work this week.
Midtenn is offline   Reply With Quote
Old 08-24-2013, 10:45 PM   #743
Senior Member
iTrader: (4)

2manyhobyz's Avatar

Join Date: Feb 2011
Location: Joliet, IL
Posts: 605
Total Cats: 16
Default

Quote:
Originally Posted by emilio700 View Post
We have a #4771 Edelbrock Performer-X at the fabricator being put together this week. For an N/A engine with stock or mild race cams, we want the runners just a shade under 11" long. Most aftermarket Honda B series manifold are based on the Type R B18C with shorter runners. The Performer is a bit longer and smaller volume runner so it's closer to our target. A friend did some controlled testing of various runner lengths on a supercharged BP4W head and found best power at around 10.5" runner length. Not sure how that applies to turbos but I have a feeling they'll respond best to the same runner lengths. This all assumes stock (3000-7200) or slightly higher powerband with cams/porting (4000-8200).

The obstacle in our case is making it fit with the NB's ABS pump in the OEM location with those longer runners. So we're making a new bracket for the ABS pump and shoving it over a few inches. If it fits and makes any power, I'll post pics.
Question, the runner length is measured from what point to what point?
(I think it's from top of the valve to the start of the plenum.)

Last edited by 2manyhobyz; 08-25-2013 at 01:03 AM.
2manyhobyz is offline   Reply With Quote
Old 08-25-2013, 04:19 PM   #744
Supporting Vendor
iTrader: (3)

emilio700's Avatar

Join Date: May 2005
Posts: 4,760
Total Cats: 922
Default

Quote:
Originally Posted by 2manyhobyz View Post
Question, the runner length is measured from what point to what point?
(I think it's from top of the valve to the start of the plenum.)
From where it starts being a runner to where it stops being a runner. When measuring intake and exhaust piping, the air mass will change speed anytime there is a significant change in cross sectional volume. That speed change generally causes the gaseous mixture "slinky" to generate a standing wave. So that area where the volume changes is where you measure from.

In the case of the port, the valve shuts so that's a terminus.

Measure on the centerline, not short side radius. Port is valve seat to port mouth. You have to average short side and long side. For a very high revving engine with big race specific cams (narrow power band) a 10mm either way can adversely the power. For a lower lift and shorter duration cam at loer outputs like a typical street/HPDE Miata, get it to within 15mm or so and you're good.

I can't tell you what you need for your car. That takes some math and knowledge of how intake systems work on spark ignition 4 cycl engines.
emilio700 is offline   Reply With Quote
Old 08-25-2013, 09:06 PM   #745
Senior Member
iTrader: (4)

2manyhobyz's Avatar

Join Date: Feb 2011
Location: Joliet, IL
Posts: 605
Total Cats: 16
Default

Thanks for sharing your time on a Sunday.
2manyhobyz is offline   Reply With Quote
Old 08-26-2013, 07:55 PM   #746
Junior Member
iTrader: (2)

Join Date: Mar 2008
Location: Irvine, Ca
Posts: 277
Total Cats: 22
Default

Quote:
Originally Posted by Oscar View Post
Skunk tb will work with the oem idle valve.
Depends on where your manifold ends up. On mine there was not enough clearance between the manifold and the shock tower to bolt the valve in. My RX7 idle valve works fine though it just looks funny.
cjsafski is offline   Reply With Quote
Old 08-28-2013, 04:46 PM   #747
Senior Member
iTrader: (1)

Join Date: Nov 2007
Location: Saint Paul, MN
Posts: 1,182
Total Cats: 18
Default

Quote:
Originally Posted by Full_Tilt_Boogie View Post
I think thsi would be cool, and give a little soemthing to play with on the dyno:

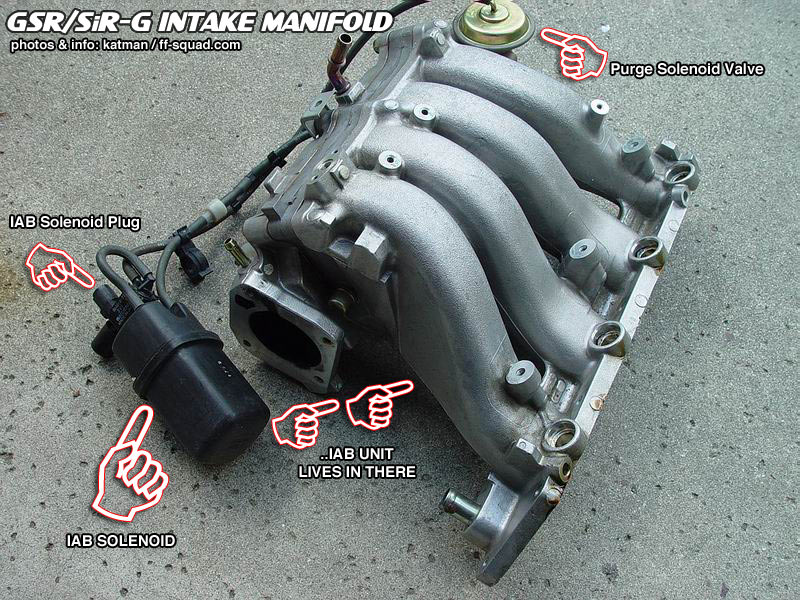

Acura Integra GSR (B18C1) Intake manifold





It has secondary runners that are opened by a set of butterfly valves.
I think this manifold is the reason why so many ppl think that VICS works this way.
Did anyone ever give this a shot? Could the longer runners work better for non-boost and low RPM range torque like VICS?
Attached Thumbnails
Honda intake manifold-p72.im_1.jpg
Der_Idiot is offline   Reply With Quote
Old 08-28-2013, 04:53 PM   #748
Junior Member
iTrader: (1)

Join Date: Oct 2011
Location: Albuquerque, NM
Posts: 381
Total Cats: -11
Default

Ill sell you one so you can be the first
Dot3 is offline   Reply With Quote
Old 08-28-2013, 04:58 PM   #749
Senior Member
iTrader: (2)

Join Date: Oct 2011
Location: Hickory, NC
Posts: 681
Total Cats: 3
Default

I might be interested, how much shipped to NC?
Amellrotts is offline   Reply With Quote
Old 08-28-2013, 05:16 PM   #750
Junior Member
iTrader: (1)

Join Date: Oct 2011
Location: Albuquerque, NM
Posts: 381
Total Cats: -11
Default

It looks like you can get one on eBay for $60. It doesn't seem worth it to ship now.
Dot3 is offline   Reply With Quote
Old 08-28-2013, 05:18 PM   #751
Senior Member
iTrader: (1)

Join Date: Nov 2007
Location: Saint Paul, MN
Posts: 1,182
Total Cats: 18
Default

I know it's a cramped fit, but couldn't you just alter the angle of the runners up a little to avoid hitting the shock tower and tbody placement issues? How does the runner transition change, via solenoid like with VICS?
Der_Idiot is offline   Reply With Quote
Old 08-28-2013, 05:19 PM   #752
Junior Member

Join Date: Nov 2009
Location: Jax Fl
Posts: 469
Total Cats: 30
Default

Honda guys hate this manifold and practically give them away. I'm sure you can find one cheap on a local cragslist or something.
Tw34k is offline   Reply With Quote
Old 08-28-2013, 11:12 PM   #753
Senior Member
iTrader: (1)

Join Date: Nov 2007
Location: Saint Paul, MN
Posts: 1,182
Total Cats: 18
Default

How do you measure the plenum volume on a dual stack manifold? Can you measure the volume and the runner length(s)? I'm searching but can't find any real data for that, anyone know how close it sits to the frame rail? I'm really considering giving this a shot; I can just swap over my VICS solenoid and tune away assuming I can make it fit...
Der_Idiot is offline   Reply With Quote
Old 08-29-2013, 09:03 PM   #754
Supporting Vendor
iTrader: (3)

emilio700's Avatar

Join Date: May 2005
Posts: 4,760
Total Cats: 922
Default

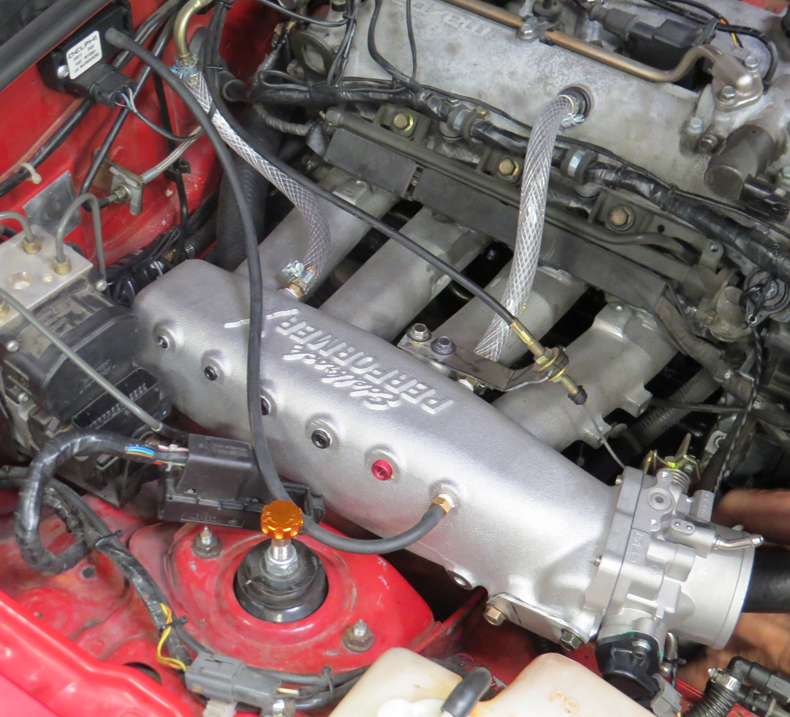

So we ended up at 9.5" runner length, about 1.5" short from optimal of 11". Up against the ABS and we still had to move the pump almost 2". I realize now the only way to get the required length is to wrap it around like OEM. To get it right we'll have to build it from scratch.

Being a bit short, we'll lose a bit of power everywhere from optimal length. I'm hoping that it will still flow more peak than a square top. We'll know tomorrow once we get it on a dyno.

Thats a 66mm cast Alpha series Skunk2 TB from a base Integra.

Attached Thumbnails
Honda intake manifold-bp6d_4771_hybrid_manifold_1.jpg
emilio700 is offline   Reply With Quote
Old 08-30-2013, 09:19 AM   #755
Boost Czar

iTrader: (60)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 70,938
Total Cats: 1,470
Default

curious where you came up with the 11" number? (is that what stock is?) But really excited to see your results.

What's the length of the BEGI cast IM runners? I feel like they are around 9" and people are seeing tons of top-end gains with them. on some turbo setups they are even seeing low-end gains and it is improving the turbo response below 4K.

I've been urging people that have considered the Eledelbrock manifolds to go with the performerx over the victorx for the longer runners.
Braineack is offline   Reply With Quote
Old 08-30-2013, 11:27 AM   #756
Elite Member
iTrader: (3)

Join Date: Feb 2008
Location: Huntsville, AL
Posts: 1,869
Total Cats: 45
Default

Quote:
Originally Posted by Braineack View Post
Eledelbrock
Elderbrock.
vehicular is offline   Reply With Quote
Old 08-30-2013, 12:03 PM   #757
Senior Member
iTrader: (1)

Join Date: Nov 2007
Location: Saint Paul, MN
Posts: 1,182
Total Cats: 18
Default

Emilio, did you guys cut/weld a new flange on or did you weld/re-drill the existing flange? Can't wait to see the numbers.

Edit; And it looks like from the shape of the IM, you might be able to incorporate an IAC for those that want to street the car.

Last edited by Der_Idiot; 08-30-2013 at 12:20 PM.
Der_Idiot is offline   Reply With Quote
Old 08-30-2013, 02:00 PM   #758
Senior Member
iTrader: (4)

2manyhobyz's Avatar

Join Date: Feb 2011
Location: Joliet, IL
Posts: 605
Total Cats: 16
Default

Quote:
Originally Posted by Der_Idiot View Post
How do you measure the plenum volume on a dual stack manifold? Can you measure the volume and the runner length(s)? I'm searching but can't find any real data for that, anyone know how close it sits to the frame rail? I'm really considering giving this a shot; I can just swap over my VICS solenoid and tune away assuming I can make it fit...
You can use use rice or popcorn to measure the volume. Just make sure its dry inside so the stuff pours right out.

Last edited by 2manyhobyz; 08-30-2013 at 02:01 PM. Reason: typo
2manyhobyz is offline   Reply With Quote
Old 08-30-2013, 02:56 PM   #759
Boost Czar

iTrader: (60)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 70,938
Total Cats: 1,470
Default

wouldn't water be easier?
Braineack is offline   Reply With Quote
Old 08-30-2013, 02:59 PM   #760
Senior Member
iTrader: (2)

Join Date: Oct 2011
Location: Hickory, NC
Posts: 681
Total Cats: 3
Default

And slightly more accurate since it will not have the voids between what ever media is used.....
Amellrotts is offline   Reply With Quote
