Old 01-29-2010, 11:21 AM   #141
meatbag
iTrader: (50)

gospeed81's Avatar

Join Date: Nov 2008
Location: Houston, TX
Posts: 7,357
Total Cats: 26
Default

Quote:
Originally Posted by dc2696 View Post
You 1.6 guys will have to cut your oem intakes far enough back to include that jazz like Braineack did whefn he built his manifold.
This...it's about 3" back to include both the bosses and the fuel rail mounting points. Luckily the runners don't start bending down until right after that, and you can still reach that point with a dremel to clean up the weld.

1.6L intake manis are probably cheaper than flanges anyway lol*




*note that the "lol" is being used in place of a period here, to end the expression with a note of humor.
gospeed81 is offline   Reply With Quote
Old 01-29-2010, 02:02 PM   #142
Elite Member
Thread Starter
iTrader: (30)

Join Date: Aug 2007
Location: Va Beach
Posts: 7,273
Total Cats: 0
Default

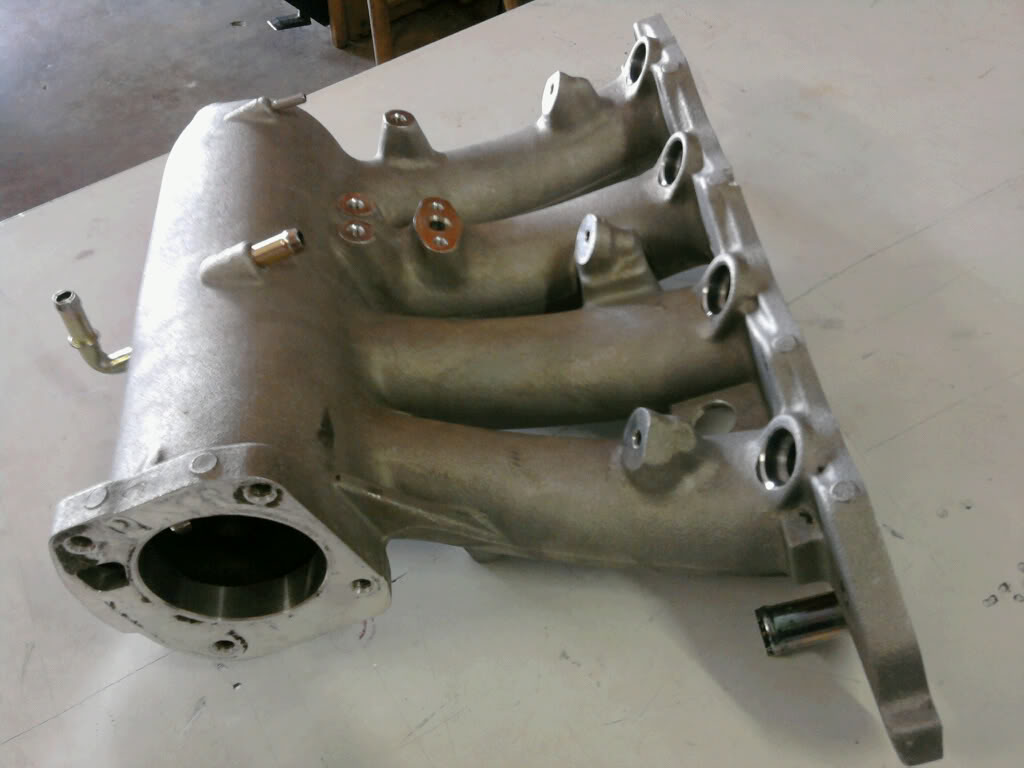

Got my mani today, still waiting on my throttle body.


__________________
Best Car Insurance | Auto Protection Today | FREE Trade-In Quote
levnubhin is offline   Reply With Quote
Old 01-29-2010, 02:23 PM   #143
Senior Member
iTrader: (8)

Join Date: Feb 2009
Location: Jax, Fl
Posts: 907
Total Cats: 0
Default

This is it with the miata flange on it? Looks better than ours IMO
johnmatt is offline   Reply With Quote
Old 01-29-2010, 02:39 PM   #144
Elite Member
Thread Starter
iTrader: (30)

Join Date: Aug 2007
Location: Va Beach
Posts: 7,273
Total Cats: 0
Default

Quote:
Originally Posted by johnmatt View Post
This is it with the miata flange on it? Looks better than ours IMO
No, still 100% Honda.
__________________
Best Car Insurance | Auto Protection Today | FREE Trade-In Quote
levnubhin is offline   Reply With Quote
Old 01-29-2010, 04:42 PM   #145
Junior Member

Join Date: Jan 2010
Location: Eastside Muff~Palmdale,CA
Posts: 93
Total Cats: 0
Default

Quote:
Originally Posted by dc2696 View Post
Another advantage for the 1.8, our mounting gear is on the head.

You 1.6 guys will have to cut your oem intakes far enough back to include that jazz like Braineack did whefn he built his manifold.
...so 1.8 has injectors and mounting on head,- that explains why the Victor X on previous page has no provisions for fuel...sorry Im 1.6L
I got a price for the intake flanges,after setup fees & hourly,works out to $75 each,there would be a minumum of 5 to begin.They would be out of 3/8" AL.
Eadohcturbo is offline   Reply With Quote
Old 01-29-2010, 05:21 PM   #146
Elite Member
iTrader: (5)

Join Date: Jan 2007
Location: Freehold, NJ
Posts: 1,577
Total Cats: -2
Default

if we can get these done for the 1.6 cheaper than what BEGI is gonna sell theirs for that would be *******.
disturbedfan121 is offline   Reply With Quote
Old 01-29-2010, 05:37 PM   #147
Junior Member
iTrader: (6)

Join Date: Dec 2008
Location: Boulder, CO
Posts: 284
Total Cats: 7
Default

I could also get flanges cut on a cnc mill out of 1/2" 6061 for $65-75 depending on the number of pieces, no minimum (plus shipping to you). I have gasket-matched patterns for the 1.8 BP05 and BP4W heads.

--Ferdi
ftjandra is online now   Reply With Quote
Old 01-29-2010, 06:20 PM   #148
Former Vendor
iTrader: (34)

ARTech's Avatar

Join Date: Mar 2009
Location: Dallas
Posts: 530
Total Cats: 9
Default

Quote:
Originally Posted by Eadohcturbo View Post
...so 1.8 has injectors and mounting on head,- that explains why the Victor X on previous page has no provisions for fuel...sorry Im 1.6L
I got a price for the intake flanges,after setup fees & hourly,works out to $75 each,there would be a minumum of 5 to begin.They would be out of 3/8" AL.
I'm not sure 3/8" is enough. You may want to price 1/2". For our 1.6s, I'd want a CNC'd flange with the injector bosses machined, but what you suggest works for the 1.8 guys.

There's nothing wrong using the flange off the stock manifold. Many fabricators do it.

Quote:
I could also get flanges cut on a cnc mill out of 1/2" 6061 for $65-75 depending on the number of pieces, no minimum (plus shipping to you). I have gasket-matched patterns for the 1.8 BP05 and BP4W heads.

--Ferdi
That's a great price for CNC'd flanges. How about 1.6 ones with injector provisions? Any idea what they would cost?
ARTech is offline   Reply With Quote
Old 01-29-2010, 06:26 PM   #149
Junior Member
iTrader: (6)

Join Date: Dec 2008
Location: Boulder, CO
Posts: 284
Total Cats: 7
Default

Quote:
Originally Posted by ARTech View Post
That's a great price for CNC'd flanges. How about 1.6 ones with injector provisions? Any idea what they would cost?
I have never held a 1.6 manifold in my hands so I can't say. Would 1/2" material even be thick enough for the injector bosses? I'll go look at some 1.6 pics now to see what all would be involved.

Just looked at Braineack's pics and I'd estimate you would need to start out with 1" thick material to be able to have enough meat for machining the injector bosses. You would still need to weld on the fuel rail attachment 'towers'. Rough price estimate is that 1.6 flanges would cost about twice as much, so ~$150. In this case, I'd just use a cut-off stock flange...

--Ferdi
ftjandra is online now   Reply With Quote
Old 01-29-2010, 06:46 PM   #150
Former Vendor
iTrader: (34)

ARTech's Avatar

Join Date: Mar 2009
Location: Dallas
Posts: 530
Total Cats: 9
Default

You're probably right. Here's how SLS does it for Honda flanges:



Maybe 3/4"?

Has anyone seen this one?

Mazda MX-5 Miata 1.6l intake manifold B6 MX5 : eBay Motors (item 350303846766 end time Feb-10-10 05:02:32 PST)

Sure doesn't look like cast to me but wha-eva. Plenum too large, runners too short?
ARTech is offline   Reply With Quote
Old 01-29-2010, 09:11 PM   #151
Elite Member
iTrader: (13)

Join Date: Nov 2006
Location: Tigard, Oregon
Posts: 3,908
Total Cats: 0
Default

Quote:
Originally Posted by ARTech View Post
Plenum too large, runners too short?

And way too much money.
cueball1 is offline   Reply With Quote
Old 01-30-2010, 10:39 AM   #152
Elite Member

Join Date: Dec 2008
Location: Colorado
Posts: 1,669
Total Cats: 36
Default

Quote:
Originally Posted by sn95 View Post
Hmm, us "great minds" think alike! I've been wondering if cutting off the Miata flange with about 2" runner stubs is a possibility. Open up the runner stubs to match the ID of the Honda manifold runners and then cut the Honda flange and about 2" of each runner off. Use 4 silicon hose couplers & 8 SS T-bolt clamps to physically join the Miata flange to the Honda manifold along with modifying/adapting the stock Miata intake manifold support to the Honda manifold so that the silicon hose connector tubes aren't holding any weight. Ghetto, but very functional. FWIW, Lycoming aircraft engines have logged millions of hours with these funking rubber/silicon connector hose intakes.

YMMV
Adjustable runner length too. Seriously.
Sparetire is offline   Reply With Quote
Old 01-30-2010, 01:35 PM   #153
Former Vendor
iTrader: (34)

ARTech's Avatar

Join Date: Mar 2009
Location: Dallas
Posts: 530
Total Cats: 9
Default

Too much for a chinese product maybe, but as far as custom IMs go, $500 is not expensive. Begi's sells for more and there's a lot less work involved in making it vs the one in the link. CNC'd flange, formed plenum/runners, velocity stacks, all that costs money.

The cut&paste method will cost about that once its all said and done (including price of new manifold) assuming you don't own a machine shop.
ARTech is offline   Reply With Quote
Old 01-30-2010, 01:51 PM   #154
Guest
iTrader: (6)

Join Date: Sep 2007
Location: Vaughan, On, Canada
Posts: 1,092
Total Cats: 0
Default

I've been working on pricing out Intake Manifolds, Flanges and all Welding/Labor and I might be able to bring the product to market.

BRAND NEW Intake Manifold welded to Billet Flange and Port Matched to flange.

Pricing would be based on minimum group buy of 10 Intake Manifolds. Keep in mind the 97-97 and 99-05 flanges are different.

Who would be interested at the price of $450-500 based on a minimum Group Buy of 10.
M-Tuned is offline   Reply With Quote
Old 02-01-2010, 11:47 AM   #155
Junior Member

Join Date: May 2008
Location: Canada
Posts: 372
Total Cats: 42
Default

I would be interested (99-05 engine) but would like to see dyno evidence that it works well before committing.
DeerHunter is offline   Reply With Quote
Old 02-01-2010, 12:24 PM   #156
Elite Member
Thread Starter
iTrader: (30)

Join Date: Aug 2007
Location: Va Beach
Posts: 7,273
Total Cats: 0
Default

Quote:
Originally Posted by Marc@M-Tuned.com View Post
Who would be interested at the price of $450-500 based on a minimum Group Buy of 10.


Honestly, I don't think you well sell many if any at that price. Especially if this Honda mani works good enough. I'll have this mani on my car for under $300. I think if you or anyone can bring a decent manifold to the market in the $300-350 area you would sell a bunch.
__________________
Best Car Insurance | Auto Protection Today | FREE Trade-In Quote
levnubhin is offline   Reply With Quote
Old 02-01-2010, 01:16 PM   #157
Junior Member
iTrader: (1)

Join Date: May 2009
Location: Niagara Falls, ON
Posts: 433
Total Cats: 0
Default

Quote:
Originally Posted by levnubhin View Post
Honestly, I don't think you well sell many if any at that price. Especially if this Honda mani works good enough. I'll have this mani on my car for under $300. I think if you or anyone can bring a decent manifold to the market in the $300-350 area you would sell a bunch.
+1 to that, 500-600$ for an intake manifold is pretty hefty when other cars manifolds are going for alot cheaper.
stranges12712 is offline   Reply With Quote
Old 02-01-2010, 02:32 PM   #158
Guest
iTrader: (6)

Join Date: Sep 2007
Location: Vaughan, On, Canada
Posts: 1,092
Total Cats: 0
Default

Quote:
Originally Posted by levnubhin View Post
Honestly, I don't think you well sell many if any at that price. Especially if this Honda mani works good enough. I'll have this mani on my car for under $300. I think if you or anyone can bring a decent manifold to the market in the $300-350 area you would sell a bunch.
You got the manifold used and for cheap. New versions are $180-280ish, plus a billet flange and welding. The Aluminum Welding is not cheap. Aluminum Welders get paid very good money in my area.

Most of the money in our estimate is welding and fabrication costs.
M-Tuned is offline   Reply With Quote
Old 02-01-2010, 02:38 PM   #159
Guest
iTrader: (6)

Join Date: Sep 2007
Location: Vaughan, On, Canada
Posts: 1,092
Total Cats: 0
Default

Quote:
Originally Posted by stranges12712 View Post
+1 to that, 500-600$ for an intake manifold is pretty hefty when other cars manifolds are going for alot cheaper.
The issue is the tooling and setup. I have contacts to make a cast manifold just like the Skunk2 or Blox but the $10,000-15,000 in tooling/setup costs at the foundry is too much unless you are amortizing it over 1000s of parts in the first 12 months... (which I don't think we have a market for with the various years of Miata)

Otherwise your price is just too high...
M-Tuned is offline   Reply With Quote
Old 02-01-2010, 03:43 PM   #160
Senior Member

Join Date: Apr 2008
Location: NHR, TX
Posts: 535
Total Cats: -1
Default

This is making me feel old, but I remember when a custom intake manifold would go for a grand or more. No one balked over a custom turbo kit costing 3 to 4 thousand because they knew it was a good deal (And this was in 1990's dollars). I don't know if the cheap cost of Honda stuff is the cause, but 500 is cheap for just about anything custom under the hood of a car that actually make power. That doesn't mean everyone can afford it, but its custom work, not something mass produced. Consider water reroutes are going for 300.00. COPS kits for 300 plus.
apariah is offline   Reply With Quote
