Old 04-08-2013, 12:26 PM   #261
Elite Member
iTrader: (2)

Join Date: Aug 2012
Location: Indianapolis
Posts: 3,325
Total Cats: 231
Default

Yeah there's also a squarewave 175 for $950 which includes everything but gas. Decisions decisions.
thenuge26 is offline   Reply With Quote
Old 04-08-2013, 01:03 PM   #262
mkturbo.com
iTrader: (24)

shuiend's Avatar

Join Date: May 2006
Location: Charleston SC
Posts: 12,673
Total Cats: 830
Default

Quote:
Originally Posted by thenuge26 View Post
Yeah there's also a squarewave 175 for $950 which includes everything but gas. Decisions decisions.
Mine came with the gas and it was a steal. Honestly see if you can talk him down a bit on the 175. It is a great machine to learn on. Once I realized that I needed to make sure argon was turned on at the torch, I was laying down beads within a few minutes. Without argon you will just make big holes in the metal.
shuiend is offline   Reply With Quote
Old 04-08-2013, 02:17 PM   #263
Elite Member
iTrader: (5)

Join Date: Aug 2011
Location: South Jersey
Posts: 1,523
Total Cats: 30
Default

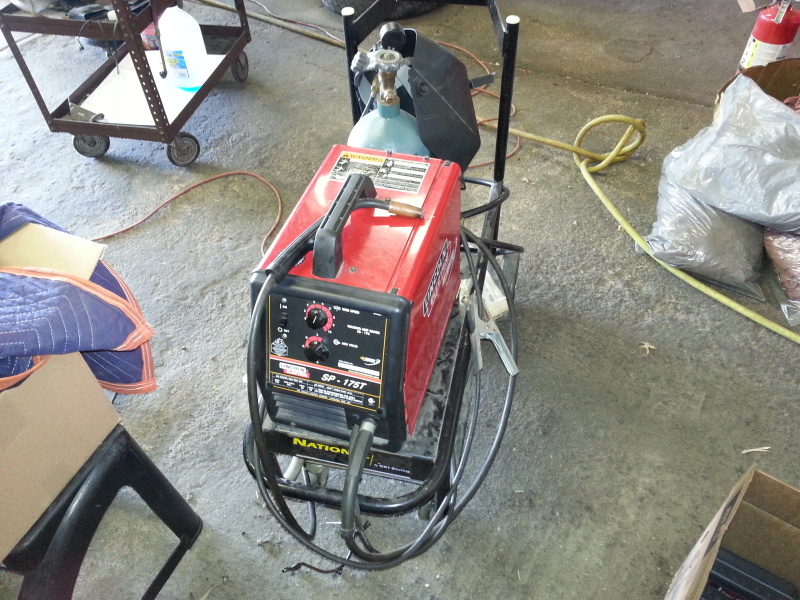

This thing sits in the garage at work and is used maybe once every 2 months.... I think it's about time I learned how to weld. Maybe I will practice and make my own 3" stainless exhaust lol

Attached Thumbnails
The custom fabrication thread! (Post pics of stuff you have made)-20130408_135020_zps455346b7.jpg
BTMiata is offline   Reply With Quote
Old 04-08-2013, 03:27 PM   #264
Elite Member
iTrader: (2)

Join Date: Aug 2012
Location: Indianapolis
Posts: 3,325
Total Cats: 231
Default

lol Squarewave 175 guy's first message to me was 'Sure but the price has to be firm'.

Listen dude I can see that nobody's touched it in the week and a half you've had it up there, I can wait. I still have 4 more weeks to go in my welding class.

Which btw I will try to remember to take some pics this time. 4 hours in last week and I was already making some decent looking butt welds. Been working on my feed hand this week with a $0.25 dowel from WalMart.

One depressing thing about looking for used welders is googling a potential unit, and seeing someone talk about picking one up used in 2005 for $300 less than it's listed today. WTF don't these things ever lose value?
thenuge26 is offline   Reply With Quote
Old 04-08-2013, 03:34 PM   #265
Senior Member
iTrader: (6)

Join Date: May 2009
Location: San Francisco
Posts: 989
Total Cats: 23
Default

I got my Lincoln 175 square wave for 900 with a small gas bottle. It was easy to talk him down a bit since I was like 18 when I bought it. I think that was a sweet deal. Also, I like the fact that it hasn't depreciated, so I can sell it for 900 also.
wittyworks is offline   Reply With Quote
Old 04-08-2013, 05:16 PM   #266
Elite Member
iTrader: (5)

Join Date: Aug 2011
Location: South Jersey
Posts: 1,523
Total Cats: 30
Default

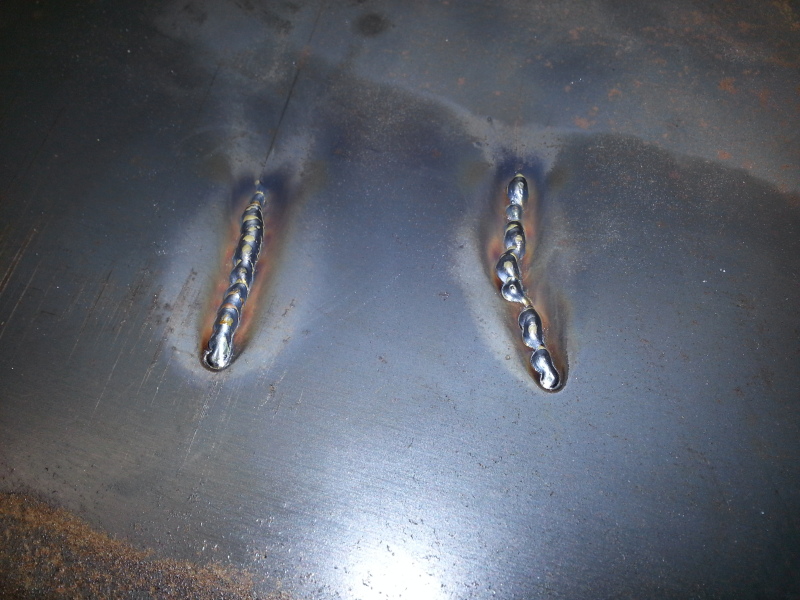

First weld's I ever did.... first time on right, 2nd time on left (After a few helpful tips from the guy I work with). I might keep practicing for a few months and maybe eventually I can make my own exhaust!

Attached Thumbnails
The custom fabrication thread! (Post pics of stuff you have made)-20130408_170440_zps2de5419f.jpg
BTMiata is offline   Reply With Quote
Old 04-08-2013, 06:19 PM   #267
Elite Member
iTrader: (4)

Join Date: Dec 2008
Location: Kingston, Ontario
Posts: 2,649
Total Cats: 62
Default

That exhaust was on a 1JZ twin turbo JDM Toyota Soarer.

I also just painted the bay for the guy.

Fresh paint makes the bay look minty... But it doesn't fall under fab work.
shlammed is offline   Reply With Quote
Old 04-08-2013, 08:20 PM   #268
Elite Member
iTrader: (2)

Join Date: Aug 2012
Location: Indianapolis
Posts: 3,325
Total Cats: 231
Default

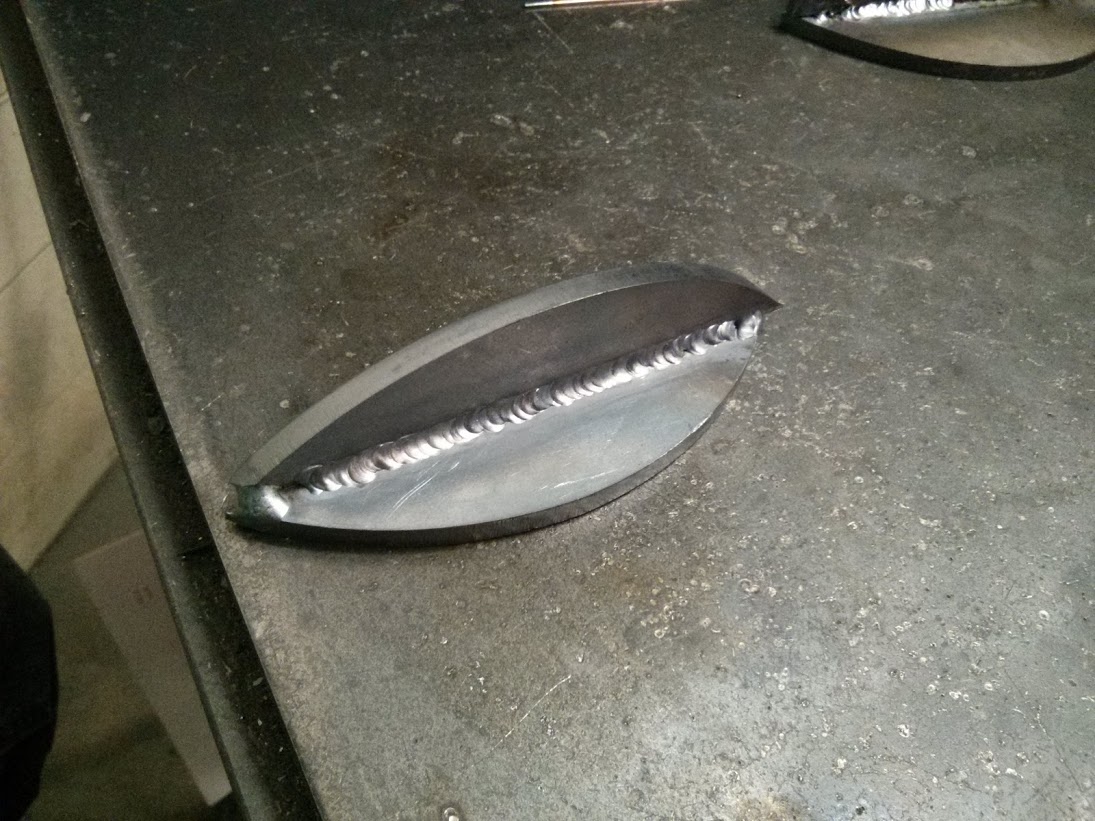

Day 2 of class:

I think that one's not enough filler. I got some 1/8" dowel rod from WalMart, perfect for practicing the feed hand.

Also that was a bit too much arc length. Arc length, fill speed, torch speed. I can get 2/3 100% of the time, and all 3 about 30%. Next week will be moving down to 16 gauge.
Attached Thumbnails
The custom fabrication thread! (Post pics of stuff you have made)-0zwpu8p.jpg
thenuge26 is offline   Reply With Quote
Old 04-08-2013, 08:50 PM   #269
Elite Member
iTrader: (5)

Erat's Avatar

Join Date: Oct 2011
Location: Detroit
Posts: 3,987
Total Cats: 233
Default

Quote:
Originally Posted by BTMiata View Post
First weld's I ever did.... first time on right, 2nd time on left (After a few helpful tips from the guy I work with). I might keep practicing for a few months and maybe eventually I can make my own exhaust!
Somethings wrong with the gas, or the setting on the machine.

You shouldn't have any of that brown stuff around the welds.

Quote:
Originally Posted by thenuge26 View Post
One depressing thing about looking for used welders is googling a potential unit, and seeing someone talk about picking one up used in 2005 for $300 less than it's listed today. WTF don't these things ever lose value?
Nope, and that's one of the reasons i buy new.
Erat is offline   Reply With Quote
Old 04-09-2013, 07:39 AM   #270
Elite Member
iTrader: (5)

Join Date: Aug 2011
Location: South Jersey
Posts: 1,523
Total Cats: 30
Default

Quote:
Originally Posted by Erat View Post
Somethings wrong with the gas, or the setting on the machine.

You shouldn't have any of that brown stuff around the welds.
Could it be that it's not very thick metal? It's maybe 1/4 inch steel... You can actually see the weld from the bottom. No idea I'll read up on the settings and see if I need to adjust anything lol
BTMiata is offline   Reply With Quote
Old 04-09-2013, 08:32 AM   #271
mkturbo.com
iTrader: (24)

shuiend's Avatar

Join Date: May 2006
Location: Charleston SC
Posts: 12,673
Total Cats: 830
Default

Quote:
Originally Posted by BTMiata View Post
Could it be that it's not very thick metal? It's maybe 1/4 inch steel... You can actually see the weld from the bottom. No idea I'll read up on the settings and see if I need to adjust anything lol
The thickness of the metal does not matter for what you are trying to do. I have to agree that I don't have enough gas going and that is causing the browning.
shuiend is offline   Reply With Quote
Old 04-09-2013, 08:36 AM   #272
Elite Member
iTrader: (5)

Join Date: Aug 2011
Location: South Jersey
Posts: 1,523
Total Cats: 30
Default

Quote:
Originally Posted by shuiend View Post
The thickness of the metal does not matter for what you are trying to do. I have to agree that I don't have enough gas going and that is causing the browning.
Hmmm I will check it out next time and see if I can get it without causing the browning. Thanks guys
BTMiata is offline   Reply With Quote
Old 04-09-2013, 09:28 AM   #273
Elite Member

Join Date: Apr 2010
Location: Newcastle, Australia
Posts: 2,537
Total Cats: 18
Default

Could be dirty metal also, impossible to say from the photo.

Dann
nitrodann is offline   Reply With Quote
Old 04-09-2013, 09:32 AM   #274
Elite Member
iTrader: (5)

Join Date: Aug 2011
Location: South Jersey
Posts: 1,523
Total Cats: 30
Default

Quote:
Originally Posted by nitrodann View Post
Could be dirty metal also, impossible to say from the photo.

Dann
That could definitely be it! Didn't have a wire brush handy so didn't get to clean the metal before hand
BTMiata is offline   Reply With Quote
Old 04-09-2013, 09:35 AM   #275
Elite Member

Join Date: Apr 2010
Location: Newcastle, Australia
Posts: 2,537
Total Cats: 18
Default

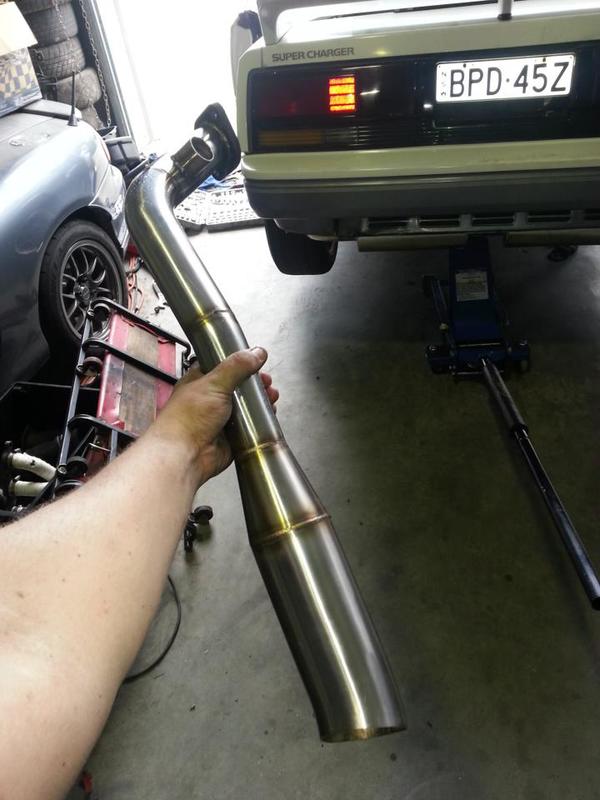

If you want sex spec TIG welds you need to start with perfect stainless and clean with acetone just before the weld, every single time.



Dann
Attached Thumbnails
The custom fabrication thread! (Post pics of stuff you have made)-58903_145448525632508_1184812012_n.jpg
nitrodann is offline   Reply With Quote
Old 04-09-2013, 01:42 PM   #276
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 11,811
Total Cats: 479
Default

Keep it on topic...
curly is offline   Reply With Quote
Old 04-09-2013, 02:05 PM   #277
Elite Member
iTrader: (4)

Pen2_the_penguin's Avatar

Join Date: Dec 2009
Location: Reno, NV
Posts: 3,690
Total Cats: 96
Default

I made a turbo heat shield out of a polished stainless steel sauce pan, a dremel, and beer.


I really hope the wife isnt going to recognize it under the hood, or that it is missing.
Pen2_the_penguin is offline   Reply With Quote
Old 04-09-2013, 02:38 PM   #278
Boost Czar

iTrader: (60)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 70,873
Total Cats: 1,468
Default

It might be confusing when she mistakes your engine bay with the kitchen.
Braineack is offline   Reply With Quote
Old 04-09-2013, 04:04 PM   #279
Elite Member
iTrader: (4)

Pen2_the_penguin's Avatar

Join Date: Dec 2009
Location: Reno, NV
Posts: 3,690
Total Cats: 96
Default

I tried to type up something clever but all I can do is lol.
Pen2_the_penguin is offline   Reply With Quote
Old 04-09-2013, 04:52 PM   #280
I haz no trubo
iTrader: (2)

Oscar's Avatar

Join Date: Jan 2007
Location: Bolton, UK
Posts: 3,008
Total Cats: 108
Default

Quote:
Originally Posted by Braineack View Post
It might be confusing when she mistakes your engine bay with the kitchen.
Funny, coming from the no. 1 poster in the cooking thread
Oscar is offline   Reply With Quote
