Old 08-06-2014, 04:05 PM   #841
Junior Member

Join Date: Jan 2007
Posts: 171
Total Cats: 7
Default PCV oil vapor catch can

Here's my simple PCV oil vapor catch can that goes in place of the stock airbox. It's for naturally aspirated cars running individual throttle bodies. One hose comes off the stock PCV valve, the other goes to vent on the valve cover. No internal baffling or pot scrubbers or anything because it's not really needed on a N/A car. Very similar to the ones made by Ocean @ Chikara Motorsports except my dimensions are a little bit different (4" square tube overhangs the shelf a little bit) and I have threaded bungs which allow for replaceable fittings to permit 90 elbows to be used if so desired. I designed it and cut all the pieces. A friend welded it up for me because I suck at TIG welding aluminum.









freedomgli is offline   Reply With Quote
Old 08-06-2014, 04:55 PM   #842
Elite Member
iTrader: (3)

Join Date: Feb 2008
Location: Huntsville, AL
Posts: 1,867
Total Cats: 45
Default

Quote:
Originally Posted by shlammed View Post
This is how I did a large muffler in a Miata without crazy bends. It looks fine from the back of the car too, being that its tucked at the bumper level.

[pic]


Is that a Vibrant mid muffler? How does it fit under the car?
vehicular is offline   Reply With Quote
Old 08-06-2014, 06:56 PM   #843
Newb

Join Date: Mar 2014
Location: Danbury, CT
Posts: 29
Total Cats: 0
Default

Quote:
Originally Posted by freedomgli View Post
Here's my simple PCV oil vapor catch can that goes in place of the stock airbox. It's for naturally aspirated cars running individual throttle bodies. One hose comes off the stock PCV valve, the other goes to vent on the valve cover. No internal baffling or pot scrubbers or anything because it's not really needed on a N/A car. Very similar to the ones made by Ocean @ Chikara Motorsports except my dimensions are a little bit different (4" square tube overhangs the shelf a little bit) and I have threaded bungs which allow for replaceable fittings to permit 90 elbows to be used if so desired. I designed it and cut all the pieces. A friend welded it up for me because I suck at TIG welding aluminum.
Those are some nice welds, I picked up some of the same 4" square for the same kind of catch can, If my welds look half as good as those Ill be very happy

Mine is going on a turbo setup so Im going to do some baffling
Dsit995 is offline   Reply With Quote
Old 08-06-2014, 11:58 PM   #844
SadFab CEO
iTrader: (3)

Join Date: Sep 2012
Location: your mom's house phoenix, AZ
Posts: 3,448
Total Cats: 424
Default

Quote:
Originally Posted by Schuyler View Post
Is that water pump inlet modified, or just flipped?
my first thought too.

i also enjoy the clean new fab parts juxtaposed on the old dirty engine photography
hi_im_sean is online now   Reply With Quote
Old 08-07-2014, 09:31 AM   #845
Elite Member
iTrader: (4)

Join Date: Dec 2008
Location: Kingston, Ontario
Posts: 2,637
Total Cats: 60
Default

Quote:
Originally Posted by Schuyler View Post
Is that water pump inlet modified, or just flipped?
flipped.
shlammed is offline   Reply With Quote
Old 08-07-2014, 09:32 AM   #846
Elite Member
iTrader: (4)

Join Date: Dec 2008
Location: Kingston, Ontario
Posts: 2,637
Total Cats: 60
Default

Quote:
Originally Posted by vehicular View Post
Is that a Vibrant mid muffler? How does it fit under the car?
yes, and its a tight fit. you will loose 1/2" of ground clearance if you set it so it doesn't hit the body
shlammed is offline   Reply With Quote
Old 08-07-2014, 09:34 AM   #847
Elite Member
iTrader: (4)

Join Date: Dec 2008
Location: Kingston, Ontario
Posts: 2,637
Total Cats: 60
Default

Quote:
Originally Posted by hi_im_sean View Post
my first thought too.

i also enjoy the clean new fab parts juxtaposed on the old dirty engine photography
Ive been meaning to clean and paint it, but I have no time for that right now lol.

Having it clean would be nice since it is a mock up engine.
shlammed is offline   Reply With Quote
Old 08-24-2014, 10:14 PM   #848
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 8,693
Total Cats: 93
Default

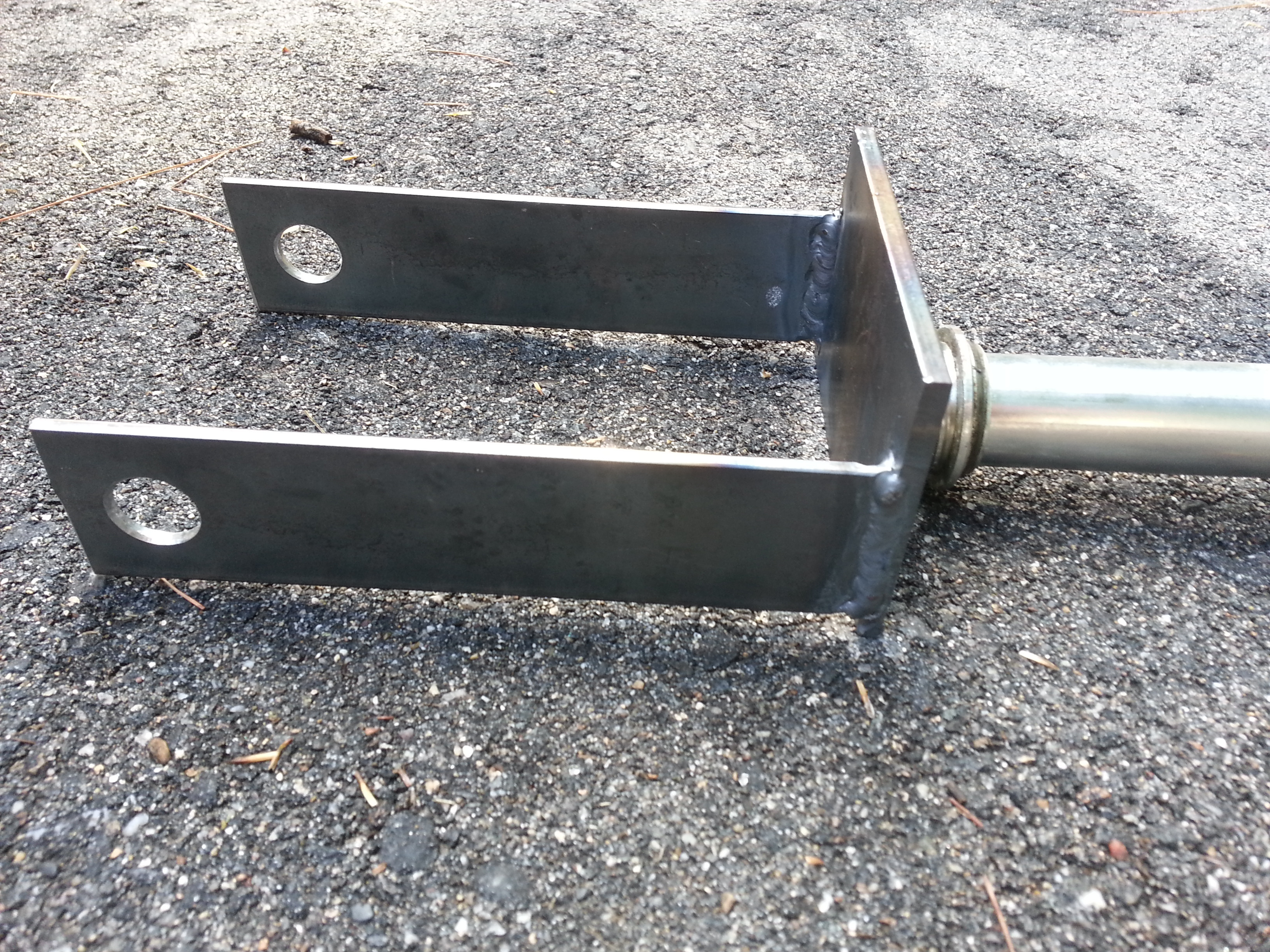

Making a pit vehicle of death.

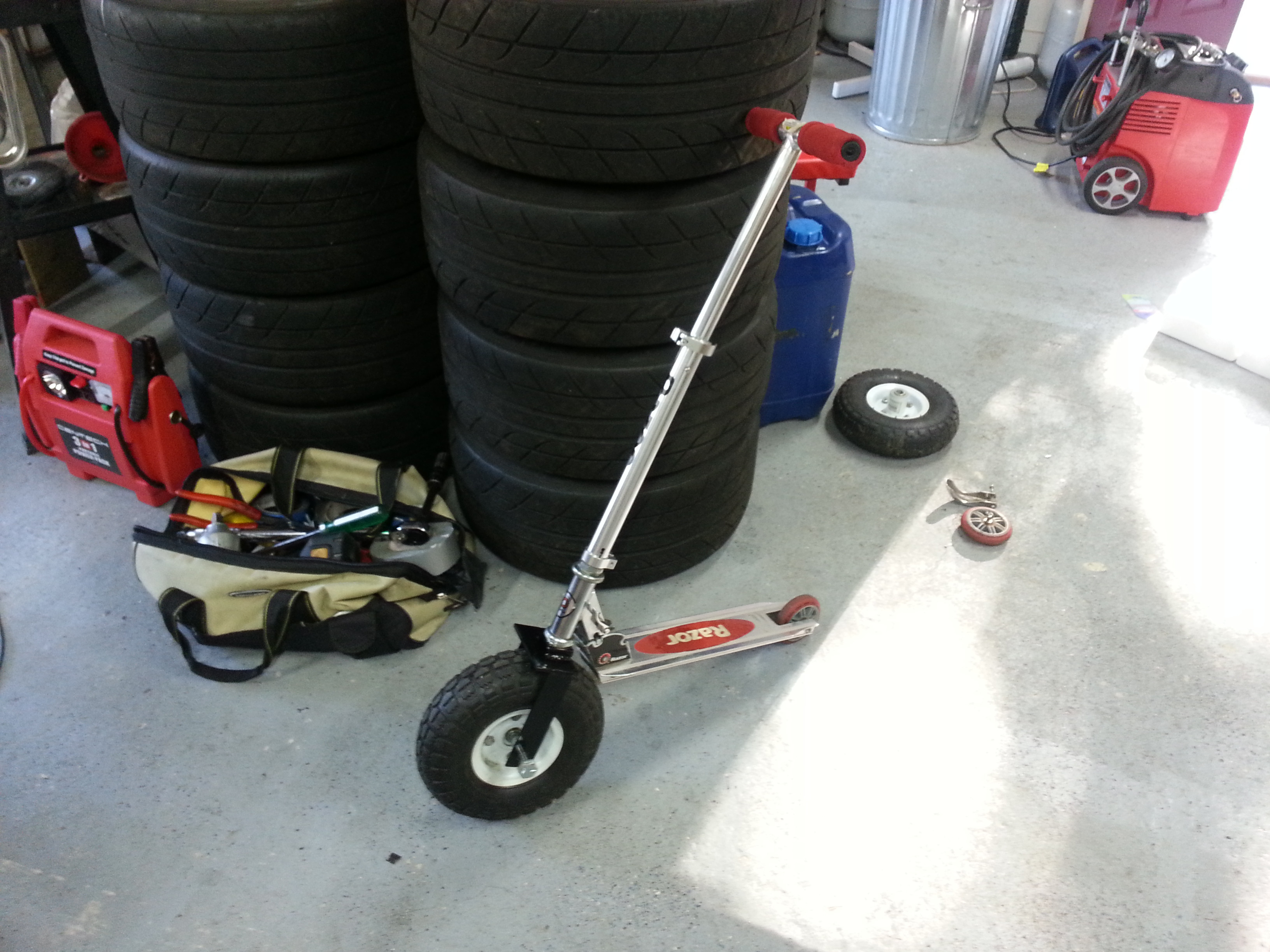

And I rode it around a bit like this, no spacers in the front.

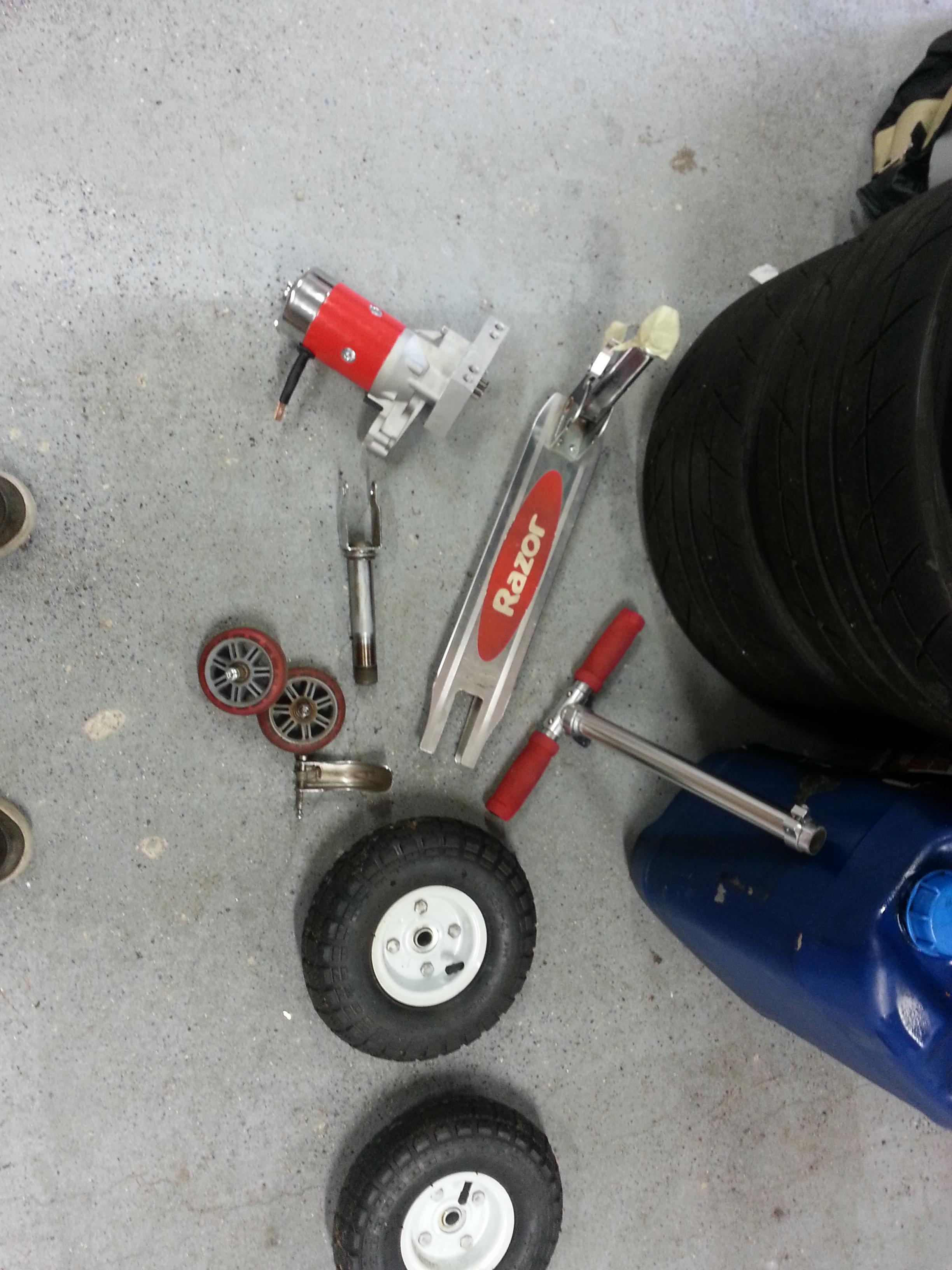

This is going to be pretty dumb. 8Ah LiPoly battery, 3hp SBC/BBC gear reduction min starter 100A solenoid. Its going to get gear ratio limited to about 20mph.
Leafy is offline   Reply With Quote
Old 08-25-2014, 09:58 AM   #849
Elite Member
iTrader: (9)

TurboTim's Avatar

Join Date: Jun 2006
Location: Chesterfield, NJ
Posts: 6,219
Total Cats: 210
Default

Nice! There's plenty of what you have in your pictures here at work (after the Segway's died they switched to razor type scooters) so let us know how you do it.

Here's something my dad and I built circa early 90's. The horizontal shaft engine was a display piece at the local VoTech that was missing basically everything, built it using vertical shaft pieces I pirated off a dumpster lawn mower, intake manifold is a BBC oil pump pickup tube. I built a few silly things like this when I was a kid but this is the only one that I still have, stored in my parent's basement.

I don't think it's safe enough to give to my kids though.

TurboTim is offline   Reply With Quote
Old 08-25-2014, 10:57 AM   #850
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 8,693
Total Cats: 93
Default

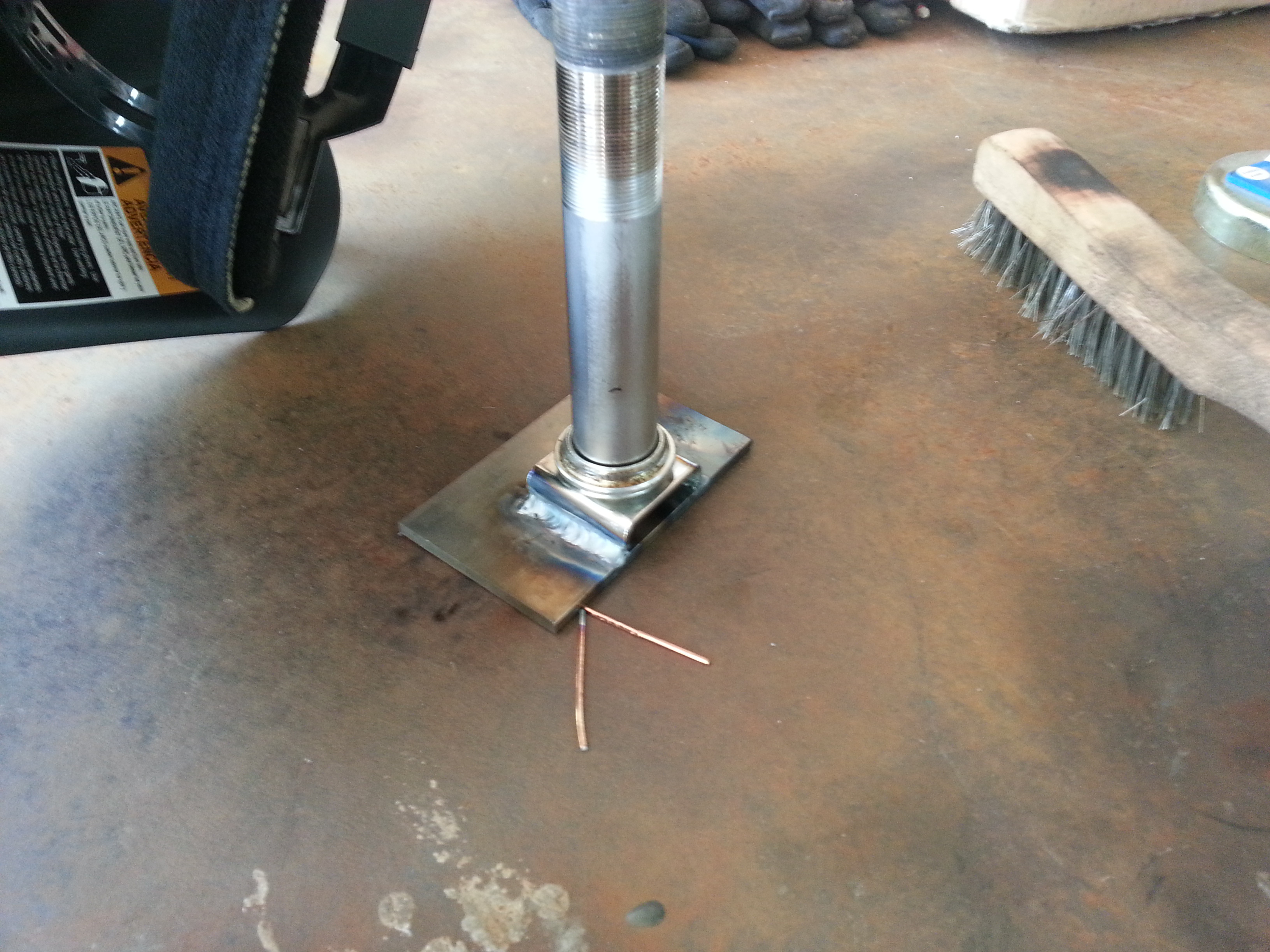

I've got some rod that should direct fit into the hollow end of the gear of the starter. And another tube to sip over that to make it the right diameter for a sprocket. Attaching to the wheel is going to be much harder I'm going to weld 2 shaft collars together to clamp onto the wheel and clamp onto 1.5" od tube. I didnt just weld to the wheel because I wouldnt be able to get the bearing out if it needed to be serviced, which it probably will since these wheels were designed to top out at 5mph, not 20mph. Probably not going to be perfectly concentric, but at this power and weight level with #40 gokart chain I'm not terribly concerned. I'm thinking of mounting the motor behind the wheel and putting a rear fender on like the stock one to use as a brake.
Leafy is offline   Reply With Quote
Old 08-25-2014, 11:04 AM   #851
SadFab CEO
iTrader: (3)

Join Date: Sep 2012
Location: your mom's house phoenix, AZ
Posts: 3,448
Total Cats: 424
Default

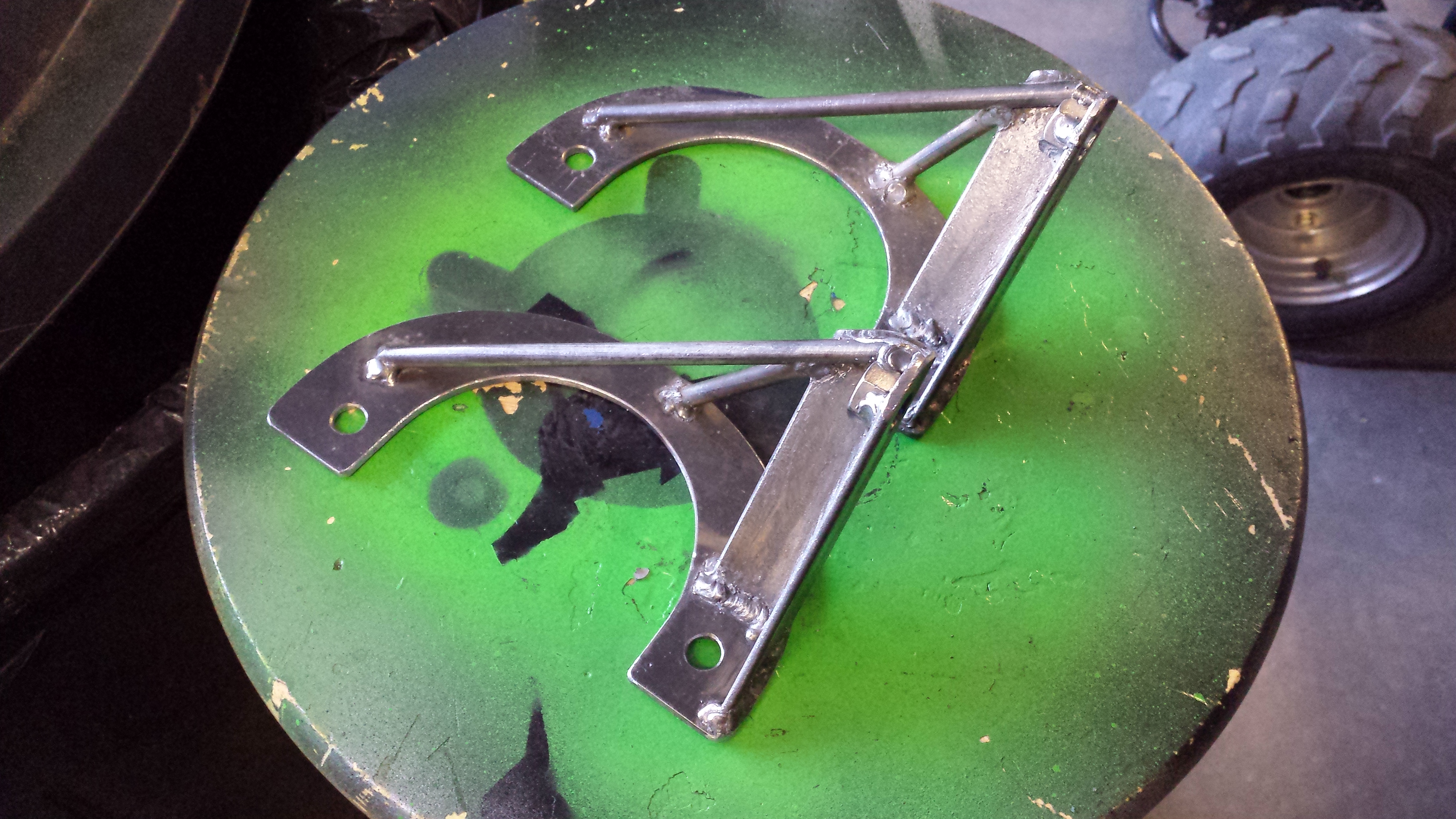

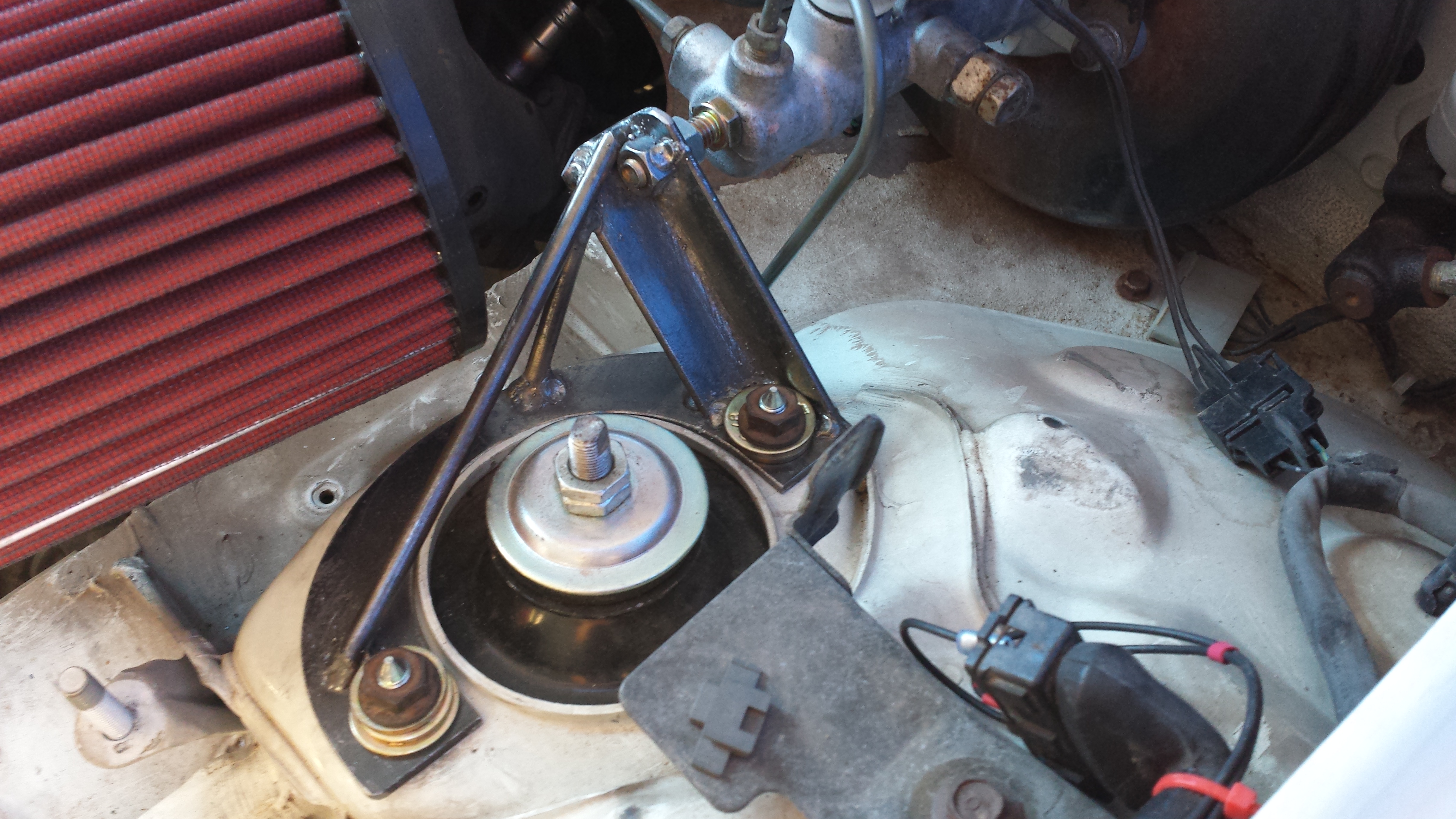

made a pair of master cylinder braces yesterday, one for me one for the classifieds.



washer stacks just for mock up
hi_im_sean is online now   Reply With Quote
Old 08-25-2014, 07:56 PM   #852
Elite Member
iTrader: (4)

Pen2_the_penguin's Avatar

Join Date: Dec 2009
Location: Reno, NV
Posts: 3,690
Total Cats: 95
Default

can I ask why you need to brace the master?
Pen2_the_penguin is offline   Reply With Quote
Old 08-25-2014, 08:14 PM   #853
Boost Pope
iTrader: (8)

Joe Perez's Avatar

Join Date: Sep 2005
Location: Chicago
Posts: 24,844
Total Cats: 1,605
Default

Quote:
Originally Posted by Pen2_the_penguin View Post
can I ask why you need to brace the master?
This trick has been going on for a while.

The M/C is anchored only to the relatively thin and slightly flexible sheet metal of the firewall, and thus it can move slightly in normal operation. You can actually see it if you have someone else sit in the car and apply the pedal hard while you observe under the hood.

With an otherwise healthy brake system, this doesn't actually limit available braking power, but people with extreme MOCD fixate over the fact that it means that some part of their car is slightly less than optimal, and obsess over how it contributes to a slight softness in the pedal.
Joe Perez is offline   Reply With Quote
Old 08-25-2014, 08:17 PM   #854
573
Junior Member
iTrader: (2)

573's Avatar

Join Date: Nov 2011
Location: Troy, Michigan
Posts: 248
Total Cats: 15
Default

Quote:
Originally Posted by Pen2_the_penguin View Post
can I ask why you need to brace the master?
The master is mounted to a largely unsupported span of sheet metal. When pressure is applied to the pedal, the sheet metal deflects. The result is additional travel and an altered feel. That strain can largely be eliminated with a master cylinder brace. It's something that won't make the car faster by an appreciable amount but they do improve the feal.
573 is offline   Reply With Quote
Old 08-25-2014, 08:42 PM   #855
SadFab CEO
iTrader: (3)

Join Date: Sep 2012
Location: your mom's house phoenix, AZ
Posts: 3,448
Total Cats: 424
Default

what they said.

and these guys
Brake master cylinder brace = WIN

to be honest ive never really had any complaints, it was just so easy to make one and highly regarded, so why not.
hi_im_sean is online now   Reply With Quote
Old 08-26-2014, 12:02 PM   #856
Elite Member
iTrader: (4)

Join Date: Dec 2008
Location: Kingston, Ontario
Posts: 2,637
Total Cats: 60
Default

Quote:
Originally Posted by Leafy View Post
Making a pit vehicle of death.

This is going to be pretty dumb. 8Ah LiPoly battery, 3hp SBC/BBC gear reduction min starter 100A solenoid. Its going to get gear ratio limited to about 20mph.

I built an ebike in highschool for a project that used a GM v8 starter motor....

it worked great, but it died a horrible death because it wasn't meant for long use life (think of the last time you cranked your car for 30+ seconds). The bike was wicked fast though.
shlammed is offline   Reply With Quote
Old 08-26-2014, 12:05 PM   #857
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 8,693
Total Cats: 93
Default

Yeah I mean its going to be able to hit terrifying speeds in under 10 seconds of on time. And the battery only has 5 minutes of full power time for the motor. Probably just going to pulse and coast. If I decide that it needs more cooling then I can drill the back cap and duct a 120mm computer fan into the back cap to blow on the commutator.
Leafy is offline   Reply With Quote
Old 08-26-2014, 12:14 PM   #858
Elite Member
iTrader: (4)

Join Date: Dec 2008
Location: Kingston, Ontario
Posts: 2,637
Total Cats: 60
Default

is it direct drive with a flywheel, or chain driven?


maybe add some kind of freewheel if your chain driving so that you can coast longer...there is a lot of force making you slow down with one of these if chain driven without the freewheel.... so much so that it will reallllly slow you down...
shlammed is offline   Reply With Quote
Old 08-26-2014, 12:35 PM   #859
Elite Member
iTrader: (9)

TurboTim's Avatar

Join Date: Jun 2006
Location: Chesterfield, NJ
Posts: 6,219
Total Cats: 210
Default

one way needle bearing on the motor sprocket would work nicely. That way you could still foot push it when the battery is dead.
TurboTim is offline   Reply With Quote
Old 08-26-2014, 12:43 PM   #860
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 8,693
Total Cats: 93
Default

I was under the impression I wouldnt need to do that to coast. This is an all bearing motor, no bushings, and when coating it will be an open circuit so there will be no EMF braking. Only drag will be from the brushes, but the motor has some serious inertia to help balance that out.
Leafy is offline   Reply With Quote
