Old 12-27-2014, 11:03 AM   #921
Elite Member
iTrader: (1)

Join Date: May 2009
Location: Jacksonville, FL
Posts: 4,655
Total Cats: 209
Default

Quote:
Originally Posted by sixshooter View Post
I have still never seen a 816.8 at 28.5psi dyno sheet but only a 616.8 dyno sheet at 27.5psi. And I will call bullshit from the rooftops that he picked up 200hp at the same rpm by adding 1psi.

And I've met the owner. He's a nice guy but he knows "Jacques Merde" about his cars. He pays a shop to do whatever and call him when it's done. That's fine, but I'd rather give props to the guy that built it.
I remember back when it was 616hp and in that other chassis (yellow NA iirc). I always assumed that he added a 200 shot of nitrous and that was where the 816 number came from. Just an estimate.
What is odd is the that nitrous will make more power on boost than naturally aspirated. So I would really think they would want to confirm that **** and not just rely on estimation. If it was really a 200 shot it would probably result in well over 200hp gained.
Full_Tilt_Boogie is offline   Reply With Quote
Old 12-27-2014, 02:11 PM   #922
Moderator
iTrader: (9)

sixshooter's Avatar

Join Date: Nov 2008
Location: Tampa, FL
Posts: 13,705
Total Cats: 1,057
Default

Same guy has a street MSM with a really big turbo and tubular manifold that supposedly made around 425whp or something. It looks possible until you realize it has a stock 6-speed.

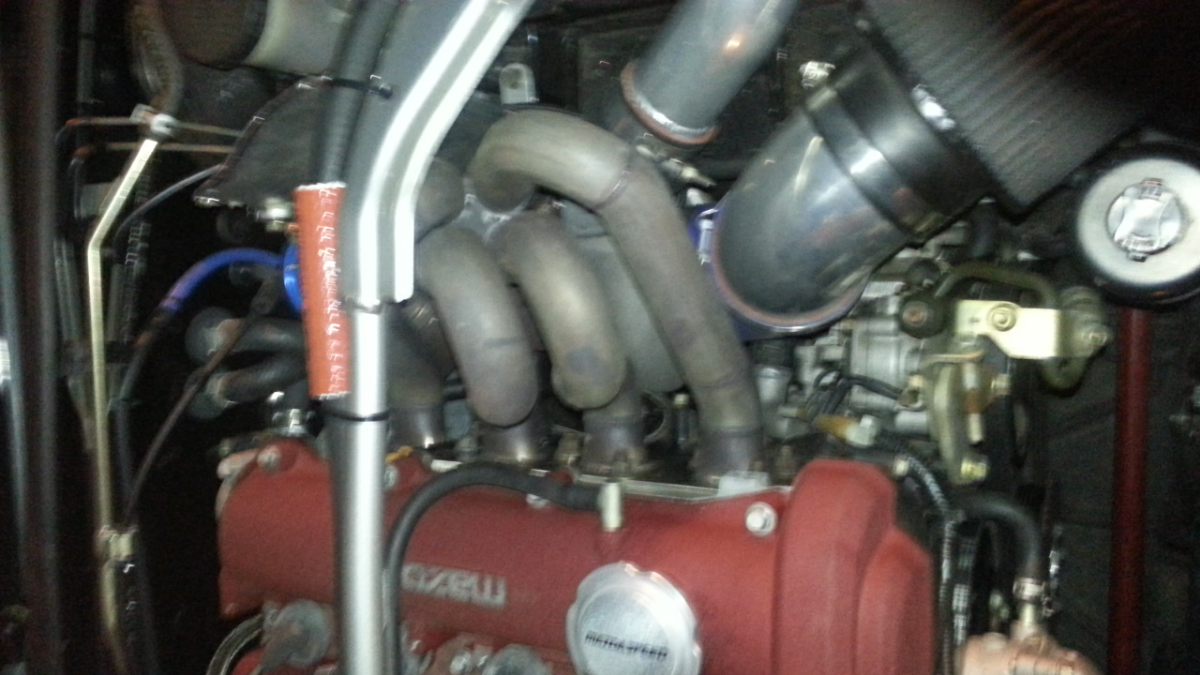

The custom fabrication thread! (Post pics of stuff you have made)-forumrunner_20141227_130849.png

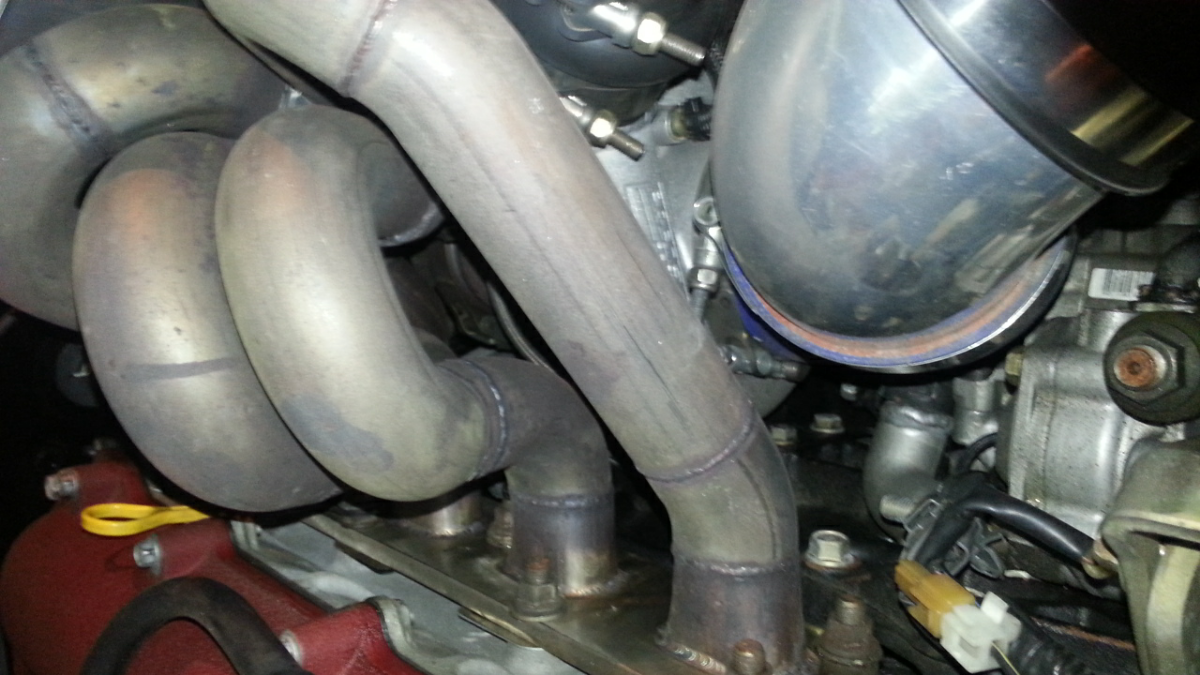

The custom fabrication thread! (Post pics of stuff you have made)-forumrunner_20141227_130948.png

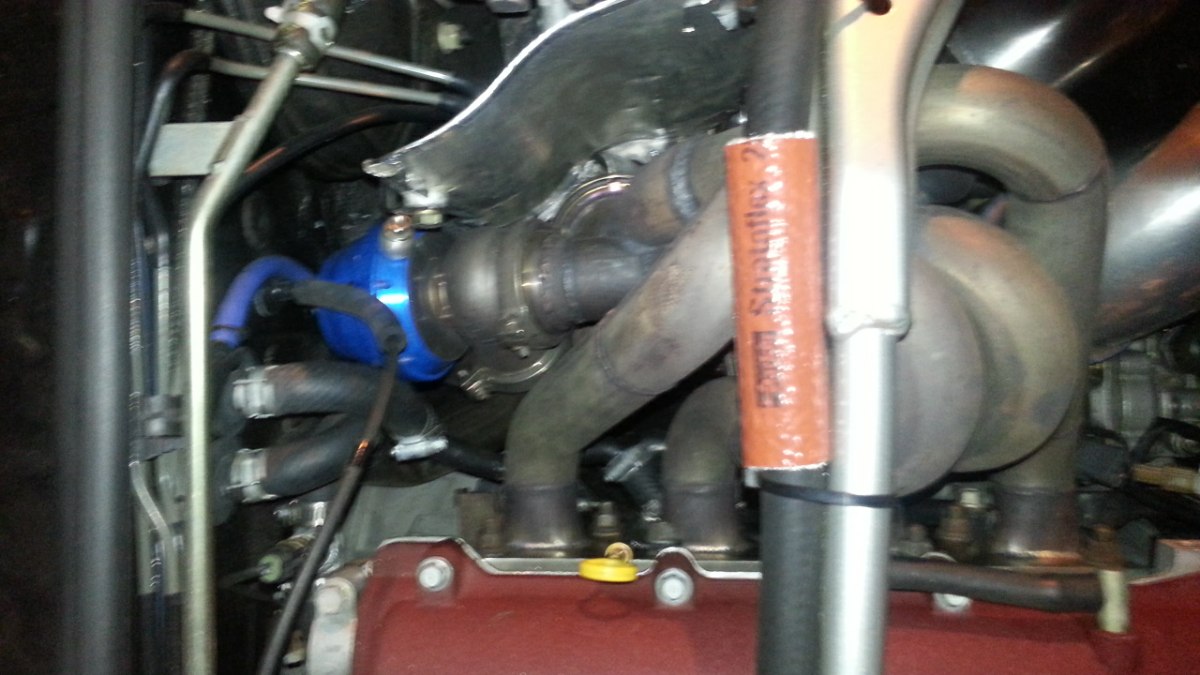

The custom fabrication thread! (Post pics of stuff you have made)-forumrunner_20141227_131012.png

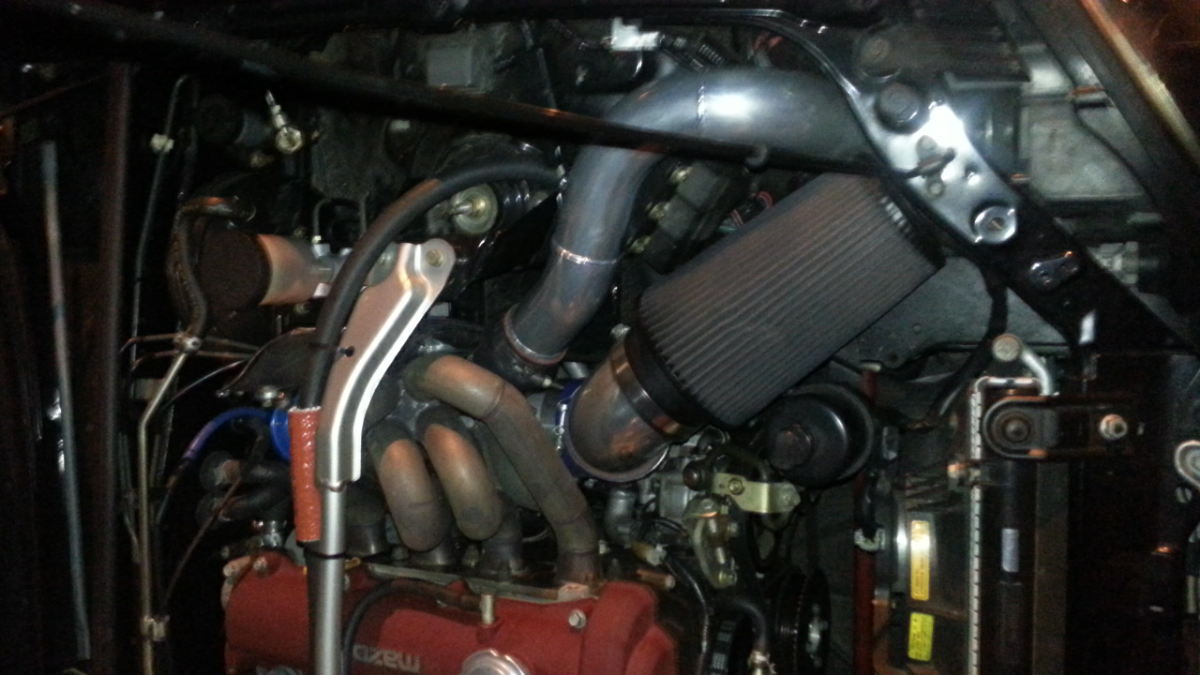

The custom fabrication thread! (Post pics of stuff you have made)-forumrunner_20141227_131045.png

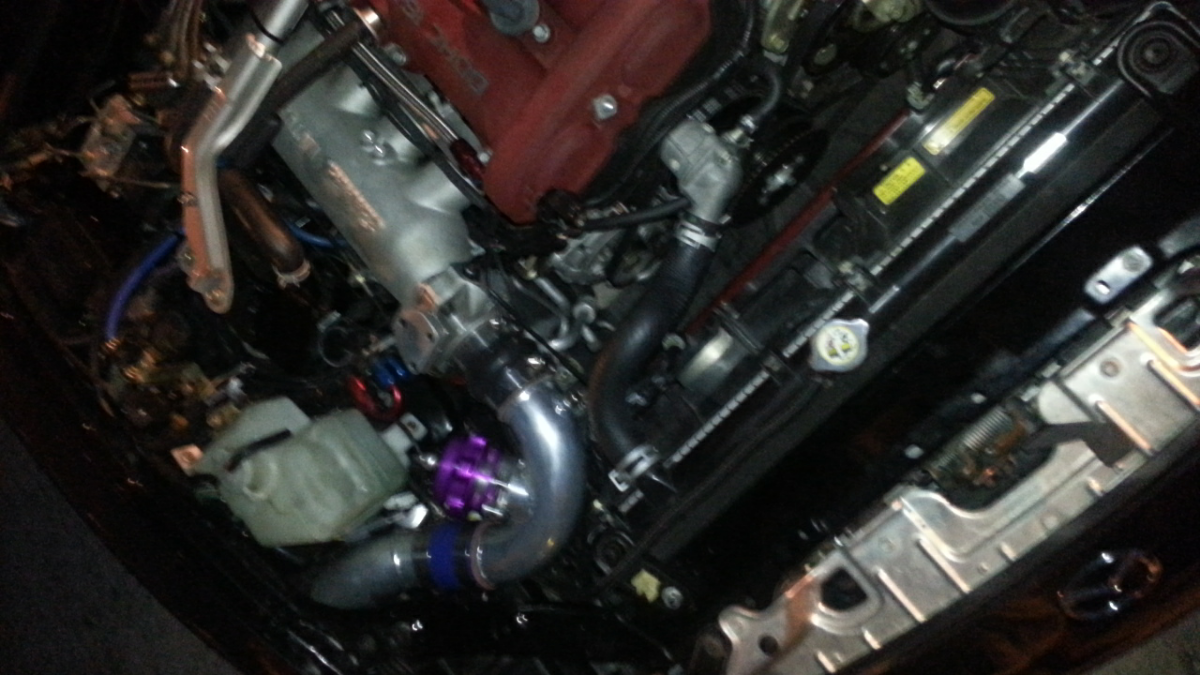

The custom fabrication thread! (Post pics of stuff you have made)-forumrunner_20141227_131116.png
sixshooter is offline   Reply With Quote
Old 12-27-2014, 02:14 PM   #923
Moderator
iTrader: (9)

sixshooter's Avatar

Join Date: Nov 2008
Location: Tampa, FL
Posts: 13,705
Total Cats: 1,057
Default

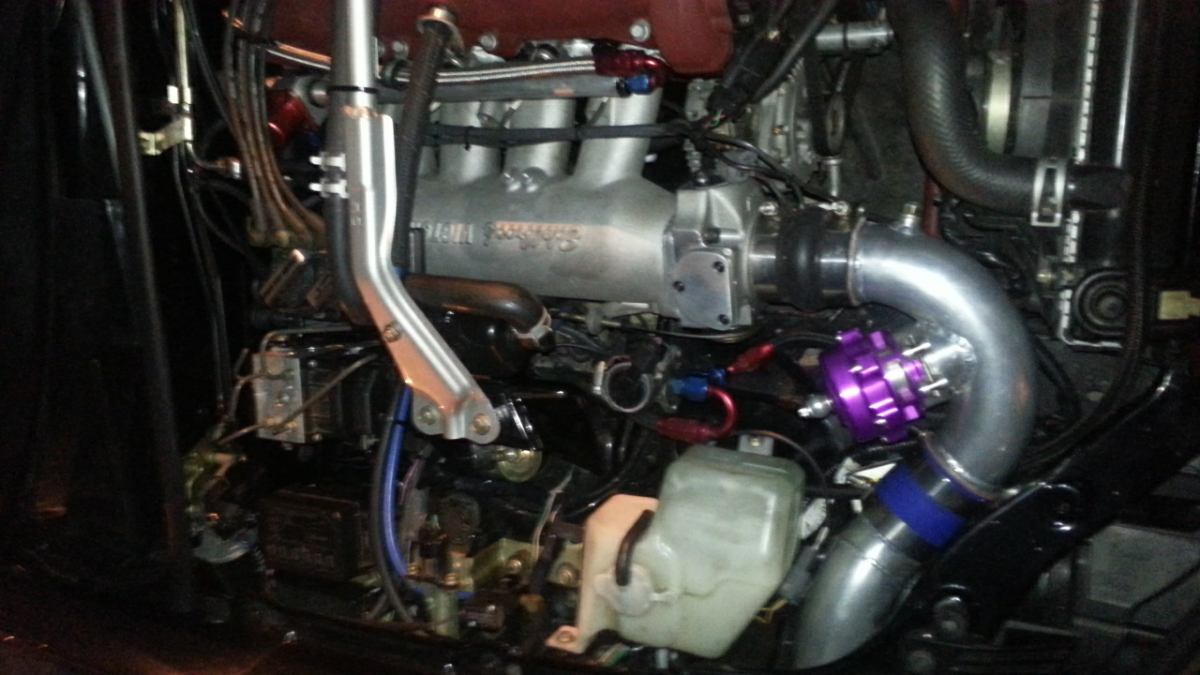

The custom fabrication thread! (Post pics of stuff you have made)-forumrunner_20141227_131202.png

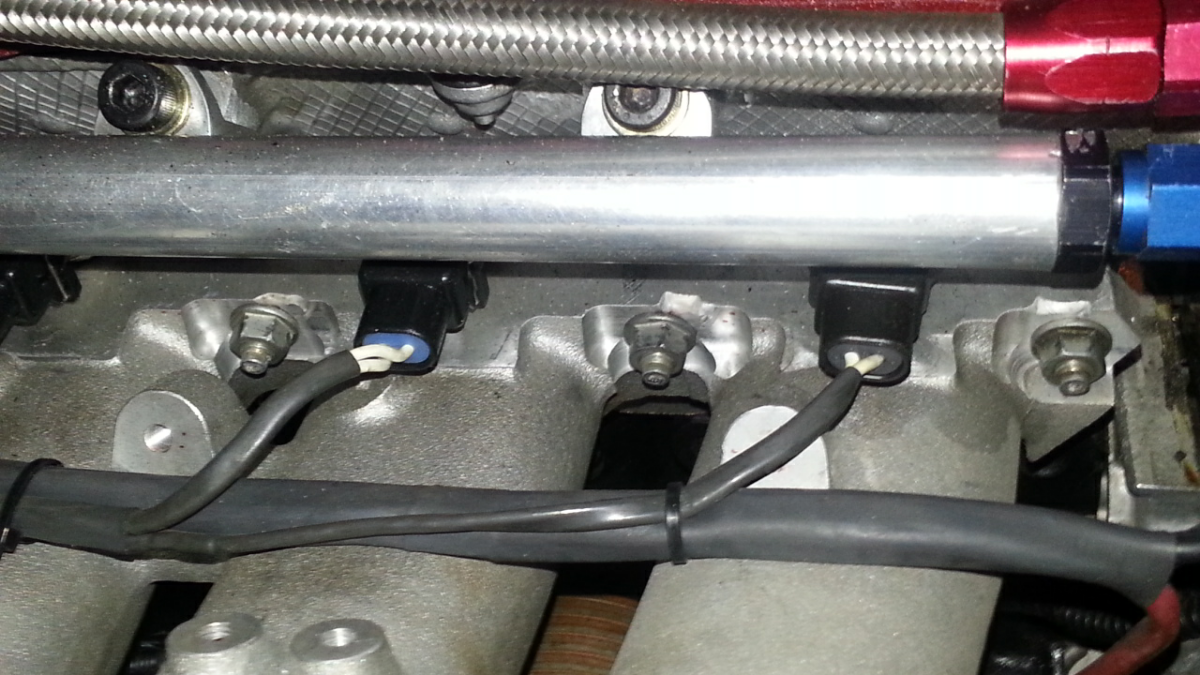

The custom fabrication thread! (Post pics of stuff you have made)-forumrunner_20141227_131224.png

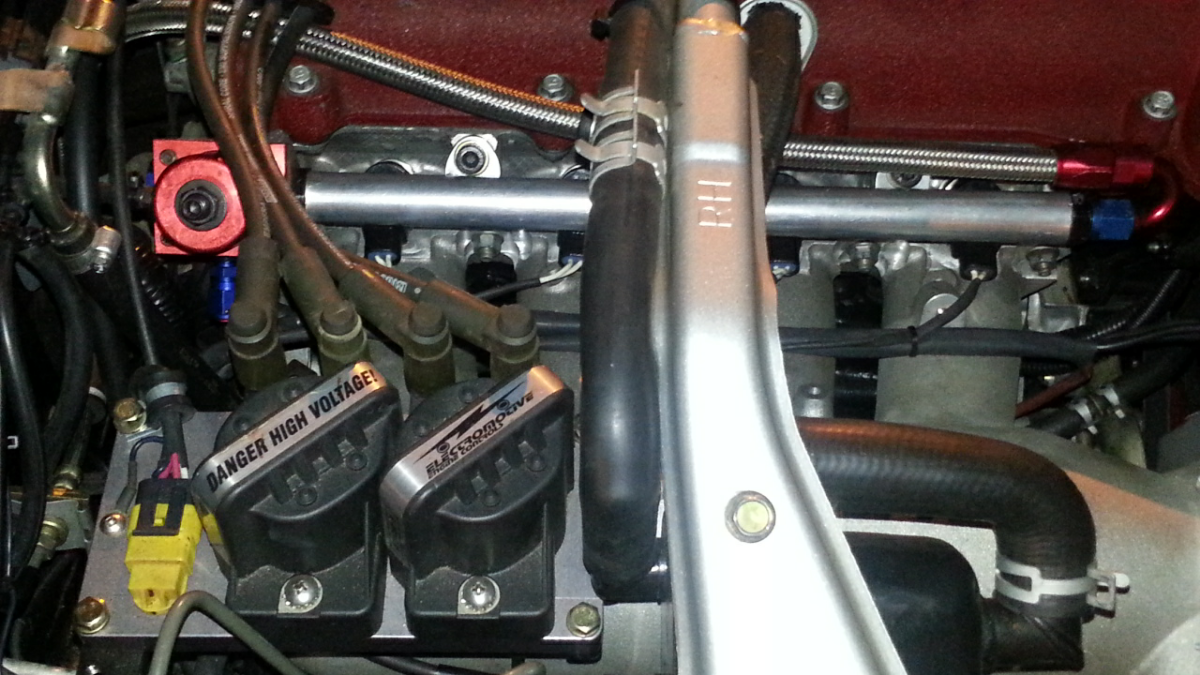

The custom fabrication thread! (Post pics of stuff you have made)-forumrunner_20141227_131244.png

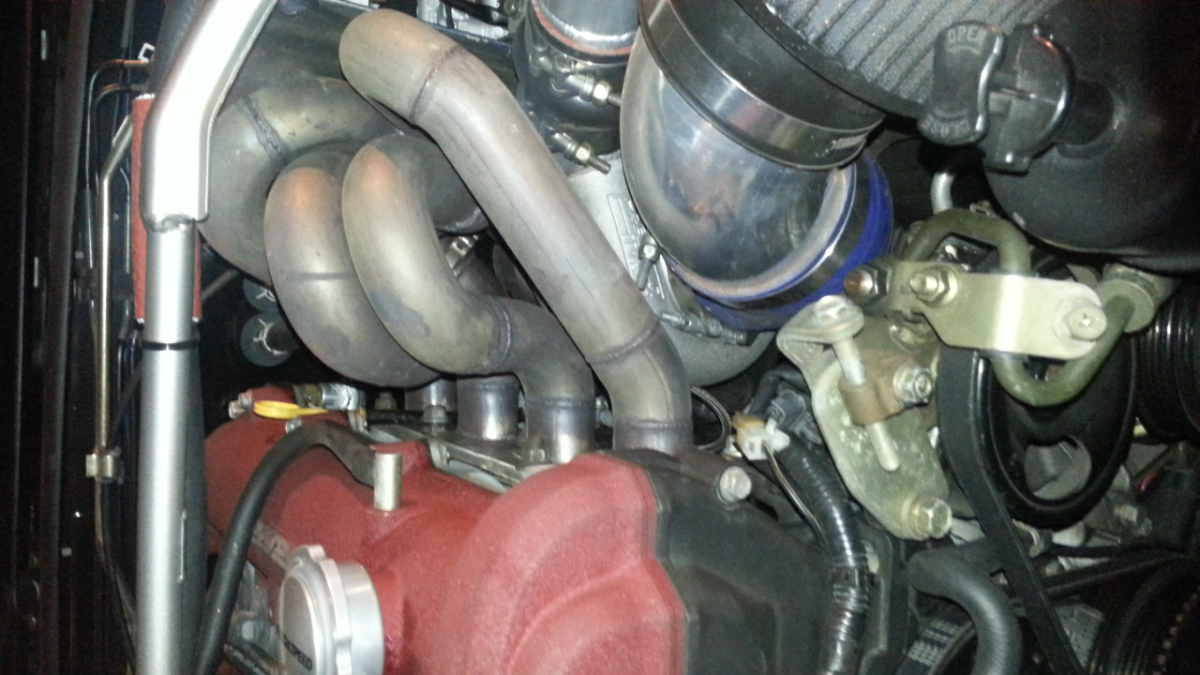

The custom fabrication thread! (Post pics of stuff you have made)-forumrunner_20141227_131313.png

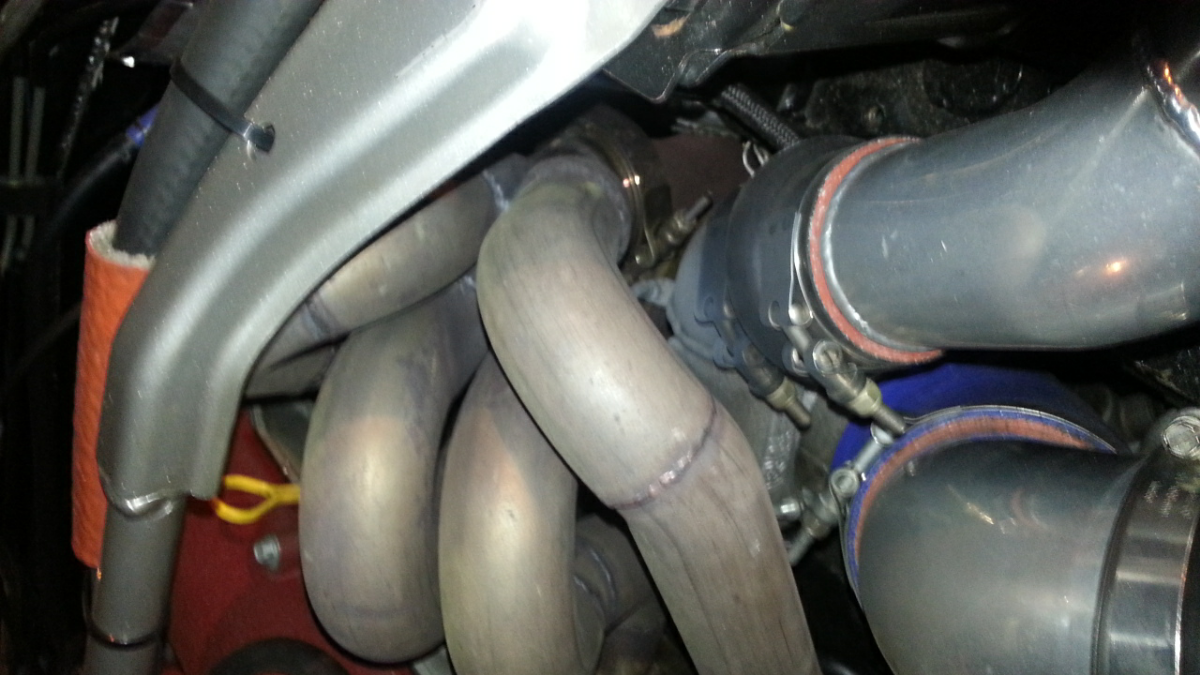

The custom fabrication thread! (Post pics of stuff you have made)-forumrunner_20141227_131346.png
sixshooter is offline   Reply With Quote
Old 12-28-2014, 01:57 PM   #924
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: woosta, ma
Posts: 8,680
Total Cats: 93
Default

I mean you can make that power on a dyno with a 5 speed. Its gonna be real damn hard to break 5th in a 6 speed (or 4th in a 5 speed).
Leafy is offline   Reply With Quote
Old 12-28-2014, 02:48 PM   #925
Moderator
iTrader: (9)

sixshooter's Avatar

Join Date: Nov 2008
Location: Tampa, FL
Posts: 13,705
Total Cats: 1,057
Default

I guess you are right. I just thought it sounded implausible at the time.
sixshooter is offline   Reply With Quote
Old 12-30-2014, 11:53 AM   #926
Elite Member
iTrader: (4)

Join Date: Dec 2008
Location: Kingston, Ontario
Posts: 2,637
Total Cats: 60
Default

Quote:
Originally Posted by Leafy View Post
I mean you can make that power on a dyno with a 5 speed. Its gonna be real damn hard to break 5th in a 6 speed (or 4th in a 5 speed).
I don't think with high hp the 1:1 ratio has anything to do with power holding. the mechanical advantage of the transmission isn't the same as mashing 400+ftlbs through gears that are too small, regardless of ratio (for dyno pulls)

Its also about how power comes on.... big turbos are surprisingly easy on drivetrains compared to a smaller turbo running the same power that comes on like its on a switch. I.e. if you have a delta of 250ftlbs surging over a few hundred RPM when compared to normal loads, your going to have some problems, be it tires or drivetrain.
shlammed is offline   Reply With Quote
Old 12-30-2014, 11:56 AM   #927
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: woosta, ma
Posts: 8,680
Total Cats: 93
Default

There's no gears to strip off in the 1:1 ratios. 3rd in the 5 speed and 4th in the 6 speed are just the weakest gears in the set, thats why they break. It doesnt matter how abruptly the power comes on, its all about the torque being pushed through the gears causing them to fatigue fail.
Leafy is offline   Reply With Quote
Old 12-30-2014, 12:09 PM   #928
Elite Member
iTrader: (4)

Join Date: Dec 2008
Location: Kingston, Ontario
Posts: 2,637
Total Cats: 60
Default

I'll add to the DIY thread here.... Im Hella Busy.... lots on the go. The Miata manifold market is loving my work... I have a few hotside kits with exhaust to finish and then I have 2 more manifolds and downpipes as well as an intake manifold to build.

Miata hot side setup by HellaFab, on Flickr

Miata hot side setup by HellaFab, on Flickr

Miata hot side setup by HellaFab, on Flickr

Miata hot side setup by HellaFab, on Flickr

Miata hot side setup by HellaFab, on Flickr







So much argon, so little time.
shlammed is offline   Reply With Quote
Old 12-30-2014, 12:12 PM   #929
Elite Member
iTrader: (4)

Join Date: Dec 2008
Location: Kingston, Ontario
Posts: 2,637
Total Cats: 60
Default

Quote:
Originally Posted by Leafy View Post
There's no gears to strip off in the 1:1 ratios. 3rd in the 5 speed and 4th in the 6 speed are just the weakest gears in the set, thats why they break. It doesnt matter how abruptly the power comes on, its all about the torque being pushed through the gears causing them to fatigue fail.
Having not played with transmissions, I will take your word for it, but if there were no gears to shear off how does the transmission not become locked in 4th all the time? (aka direct drive aka no gears to be weak)

There has to be a "gear" of some sort, but the ratio is 1:1 with equal amounts of teeth.
shlammed is offline   Reply With Quote
Old 12-30-2014, 12:46 PM   #930
SadFab CEO
iTrader: (3)

Join Date: Sep 2012
Location: your mom's house phoenix, AZ
Posts: 3,445
Total Cats: 422
Default

Quote:
Originally Posted by shlammed View Post

There has to be a "gear" of some sort, but the ratio is 1:1 with equal amounts of teeth.
of course there is. but as far as i know, its more of an inline toothed clutch type mechanism than a set of counter rotating gears, so its much stronger. power is only transmitted to the counter shaft in 1-3 and 5th.

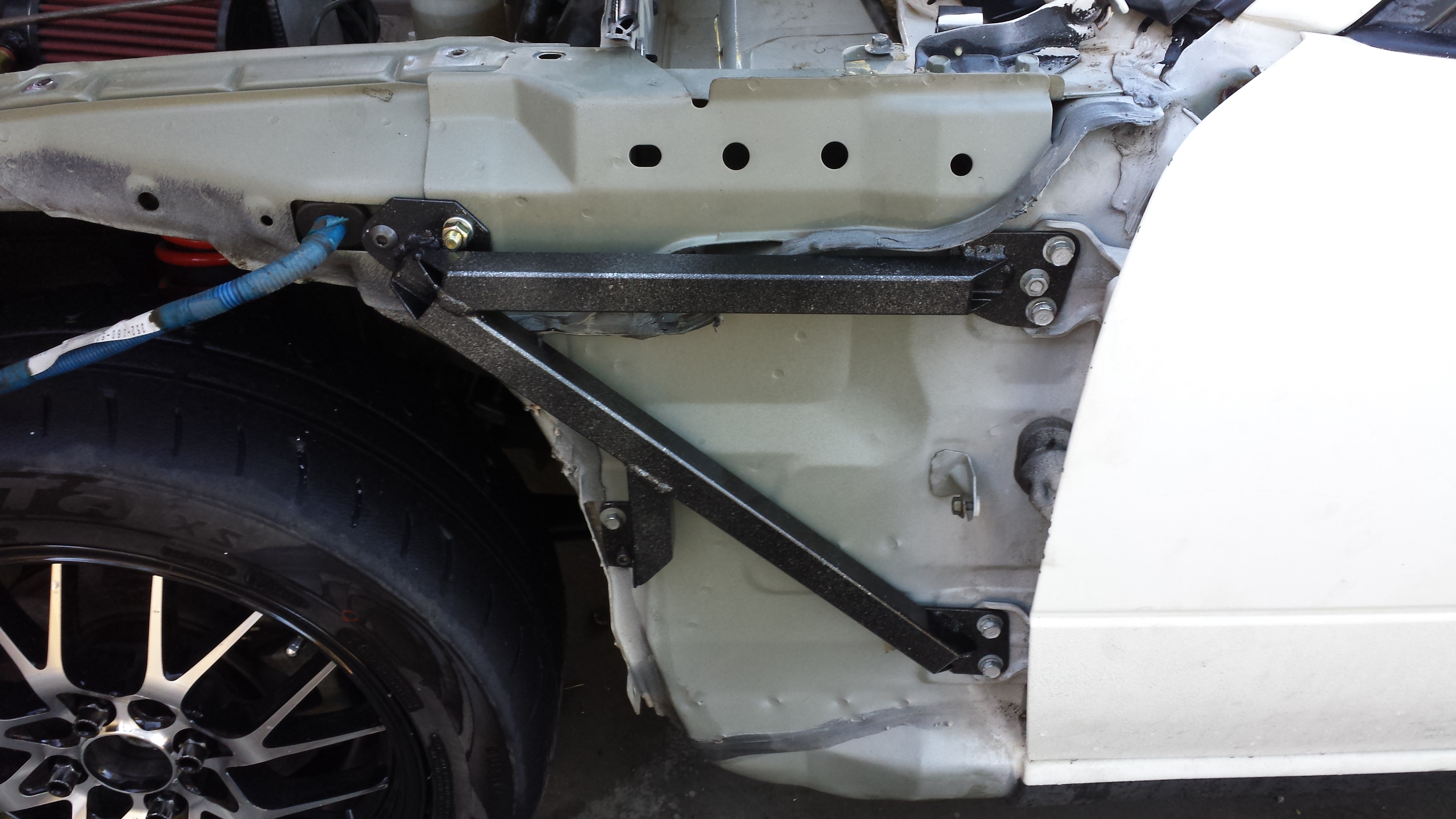

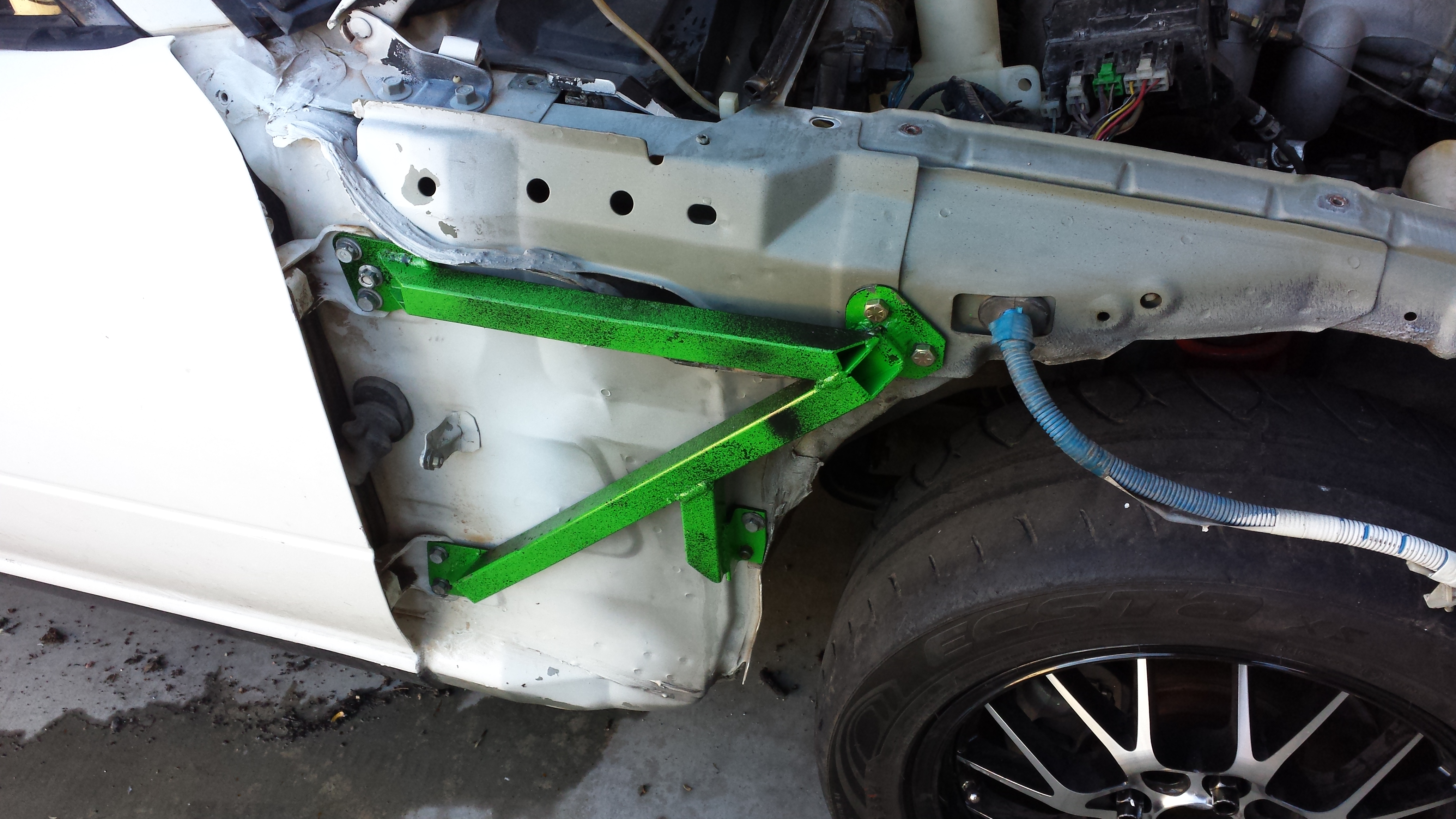

i made some fender braces


hi_im_sean is online now   Reply With Quote
Old 12-30-2014, 01:19 PM   #931
Elite Member
iTrader: (19)

Join Date: Jun 2007
Location: Rochester, NY
Posts: 5,219
Total Cats: 339
Default

Different colors=different bracing characteristics. Your car is gonna warp!
rleete is offline   Reply With Quote
Old 01-03-2015, 05:44 PM   #932
SadFab Sales Lady
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 15,204
Total Cats: 974
Default

A little ashamed posting this below hellafab stuff but here are some pictures of my recent manifold build:









aidandj is offline   Reply With Quote
Old 01-04-2015, 02:55 AM   #933
Elite Member
iTrader: (2)

Mobius's Avatar

Join Date: May 2008
Location: Portland, Oregon
Posts: 2,796
Total Cats: 212
Default

It may not be Hellafab, but Hellafab had to start somewhere. Keep it up. A lot of us who can't fab anything at all like this, whether because of lack of tools, or talent, or both, like to see creations by mere mortals
Mobius is offline   Reply With Quote
Old 01-04-2015, 03:00 AM   #934
SadFab Sales Lady
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 15,204
Total Cats: 974
Default

Quote:
Originally Posted by Mobius View Post
It may not be Hellafab, but Hellafab had to start somewhere. Keep it up. A lot of us who can't fab anything at all like this, whether because of lack of tools, or talent, or both, like to see creations by mere mortals
Thanks Möbius.

Next project will be back braces for the ultrashield seats I bought. Hi_I'm_Sean cut me some pieces and tubing so I can match what he did. Sadly the TIG I used is back in portland so these will be welded with my HF shitbox.
aidandj is offline   Reply With Quote
Old 01-04-2015, 03:01 AM   #935
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 33,416
Total Cats: 2,034
Default

he's absolutely right, don't be ashamed man, if it works and doesn't break then it's something to be proud of as a 1st manifold

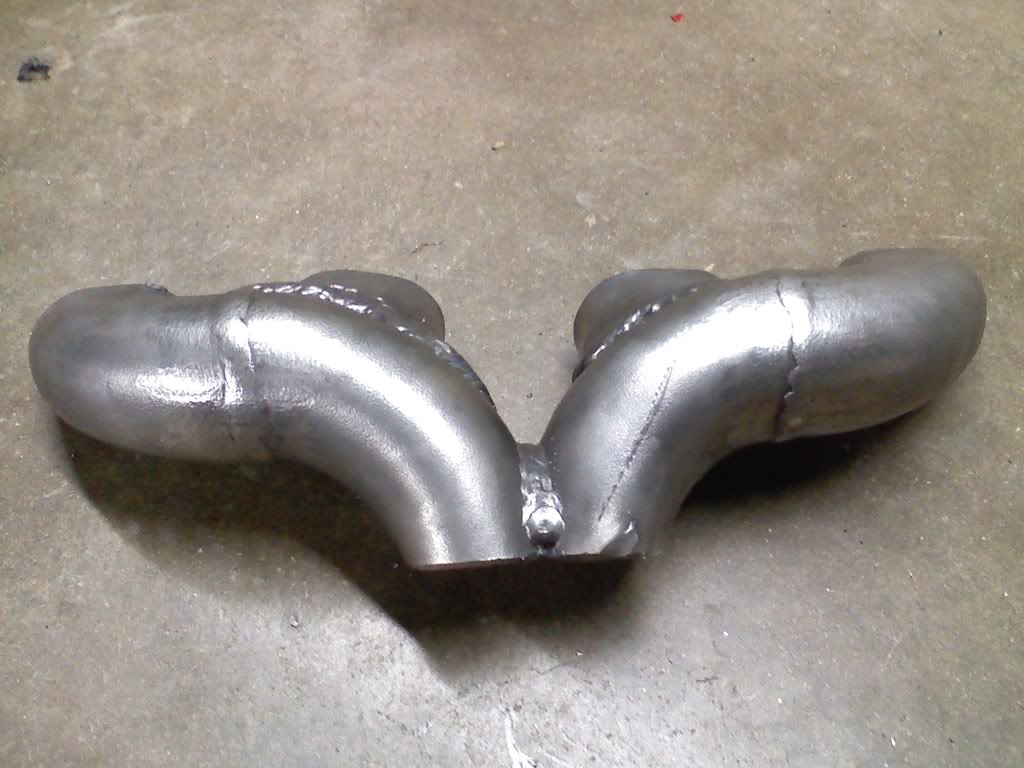

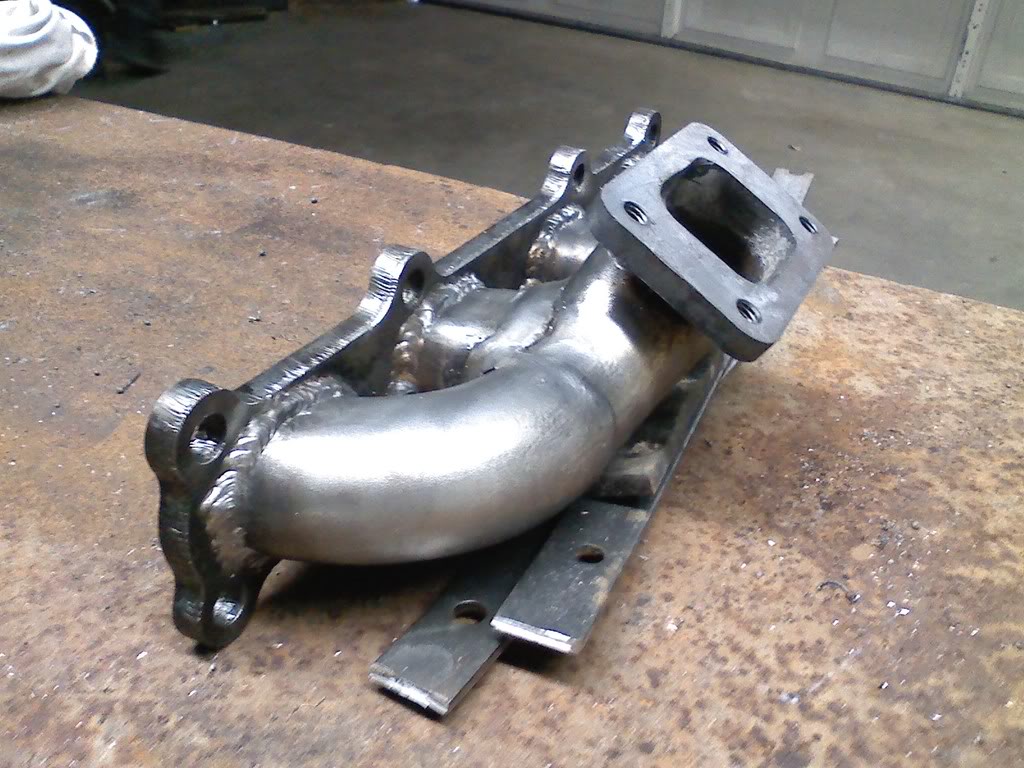

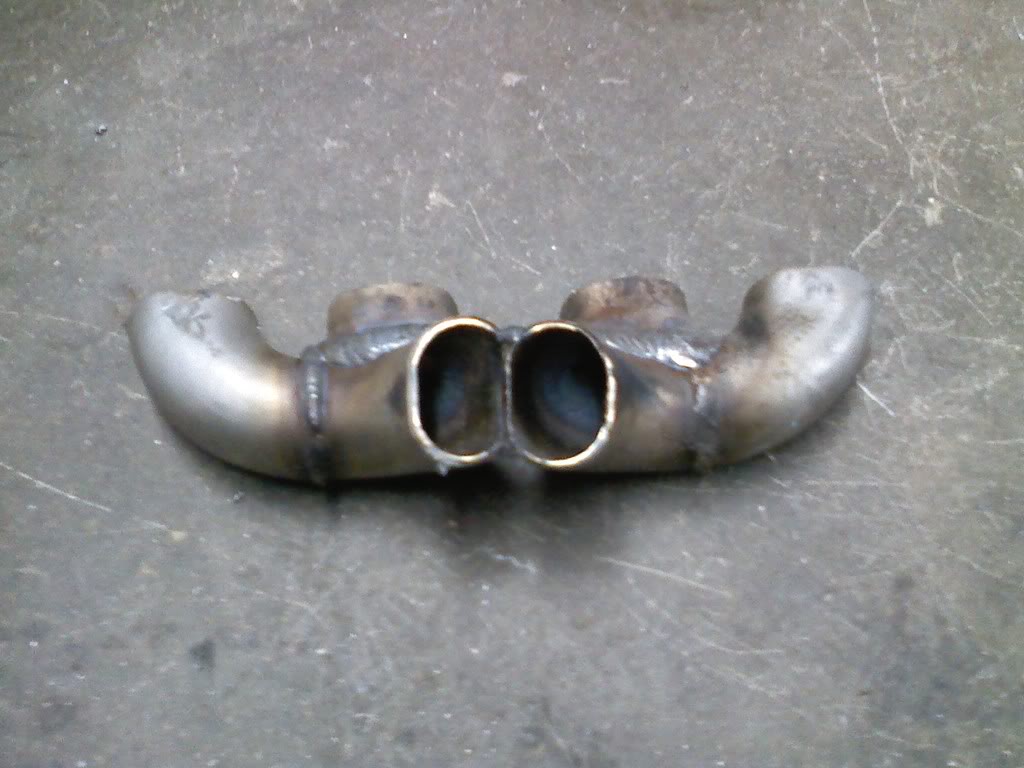

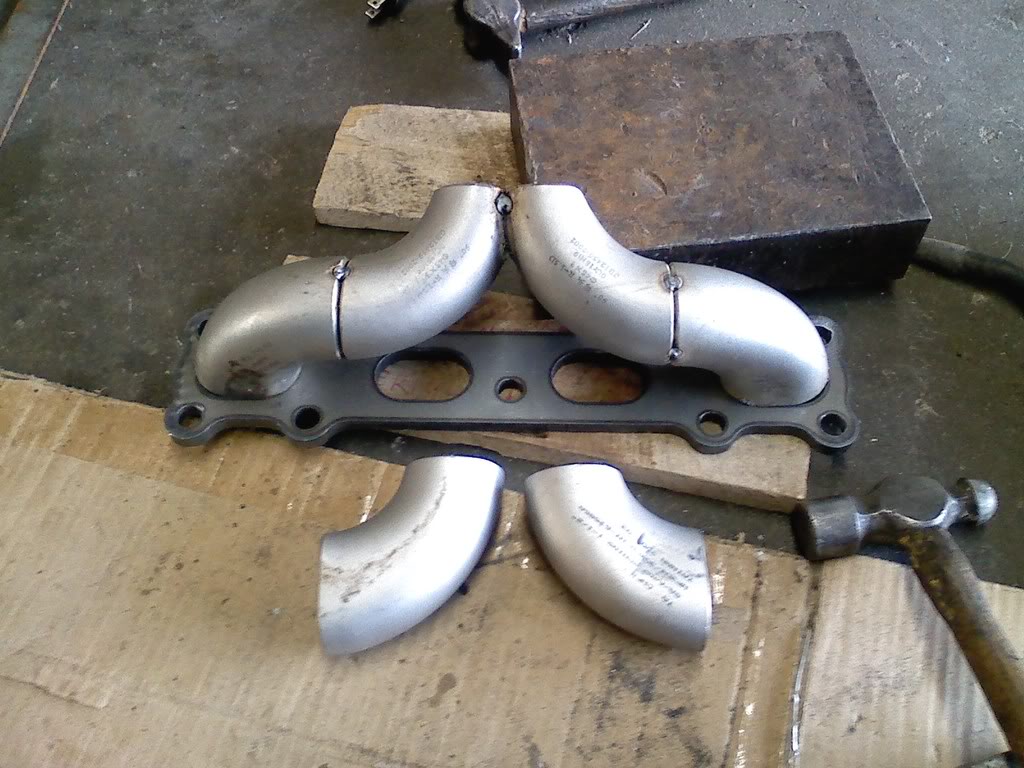

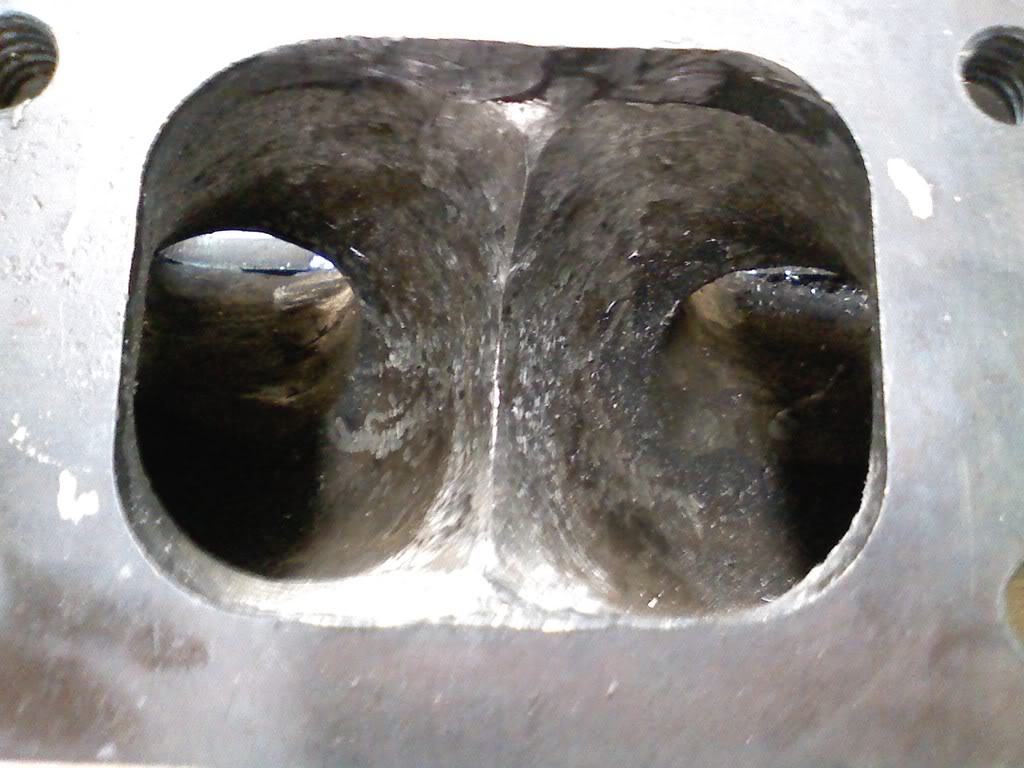

here was my 1st one as well to make you feel better:



Design similar to yours
18psi is offline   Reply With Quote
Old 01-04-2015, 03:04 AM   #936
SadFab Sales Lady
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 15,204
Total Cats: 974
Default

Quote:
Originally Posted by 18psi View Post
he's absolutely right, don't be ashamed man, if it works and doesn't break then it's something to be proud of as a 1st manifold


here was my 1st one as well to make you feel better:



Design similar to yours
Pretty sure I ran across yours somewhere along the way in my research. Wayne_curr, wittyworks, and sturovo were pretty much the main resources. They have some incredibly helpful stuff out there.

Did you ever end up using a turbo crane or anything to take stress off of the manifold? Did it ever break?
aidandj is offline   Reply With Quote
Old 01-04-2015, 03:08 AM   #937
Elite Member
iTrader: (2)

Mobius's Avatar

Join Date: May 2008
Location: Portland, Oregon
Posts: 2,796
Total Cats: 212
Default

Curly built one and has pictures on here somewhere.
Mobius is offline   Reply With Quote
Old 01-04-2015, 03:09 AM   #938
SadFab Sales Lady
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 15,204
Total Cats: 974
Default

Quote:
Originally Posted by Mobius View Post
Curly built one and has pictures on here somewhere.
Saw Curly's in person but haven't found any pictures of it. I'll dig through his build thread one of these days.
aidandj is offline   Reply With Quote
Old 01-04-2015, 03:10 AM   #939
Junior Member

Join Date: Dec 2009
Location: Brisbane, AUSTRALIA
Posts: 378
Total Cats: 30
Default

Quote:
Originally Posted by hi_im_sean View Post
Why no vertical brace between the arms? A boxed brace is much stronger.
Lokiel is offline   Reply With Quote
Old 01-04-2015, 03:14 AM   #940
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 33,416
Total Cats: 2,034
Default

Quote:
Originally Posted by aidandj View Post
Pretty sure I ran across yours somewhere along the way in my research. Wayne_curr, wittyworks, and sturovo were pretty much the main resources. They have some incredibly helpful stuff out there.

Did you ever end up using a turbo crane or anything to take stress off of the manifold? Did it ever break?
No brace or crane.
Never broke.

What I did have a serious problem with though, was flange warping.
Both the turbo and head flanges warped twice. I re-surfaced them and they still warped again.

No idea why. Bought the flanges from Weirtec, they were 3/8 iirc, guess I shoulda gone 1/2
18psi is offline   Reply With Quote
