Old 01-03-2013, 11:40 AM   #261
Senior Member
Thread Starter
iTrader: (5)

Join Date: Sep 2009
Location: Lompoc, CA
Posts: 579
Total Cats: 12
Default

Hmm, interesting idea. I was too lazy to tear the manifold back off. I attacked it with a big cross cut file before I installed it so the leaking was at a minimum to begin with. As I've driven it, I've just gone back and retightened the head studs a couple times and all of the little exhaust leaks are gone now.
baron340 is offline   Reply With Quote
Old 01-06-2013, 12:58 PM   #262
Senior Member
iTrader: (2)

Join Date: Dec 2007
Location: Brownsburg,IN
Posts: 697
Total Cats: 50
Default

Perhaps as the manifold got hot during use to the point that it relaxed a little and took the shape of the head?
I like the idea if puting a bead arownd each port!
HHammerly is offline   Reply With Quote
Old 01-06-2013, 01:36 PM   #263
Junior Member

Join Date: Oct 2010
Location: Turin (Italy)
Posts: 92
Total Cats: -1
Default

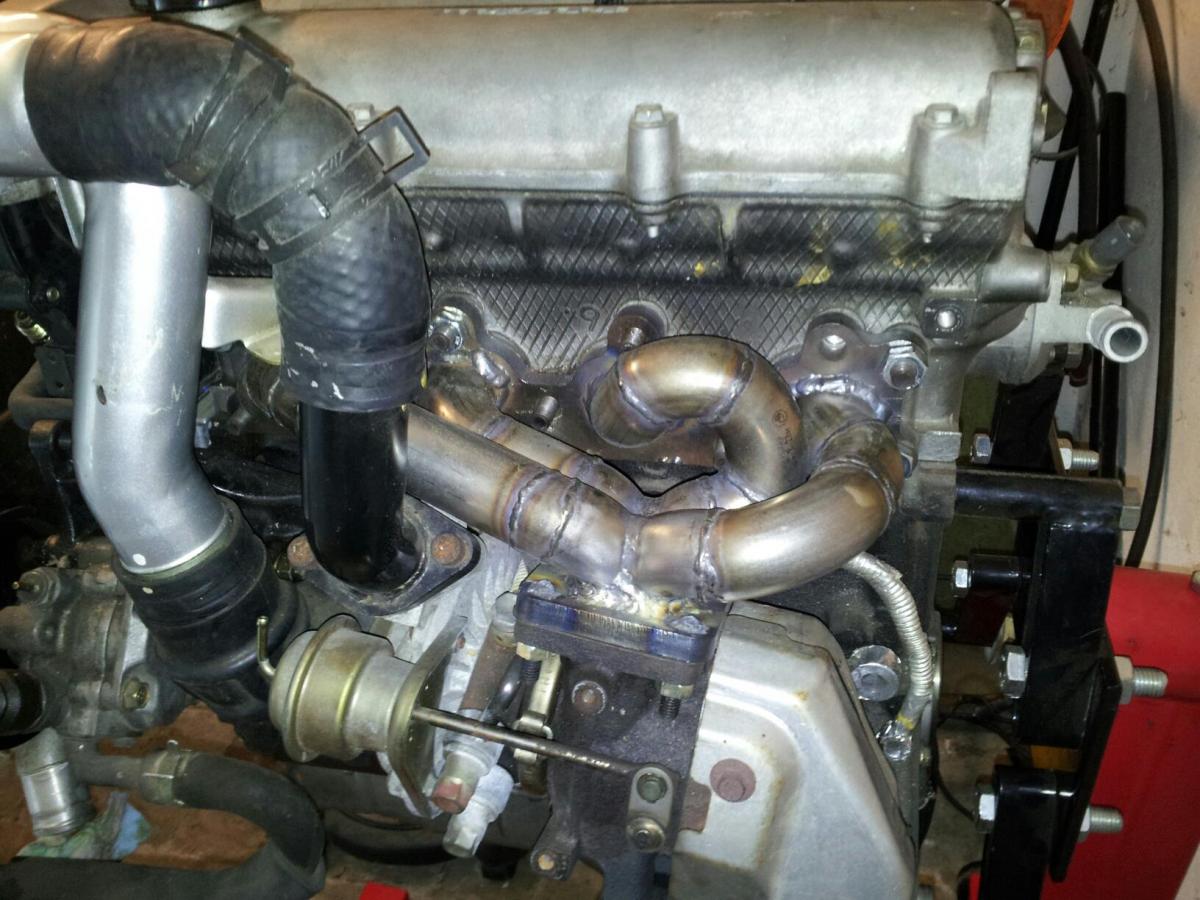

DIY 1.6L manifold for Mazdaspeed IHI turbo installed on Mazdaspeed OEM brackets.

Equal length runners, of course. Target is to use all OEM parts (ducting, intake box, oil & water lines etc.), so the maifold appears very compact

Attached Thumbnails
DIY manifold-737827_10200206387104079_794832643_o.jpg
Miata.SharK is offline   Reply With Quote
Old 01-06-2013, 02:19 PM   #264
Boost Czar

iTrader: (60)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 70,425
Total Cats: 1,426
Default

did you weld in the studs?
Braineack is offline   Reply With Quote
Old 01-06-2013, 02:41 PM   #265
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: woosta, ma
Posts: 8,689
Total Cats: 93
Default

Quote:
Originally Posted by Braineack View Post
did you weld in the studs?
Looks like it.

The poor collector.
Leafy is offline   Reply With Quote
Old 01-06-2013, 03:16 PM   #266
Senior Member
Thread Starter
iTrader: (5)

Join Date: Sep 2009
Location: Lompoc, CA
Posts: 579
Total Cats: 12
Default

And I thought I spent a ton of time building a DIY manifold to use a cheap tiny oem turbo. I've been outdone on all counts.
baron340 is offline   Reply With Quote
Old 01-06-2013, 05:05 PM   #267
Junior Member

Join Date: Oct 2010
Location: Turin (Italy)
Posts: 92
Total Cats: -1
Default

Quote:
Originally Posted by Leafy View Post
Looks like it.

The poor collector.
The ones which goes into turbo housing are actually welded. It's definitely not the best solution in terms of thermal expansion, I agree.

Do you feel that is REALLY critical (even if I compensate by increasing the diameter of 3 holes on the turbo housing)?
I'm still in time for changing this item... and you have far more experience than me!
Miata.SharK is offline   Reply With Quote
Old 01-20-2013, 10:48 AM   #268
Junior Member

Sirnixalot's Avatar

Join Date: Aug 2005
Location: Cayman Islands
Posts: 410
Total Cats: 13
Default

anyone know if the "3d" flange that has the taper and step for the 1.5" SCH40 pipe exists for the 1.6L?
Sirnixalot is offline   Reply With Quote
Old 02-01-2013, 02:55 PM   #269
Junior Member

Join Date: Nov 2007
Location: Ontario, Canada
Posts: 106
Total Cats: 1
Default

Is there any downside to using mild weld els i know most use SS because there cheaper however I can get mild els for 6 bucks a piece. I've used mild with success for a log but this time i am planing more of a tubular design.
NoiseRacing is offline   Reply With Quote
Old 02-01-2013, 03:09 PM   #270
mkturbo.com
iTrader: (24)

shuiend's Avatar

Join Date: May 2006
Location: Charleston SC
Posts: 12,411
Total Cats: 778
Default

Quote:
Originally Posted by NoiseRacing View Post
Is there any downside to using mild weld els i know most use SS because there cheaper however I can get mild els for 6 bucks a piece. I've used mild with success for a log but this time i am planing more of a tubular design.
I only went with SS manifold because I did not want to deal with rust. When I build my first DIY manifold I am planning on going with mild steal the first time.
shuiend is offline   Reply With Quote
Old 02-01-2013, 06:47 PM   #271
Elite Member
iTrader: (46)

Stein's Avatar

Join Date: Dec 2007
Location: Nebraska
Posts: 4,813
Total Cats: 138
Default

Just ordered a Wiertech flange/weld el package for bottom mount goodness for the SAAB.
Stein is offline   Reply With Quote
Old 02-01-2013, 06:54 PM   #272
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: woosta, ma
Posts: 8,689
Total Cats: 93
Default

I really want BMC race to get back to me. I added a t25 flange to my order and they're literally telling me a price away from having my money. If I dont hear back from them by the middle of next week I'm taking my cad model copy of their premium flange, this piece of 1/2" 304 stainless I have kicking around and just making one myself.
Leafy is offline   Reply With Quote
Old 02-01-2013, 08:25 PM   #273
Junior Member

Join Date: Nov 2007
Location: Ontario, Canada
Posts: 106
Total Cats: 1
Default

I got my flanges from weir already, \ after reading on various other forums and a thread here with a mild SCH40 absurdflow mani. I realize there are no downsides really for this on a street car, other than rust which can be solved by having it coated. Thanks
NoiseRacing is offline   Reply With Quote
Old 02-02-2013, 07:30 AM   #274
Senior Member

Join Date: Apr 2011
Location: Martin, Slovakia
Posts: 513
Total Cats: 71
Default

Quote:
Originally Posted by NoiseRacing View Post
Is there any downside to using mild weld els i know most use SS because there cheaper however I can get mild els for 6 bucks a piece. I've used mild with success for a log but this time i am planing more of a tubular design.

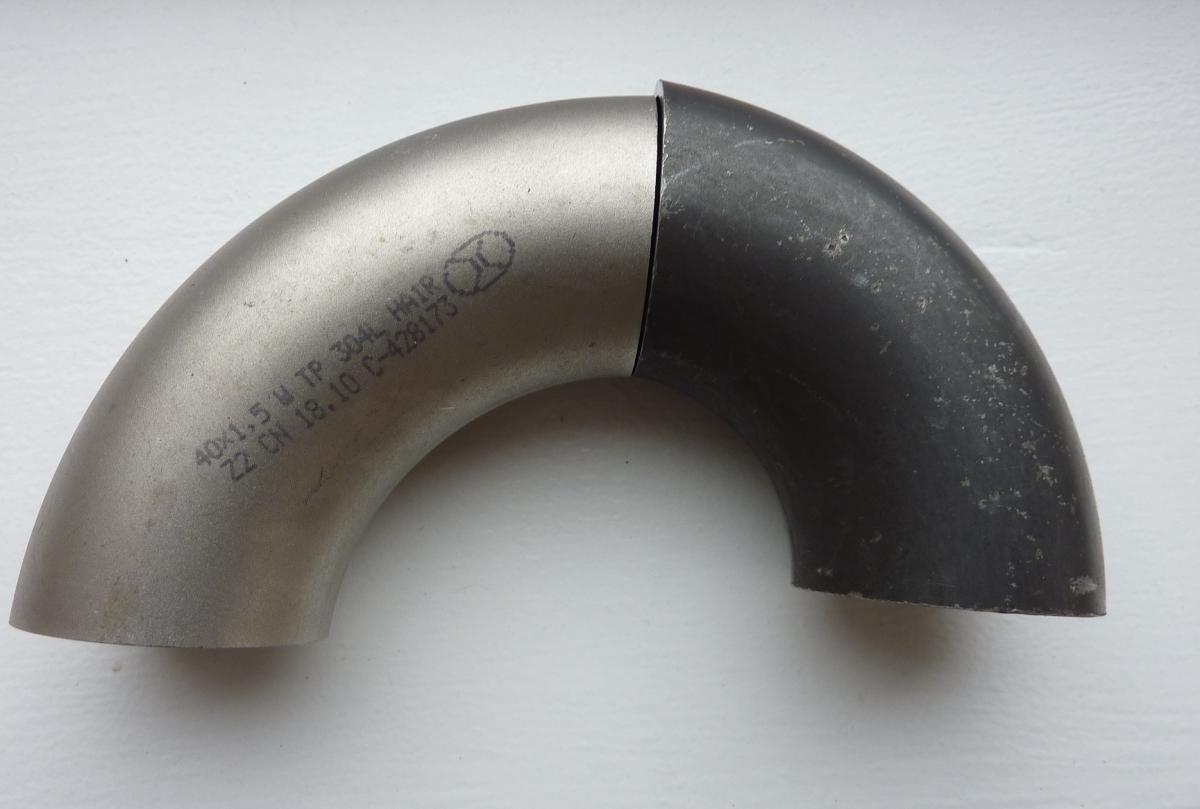

Mild steel elbows may have a tighter radius than ss ones which could be a downside/upside depending on what you want to fab.
6$ sounds too many middlemen expensive for mild steel. (Locally 5/4 s235 elbows are about 1$ Pavol Mará)
Attached Thumbnails
DIY manifold-small.jpg
sturovo is offline   Reply With Quote
Old 02-02-2013, 09:48 AM   #275
Senior Member
iTrader: (1)

Join Date: Oct 2009
Posts: 1,352
Total Cats: 45
Default

90s are made in both short or long radius.
Enginerd is offline   Reply With Quote
Old 02-02-2013, 01:25 PM   #276
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: woosta, ma
Posts: 8,689
Total Cats: 93
Default

Even 1.25" 304L, but the tight radiuses in that size are about $85 each, long radius ~6.
Leafy is offline   Reply With Quote
Old 02-02-2013, 01:53 PM   #277
Junior Member

Join Date: Nov 2007
Location: Ontario, Canada
Posts: 106
Total Cats: 1
Default

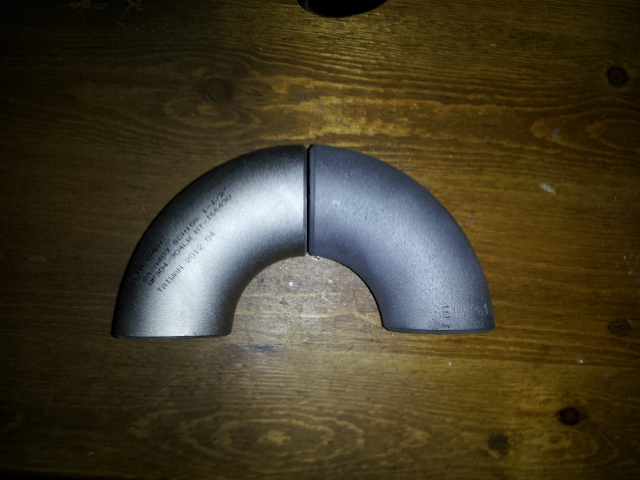

that pic is of a short and long. 6 bucks is cheaper than ace stainless so I don't thinks its a bad price.

on the left is a long radius SCH10 SS from Weir on the right is a long radius SCH40 mild from my local place(sand blasted)

Attached Thumbnails
DIY manifold-20130202_124355.jpg   DIY manifold-20130202_124355.jpg

Last edited by NoiseRacing; 02-02-2013 at 02:11 PM.
NoiseRacing is offline   Reply With Quote
Old 02-02-2013, 02:04 PM   #278
Senior Member

Join Date: Apr 2011
Location: Martin, Slovakia
Posts: 513
Total Cats: 71
Default

Quote:
Originally Posted by Leafy View Post
Even 1.25" 304L, but the tight radiuses in that size are about $85 each, long radius ~6.
In any case short radius bends would significantly restrict flow?

Incidentally, the picture posted shows 2 long radius bends all be it to different standards.
In SK/EU for whatever reason, stainless pipes are supplied in metric sizes to DIN 2506 and mild steel pipes are supplied in inches according to ASME.
DIN 2506 uses R=1.5d which is > than ASME long radius equivalent.
sturovo is offline   Reply With Quote
Old 02-02-2013, 05:58 PM   #279
Senior Member
iTrader: (1)

Join Date: Oct 2009
Posts: 1,352
Total Cats: 45
Default

Quote:
Originally Posted by Leafy View Post
Even 1.25" 304L, but the tight radiuses in that size are about $85 each, long radius ~6.
McMaster has short radius $42 and about $10 for the long radius in dual grade 304/304L. A234 elbows are $12 for long radius and $20 for short radius.
Enginerd is offline   Reply With Quote
Old 02-07-2013, 05:08 PM   #280
Elite Member
iTrader: (4)

Join Date: Dec 2008
Location: Kingston, Ontario
Posts: 2,637
Total Cats: 60
Default

Quote:
Originally Posted by sturovo View Post
In any case short radius bends would significantly restrict flow?
a 90 is a 90.

Radius doesnt really matter that much as compared to the friction caused by the length of the pipe and the surface of the ID of the pipe.

Generally fabricators will use all long radius though to keep costs down when they can.

I know that I use only long radius and I havent had an instance where i needed a tight radius yet.

Im sure something like a BMW turbo manifold or something similar in a VERY tight space may need a few of them.
shlammed is offline   Reply With Quote
