Old 09-24-2014, 12:59 PM   #361
mkturbo.com
iTrader: (24)

shuiend's Avatar

Join Date: May 2006
Location: Charleston SC
Posts: 12,689
Total Cats: 842
Default

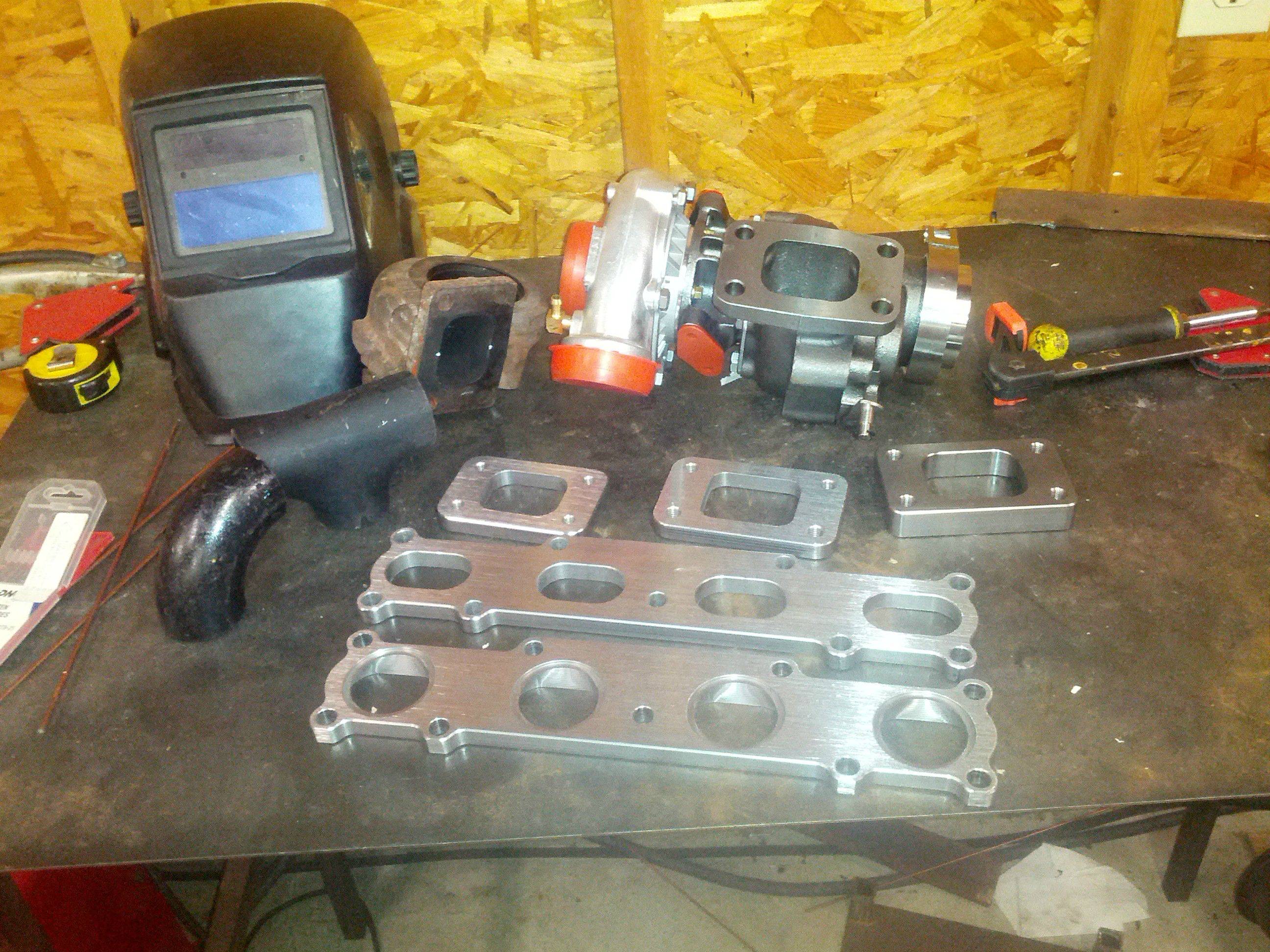

Received my first BMC premium flange, it is well worth the extra cost. Will be starting over on it for my manifold.
shuiend is offline   Reply With Quote
Old 09-25-2014, 10:34 AM   #362
mkturbo.com
iTrader: (24)

shuiend's Avatar

Join Date: May 2006
Location: Charleston SC
Posts: 12,689
Total Cats: 842
Default






Last edited by shuiend; 10-03-2014 at 09:26 PM.
shuiend is offline   Reply With Quote
Old 09-25-2014, 10:43 AM   #363
Senior Member
iTrader: (8)

cyotani's Avatar

Join Date: Jan 2012
Location: Azusa, CA
Posts: 1,365
Total Cats: 80
Default

Looks good. That looks like some very thick piping.
cyotani is offline   Reply With Quote
Old 09-25-2014, 10:55 AM   #364
mkturbo.com
iTrader: (24)

shuiend's Avatar

Join Date: May 2006
Location: Charleston SC
Posts: 12,689
Total Cats: 842
Default

shuiend is offline   Reply With Quote
Old 09-25-2014, 11:24 AM   #365
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 33,804
Total Cats: 2,117
Default

Good stuff Lars, looks beefy
18psi is offline   Reply With Quote
Old 09-25-2014, 11:43 AM   #366
Elite Member

DNMakinson's Avatar

Join Date: Jan 2013
Location: Seneca, SC
Posts: 2,027
Total Cats: 185
Default

Just like mine, but yours won't have the cracks for that "Old Truck" sound, cause you are going to weld it correctly. Turbo location same as well. Works great to fit everything.

For some reason, I thought you were buildiing a tubular, rather than a log?

Are you planning to cut the flange between ports?
DNMakinson is offline   Reply With Quote
Old 09-26-2014, 11:45 AM   #367
Elite Member
iTrader: (4)

Join Date: Dec 2008
Location: Kingston, Ontario
Posts: 2,649
Total Cats: 62
Default

bevel those joints brah. that way you get full penetration on the weld.
shlammed is offline   Reply With Quote
Old 09-30-2014, 07:26 PM   #368
mkturbo.com
iTrader: (24)

shuiend's Avatar

Join Date: May 2006
Location: Charleston SC
Posts: 12,689
Total Cats: 842
Default

Quote:
Originally Posted by shlammed View Post
bevel those joints brah. that way you get full penetration on the weld.
I will be beveling the next manifold I make.


First manifold is done, downpipe is tacked together and fits a NA. 2.5" V-Band downpipe inlet to a 3" V-band outlet.


Last edited by shuiend; 10-03-2014 at 09:22 PM.
shuiend is offline   Reply With Quote
Old 10-01-2014, 11:06 AM   #369
Boost Czar

iTrader: (60)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 70,904
Total Cats: 1,469
Default

i beveled your mom last night.
Braineack is offline   Reply With Quote
Old 10-01-2014, 01:30 PM   #370
Senior Member
iTrader: (1)

Join Date: Oct 2009
Posts: 1,363
Total Cats: 45
Default

Can you post a picture of the block side of the flange with the pipe welded? Is your thru hole ID same as the pipe ID? I probably would have overbored the thru hole to match the pipe OD and threw a fillet weld on the insid to prevent moisture from penetrating the inside flange/pipe seam. You wouldn't need the expensive counterbore or weld prep other than cleaning then either.
Enginerd is offline   Reply With Quote
Old 10-01-2014, 01:40 PM   #371
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 8,816
Total Cats: 92
Default

how to you get the fillet weld area flat with the flange if you do it that way?
Leafy is offline   Reply With Quote
Old 10-01-2014, 01:42 PM   #372
Moderator
iTrader: (10)

sixshooter's Avatar

Join Date: Nov 2008
Location: Tampa, FL
Posts: 14,086
Total Cats: 1,165
Default

Quote:
Originally Posted by Braineack View Post
i beveled your mom last night.
I got good penetration on your mom last night.
sixshooter is offline   Reply With Quote
Old 10-01-2014, 01:46 PM   #373
Senior Member
iTrader: (1)

Join Date: Oct 2009
Posts: 1,363
Total Cats: 45
Default

Quote:
Originally Posted by Leafy View Post
how to you get the fillet weld area flat with the flange if you do it that way?
Like a slip on flange.
Enginerd is offline   Reply With Quote
Old 10-01-2014, 01:52 PM   #374
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 8,816
Total Cats: 92
Default

So like dont insert it all the way? oh baby.
Leafy is offline   Reply With Quote
Old 10-01-2014, 01:54 PM   #375
Elite Member
iTrader: (2)

triple88a's Avatar

Join Date: Apr 2006
Location: Chicago, IL
Posts: 9,029
Total Cats: 535
Default

Quote:
Originally Posted by Leafy View Post
So like dont insert it all the way? oh baby.
Just the tip?
triple88a is online now   Reply With Quote
Old 10-01-2014, 02:07 PM   #376
Elite Member

DNMakinson's Avatar

Join Date: Jan 2013
Location: Seneca, SC
Posts: 2,027
Total Cats: 185
Default

Quote:
Originally Posted by Enginerd View Post
Can you post a picture of the block side of the flange with the pipe welded? Is your thru hole ID same as the pipe ID? I probably would have overbored the thru hole to match the pipe OD and threw a fillet weld on the insid to prevent moisture from penetrating the inside flange/pipe seam. You wouldn't need the expensive counterbore or weld prep other than cleaning then either.
Then the flange would not match the ports. This flange has a machined transition that goes oval to round, the oval side matches the head ports, and the round matches 1 1/4" fitting ID. The flange to fitting welds are fillets.
DNMakinson is offline   Reply With Quote
Old 10-01-2014, 03:22 PM   #377
Moderator
iTrader: (10)

sixshooter's Avatar

Join Date: Nov 2008
Location: Tampa, FL
Posts: 14,086
Total Cats: 1,165
Default

That setup looks like it could handle some track torture.
sixshooter is offline   Reply With Quote
Old 10-03-2014, 02:24 PM   #378
mkturbo.com
iTrader: (24)

shuiend's Avatar

Join Date: May 2006
Location: Charleston SC
Posts: 12,689
Total Cats: 842
Default

First MKTurbo.com setup is complete. Basic log manifold with a T3 Chinacharger made to clear AC/PS. 2.5" v-band outlet at the turbo which expands 3" v-band out at the midpipe. 3" all the way back with a huge magnaflow muffler to keep noise down.

Last edited by shuiend; 10-03-2014 at 09:23 PM.
shuiend is offline   Reply With Quote
Old 10-03-2014, 03:15 PM   #379
Junior Member
iTrader: (1)

Join Date: Jan 2011
Posts: 368
Total Cats: -2
Default

The 2.5" DP is for clearance?

Any more pictures of the bends at the exhaust. I need to buy some stuff and it would be helpful to see how you did it.
3rdCarMX5 is offline   Reply With Quote
Old 10-03-2014, 03:56 PM   #380
mkturbo.com
iTrader: (24)

shuiend's Avatar

Join Date: May 2006
Location: Charleston SC
Posts: 12,689
Total Cats: 842
Default

Quote:
Originally Posted by 3rdCarMX5 View Post
The 2.5" DP is for clearance?

Any more pictures of the bends at the exhaust. I need to buy some stuff and it would be helpful to see how you did it.
The outlet of the turbo is 2.5" so I went with that until I had enough clearance to expand up to 3".

Below is how I have the bends going into the muffler.

Last edited by shuiend; 10-03-2014 at 09:24 PM.
shuiend is offline   Reply With Quote
