Anyone have any brake questions?
#101
All the big brake kits that I've seen use solid mounted calipers. The rotors are also solid mounted. Generally, one of the two needs to be floating, or at least semi-floating. Why is this acceptable for the off-the-shelf big brake kits? Pads and rotors don't wear exactly evenly, and there needs to be allowable play to keep the caliper centered within the rotor, to promote even pad pressure, and reduce drag.
if you have a rotor that likes to move around then you need to have a floating caliper. a good example of this is the GM 10 bolt with C- clips. i have plenty of guys that club race on one of those (american iron). the axle moves around almost .5". that means the rotor moves around .5" it's impossible to use a fixed caliper with the rotor moving so much. The only option there is to run a floating caliper, or to switch to a floating axle.
__________________
OG Racing
Your Source For Motorsports Safety Equipment
WWW.OGRACING.COM
800.934.9112
703.430.3303
info@ogracing.com
OG Racing
Your Source For Motorsports Safety Equipment
WWW.OGRACING.COM
800.934.9112
703.430.3303
info@ogracing.com
#103
A little late on posting my appreciation for those DBA videos; but I am properly humbled on what I considered a "proper" rotor/pad change. I'm just glad I can cycle the ABS unit via VCDS on my Jetta otherwise I'd have been pushing nasty **** in it without an easy way to get it out when retracting the piston.
I had no idea that minor of deflection was amplified so much over time...crazy and scary.
I am considering a 4 wheel Wilwood setup fairly soon, will I be able to get a balanced bias, with the adjuster, having the same caliper/rotor size front and rear? Or am I looking at causing more problems than good by upgrading all 4 corners.
Mostly looking at it for:
-Reliability

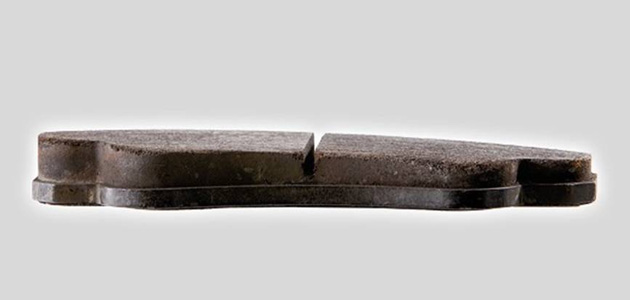

-no brake pad taper
-ease of changing pads
-less unsprung weight
-more pad options
-get rid of the worthless parking brake(mine will not tension properly no matter what)
Anyways, appreciate it Johnny, I like being humbled, means I hopefully start making mistakes less frequently.
I had no idea that minor of deflection was amplified so much over time...crazy and scary.
I am considering a 4 wheel Wilwood setup fairly soon, will I be able to get a balanced bias, with the adjuster, having the same caliper/rotor size front and rear? Or am I looking at causing more problems than good by upgrading all 4 corners.
Mostly looking at it for:
-Reliability
-no brake pad taper
-ease of changing pads
-less unsprung weight
-more pad options
-get rid of the worthless parking brake(mine will not tension properly no matter what)
Anyways, appreciate it Johnny, I like being humbled, means I hopefully start making mistakes less frequently.
#104
Moderator
iTrader: (12)
Join Date: Nov 2008
Location: Tampa, Florida
Posts: 20,645
Total Cats: 3,009
If you are limited to a stock caliper that is the easiest upgrade. The rear kit offers a larger diameter rotor under the stock caliper also.
#105
This kit allows you to use the stock calipers with 11 inch VW corrado rotors instead of factory 10 inch rotors. It is a noticeable improvement in force and fade resistance over stock rotors. Miata M-Tuned Big Rotor Kit
If you are limited to a stock caliper that is the easiest upgrade. The rear kit offers a larger diameter rotor under the stock caliper also.
If you are limited to a stock caliper that is the easiest upgrade. The rear kit offers a larger diameter rotor under the stock caliper also.
I would like to usedvanlig a 4piston design. I have looked at the Mazda FD calipers but am unsure If I'det bedre better of with a different choice regarding strength and pad choice.
#107
I wouldn't recommend a Fixed (rx7 4 piston) caliper without a 2 piece rotor. Ideally i want to see a floating rotor. Single piece rotors move around too much under braking to use a fixed caliper, it would be best to stick with the oem floating calipers. I'm not sure if the Rx7 calipers are a direct bolt on, but with a single piece rotor i'm afraid it would cause too much drag and hurt the performance rater than increase it. With your country's laws it seams your screwed. My advice would be to use the 1.8 brakes and get yourself a quality set of pads.
__________________
OG Racing
Your Source For Motorsports Safety Equipment
WWW.OGRACING.COM
800.934.9112
703.430.3303
info@ogracing.com
OG Racing
Your Source For Motorsports Safety Equipment
WWW.OGRACING.COM
800.934.9112
703.430.3303
info@ogracing.com
#108
A little late on posting my appreciation for those DBA videos; but I am properly humbled on what I considered a "proper" rotor/pad change. I'm just glad I can cycle the ABS unit via VCDS on my Jetta otherwise I'd have been pushing nasty **** in it without an easy way to get it out when retracting the piston.
I had no idea that minor of deflection was amplified so much over time...crazy and scary.
I am considering a 4 wheel Wilwood setup fairly soon, will I be able to get a balanced bias, with the adjuster, having the same caliper/rotor size front and rear? Or am I looking at causing more problems than good by upgrading all 4 corners.
Mostly looking at it for:
-Reliability
-no brake pad taper
-ease of changing pads
-less unsprung weight
-more pad options
-get rid of the worthless parking brake(mine will not tension properly no matter what)
Anyways, appreciate it Johnny, I like being humbled, means I hopefully start making mistakes less frequently.
I had no idea that minor of deflection was amplified so much over time...crazy and scary.
I am considering a 4 wheel Wilwood setup fairly soon, will I be able to get a balanced bias, with the adjuster, having the same caliper/rotor size front and rear? Or am I looking at causing more problems than good by upgrading all 4 corners.
Mostly looking at it for:
-Reliability
-no brake pad taper
-ease of changing pads
-less unsprung weight
-more pad options
-get rid of the worthless parking brake(mine will not tension properly no matter what)
Anyways, appreciate it Johnny, I like being humbled, means I hopefully start making mistakes less frequently.
Morning Jeff,
The combo that i would recommend would be the V8 roadsters kit, or the track speed kit. in the front. I would love it if someone would make the rotors floating with the addition of a rotor flange. like this one form joes racing.
In the Rear
I wouldn't recommend kits that Put a non-Floating caliper on a solid 1 piece rotor. As i said before a non Motorsports rotor can flex in excess of 2mm under braking. this Kills power, straigt line speed, and overheats the braking components. the Solid rear rotors on a miata can flex a TON!! if we are going to keep the solid rear rotor it's best to use a floating caliper.
We Run a track speed 11.75" F kit, and Good win racing upgraded stock calipers in the rear. this provides ample rear tq to trail brake a 2400lbs Ls1 miata. Generally the ls1 cars have a higher rear weight balance. (Ford 8.8, larger battery, extra mufflers). that Extra rear bias should require more rear rotor to acquire balance. we find that the Sport rotor with a Stock rear caliper gives ample performance while keeping the parking brake. a larger rotor would last longer though.
__________________
OG Racing
Your Source For Motorsports Safety Equipment
WWW.OGRACING.COM
800.934.9112
703.430.3303
info@ogracing.com
OG Racing
Your Source For Motorsports Safety Equipment
WWW.OGRACING.COM
800.934.9112
703.430.3303
info@ogracing.com
#110
Morning Jeff,
I wouldn't recommend kits that Put a non-Floating caliper on a solid 1 piece rotor.
We Run a track speed 11.75" F kit, and Good win racing upgraded stock calipers in the rear. this provides ample rear tq to trail brake a 2400lbs Ls1 miata. Generally the ls1 cars have a higher rear weight balance. (Ford 8.8, larger battery, extra mufflers). that Extra rear bias should require more rear rotor to acquire balance. we find that the Sport rotor with a Stock rear caliper gives ample performance while keeping the parking brake. a larger rotor would last longer though.
I wouldn't recommend kits that Put a non-Floating caliper on a solid 1 piece rotor.
We Run a track speed 11.75" F kit, and Good win racing upgraded stock calipers in the rear. this provides ample rear tq to trail brake a 2400lbs Ls1 miata. Generally the ls1 cars have a higher rear weight balance. (Ford 8.8, larger battery, extra mufflers). that Extra rear bias should require more rear rotor to acquire balance. we find that the Sport rotor with a Stock rear caliper gives ample performance while keeping the parking brake. a larger rotor would last longer though.
A vented 10.75" DBA5000 rotor on the rear in a 2 piece design. Is this very obvious motorsport application rotor design not enough to dissipate it going out of "threshold"?
Not questioning you, merely intrigued on your opinion with this particular specification.
*edit* I'd love to run the TSE 11.75" kit, but unfortunately My Konig Flatout 15x8 have clearance issues in the barrel.
#111
Calipers.
FYI

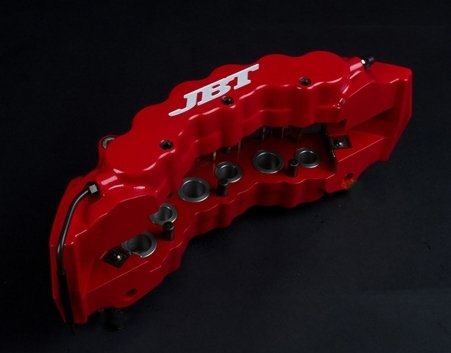

Piston count means nothing. how many pistons you have means 0.00000 to performance. Going form a 1 piston to a 6 piston will not increase your performance AT ALL!! there is a knee in the graph, but generally speaking the more pistons you have the worse a caliper gets. a caliper needs not to be judged by piston count but instead by rigidity, and piston size.
Pistons,
Everyone remembers the digital Camera war of Megapixels. the marking men said this camera has 4 pixels and that's better then 3 pixel. when in fact the amount of pixels it had meant nothing. it was a trick to get people to buy the next model. Brake manufactures have done the same with piston counts. They say "OH look a 8 piston!! buy now!!". The fact of the matter is this - the more pistons you have the worse your fluid will travel to all the pistons consistently. We found that the ideal number of pistons to have in a fixed caliper is 4. 4 pistons push evenly on all edges of a pad, and it can still keep consistent fluid pressure. we have also found that more pistons you have above 4 the less consistent a caliper becomes with fluid delivery to each piston. The only time we've seen 6 pistons be better performers then 4 pistons was is the size of a caliper was an issue. in NASCAR, we use 6 piston caliper to clear that tiny 15" wheels. for 90% of the applications out there we don't need to worry about that. so that 8 piston caliper you've been eyeing... run away from it.
Rigidity
a caliper is only as good as how stiff it is. a solid caliper can be felt in the peddle. time after time the peddle can be relied on to be in the exact same spot. If your reading this and not agreeing then your system is in desperate need of improvement. flex of the caliper is the same as the flex in the lines. people go crazy with stainless brake lines. they do this because it improves peddle feel. Unknowingly, they swap the stainless lines onto a caliper that flexes. the stiffer a caliper is the less it will flex. A flexing caliper requires the pistons to travel further to apply the same amount of pressure. the extra travel in the pistons means the pistons are moving further out of the bore. they will need to travel further back into the caliper to be able to remove pad pressure off the rotor surface. A caliper, let me restate that. a Good caliper has square O rings. these square O rings retract the pistons only so much. for example lets say 1mm. if a caliper flexes and the pistons need to travel 1.1mm that means the O rings cannot retract the piston, and you will still have residual brake pressure on the rotor. that residual pressure is creates drag. The Drag is acting like the brakes are still on. imagine you heading down the back straight. how much more MPH do you think we can get if your brakes where off.
Piston Size.
we have gone over this before, so i wont go too in depth about master cylinder ratios. i will focus on the pistons themselves. Everyone overlooks the piston size. so your calipers are a 12 piston.. your pistons must be the size of dimes. that's not a good situation. When looking at a fixed caliper we want to see 4 large pistons. this gives us the best hydraulic advantage.
FYI
Piston count means nothing. how many pistons you have means 0.00000 to performance. Going form a 1 piston to a 6 piston will not increase your performance AT ALL!! there is a knee in the graph, but generally speaking the more pistons you have the worse a caliper gets. a caliper needs not to be judged by piston count but instead by rigidity, and piston size.
Pistons,
Everyone remembers the digital Camera war of Megapixels. the marking men said this camera has 4 pixels and that's better then 3 pixel. when in fact the amount of pixels it had meant nothing. it was a trick to get people to buy the next model. Brake manufactures have done the same with piston counts. They say "OH look a 8 piston!! buy now!!". The fact of the matter is this - the more pistons you have the worse your fluid will travel to all the pistons consistently. We found that the ideal number of pistons to have in a fixed caliper is 4. 4 pistons push evenly on all edges of a pad, and it can still keep consistent fluid pressure. we have also found that more pistons you have above 4 the less consistent a caliper becomes with fluid delivery to each piston. The only time we've seen 6 pistons be better performers then 4 pistons was is the size of a caliper was an issue. in NASCAR, we use 6 piston caliper to clear that tiny 15" wheels. for 90% of the applications out there we don't need to worry about that. so that 8 piston caliper you've been eyeing... run away from it.
Rigidity
a caliper is only as good as how stiff it is. a solid caliper can be felt in the peddle. time after time the peddle can be relied on to be in the exact same spot. If your reading this and not agreeing then your system is in desperate need of improvement. flex of the caliper is the same as the flex in the lines. people go crazy with stainless brake lines. they do this because it improves peddle feel. Unknowingly, they swap the stainless lines onto a caliper that flexes. the stiffer a caliper is the less it will flex. A flexing caliper requires the pistons to travel further to apply the same amount of pressure. the extra travel in the pistons means the pistons are moving further out of the bore. they will need to travel further back into the caliper to be able to remove pad pressure off the rotor surface. A caliper, let me restate that. a Good caliper has square O rings. these square O rings retract the pistons only so much. for example lets say 1mm. if a caliper flexes and the pistons need to travel 1.1mm that means the O rings cannot retract the piston, and you will still have residual brake pressure on the rotor. that residual pressure is creates drag. The Drag is acting like the brakes are still on. imagine you heading down the back straight. how much more MPH do you think we can get if your brakes where off.

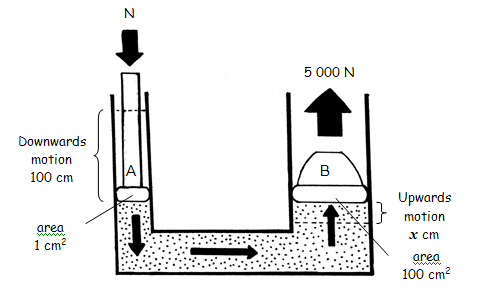

Piston Size.
we have gone over this before, so i wont go too in depth about master cylinder ratios. i will focus on the pistons themselves. Everyone overlooks the piston size. so your calipers are a 12 piston.. your pistons must be the size of dimes. that's not a good situation. When looking at a fixed caliper we want to see 4 large pistons. this gives us the best hydraulic advantage.
__________________
OG Racing
Your Source For Motorsports Safety Equipment
WWW.OGRACING.COM
800.934.9112
703.430.3303
info@ogracing.com
OG Racing
Your Source For Motorsports Safety Equipment
WWW.OGRACING.COM
800.934.9112
703.430.3303
info@ogracing.com
#112
Agreed on the floating rotor. OR I should say I don't doubt your knowledge on the matter. Apologies for not being more specific on which kit I was looking at, but in reference to what I am currently favoring, what about the newly updated design of the rear rotors in the version-4 Goodwin 2-piece rotors Big Brake Kit?
A vented 10.75" DBA5000 rotor on the rear in a 2 piece design. Is this very obvious motorsport application rotor design not enough to dissipate it going out of "threshold"?
Not questioning you, merely intrigued on your opinion with this particular specification.
*edit* I'd love to run the TSE 11.75" kit, but unfortunately My Konig Flatout 15x8 have clearance issues in the barrel.
A vented 10.75" DBA5000 rotor on the rear in a 2 piece design. Is this very obvious motorsport application rotor design not enough to dissipate it going out of "threshold"?
Not questioning you, merely intrigued on your opinion with this particular specification.
*edit* I'd love to run the TSE 11.75" kit, but unfortunately My Konig Flatout 15x8 have clearance issues in the barrel.
IF that's the kit that will fit with your wheels, and you don't want to change your wheels then.... that's the kit your going to get... right?
as a Professional brake guy.. on a miata I want to see a rigid 4 piston caliper, with the largest rotors that will fit under a 15" steel wheel, with some big nasty slicks. Thats what i want. what I want and what is piratical are two different things. For those of us that street drive we need a parking brake. you can go without it, but it would make life annoying. allot of miatas are wight conscious so we cant run steelies. on that particular kit would be good for a street driven car with slightly higher then normal hp. if your looking to make a track car with 250+hp i would recommend more rotor. it is a good starter bbk. i started with good wins full kit. I still have good win's rear rotors on my car. so you can upgrade to the 11.75" rotors later if you feel like more power. I would also recommend getting a set of race pads with it for track days. I've burned up the perter fields that come with it on a track day. I get negative props whenever i post up a link to race pads. so pm me if your interested.
__________________
OG Racing
Your Source For Motorsports Safety Equipment
WWW.OGRACING.COM
800.934.9112
703.430.3303
info@ogracing.com
OG Racing
Your Source For Motorsports Safety Equipment
WWW.OGRACING.COM
800.934.9112
703.430.3303
info@ogracing.com
#113
Kind of a silly question, but what is the best way to bleed brakes (MC and calipers)?
I know there's people that swear by the motive pressure bleeders, and others that say they suck. I usually have someone pump the brakes while opening/closing the bleeder, but this takes time, and I'd rather use a pressure bleeder because of laziness.
Just thought it would be cool to get advice from an expert on the proper way to bench bleed/bleed brake systems.
I know there's people that swear by the motive pressure bleeders, and others that say they suck. I usually have someone pump the brakes while opening/closing the bleeder, but this takes time, and I'd rather use a pressure bleeder because of laziness.
Just thought it would be cool to get advice from an expert on the proper way to bench bleed/bleed brake systems.
#114
IF that's the kit that will fit with your wheels, and you don't want to change your wheels then.... that's the kit your going to get... right?
as a Professional brake guy.. on a miata I want to see a rigid 4 piston caliper, with the largest rotors that will fit under a 15" steel wheel, with some big nasty slicks. Thats what i want. what I want and what is piratical are two different things. on that particular kit would be good for a street driven car with slightly higher then normal hp. if your looking to make a track car with 250+hp i would recommend more rotor. it is a good starter bbk. i started with good wins full kit. I still have good win's rear rotors on my car. so you can upgrade to the 11.75" rotors later if you feel like more power. I would also recommend getting a set of race pads with it for track days. I've burned up the perter fields that come with it on a track day. I get negative props whenever i post up a link to race pads. so pm me if your interested.
as a Professional brake guy.. on a miata I want to see a rigid 4 piston caliper, with the largest rotors that will fit under a 15" steel wheel, with some big nasty slicks. Thats what i want. what I want and what is piratical are two different things. on that particular kit would be good for a street driven car with slightly higher then normal hp. if your looking to make a track car with 250+hp i would recommend more rotor. it is a good starter bbk. i started with good wins full kit. I still have good win's rear rotors on my car. so you can upgrade to the 11.75" rotors later if you feel like more power. I would also recommend getting a set of race pads with it for track days. I've burned up the perter fields that come with it on a track day. I get negative props whenever i post up a link to race pads. so pm me if your interested.
Also, damn your well executed common sense on not basing your stopping performance based on being cheap and not getting wheels to work for them. Looks like I'll have a for sale thread once the new 15x9 6UL's come out...
#115
Kind of a silly question, but what is the best way to bleed brakes (MC and calipers)?
I know there's people that swear by the motive pressure bleeders, and others that say they suck. I usually have someone pump the brakes while opening/closing the bleeder, but this takes time, and I'd rather use a pressure bleeder because of laziness.
Just thought it would be cool to get advice from an expert on the proper way to bench bleed/bleed brake systems.
I know there's people that swear by the motive pressure bleeders, and others that say they suck. I usually have someone pump the brakes while opening/closing the bleeder, but this takes time, and I'd rather use a pressure bleeder because of laziness.
Just thought it would be cool to get advice from an expert on the proper way to bench bleed/bleed brake systems.
When I make the decision...we'll have some discussions.
Also, damn your well executed common sense on not basing your stopping performance based on being cheap and not getting wheels to work for them. Looks like I'll have a for sale thread once the new 15x9 6UL's come out...
Also, damn your well executed common sense on not basing your stopping performance based on being cheap and not getting wheels to work for them. Looks like I'll have a for sale thread once the new 15x9 6UL's come out...
__________________
OG Racing
Your Source For Motorsports Safety Equipment
WWW.OGRACING.COM
800.934.9112
703.430.3303
info@ogracing.com
OG Racing
Your Source For Motorsports Safety Equipment
WWW.OGRACING.COM
800.934.9112
703.430.3303
info@ogracing.com
Last edited by OGRacing; 11-03-2014 at 03:17 PM.
#117
I try to get straight to the point. Ever since we started this "lets ask the brake nerd" stuff, i haven't had a second to take my time with it. we posted this topic on 4 forums, and on the OG Blog. I don't have any time to sugar coat anything, i do apologize if it ruffles feathers.
Ruffle away. I hate sugar coating, it is a waste of time.
#118
Senior Member
iTrader: (2)
Join Date: Sep 2009
Location: Edmonton, AB, Canada
Posts: 1,193
Total Cats: 29
Actually when I get my Krispy Kreme hot-n-fresh donuts I get 6 with glaze and 6 right from the oil with no glaze. Make a double decker with 1 glaze and 1 non glazed and you get the perfect amount of sweetness.
Some sugar coating but not to much.
Can you comment on regular passenger cars and trucks? I know it's not race car territory but we all drive them to some degree on the streets and we expect good performance there as well.
I picked up some HP performance pads for a minivan and pickup truck and was not impressed. Can you recommend a brand with good initial cold morning bite and still some fade resistance? Let me also state that I replaced rotors but went with the bottom of the barrel brand when I did so perhaps further compounding the issue.
Some sugar coating but not to much.
Can you comment on regular passenger cars and trucks? I know it's not race car territory but we all drive them to some degree on the streets and we expect good performance there as well.
I picked up some HP performance pads for a minivan and pickup truck and was not impressed. Can you recommend a brand with good initial cold morning bite and still some fade resistance? Let me also state that I replaced rotors but went with the bottom of the barrel brand when I did so perhaps further compounding the issue.
#120
Actually when I get my Krispy Kreme hot-n-fresh donuts I get 6 with glaze and 6 right from the oil with no glaze. Make a double decker with 1 glaze and 1 non glazed and you get the perfect amount of sweetness.
Some sugar coating but not to much.
Can you comment on regular passenger cars and trucks? I know it's not race car territory but we all drive them to some degree on the streets and we expect good performance there as well.
I picked up some HP performance pads for a minivan and pickup truck and was not impressed. Can you recommend a brand with good initial cold morning bite and still some fade resistance? Let me also state that I replaced rotors but went with the bottom of the barrel brand when I did so perhaps further compounding the issue.
Some sugar coating but not to much.
Can you comment on regular passenger cars and trucks? I know it's not race car territory but we all drive them to some degree on the streets and we expect good performance there as well.
I picked up some HP performance pads for a minivan and pickup truck and was not impressed. Can you recommend a brand with good initial cold morning bite and still some fade resistance? Let me also state that I replaced rotors but went with the bottom of the barrel brand when I did so perhaps further compounding the issue.
Cold bite - and fade resistance will be tough to find. dare i say not existent. If your lucky-enough for PFC to have your pad shape then i would recommend the PFC .10 compound. we had U-haul, Penski, Ryder trucks, Iowa police department, CHP, IL State troopers, ect.. all use the .10. when it gets hot it grips, really grips. it's a street pad so it doesn't dust to much. the cold bite is numb (anything under 100*), but it will take a 1600* rotor temperature before it starts to fade. 1600* is higher then the dtc-60 will take, but the dtc 60 will have a higher tq. The only problem with the .10 is that pfc only makes it for fleet vehicles. Big trucks, police cars, F-150 and so on. shoot me over what vehicle you have and i'll see if they make a pad shape for your rig. ive tried the Hawk LTB on my jeep. I am not very excited about the performance from those.
