Old 02-29-2016, 07:54 PM   #181
Junior Member
iTrader: (1)

Join Date: Apr 2013
Location: Bryan, TX
Posts: 73
Total Cats: -9
Default

I just came.
Code Monkey is offline   Reply With Quote
Old 02-29-2016, 09:48 PM   #182
Senior Member
iTrader: (1)

Join Date: Mar 2008
Location: Cromwell CT
Posts: 1,065
Total Cats: 42
Default

can i ask, why does everyone run there intakes like that and not down lower with a longer pipe?
ctdrftna is offline   Reply With Quote
Old 02-29-2016, 10:34 PM   #183
Supporting Vendor
Thread Starter
iTrader: (3)

emilio700's Avatar

Join Date: May 2005
Posts: 4,540
Total Cats: 840
Default

Quote:
Originally Posted by ctdrftna View Post
can i ask, why does everyone run there intakes like that and not down lower with a longer pipe?
I don't know why others do similar routing. We needed a specific length and that was the only way to fit it in the engine bay. We'll pop a small hole in the cowl to feed the filter a small stream of ambient air under a wee bit of pressure. I like the area behind the headlights but we couldn't get to it at the right length without too many sharp bends to make it worthwhile.
emilio700 is offline   Reply With Quote
Old 03-01-2016, 06:11 AM   #184
Senior Member
iTrader: (1)

Join Date: Mar 2008
Location: Cromwell CT
Posts: 1,065
Total Cats: 42
Default

I see, looks great though, what are you expecting this motor to dyno?
ctdrftna is offline   Reply With Quote
Old 03-01-2016, 12:45 PM   #185
Supporting Vendor
Thread Starter
iTrader: (3)

emilio700's Avatar

Join Date: May 2005
Posts: 4,540
Total Cats: 840
Default

Quote:
Originally Posted by ctdrftna View Post
I see, looks great though, what are you expecting this motor to dyno?
Dynojet SAE corrected with 225/45/15 street tires on corn..I'd like to see 260whp but I'm expecting 245whp. John says he has seen a little over 300whp with the same basic engine on Church's Dynapack, which reads about 10% high. Then you have another ~10whp of drivetrain losses from a Honda to the NA. As always, I'm optimistic. In the end, it's just a number. The proof in the pudding will be how well we can get it to drive.

On a sorta related note, we have a long time customer with a race shop that wants a set of Xida ACE, our electronic shocks. Only one set was ever built, for Andy Hollis. The ACE valve takes up some space needed for stroke so I always wanted to build a longer set specifically for the Keisler drop spindles. So that is what we are doing. We'll build 3 sets, one for the American customer, one for a guy in Japan and one for OGK, which will be tested and tuned on Deviate.

Short version; Deviate will get some very cool suspension bits in the coming months. Yeah, should drive nice.
emilio700 is offline   Reply With Quote
Old 03-01-2016, 12:55 PM   #186
Senior Member
iTrader: (1)

Join Date: Mar 2008
Location: Cromwell CT
Posts: 1,065
Total Cats: 42
Default

Quote:
Originally Posted by emilio700 View Post
Dynojet SAE corrected with 225/45/15 street tires on corn..I'd like to see 260whp but I'm expecting 245whp. John says he has seen a little over 300whp with the same basic engine on Church's Dynapack, which reads about 10% high. Then you have another ~10whp of drivetrain losses from a Honda to the NA. As always, I'm optimistic. In the end, it's just a number. The proof in the pudding will be how well we can get it to drive.

On a sorta related note, we have a long time customer with a race shop that wants a set of Xida ACE, our electronic shocks. Only one set was ever built, for Andy Hollis. The ACE valve takes up some space needed for stroke so I always wanted to build a longer set specifically for the Keisler drop spindles. So that is what we are doing. We'll build 3 sets, one for the American customer, one for a guy in Japan and one for OGK, which will be tested and tuned on Deviate.

Short version; Deviate will get some very cool suspension bits in the coming months. Yeah, should drive nice.


Please run the V8Roadsters X-Lite arms with all that!!
ctdrftna is offline   Reply With Quote
Old 03-01-2016, 12:58 PM   #187
Supporting Vendor
Thread Starter
iTrader: (3)

emilio700's Avatar

Join Date: May 2005
Posts: 4,540
Total Cats: 840
Default

Quote:
Originally Posted by ctdrftna View Post
Please run the V8Roadsters X-Lite arms with all that!!
No billet arms for me thank you. We do have a set of the tubular rod end equipped arms for OGK though.
emilio700 is offline   Reply With Quote
Old 03-01-2016, 02:20 PM   #188
Junior Member

Join Date: Nov 2006
Posts: 201
Total Cats: 90
Default

Quote:
Originally Posted by emilio700 View Post
The ACE valve takes up some space needed for stroke so I always wanted to build a longer set specifically for the Keisler drop spindles. So that is what we are doing.
Perfect way to take advantage of the added length. Bravo.
AndyHollis is offline   Reply With Quote
Old 03-01-2016, 03:08 PM   #189
Elite Member
iTrader: (7)

Join Date: Jan 2008
Location: Knoxville, TN
Posts: 1,901
Total Cats: 14
Default

Quote:
Originally Posted by emilio700 View Post
On a sorta related note, we have a long time customer with a race shop that wants a set of Xida ACE, our electronic shocks. Only one set was ever built, for Andy Hollis. The ACE valve takes up some space needed for stroke so I always wanted to build a longer set specifically for the Keisler drop spindles. So that is what we are doing. We'll build 3 sets, one for the American customer, one for a guy in Japan and one for OGK, which will be tested and tuned on Deviate.

Short version; Deviate will get some very cool suspension bits in the coming months. Yeah, should drive nice.
Hell yeah! I'm sure Andrew(Keisler) will be happy to hear this(if he hasn't already).
flier129 is offline   Reply With Quote
Old 03-02-2016, 09:00 PM   #190
d k
Junior Member
iTrader: (4)

Join Date: Feb 2011
Posts: 211
Total Cats: 1
Default Deviate had a friend over

Strictly in the name of science. Nothing pornographic here.







Thanks Emilio
Attached Thumbnails

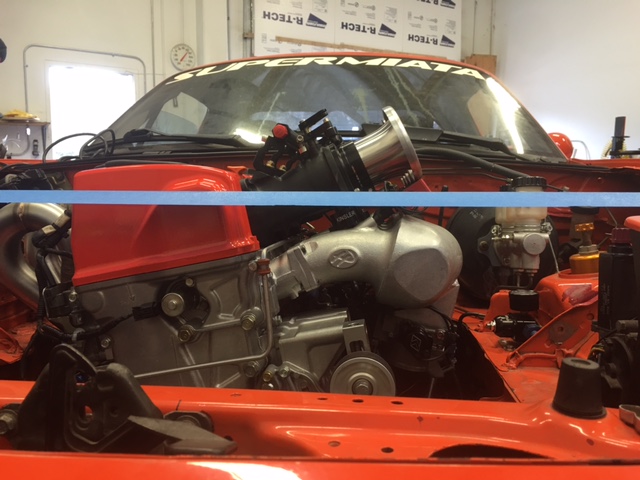

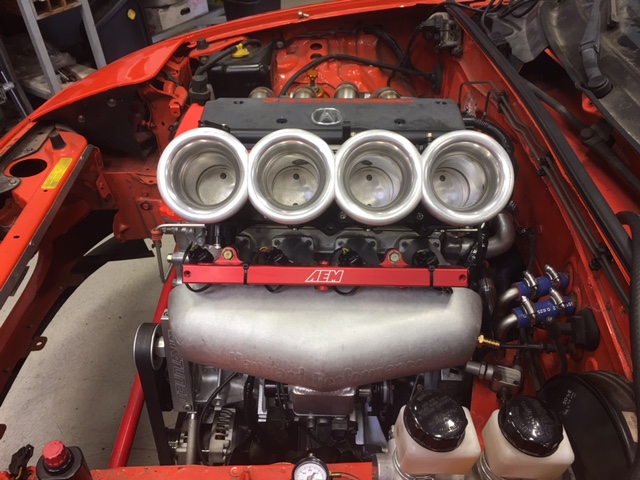

Deviate gets a K20A2-e31d4c30-ba54-4d8f-9087-cb3d57a20067.jpg   Deviate gets a K20A2-82707283-909e-4b6f-b6d0-da16c2c21923.jpg
d k is offline   Reply With Quote
Old 03-02-2016, 10:32 PM   #191
Junior Member

Join Date: Apr 2010
Location: Los Feliz
Posts: 84
Total Cats: 16
Default

Sorry, if I had known you were coming over I would have left the intake off.
Satisaii is offline   Reply With Quote
Old 03-02-2016, 10:37 PM   #192
d k
Junior Member
iTrader: (4)

Join Date: Feb 2011
Posts: 211
Total Cats: 1
Default

Quote:
Originally Posted by Satisaii View Post
Sorry, if I had known you were coming over I would have left the intake off.
I can most definately make another trip



I saw that it was held on by only one bolt.
I was severely tempted.


Interesting that John used small roll pins instead of dowels.
d k is offline   Reply With Quote
Old 03-03-2016, 07:22 PM   #193
Newb

Join Date: Jan 2008
Location: Athens, Greece
Posts: 44
Total Cats: 0
Default

Emilio this is nothing short of amazing!
There are for sure quicker/cheaper ways to do a K-swap but this...this
is so cool.

P.S: If you ever decide you want to drive the 'Ring with it you can put it a container and ship it over here, we can keep it safe for you in a warm nice place together with other miatas!
Mythos is offline   Reply With Quote
Old 03-03-2016, 10:33 PM   #194
Supporting Vendor
Thread Starter
iTrader: (3)

emilio700's Avatar

Join Date: May 2005
Posts: 4,540
Total Cats: 840
Default

Quote:
Originally Posted by Mythos View Post
Emilio this is nothing short of amazing!
There are for sure quicker/cheaper ways to do a K-swap but this...this
is so cool.

P.S: If you ever decide you want to drive the 'Ring with it you can put it a container and ship it over here, we can keep it safe for you in a warm nice place together with other miatas!
Funny you should mention that. While out on a long training ride (bicycle) I had the notion that it would be cool to take it to the ring since it is basically road legal and would have E marked tires. Would be an epic video with the sequential even on a tourist or open lapping day. I'd much rather take the OGK when its done but I think I'd have a hard time getting it past the guard gate with the giant wing, no windshield, full cage etcetera.
emilio700 is offline   Reply With Quote
Old 03-03-2016, 11:30 PM   #195
Newb

Join Date: Jan 2008
Location: Athens, Greece
Posts: 44
Total Cats: 0
Default

Correct! Normally a lot of things go by -especially on busy weekends- but having seen my much milder car towed away by German police at the entrance of the Nordschleife I'd say no windscreen and big wing is probably a deal breaker(but then again their main problem was...non-stock headlights, cone air filter(!) and multiple colours on the exterior that was what got their attention originally).

That said if it still looks like a miata and has street tires usually it's okay. (Or you can slap a BMW or a Porsche badge because apparently then many more eyes turn the other way!)

Indeed it would make for a great vid. Cameras are here waiting and even the trails around the 'Ring are awesome for cycling(or that's what they say those of us that do cycle)!
Mythos is offline   Reply With Quote
Old 03-05-2016, 10:36 AM   #196
Supporting Vendor

KMiata's Avatar

Join Date: Sep 2012
Posts: 278
Total Cats: 46
Default

Quote:
Originally Posted by emilio700 View Post
Funny you should mention that. While out on a long training ride (bicycle) I had the notion that it would be cool to take it to the ring since it is basically road legal and would have E marked tires. Would be an epic video with the sequential even on a tourist or open lapping day. I'd much rather take the OGK when its done but I think I'd have a hard time getting it past the guard gate with the giant wing, no windshield, full cage etcetera.
I support this epic video. I would fly out for it.
KMiata is offline   Reply With Quote
Old 03-09-2016, 02:19 AM   #197
d k
Junior Member
iTrader: (4)

Join Date: Feb 2011
Posts: 211
Total Cats: 1
Default

Emilio

Are you using the external pump,for pressure, or just for scavenging?

If you are running the internal pump and use the belt driven pump for scavenging, where does it scavenge from and where dos it dump to?
The pan?

Also, are you running any type of oil/air seperator?


Quote:
Originally Posted by emilio700 View Post

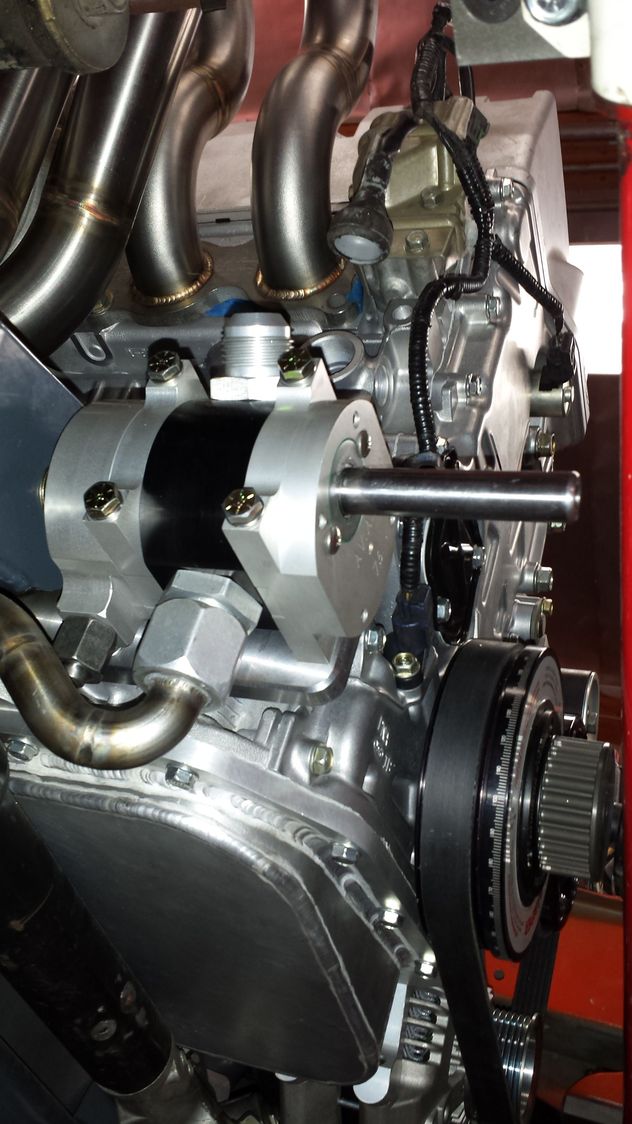

The external oil pump
d k is offline   Reply With Quote
Old 03-09-2016, 06:13 AM   #198
Senior Member
iTrader: (1)

Join Date: Mar 2008
Location: Cromwell CT
Posts: 1,065
Total Cats: 42
Default

I believe the pump is used for pressure, but due to it being external it has some scavenging effect.
ctdrftna is offline   Reply With Quote
Old 03-09-2016, 08:16 AM   #199
Junior Member

Join Date: Nov 2006
Posts: 201
Total Cats: 90
Default

Quote:
Originally Posted by d k View Post

If you are running the internal pump...
Not using internal pump. That flat part of the oil pan in front of the steering rack is where the K-series oil pump normally lives, and is typically some 4" deeper than the top of the rack to accommodate. That's the whole reason for the KMiata double-sump setup and associated extended pickup tube...which is what John is avoiding the use of with the external setup.
AndyHollis is offline   Reply With Quote
Old 03-09-2016, 12:12 PM   #200
Supporting Vendor
Thread Starter
iTrader: (3)

emilio700's Avatar

Join Date: May 2005
Posts: 4,540
Total Cats: 840
Default

External pump with two pickups on the pan. No reservoir or separator. Oil pan is extensively baffled specifically for longitudinal orientation.
emilio700 is offline   Reply With Quote
