furian777

I see alot of you guys use them, but my question is if I bought an ebay intercooler can I get away with no welding? just clamps and cutting of the pipes? I'm just looking to get away from the $600 begi one, cuttin corners where possible. thanks guys

Zabac

iTrader: (39)

yeah its possible, i assume you are buying an ebay IC piping kit and just want to cut the pieces to fit together via clamps...id rather weld them, but you can certainly do it with clamps

Braineack

iTrader: (62)

https://www.miataturbo.net/forum/showthread.php?t=17032

furian777

yeah theres a good post in there but any suggestions on the air bypass fitting on the pipe before the throttle body?

Braineack

iTrader: (62)

furian777

thanks for the great picture, can you describe it some?

Braineack

iTrader: (62)

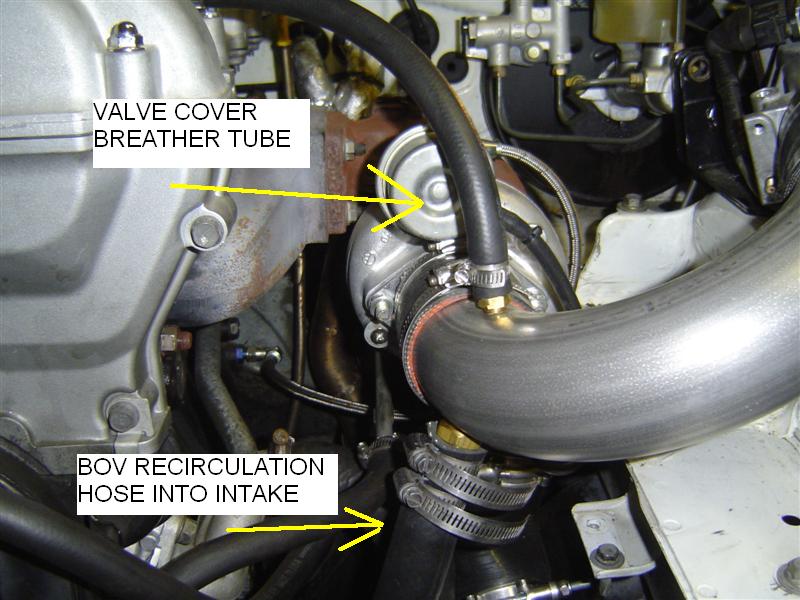

drill hole, screw in threaded pipe, jb weld, use coupler to attach BOV.

Joe Perez

iTrader: (8)

Best... Instructions... Ever!

furian777

i agree

samnavy

iTrader: (7)

Come on Furian, it's easy.

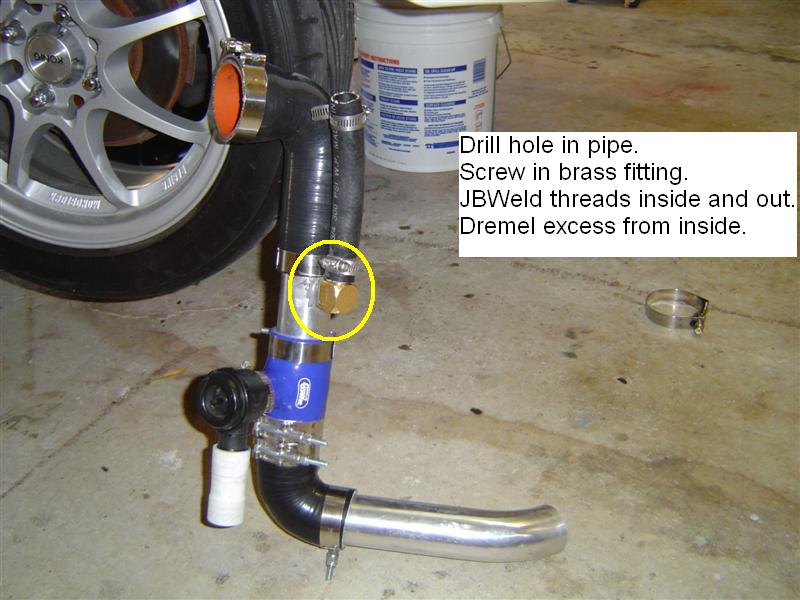

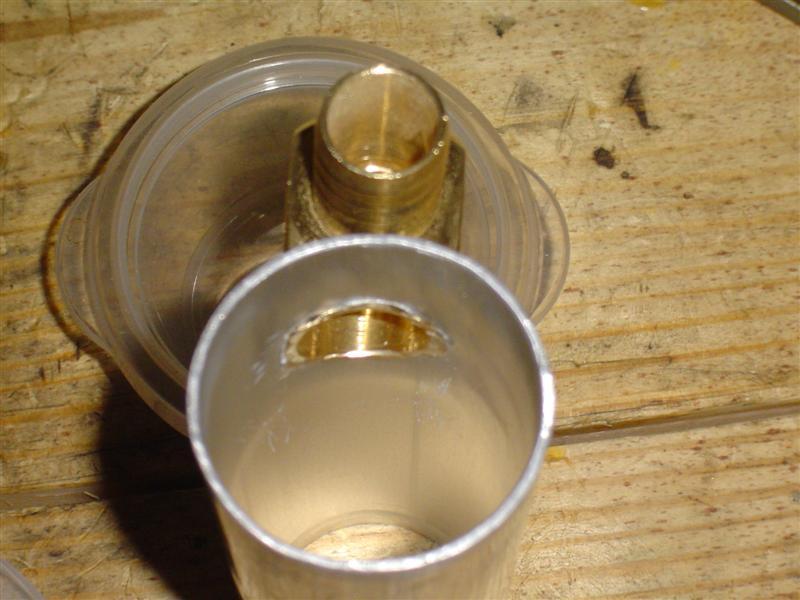

For best performance, once fitting is installed on charge pipe and JBWelded, Dremel off the excess threads on the inside.
Maybe more pictures will help... some people are visual learners.

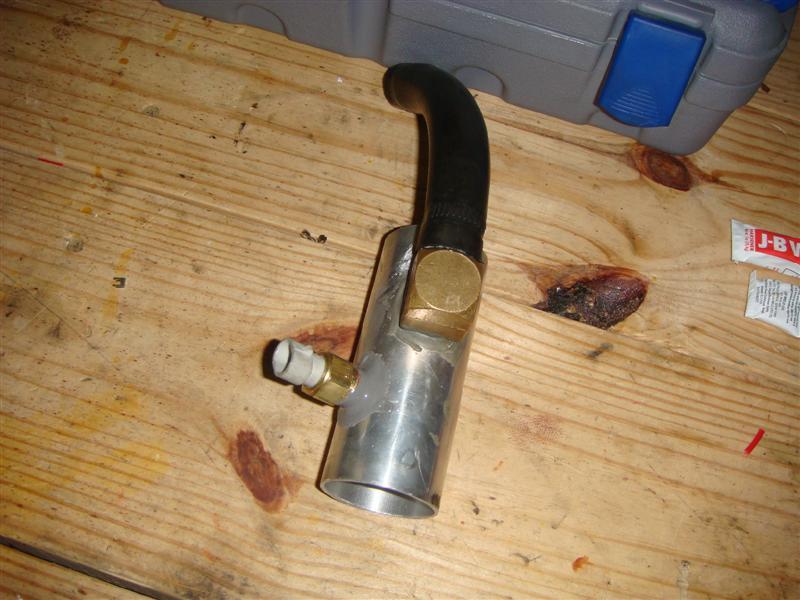

Drill hole, screw in fitting, JBWeld, stick something on fittting.

furian777

Very well done and said Samnavy,Thank you I sincerely appreciate it.

patsmx5

iTrader: (16)

Wow Sam, nice. You could teach a 4th. grader how to turbocharge a miata with those pics.

Arkmage

iTrader: (3)

sadly... the average 4th grader appears to have more intelligence than the average MT.net noob.

furian777

o0o can i get on the wagon too, can i get on the wagon too?!
