Old 09-24-2015, 08:03 AM   #1701
Senior Member

Join Date: Mar 2006
Location: Schwarzenberg, Germany
Posts: 1,473
Total Cats: 79
Default

That GT3 bar is beautiful...!
Zaphod is offline   Reply With Quote
Old 09-24-2015, 11:57 AM   #1702
Elite Member

Join Date: Oct 2011
Posts: 2,017
Total Cats: 42
Default

The fact the RZ bar fits and keeps the soft top function is very seriously tempting me to sell the BRZ and get the new Miata. Will the RZ bar be able to have a harness bar? (Sorry if I missed that). Having to run a hardtop for 5-points = no real reason to ditch the BRZ.
z31maniac is offline   Reply With Quote
Old 09-24-2015, 12:10 PM   #1703
SadFab Sales Lady
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 14,858
Total Cats: 938
Default

Edit: oops, misread.
aidandj is offline   Reply With Quote
Old 09-24-2015, 12:31 PM   #1704
Supporting Vendor

Blackbird's Avatar

Join Date: Oct 2011
Location: Northridge, CA
Posts: 388
Total Cats: 144
Default Blackbird Fabworx ND RZ roll bar

Quote:
Originally Posted by z31maniac View Post
The fact the RZ bar fits and keeps the soft top function is very seriously tempting me to sell the BRZ and get the new Miata. Will the RZ bar be able to have a harness bar? (Sorry if I missed that). Having to run a hardtop for 5-points = no real reason to ditch the BRZ.
Copying my intro post about the RZ from M.net along a couple of pics I have not posted here -
Quote:
Originally Posted by Blackbird View Post

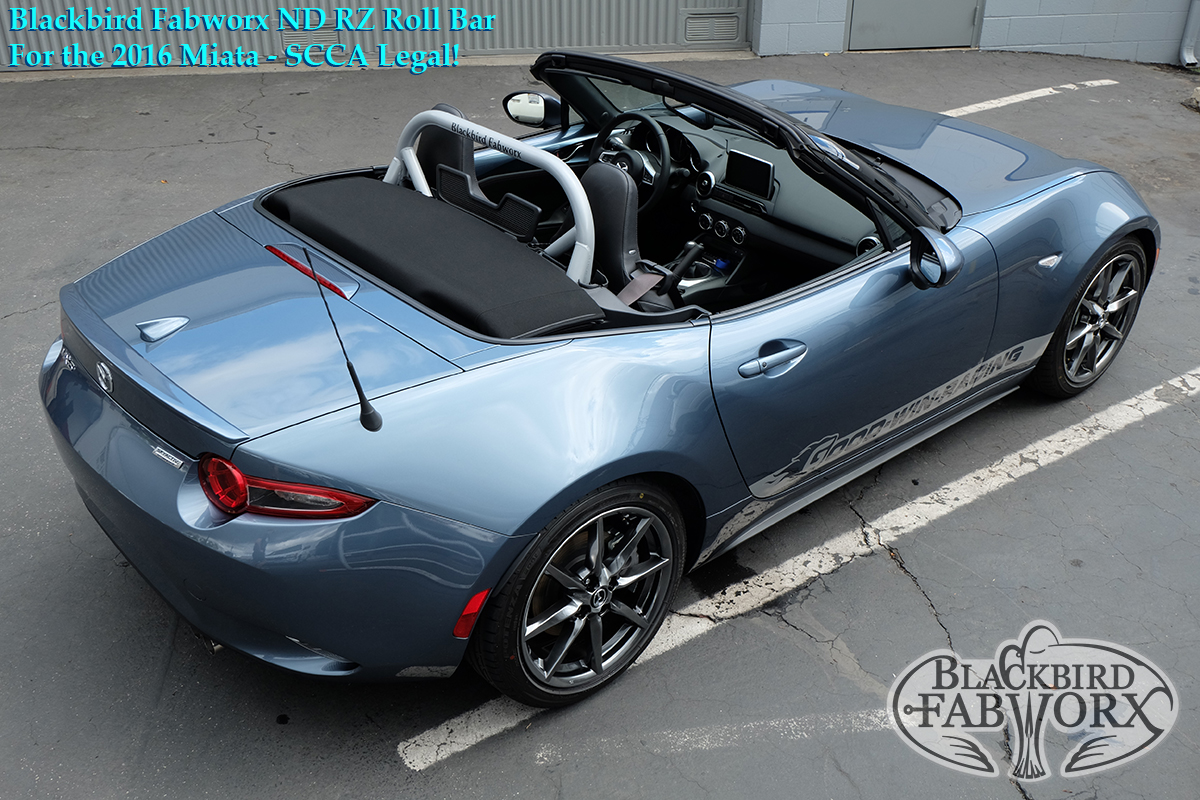

Ladies and gentlemen, Blackbird Fabworx is proud to present the RZ roll bar for the ND chassis!
The RZ name stands for Road / Z-fold and it is our street driven with occasional track day roll bar.
For our hard core track rats customers we will have our GT3 roll bar available shortly as well.

Key features of the RZ roll bar -
* Allows full use of the factory soft top which can be lowered from the driver's seat.
* SCCA Legal. Not kinda legal, not almost legal, not "hopefully you can sneak it by tech" legal. 100% SCCA LEGAL.

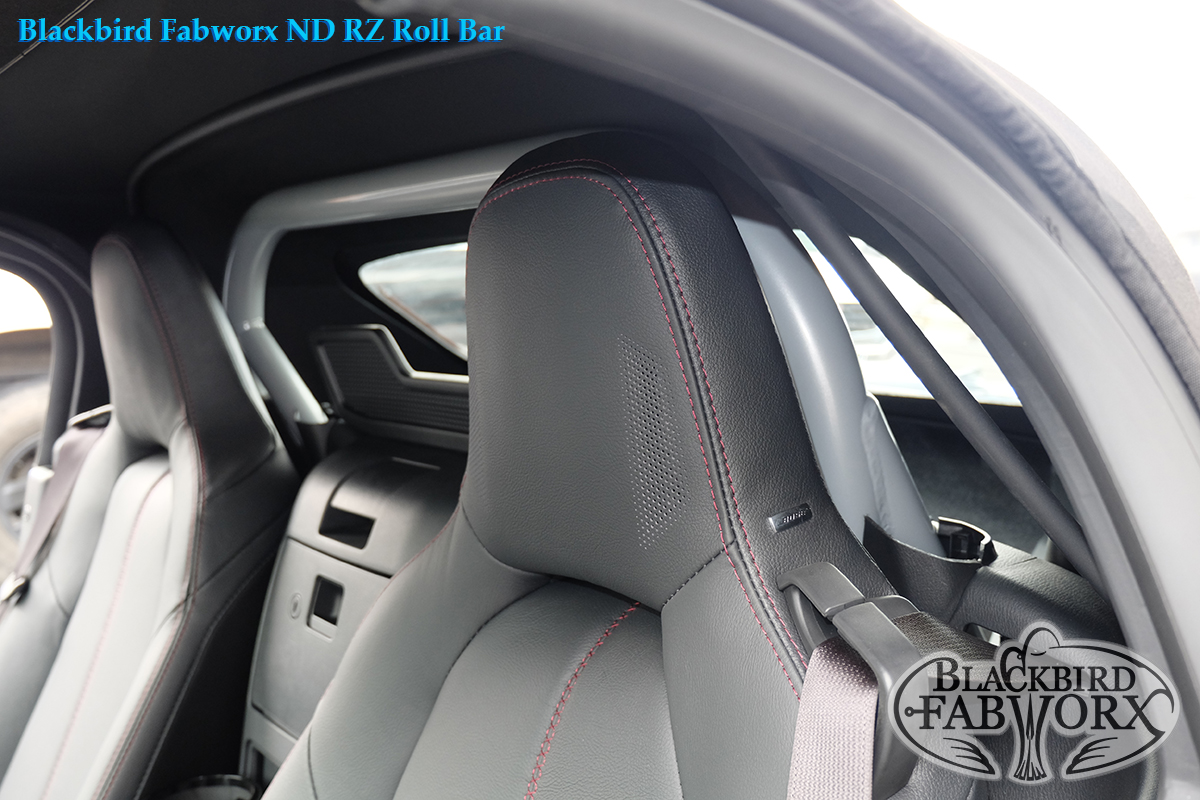

* 2" taller than OEM hoop structure.
* DOM Steel construction with full X brace and a harness bar as standard.
* Factory seat travel and recline retained in full.
* Allows all plastic and carpet trim panels to be reinstalled (with minor trimming), glove box retained.
* Includes amp relocation bracket for cars with Bose sound system.
* High grade hardware kit included.
* High quality powder coat finish included, many custom colors available for just $80 additional fee.
* Weight gain of just ~26 Lbs. in comparison with the OEM hoop structure it replaces!

Priced at $1195 (plus tax / shipping) for the complete setup, as shown in the pics $1275 with the High Gloss Silver finish -

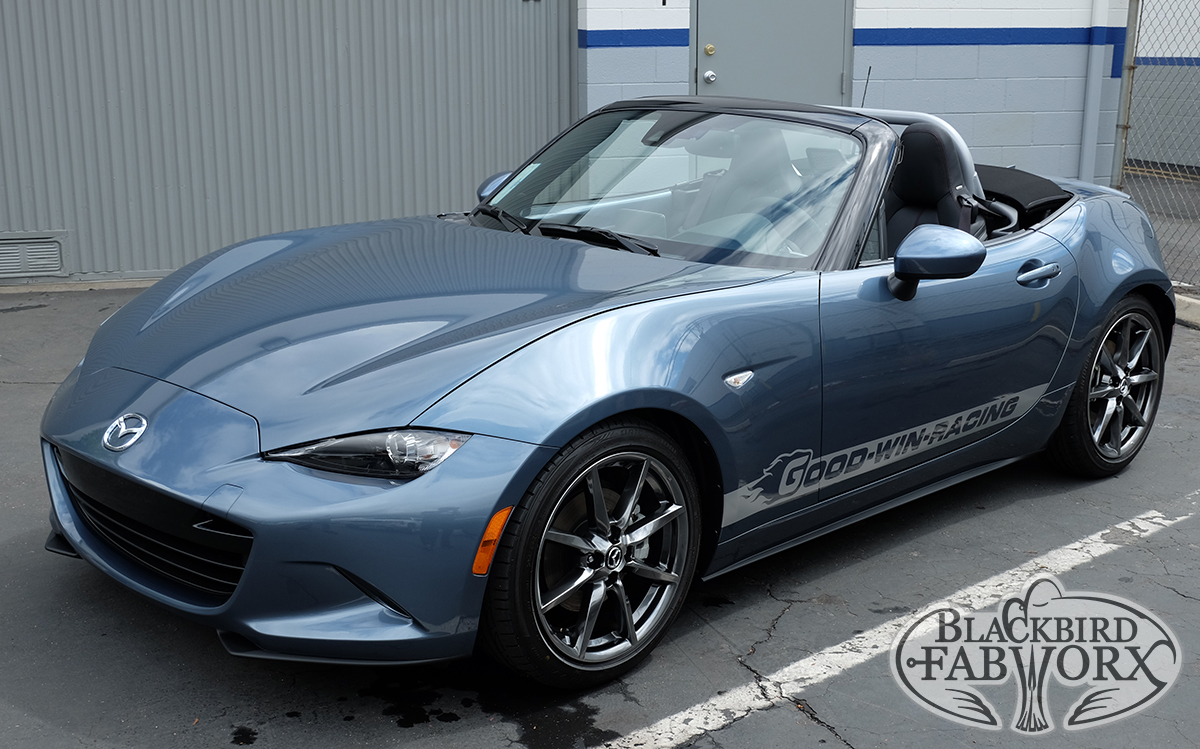

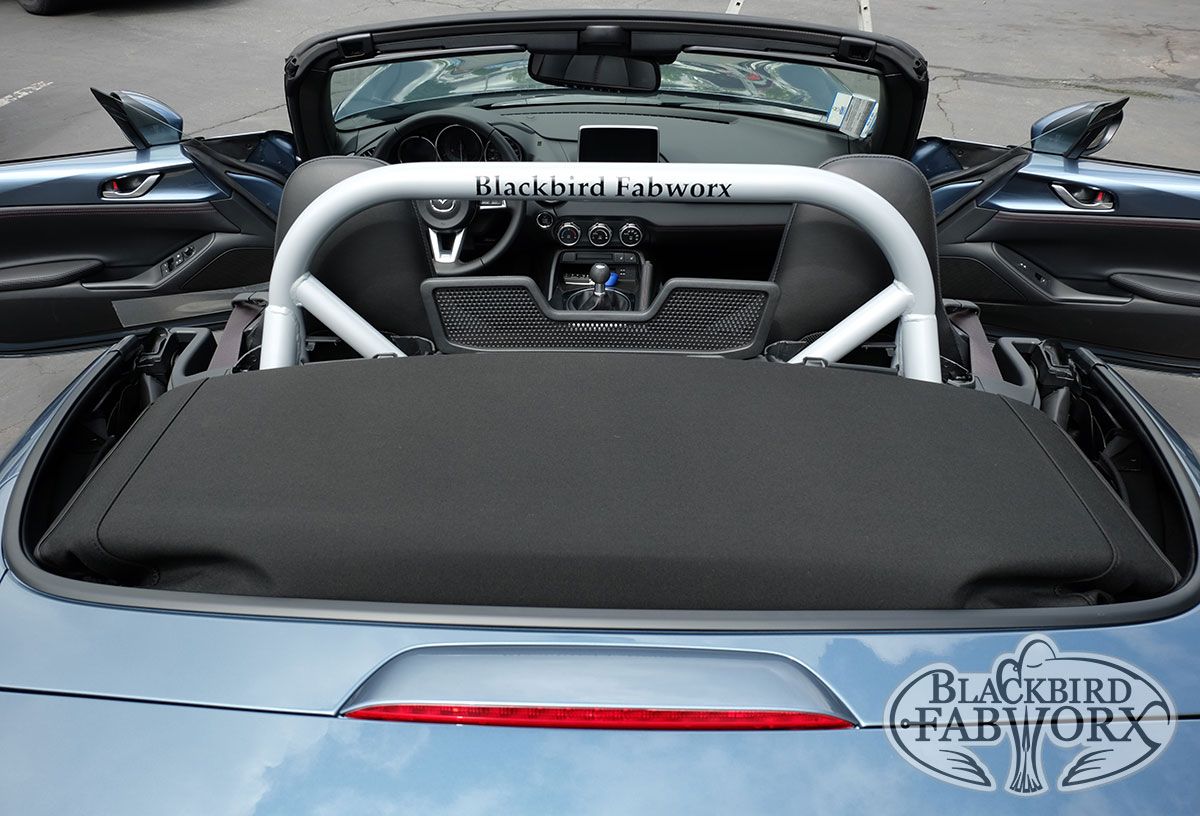

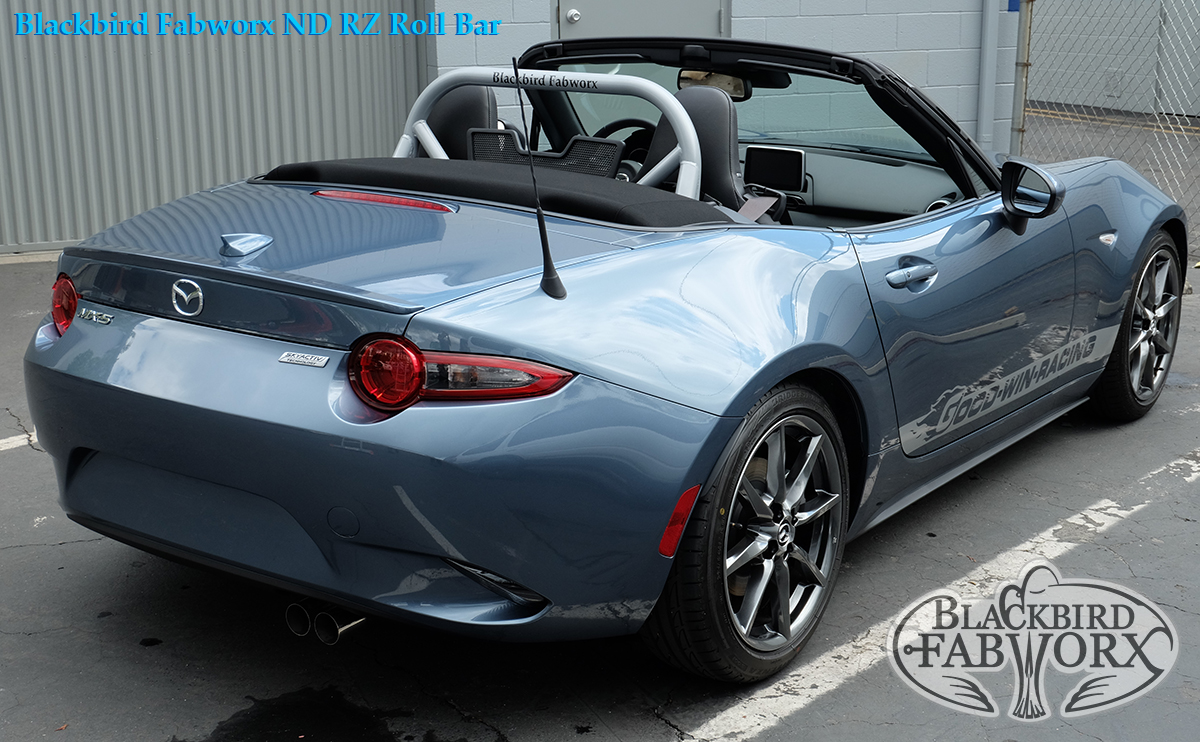

Blackbird Fabworx ND RZ

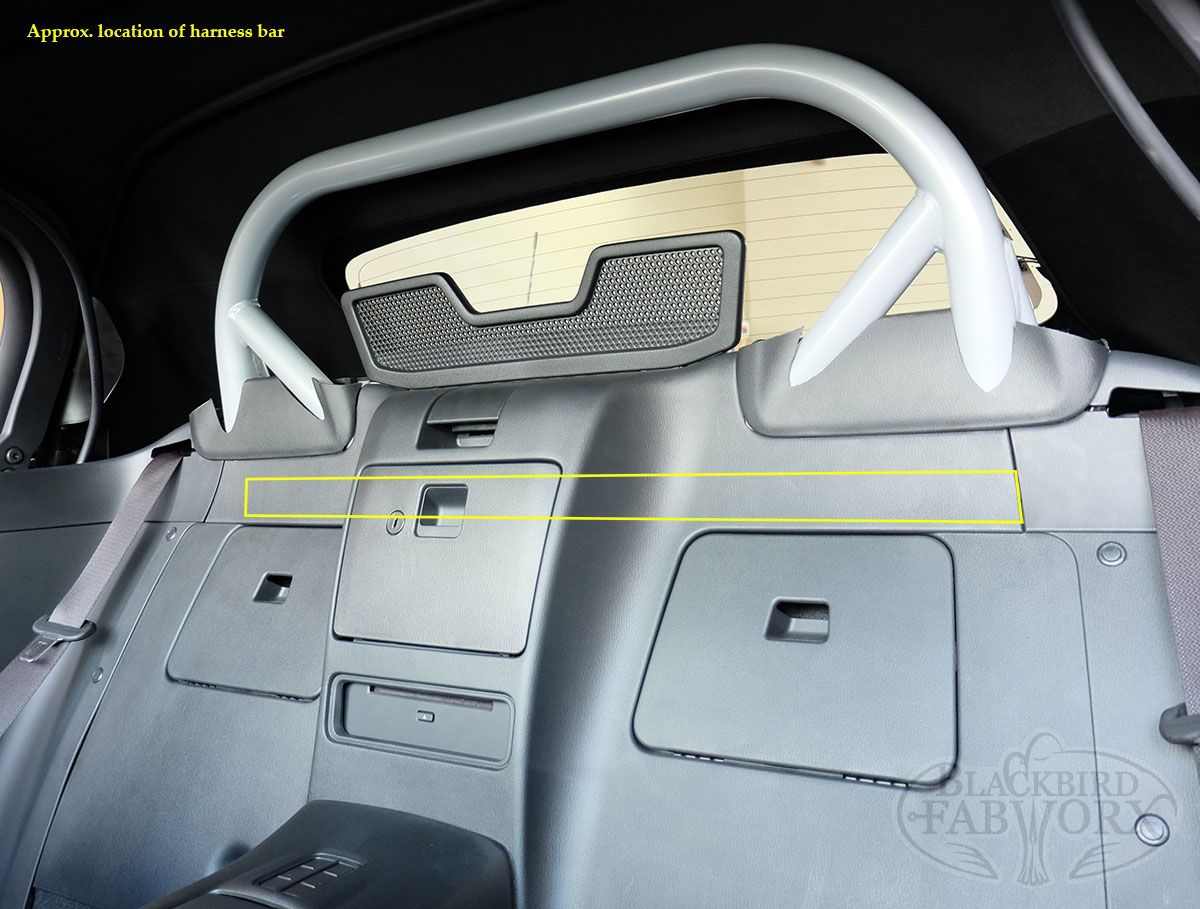

ND RZ integrated harness bar
To run the shoulder harnesses to the bar, all you need to do is just to slot the plastic trim piece
Attached Thumbnails
miataturbo.net-like debauchery thread (about the ND or something)-nd-rz.jpg   miataturbo.net-like debauchery thread (about the ND or something)-nd-rz-front.jpg   miataturbo.net-like debauchery thread (about the ND or something)-nd-rz-height.jpg   miataturbo.net-like debauchery thread (about the ND or something)-nd-rz-broomstick.jpg   miataturbo.net-like debauchery thread (about the ND or something)-nd-rz1.jpg

miataturbo.net-like debauchery thread (about the ND or something)-80-nd_rz2_c9c7e78112dd9129c959d7e358f2bf7b1cceca92.jpg   miataturbo.net-like debauchery thread (about the ND or something)-80-nd_rz_hb_bbbfc8de8fb3778f83e371de04d6fb876033a4a6.jpg
Blackbird is offline   Reply With Quote
Old 09-24-2015, 01:04 PM   #1705
Supporting Vendor
iTrader: (3)

Join Date: Jul 2006
Location: San Diego
Posts: 2,575
Total Cats: 234
Default

Moti knocked it out of the park with both the RZ and GT3. Both ends of the spectrum covered for ND owners within 2 months of cars hitting our shores. Other roll bar businesses can just go home at this point.
ThePass is offline   Reply With Quote
Old 09-24-2015, 01:15 PM   #1706
Elite Member

Join Date: Oct 2011
Posts: 2,017
Total Cats: 42
Default

Hmmm, now I need to go sit in one and see if that would let me pass the broomstick test. It should, I'm only 5'8"
z31maniac is offline   Reply With Quote
Old 09-24-2015, 01:20 PM   #1707
Supporting Vendor
Thread Starter
iTrader: (3)

emilio700's Avatar

Join Date: May 2005
Posts: 4,540
Total Cats: 841
Default

Quote:
Originally Posted by aidandj View Post
Do you have a prototype hardtop anywhere near being ready or are you just running around topless for now
Top should be ready to ship early 2016. Until then, topless.
emilio700 is offline   Reply With Quote
Old 09-24-2015, 01:24 PM   #1708
Supporting Vendor

Blackbird's Avatar

Join Date: Oct 2011
Location: Northridge, CA
Posts: 388
Total Cats: 144
Default

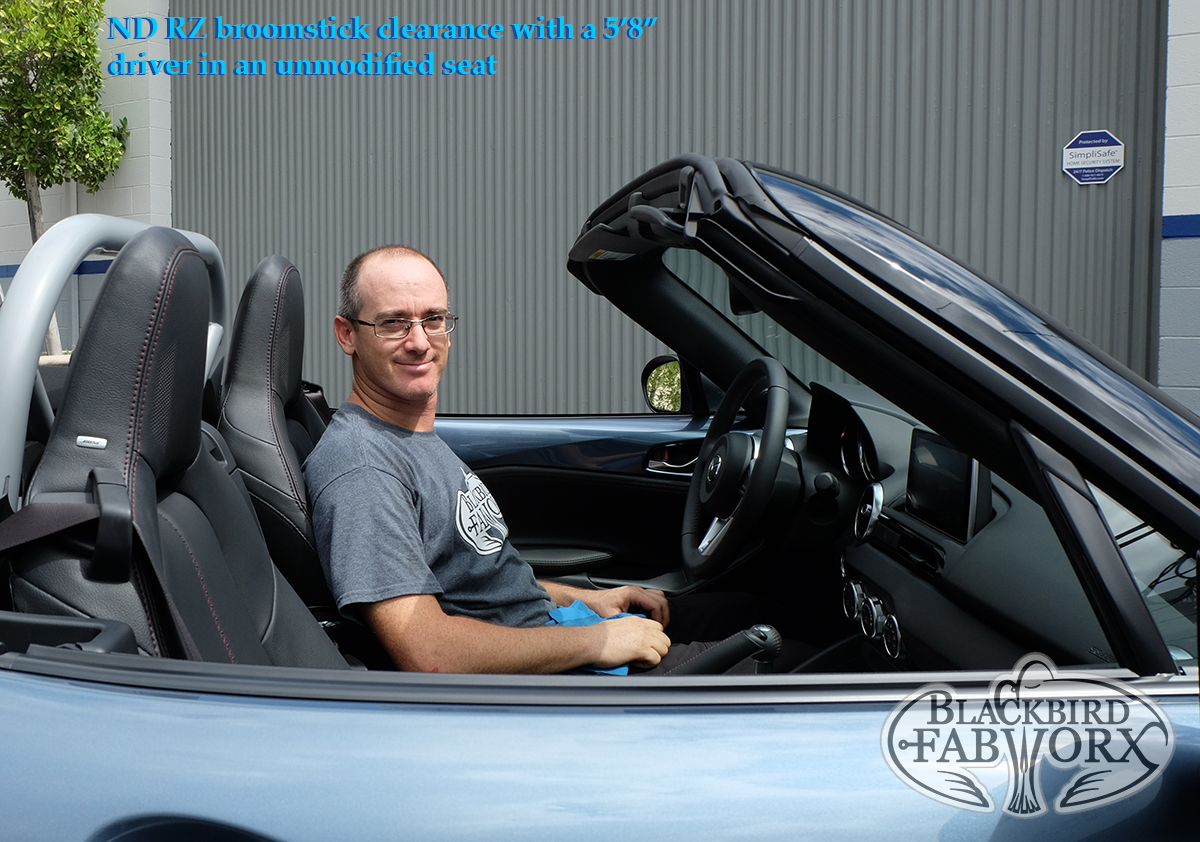

Z31, I'm 5'8" as well and can pass broomstick on stock seat, but from my experience fitment is more about the ratio of leg / torso / weight than total height.

We took a couple pics with Emilio's phone yesterday of both my 5'8" and his 7'13" in the car with the GT3 and the racing seat with the custom lowered seat mount we built for the car...
Maybe Emilio can post them, mine is almost comical.
I have almost 6" of broomstick clearance and barely able to see the hood at all..
Blackbird is offline   Reply With Quote
Old 09-24-2015, 02:29 PM   #1709
Junior Member

Join Date: Mar 2012
Posts: 297
Total Cats: 18
Default

Quote:
Originally Posted by emilio700 View Post
Top should be ready to ship early 2016.
That soon must mean there is a prototype around, no?
M.Adamovits is offline   Reply With Quote
Old 09-24-2015, 02:36 PM   #1710
Senior Member

Join Date: Sep 2013
Posts: 900
Total Cats: 57
Default

Emilio posted a few pages back that he has no intentions of showing off pre-production models. He's working with more than a few other shops in concert, but he has some real world experience with people ripping him off.
Dunning Kruger Affect is offline   Reply With Quote
Old 09-24-2015, 04:44 PM   #1711
Supporting Vendor

Blackbird's Avatar

Join Date: Oct 2011
Location: Northridge, CA
Posts: 388
Total Cats: 144

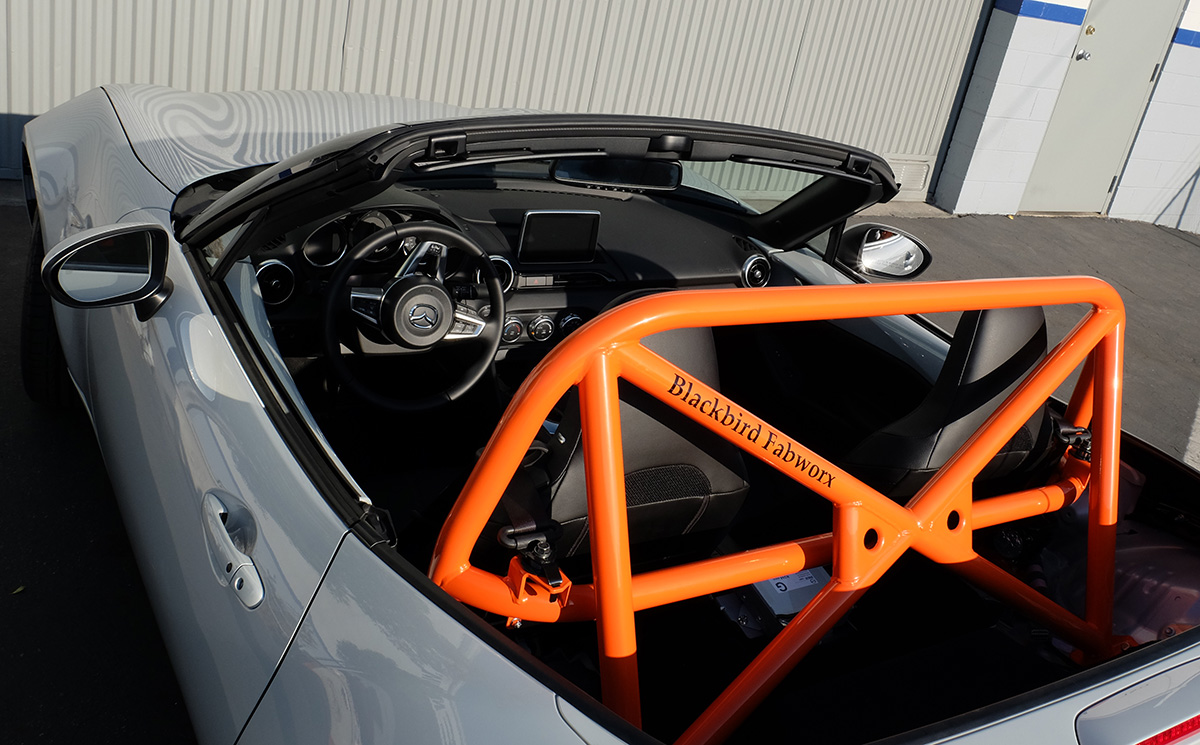

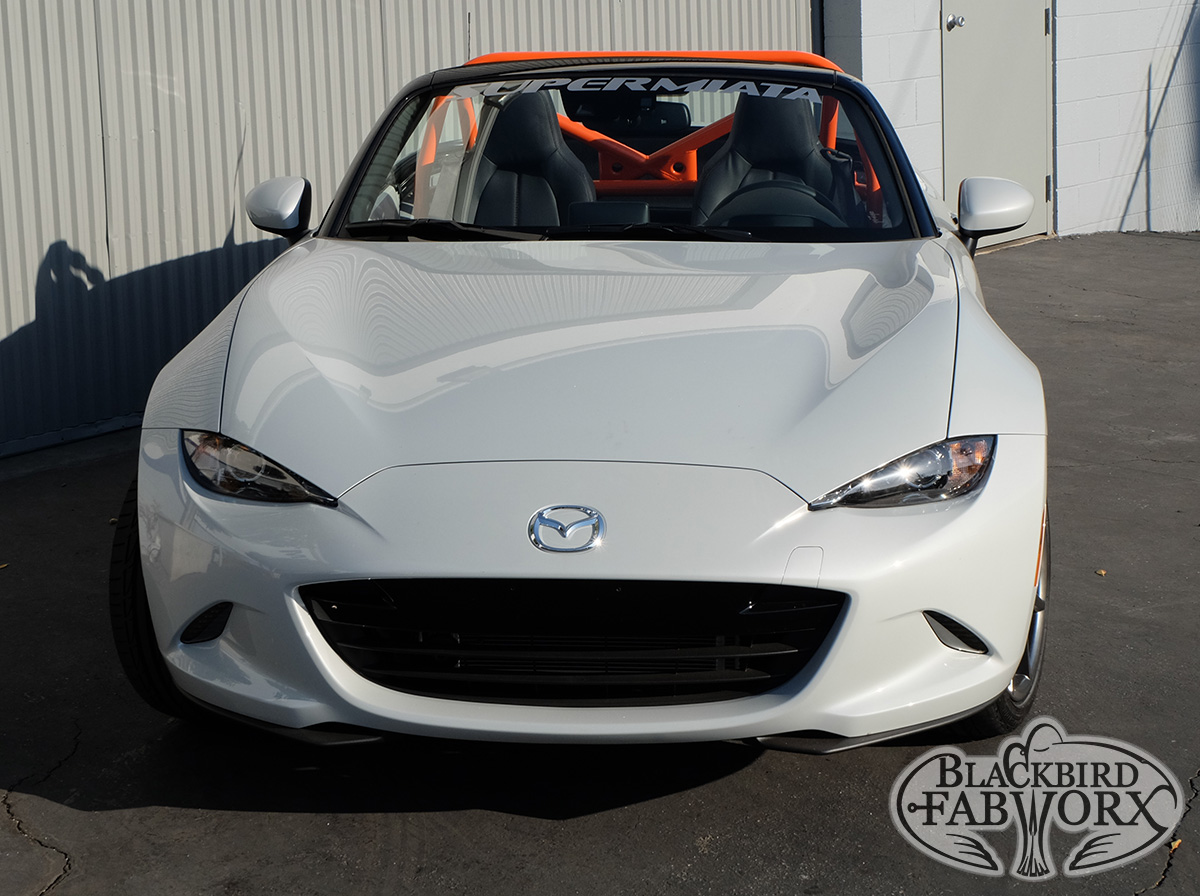

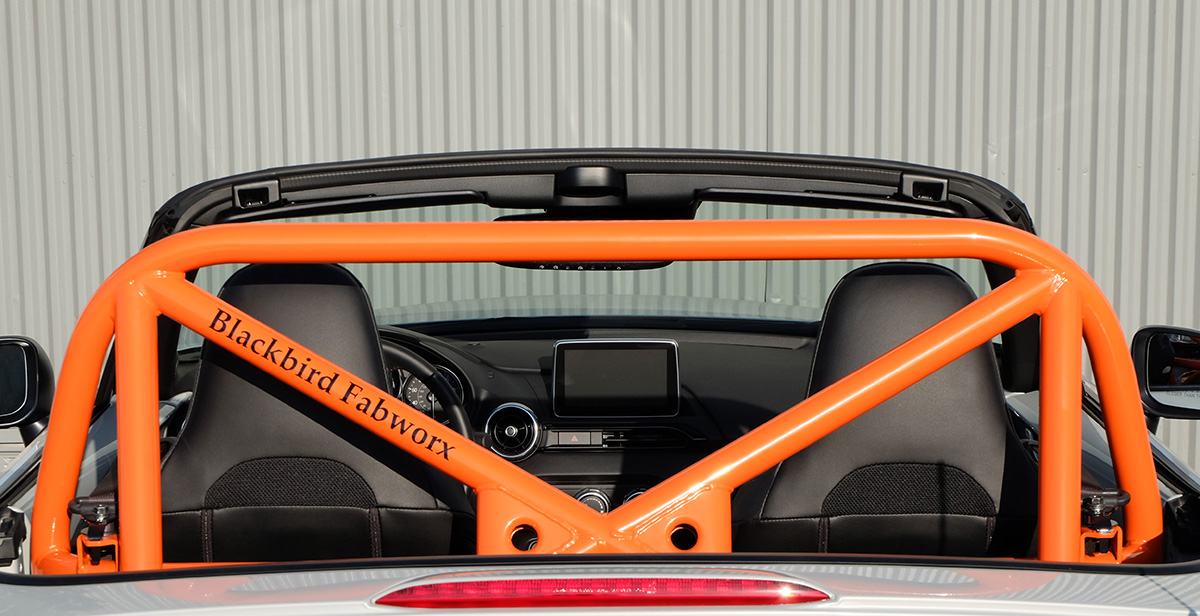

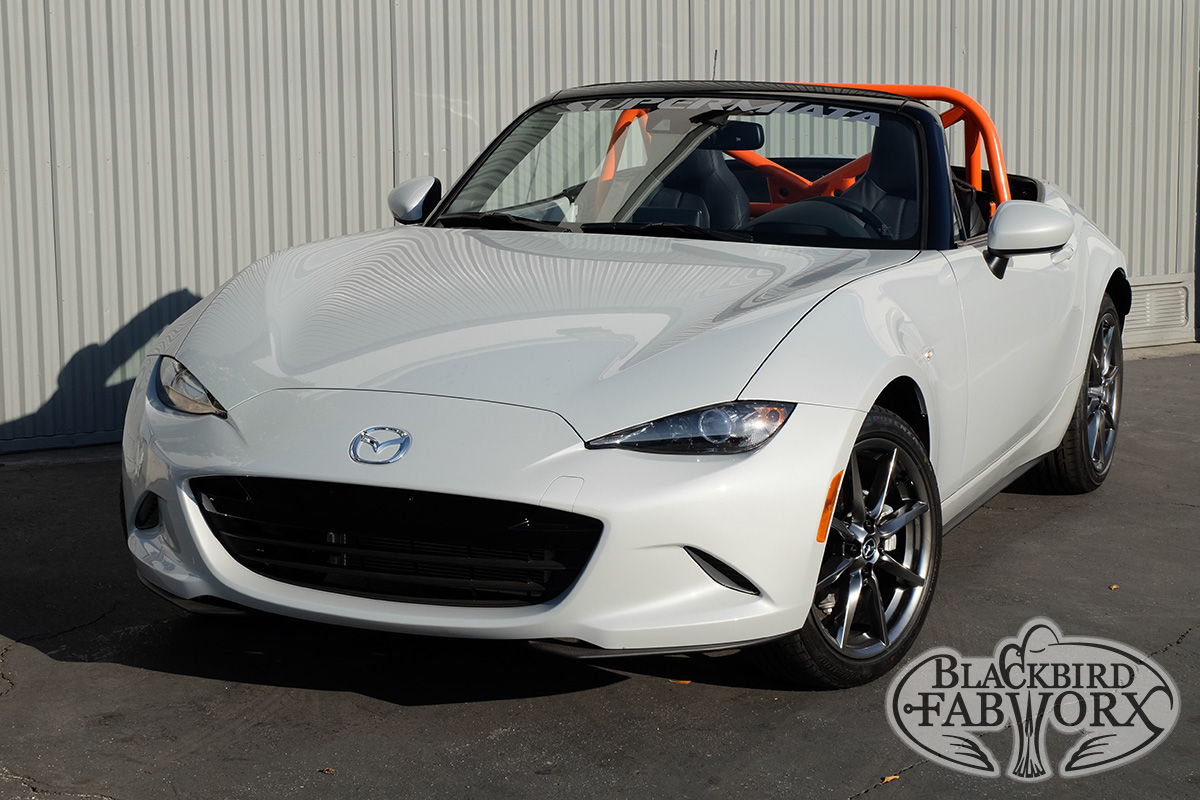

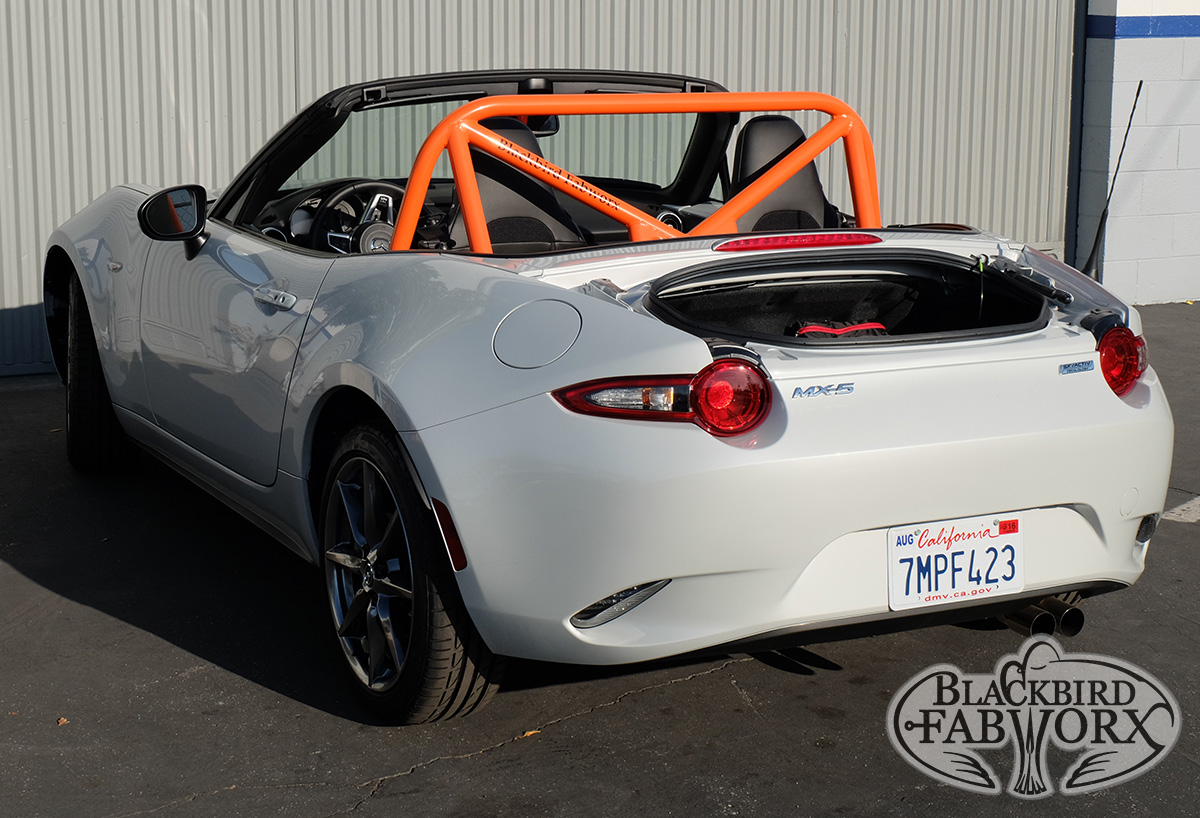

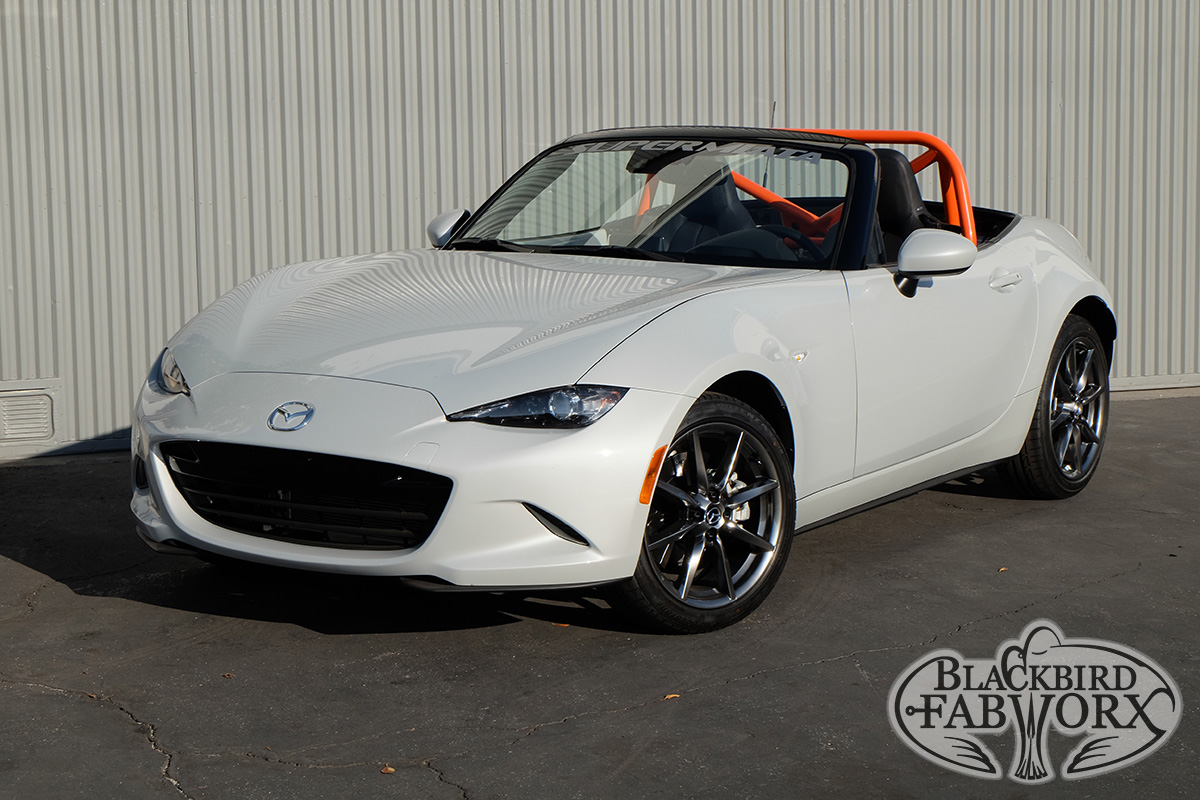

Default Blackbird Fabworx ND GT3 is here!

Copy-paste from M.net -

Quote:
Originally Posted by Blackbird View Post
Cool post on the sponsors forum - CLICK ME!













Attached Thumbnails
miataturbo.net-like debauchery thread (about the ND or something)-nd-gt3-center.jpg   miataturbo.net-like debauchery thread (about the ND or something)-nd-gt3-front1.jpg   miataturbo.net-like debauchery thread (about the ND or something)-nd-gt3-rear.jpg   miataturbo.net-like debauchery thread (about the ND or something)-nd-gt3-front.jpg   miataturbo.net-like debauchery thread (about the ND or something)-nd-gt3-seat-belt.jpg

miataturbo.net-like debauchery thread (about the ND or something)-nd-gt3-front2.jpg   miataturbo.net-like debauchery thread (about the ND or something)-nd-gt3-rear2.jpg
Blackbird is offline   Reply With Quote
Old 09-24-2015, 04:45 PM   #1712
I take big bites
iTrader: (1)

turbofan's Avatar

Join Date: Sep 2010
Location: Portland, OR
Posts: 6,000
Total Cats: 409
Default

Why does that car not have 6ULs on it?

Looks awesome.
turbofan is online now   Reply With Quote
Old 09-24-2015, 04:46 PM   #1713
Senior Member

Join Date: Sep 2013
Posts: 900
Total Cats: 57
Default

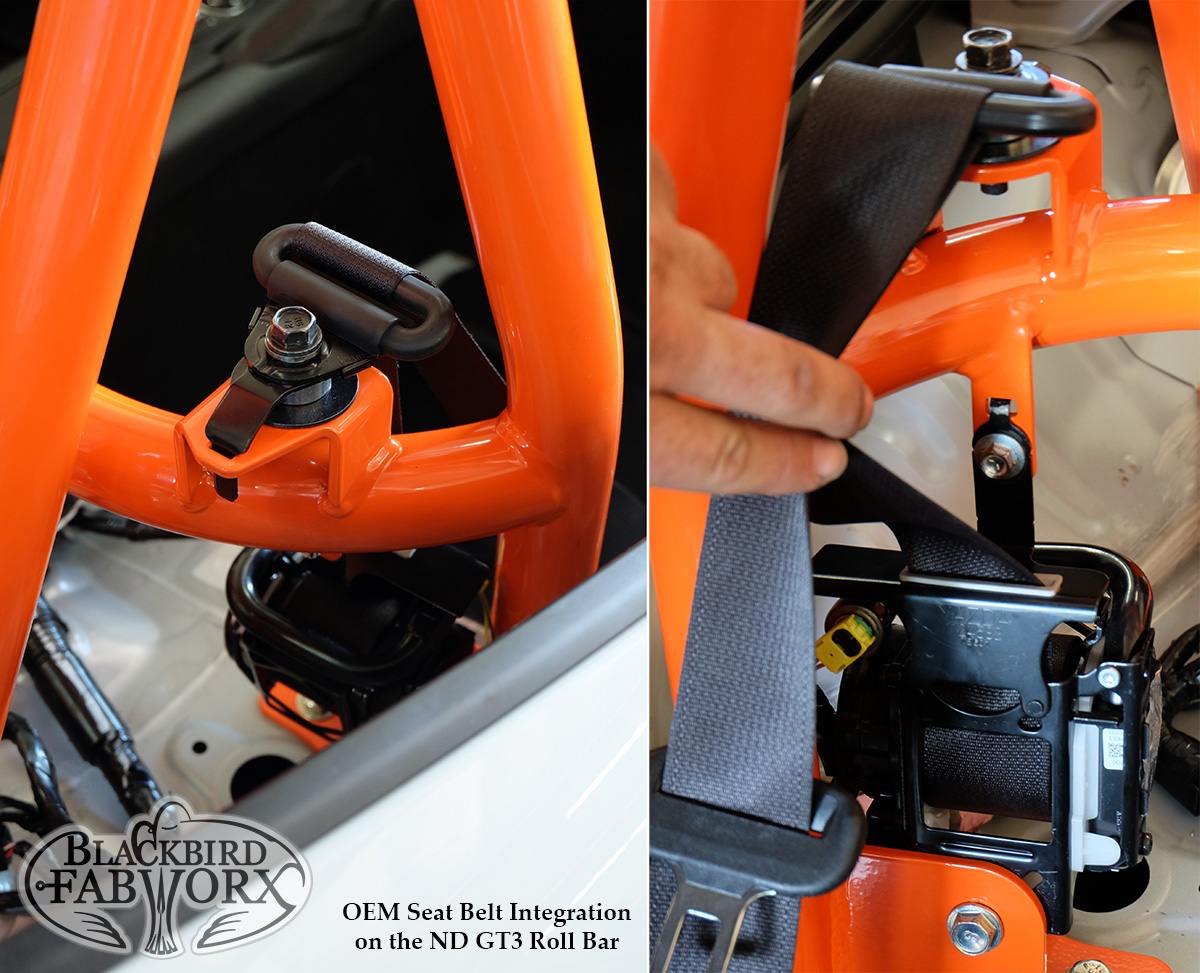

That seatbelt mount is absolutely disgusting, ahahahaha.
Dunning Kruger Affect is offline   Reply With Quote
Old 09-24-2015, 05:06 PM   #1714
Newb

Join Date: Nov 2014
Posts: 22
Total Cats: -10
Default

Loving that orange. Definitely needs charcoal 6ULs.
greens is offline   Reply With Quote
Old 09-24-2015, 06:12 PM   #1715
Supporting Vendor

Blackbird's Avatar

Join Date: Oct 2011
Location: Northridge, CA
Posts: 388
Total Cats: 144
Default

Thanks for the compliments, guys!
Blackbird is offline   Reply With Quote
Old 09-24-2015, 07:21 PM   #1716
Supporting Vendor
Thread Starter
iTrader: (3)

emilio700's Avatar

Join Date: May 2005
Posts: 4,540
Total Cats: 841
Default

No need to mount race tires to fab a roll bar, vinyl wrap, dyno tune, corner weight, etc, etc. We're scrambling to get the car ready for MRLS. In that pic the car has no brake pads or rotors..
emilio700 is offline   Reply With Quote
Old 09-24-2015, 11:15 PM   #1717
Supporting Vendor

Blackbird's Avatar

Join Date: Oct 2011
Location: Northridge, CA
Posts: 388
Total Cats: 144
Default

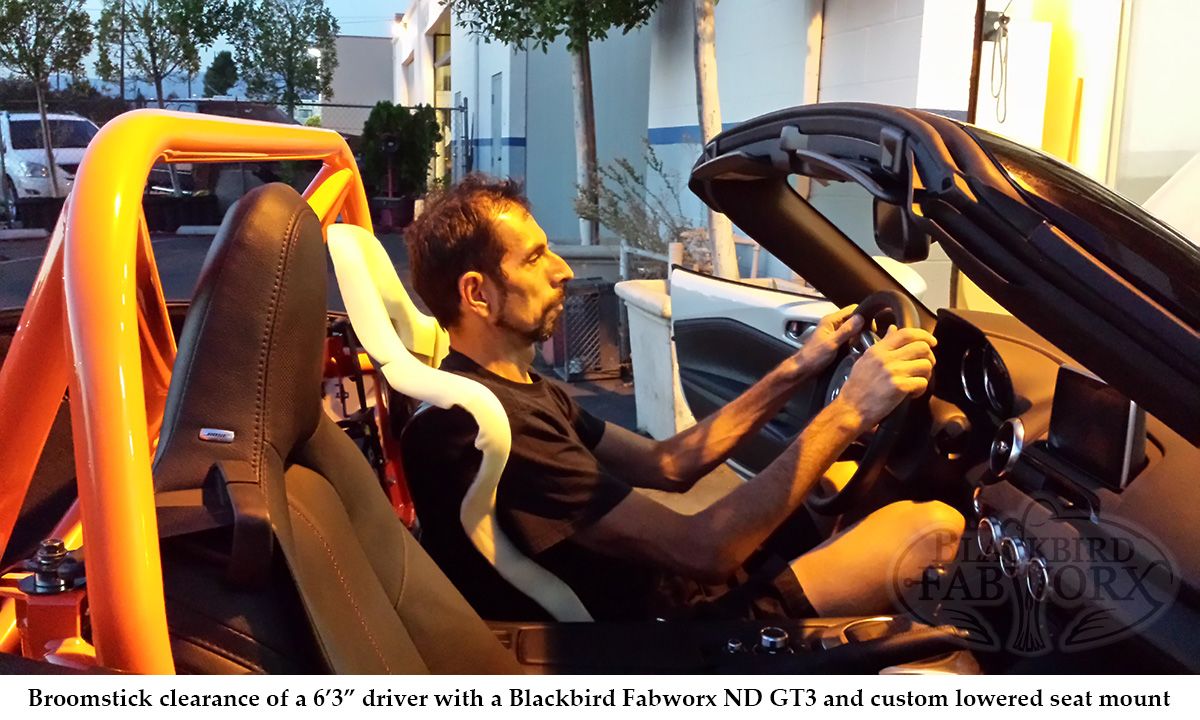

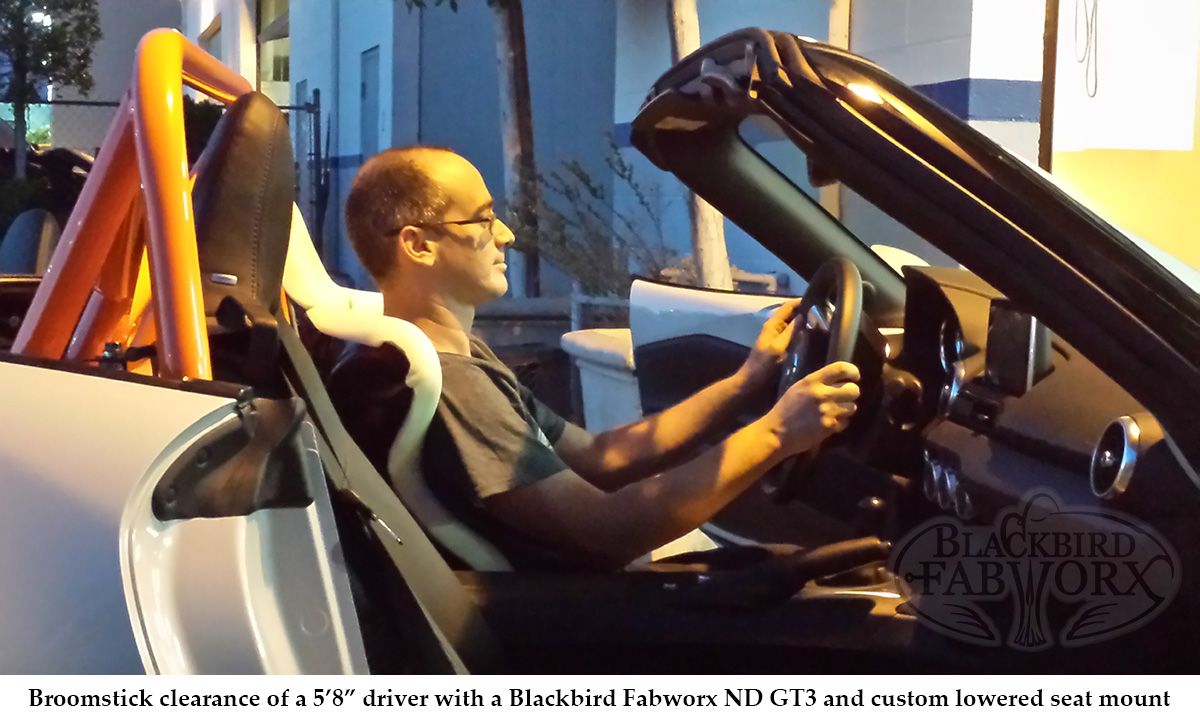

Broomstick clearance pics with the ND GT3 roll bar and a prototype lowered seat mount we built in Emilio's car.



About 3.5-4" of clearance w/o helmet





almost 6" of clearance w/o helmet, I'll need a cushion to see where I'm going
Attached Thumbnails
miataturbo.net-like debauchery thread (about the ND or something)-80-nd_gt3_w6_4driver_872aaf29d23375d95e6303c321f064a61971cd13.jpg   miataturbo.net-like debauchery thread (about the ND or something)-80-nd_gt3_w5_8driver_e7bb9dbdc168d6bad370336bf33102934108edb1.jpg
Blackbird is offline   Reply With Quote
Old 09-25-2015, 09:10 AM   #1718
Newb

Join Date: Nov 2014
Posts: 22
Total Cats: -10
Default

Quote:
Originally Posted by emilio700 View Post
the car has no brake pads or rotors..
Those are severely overrated anyhow. More weight savings!
greens is offline   Reply With Quote
Old 09-26-2015, 10:18 PM   #1719
Senior Member
iTrader: (1)

Join Date: Nov 2010
Posts: 947
Total Cats: -246
Default

Seat belts carryover NA parts?
wannafbody is offline   Reply With Quote
Old 09-27-2015, 10:47 AM   #1720
Boost Czar

iTrader: (60)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 70,179
Total Cats: 1,402
Default

why fix what's broke?
Braineack is offline   Reply With Quote
