Old 11-15-2009, 11:12 PM   #221
Elite Member
iTrader: (15)

Join Date: Dec 2007
Location: San Antonio, Texas
Posts: 4,889
Total Cats: 26
Default

Yeah please do. I would like to see it as I am doing this myself right now. Did you adjust the shims to remove bumpsteer?
ZX-Tex is offline   Reply With Quote
Old 11-15-2009, 11:18 PM   #222
Senior Member
Thread Starter
iTrader: (1)

Join Date: Mar 2008
Location: Cromwell CT
Posts: 1,071
Total Cats: 44
Default

well i made them with a stack of spacers to ajust for bump steer. i havent done anything with them yet though. i have a suspention guy who does my alighnments. ill talk it over with him. right now my focus is getting the engine running
ctdrftna is offline   Reply With Quote
Old 11-15-2009, 11:20 PM   #223
Elite Member
iTrader: (2)

triple88a's Avatar

Join Date: Apr 2006
Location: Chicago, IL
Posts: 8,912
Total Cats: 499
Default

btw i'm just curious, what size tube did u use? 1.25 od .125 wall?
triple88a is offline   Reply With Quote
Old 11-16-2009, 06:46 AM   #224
Senior Member
Thread Starter
iTrader: (1)

Join Date: Mar 2008
Location: Cromwell CT
Posts: 1,071
Total Cats: 44
Default

as far as what ??

the original cage was 1.75 o.d .095 wall (main hoop+ rear section,front down bars)

all the new work is 1.5 o.d .095 wall( it might be .125 i cant rember its been a while) the include(door bars,dash bar, front end hoop)
ctdrftna is offline   Reply With Quote
Old 11-16-2009, 09:12 AM   #225
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,001
Total Cats: 330
Default

Quote:
Originally Posted by NA6C-Guy View Post
I was gonna take that, but I figured you could come up with something more creative. You disappoint me...
next time I'll add the "looooooooololol" so you understand the context of jokes that must go not go unsaid.
hustler is offline   Reply With Quote
Old 11-16-2009, 10:14 AM   #226
Elite Member
iTrader: (8)

Join Date: Jun 2009
Location: Albany, NY
Posts: 1,523
Total Cats: 4
Default

Quote:
Originally Posted by ctdrftna View Post
right now my focus is getting the engine running
Again, if you are taking this machine to Morgan for tuning, I implore you to post that up here or PM me. I wanna see this in action.

Because of this thread, I decided to move up my plans for my 1.8, and am having Morgan build me an exhaust mani, dp, and full exhaust this winter. He will tune me up again, as well.
webby459 is offline   Reply With Quote
Old 11-16-2009, 01:28 PM   #227
Senior Member
Thread Starter
iTrader: (1)

Join Date: Mar 2008
Location: Cromwell CT
Posts: 1,071
Total Cats: 44
Default

sure, ill pm you. at the rate im going, i would expect it to be mid spring time
ctdrftna is offline   Reply With Quote
Old 11-22-2009, 08:32 PM   #228
Senior Member
Thread Starter
iTrader: (1)

Join Date: Mar 2008
Location: Cromwell CT
Posts: 1,071
Total Cats: 44
Default

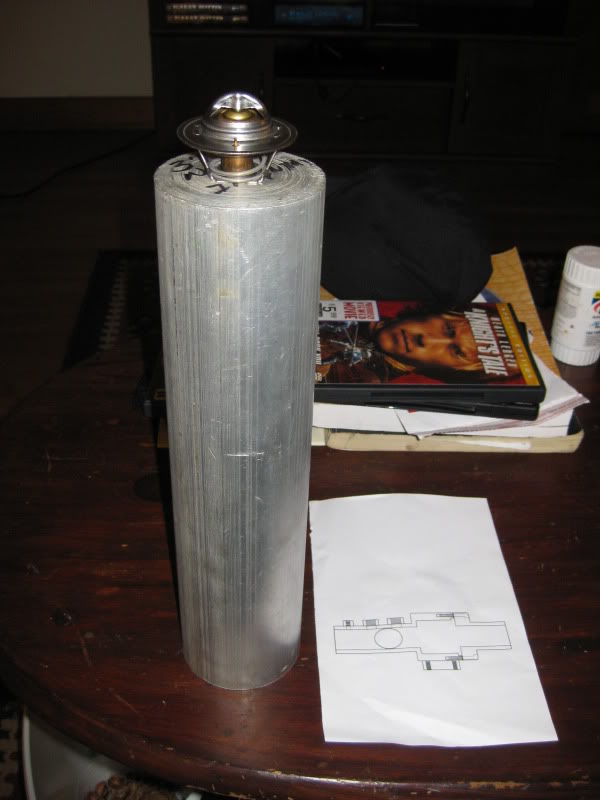

do you see it? i do


ctdrftna is offline   Reply With Quote
Old 11-22-2009, 11:18 PM   #229
Elite Member
iTrader: (17)

Join Date: Apr 2009
Location: Atlanta, GA
Posts: 2,831
Total Cats: 1
Default

coolant reroute? thermostat housing?
WonTon is offline   Reply With Quote
Old 11-22-2009, 11:24 PM   #230
Elite Member
iTrader: (2)

triple88a's Avatar

Join Date: Apr 2006
Location: Chicago, IL
Posts: 8,912
Total Cats: 499
Default

Quote:
Originally Posted by ctdrftna View Post
do you see it? i do
I see ya drugs home boy.
triple88a is offline   Reply With Quote
Old 11-28-2009, 09:50 PM   #231
Senior Member
Thread Starter
iTrader: (1)

Join Date: Mar 2008
Location: Cromwell CT
Posts: 1,071
Total Cats: 44
Default

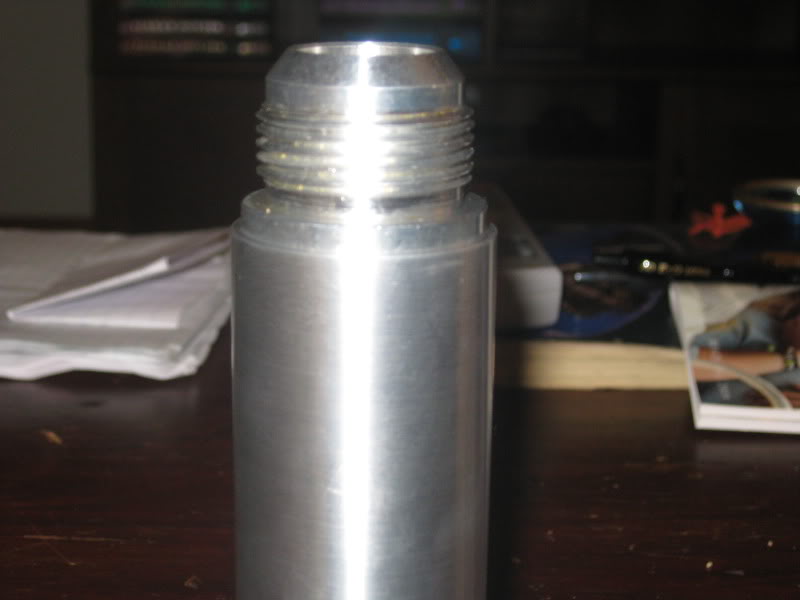

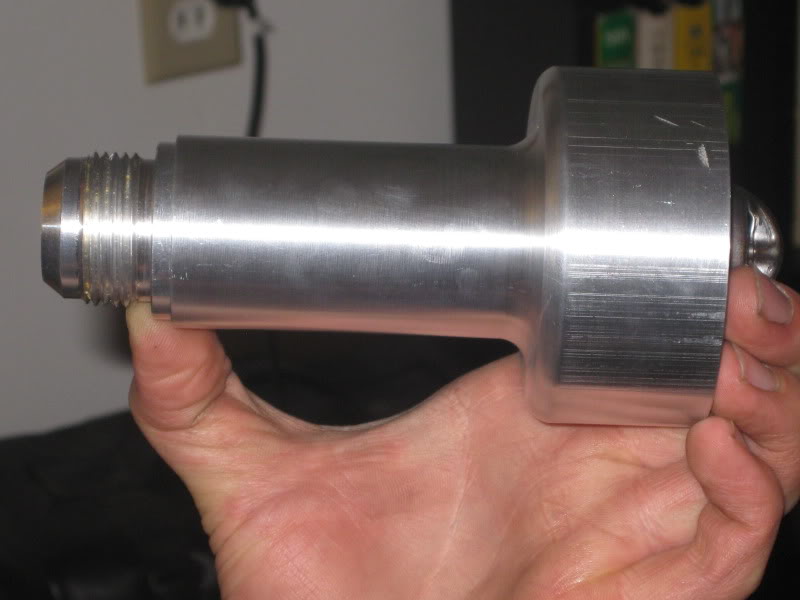

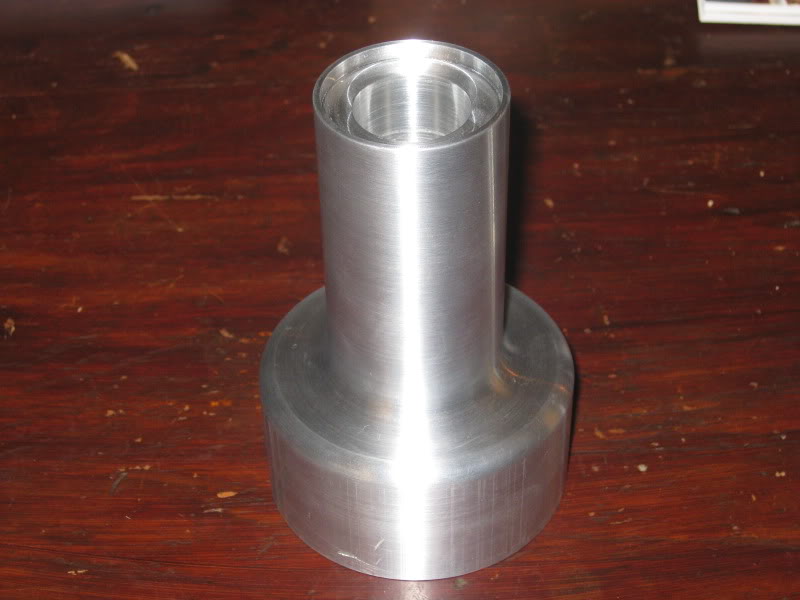

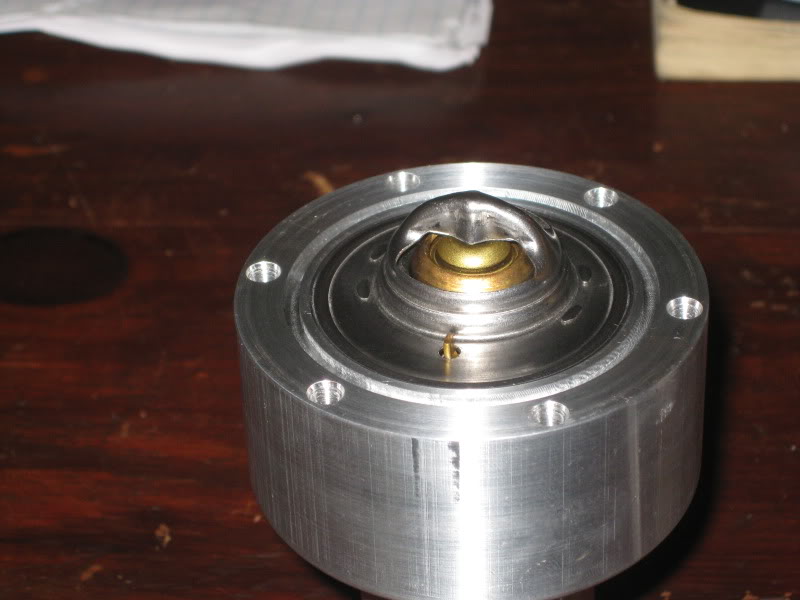

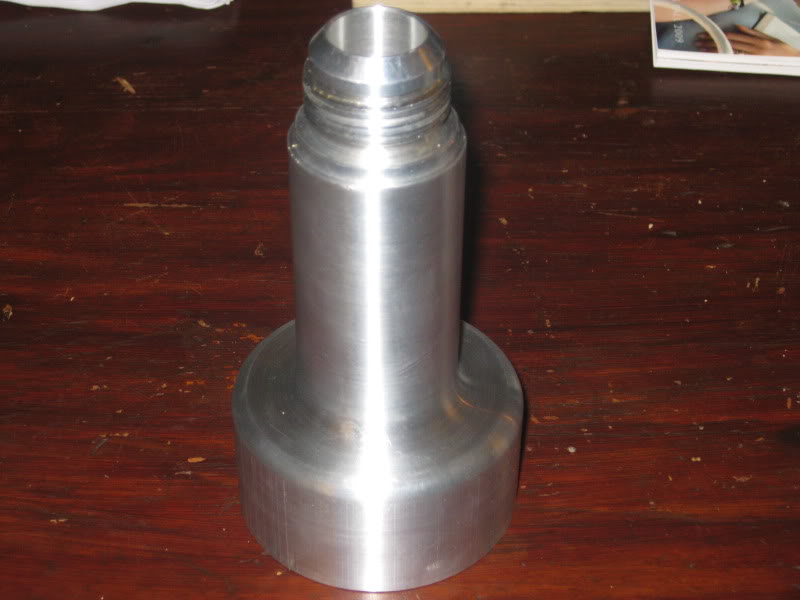

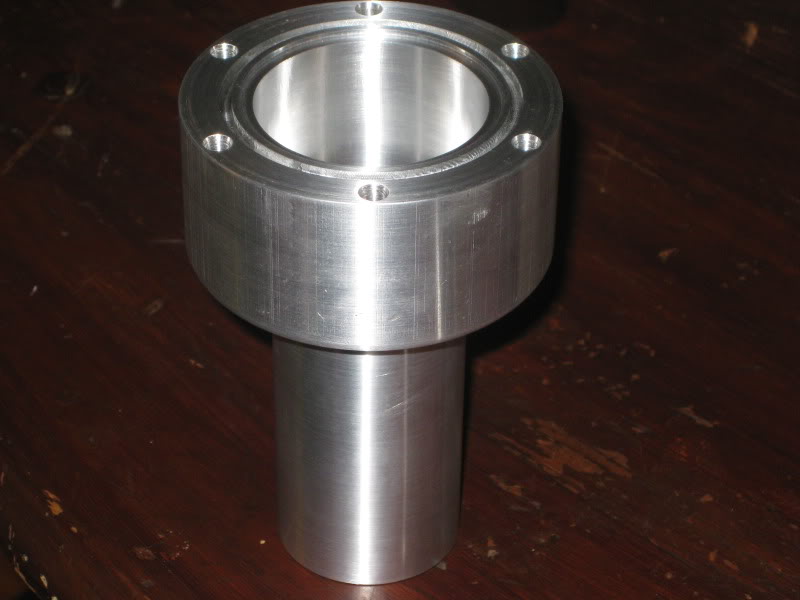

this is the 1st half on the thermostat housing. took 7 hrs of straight machining.








it will use a 3/32 O-ring to seal. i will make the 2nd half and the sensor bungs and fill spout next weekend
ctdrftna is offline   Reply With Quote
Old 11-28-2009, 09:58 PM   #232
Elite Member
iTrader: (2)

triple88a's Avatar

Join Date: Apr 2006
Location: Chicago, IL
Posts: 8,912
Total Cats: 499
Default

seriously 7 hours? i would have been done with it in about an hour and a half, two hours tops with a polished finish :P.
triple88a is offline   Reply With Quote
Old 11-28-2009, 10:33 PM   #233
Senior Member
Thread Starter
iTrader: (1)

Join Date: Mar 2008
Location: Cromwell CT
Posts: 1,071
Total Cats: 44
Default

Quote:
Originally Posted by triple88a View Post
seriously 7 hours? i would have been done with it in about an hour and a half, two hours tops with a polished finish :P.
No you Wouldnt have. Not with the equipment i had to use . The band saw blade popped off three times just cutting the blank. All the od was done on a manual lathe with crap tooling. All the id was done on a ezTrak.
ctdrftna is offline   Reply With Quote
Old 11-28-2009, 10:46 PM   #234
Elite Member
iTrader: (1)

Join Date: May 2009
Location: Jacksonville, FL
Posts: 4,654
Total Cats: 209
Default

Pretty slick, That would take forever to make if you had to do small cuts (like you have to do with a crappy lathe/ crappy tooling)
I cnat wait to see how its gonna be installed in the car
Full_Tilt_Boogie is offline   Reply With Quote
Old 11-28-2009, 11:16 PM   #235
Junior Member
iTrader: (3)

Join Date: Apr 2009
Location: McDonough Ga.
Posts: 353
Total Cats: -26
Default

That is 6 min.Cnc Job,7 hrs manual is a bit long.I really want to see how this looks when done.I have something like That too.

(G)
Reverend Greg is offline   Reply With Quote
Old 11-29-2009, 12:16 AM   #236
Elite Member
iTrader: (17)

Join Date: Apr 2009
Location: Atlanta, GA
Posts: 2,831
Total Cats: 1
Default

i want!
WonTon is offline   Reply With Quote
Old 11-29-2009, 12:54 AM   #237
Former Vendor
iTrader: (34)

ARTech's Avatar

Join Date: Mar 2009
Location: Dallas
Posts: 530
Total Cats: 9
Default

The AN fitting is pretty slick, was that the reason for making it from scratch? Otherwise this would have saved you a lot of time,

M-Tuned In Line Thermostat Housing with T-Stat M-Tuned

What's the ID on it anyway?
ARTech is offline   Reply With Quote
Old 11-29-2009, 01:12 AM   #238
Senior Member
Thread Starter
iTrader: (1)

Join Date: Mar 2008
Location: Cromwell CT
Posts: 1,071
Total Cats: 44
Default

yeah, i was cutting at .05 a pass. my boss doesnt want me cranking the rpms, so i have to turn at a slow feed rate. and the chuck jaws are ****, he machined ten diff diameters into them, so i was only grabing on like a 1/2" i didnt want to push it, and i didnt want to put in a live center. once i got it in the bridgeport it went pretty good. i didnt have a 2 flute ball endmill of the right dia, so i had to use 4 flute, so that took a little longer. the pics dont do it justice. it looks really really nice. the mtuned thing isnt what i want. i have a vmount so i am gonna be putting in a fill, so that its the highest point in the cooling system. no one makes one to my liking so im making my own. if i had a cnc this thing woulda been done in an hour or so.
ctdrftna is offline   Reply With Quote
Old 11-29-2009, 01:24 AM   #239
Senior Member
Thread Starter
iTrader: (1)

Join Date: Mar 2008
Location: Cromwell CT
Posts: 1,071
Total Cats: 44
Default

also its -16an, thats like .875 or something ID
ctdrftna is offline   Reply With Quote
Old 11-29-2009, 01:43 AM   #240
Elite Member
iTrader: (2)

miata2fast's Avatar

Join Date: Aug 2009
Location: Dover, FL
Posts: 2,692
Total Cats: 84
Default

From what I have seen so far, you know what the **** you are doing.
miata2fast is offline   Reply With Quote
