Old 03-06-2014, 09:26 PM   #341
Miotta FTW!
iTrader: (24)

Splitime's Avatar

Join Date: Jun 2006
Location: Chicagoland, IL
Posts: 4,216
Total Cats: 21
Default

Slightly annoyed, can't get 2.3 on my MultiWii Pro. With 2.1 and 2.2 I was able to get it in and setup, but 2.3 just won't connect to my computer for tweaking.

I really really really need outside time to adjust this thing, i keep fearing for my body when I'm hovering it around the basement a couple feet away
Splitime is offline   Reply With Quote
Old 03-07-2014, 01:47 PM   #342
Miotta FTW!
iTrader: (24)

Splitime's Avatar

Join Date: Jun 2006
Location: Chicagoland, IL
Posts: 4,216
Total Cats: 21
Default

Going the MegapirateNG route, want to compare interfaces and MPNG already has the great GPS functionality onboard (vs MultiWii branches coming soon).
Splitime is offline   Reply With Quote
Old 03-07-2014, 01:56 PM   #343
Elite Member
Thread Starter
iTrader: (1)

Join Date: May 2009
Location: Jacksonville, FL
Posts: 4,654
Total Cats: 209
Default

I havent done GPS with my ArduFlyer, but Tw34k did it with his MultiWii and it worked beautifully with no hassel. You should have seen us when he first hit return to home and his tricopter snapped 180 and zipped back towards us and popped into a hover. It was so tidy, even with a bit of wind.

I need to go ahead and get a GPS and a 433MHz TX/RX for my 9X so I can start playing with FPV without losing my ****. I recently got a 1.2GHz 100mW video RX/TX which is proving to be quite awesome. I rigged it up and tested it a bit and foudn that I could go ~500 feet even with it going through houses and trees. Line of sight I dont doubt this thing could go miles.
Full_Tilt_Boogie is offline   Reply With Quote
Old 03-07-2014, 02:14 PM   #344
Miotta FTW!
iTrader: (24)

Splitime's Avatar

Join Date: Jun 2006
Location: Chicagoland, IL
Posts: 4,216
Total Cats: 21
Default

The only downside for me is that I haven't been able to get 2.3 working on it, and that or 2.4 is going to have the gps coordinate/path components.

With the MPNG on there, I get the ability to do waypoints and all that fun right now... well.. once its warm out.

Jealous of the FPV setup, I can't wait to get to that point.

Next up for me also is to mod my 9XR and get the telemetry output into the onboard screen/alarms. Get an onboard cell checking sensor setup, so i can send that to my TX to monitor. Now if only i could figure out an easy fix to get the Yaw to return to 0 everytime (sticks a little bit when softly returning to center from the right.... damn you China).
Splitime is offline   Reply With Quote
Old 03-07-2014, 03:46 PM   #345
Elite Member
iTrader: (3)

Join Date: Feb 2008
Location: Huntsville, AL
Posts: 1,867
Total Cats: 45
Default

FTB, what FPV TX/RX did you get?
vehicular is offline   Reply With Quote
Old 03-07-2014, 04:03 PM   #346
Elite Member
Thread Starter
iTrader: (1)

Join Date: May 2009
Location: Jacksonville, FL
Posts: 4,654
Total Cats: 209
Default

Damn you MTnet, loggin' me out after I type up a post!

Anyway, I got this ebay special
New FPV 1 2G Hz 1500mw 12 CH Wireless Audio Video CCTV Transmitter Receiver | eBay

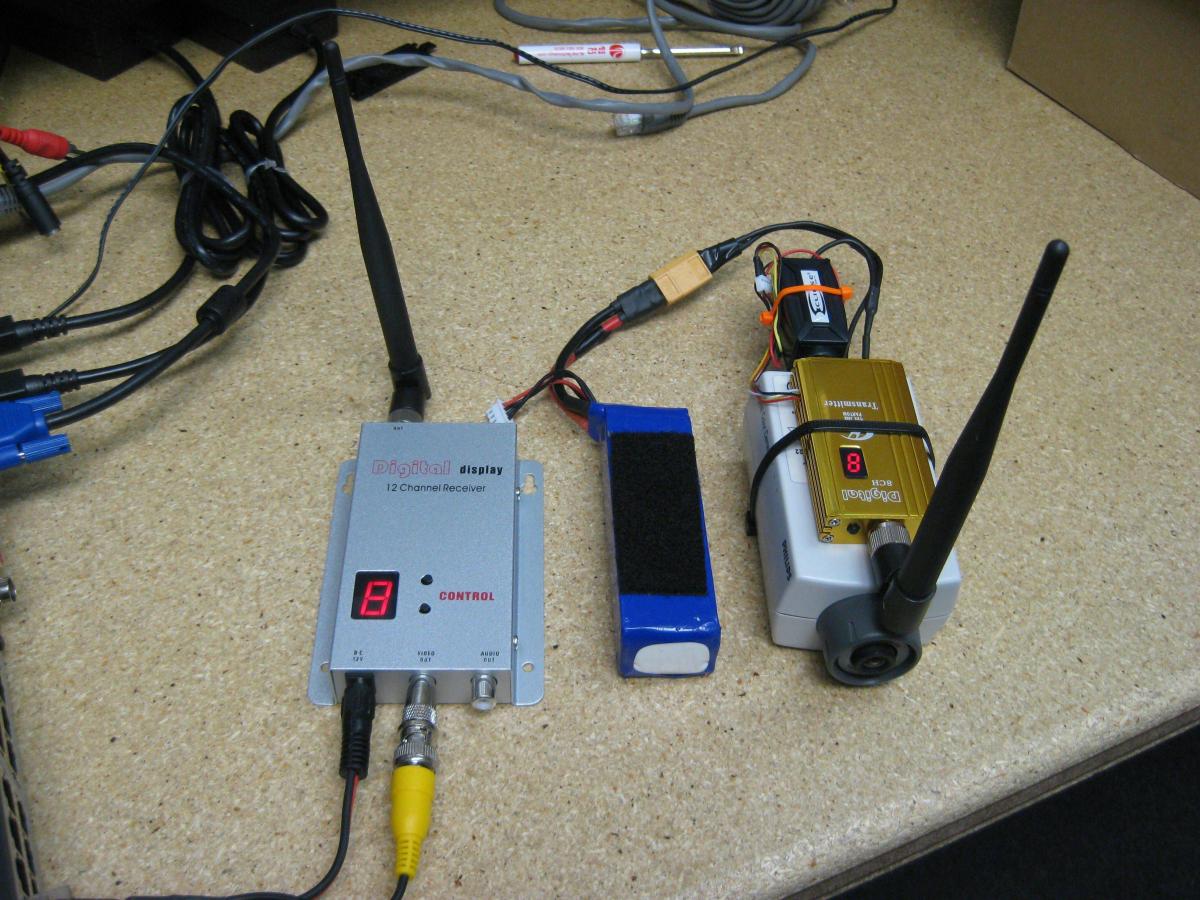

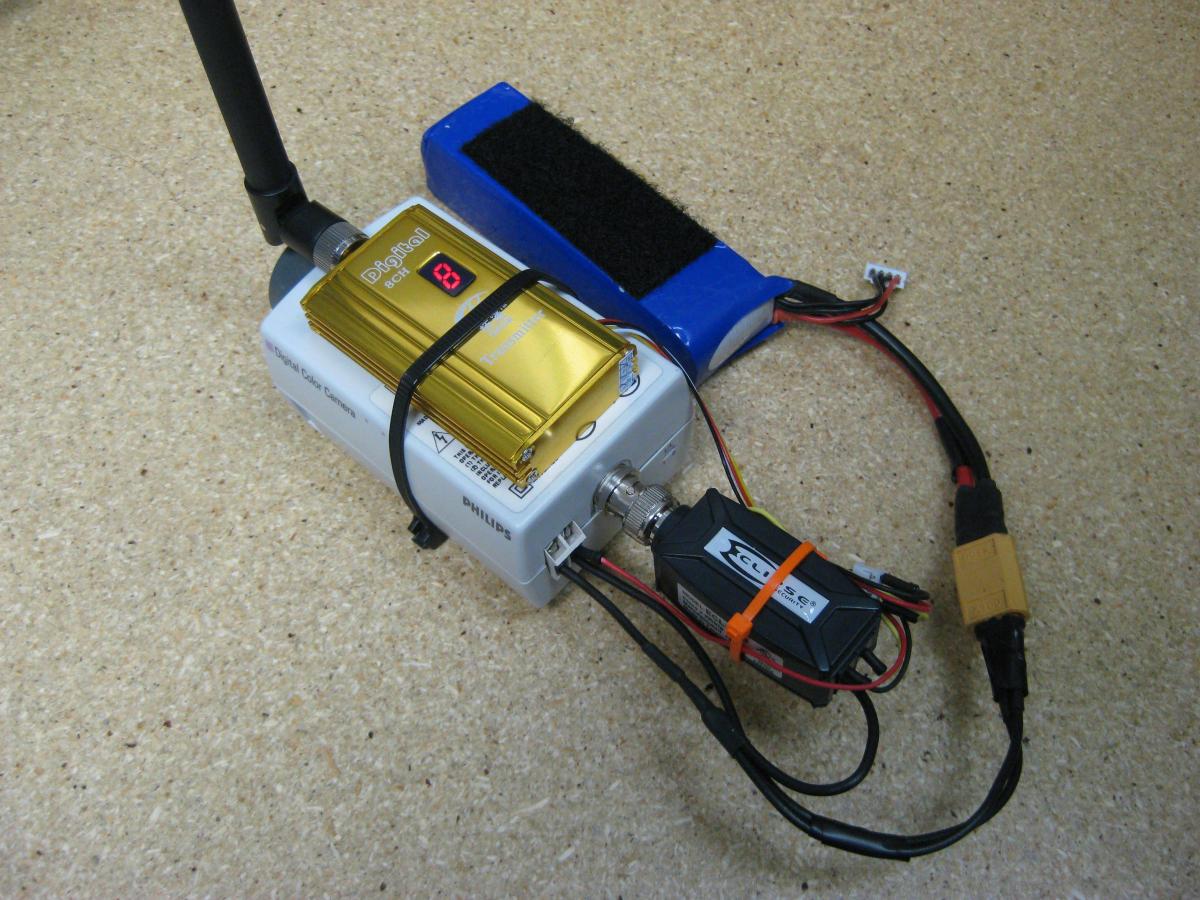

Heres the FPV test rig:





I need to go out to a big field and test its range some more
the get to work building a lightweight airborn version. Im not sure if Im going to use my 808 or a board camera.
Attached Thumbnails
MTnet Builds Flying Machines: Failure Accomplished-jktfoqe.jpg   MTnet Builds Flying Machines: Failure Accomplished-pwmzb4r.jpg
Full_Tilt_Boogie is offline   Reply With Quote
Old 03-07-2014, 04:18 PM   #347
Miotta FTW!
iTrader: (24)

Splitime's Avatar

Join Date: Jun 2006
Location: Chicagoland, IL
Posts: 4,216
Total Cats: 21
Default

Quote:
Originally Posted by Full_Tilt_Boogie View Post
Damn you MTnet, loggin' me out after I type up a post!

I need to go out to a big field and test its range some more
the get to work building a lightweight airborn version. Im not sure if Im going to use my 808 or a board camera.
Purty. 1500mw!!! About enough to start cooking with eh?

How about the 808 with a lens exstension cable and gut down to just the board. Unless you have better uses elsewhere that dedicating it to this doesn't make sense.

I picked up some guys package of 2 of them and extra lenses/cases/cables/batteries just to use for that mixed purposing.
Splitime is offline   Reply With Quote
Old 03-07-2014, 04:24 PM   #348
Elite Member
Thread Starter
iTrader: (1)

Join Date: May 2009
Location: Jacksonville, FL
Posts: 4,654
Total Cats: 209
Default

Yeah, 1500mW allegedly. I have no idea if that is real numbers or not, haha. Could be 1500 chinaWatts.

I kinda dont want to strip my 808 because I end up sticking it on all sorts of other ****.

The company I work for sells CCTV equipment so getting a board camera is not a problem. I think I may be able to find one with a good wide lens (maybe like 2.8mm?) that would work well.
If anybody is interested we may be able to do a group buy.
Full_Tilt_Boogie is offline   Reply With Quote
Old 03-07-2014, 04:32 PM   #349
Elite Member
iTrader: (3)

Join Date: Feb 2008
Location: Huntsville, AL
Posts: 1,867
Total Cats: 45
Default

I might be. I'm a total newb to FPV stuff, but I want to rig something up to take to rocket launches to be able to tell where my damn rockets end up. I can build the hardware for a 2 axis gimbal, Gopro mount, video out hack for a Hero 3, etc, but I don't know anything about the gyro controls/ goggles/ transmission etc.
vehicular is offline   Reply With Quote
Old 03-07-2014, 05:35 PM   #350
Miotta FTW!
iTrader: (24)

Splitime's Avatar

Join Date: Jun 2006
Location: Chicagoland, IL
Posts: 4,216
Total Cats: 21
Default

Quote:
Originally Posted by Full_Tilt_Boogie View Post
Yeah, 1500mW allegedly. I have no idea if that is real numbers or not, haha. Could be 1500 chinaWatts.

I kinda dont want to strip my 808 because I end up sticking it on all sorts of other ****.

The company I work for sells CCTV equipment so getting a board camera is not a problem. I think I may be able to find one with a good wide lens (maybe like 2.8mm?) that would work well.
If anybody is interested we may be able to do a group buy.
Possibly in, I'd be looking for a balance of resolution to cost. I think alot of the really cheap FPV camera boards that are sold are pretty low res?

Then again... will i fork out for high res goggles... or just have a psuedo high res 7" screen... who knows!
Splitime is offline   Reply With Quote
Old 03-07-2014, 05:40 PM   #351
Elite Member
Thread Starter
iTrader: (1)

Join Date: May 2009
Location: Jacksonville, FL
Posts: 4,654
Total Cats: 209
Default

Its analog, so the resolution is never going to be that great. There are a lot of the chinese cameras are claiming 700 TVL and such, which according to Joe Perez its a laughable exaggeration.

Im just planning on using a little LCD screen. Those goggles are too much for being low reslution and small FOV, especially with 1080p occulus rift hotness around the corner.
Full_Tilt_Boogie is offline   Reply With Quote
Old 03-07-2014, 06:07 PM   #352
Miotta FTW!
iTrader: (24)

Splitime's Avatar

Join Date: Jun 2006
Location: Chicagoland, IL
Posts: 4,216
Total Cats: 21
Default

Quote:
Originally Posted by Full_Tilt_Boogie View Post
Its analog, so the resolution is never going to be that great. There are a lot of the chinese cameras are claiming 700 TVL and such, which according to Joe Perez its a laughable exaggeration.

Im just planning on using a little LCD screen. Those goggles are too much for being low reslution and small FOV, especially with 1080p occulus rift hotness around the corner.
Heh, I was thinking about the Occulus the other day for this. Run 2 cameras with head tracking feeding a gimbal on board...
Splitime is offline   Reply With Quote
Old 03-08-2014, 12:17 AM   #353
Miotta FTW!
iTrader: (24)

Splitime's Avatar

Join Date: Jun 2006
Location: Chicagoland, IL
Posts: 4,216
Total Cats: 21
Default

Apparently i'm late to that one.

FPV drones with an Oculus Rift
Splitime is offline   Reply With Quote
Old 03-08-2014, 12:20 AM   #354
Miotta FTW!
iTrader: (24)

Splitime's Avatar

Join Date: Jun 2006
Location: Chicagoland, IL
Posts: 4,216
Total Cats: 21
Default

Splitime is offline   Reply With Quote
Old 03-08-2014, 11:00 AM   #355
Miotta FTW!
iTrader: (24)

Splitime's Avatar

Join Date: Jun 2006
Location: Chicagoland, IL
Posts: 4,216
Total Cats: 21
Default

Turnigy 9xr now succesfully on er9x-128. Hooray!
Splitime is offline   Reply With Quote
Old 03-08-2014, 12:49 PM   #356
Miotta FTW!
iTrader: (24)

Splitime's Avatar

Join Date: Jun 2006
Location: Chicagoland, IL
Posts: 4,216
Total Cats: 21
Default

So the Arducopter software has a FollowMe function.

Bit of awesome in the manual...
"The APM:Copter should follow you!
If you have set the altitude to 5 feet it might be a good idea to see if you can out run it."
Splitime is offline   Reply With Quote
Old 03-09-2014, 01:39 PM   #357
Miotta FTW!
iTrader: (24)

Splitime's Avatar

Join Date: Jun 2006
Location: Chicagoland, IL
Posts: 4,216
Total Cats: 21
Default

Got it into the air outside, didn't crash... success!

Now to dig into gps functions, loiter/guide/waypoints of course after tuning the PID stuff.

Forgot I had one setting to Loiter (with no adjustments) and flicked to it... hexa shot up like a rocket
Splitime is offline   Reply With Quote
Old 03-09-2014, 03:33 PM   #358
Miotta FTW!
iTrader: (24)

Splitime's Avatar

Join Date: Jun 2006
Location: Chicagoland, IL
Posts: 4,216
Total Cats: 21
Default

Splitime is offline   Reply With Quote
Old 03-09-2014, 06:27 PM   #359
Elite Member
Thread Starter
iTrader: (1)

Join Date: May 2009
Location: Jacksonville, FL
Posts: 4,654
Total Cats: 209
Default

Lookin' good

How is your camera mounted?
Hard to tell with the youtube and/or gopro software stabilization, but you dont seem to have much jello
Full_Tilt_Boogie is offline   Reply With Quote
Old 03-09-2014, 07:01 PM   #360
Miotta FTW!
iTrader: (24)

Splitime's Avatar

Join Date: Jun 2006
Location: Chicagoland, IL
Posts: 4,216
Total Cats: 21
Default

Quote:
Originally Posted by Full_Tilt_Boogie View Post
Lookin' good

How is your camera mounted?
Hard to tell with the youtube and/or gopro software stabilization, but you dont seem to have much jello
Props are balanced, gopro is hard mounted to frame (I used the display mount from the gopro box with holes drilled for zip ties), youtube stabilization used.

Working to pickup a cheap gimbal, then control board that will chat with the MultiWii setup as I'd really like to use Loiter/GPS mode and remotely pan the camera.

edit: pulled off youtube stabilization, it did wacky things to video. Also sad that quality even at 1080p on Youtube is visably below the raw footage.

Last edited by Splitime; 03-10-2014 at 12:30 PM.
Splitime is offline   Reply With Quote
