Old 09-18-2015, 12:05 AM   #181
Junior Member
iTrader: (4)

Join Date: May 2012
Location: Mayport, FL
Posts: 474
Total Cats: 33
Default

I'm switching from MSM valve cover to a 99-00 valve cover because the spark plug holes are different between the holes for the wires and the holes for the factory coils on the MSM cover. 99-00 valve cover takes 4 plug wires.

I just updated my build thread with my mounting solution for my coils if you care to see. I'm just waiting on a set of plug wires now
FrankB is offline   Reply With Quote
Old 09-22-2015, 11:42 PM   #182
Junior Member
iTrader: (4)

Join Date: May 2012
Location: Mayport, FL
Posts: 474
Total Cats: 33
Default

I just wanted to give you an update on my LS2 Truck coil swap. I just installed them tonight and other than me forgeting to reinstall the cam sensor everything went smooth. You DO NOT need a ignition module like on the Fab9 setup.
FrankB is offline   Reply With Quote
Old 09-28-2015, 09:32 AM   #183
Senior Member
Thread Starter

Join Date: Feb 2009
Location: Philadelphia
Posts: 773
Total Cats: 42
Default

Quote:
Originally Posted by FrankB View Post
I just wanted to give you an update on my LS2 Truck coil swap. I just installed them tonight and other than me forgeting to reinstall the cam sensor everything went smooth. You DO NOT need a ignition module like on the Fab9 setup.
Is it possible to make the GM coils work with the MSM valve cover?

Here's a shaky but good shifting run from 20mph-100mph in 2nd, 3rd, and a little of 4th gear.


I hope the video works, sometimes for me it does and doesn't
Mazdaspeeder is offline   Reply With Quote
Old 09-28-2015, 11:32 AM   #184
Junior Member
iTrader: (4)

Join Date: May 2012
Location: Mayport, FL
Posts: 474
Total Cats: 33
Default

Quote:
Originally Posted by Mazdaspeeder View Post
Is it possible to make the GM coils work with the MSM valve cover?
It's not that the coils won't work with the valve cover its getting plug wires to seal in cylinder 2 & 4 where the stock coils normally fit. Take one of the coils off and try to fit a plug wire from one of the other cylinders and see how it sits.
FrankB is offline   Reply With Quote
Old 09-28-2015, 11:37 AM   #185
Senior Member
Thread Starter

Join Date: Feb 2009
Location: Philadelphia
Posts: 773
Total Cats: 42
Default

Quote:
Originally Posted by FrankB View Post
It's not that the coils won't work with the valve cover its getting plug wires to seal in cylinder 2 & 4 where the stock coils normally fit. Take one of the coils off and try to fit a plug wire from one of the other cylinders and see how it sits.
I'm currently running Fab9 COPs and have long ago sold my stock setup. The thing is, I was able to get all my fab9 COPs to sit evenly after trimming the upper gaskets a little on the 2 and 4 cylinders. What to do what to do
Mazdaspeeder is offline   Reply With Quote
Old 09-28-2015, 02:06 PM   #186
Junior Member
iTrader: (4)

Join Date: May 2012
Location: Mayport, FL
Posts: 474
Total Cats: 33
Default

Quote:
Originally Posted by Mazdaspeeder View Post
I'm currently running Fab9 COPs and have long ago sold my stock setup. The thing is, I was able to get all my fab9 COPs to sit evenly after trimming the upper gaskets a little on the 2 and 4 cylinders. What to do what to do
that's because the gasket on the Fab9 COP's moves up and down on the coil so you can adjust it to seal. you might have luck calling Flyin' Miata and asking what plug wire boots they use for their Big Spark Kit for the MSM's. See if they use 4 of the same boots or a two and two configuration. It just seemed easier for me to swap valve covers.
FrankB is offline   Reply With Quote
Old 10-08-2015, 07:29 PM   #187
Senior Member
Thread Starter

Join Date: Feb 2009
Location: Philadelphia
Posts: 773
Total Cats: 42
Default

I love your mounts but not ready to sacrifice MSM valve cover. I also asked around on the wires and apparently people are getting custom wires from Magnecor that fit both the different MSM cover holes with the same boots, so that problem is solved. It's just where to mount then and how long the wires can get before I start giving up performance
Mazdaspeeder is offline   Reply With Quote
Old 10-08-2015, 09:22 PM   #188
Junior Member
iTrader: (4)

Join Date: May 2012
Location: Mayport, FL
Posts: 474
Total Cats: 33
Default

Yeah I figured you could get custom wires but I wasn't wanting to weld mounts onto the MSM valve cover and deal with the hassle of two different styles of wires.
FrankB is offline   Reply With Quote
Old 10-09-2015, 09:55 AM   #189
Senior Member
Thread Starter

Join Date: Feb 2009
Location: Philadelphia
Posts: 773
Total Cats: 42
Default

Quote:
Originally Posted by FrankB View Post
Yeah I figured you could get custom wires but I wasn't wanting to weld mounts onto the MSM valve cover and deal with the hassle of two different styles of wires.
No no that's what I'm saying, guys are running 4 of the same style wires and they seem to work with all of the holes on the MSM cover. Varied lengths depending on location of the packs themselves obviously. I'm too big of a ricer to get rid of my red cover
Mazdaspeeder is offline   Reply With Quote
Old 10-09-2015, 10:06 AM   #190
Junior Member
iTrader: (4)

Join Date: May 2012
Location: Mayport, FL
Posts: 474
Total Cats: 33
Default

Quote:
Originally Posted by Mazdaspeeder View Post
No no that's what I'm saying, guys are running 4 of the same style wires and they seem to work with all of the holes on the MSM cover. Varied lengths depending on location of the packs themselves obviously. I'm too big of a ricer to get rid of my red cover
Oh okay, well that's one problem solved for you. When you get the mounting figured out just call Magnecor (if you want to go that route) and give them the measurements from the valve cover opening to the coil. My 8.5mm set arrived in two days!

If you're really just worried about the red then just get a can of VHT wrinkle red. The part that was hard for me was letting go of the "turbo" on the valve cover. Lol but how I wanted to mount the coils I would have ruined it anyways.

Let me know if you run into any other issues though.
FrankB is offline   Reply With Quote
Old 10-09-2015, 10:10 AM   #191
Senior Member
Thread Starter

Join Date: Feb 2009
Location: Philadelphia
Posts: 773
Total Cats: 42
Default

I'll have to look around the bay to see where else I can possibly mount them. How long do yuo think the wires can be before I start losing performance? I was thinking if a long wire wouldn't be any less effective, I could mount them inside of the wiper cowl and run the wires through a hole? I wish the D585 fit behind the VC but some people are saying it won't. I'm tempted to replicate the FM setup, just get the mount, harness, and wires from them, and then buy the coils myself. I think it will be cheaper that way. Would run a different coil pack with that setup however. Not sure if it would fit back there with the M-Tuned re-route either. I'll have to give FM a call when they open.
Mazdaspeeder is offline   Reply With Quote
Old 10-09-2015, 12:00 PM   #192
Junior Member
iTrader: (4)

Join Date: May 2012
Location: Mayport, FL
Posts: 474
Total Cats: 33
Default

Quote:
Originally Posted by Mazdaspeeder View Post
I'll have to look around the bay to see where else I can possibly mount them. How long do yuo think the wires can be before I start losing performance? I was thinking if a long wire wouldn't be any less effective, I could mount them inside of the wiper cowl and run the wires through a hole? I wish the D585 fit behind the VC but some people are saying it won't. I'm tempted to replicate the FM setup, just get the mount, harness, and wires from them, and then buy the coils myself. I think it will be cheaper that way. Would run a different coil pack with that setup however. Not sure if it would fit back there with the M-Tuned re-route either. I'll have to give FM a call when they open.
I'm not sure that the cowl is a good pace to put your coils. I'd try to refrain from making the wires any longer then you have to. Your best bet might be to make a mounting bracket like others on here have. Sixshooter has his mounted on a bracket in essentially the same location as mine.
FrankB is offline   Reply With Quote
Old 10-16-2015, 11:54 AM   #193
Senior Member
Thread Starter

Join Date: Feb 2009
Location: Philadelphia
Posts: 773
Total Cats: 42
Default

So the FM big spark kit is what i went with, and the D510c coils.
Mazdaspeeder is offline   Reply With Quote
Old 10-16-2015, 11:55 AM   #194
Senior Member
Thread Starter

Join Date: Feb 2009
Location: Philadelphia
Posts: 773
Total Cats: 42
Default

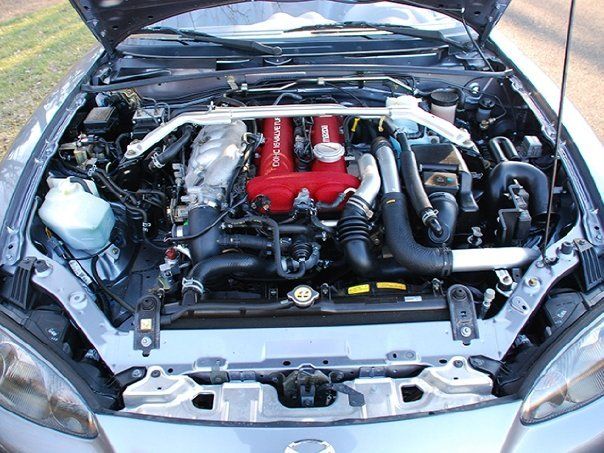

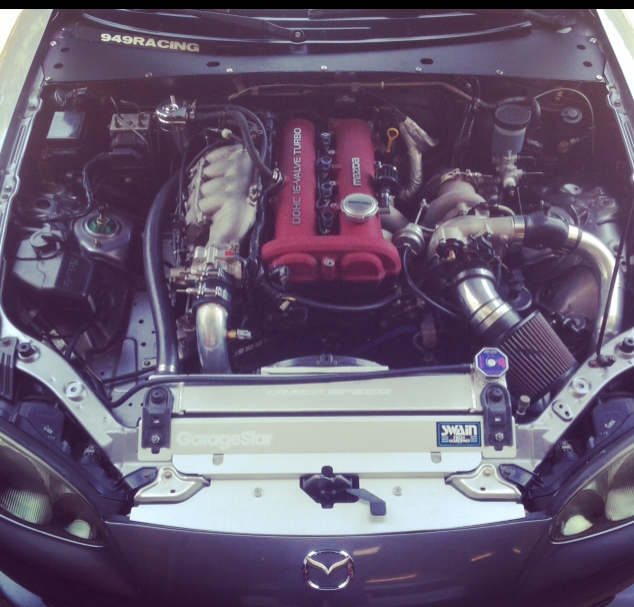

Stock





Sweet
Attached Thumbnails
My MSM is finished!-80-33151610007_original_9026ef64107f02052100132329010bf6b013e3fa.jpg   My MSM is finished!-80-decad8ba_ced4_4257_94b6_6137b0484ce9_zpsnalrbapx_4b295046ac15586d1f2c16dcfb926b581b5a362a.png
Mazdaspeeder is offline   Reply With Quote
Old 11-23-2015, 10:41 AM   #195
Senior Member
Thread Starter

Join Date: Feb 2009
Location: Philadelphia
Posts: 773
Total Cats: 42
Default

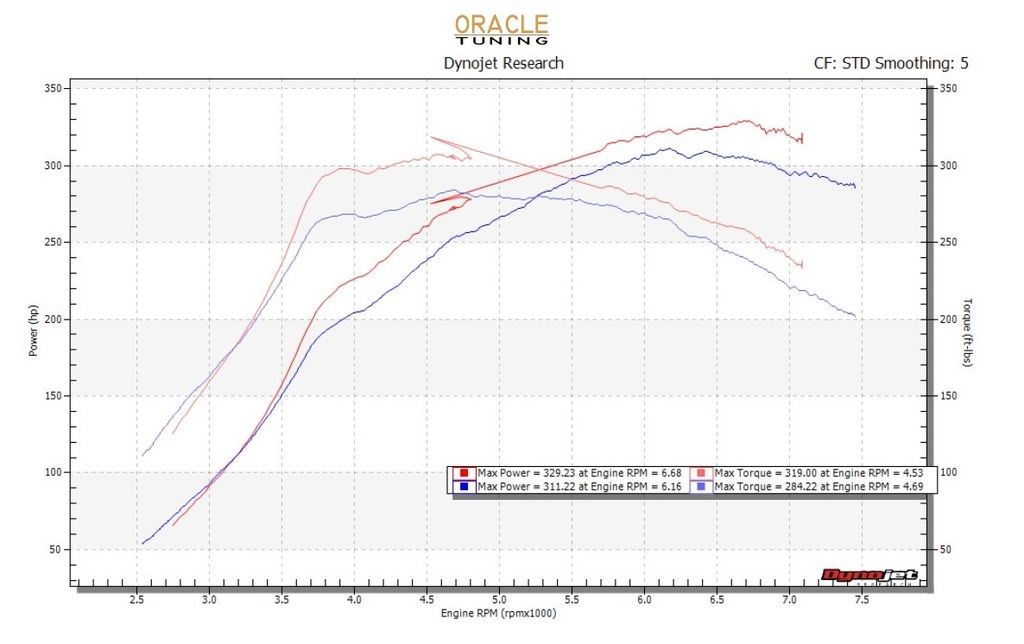

New dyno runs with words of warning from the tuner: " Disregard the squiggle in the middle of the run. This was a byproduct of the new dyno screwing up. However, the rest of the run is good and represents what your engine is making. Your making about 300ft-lbs from 3800RPM to about 5200RPM. Your above 320hp from 6000RPM to over 7000RPM. That is an impressive plateau. When we get the car back on the dyno in the spring, 350hp and 350ft-lbs is a reasonable expectation. The dyno is working properly now, producing clean plots. It turned out AP Tuning was the 2nd shop to use the new Dynojet software package and it was not fully developed when they got it. They did a lot of trouble shooting for Dynojet."


Attached Thumbnails
My MSM is finished!-80-overlay_zps7sgsjhgs_ec65cf589687c5a99fd93ee748b40cf0ea9b5dd8.jpg
Mazdaspeeder is offline   Reply With Quote
Old 11-23-2015, 10:56 AM   #196
Senior Member

Join Date: Mar 2011
Location: South Chicago
Posts: 688
Total Cats: 26
Default

I was gonna say, dat squiggle curve doe...

Hope you didn't pay for those pulls though, I would be mad if the dyno plot was screwy like that and I was paying for it.
Mazduh is offline   Reply With Quote
Old 01-31-2016, 10:04 AM   #197
Senior Member
Thread Starter

Join Date: Feb 2009
Location: Philadelphia
Posts: 773
Total Cats: 42
Default

Quote:
Originally Posted by Mazduh View Post
I was gonna say, dat squiggle curve doe...

Hope you didn't pay for those pulls though, I would be mad if the dyno plot was screwy like that and I was paying for it.
I paid for the tuning time, not necessarily the dyno plots, so I'm not too upset.

Got the FM Big Spark kit installed and it eliminated the spark issue. Got a set of 15x10 ULs coming soon, and have to cut the hood for the Singular NC Louvres. Car has been away since early december, and probably won't be back out until April or so, with the exception of going to get the wheels swapped and the hood cut. This is the time of year I "save" my miles since I'm only allowed 5,000 a year.
Mazdaspeeder is offline   Reply With Quote
Old 02-28-2016, 04:03 PM   #198
Newb

Join Date: Jan 2012
Posts: 14
Total Cats: -2
Default

great build, im a fan
gtiracer06 is offline   Reply With Quote
Old 02-29-2016, 09:03 AM   #199
Senior Member
Thread Starter

Join Date: Feb 2009
Location: Philadelphia
Posts: 773
Total Cats: 42
Default

Quote:
Originally Posted by gtiracer06 View Post
great build, im a fan
Thank you. I was actually going to revive the thread a little anyway but you id for me

Met up with a local guy who is a Miata and Photo enthusiast. Talked cars, and he snapped some photos. This is still with the 15x9 wheels, the 15x10 are actually being delivered today, and then sometime before my March track day, both the new 6ULs and the Singular Louvres are going to be installed.

















Photographer Credit: Sitha Puth | STUDIO - Philadelphia Khmer Cambodian Wedding Photographer Photography Philly Artisic Modern PA NJ NY VA MA
Attached Thumbnails
My MSM is finished!-670ef3a9-f905-494c-8e42-52a06793b6c2_zpsplrvi1dt.jpg   My MSM is finished!-9bfffc45-d21c-4afb-81ed-95ed2bbd7790_zpsdlxwfbty.jpg   My MSM is finished!-0c1a189e-a930-4d32-ac59-019b2e4fa391_zpsayoqntb0.jpg   My MSM is finished!-7266b952-f787-4791-8dfa-08408e97c399_zps2lgebxfb.jpg   My MSM is finished!-51c7cc11-2f79-4ac3-9ea3-3b3f72862540_zpsepkbytcl.jpg

My MSM is finished!-04314429-d076-4828-a157-c514c218ca09_zpsttgg4wvy.jpg   My MSM is finished!-f854c8d2-70e7-4a6e-ad36-dd5495571bdf_zpspxddyt1m.jpg   My MSM is finished!-4b2fd017-ac26-4c72-b3c1-901edf41aca1_zpsaz9vjekd.jpg
Mazdaspeeder is offline   Reply With Quote
Old 02-29-2016, 09:13 AM   #200
Elite Member
iTrader: (1)

Join Date: Jun 2014
Location: Austin, TX
Posts: 2,610
Total Cats: 228
Default



So clean...
