Old 02-26-2013, 08:42 AM   #181
Senior Member

Join Date: Dec 2004
Location: Brisbane, Australia
Posts: 1,270
Total Cats: 32
Default

Spark plug #64 on an 8 bit little endian system? Kudos!
timk is offline   Reply With Quote
Old 02-26-2013, 09:21 AM   #182
Boost Czar

iTrader: (60)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 70,401
Total Cats: 1,426
Default

Quote:
Originally Posted by Joe Perez View Post
magical rings made from unicorn horn and pixie dust
But your motor doesnt have a turbo attached to it:

MX-5 Miata Forum - View Single Post - Question about Turbos

Quote:
Originally Posted by Braineack 2/11/13
I already knew that a turbo is an "impeller" that spins a "fan" that blows magical pixie dust with energy "harnessed" from the horns of unicorns into the motor to make power.
Braineack is offline   Reply With Quote
Old 02-26-2013, 03:04 PM   #183
Boost Pope
Thread Starter
iTrader: (8)

Joe Perez's Avatar

Join Date: Sep 2005
Location: Chicago
Posts: 24,822
Total Cats: 1,602
Default

Quote:
Originally Posted by timk View Post
Spark plug #64 on an 8 bit little endian system? Kudos!
Haha.

I honestly debated with that. At work, all of our SSI stuff is big endian, however it winds up displaying as though it were little endian when viewed on a logic analyzer, so the end result is the same (read from left to right.)

On the other hand, most humans are accustomed to reading binary in big endian left-to-right when presented in print, and the clock on my shelf displays in this format as well.
Joe Perez is online now   Reply With Quote
Old 02-27-2013, 09:06 AM   #184
Junior Member

Join Date: Aug 2009
Location: Lake Jackson, TX
Posts: 158
Total Cats: 2
Default

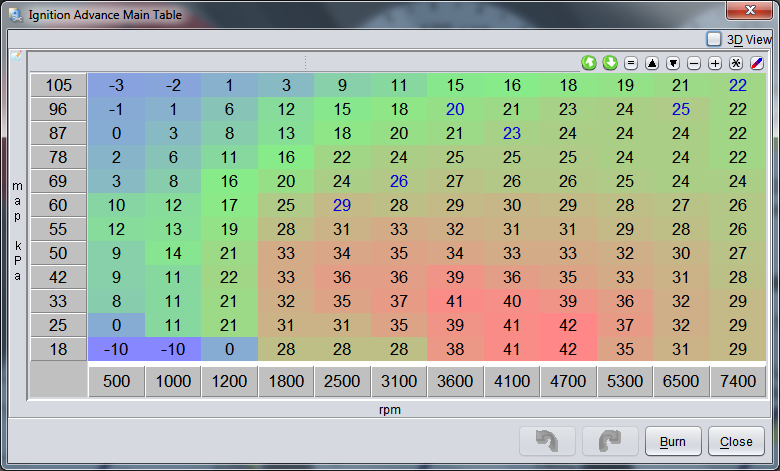

I don't know if this is still relevant to the current direction of the thread, or if it is precise enough for your intentions, but here is a spark map that I put together to emulate the OBD2 computer's indications on my 1997 1.8L California car:

More background on it can be found at the original thread: Tuning N/A engine on 87 octane: Has anyone even bothered?
jnshk is offline   Reply With Quote
Old 02-27-2013, 10:32 AM   #185
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 33,391
Total Cats: 2,032
Default

/\ That's very interesting and still very relevant to this thread, thank you for posting.
18psi is offline   Reply With Quote
Old 02-27-2013, 10:35 AM   #186
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: woosta, ma
Posts: 8,671
Total Cats: 93
Default

What the heck is up with the -10 degrees of timing in the bottom left corner. The only time I've ever seen negative timing like that is when I was trying to get the formula car to idle below 4 grand with the shitty intake manifold that leaked like a sieve.
Leafy is offline   Reply With Quote
Old 02-27-2013, 10:45 AM   #187
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 33,391
Total Cats: 2,032
Default

I don't think the car will even hit those areas at idle so probably doesn't matter?
18psi is offline   Reply With Quote
Old 02-27-2013, 11:25 AM   #188
Boost Czar

iTrader: (60)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 70,401
Total Cats: 1,426
Default

it's just 10 After TDC. No biggie.

If we look at 750RPM (typical idle speed) and 10BTDC (oem timing at idle), it takes 25 or 5.434ms for the flame front to reach 15ATDC, or about 2mm into the downward stroke.

15ATDC is an assumption of where the flame front is hitting for this comparison

Since that time never changes we can figure that within the latency of 5.434ms for the spark to ignite the flame and hit the piston since at 500RPM the crank rotates one degree in 0.33333333 milliseconds. At 500RPM 5.434ms is about 16 of crank rotation.

So if we spark at 10ATDC, then the flame front has moved to ~26ATDC. This should put the piston top maybe ~4mm into the downward stroke, so less power should be outputted at this time.
if you figure at 6,000RPM it takes only 0.02777ms to move the crank 1, you understand why we have to spark much sooner 35 vs. 10. That's only 1.3885ms to get to 15ATDC.
I know I did this flame front math wrong, but you get the idea.

This is possibly an effort to stabilize the motor if the RPMs drop that low. If you advanced the timing when the RPMs dropped, it would increase the power and increase ultimately bump up the idle speed. I dont believe the stock ECU uses timing control like my MS3Pro to help control idle speed, so I'm assuming it's a way to allow the idle valve ot have greater effect at low rpms.

Last edited by Braineack; 02-27-2013 at 11:35 AM.
Braineack is offline   Reply With Quote
Old 02-27-2013, 12:59 PM   #189
Boost Pope
Thread Starter
iTrader: (8)

Joe Perez's Avatar

Join Date: Sep 2005
Location: Chicago
Posts: 24,822
Total Cats: 1,602
Default

Quote:
Originally Posted by jnshk View Post
(map)
Very interesting. It's really becoming clear to me why everyone was able to get away with bumping the static timing by 5-10 (by rotating the CAS) and not have any problems, back in the day before enlightened ECUs.
Joe Perez is online now   Reply With Quote
Old 02-27-2013, 04:49 PM   #190
Elite Member

Join Date: Jul 2005
Posts: 6,350
Total Cats: 70
Default

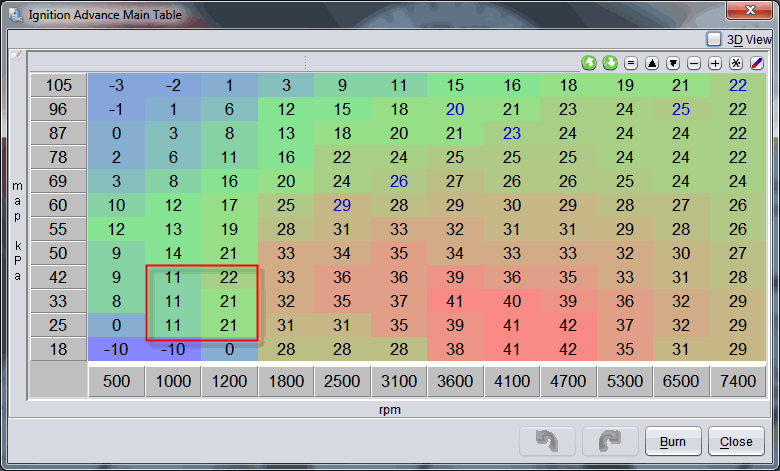

Huge jump in timing from 1000-1200 rpm, 25-42 kPa. That is probably not the static table in the ECU, but observations made, with AC and idle compensation included. Such a static table will cause severe idle instability.

Attached Thumbnails
Let's discuss spark advance-advance.gif
JasonC SBB is offline   Reply With Quote
Old 02-27-2013, 09:58 PM   #191
Junior Member

Join Date: Aug 2009
Location: Lake Jackson, TX
Posts: 158
Total Cats: 2
Default

Jason is correct. The table was compiled/interpolated based on observations of OBD2 polling, and around idle there was some compensation done to stabilize things between A/C off (low load) and A/C on (heavy load), which is also why it is scaled somewhat non-uniformly so that I could isolate some key areas around idle and cruise.

The stock computer calculates spark based on rpm and MAF load (I believe) and possibly a few other factors. Since the MS is configured differently, this was my best interpretation at emulating it in effectiveness. When I was testing it out, the readings synced up quite well between MS and OBD2.

Note on the negative timing cells -- these cells were basically areas where the car was struggling to not stall. Braking to nearly 0mph with the transmission in gear and crawling along at low speed, high gear, throttle mashed open.

Last edited by jnshk; 02-27-2013 at 09:58 PM. Reason: speeliong errars
jnshk is offline   Reply With Quote
Old 03-05-2013, 02:01 AM   #192
Elite Member
iTrader: (11)

Join Date: Feb 2009
Posts: 2,982
Total Cats: 10
Default

Joe,

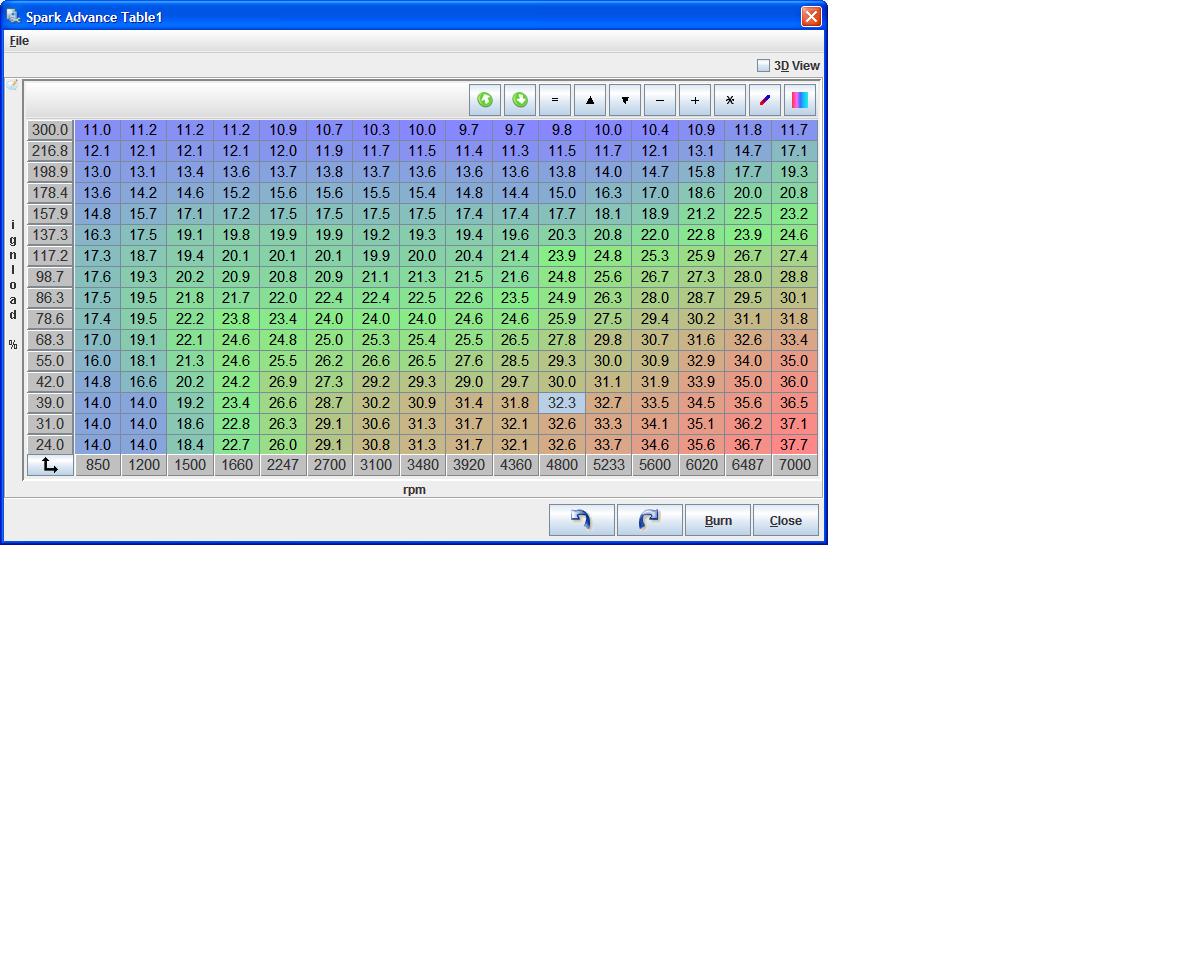

What are you seeing as far as knock with your knock sensor? The following is my table that I have been tuning out knock peaks by lowering timing. Mine is much more conservative now that I have a knock module. I need to check my hardware latency as it is set to 21 microseconds.

Attached Thumbnails
Let's discuss spark advance-djp0623-11604-albums-my-build-2-202-picture-spark-table-3-4-13-3125.jpg   Let's discuss spark advance-djp0623-11604-albums-my-build-2-202-picture-ignition-table-3126.jpg

Last edited by miatauser884; 03-05-2013 at 01:35 PM.
miatauser884 is offline   Reply With Quote
Old 03-05-2013, 02:03 AM   #193
Boost Pope
Thread Starter
iTrader: (8)

Joe Perez's Avatar

Join Date: Sep 2005
Location: Chicago
Posts: 24,822
Total Cats: 1,602
Default

Quote:
Originally Posted by djp0623 View Post
What are you seeing as far as knock with your knock sensor?
Knock sensor? Bah. A Jedi craves not such things.
Joe Perez is online now   Reply With Quote
Old 03-05-2013, 04:55 AM   #194
Elite Member
iTrader: (1)

Join Date: Jun 2006
Location: Warrington/Birmingham
Posts: 2,658
Total Cats: 41
Default

Quote:
Originally Posted by Joe Perez View Post
Knock sensor? Bah. A Jedi craves not such things.

Luddite
richyvrlimited is offline   Reply With Quote
Old 03-05-2013, 10:53 AM   #195
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 33,391
Total Cats: 2,032
Default

he has a 1.6
doesn't even have a knock sensor.
and he probably cares not about it enough to rig one up lol
18psi is offline   Reply With Quote
Old 03-05-2013, 12:58 PM   #196
y8s
2 Props,3 Dildos,& 1 Cat
iTrader: (8)

y8s's Avatar

Join Date: Jun 2005
Location: Fake Virginia
Posts: 18,788
Total Cats: 329
Default

luddite is right. drag your ms paint white pre-paste image to a tiny rectangle and THEN paste your graph. we dont' care about 3/4 of the content of that bs.
y8s is offline   Reply With Quote
Old 03-05-2013, 01:15 PM   #197
Supporting Vendor
iTrader: (3)

emilio700's Avatar

Join Date: May 2005
Posts: 4,603
Total Cats: 857
Default

Quote:
Originally Posted by Joe Perez View Post
Knock sensor? Bah. A Jedi craves not such things.
This is not the flame front you are looking for.
emilio700 is offline   Reply With Quote
Old 03-05-2013, 01:36 PM   #198
Elite Member
iTrader: (11)

Join Date: Feb 2009
Posts: 2,982
Total Cats: 10
Default

Quote:
Originally Posted by y8s View Post
luddite is right. drag your ms paint white pre-paste image to a tiny rectangle and THEN paste your graph. we dont' care about 3/4 of the content of that bs.

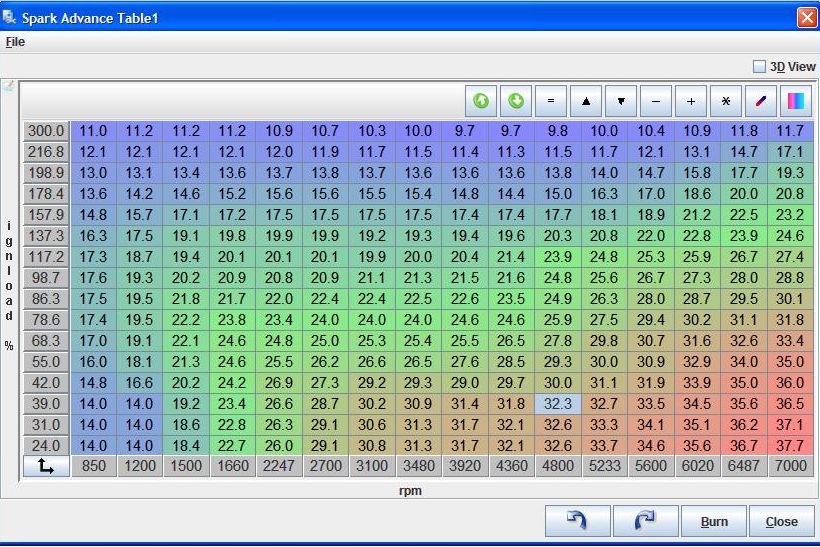

There you go bitches
miatauser884 is offline   Reply With Quote
Old 03-05-2013, 01:42 PM   #199
Elite Member
iTrader: (11)

Join Date: Feb 2009
Posts: 2,982
Total Cats: 10
Default

Although the knock peaks are responding to reducing the timing. I'm wondering if I'm tuning out peaks that represent negligible knock. Unfortunately there are no clearly defined knock thresholds that we have to follow.

What hardware latency are others running on the ms3x?
miatauser884 is offline   Reply With Quote
Old 03-05-2013, 01:43 PM   #200
Boost Pope
Thread Starter
iTrader: (8)

Joe Perez's Avatar

Join Date: Sep 2005
Location: Chicago
Posts: 24,822
Total Cats: 1,602
Default

Quote:
Originally Posted by emilio700 View Post
This is not the flame front you are looking for.
You must learn the ways of the tune if you are to come with me to Thunderhill.

Attached Thumbnails
Let's discuss spark advance-theforce0mm.jpg
Joe Perez is online now   Reply With Quote
