Default NA to NB sensors. Car won't start

Hey guys,

I recently wired in some NB sensors for my car. 01 motor in a 96. The car was running fine on ms3 basic using the na CAS.

Now that I have the sensors in, I can't get the car to start. It will turn over, but I don't get an RPM signal. I had to assemble my own connector for the cam sensor, but it seems unlikely that that is the issue. Looking from the front of the car I have it wired power, trigger, and ground from left to right. I tired switching the power and ground and the car wouldn't turn over.

On the attached composite log I think I am missing the the cam signal.

I also attached my ignition settings. I tired starting with rising and falling edge. No difference.

Any ideas? I'm sure that I'm missing something simple.
Attached Thumbnails

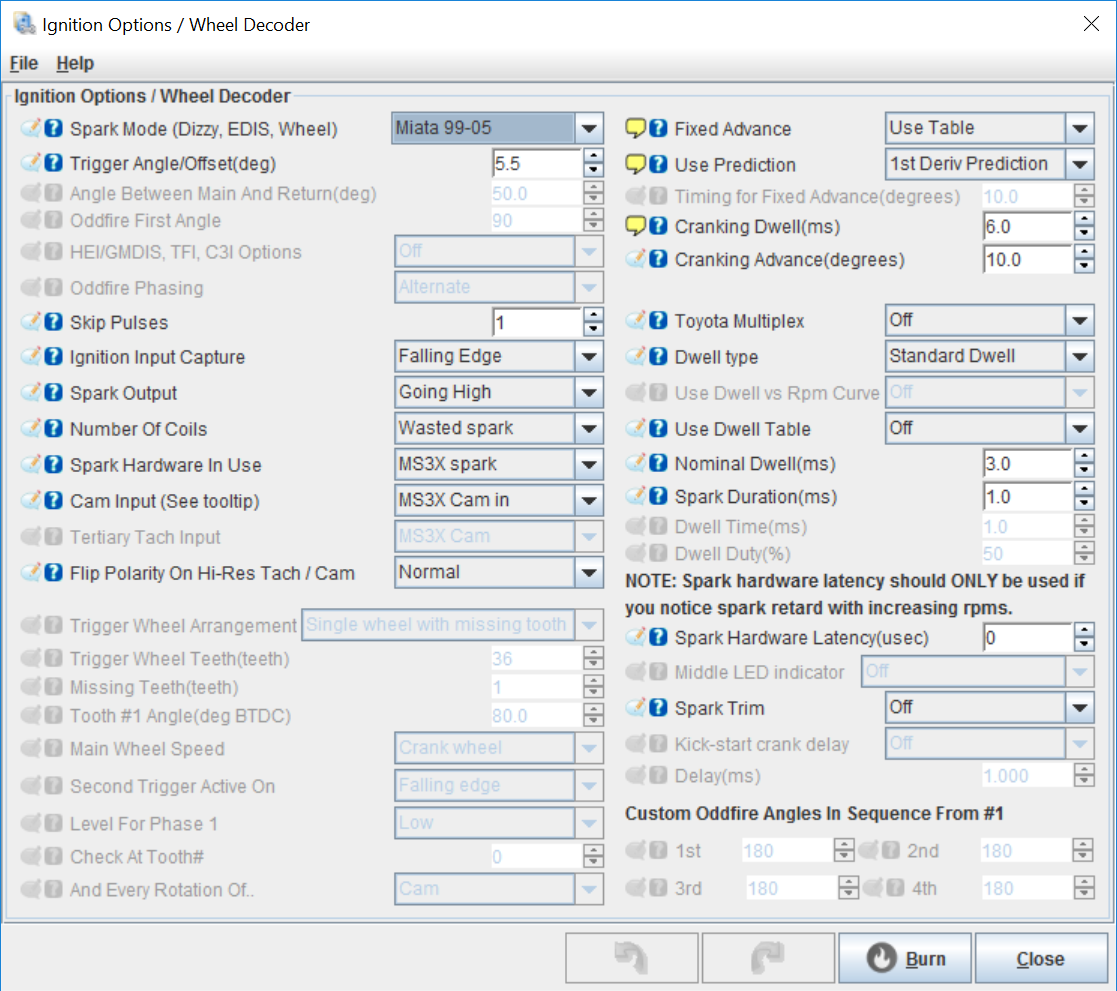

NA to NB sensors. Car won't start-nb-sensors-ms3.png
Attached Files
File Type: csv 2016-09-02_16.53.37.csv (10.4 KB, 4 views)
L3mur is offline   Reply With Quote
Old 09-02-2016, 06:28 PM   #2
Ich verstehe nur Bahnhof
iTrader: (2)

psyber_0ptix's Avatar

Join Date: Mar 2012
Location: Northern VA
Posts: 2,812
Total Cats: 224
Default

Adjust the pots
psyber_0ptix is offline   Reply With Quote
Old 09-02-2016, 07:02 PM   #3
Junior Member
iTrader: (1)

Join Date: Apr 2014
Location: Mountain View, CA
Posts: 333
Total Cats: 19
Default

Quick 96-97 related question. You didn't wire the NB crank sensor to the factory 96 crank sensor right?
OneTwo is offline   Reply With Quote
Old 09-02-2016, 10:22 PM   #4
Newb
Thread Starter

Join Date: Jul 2015
Posts: 12
Total Cats: 0
Default

Pots? Sorry I'm a noob. I'm running the newer trigger wheel and crank sensor
L3mur is offline   Reply With Quote
Old 09-03-2016, 12:18 AM   #5
Cpt. Slow
iTrader: (24)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 11,703
Total Cats: 472
Default

Don't rely on your wiring. You've (no offense, I've done it) most likely fucked up some wiring if it was running before. Check continuity to ground on the ground pin, check for batt voltage on the 12v pin, and check continuity to cam-in from plug to ecu. Might as well check the same for the crank.
curly is offline   Reply With Quote
Old 09-03-2016, 01:41 AM   #6
Ich verstehe nur Bahnhof
iTrader: (2)

psyber_0ptix's Avatar

Join Date: Mar 2012
Location: Northern VA
Posts: 2,812
Total Cats: 224
Default

R52 and R56 vr trim pots
psyber_0ptix is offline   Reply With Quote
Old 09-03-2016, 04:05 AM   #7
Junior Member

Join Date: Jan 2016
Location: Humble, TX
Posts: 81
Total Cats: 16
Default

pull up resistor on r57?
ramensoop is offline   Reply With Quote
Old 09-03-2016, 04:16 AM   #8
Supporting Vendor
iTrader: (10)

Reverant's Avatar

Join Date: Jun 2006
Location: Athens, Greece
Posts: 5,340
Total Cats: 184
Default

Set Cam Input to JS10.
Reverant is offline   Reply With Quote
Old 09-04-2016, 04:43 PM   #9
Newb
Thread Starter

Join Date: Jul 2015
Posts: 12
Total Cats: 0
Default

Thanks for all the advice.

I tried setting the cam signal to JS10. The car fired but sounded pretty out of sequence. It kind of sounded like it fired while the exhaust valves were open. I'm getting a not rpm synced errror.

I will do some more reading on the board specific terminology and changes that may need to be made.

I will also double check the wiring.

Another random issue was VVT related. I turned it on and immediately got an error that that pin is already being used by something else.



L3mur is offline   Reply With Quote
Old 09-05-2016, 12:27 PM   #10
Newb
Thread Starter

Join Date: Jul 2015
Posts: 12
Total Cats: 0
Default

Well I think I figured out my problem. Here's another composite log. I think that shows I am getting all the signals. Not sure what the patterns should look like though

After taking that log I put the NA CAS back on. The car still wouldn't start. I used the MS spark check tool (very cool) and discovered I had spark but my coil packs were wired for the wrong cylinders. Easy fix and it started right up. I think if I wire back up the NB sensors it should be good to go.

Thanks for the help. Have a chuckle at my expense.
Attached Files
File Type: csv 2016-09-05_10.03.14.csv (20.2 KB, 4 views)
L3mur is offline   Reply With Quote
Old 09-05-2016, 04:36 PM   #11
Supporting Vendor
iTrader: (10)

Reverant's Avatar

Join Date: Jun 2006
Location: Athens, Greece
Posts: 5,340
Total Cats: 184
Default

Also change the ignition input capture. If it works ok on the 4G63 with the "Falling edge", when set to 99-05 it needs to be set to "Rising edge" instead.
