Noob AFR questions

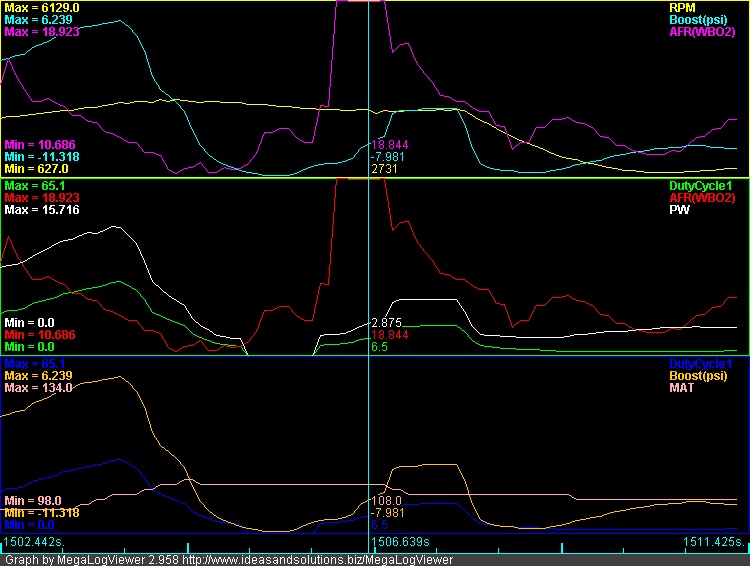

Any thoughts on what's going on with my AFR in this log?

I've made the following changes this year:

1. Changed from Megatune to Tunerstudio
2. Changed from stock 1.6 injectors to 320cc Supra injectors. These were cleaned and flowed checked.

Any idea what I boogered up?

Attached Thumbnails

Attached Files

CurrentTune.msq (36.3 KB, 142 views)

2010-10-09_16.46.58.msl (1.02 MB, 79 views)

10-10-2010, 07:54 PM

jbresee

Junior Member

Thread Starter

Join Date: Aug 2007

Location: Burlington, VT

Posts: 428

Total Cats: 1

Help me find my way, oh great oracles of Megasquirt, as I am clearly lost!

10-10-2010, 09:50 PM

shuiend

mkturbo.com

iTrader: (24)

Join Date: May 2006

Location: Charleston SC

Posts: 15,177

Total Cats: 1,681

You did change the required fuel ratio right? Also can you post a full datalog?

10-11-2010, 07:16 AM

jbresee

Junior Member

Thread Starter

Join Date: Aug 2007

Location: Burlington, VT

Posts: 428

Total Cats: 1

I did change required fuel, but I could have screwed it up.

The full data log was attached. Is it corrupt?

Thanks for your thoughts on this!
Jim

10-11-2010, 07:52 AM

shuiend

mkturbo.com

iTrader: (24)

Join Date: May 2006

Location: Charleston SC

Posts: 15,177

Total Cats: 1,681

Quote:

Originally Posted by jbresee

I did change required fuel, but I could have screwed it up.

The full data log was attached. Is it corrupt?

Thanks for your thoughts on this!
Jim

Ahh, I did not notice it below the pictures. I will try to take a look at it tonight when I get home.

10-11-2010, 08:08 AM

Braineack

Boost Czar

iTrader: (62)

Join Date: May 2005

Location: Chantilly, VA

Posts: 79,493

Total Cats: 4,080

what's the problem?

10-11-2010, 08:11 AM

jbresee

Junior Member

Thread Starter

Join Date: Aug 2007

Location: Burlington, VT

Posts: 428

Total Cats: 1

I'm concerned about the very lean AFR spikes.

The AFR seems to lean out, without any pattern that I can discern. Am I worrying needlessly?
Thanks,
Jim

10-11-2010, 08:29 AM

Braineack

Boost Czar

iTrader: (62)

Join Date: May 2005

Location: Chantilly, VA

Posts: 79,493

Total Cats: 4,080

looks like overrun to me.

10-11-2010, 08:36 AM

jbresee

Junior Member

Thread Starter

Join Date: Aug 2007

Location: Burlington, VT

Posts: 428

Total Cats: 1

Brain,
How would I attack an overrun issue?
Thanks,
Jim

10-11-2010, 08:38 AM

#10

richyvrlimited

Elite Member

iTrader: (1)

Join Date: Jun 2006

Location: Warrington/Birmingham

Posts: 2,642

Total Cats: 42

if it was overrun fuel cut there'd be no injector PW.

Has the OP told TunerStudio what WB02 he's using?

10-11-2010, 08:53 AM

#11

Braineack

Boost Czar

iTrader: (62)

Join Date: May 2005

Location: Chantilly, VA

Posts: 79,493

Total Cats: 4,080

Quote:

Originally Posted by richyvrlimited

if it was overrun fuel cut there'd be no injector PW.

and that's happening.

10-11-2010, 10:05 AM

#12

richyvrlimited

Elite Member

iTrader: (1)

Join Date: Jun 2006

Location: Warrington/Birmingham

Posts: 2,642

Total Cats: 42

On the pic it wasn't/isn't sorry, didn't notice the logs.

10-11-2010, 10:08 AM

#13

Braineack

Boost Czar

iTrader: (62)

Join Date: May 2005

Location: Chantilly, VA

Posts: 79,493

Total Cats: 4,080

but it does in that pic. It cuts fuel just moments before it goes full lean; there's a delay.

10-11-2010, 10:31 AM

#14

richyvrlimited

Elite Member

iTrader: (1)

Join Date: Jun 2006

Location: Warrington/Birmingham

Posts: 2,642

Total Cats: 42

God i'm a retard, hell of a delay that mind

Apologies for dirtying the thread up

10-11-2010, 10:46 AM

#15

jbresee

Junior Member

Thread Starter

Join Date: Aug 2007

Location: Burlington, VT

Posts: 428

Total Cats: 1

Ahhhh.....

I hadn't noticed the PW dropping to zero. So this ends up looking like a non-problem, and the way I could tune around it is to go into the over run settings in TunerStudio and bump up the kPa that it uses for the fuel cut.

Do I understand that correctly?
Jim
