Fs: bp26 turbo camshafts.

Thread Tools

Search this Thread

Old 10-18-2012, 10:27 AM
  #1
Junior Member
Thread Starter
iTrader: (11)

iantboyd's Avatar

Join Date: Oct 2011
Location: Bellingham, WA
Posts: 296
Total Cats: 7
Default Fs: bp26 turbo camshafts.

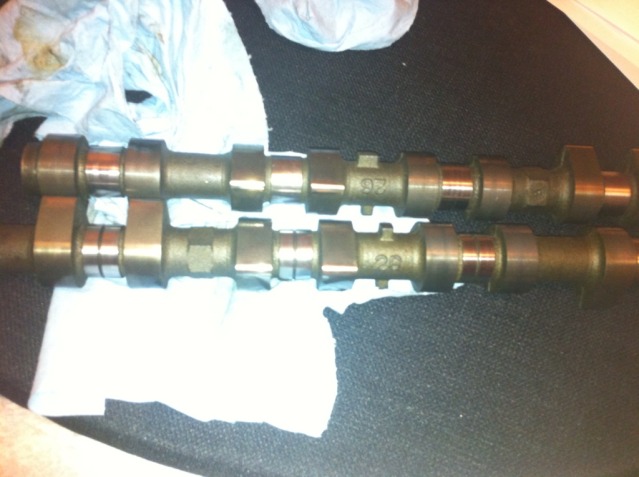

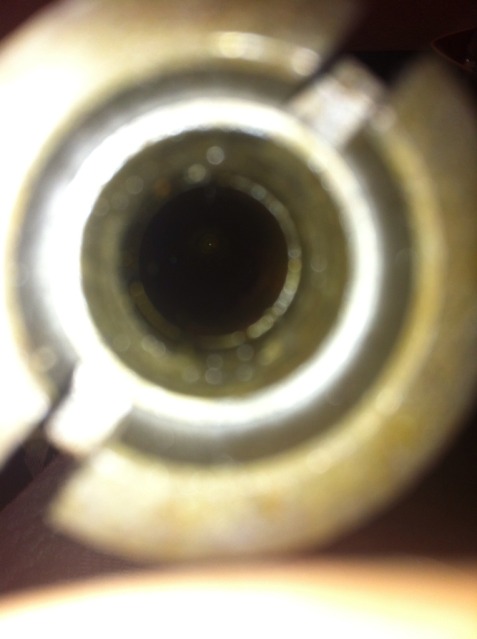

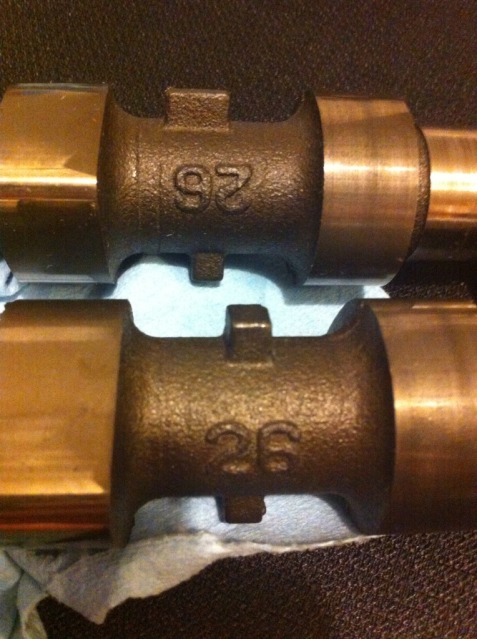

As the title states bp26 turbo camshafts, hollow if that means or matter to anyone. These are coming off my personal motor, made 200 whp with damaged turbo for what it's worth. $150 + PayPal fees and shipping.





Attached Thumbnails Fs: bp26 turbo camshafts.-fd979cbd-1bc8-4712-88a6-f3a18d176500-4207-000004c22acefea0.jpg   Fs: bp26 turbo camshafts.-e2981b57-4bc8-49f6-8161-72d90f93ebe8-4207-000004c23327c0b7.jpg   Fs: bp26 turbo camshafts.-5fb8e1d4-5178-4049-adbf-15c5a69c8a03-4207-000004c245f8c141.jpg
iantboyd is offline
Reply
Leave a poscat 0 Leave a negcat
Old 10-18-2012, 11:33 AM
  #2
Junior Member
Thread Starter
iTrader: (11)

iantboyd's Avatar

Join Date: Oct 2011
Location: Bellingham, WA
Posts: 296
Total Cats: 7
Default

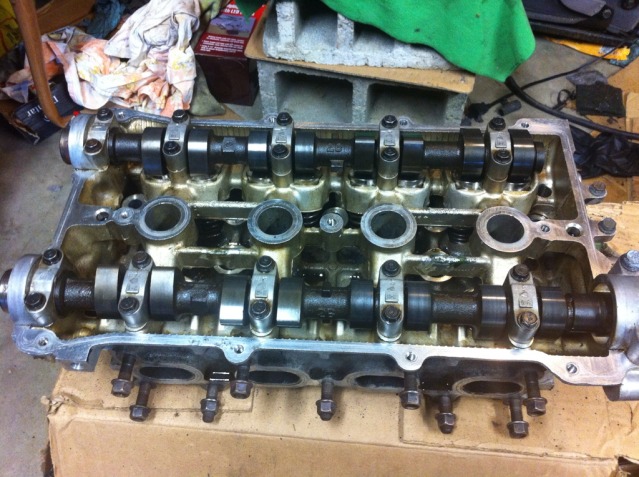

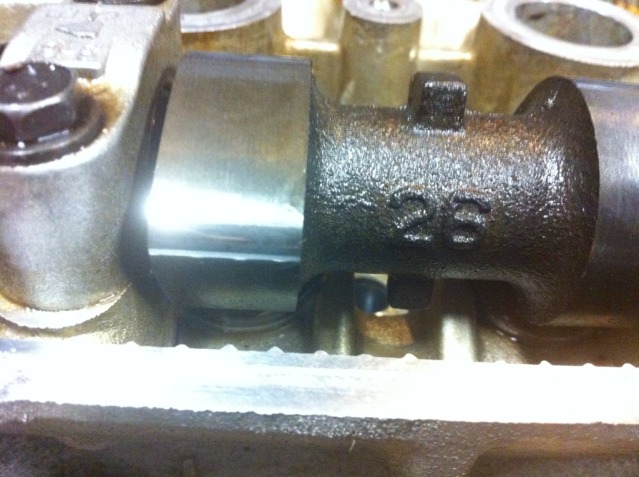

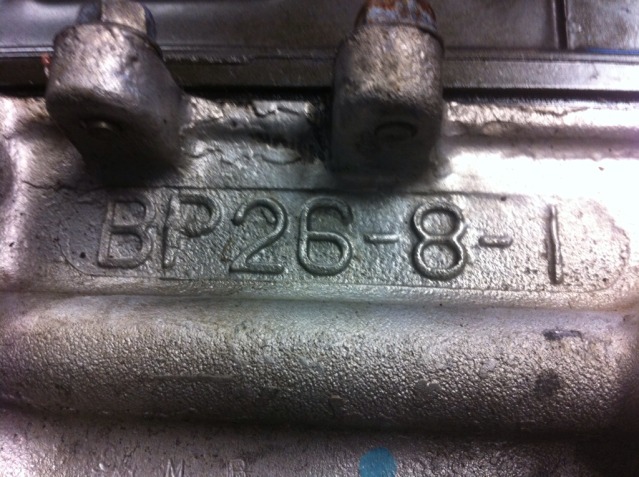

Also, I have a complete bp26 head, untouched. It hasn't been run by myself but it appears to be in good condition, as was the rest of the engine. $300



Attached Thumbnails Fs: bp26 turbo camshafts.-0d007f03-1465-4654-aa52-755252a9a4dc-5300-000005ef094e4261.jpg   Fs: bp26 turbo camshafts.-ba50e43a-d384-40b2-9e9d-31973e4dfa1f-5300-000005eef74ab04c.jpg   Fs: bp26 turbo camshafts.-b7487690-4585-4d6b-b499-2507fddb9a57-5300-000005eee88778a8.jpg   Fs: bp26 turbo camshafts.-f5531d6f-8619-43e4-9091-b5efc4171a8b-5300-000005eed4195609.jpg
iantboyd is offline
Reply
Leave a poscat 0 Leave a negcat
Old 10-18-2012, 11:05 PM
  #3
Junior Member
iTrader: (3)

bogaut's Avatar

Join Date: Oct 2010
Posts: 172
Total Cats: 1
Default
specs on the cams for those interested

Intake cam duration 233° @ 0.003"
Intake cam opening 2° BTDC
Intake cam closing 51° ABDC
Intake cam lobe height 44.094mm (1.7360")
Intake cam base circle 35.941mm (1.415")
Intake valve lift 8.1534mm (0.321")

Exhaust cam duration 247° @ 0.003"
Exhaust cam opening 59° BBDC
Exhaust cam closing 8° ATDC
Exhaust cam lobe height44.600mm (1.7560")
Exhaust cam base circle35.941mm (1.415")
Exhaust valve lift 8.6614mm (0.341")
Valve overlap 10°
bogaut is offline
Reply
Leave a poscat 0 Leave a negcat
Old 10-20-2012, 12:37 AM
  #4
Junior Member
Thread Starter
iTrader: (11)

iantboyd's Avatar

Join Date: Oct 2011
Location: Bellingham, WA
Posts: 296
Total Cats: 7
Default
When used with the bp26/bp05 exintake swap it's good for about 10hp

To folks with GTX/GTR cams. (BP26))
iantboyd is offline
Reply
Leave a poscat 0 Leave a negcat
Old 10-20-2012, 02:44 AM
  #5
Junior Member
iTrader: (1)

svazquez104's Avatar

Join Date: Aug 2011
Location: Orlando, Fl
Posts: 57
Total Cats: -16
Default
How much for the valve cover?
svazquez104 is offline
Reply
Leave a poscat 0 Leave a negcat
Old 10-20-2012, 12:59 PM
  #6
Junior Member
Thread Starter
iTrader: (11)

iantboyd's Avatar

Join Date: Oct 2011
Location: Bellingham, WA
Posts: 296
Total Cats: 7
Default

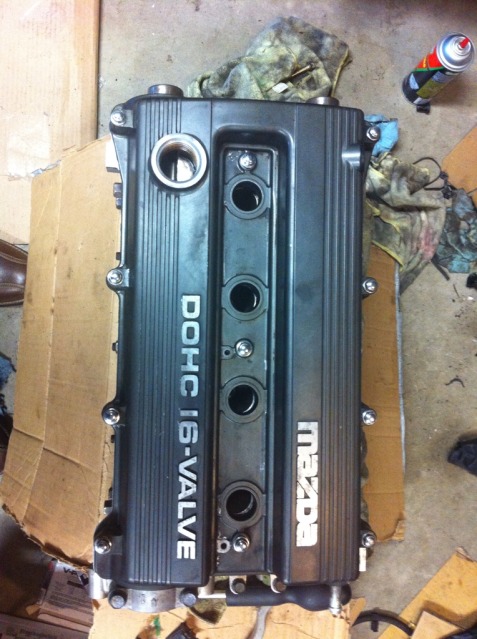

$25 plus shipping or trade for a 1.8 miata valve cover.
iantboyd is offline
Reply
Leave a poscat 0 Leave a negcat
Old 10-21-2012, 01:57 PM
  #7
Newb

wrx787's Avatar

Join Date: Dec 2011
Posts: 28
Total Cats: -5
Default
I did some searching but would this be more beneficial on an NA motor the just an ex/intake swap?
wrx787 is offline
Reply
Leave a poscat 0 Leave a negcat
Old 10-21-2012, 04:53 PM
  #8
Junior Member
Thread Starter
iTrader: (11)

iantboyd's Avatar

Join Date: Oct 2011
Location: Bellingham, WA
Posts: 296
Total Cats: 7
Default
Originally Posted by wrx787
I did some searching but would this be more beneficial on an NA motor the just an ex/intake swap?
There are two exintake swaps that's I am aware of. Using two n/a exhaust cams, good for n/a motors, and then the one I posted using a bp26 exhaust cam and a stock n/a exhaust cam, good for turbo motors.
iantboyd is offline
Reply
Leave a poscat 0 Leave a negcat
Old 10-24-2012, 01:54 PM
  #9
Junior Member
Thread Starter
iTrader: (11)

iantboyd's Avatar

Join Date: Oct 2011
Location: Bellingham, WA
Posts: 296
Total Cats: 7
Default
Bump! Willing to hear trades! Looking for 650cc+ injectors, nice set of adjustable cam gears, etc. Mainly engine related.
iantboyd is offline
Reply
Leave a poscat 0 Leave a negcat
Old 11-01-2012, 11:04 AM
  #10
Junior Member
Thread Starter
iTrader: (11)

iantboyd's Avatar

Join Date: Oct 2011
Location: Bellingham, WA
Posts: 296
Total Cats: 7
Default
Cams are sold, Complete head is still available. This head should help with low end and mid-range response.
iantboyd is offline
Reply
Leave a poscat 0 Leave a negcat
Old 02-14-2013, 02:03 PM
  #11
Junior Member
Thread Starter
iTrader: (11)

iantboyd's Avatar

Join Date: Oct 2011
Location: Bellingham, WA
Posts: 296
Total Cats: 7
Default
Bump, have another set of bp26 cams for those who are interested. The head is still available. Good for someone looking for a little more low end grunt!
iantboyd is offline
Reply
Leave a poscat 0 Leave a negcat
Old 02-14-2013, 02:09 PM
  #12
Junior Member
Thread Starter
iTrader: (11)

iantboyd's Avatar

Join Date: Oct 2011
Location: Bellingham, WA
Posts: 296
Total Cats: 7
Default

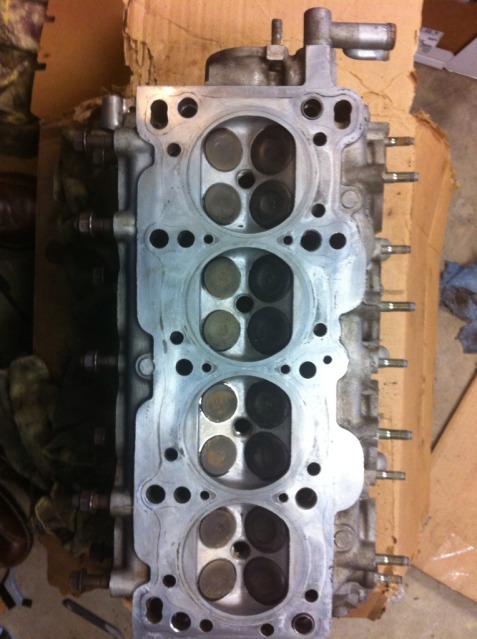

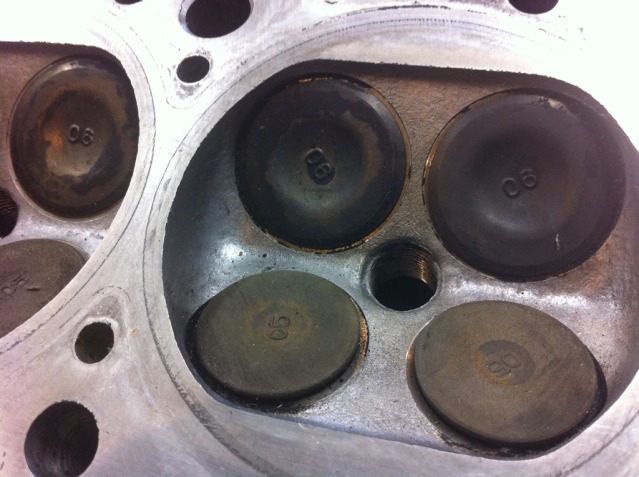

Picture of the heads combustion chamber


Attached Thumbnails Fs: bp26 turbo camshafts.-50205f39-63ad-48e9-b70c-c1fbc2a05cf8-5300-000005eeb3e6de5b.jpg   Fs: bp26 turbo camshafts.-a7cf8f0a-d467-4ca6-a94c-4529985d4db2-5300-000005eea4037359.jpg
iantboyd is offline
Reply
Leave a poscat 0 Leave a negcat
Old 02-20-2013, 03:04 PM
  #13
Senior Member
iTrader: (2)

Der_Idiot's Avatar

Join Date: Nov 2007
Location: Saint Paul, MN
Posts: 1,489
Total Cats: 28
Default
Cams are like black magic to me, I'm just getting into adjustable CAM gears. How do these compare on a 99/2000 head vs stock? Does it shift the powerband or does it open up the top end any?
Der_Idiot is offline
Reply
Leave a poscat 0 Leave a negcat
Old 02-20-2013, 03:37 PM
  #14
Junior Member
Thread Starter
iTrader: (11)

iantboyd's Avatar

Join Date: Oct 2011
Location: Bellingham, WA
Posts: 296
Total Cats: 7
Default
Originally Posted by Der_Idiot
Cams are like black magic to me, I'm just getting into adjustable CAM gears. How do these compare on a 99/2000 head vs stock? Does it shift the powerband or does it open up the top end any?
You'll be better off with the stock 99' cams and adjustable gears from my understanding.

These reduce overlap, otherwise very similar to the stock 94-97 cams.
