Old 07-07-2016, 11:20 AM   #21
Destroyer of Inconel
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 9,048
Total Cats: 811
Default

Oh, that makes much more sense. Now I feel retarded.
EO2K is offline   Reply With Quote
Old 07-07-2016, 12:14 PM   #22
SadFab CEO
iTrader: (3)

Join Date: Sep 2012
Location: your mom's house phoenix, AZ
Posts: 3,558
Total Cats: 455
Default

Yea, the offset bushing just shifts the adjustment range about 1.5 degrees. The car is aligned just like you normally would.
hi_im_sean is online now   Reply With Quote
Old 07-07-2016, 12:45 PM   #23
Elite Member
iTrader: (3)

Join Date: Mar 2008
Location: Granbury, TX
Posts: 5,845
Total Cats: 559
Default

Quote:
Originally Posted by mx54life View Post
How is the strength of these copper bearing compared to the standard ones included in the kit?
The bronze bearing surface is much harder, stronger and more slippery than the standard poly bearing surface.

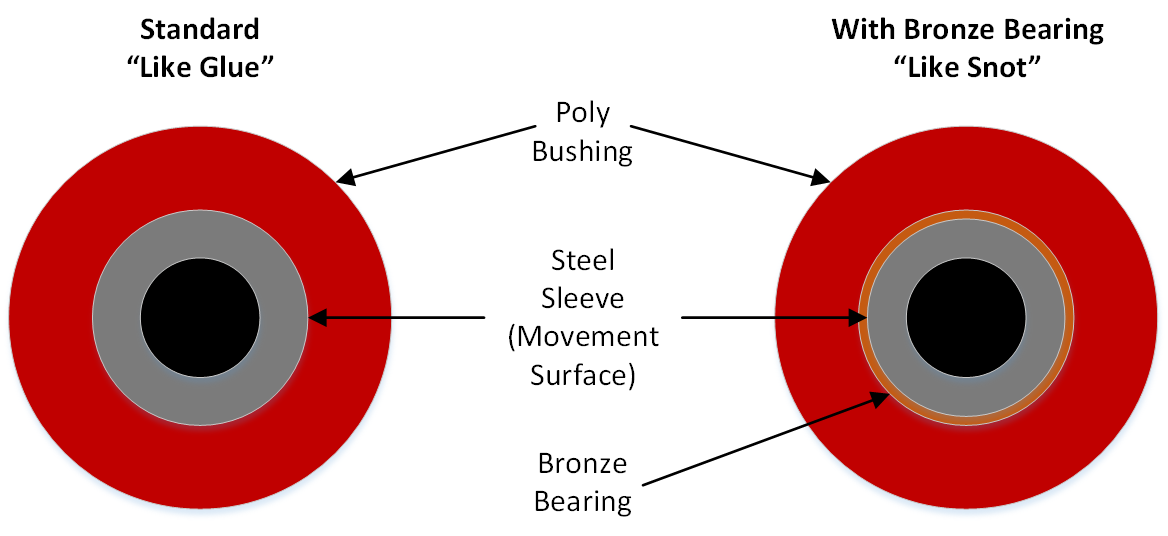

Since Aidan's picture was so pathetic, I felt compelled. Hopefully, you understand what this kit does now:


Attached Thumbnails
SADFab Bushing Options and Price Drop!-sadfab.png
hornetball is offline   Reply With Quote
Old 07-07-2016, 12:47 PM   #24
SadFab CEO
iTrader: (3)

Join Date: Sep 2012
Location: your mom's house phoenix, AZ
Posts: 3,558
Total Cats: 455
Default

Awesome Rick!
hi_im_sean is online now   Reply With Quote
Old 07-07-2016, 12:50 PM   #25
Ich verstehe nur Bahnhof
iTrader: (2)

psyber_0ptix's Avatar

Join Date: Mar 2012
Location: Northern VA
Posts: 2,946
Total Cats: 227
Default

Then there's a washer stacked on each end of the steel sleeve. Are the bronze bushings slightly undersized as to not crunch and bind during clamping (such that all the axial force is taken by the steel sleeve/end washers?

psyber_0ptix is offline   Reply With Quote
Old 07-07-2016, 12:54 PM   #26
Elite Member
iTrader: (3)

Join Date: Mar 2008
Location: Granbury, TX
Posts: 5,845
Total Cats: 559
Default

Quote:
Originally Posted by psyber_0ptix View Post
Then there's a washer stacked on each end of the steel sleeve. Are the bronze bushings slightly undersized as to not crunch and bind during clamping (such that all the axial force is taken by the steel sleeve/end washers?
Yes. Only the steel sleeve is clamped by the control arm bolts. This forces the steel sleeve to stay static with the chassis while the poly bushing and bronze bearing stay static with the control arm (see "movement surface" above).
hornetball is offline   Reply With Quote
Old 07-07-2016, 12:55 PM   #27
SadFab CEO
iTrader: (3)

Join Date: Sep 2012
Location: your mom's house phoenix, AZ
Posts: 3,558
Total Cats: 455
Default

Quote:
Originally Posted by psyber_0ptix View Post
Then there's a washer stacked on each end of the steel sleeve. Are the bronze bushings slightly undersized as to not crunch and bind during clamping (such that all the axial force is taken by the steel sleeve/end washers?
The washers are only used in the LCA alignment bolt locations. The bronze sleeves are sized accordingly so that they take no axial load, just radial. The bushing flanges still take the axial load, and everything clamps together entirely on the sleeves.
hi_im_sean is online now   Reply With Quote
Old 07-07-2016, 01:03 PM   #28
Ich verstehe nur Bahnhof
iTrader: (2)

psyber_0ptix's Avatar

Join Date: Mar 2012
Location: Northern VA
Posts: 2,946
Total Cats: 227
Default

Sorry for the misinformation and thanks for the clarification.

Do you have an image of the configuration with the washers then? Are they pinched on the end of the sleeves or do these washers sit atop the aligning cams?
psyber_0ptix is offline   Reply With Quote
Old 07-07-2016, 01:13 PM   #29
SadFab CEO
iTrader: (3)

Join Date: Sep 2012
Location: your mom's house phoenix, AZ
Posts: 3,558
Total Cats: 455
Default

Quote:
Originally Posted by psyber_0ptix View Post
Sorry for the misinformation and thanks for the clarification.

Do you have an image of the configuration with the washers then? Are they pinched on the end of the sleeves or do these washers sit atop the aligning cams?
No problem. Rather than try to explain, well just use pics. Also see posts 2 and 3 of the megathread.

Here is bobs cad drawing. Light grey is the sleeve, dark grey are the washers, and the bronze/gold... is the bronze



bearing in poly bushing



washer at each end of the sleeve, to be clamped together by the subframe and alignment bolt.


hi_im_sean is online now   Reply With Quote
Old 07-07-2016, 01:41 PM   #30
Ich verstehe nur Bahnhof
iTrader: (2)

psyber_0ptix's Avatar

Join Date: Mar 2012
Location: Northern VA
Posts: 2,946
Total Cats: 227
Default

Washers are for lowers. Got it. Sexy time. This makes it all clear. Also good photo representation of the split bronze sleeve design allowing the zerk fitting to splooge grease all over the steel shaft to push contaminants out. I'm excited now, just gotta press the things out harddd.
psyber_0ptix is offline   Reply With Quote
Old 07-08-2016, 09:57 AM   #31
Elite Member
iTrader: (3)

Join Date: Mar 2008
Location: Granbury, TX
Posts: 5,845
Total Cats: 559
Default

Quote:
Originally Posted by hornetball View Post
Since Aidan's picture was so pathetic
What, no comeback? Aidan, r u mad brah?
hornetball is offline   Reply With Quote
Old 07-08-2016, 09:59 AM   #32
SadFab Sales Lady
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 15,910
Total Cats: 1,093
Default

Quote:
Originally Posted by hornetball View Post
What, no comeback? Aidan, r u mad brah?
My picture was pathetic. I drew it on my phone. I accept defeat.
aidandj is offline   Reply With Quote
Old 07-08-2016, 10:06 AM   #33
Elite Member
iTrader: (3)

Join Date: Mar 2008
Location: Granbury, TX
Posts: 5,845
Total Cats: 559
Default

I could never have drawn something like that on a phone. You young 'uns are amazing.
hornetball is offline   Reply With Quote
Old 07-08-2016, 10:42 AM   #34
SadFab CEO
iTrader: (3)

Join Date: Sep 2012
Location: your mom's house phoenix, AZ
Posts: 3,558
Total Cats: 455
Default

Youngns'- draws circles on phone

Oldns'- Pilots supersonic craft into enemy territory in the face of adversity.

hi_im_sean is online now   Reply With Quote
Old 07-08-2016, 02:19 PM   #35
I take big bites
iTrader: (1)

turbofan's Avatar

Join Date: Sep 2010
Location: Portland, OR
Posts: 6,117
Total Cats: 426
Default

Where's the damned likecat button. Stupid meddlers.
turbofan is offline   Reply With Quote
Old 09-27-2016, 02:56 AM   #36
Senior Member
iTrader: (1)

Join Date: Mar 2010
Location: Bay Area, CA
Posts: 657
Total Cats: 109
Default

Wanna bring me a poly bushing conversion kit this weekend?
gesso is offline   Reply With Quote
Old 09-27-2016, 11:01 AM   #37
Destroyer of Inconel
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 9,048
Total Cats: 811
Default

Quote:
Originally Posted by gesso View Post
Wanna bring me a poly bushing conversion kit this weekend?
Ok, so THAT is tempting. How many of these guys do you all have ready to rock?
EO2K is offline   Reply With Quote
Old 09-27-2016, 11:07 AM   #38
SadFab Sales Lady
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 15,910
Total Cats: 1,093
Default

We're in the middle of some production issues of the steel sleeves. We have most everything else ready to go.
aidandj is offline   Reply With Quote
Old 09-27-2016, 11:49 AM   #39
Elite Member
iTrader: (6)

Join Date: Feb 2013
Location: Staunton, Va
Posts: 1,862
Total Cats: 128
Default

So your saying that my set should be done any time now, right?
ryansmoneypit is offline   Reply With Quote
Old 09-27-2016, 12:54 PM   #40
mkturbo.com
iTrader: (24)

shuiend's Avatar

Join Date: May 2006
Location: Charleston SC
Posts: 12,703
Total Cats: 847
Default

Quote:
Originally Posted by ryansmoneypit View Post
So your saying that my set should be done any time now, right?
Pretty sure that it ships tomorrow.
shuiend is offline   Reply With Quote
