Default New Enhanced Megasquirt - Teaser pics

Let the commenting begin.

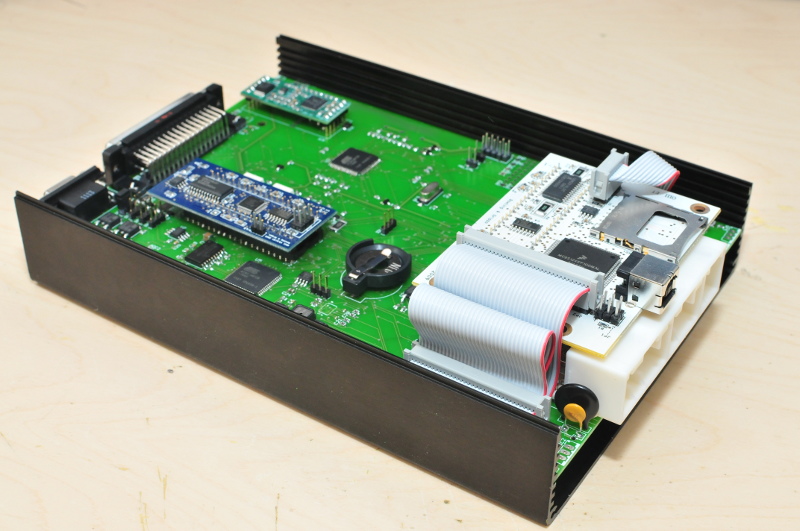

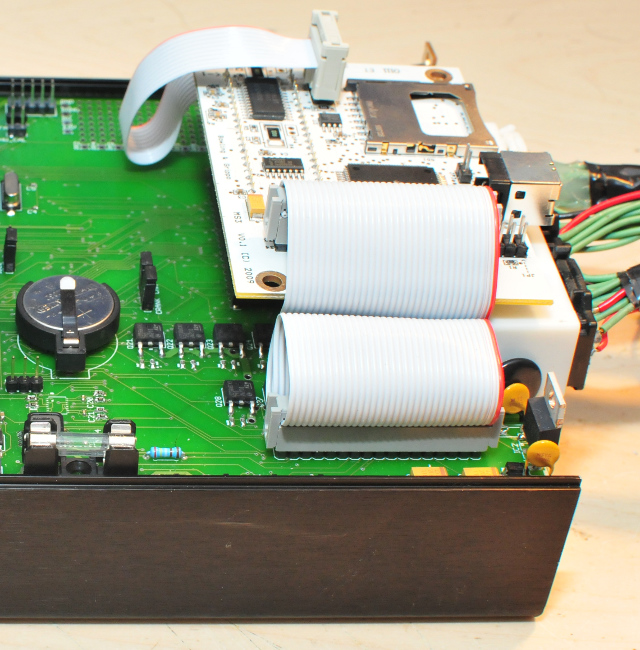

Attached Thumbnails
New Enhanced Megasquirt - Teaser pics-dsc_5793_2.jpg   New Enhanced Megasquirt - Teaser pics-dsc_5794_1.jpg
Reverant is offline   Reply With Quote
Old 06-29-2012, 02:57 PM   #2
mkturbo.com
iTrader: (24)

shuiend's Avatar

Join Date: May 2006
Location: Charleston SC
Posts: 12,702
Total Cats: 847
Default

Why MS2 and MS3 boards in it? Going to actually try to get it licensed by B&G? And for Joe Perez, are you going to release all the schematics that you have for it?
shuiend is offline   Reply With Quote
Old 06-29-2012, 03:02 PM   #3
Supporting Vendor
Thread Starter
iTrader: (10)

Reverant's Avatar

Join Date: Jun 2006
Location: Athens, Greece
Posts: 5,359
Total Cats: 187
Default

More inputs and outputs of course. You can ditch the MS2 board if you don't want it and/or replace the MS3 for an MS2 for reduced cost.
Reverant is offline   Reply With Quote
Old 06-29-2012, 03:08 PM   #4
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,008
Total Cats: 333
Default

In for my turbo car.

Dat electrical engineer.
hustler is offline   Reply With Quote
Old 06-29-2012, 03:12 PM   #5
Elite Member
iTrader: (1)

Join Date: Jun 2006
Location: Warrington/Birmingham
Posts: 2,658
Total Cats: 41
Default

Oh Nice job Reverant!

I guess the two ECU's talk to each other via CAN, with the 'aux' MS2 having completely custom firmware on it?

Also do you now have a RTC? (button battery).
richyvrlimited is offline   Reply With Quote
Old 06-29-2012, 03:12 PM   #6
Elite Member
iTrader: (1)

Join Date: Jun 2006
Location: Warrington/Birmingham
Posts: 2,658
Total Cats: 41
Default

Also what's the est pricing for a 2001+....
richyvrlimited is offline   Reply With Quote
Old 06-29-2012, 03:14 PM   #7
Supporting Vendor
Thread Starter
iTrader: (10)

Reverant's Avatar

Join Date: Jun 2006
Location: Athens, Greece
Posts: 5,359
Total Cats: 187
Default

Yes, the two boards will communicate with each other through CAN. There are also two additional coprocessors on the board, also with CAN, but these serve a different purpose.

There is an RTC on there, as well as TPIC, and an optional onboard wideband module (SLC OEM).
Reverant is offline   Reply With Quote
Old 06-29-2012, 03:20 PM   #8
Elite Member
iTrader: (1)

Join Date: Jun 2006
Location: Warrington/Birmingham
Posts: 2,658
Total Cats: 41
Default

Holy crap!

doesn't really need saying, but i'll say it anyway. GREAT JOB!

Have a props
richyvrlimited is offline   Reply With Quote
Old 06-29-2012, 03:24 PM   #9
Senior Member

ianferrell's Avatar

Join Date: Aug 2010
Location: Maumelle, AR
Posts: 617
Total Cats: 2
Default

on board slc oem is win... I have one and really like it. Very curious to hear what all you've got working there. I'm guessing you have some manner of jumper setup to facilitate 90-00 stuff. Got a 01-05 version? I'm guessing no ms3x cause you just built everything on your board, I'm not familiar w/ all the licensing restrictions... I wouldn't have thought this 'legal', but it certainly looks like an awesome solution to so many v3.0 problems.
ianferrell is offline   Reply With Quote
Old 06-29-2012, 03:26 PM   #10
Supporting Vendor
Thread Starter
iTrader: (10)

Reverant's Avatar

Join Date: Jun 2006
Location: Athens, Greece
Posts: 5,359
Total Cats: 187
Default

Quote:
Originally Posted by richyvrlimited View Post
Holy crap!

doesn't really need saying, but i'll say it anyway. GREAT JOB!

Have a props
Thanks. I'm dying to write about all the hardware features, but I don't want to spill too many beans just yet. Suffice to say, jaws are going to drop.
Reverant is offline   Reply With Quote
Old 06-29-2012, 03:28 PM   #11
Junior Member

Join Date: Sep 2010
Posts: 89
Total Cats: 3
Default

Wow! Cannot wait to get my hands on one of these! You know this already though huh
EunosBen is offline   Reply With Quote
Old 06-29-2012, 03:28 PM   #12
y8s
2 Props,3 Dildos,& 1 Cat
iTrader: (8)

y8s's Avatar

Join Date: Jun 2005
Location: Fake Virginia
Posts: 18,840
Total Cats: 345
Default

knock and real time clock and wtf is the blue board?

also curious about your licensing with B&G. they Bitchy and Grumpy when people sell interfaces to the MS3.
y8s is offline   Reply With Quote
Old 06-29-2012, 03:28 PM   #13
Supporting Vendor
Thread Starter
iTrader: (10)

Reverant's Avatar

Join Date: Jun 2006
Location: Athens, Greece
Posts: 5,359
Total Cats: 187
Default

Quote:
Originally Posted by ianferrell View Post
on board slc oem is win... I have one and really like it. Very curious to hear what all you've got working there. I'm guessing you have some manner of jumper setup to facilitate 90-00 stuff. Got a 01-05 version? I'm guessing no ms3x cause you just built everything on your board, I'm not familiar w/ all the licensing restrictions... I wouldn't have thought this 'legal', but it certainly looks like an awesome solution to so many v3.0 problems.
This board is for the 01-05 (including MSM) only. The rest of the gens will follow very soon.

The MS3x has no place here. It is a cool solution for quick and dirty DIY job along with a V3.0/V3.57 board, but that's it. Everything the MS3x has to offer (and many, many more) are on my board.
Reverant is offline   Reply With Quote
Old 06-29-2012, 03:33 PM   #14
Supporting Vendor
Thread Starter
iTrader: (10)

Reverant's Avatar

Join Date: Jun 2006
Location: Athens, Greece
Posts: 5,359
Total Cats: 187
Default

Quote:
Originally Posted by y8s View Post
knock and real time clock and wtf is the blue board?

also curious about your licensing with B&G. they Bitchy and Grumpy when people sell interfaces to the MS3.
The blue board is an MS2 daughterboard.

Licensing will not be a problem, apart from cost of course.

The knock and RTC are not the same modules as the jsmcortina knock/RTC boards. I use my own approach.

Hint: One of the coprocessors is a full sequential crank/cam decoder with an angle clock.
Reverant is offline   Reply With Quote
Old 06-29-2012, 03:37 PM   #15
Senior Member

ianferrell's Avatar

Join Date: Aug 2010
Location: Maumelle, AR
Posts: 617
Total Cats: 2
Default

Willing to divulge the price target?
ianferrell is offline   Reply With Quote
Old 06-29-2012, 03:38 PM   #16
Junior Member

Join Date: Sep 2010
Posts: 89
Total Cats: 3
Default

Maybe to early for this but what kind of price point are you hoping to hit?

Also, do you intend to ship with all features for all models or simply a selected featureset per customer? I really regret not asking you for launch control as an example.

Also, any attempt at traction control using VSS? These guys have a neat solution but I don't know how replicatable/integratable it is to this setup? Racelogic - Traction Control
EunosBen is offline   Reply With Quote
Old 06-29-2012, 03:38 PM   #17
Supporting Vendor
Thread Starter
iTrader: (10)

Reverant's Avatar

Join Date: Jun 2006
Location: Athens, Greece
Posts: 5,359
Total Cats: 187
Default

Quote:
Originally Posted by EunosBen View Post
Wow! Cannot wait to get my hands on one of these! You know this already though huh
Thanks Ben. The 99-00 version isn't that far away at all, so I understand if you can't help yourself!
Reverant is offline   Reply With Quote
Old 06-29-2012, 03:39 PM   #18
I haz no trubo
iTrader: (2)

Oscar's Avatar

Join Date: Jan 2007
Location: Bolton, UK
Posts: 3,012
Total Cats: 108
Default

So no longer for my eyes only I guess?
Oscar is offline   Reply With Quote
Old 06-29-2012, 03:40 PM   #19
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,008
Total Cats: 333
Default

Can you walk down the street and get a Gyro?
hustler is offline   Reply With Quote
Old 06-29-2012, 03:41 PM   #20
Supporting Vendor
Thread Starter
iTrader: (10)

Reverant's Avatar

Join Date: Jun 2006
Location: Athens, Greece
Posts: 5,359
Total Cats: 187
Default

Quote:
Originally Posted by ianferrell View Post
Willing to divulge the price target?
It is not firm as of yet. There are too many features that I still can't speak of, and once you know everything, the price will be a steal given the feature set. Definitely less than $1k.
Reverant is offline   Reply With Quote
