Old 09-12-2015, 05:19 PM   #341
SadFab Sales Lady
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 14,859
Total Cats: 938
Default

Need 3.3 rear end?
aidandj is offline   Reply With Quote
Old 09-12-2015, 06:18 PM   #342
Elite Member
iTrader: (15)

patsmx5's Avatar

Join Date: Aug 2007
Location: Houston, TX
Posts: 7,979
Total Cats: 128
Default

Quote:
Originally Posted by Leafy View Post
All I know is that his intake valve clearance closed way up. He can say more. I'm too afraid to look at my intake valve clearance or my oil after the amount of time my car spent banging off the 8500 rev limit on the plane side course.
Oh, well that's a valve/seat issue then. I'd be curious what seat width he was running on the intakes, and where the seat was making contact on the face of the valve (outer edge, middle, inner edge). That's likely the problem if the intake valves are tightening up.
patsmx5 is online now   Reply With Quote
Old 11-26-2015, 08:45 PM   #343
Senior Member
Thread Starter
iTrader: (1)

Join Date: Jan 2011
Location: Chattanooga, Tn
Posts: 986
Total Cats: 115
Default

Since everything is getting changed for next year. I'll do something I have NEVER done before.

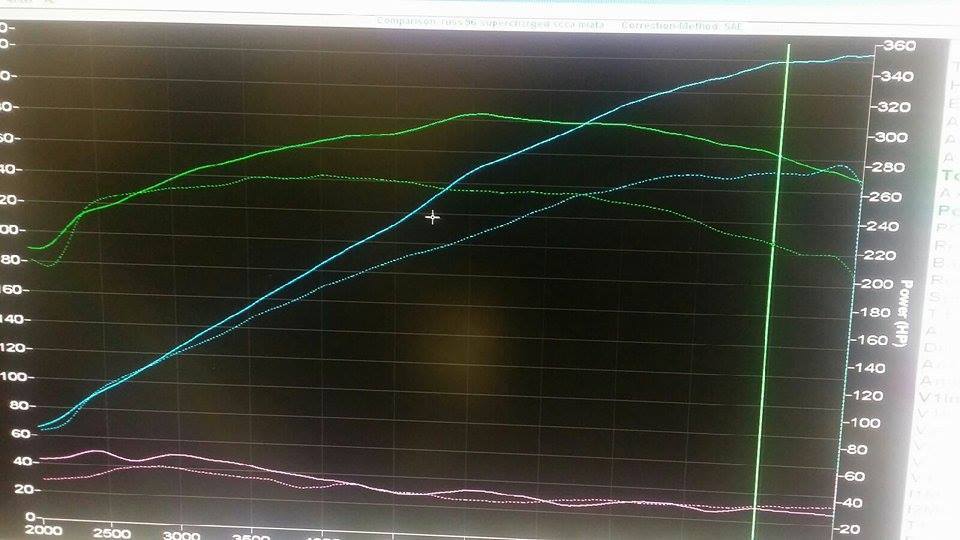

Here is an old dyno graph....

Attached Thumbnails
Eric Anderson's Supercharged SSM Miata-11039441_10153070464364242_1628308879_n_zpsnoeduejq.jpg
TNTUBA is offline   Reply With Quote
Old 11-26-2015, 08:50 PM   #344
SadFab Sales Lady
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 14,859
Total Cats: 938
Default

Oooh. I like that torque curve.
aidandj is offline   Reply With Quote
Old 11-26-2015, 09:12 PM   #345
Elite Member
iTrader: (15)

patsmx5's Avatar

Join Date: Aug 2007
Location: Houston, TX
Posts: 7,979
Total Cats: 128
Default

Eric, is that your before-cams motor or after-cams motor?
patsmx5 is online now   Reply With Quote
Old 11-26-2015, 09:21 PM   #346
Senior Member
Thread Starter
iTrader: (1)

Join Date: Jan 2011
Location: Chattanooga, Tn
Posts: 986
Total Cats: 115
Default

I don't remember.

But then again.....everything is getting changed this winter. New blower, new head, new short block, new fuel system......Like literally.....everything.

Attached Thumbnails
Eric Anderson's Supercharged SSM Miata-cams%2520dyno_zpsj3m1gnxu.jpg
TNTUBA is offline   Reply With Quote
Old 11-26-2015, 10:50 PM   #347
SadFab Sales Lady
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 14,859
Total Cats: 938
Default

Quote:
Originally Posted by TNTUBA View Post
I don't remember.

But then again.....everything is getting changed this winter. New blower, new head, new short block, new fuel system......Like literally.....everything.

Ooh fun. What details can you share. Same blower? Something besides a VVT head?
aidandj is offline   Reply With Quote
Old 11-26-2015, 11:49 PM   #348
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 33,176
Total Cats: 1,991
Default

that is one really stout powerband, very nice
18psi is offline   Reply With Quote
Old 11-27-2015, 01:12 AM   #349
Elite Member
iTrader: (15)

patsmx5's Avatar

Join Date: Aug 2007
Location: Houston, TX
Posts: 7,979
Total Cats: 128
Default

Quote:
Originally Posted by aidandj View Post
Ooh fun. What details can you share. Same blower? Something besides a VVT head?
I know a little about it, not sure I can post it though. Not a VVT head though I know that. But now you see why I'm trying to get my whipple setup working correctly.
patsmx5 is online now   Reply With Quote
Old 11-27-2015, 07:53 AM   #350
Senior Member
Thread Starter
iTrader: (1)

Join Date: Jan 2011
Location: Chattanooga, Tn
Posts: 986
Total Cats: 115
Default

Yea, I'm not posting any specific details about the new setup. Sorry :(

The car won the Pro Solo Championship by a healthy margin and finished 3rd at Nationals only .094 second out of first, with 1 cylinder over 80psi down on compression.

So I'm hoping to make it better, stronger and faster this winter.
TNTUBA is offline   Reply With Quote
Old 11-27-2015, 02:35 PM   #351
Junior Member
iTrader: (1)

Join Date: May 2014
Posts: 248
Total Cats: 13
Default

Quote:
Originally Posted by TNTUBA View Post
Yea, I'm not posting any specific details about the new setup. Sorry :(

The car won the Pro Solo Championship by a healthy margin and finished 3rd at Nationals only .094 second out of first, with 1 cylinder over 80psi down on compression.

So I'm hoping to make it better, stronger and faster this winter.
Is some of this David's old set up?
stoves is offline   Reply With Quote
Old 11-27-2015, 06:28 PM   #352
Senior Member
Thread Starter
iTrader: (1)

Join Date: Jan 2011
Location: Chattanooga, Tn
Posts: 986
Total Cats: 115
Default

Quote:
Originally Posted by stoves View Post
Is some of this David's old set up?
No
TNTUBA is offline   Reply With Quote
Old 11-28-2015, 01:50 AM   #353
Elite Member

Join Date: Jul 2005
Location: Anacortes, WA
Posts: 2,423
Total Cats: 109
Default

Quote:
Originally Posted by TNTUBA View Post
Since everything is getting changed for next year. I'll do something I have NEVER done before.

Here is an old dyno graph....

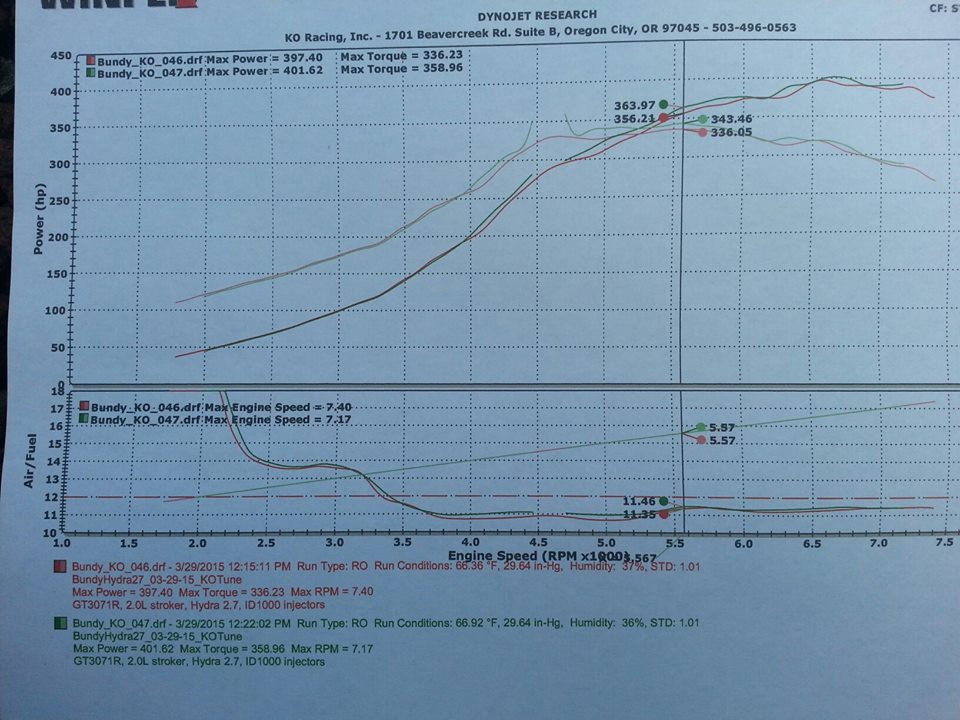

holy flat torque curve! I needed a 4.778 rear end and 8600 rev limit to avoid shifting and to attempt staying in my torque band for coming off corners.

Attached Thumbnails
Eric Anderson's Supercharged SSM Miata-11102666_887984704596837_5560592024436732520_n.jpg
bbundy is offline   Reply With Quote
Old 11-28-2015, 02:40 PM   #354
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: woosta, ma
Posts: 8,611
Total Cats: 91
Default

Bob if the courses keep going the way they're going you might just want the 4.3 and my turbo. I needed about 8 more mph without otherwise changing my car to be happy on the plane side course.
Leafy is offline   Reply With Quote
Old 11-28-2015, 10:50 PM   #355
Senior Member
Thread Starter
iTrader: (1)

Join Date: Jan 2011
Location: Chattanooga, Tn
Posts: 986
Total Cats: 115
Default

8 more MPH???? Does your car go less than 70 as it is?
TNTUBA is offline   Reply With Quote
Old 11-28-2015, 11:00 PM   #356
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: woosta, ma
Posts: 8,611
Total Cats: 91
Default

Sixty Nine, very nice.
Attached Thumbnails
Eric Anderson's Supercharged SSM Miata-borat.jpg
Leafy is offline   Reply With Quote
Old 11-28-2015, 11:09 PM   #357
Senior Member
Thread Starter
iTrader: (1)

Join Date: Jan 2011
Location: Chattanooga, Tn
Posts: 986
Total Cats: 115
Default

Haaaaaa.
TNTUBA is offline   Reply With Quote
Old 11-29-2015, 01:15 AM   #358
Elite Member

Join Date: Jul 2005
Location: Anacortes, WA
Posts: 2,423
Total Cats: 109
Default

Quote:
Originally Posted by Leafy View Post
Bob if the courses keep going the way they're going you might just want the 4.3 and my turbo. I needed about 8 more mph without otherwise changing my car to be happy on the plane side course.
At 8600 rpm my car would do ~73 MPH in second a 6 speed with a 3.636 would do ~71. It's well off the end of my power curve however but it will go that fast. The problem was the Plane side course had pretty much no slow spots it really wasnt much of a power course CSP cars would have been towards the front of SSM on that course. I was going to try 3rd gear on my second run because the Quaife is close between second and third it would have still been on torque for all but one turn. Broken throttle spring on a Skunk 2 throttle body DNF'd that run however at the first lift spot. With the mad rush and panic to re-bend the throttle spring and make it work to get my last run I decided to not try it again. Last run was fast but with one too sideways moment that probably cost me 3 spots in the trophies. Didn't actually hit the rev limiter but a lot of time was spent deep in the revs past the sweet spot of my power curve.

Last edited by bbundy; 11-29-2015 at 01:35 AM.
bbundy is offline   Reply With Quote
Old 11-29-2015, 01:24 AM   #359
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: woosta, ma
Posts: 8,611
Total Cats: 91
Default

The run where I nailed the first turn around I was on the rev limiter at the first offset coming back towards the stands. After the turn around by the stands I was take it or leave it on the higher rev limiter and I think if I ever could have gotten the turn correct in the back left corner of the course I'd have been on the limiter on the back section longer than the "straight" too. But yeah that course was a whole lot of drive my car like its in CSP, floor it and turn the wheel and brake for the pin turns.
Leafy is offline   Reply With Quote
Old 11-29-2015, 01:54 AM   #360
Elite Member

Join Date: Jul 2005
Location: Anacortes, WA
Posts: 2,423
Total Cats: 109
Default

I think Erics flat torque curve would be easier to drive. my car becomes more driveable only by gearing it to stay away from the rapid torque rise portion of the curve. I have no traction control ABS or launch control. Eric has all of that. Need to come off slow corners at about 4000 rpm or better or throttle control is much more like the throttle cable is a sticky stretchy rubber band. Having said that I think the area under the used portions of our two curves arn't that much different. If I drove my car on a road course track for 20 minute sessions with the boost turned up like that it might not live much longer than his but if I turn it down about 50-60 hp it's reasonably reliable.
bbundy is offline   Reply With Quote
